Name: radio walkie talkie 2022 Baofeng DM-X GPS Walkie Talkie Dual Time Slot DMR Digital/Analog DMR Repeater Upgrade of DM-1801 DM-1701 DM-1702 Radio long range walkie talkies 1000 miles
Brand: MMO Dropship
SKU: 32968308121
Price: 181.77 VND
Availability: InStock
Rating: 4.9 (96 reviews)

Description
Shipping & Returns

Brand Name:	BAOFENG
Battery Capacity(mAh):	2200
Origin:	CN(Origin)
Is_Display:	Yes
Waterproof / Water-Resistant:	IP45
Walkie Talkie Type:	Portable
Maximum Range:	3km-5km
Output Power(w):	3w-5w
Certification:	CE
Certification:	FCC
Model Number:	DM-X
Frequency Range:	VHF 136-174MHz / UHF400-470MHz
Dimensions:	1336232mm(Antenna Not included)
Storage Channel:	1024
Material:	Plastic and metal
Black-and-white LCD screen:	high definition
Dual Band:	Dual Time Slot Walkie Talkie Tier2
Baofeng DMR Radio:	Ham Amateur Two Way Radio
Power:	1W/5W
DMR Tier II VFO:	Baofeng Tier 2 Digital Walkie Talkie
Type:	Two Way Radio
Other series:	Baofeng DM-5R Plus DM-1701 DM-1702
Function:	GPS
Analog & Digital:	DMR Tier I & II Radio
Supports:	Digital & Analogue Mode
Compatible with:	Motorola Hytera DMR Radio
support:	DMR repeater function
Battery Capacity:	7.4V 2200mAh/16.28Whs
Support:	DMR repeater function
Selling series:	TYT MD-760 TYT MD-380 TYT MD-2017 Radioddityt GD-77

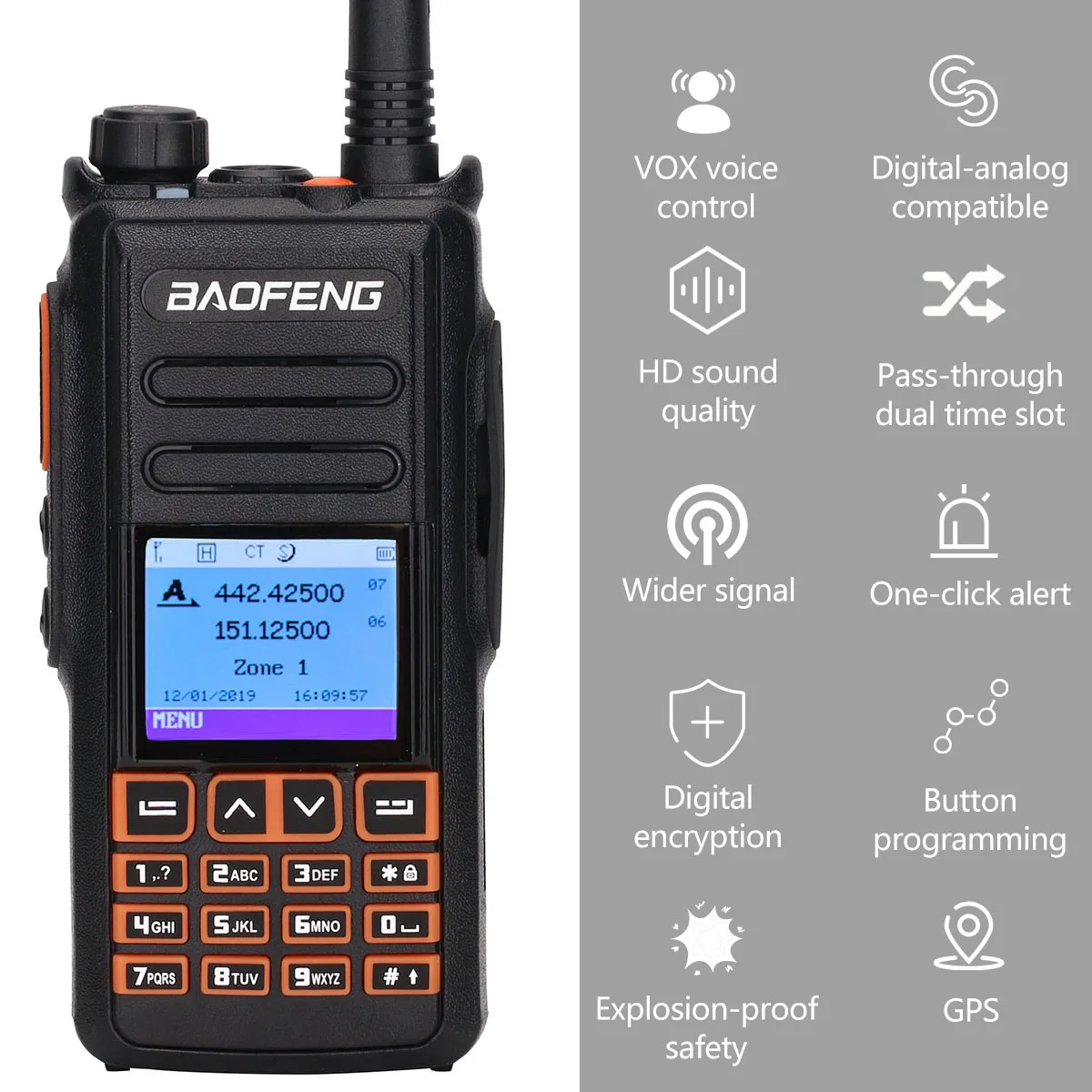

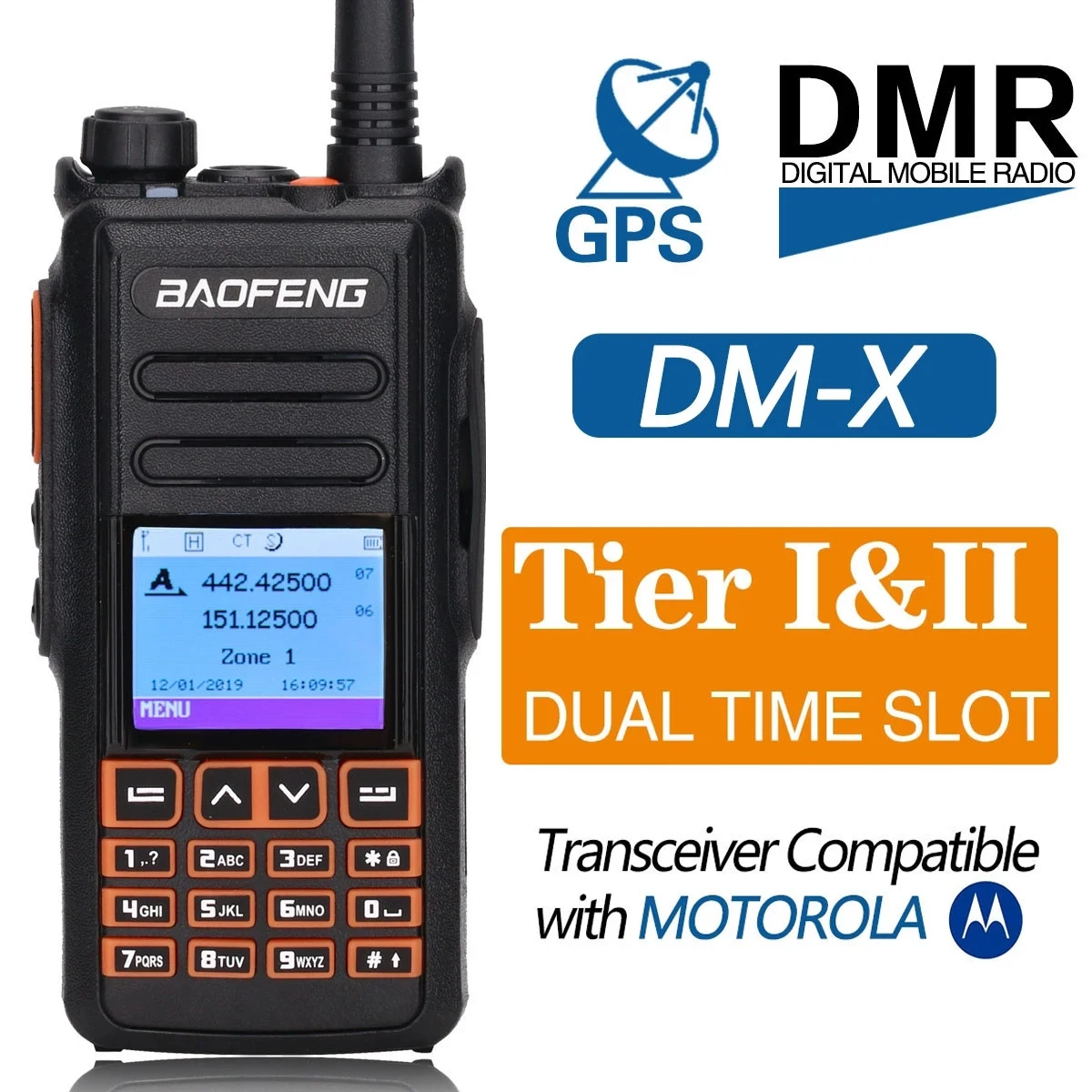

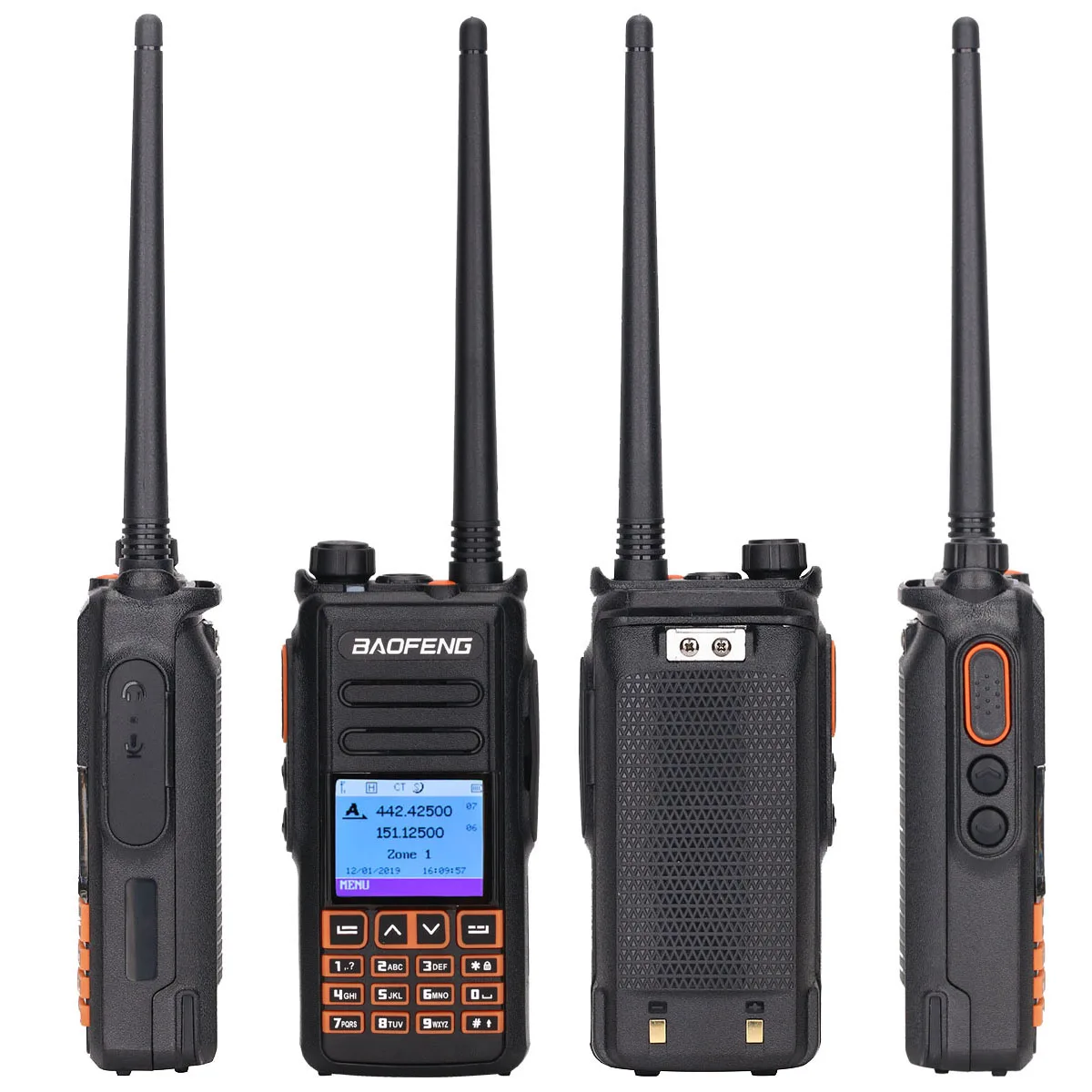

Baofeng DM-X is Baofeng Newest arrival digital walkie talkie,isa Dual Band, DMO TRUE Dual Time Slot, Tier I & Tier II compliant DMR radio Enjoy crystal clear audio quality with DMR technology.

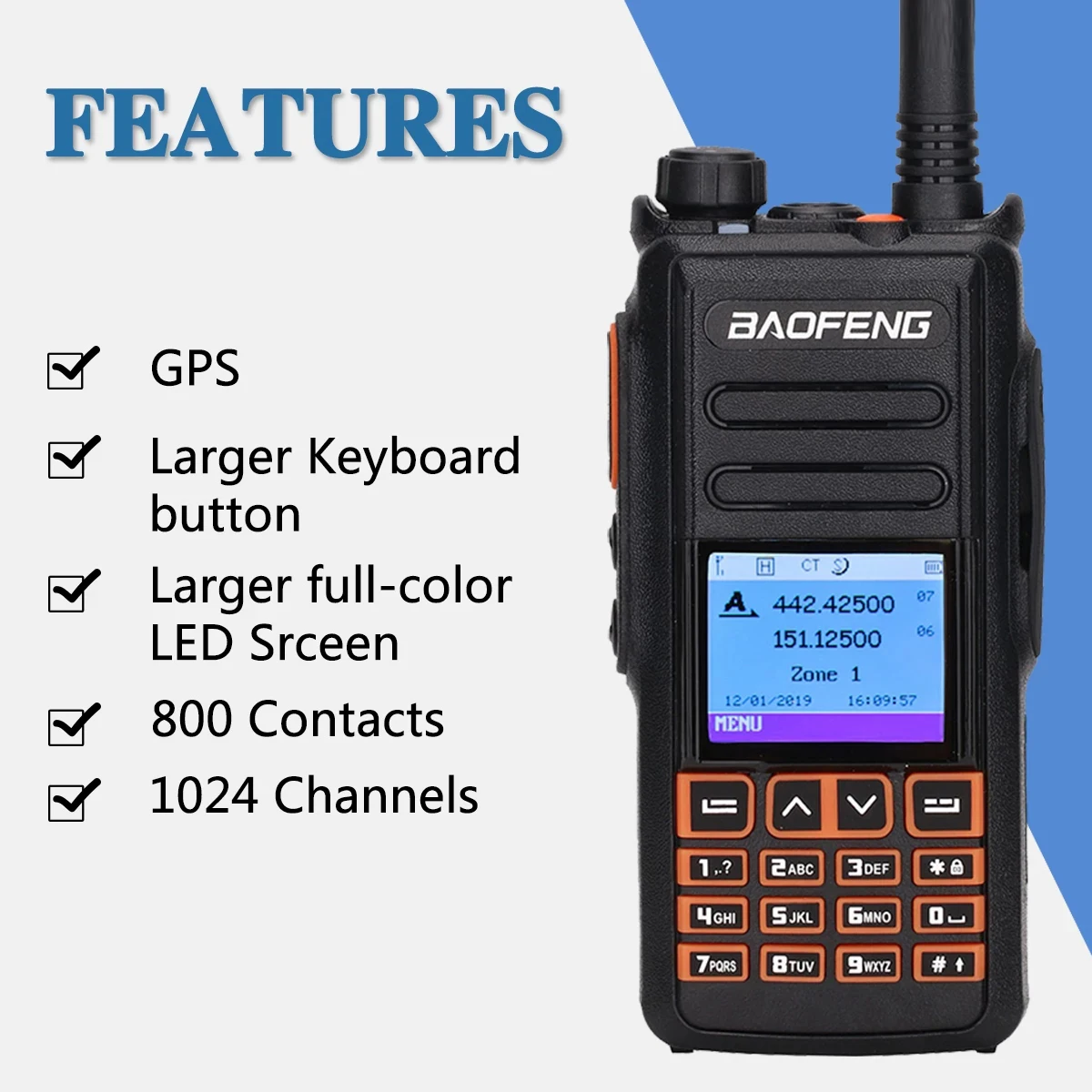

Product Features：

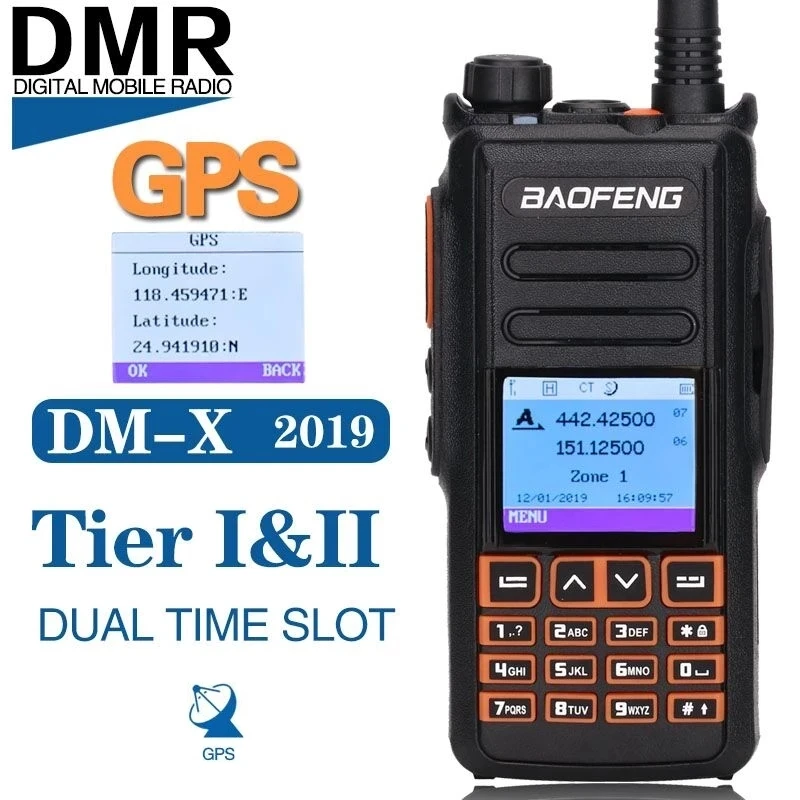

1.GPS Function:Support longitude & latitude position.

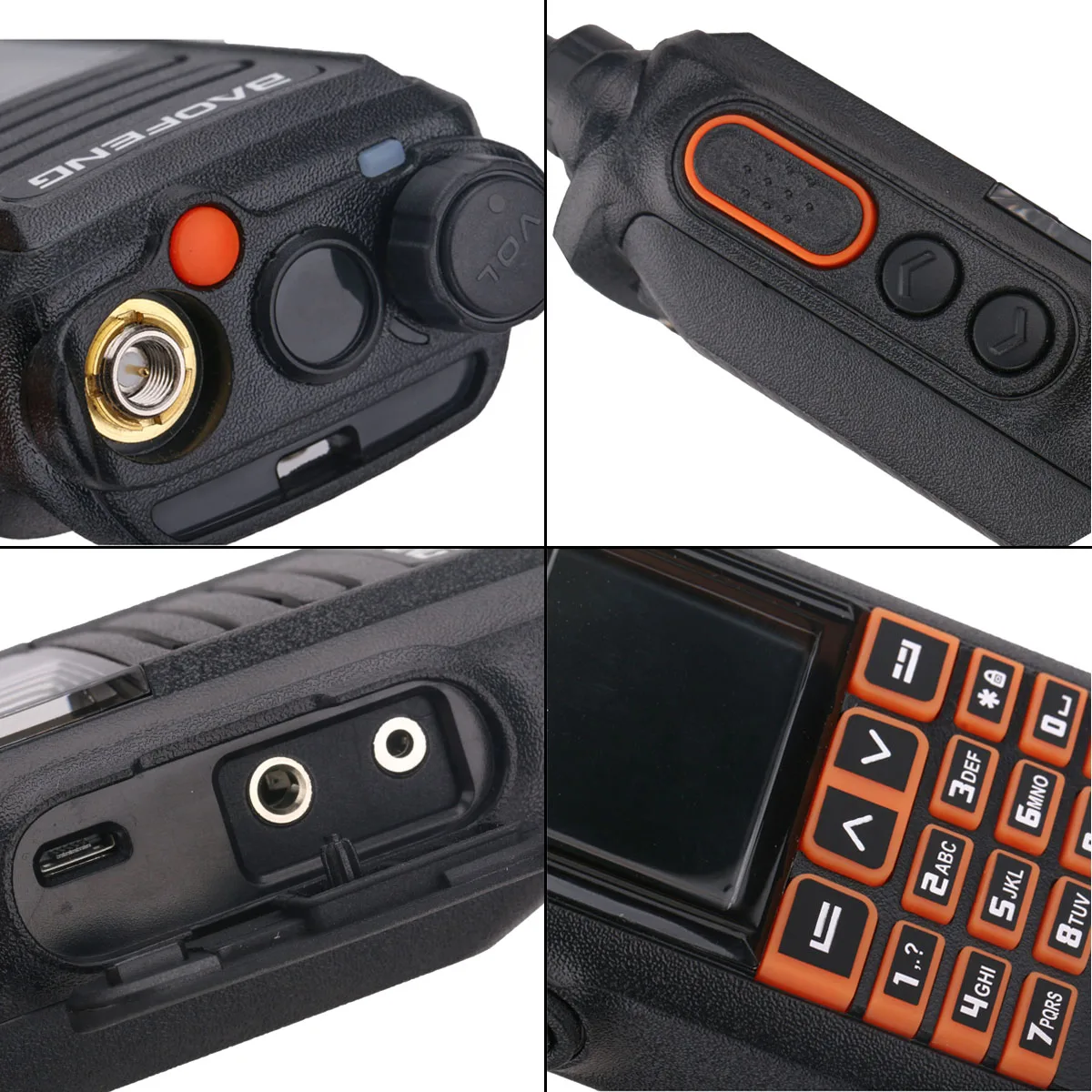

2.Larger keyboard buttonthan dm-860 dm-5r dm-1701 dm-1702,so that you canEasy to operate by your finger.

3.Larger full-Color Led Screen

4.Dual Band VHF 137-174MHz & UHF 400-470MHz

5.SMS fuction

Supports SMS ,text editing and draft in 64 characters in englsih,so that the text message calls can be sent when voice call is inconvenient.

6.High sound quality

7.Manual writing -frequency

8.High/Low power mode

9.Larger Capacity Li-ion BatteryEquipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time. It lasts 30% longer than the other DMR radio. DM-X is light weight and handy, perfect for long QSO’s.

10.More keypad operations Channel names,TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.

11.Talking Range

The talking range of Baofeng DM-X can be as far as 5KM (3 Miles) under the visible range. There are other factors that affect the talking range of a two-way radio. such as weather, exact frequency used, and obstructions etc.

Our has been dedicated to improving quality,providing better after-sale service,and strengthening technical support.

We provide software downloading and firmware upgrade service.If you need,please contact us.

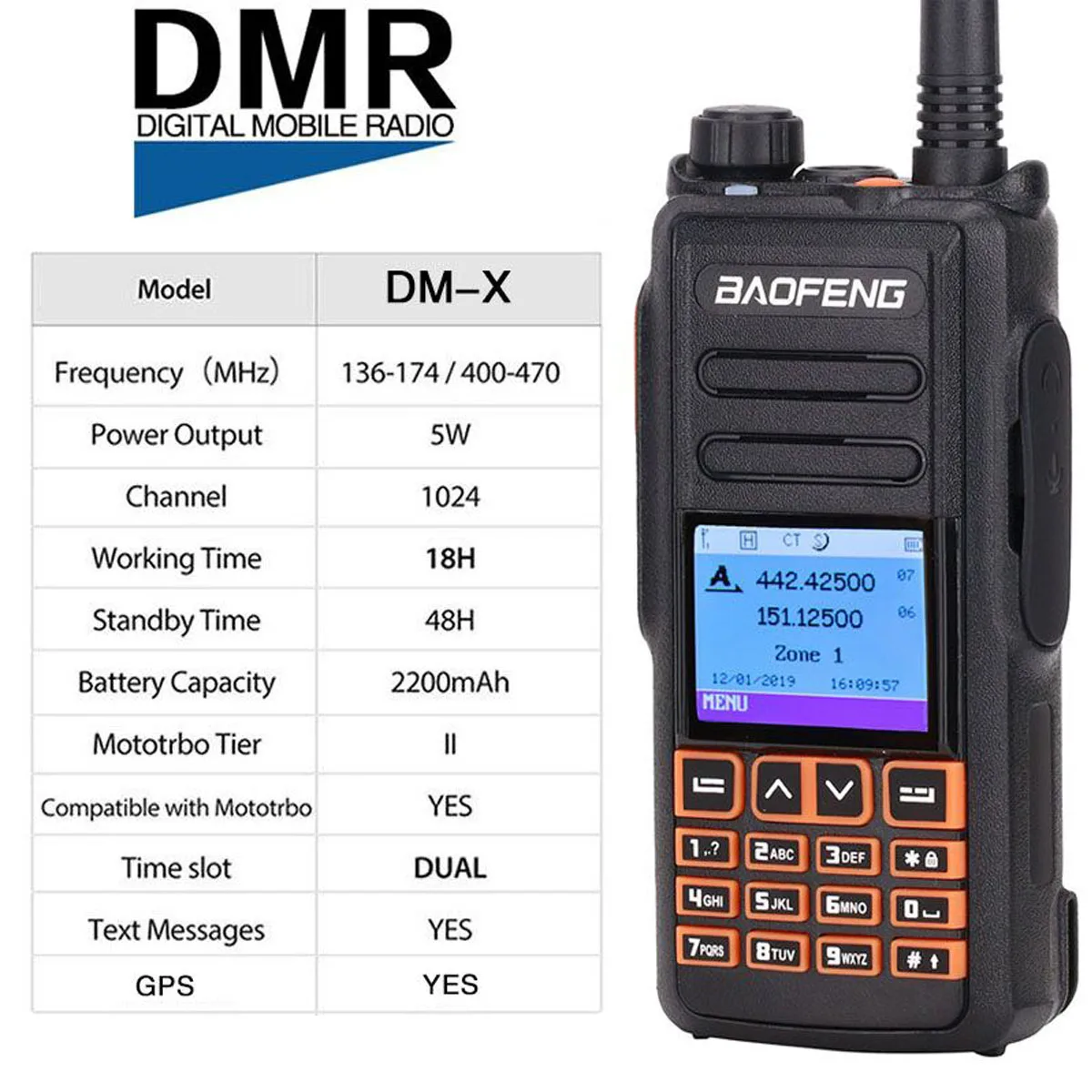

Specifications:

General

Frequency Range

VHF:136-174MHz, UHF:400-470MHz (Dual Band)

Memory Channel

1024

Operating Voltage

DC 7.4V

Frequency stability

±1.0ppm

Demission

136*62*36mm (no including the antenna)

Operating environment

-30℃-+60℃

Weight

Approach.274g(including the battery and antenna)

Transmitter

Output power

High:5W Low:1W

Adjacent channel power

≤65dB ≤60dB

Output consumption

Analog≤1.6A Digital≤0.9A

Audio response

+1~3dB

Standby current consumption

≤0.18A

Digital Protocol

ETSI-TS102 361-1,-2,-3

Modulation distortion

≤5%

Vocoder type

AMBE+2 TM

FM/FM modulation:

16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz

4FSK/4FSK digital modulation

12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE

Signal-to-noise(wide/narrow)

≥45dB,25KHz ≥40dB,12.5KHz

Antenna Port Spurious

9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm

Receiver

Analog receive sensitivity

-122dBm (12dB SINAD)

Digital receive sensitivity

-122dBm (BER≤5%)

Audio power

Audio distortion

<10%

Signal imitation

≥70dB

Audio response

+1~3dB

Receive current

≤380mA

Intermediation(wide/narrow)

≥62dB/≥58dB

Adjacent channel selectivity

≥65dB/≥60dB

PM noise

≥45dB,25KHz / ≥40dB,12.5KHz

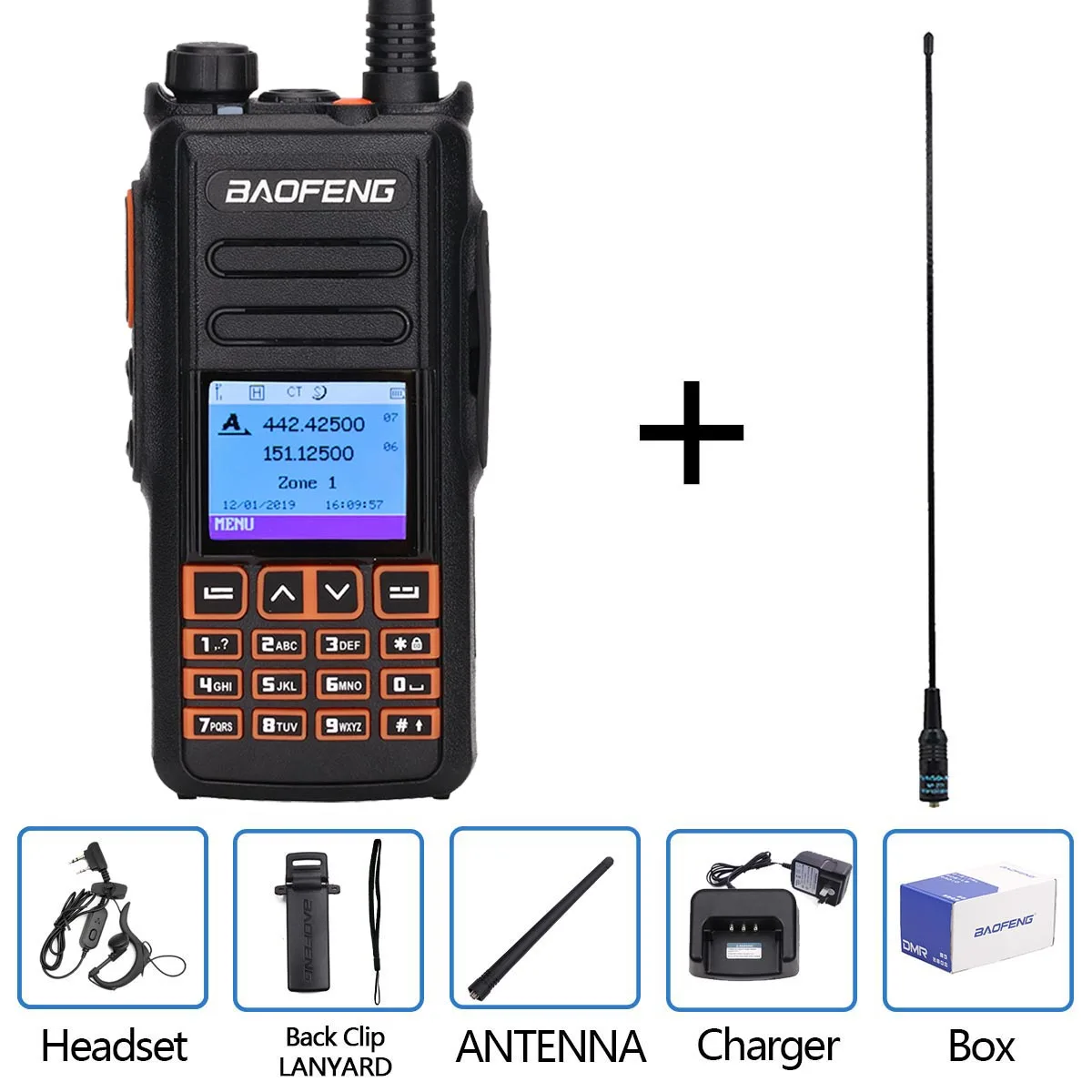

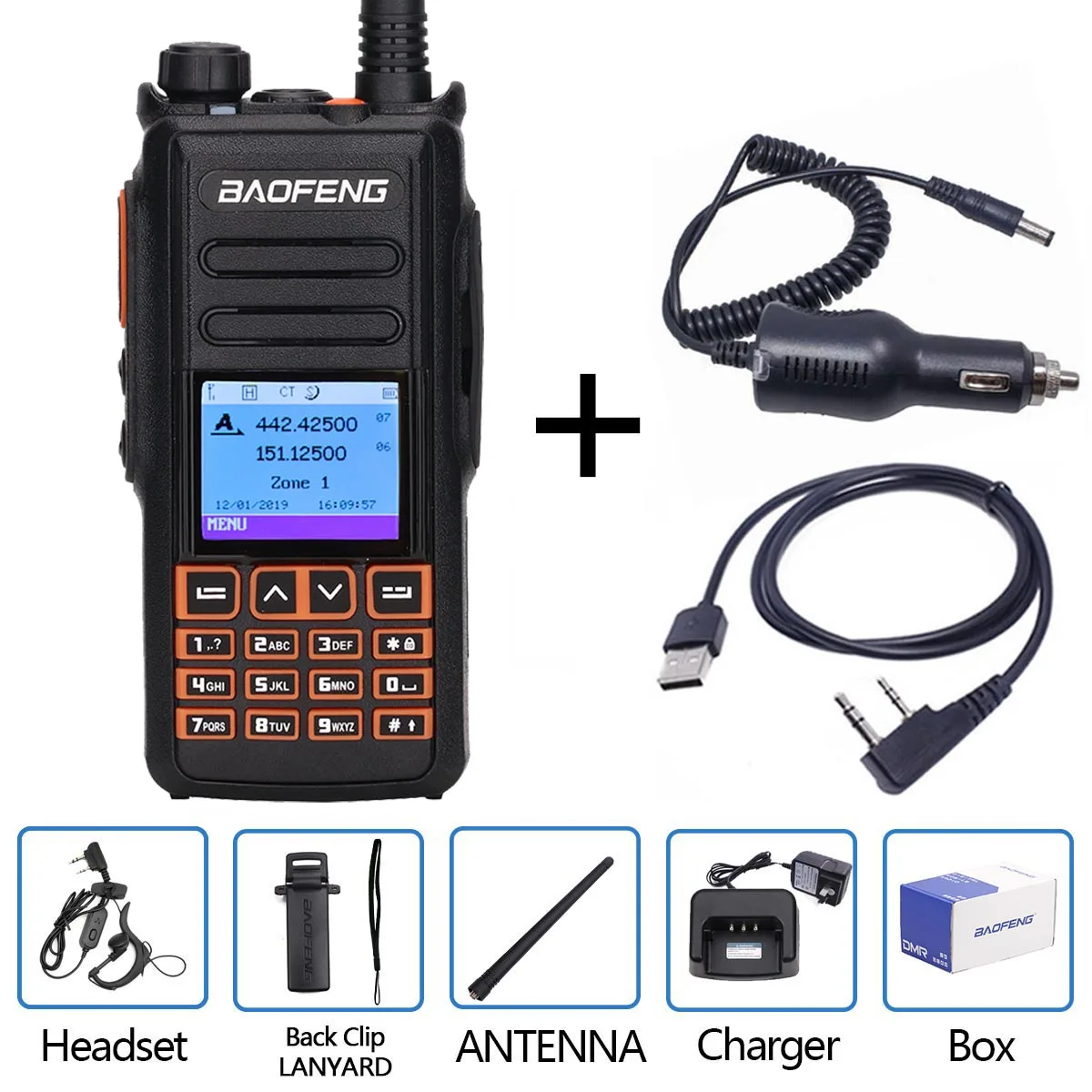

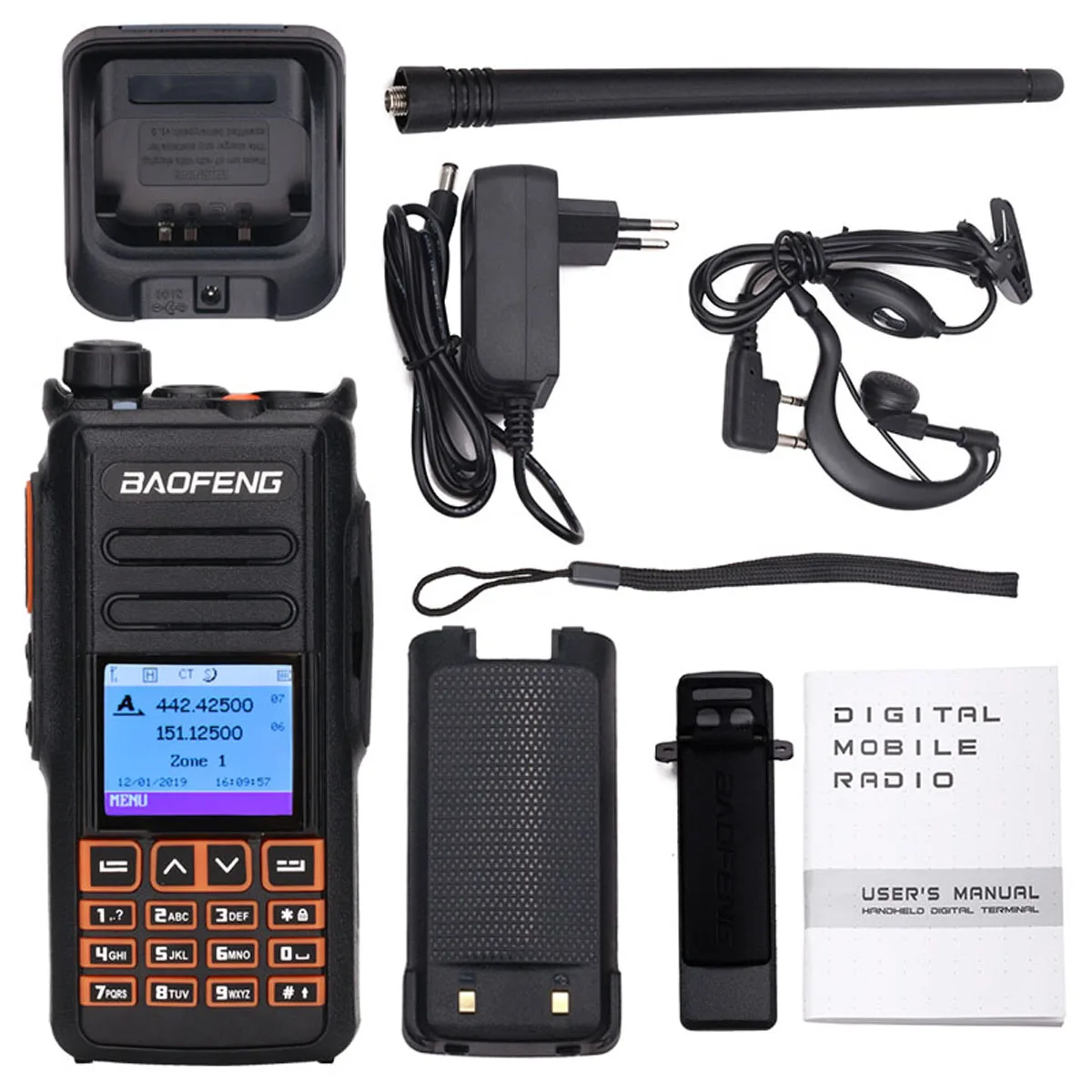

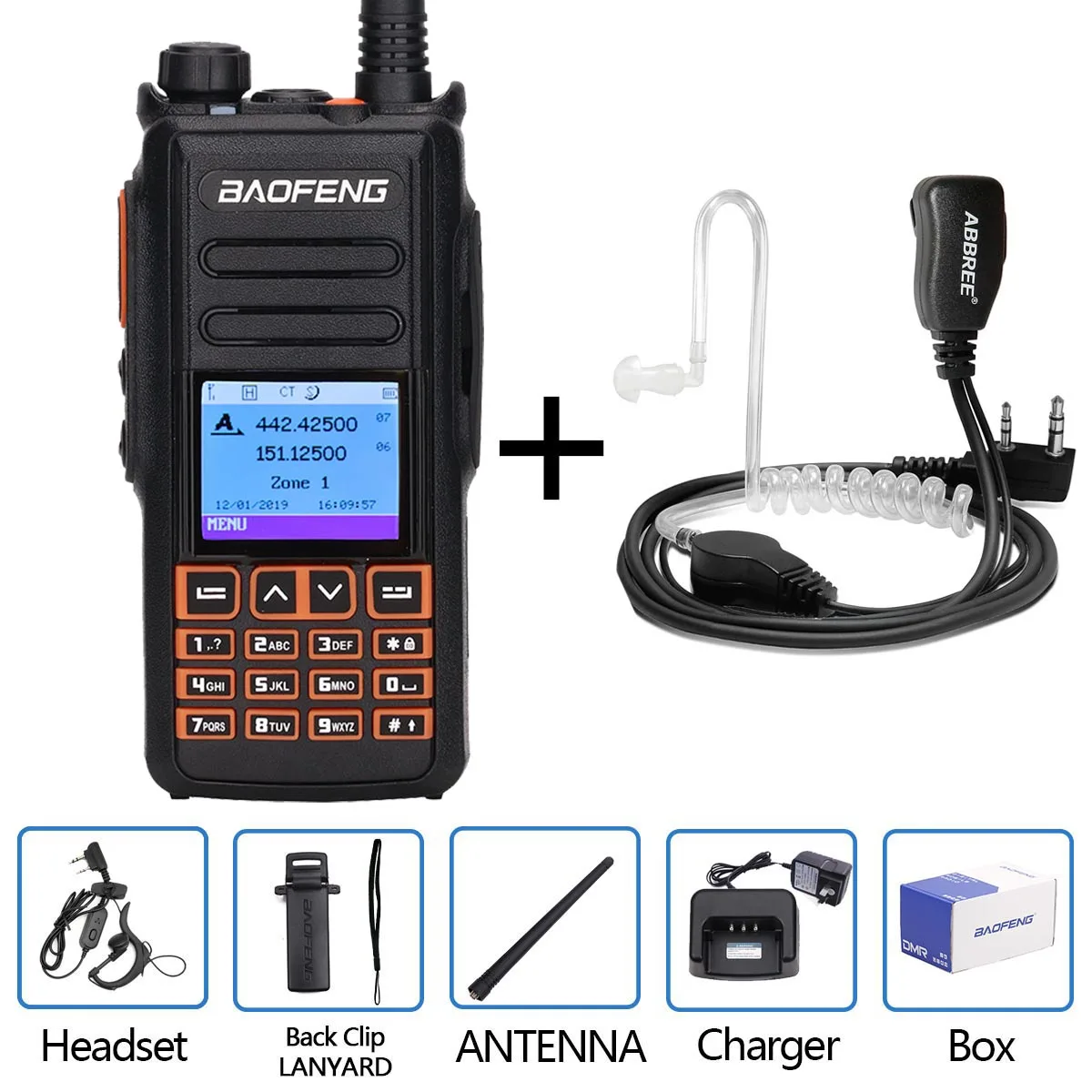

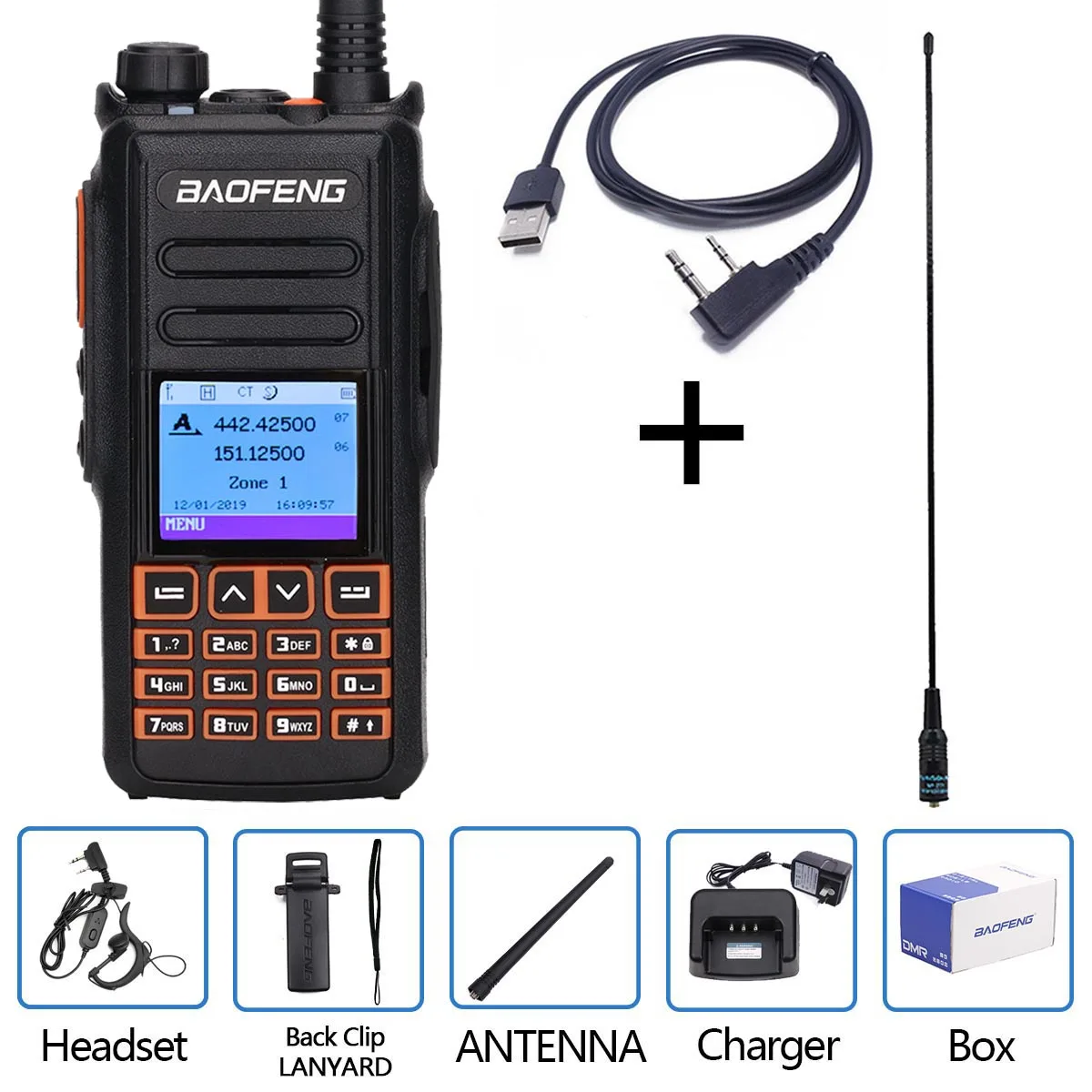

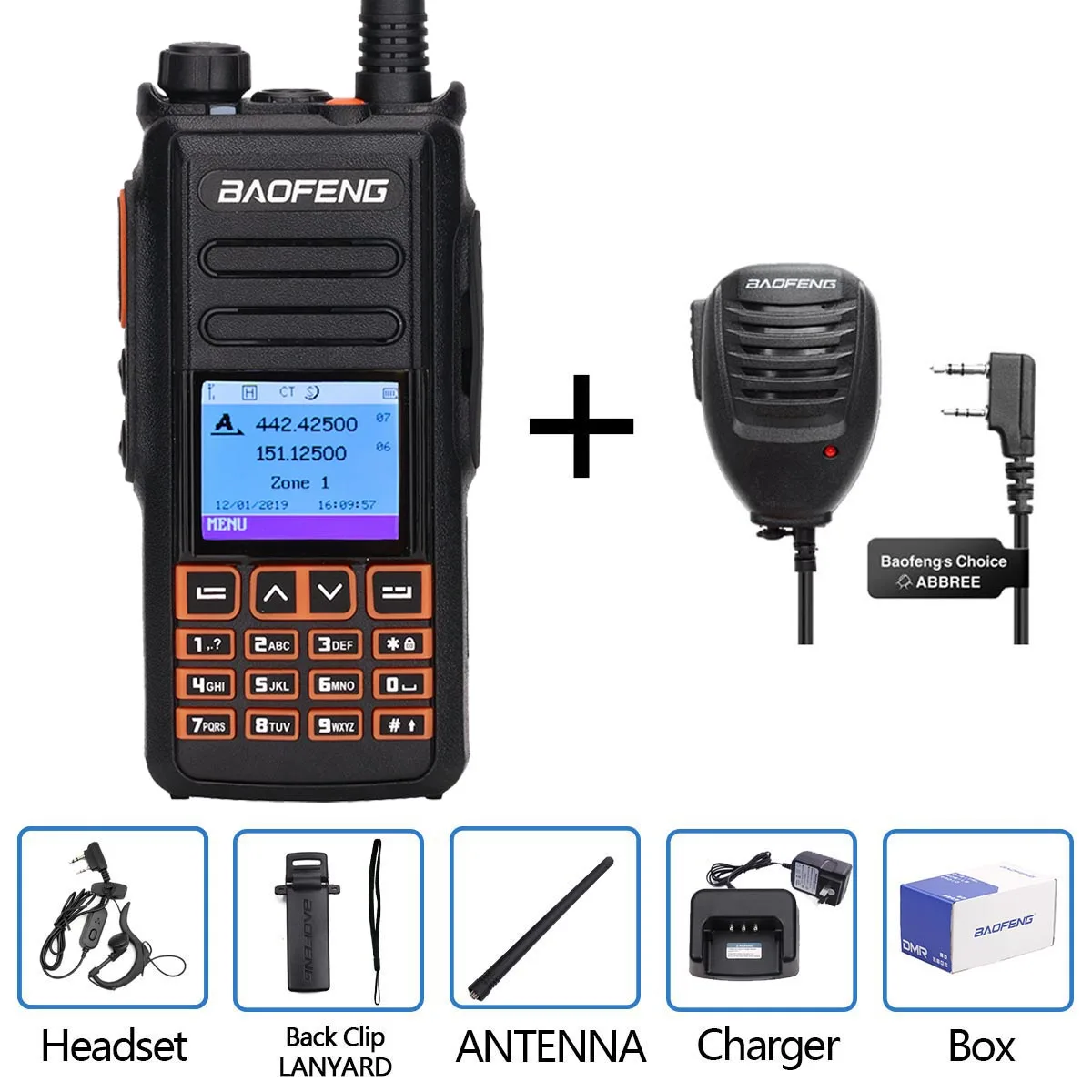

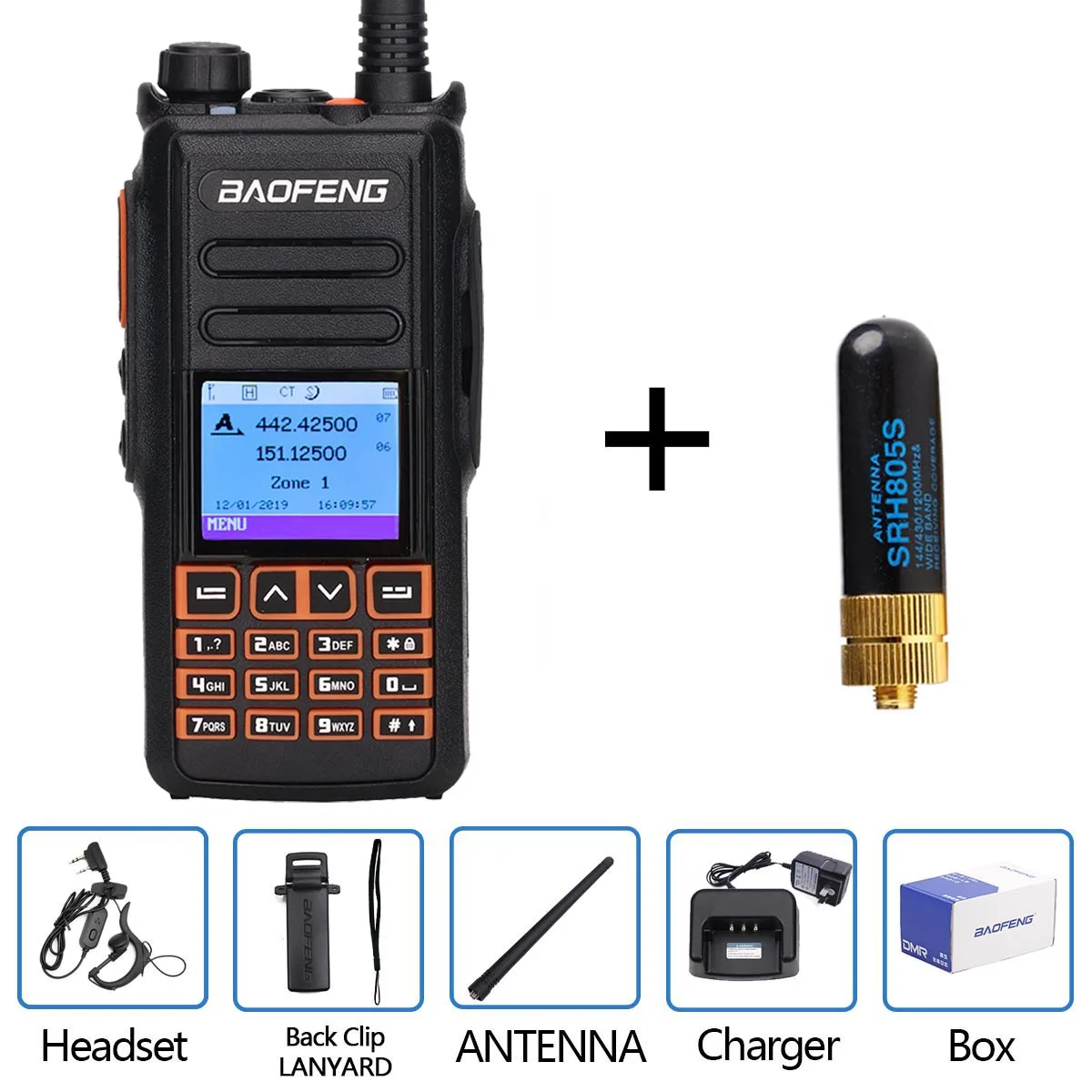

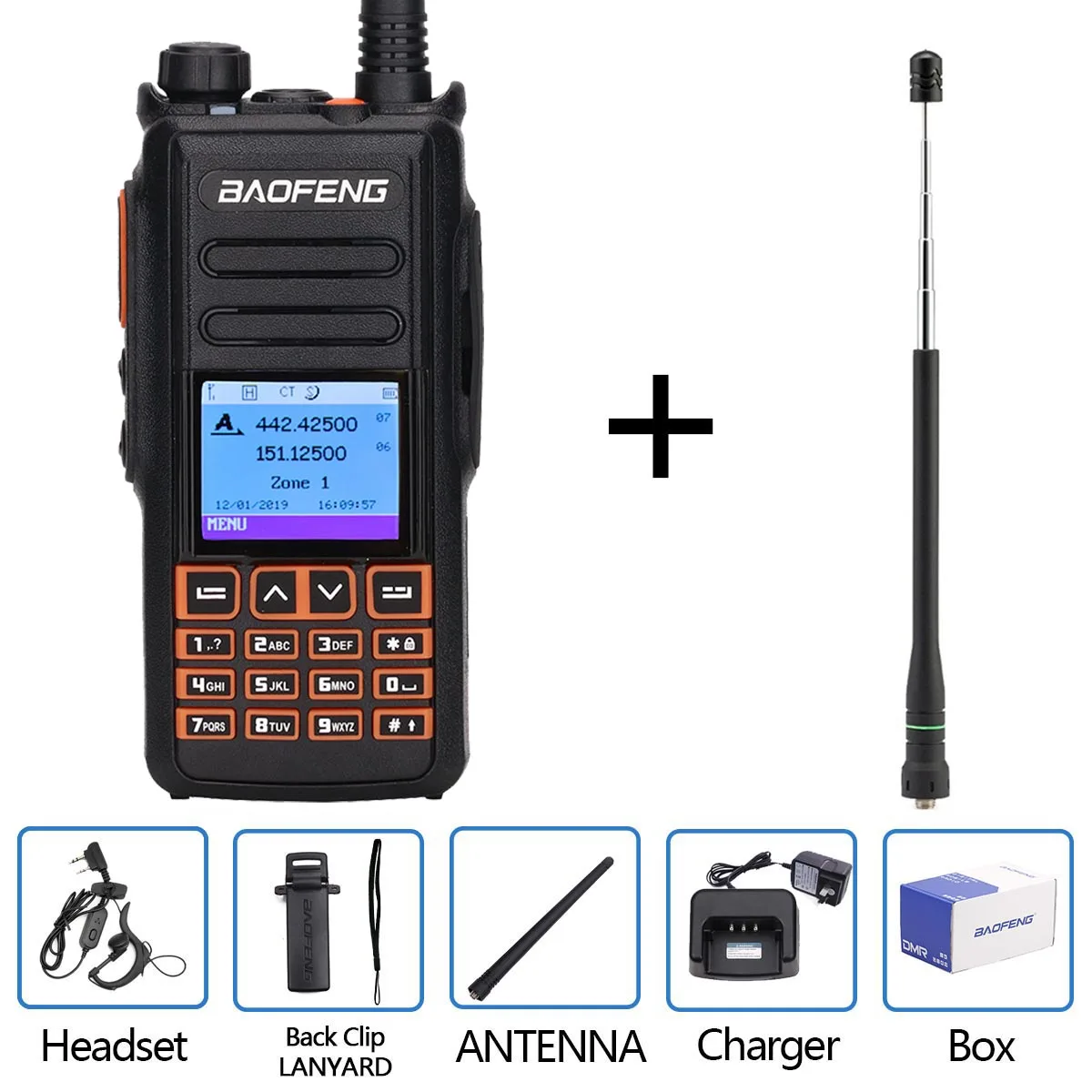

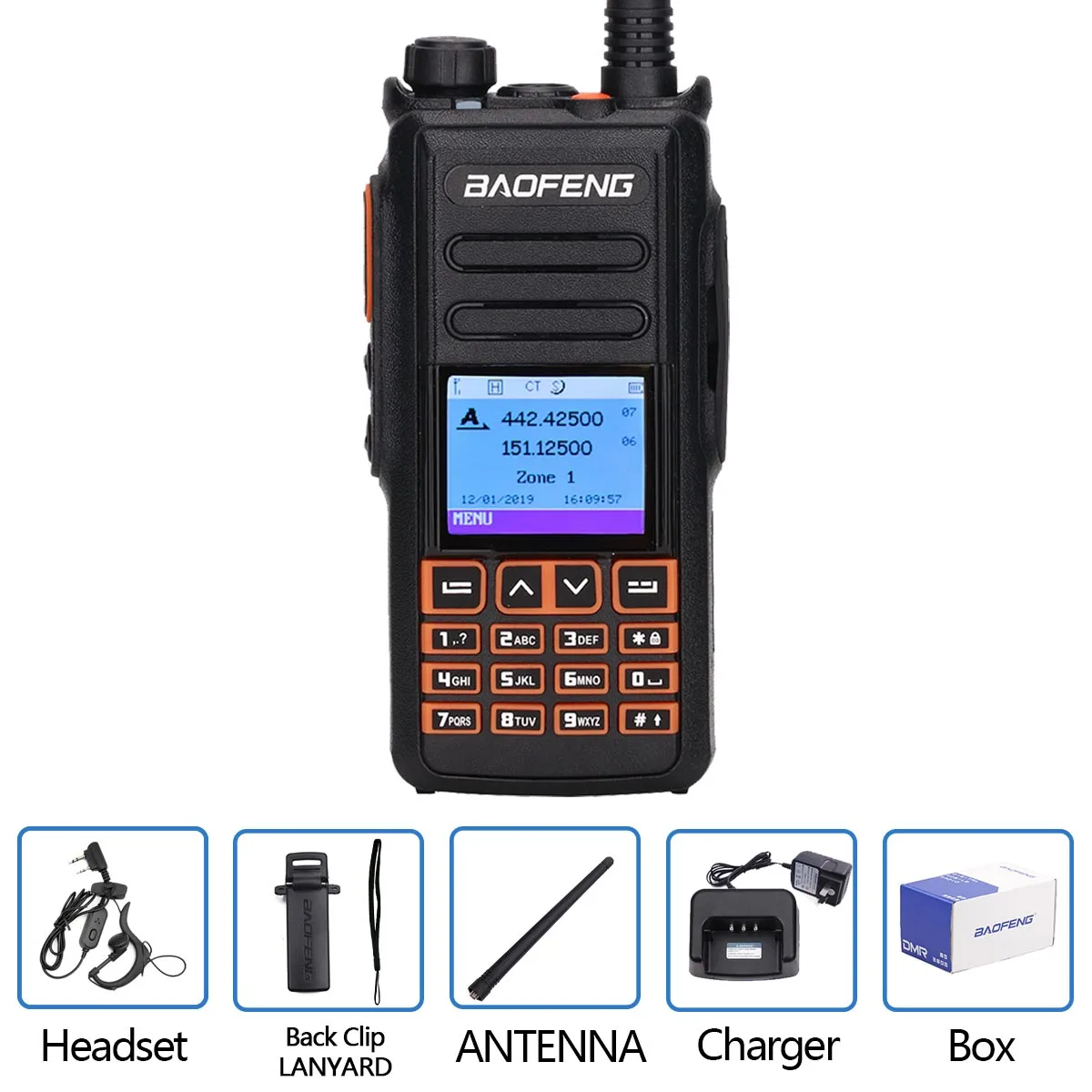

Package Contain:

1× BAOFENG DM-X

1× 2200mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual

(And other accessory depend on your choice in the link)
