Wouxun Walkie Talkie KG-UVD1P Dual Band FM Portable Two Way Radio 136.000-174.995MHz & 216.000-260.995MHz walkie talkie set Walkie Talkie

Code: TD-1005001838708951 1 order
Free Shipping
$ 202.54
Plug standard:
EURO
BRITISH
American
Australia Standard
Note

Quantity:
Other people want this. 30 people have this in their carts right now.
Brand Name:  WOUXUN
Battery Capacity(mAh):  1700
Origin:  CN(Origin)
Is_Display:  Yes
Waterproof / Water-Resistant:  IP55
Walkie Talkie Type:  Portable
Maximum Range:  3km-5km
Output Power(w):  3w-5w
Certification:  CE
Model Number:  KG-UVD1P
Frequency Range:  136.000-174.995MHz & 216.000-260.995MHz
Dimensions:  61*119.5*37.5mm
Storage Channel:  128
Material:  Plastic

Wouxun KG-UVD1P Dual Band Radio 136.000-174.995MHz &

216.000-260.995

MHz FM Transceiver

Features:

1.Dual Band,Dual Frequency,Dual Display and Dual Standby

2.Frequency Range: 136.000-174.995MHz & 216.000-260.995MHz(RX/TX)

3.Working mode: U-V,V-V or U-U selectable

4.Channel setting: VHF TX & UHF Rx or UHF TX & VHF RX selectable

5.DTMF encoding

6.Digital FM Radio (76-108MHz)

7.CTCSS/DCS Scan

8.Output power: 5W VHF/4W UHF

9.128 memory channels

10.VOX

11.Stopwatch timer function

12.105 groups DCS and 50 groups CTCSS

13.Voice guide

14.SOS Funtion

15.Wide/Narrow bandwidth selection(25/12.5KHz)

16.Multi-display modes(Channel order number/channel frequency/channel name selectable)

17.Reverse frequency

18.Multi-functional scan modes.

19.Priority scan function

20.Bright flashlight illumination

21.Frequency steps selectable (5/6.25/10/12.5/25/50/100KHz)

22.High/Low power changeable when transmitting

23.High capacity Li-ion batterypack

24.Intelligent charger

25.Offset frequency setting (0-69.950MHz)

26.Frequency shift direction setting

27.Busy channel lockout

28.Power-on message (Battery-V/Full screen/Other Characters)

29.Low voltage prompt

30.Transmitting beginning/ending prompt

31.Transmitting overtime prompt

32.Keypad lock(Auto/Manual)

33.Adding scanning channel

34.Programmable by Computer

35.Wire-clone function

36.Menu/Channel reset

37.1750Hz burst tone

38.IP55 Waterproof

Specifications:

Frequency Range

76-108MHz(RX)

136.000-174.995MHz & 216.000-260.995MHz (Rx/Tx)

Memory Channels

128 channels

Operating Voltage

7.4V

Operating Temperature

-30°c to +60°c

Working Mode

Co-channel or Dis-channel simplex

Output Power

VHF;5W/ UHF:4W

Modulation

F3E(FM)

Max. Frequency Deviation

≤±5KHz

Spurious Radiation

<-60dB

Frequency Stability

±2.5ppm

Receive Sensitivity

<0.2μV

Audio Output Power

≥500mW

Waterproof

IP55

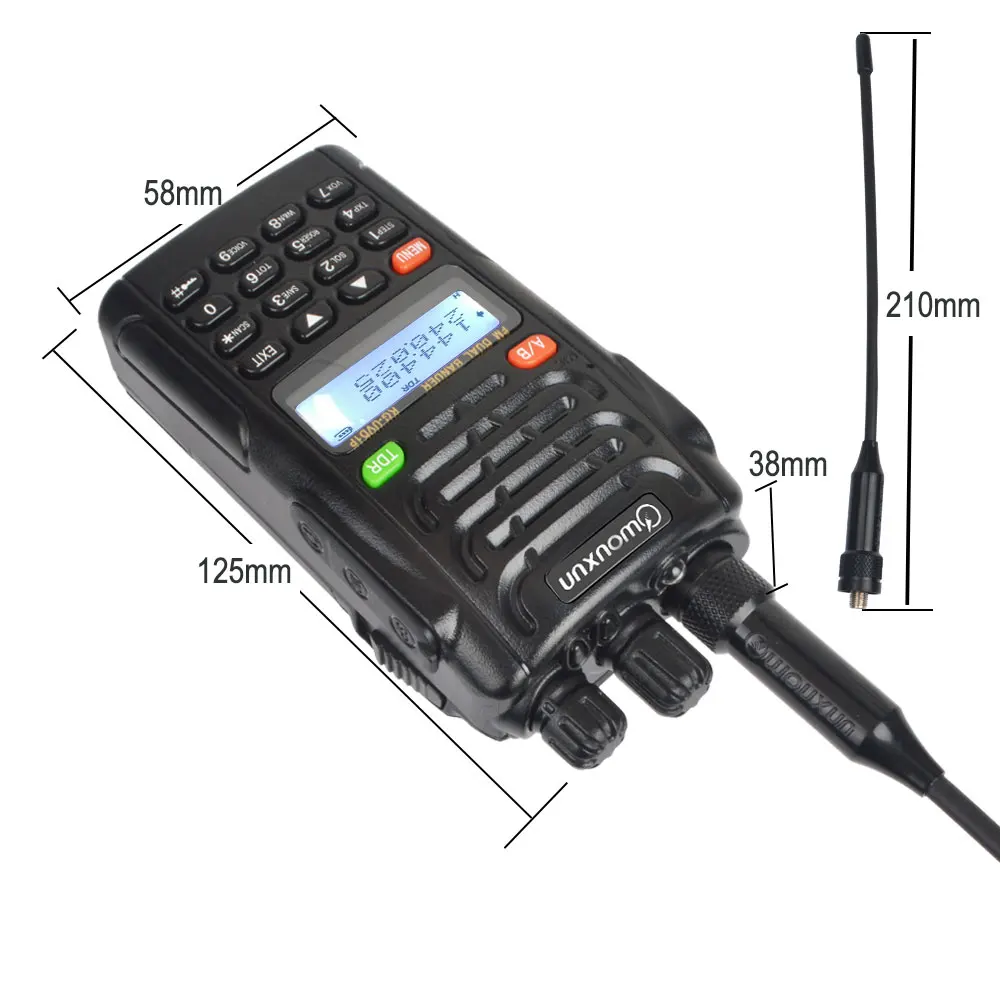

Dimensions

61×119.5×37.5(mm)

Weight

248g

NOTE: Specifications are subject to change without prior notice.

Each Set Package Contain:

1× KG-UVD1P Dual Band 136.000-174.995MHz & 216.000-260.995MHz Radio

1× 1700mAh Li-ion Battery Pack

1× Desktop Charger w/Adapter

1× 136-174 & 216-240MHz SMA-Female Antenna

1× 136-174 & 240-280MHz SMA-Female Antenna

1× Belt Clip

1× 12V Car Charger

1× Hand Strap

1× User's Manual
