Brand Name: | BAOFENG |
---|---|
Battery Capacity(mAh): | 3800 |
Is_Display: | Yes |
Waterproof / Water-Resistant: | No |
Walkie Talkie Type: | Portable |
Maximum Range: | 3km-5km |
Output Power(w): | 3w-5w |
Model Number: | UV-5R |
Frequency Range: | Dual Band 136-174MHz & 400-520MHz |
Dimensions: | 150*59.5*34.3mm |
Storage Channel: | 128 |
Material: | Plastic |
RF Rated Power: | 5W/1W |
Channel Spacing: | 2.5/5/6.25/10/12.5/20/25KHz |
Battery Type: | DC 7.4V Li-ion 3800mAh |
Radio Type: | Baofeng UV-5R Dual Band Walkie TALKIE |
Color: | Red |
Weight: | Approx.260g |
baofeng radio dualband UV-5R Red walkie talkie 136-174/400-520MHz two way radio w/ free earpiece and 3800mAh Li-ion battery
Features:
Frequency Range:136-174 & 400-520MHz
Dual Band, Dual Display, Dual Frequency,Dual Standby
Output Power:5/1Watt
128 Storage Channels
50 CTCSS and 104 CDCSS
Buit-in Vox Function
1750Hz Brust Tone
FM Radio(65.0MHz-108.0MHz)
LED Flashlight
Larger LCD Display
High/Low RF Power Switchable
25KHz/12.5KHz Switchtable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step:2.5/5/6.25/10/12.5/25KHz
PC Programming
Specifications:
Dual band, dual display
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan
Emergency Alarm
Tri-color background light selectable
0~9 grades VOX selectable
PTT & ANI ID
FM radio and 25 stations storage
1750Hz Brust Tone
Time-out Timer
Channel Monitor
Battery Saver
Keypad Lock
Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert
ROGER SET
Emergency Alert
25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz)
Large LCD Display
LED Flashlight
Hight /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder & tone searching
dual standby
PC programmable
Wide/Narrow Band(25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low TX power selectable
Busy channel lock-out(BCLO)
Specifications
General
Frequency Range
65-108MHz(FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No.
128
Frequency Stability
±2.5ppm
Antenna
High gain DualBand antenna
Antenna Impedance
50Ω
Operating Voltage
DC 7.4V
Mode of operation
Simple or semi-duplex
Dimension(W x H x D)
100 x 52 x 32 mm
Weight
250g(including battery, antenna)
Antenna :
SMA -Female
Earpiece / mic type :
Kenwood Plug type
Transmitter
Output power
5W / 1W (Max 5W)
Modulation Mode
16kΦF3E / 11kΦF3E
Maximum deviation
5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation
7μW
Adjacent Ch. power
≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics
6dB
Current
≤1.6A(5W)
CTCSS/DCS deviation
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity
8-12mv
Intermediation distortion
≤10%
Package Contain:
1× UV-5R (VHF136-174 & UHF 400-520Mhz)
1× 7.4V
3800mAh
Li-ion Battery Pack
1× Dual Band Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Earpiece
1× Handstrap

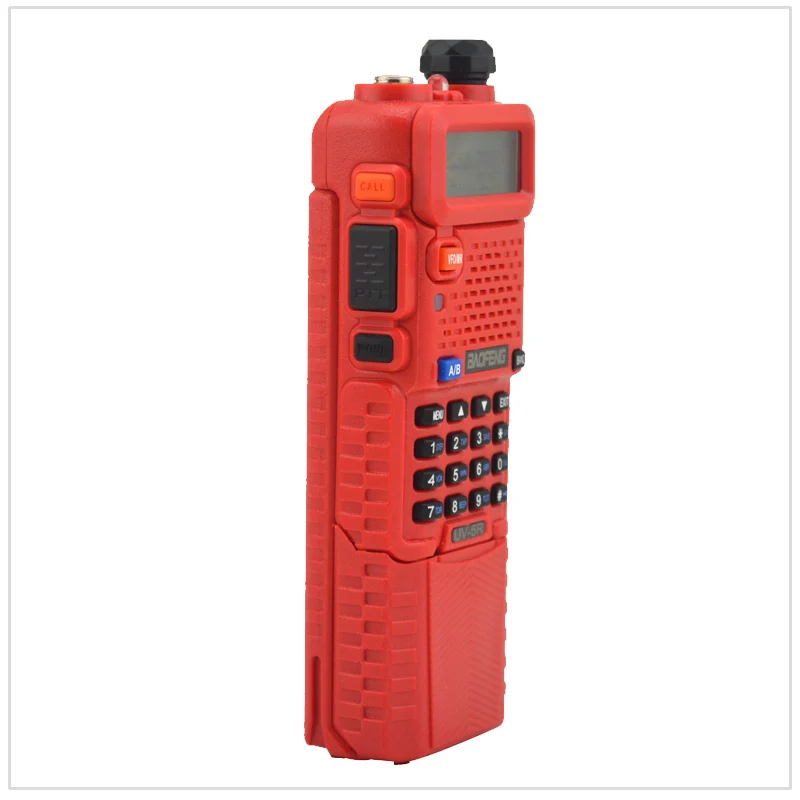

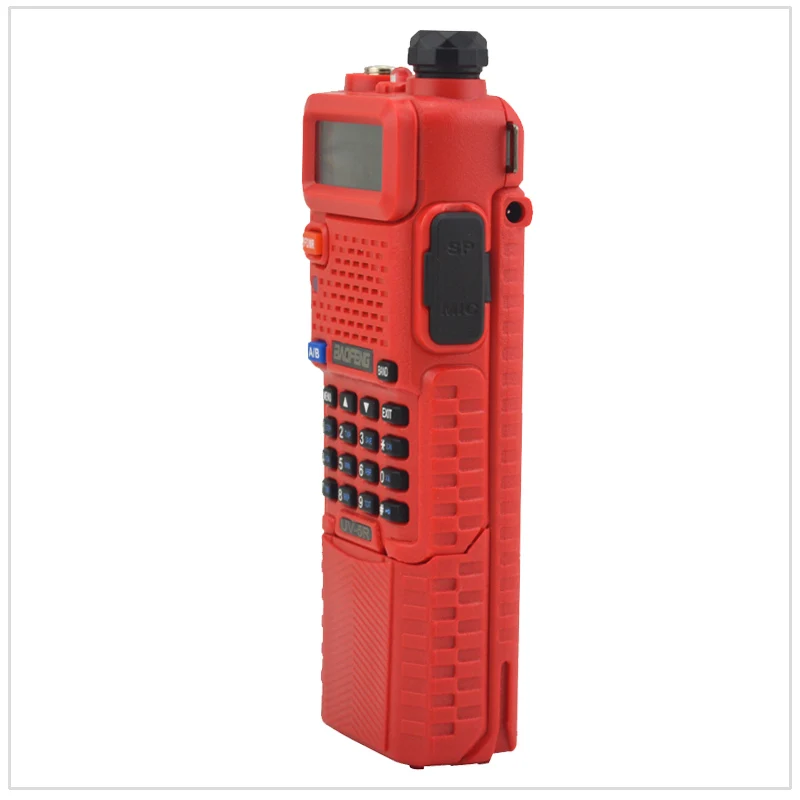

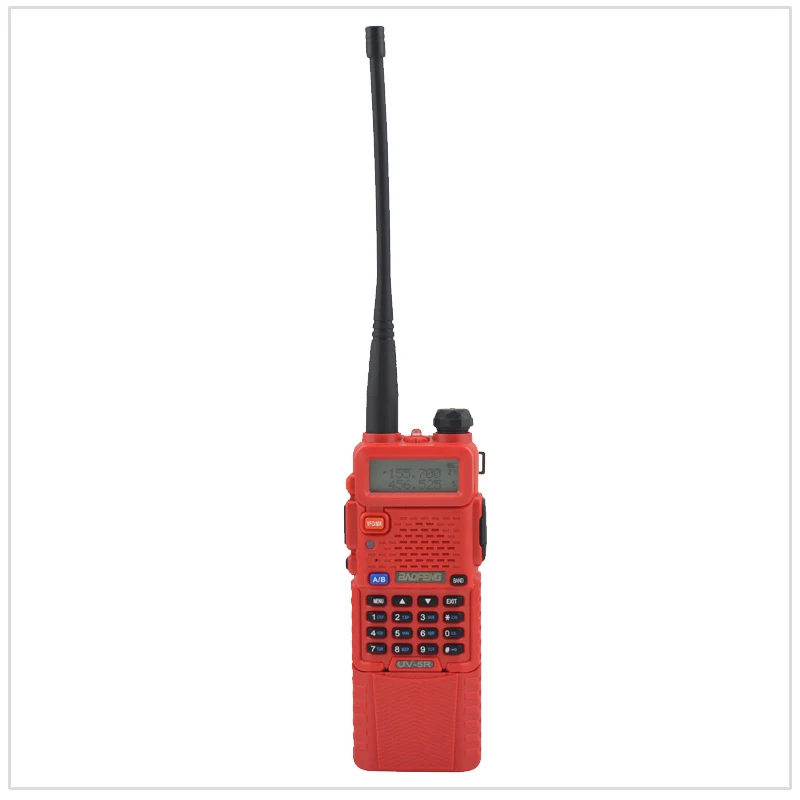

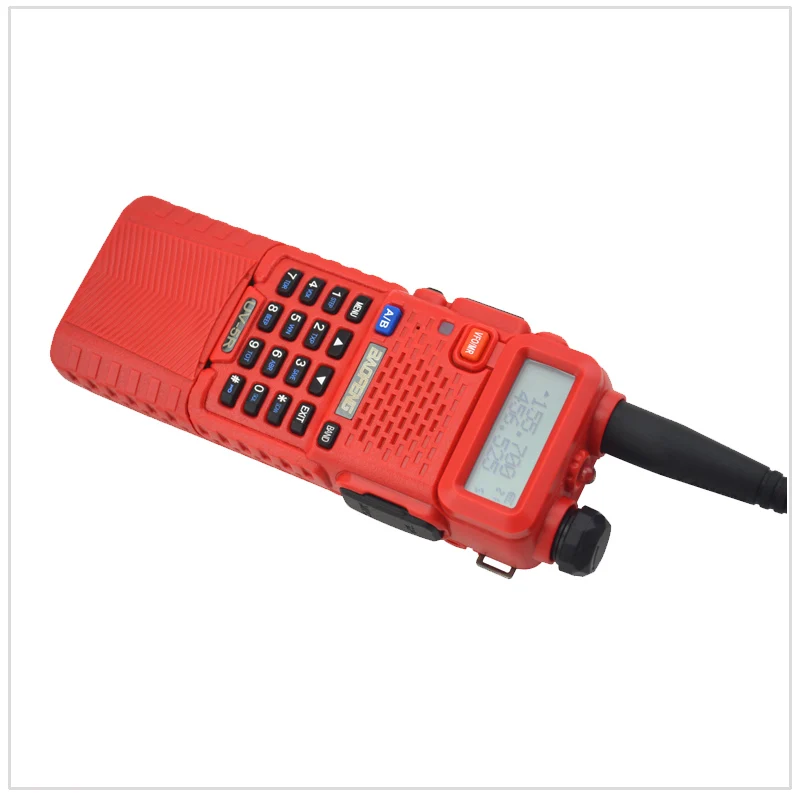

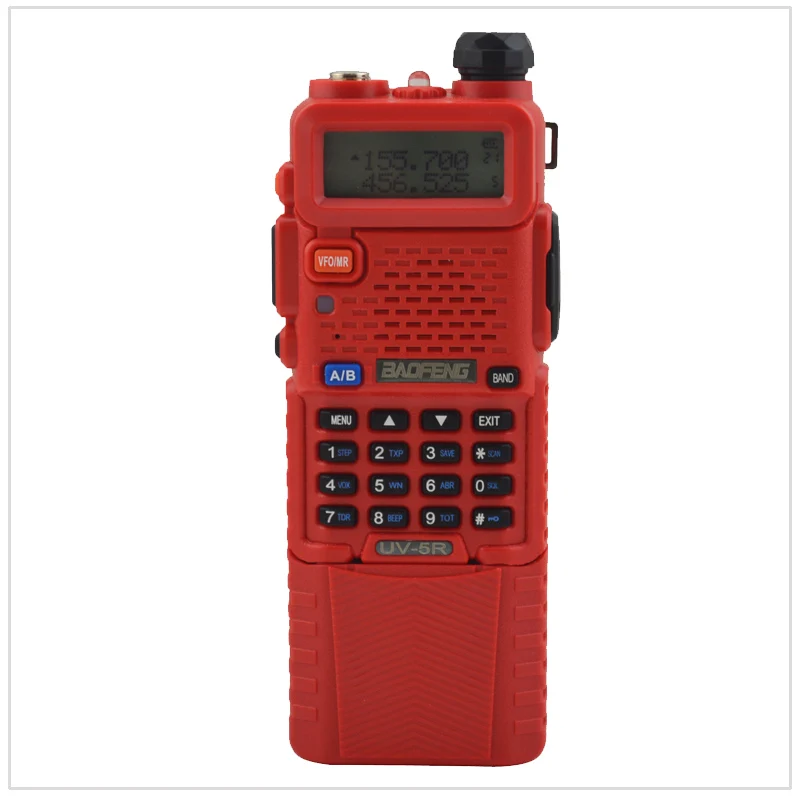

Item Picture:
