Name: The Latest version Surecom SW-102 125-525Mhz VHF/UHF Antenna Power & SWR MeterDigital VHF/UHF SWR & POWER WATT METER long range walkie talkies
Brand: MMO Dropship
SKU: 32888246330
Price: 131.3 VND
Availability: InStock
Rating: 4.9 (74 reviews)

Code: TD-32888246330 76 orders

Free Shipping

$ 131.3 $ 142.22

Color:

Note

Quantity:

Other people want this. 8 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	ANYSECU
Battery Capacity(mAh):	600mAh
Origin:	CN(Origin)
Is_Display:	Yes
Waterproof / Water-Resistant:	No
Walkie Talkie Type:	Portable
Maximum Range:	5km-10km
Output Power(w):	>50w
Certification:	NONE
Model Number:	SW-102
Frequency Range:	125-525Mhz
Dimensions:	W76H77D35mm
Storage Channel:	NA
Material:	Plastic
color:	Black
Measurable power range:	1-120W
test range of V.S.W.R:	1.00~19.9
Impedance:	50 ohm
Insertion Loss:	< 0.15dB(VHF) , < 0.25dB
Temperature:	0 C~60 C
Auto Power Off:	1-9 mins
Battery:	3.7V 600mAh Li-ion Battery
weight:	about 220G

Frequency Counter Anysecu SF-103 2MHz-2800MHz CTCSS/DCS Portable SF103 Frequency Meter For DMR & Analog Handheld Transceiver

USD 59.36-60.23/piece

Origianl NISSEI DG-503 1.8-525Mhz Short Wave UV Standing Wave Meter Power Meter SWR Digital Power Meter

USD 141.12-143.22/piece

Frequency meter SURECOM SF-401 plus Frequency Counter 27Mhz-3000Mhz Radio Portable Frequency meter with CTCCSS/DCS Decoder

USD 47.47/piece

The Latest version Surecom SW-102 125-525Mhz VHF/UHF Antenna Power & SWR MeterDigital VHF/UHF SWR & POWER WATT METER

USD 55.88-61.88/piece

NanoVNA 50KHz-900MHz Vector Network Analyzer Digital Touching Screen Shortwave MF HF VHF UHF Antenna Analyzer Standing Wave

USD 38.80/piece

50MHz-2.4GHz Portable Handheld Frequency Counter RK560 DCS CTCSS Radio Tester RK-560 Frequency Meter

USD 16.98-19.98/piece

MINI1300 5V/1.5A HF VHF UHF Antenna Analyzer 0.1-1300MHZ Frequency Counter SWR Meter 0.1-1999 with 4.3" TFT LCD Touch Screen

USD 175.98/piece

NISSEI RS-70 Digital SWR Power Counter 1.6-60MHz 200W M Type Connector

USD 92.33/piece

Main features:

VSWR. Forward and reflected power direct readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Frequency counter function
Visible operation: Frequency,Power,SWR,FW,RW
**SL16 (N type) for measure handy radios**

Specification

Frequency test range: 125-520MHz
Measurable power range: 1-120W
test range of V.S.W.R: 1.00~19.9
Impedance: 50Ω
Insertion Loss: < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature: 0 C~60 C
Auto Power Off: 1-9 mins
Interface: (in and out)N-J Interface
Battery: 3.7V 600mAh Li-ion Battery

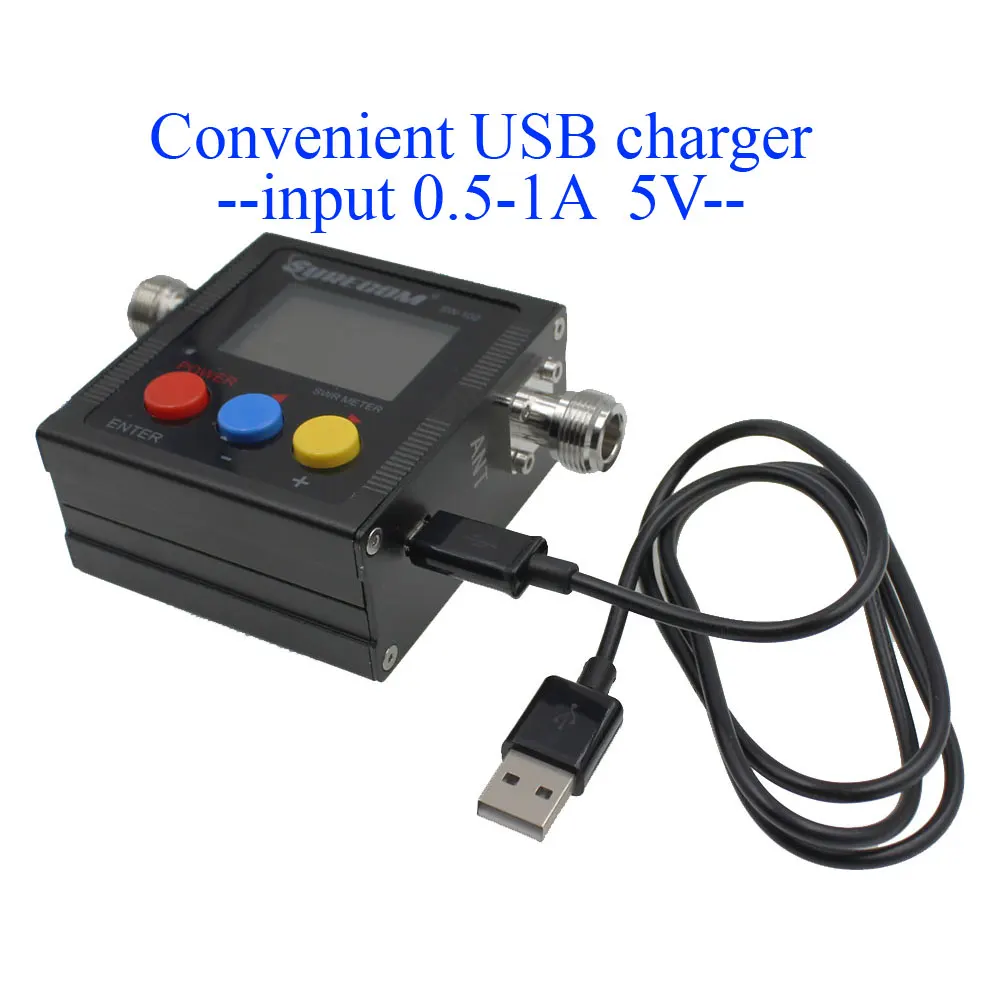

Charger in 5V (micro usb)

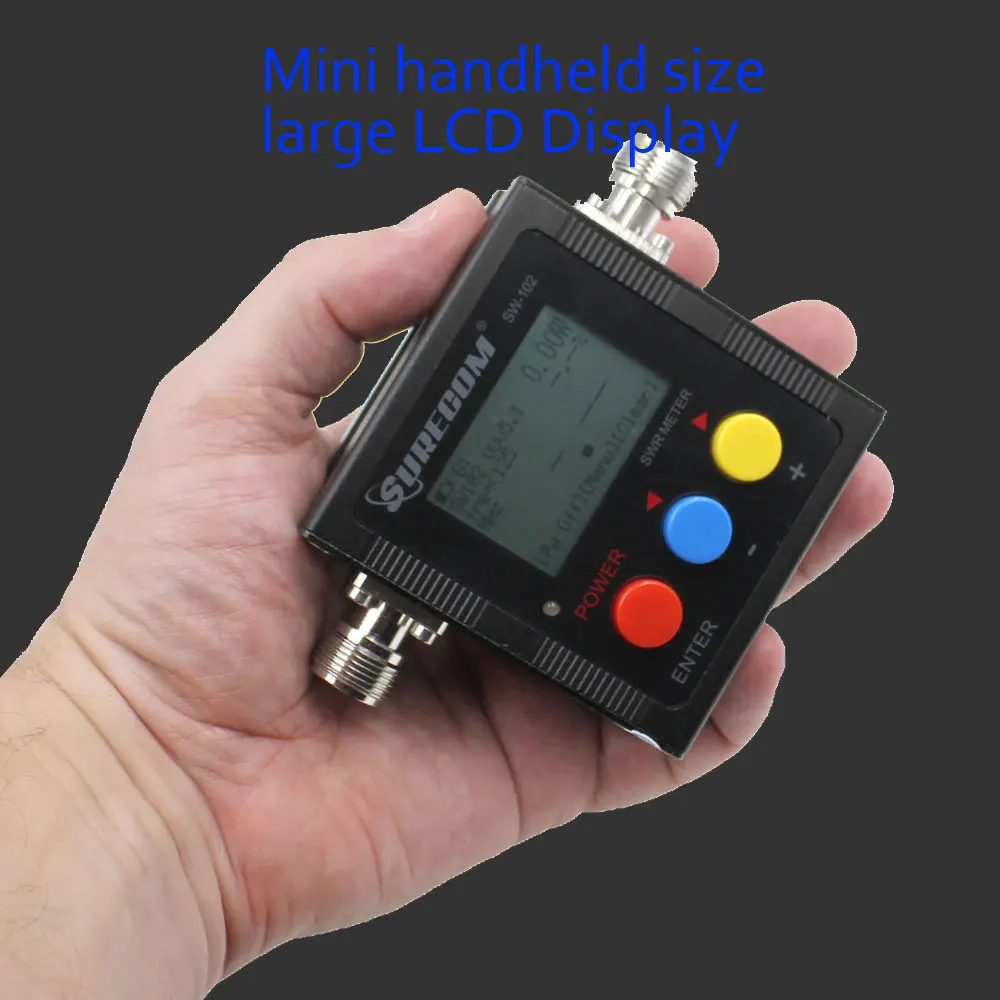

Volume: W76*H77*D35mm
Weight: <220 grams
(***Not work with digital radio***)

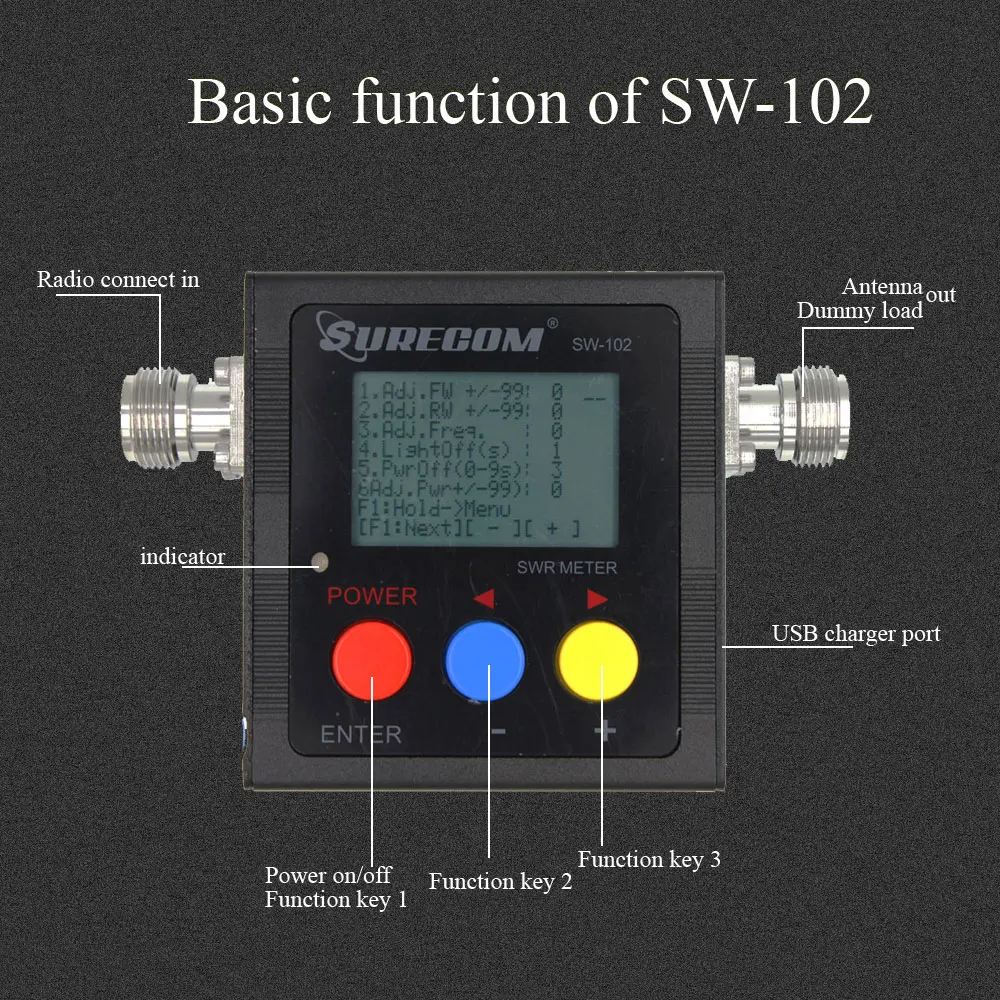

How to use?

Power ON/OFF: Press 2 second the [Red button] to power on & power off;

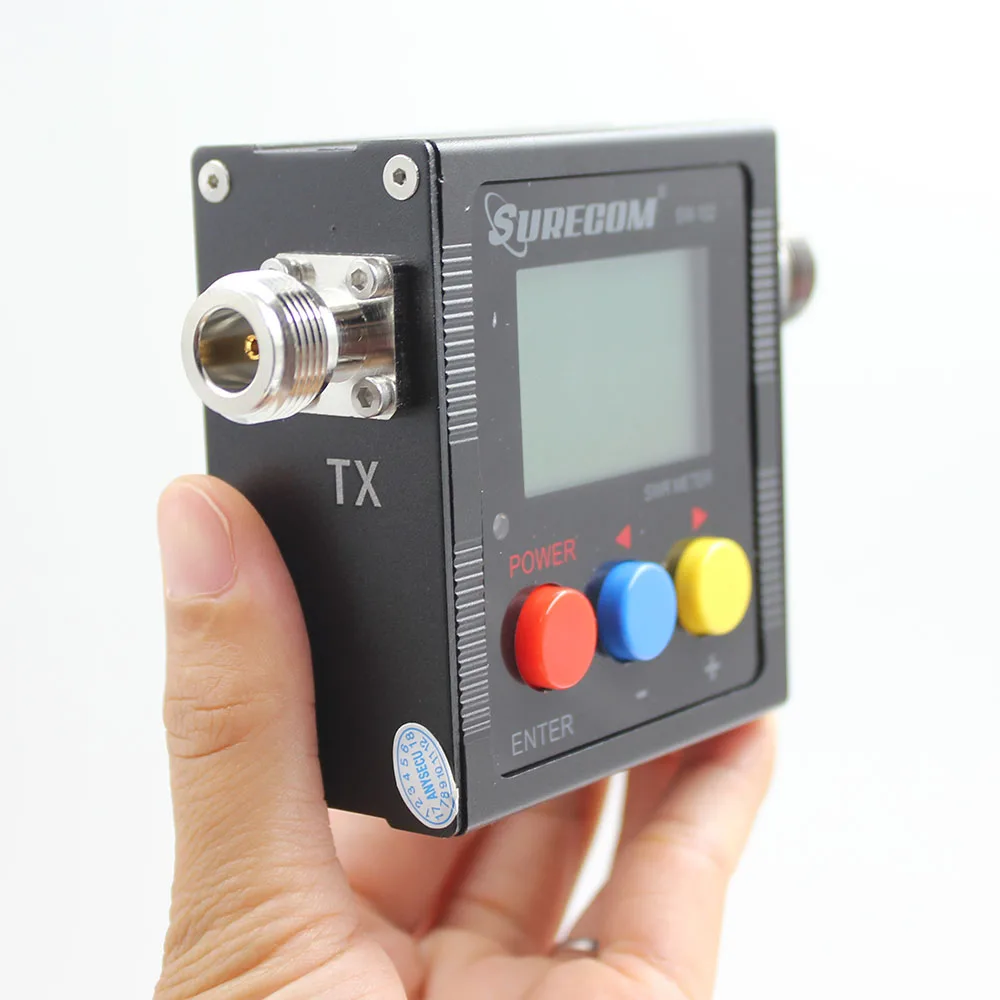

Connect the Output of your transceiver to "TX" and Antenna or dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
(***must use dummy load to avoid burn tester & to get accurate result when test power)

Funtion menu display:
1) Adj. RF Forward %
2) Adj. RF Reward %
3) Adj. frequency counter time base.
4) Adj. RF Power %
5) Adj LCD dim of light
6)Adj. power off time
7)Adj. Powe test mode [0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W]

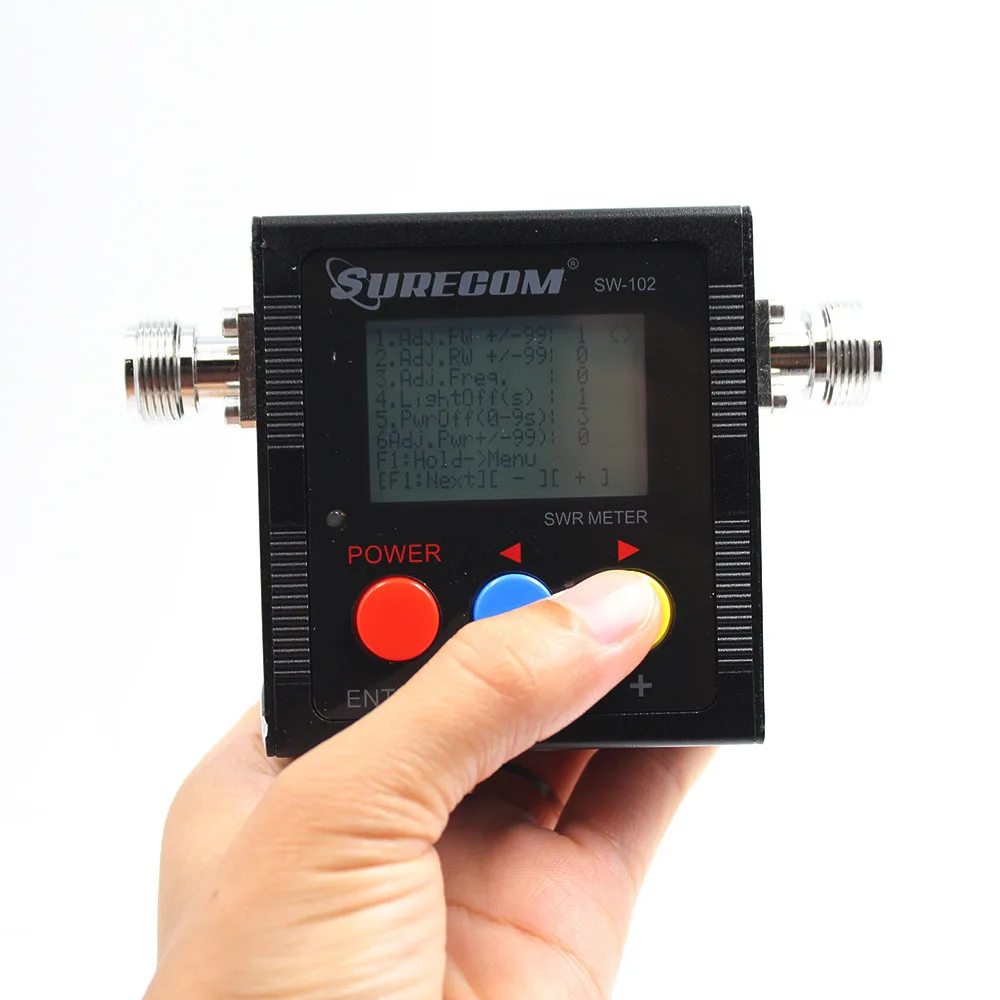

Funtion Memory/ SAVE:
1. Press MENU [Blue button]
2. Press F1 [Red button] [Select 1-6 Funtion]
3. Press Blue button [- ], Yellow button [+]
4. Press the Red button for 2 seconds
5. Press the Blue button to SAVE and Exit

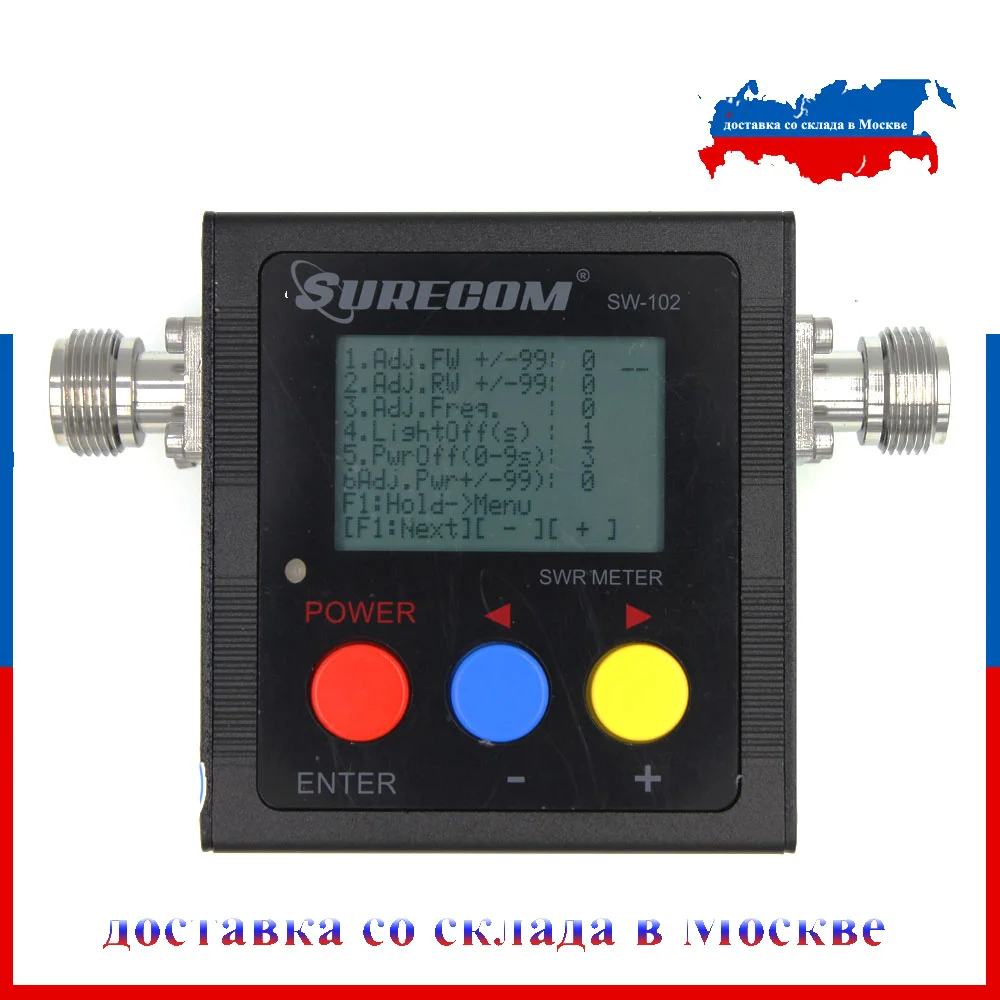

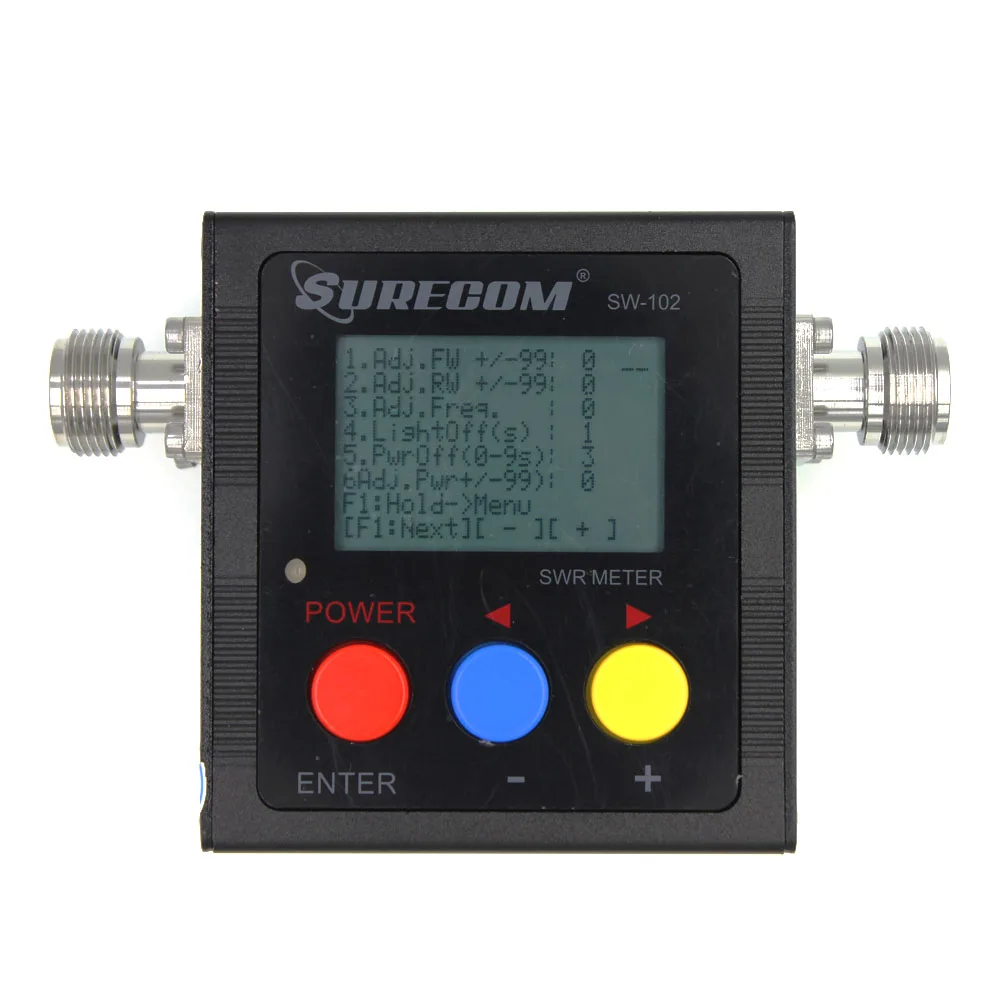

MENU SETTING
1: RF Level of" Forward ": [-99 to +99] %
2: RF Level of "Reverse": [-99 to +99] %
3: Freq.counter"Time Base: [-99 to +99]%
4: Finr tune RF "Power Watt Level": [-99 to +99] %
5: LCD DIM [LCD Backlight Time]: "0" is ON, "1-9" mins
6: POWER OFF: "0" is ON, "1-9" mins

Notice :SW-102 is not for DMR system

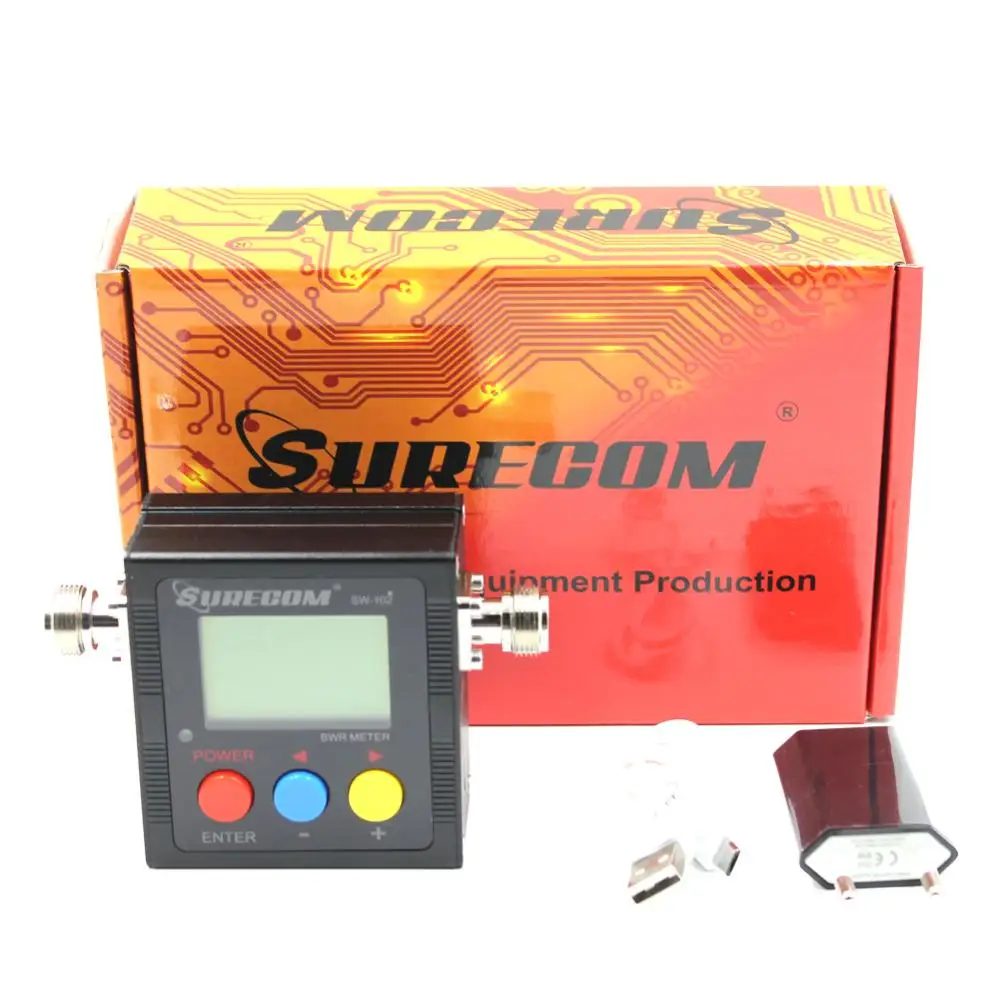

Standard package:
1*SURECOM SW-102 SL16[N-J type]
1*USB adaptor 100-240V
1*USB Charger Cable
1*Manual in EN

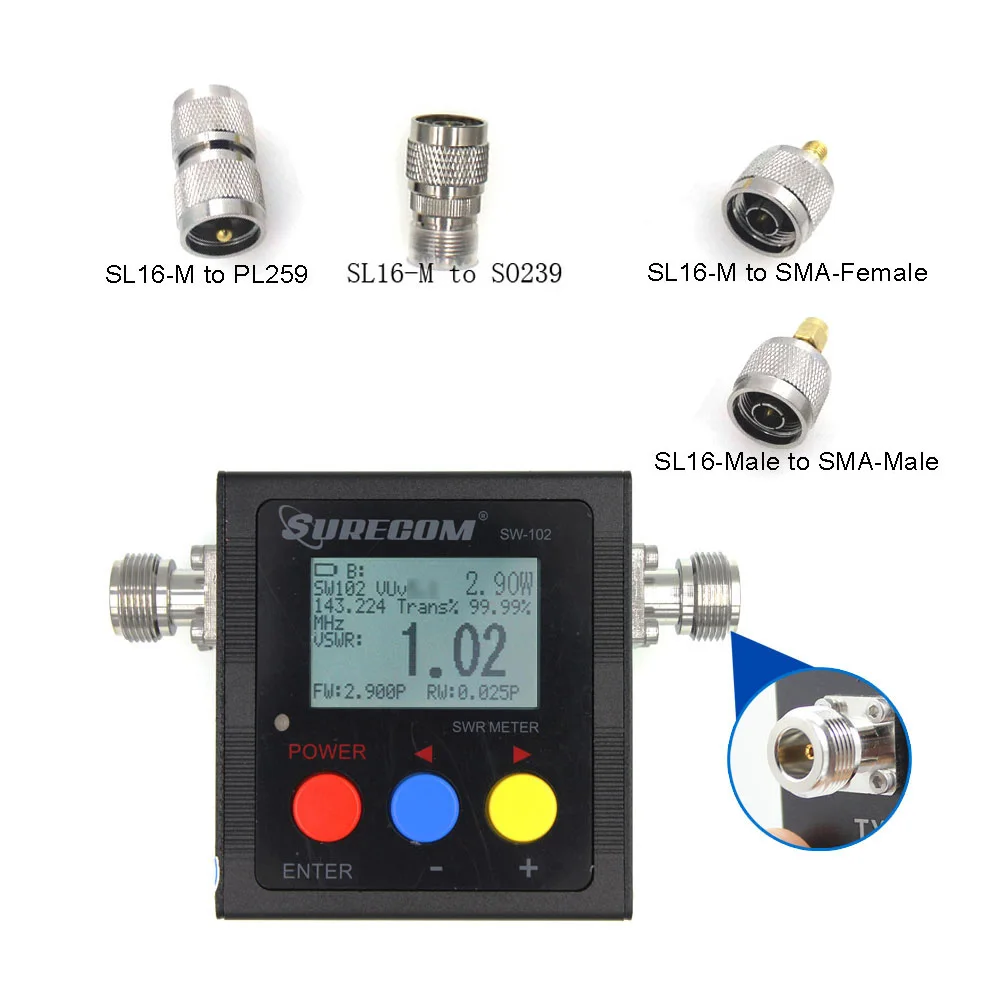

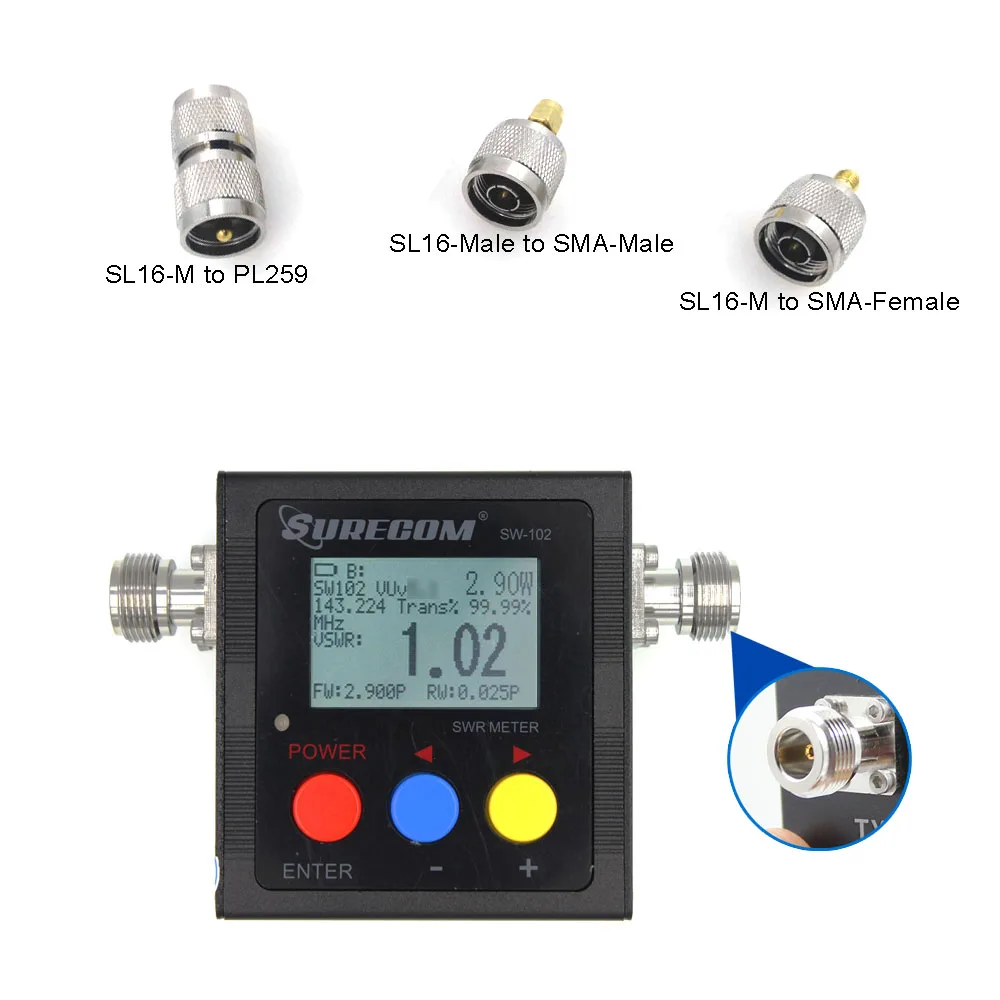

optional:

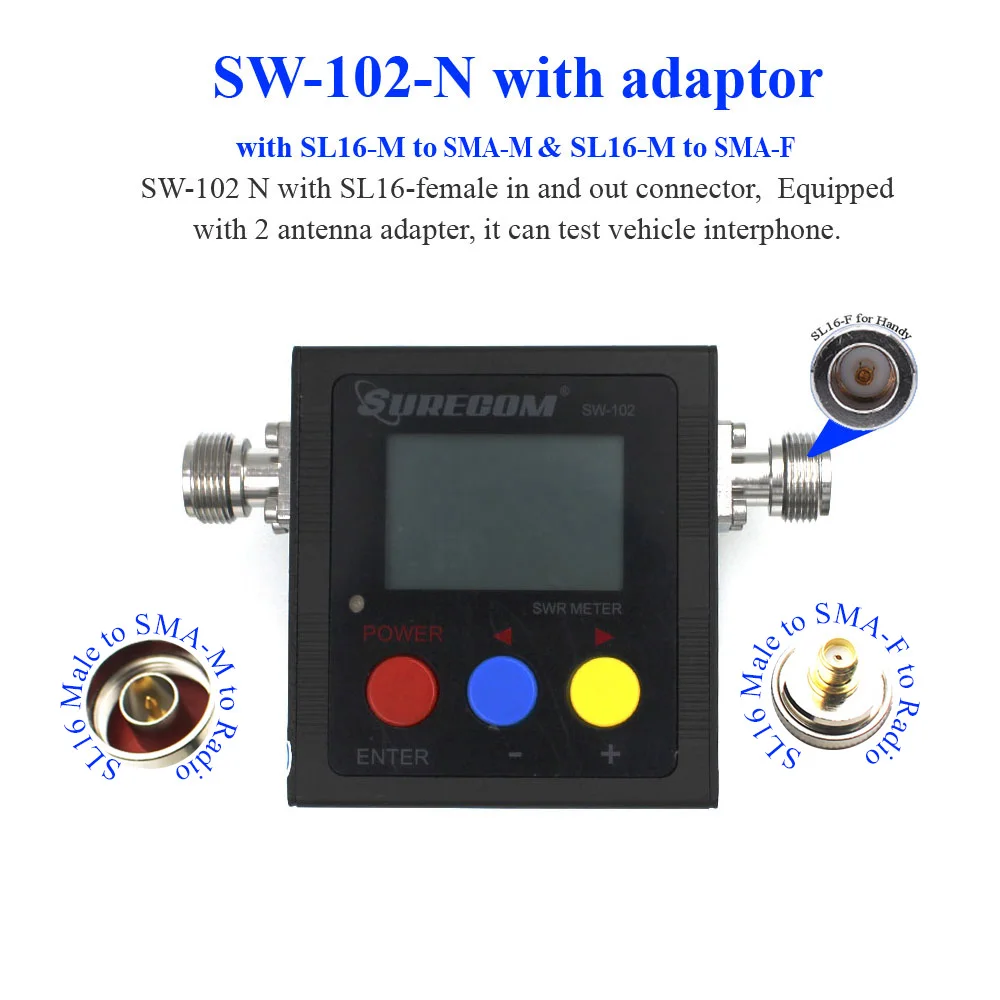

1*SL16-M to SMA-F
1*SL16-M to SMA-M

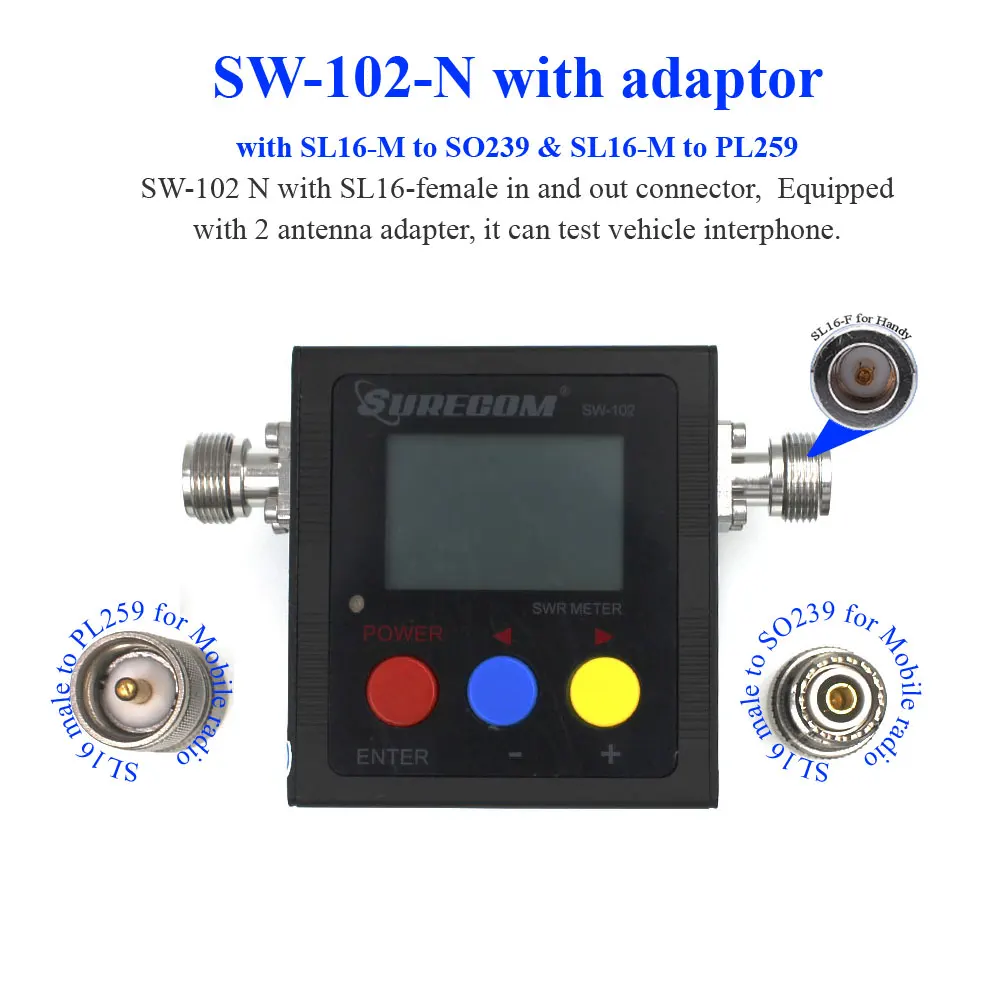

1*SL16-M to SO239
1*SL16-M to PL259

SURECOM SW-102 Q & A

No Operation?

PLease charge with USB cable +5V , or come with PSU .

Push and hold on the "RED" botton .

Replacement battery when battery dead. (below Ver 5.1 use by 14500battery,V1.X use by li-ion polymer battery.

There are still problems with steps 1. and 2.and 3., please contact service center.

Watt /SWR read data is not hold on ?

Some Radio problem when end of TX

.Radio output TX is not

stabilizing.

Read the watt data is not accurate ?

SW-102 is not for DMR system

Don't not use the antenna get the watt data.

Please use the correct power dummy load to measure (must be 50 OHM)

The data read error when not read the frequency from radio

The TX input is weak

Input Watt below 0.5W

Read the S.W.R. data is not accurate?

SW-102 is not for DMR system

Do not affect the test in the following cases, there are objects nearby

Do not affect the test in the following cases,placed horizontally.

Read the Frequency counter is not display or read frequency not accurate?
e.g. Radio is 145.000 , read 145.003

SW-102 is not for DMR system

Input below 0.5W

Please use menu mode and fine tune the frequency offset.

Display have problem ? e.g.BLack or Garbled or no Display

Restart the SW-102

Remove the inside battery.

There are still problems with steps 1. and 2., please contact service center.

How to RESET the mirco chip

Off mode ,

Hold the Red button when the display show "restore to default "

There are still problems with steps 1. and 2., please remove the battery.

**All Specifications are subject to change without notice
