Brand Name: | ABBREE |
---|---|
Battery Capacity(mAh): | 1800 |
Origin: | CN(Origin) |
Is_Display: | Yes |
Waterproof / Water-Resistant: | No |
Walkie Talkie Type: | Portable |
Maximum Range: | 3km-5km |
Output Power(w): | 3w-5w |
Certification: | NONE |
Model Number: | AR-F6 |
Frequency Range: | Full bands |
Dimensions: | 124.5*64*37mm(without antenna) |
Storage Channel: | 999 Memory Channels |
Material: | plastic+metal |
Full Bands: | 123-520MHz |
Output Power: | 5W |
FM: | 76 MHz-108 MHz |
Wide/Narrow Bandwidth Selection: | PTT ID Function |
Multi-functional: | DTMF VOX SOS |
Type: | Two Way Radio |

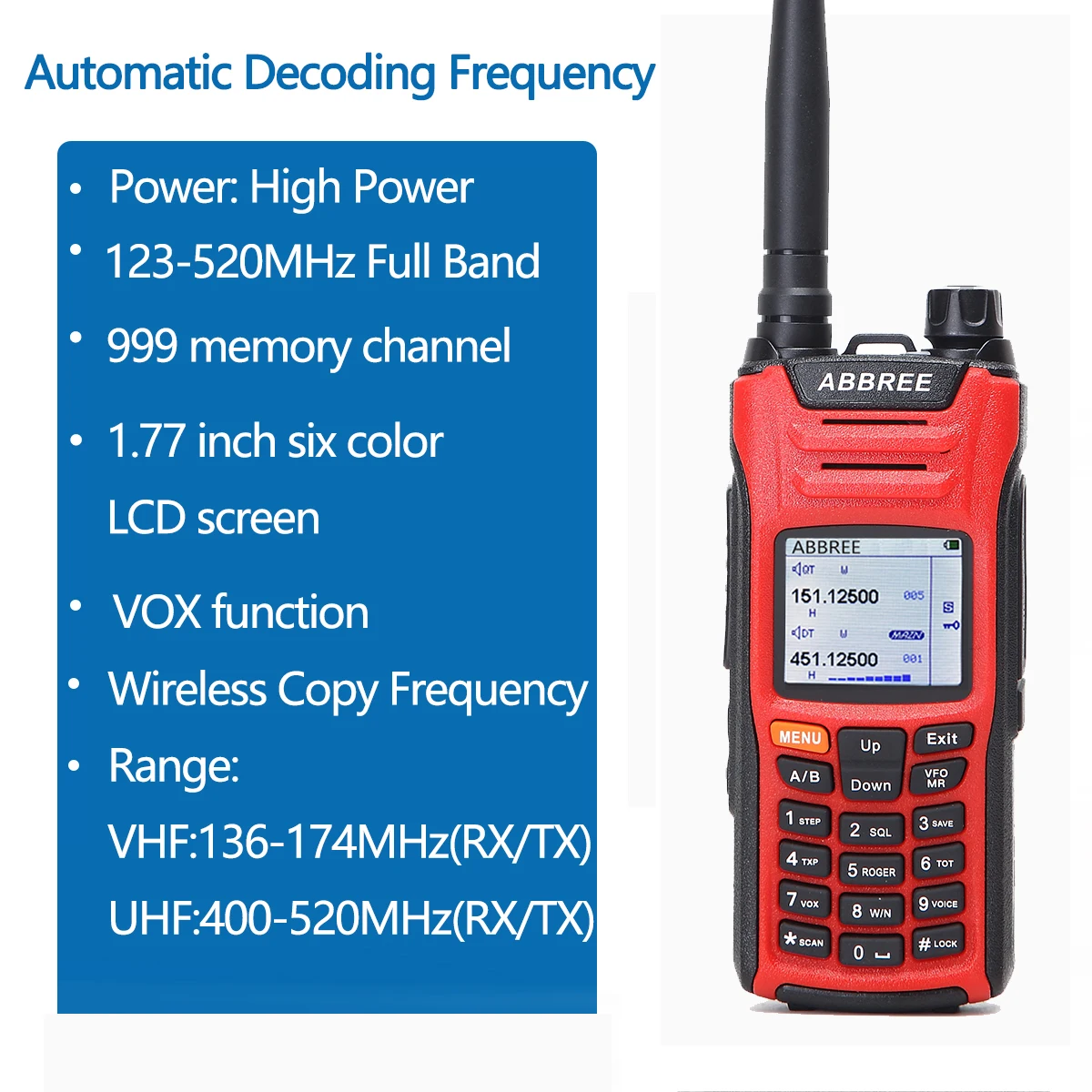

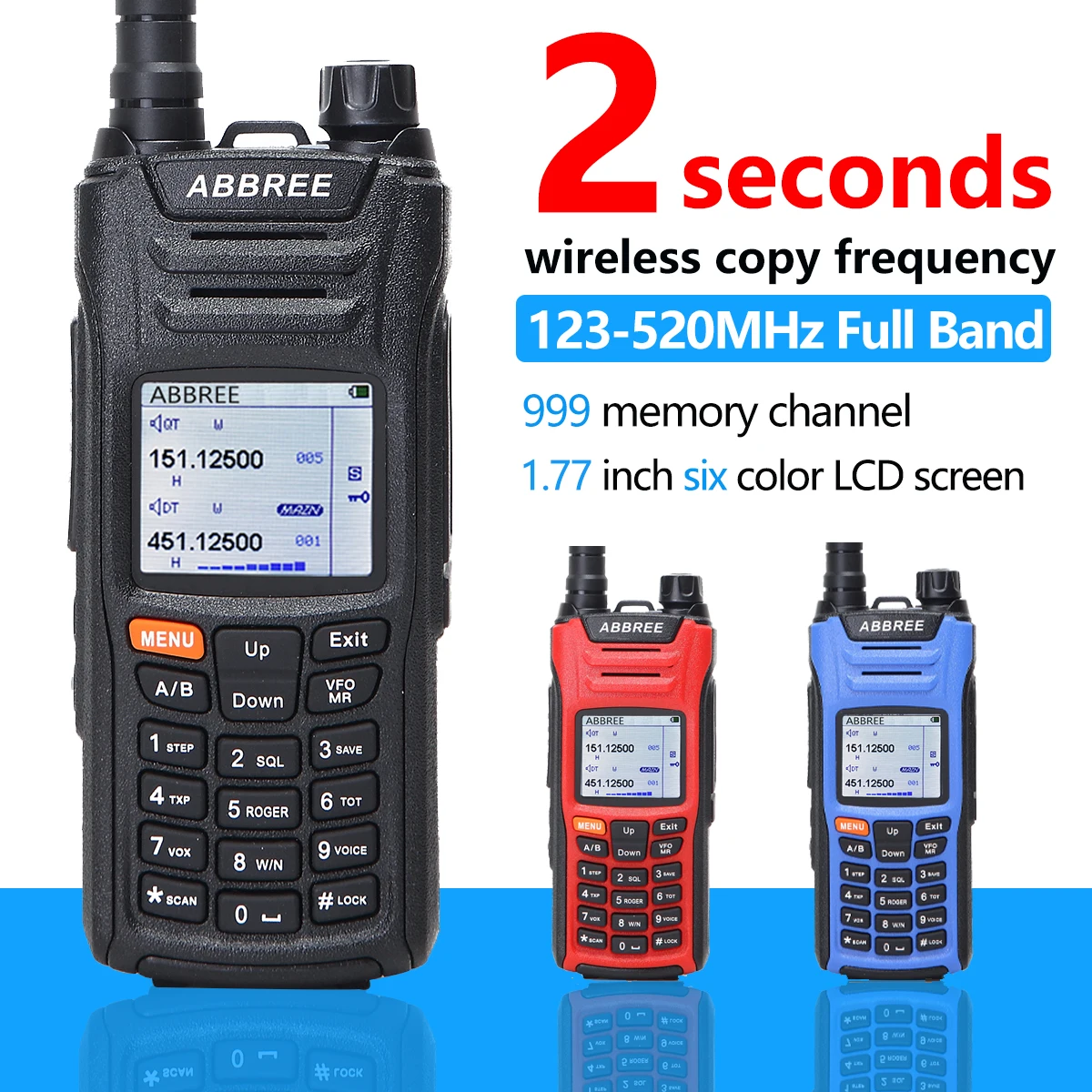

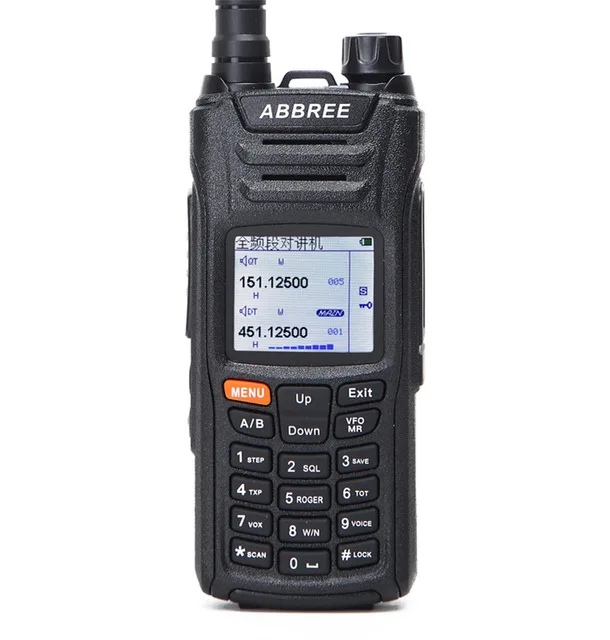

ABBREE AR-F6 Full Band Dual Display Dual Standby 999CH Multi-Band Multi-functional DTMF VOX SOS Walkie Talkie Two Way Radio
Function:
Frequency Range: Full Band
76-108MHz(AM RX)
123-520MHz(RX/TX)
-999 Memory Channel
-1.77inch LCD Color Display
-VOX Function
-Emergency Function
-Scan Function
-Battery Save
-Squelch Function
-PC Programming
-Monitor Function
-Scrambling Function
-Low Power Prompt
-TOT(Time-out Timer)
-BCLO(Busy Channel Lock)
-CTCSS&DCS Encode/Decode
-DTMF Encoding/Decoding
-SOS
-Prior Channel Scanning
-CTCSS/DCS Scan
-Programmable Non-Standard CTCSS/DCS
-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)
-Multi Keypad Lock Modes
-PTT ID
-Wide/Narrow Bandwidth Selection
-Operational voice prompt in Chinese and English
-Display interface in Chinese and English
-Stopwatch function
-Frequency sweeping function
Specifications:
Intergration
Frequency Range
76-108MHz(AM RX)
123-520MHz(RX/TX)
Step
5/6.25/10/12.5/25/30/50/100KHz
Channel Number
999
Work Mode
F2D/F3E
Operating Temperature
-20°c to 60°c
Antenna Resistance
50Ω
Battery
7.4V DC 1800mAh
Weight
280g(with battery and antenna)
Size
124.5×64×37mm(without antenna)
Transmitter
Wide Bandwidth
Narrow Bandwidth
Type of Modulation
16K F3E
11K F3E
Adjacent Channel Power
≥70dB
≥60dB
Spurious
≥60db
≥60dB
Audio Response
+1~3dB(0.3~3KHz)
+1~3dB(0.3~2.55KHz)
Max Frequency Deviation
±25KHz
±12.5KHz
Frequency Stability
±2.5ppm
Audio Distortion
≤5%
Ouput Power
5W
Receiving
Wide Bandwidth
Narrow Bandwidth
Adjacent Channel Selectivity
≤70dB
≤60dB
Inter Modulation
≤65dB
≤60dB
Spurious Response
≤70dB
≤70dB
Audio Response
+1~3dB(0.3~3KHz)
+1~3dB(0.3~2.55KHz)
Signal to Noise Ratio
≥45dB
≥40dB
Audio Distortion
≤5%
Package Contents:
1×AR-F6 Radio
1× 1800mAh Li-ion Battery

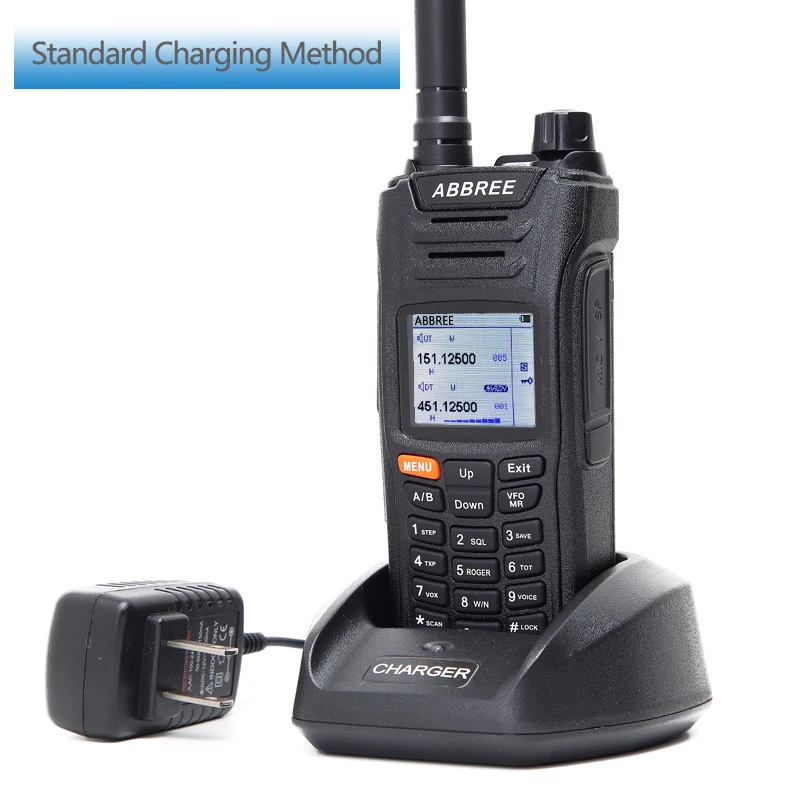

1× Intelligent Charger
1× Belt Clip
1× SMA-Female Antenna
1× Handstrap
1× User's Manual
