Name: baofeng walkie talkie ABBREE AR-F5 Automatic Wireless Copy Frequency Walkie Talkie Large LCD Display Upgrade Baofeng UV-5R Long Distance Radio baofeng walkie talkie
Brand: MMO Dropship
SKU: 1005003819363687
Price: 94.79 VND
Availability: InStock
Rating: 4.9 (97 reviews)

Description
Shipping & Returns

Brand Name:	ABBREE
Battery Capacity(mAh):	5800
Origin:	CN(Origin)
Is_Display:	Yes
Waterproof / Water-Resistant:	No
Walkie Talkie Type:	Portable
Maximum Range:	5km-10km
Output Power(w):	5w-10w
Certification:	CE
Certification:	FCC
Model Number:	ABBREE AR-F5
Frequency Range:	136-520MHz
Dimensions:	1216133mm(exclude antenna)
Storage Channel:	128
Material:	Plastic
FM:	76 MHz-108 MHz
Output Power:	10W
sister:	ABBREE AR-F8 AR-889G
Features:	Frequency Scanner/Fast Scan Frquency Pairing
sister:	Baofeng UV-82 UV-9R UV-S9 PLUS

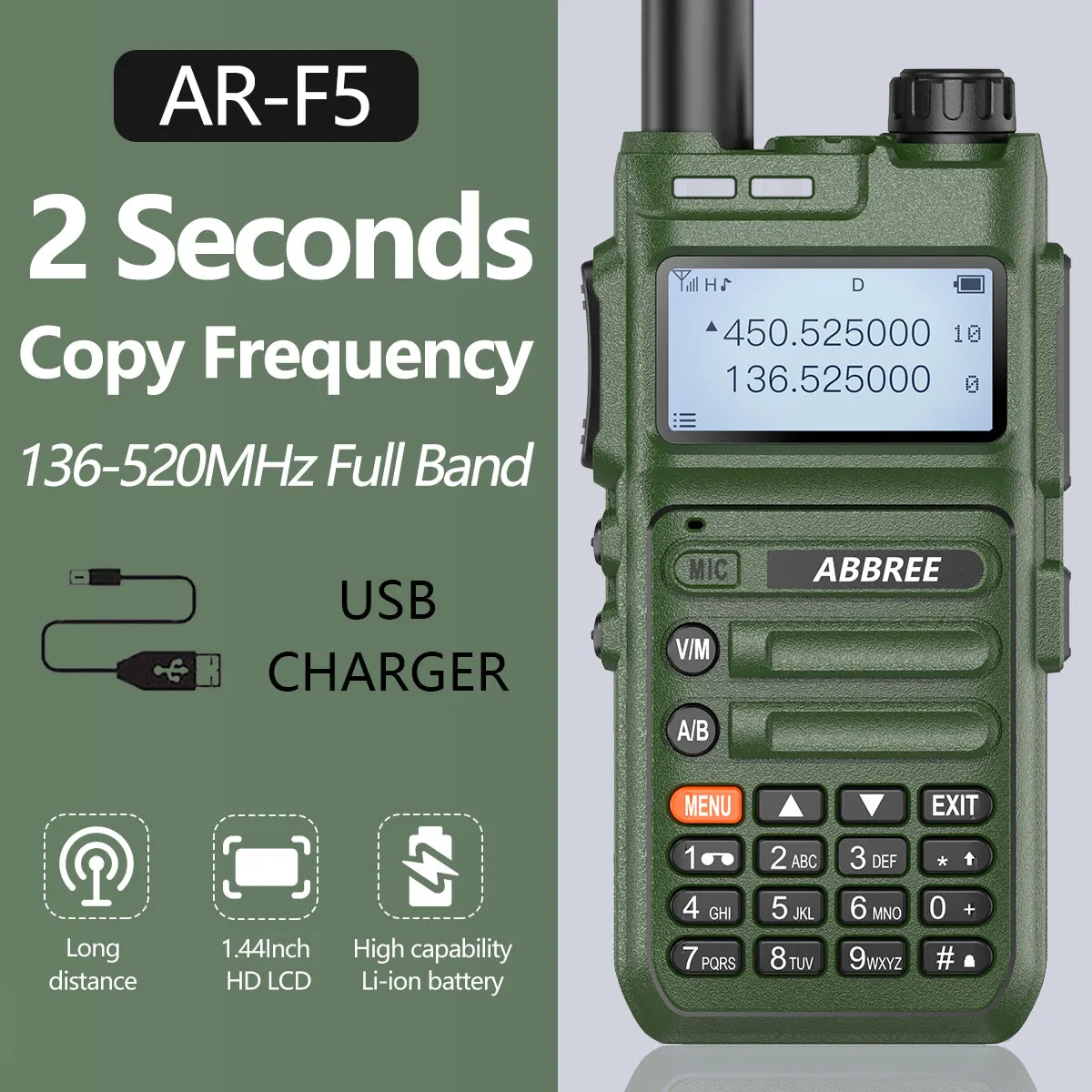

ABBREE AR-F5 Walkie Talkie Surpports VHF(136-174MHz) UHF(400-520MHz)

Band PTT Scanner Radio professional Decoder Frequency Ham Radio Transmitter

It can decode any analog two way radio frequency and Privacy code

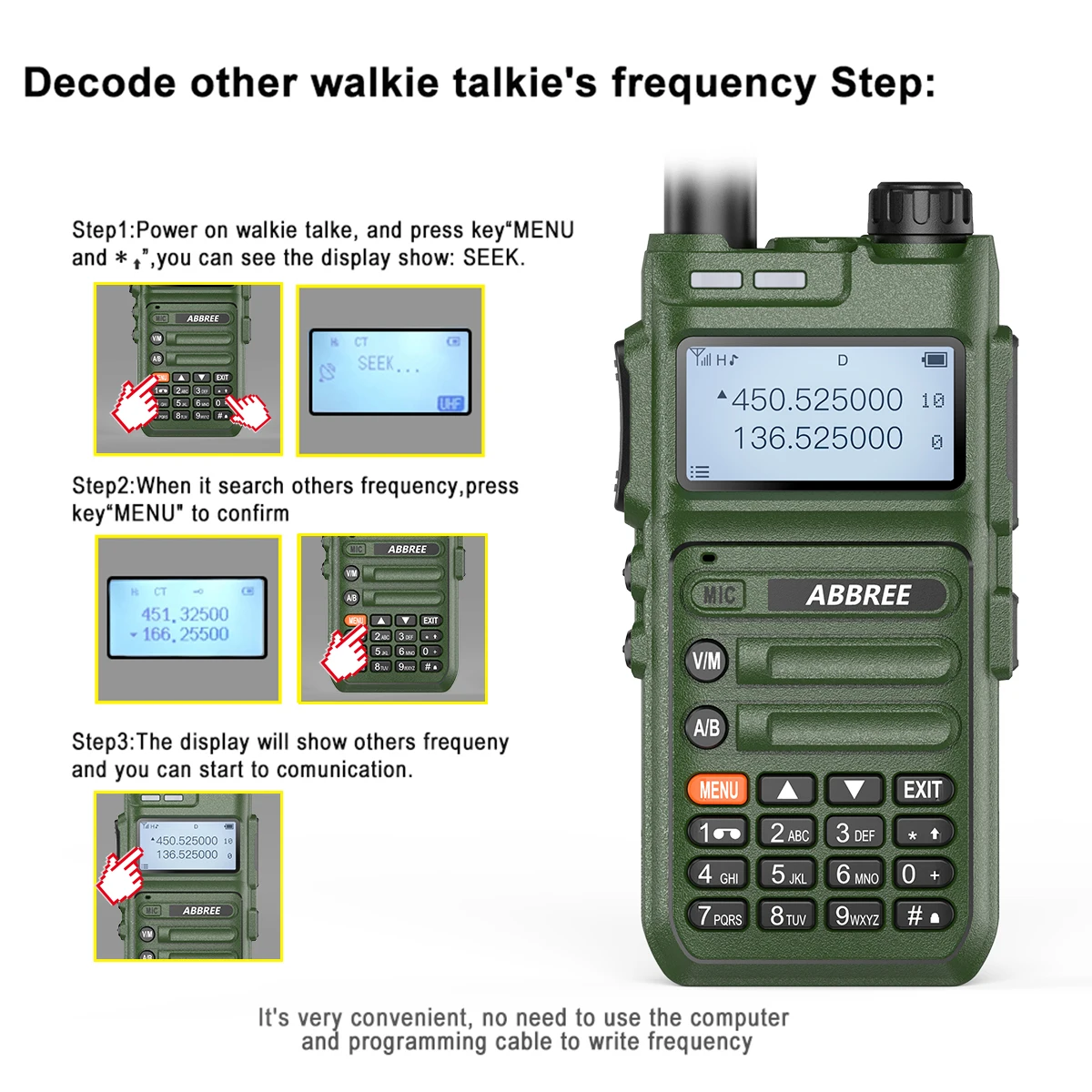

How to decode the frequency from another radio:

Press
the Menu button and * button, the AR-F5 will search for another radio
transmission frequency and privacy code. Press Menu again to store the
frequency. The two walkie-talkies use the same frequency and security
code to establish normal communication.

（Attention:other radio need to press PTT，and the distance between the two walkie-talkies is within 30CM.)

Specification:

General

Frequency range

136-520MHz
65MHz-108MHz(Qnly commercial FM radio reception)

Memory channels

Up to 128 channels

Frequency stability

2.5ppm

Frequency step

2.5/5/6.25/10/12.5/25KHz

Antenna impedance

50 OHM

Operating temperature

-20°C-60°C

Supply voltage

Rechargeable Lithium-Ion 7.4V

Battery Capacity

5800mAh

Consumption in standby

<=75mA

Consumption in reception

380mA

Consumption in transmission

<=1.4A

Mode of operation

Simplex or semi-duplex

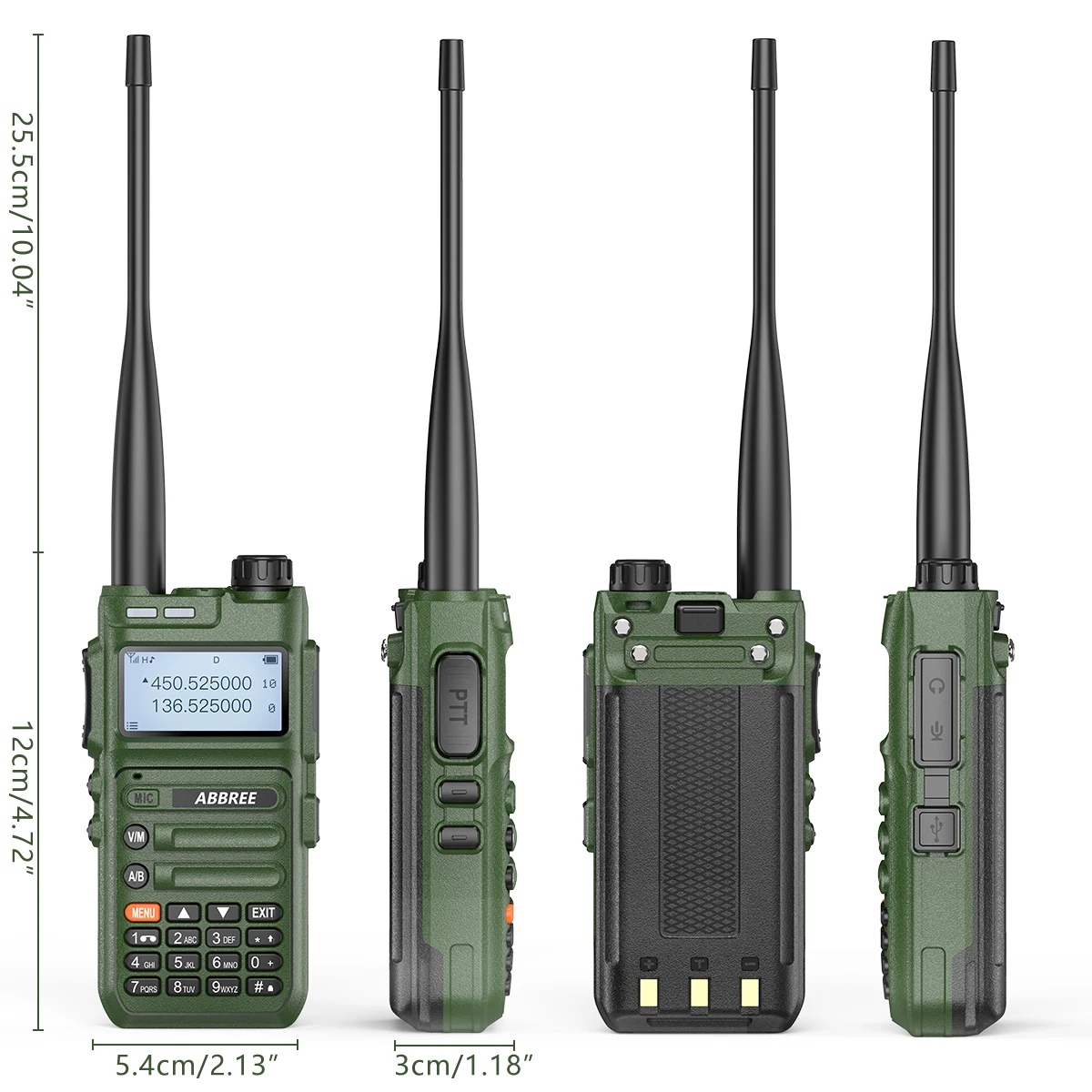

Dimensions

121*61*33mm

Size(include battery, exclude antenna)

223g(approximate)

Transmitter

RF power

10W

Modulation type

Emission class

16K øF3E/11KøF3E(W/N)

Maximum deviation

<=±5KHz/<=±2.5KHz(W/N)

Spurious emission

<-60dB

Receiver

Receiver sensitivity

0.2µV (at 12 dB SINAD)

Inter modulation

60dB

Audio output

1000mW

Adjacent channel selectivity

65/60dB

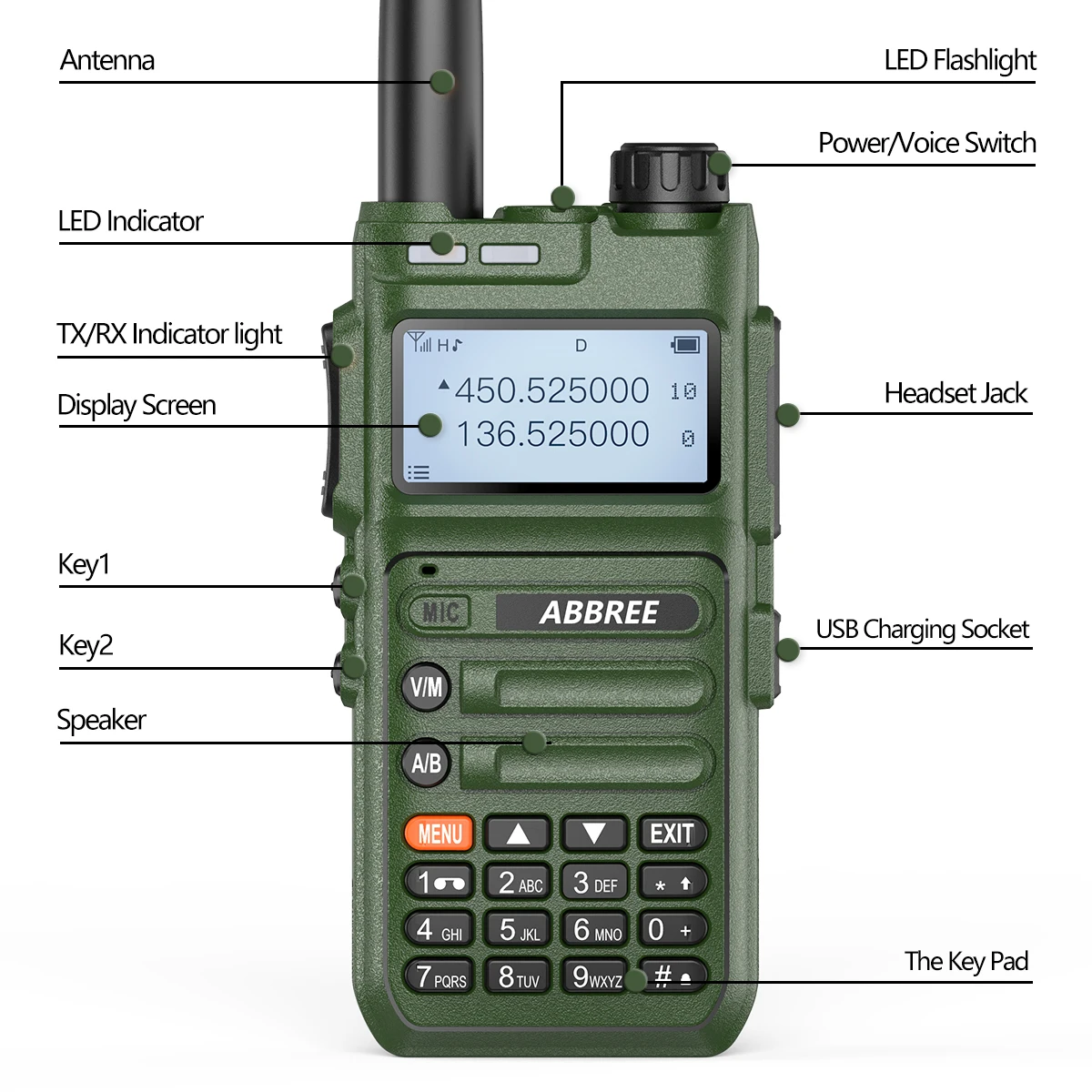

Feature:

Frequency: 136-520MHz

Dual display, dual standby

128 channels

High,medium and low power switch

Emergency alarm and ANI identification through DTMF

Time-out Timer (TOT)

One-touch Frequency measurement function

VOX

Channel scan, CTCSS/DCS scan

Equipped with the relay pilot and scramble function

Reading and writing frequency password protection

Manual input frequency and programming

FM Radio

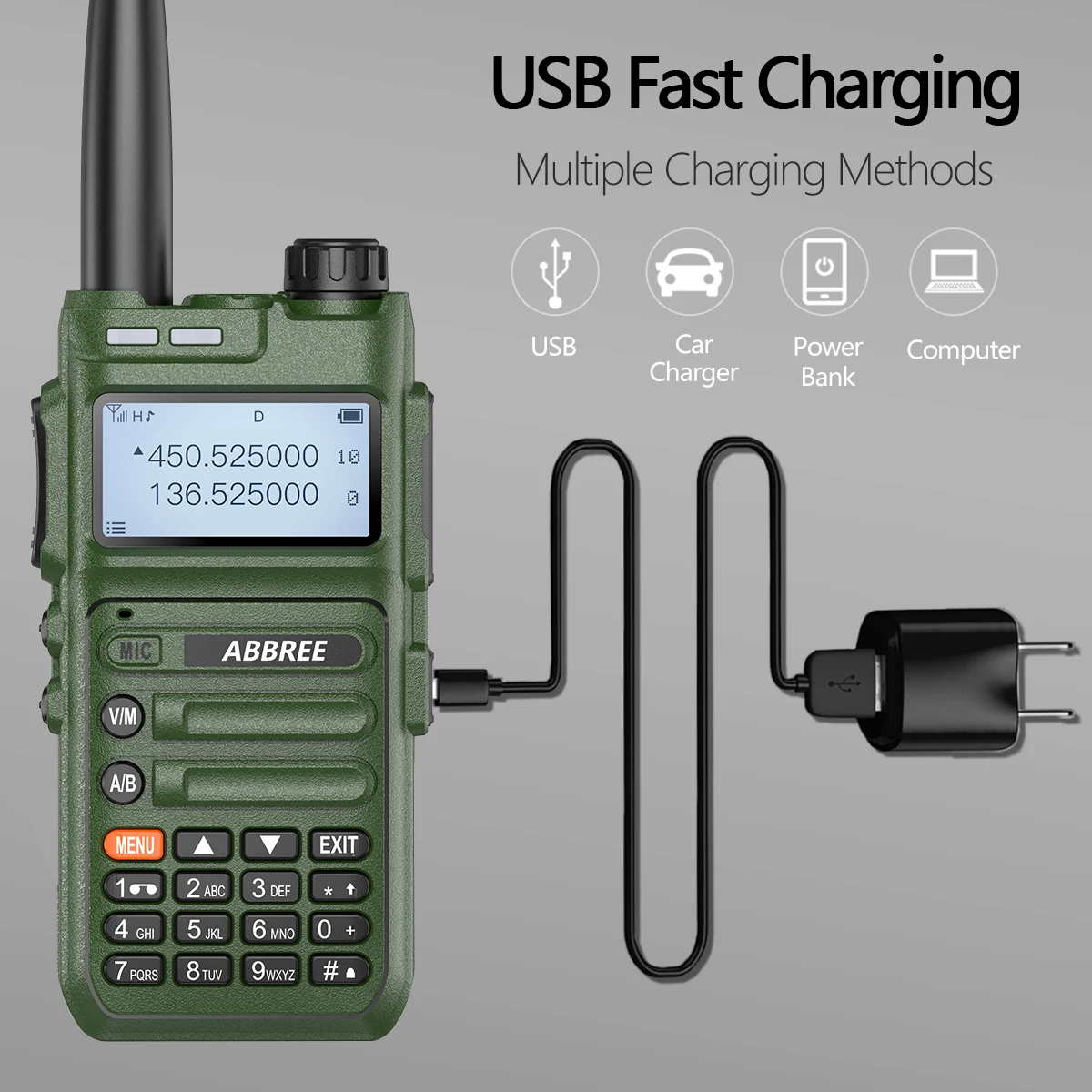

USB charging

Flashlight

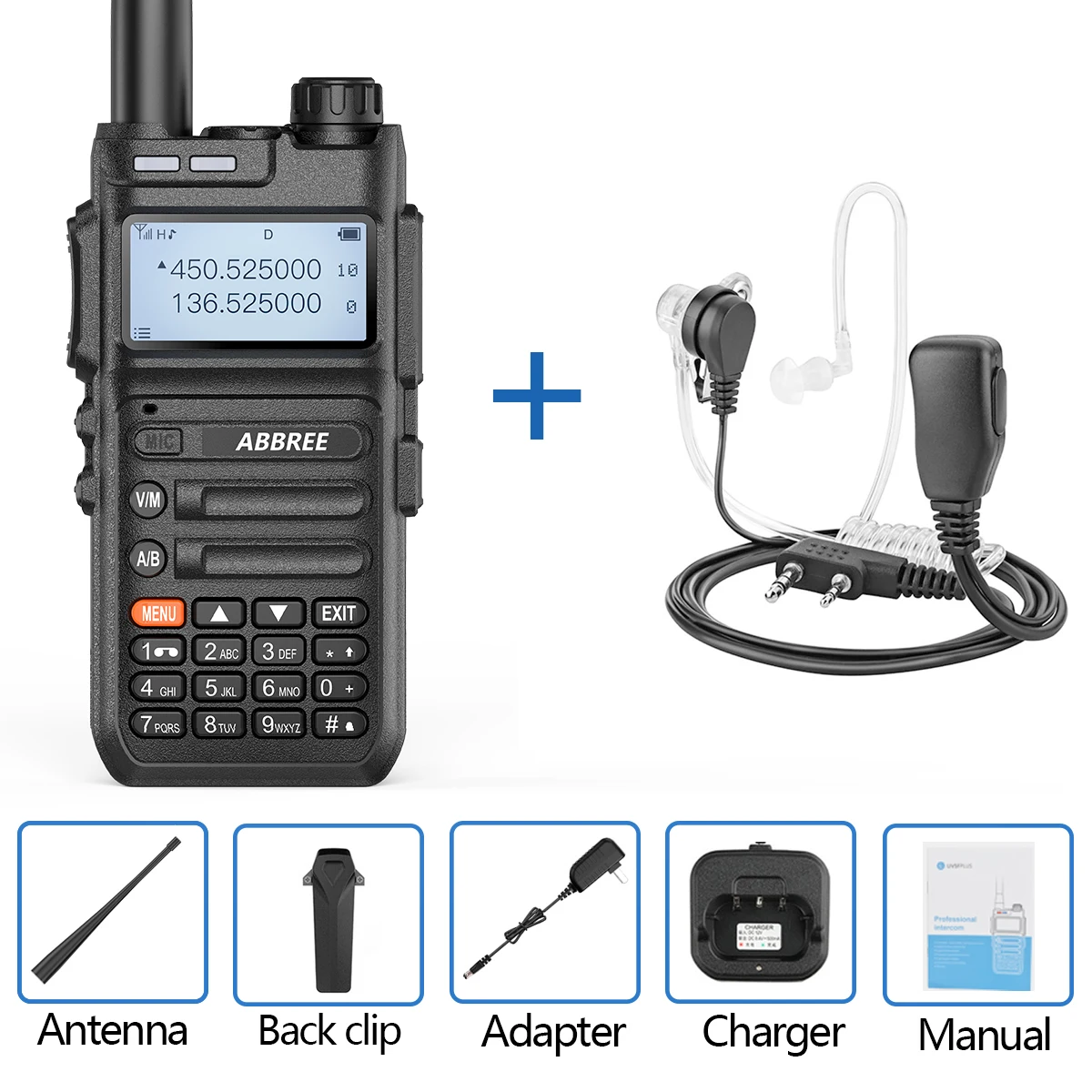

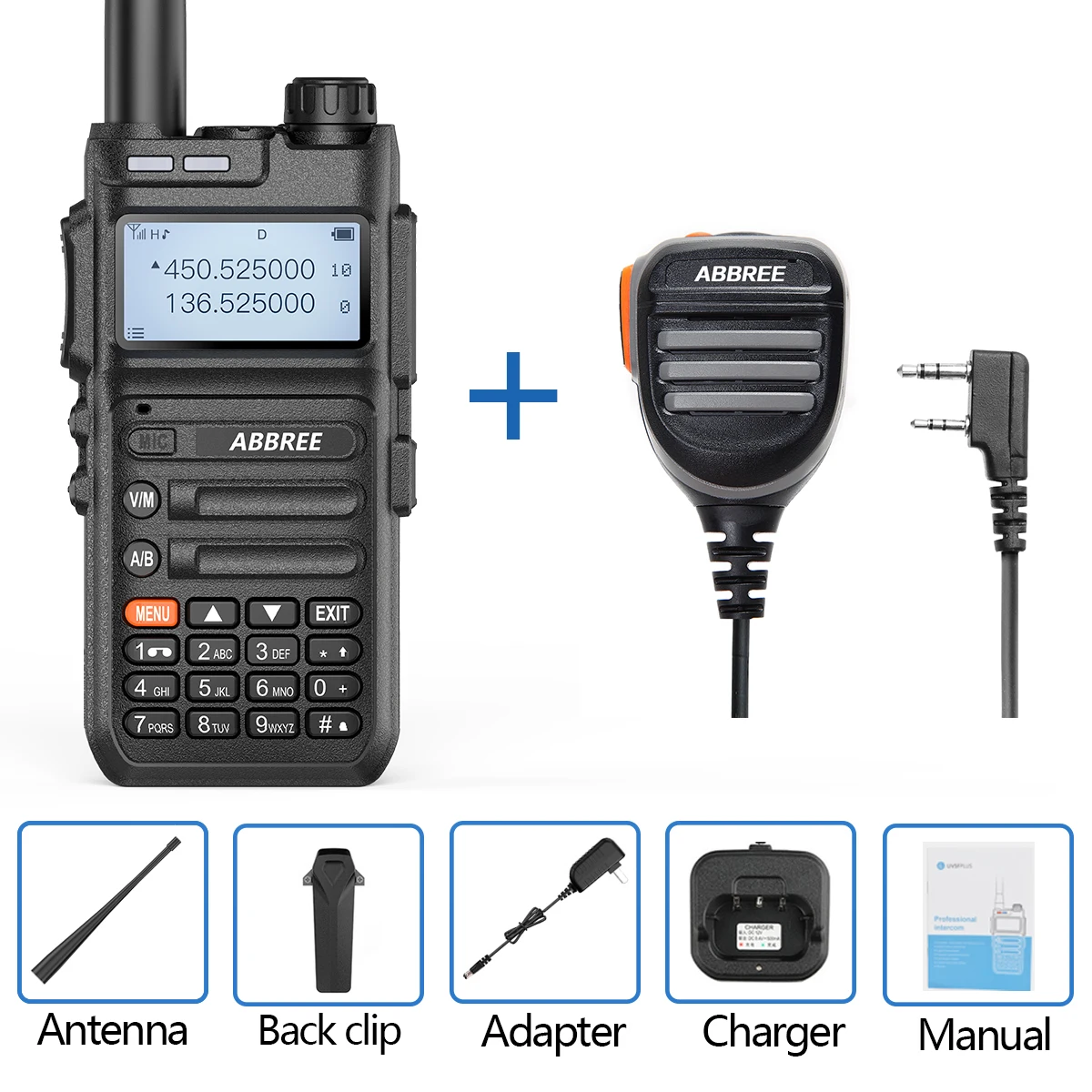

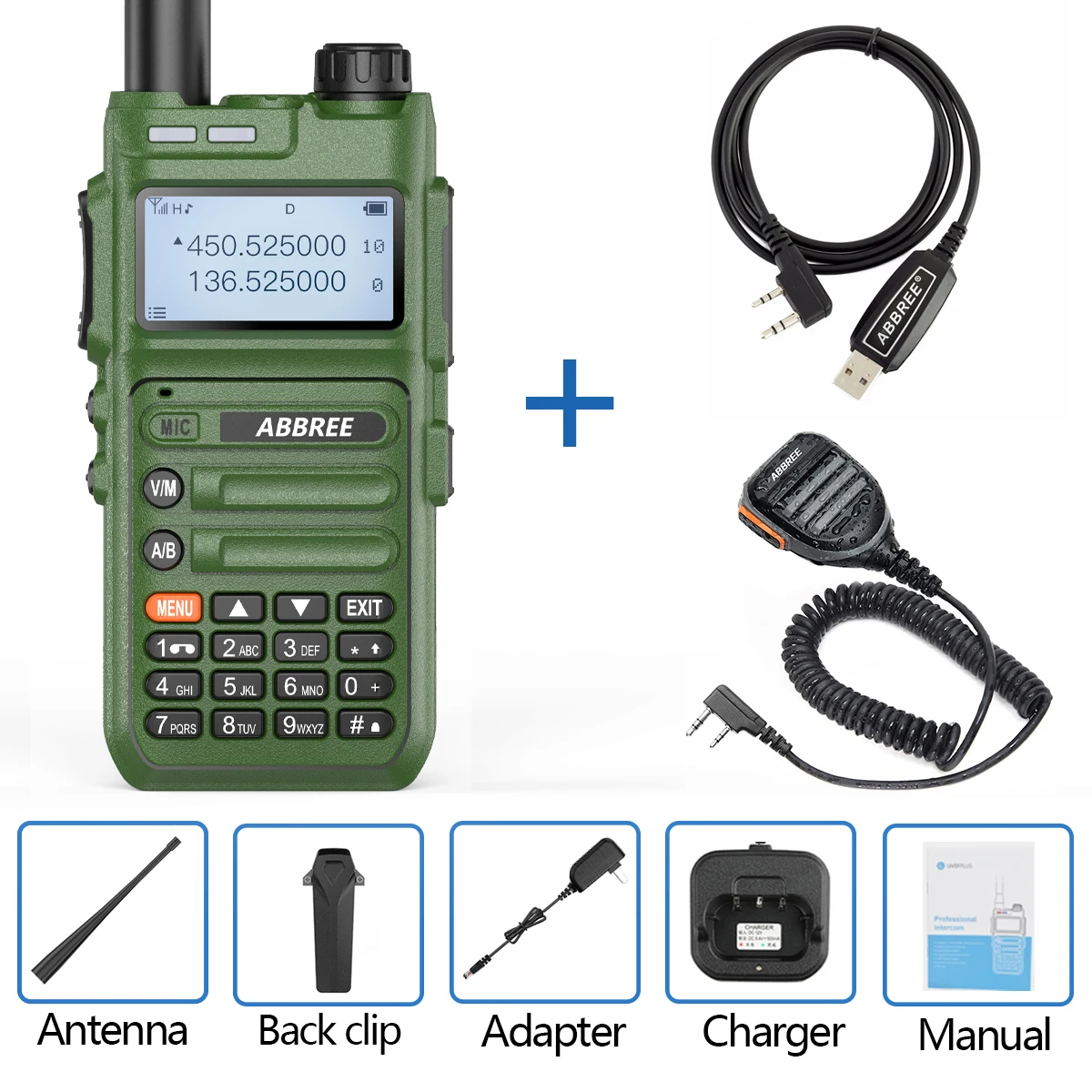

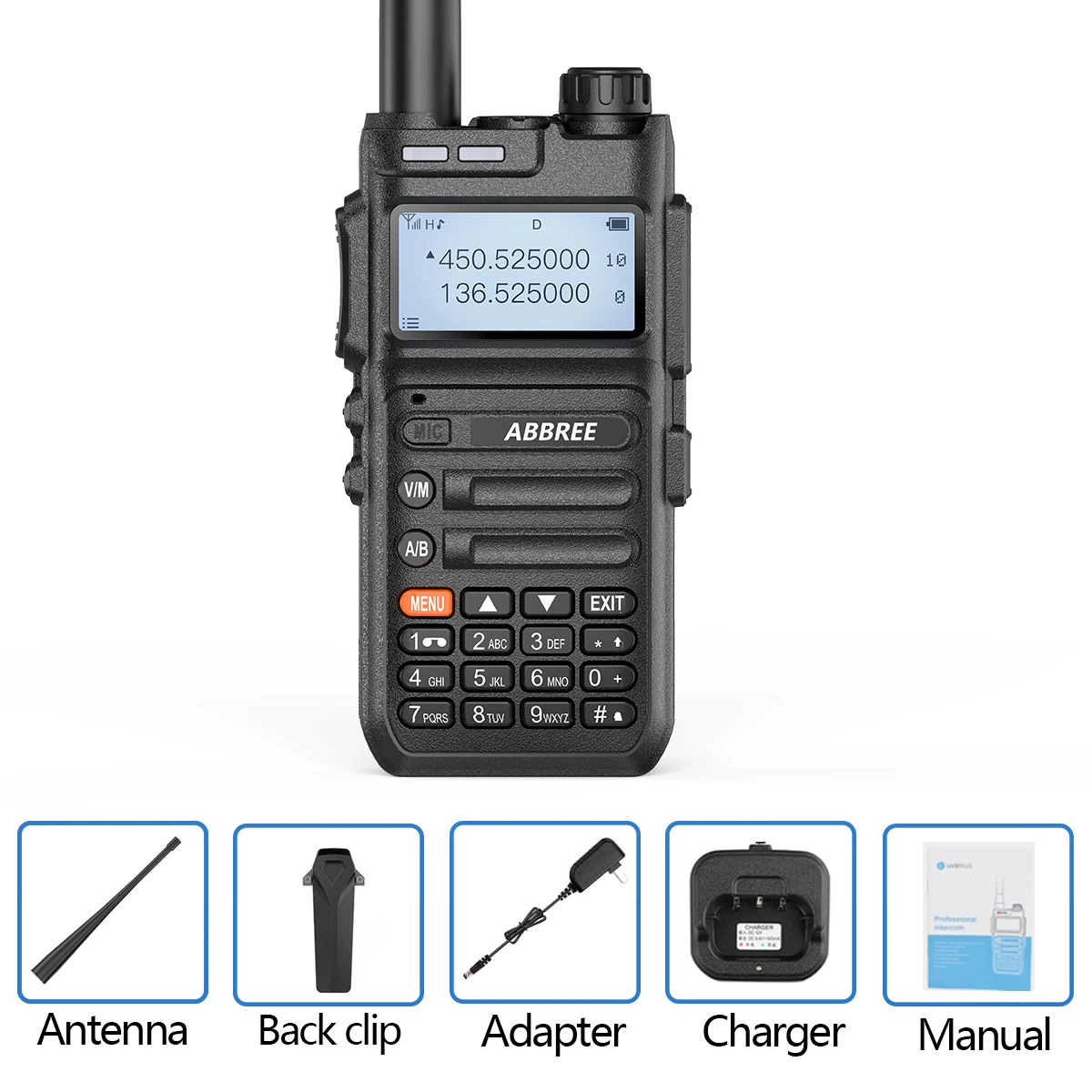

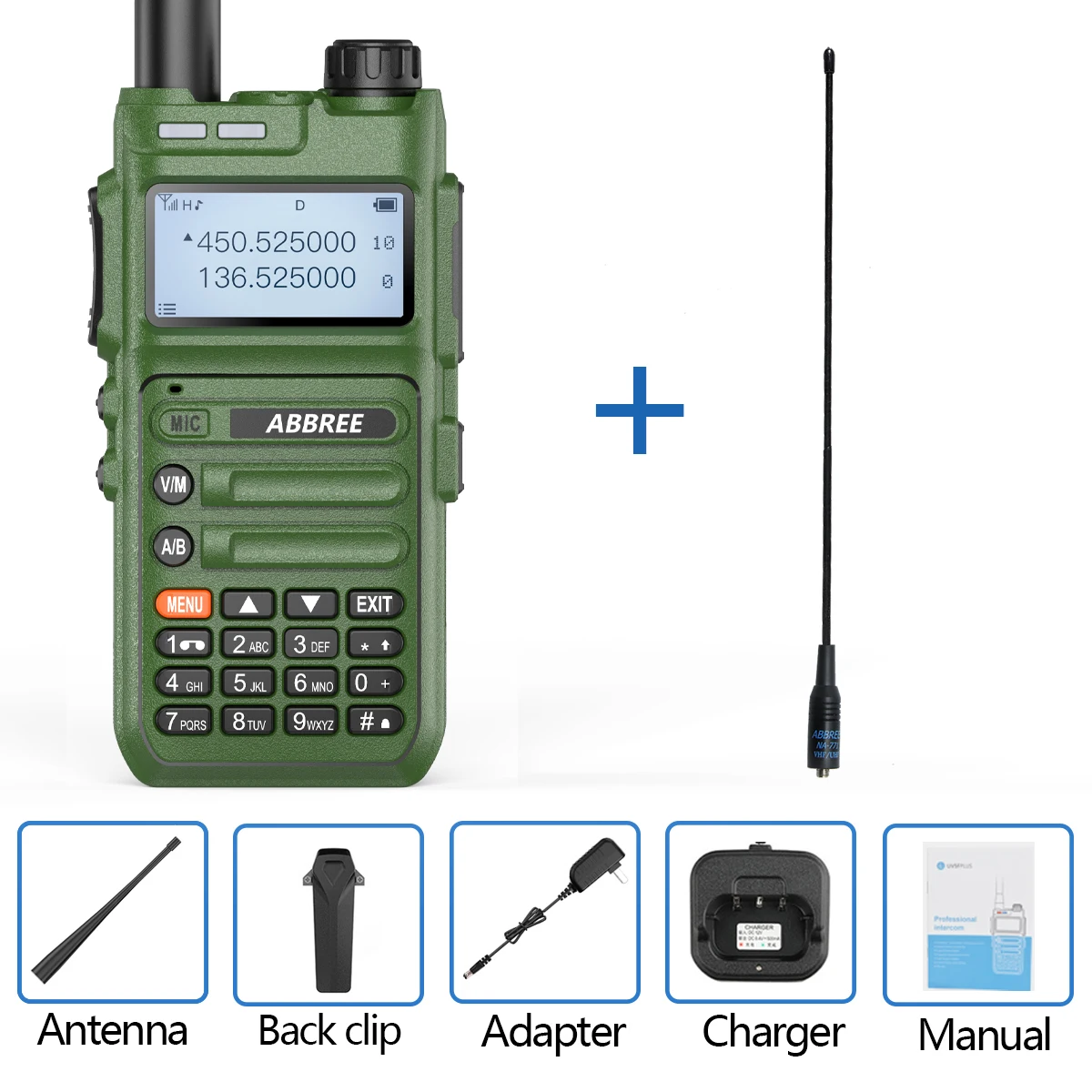

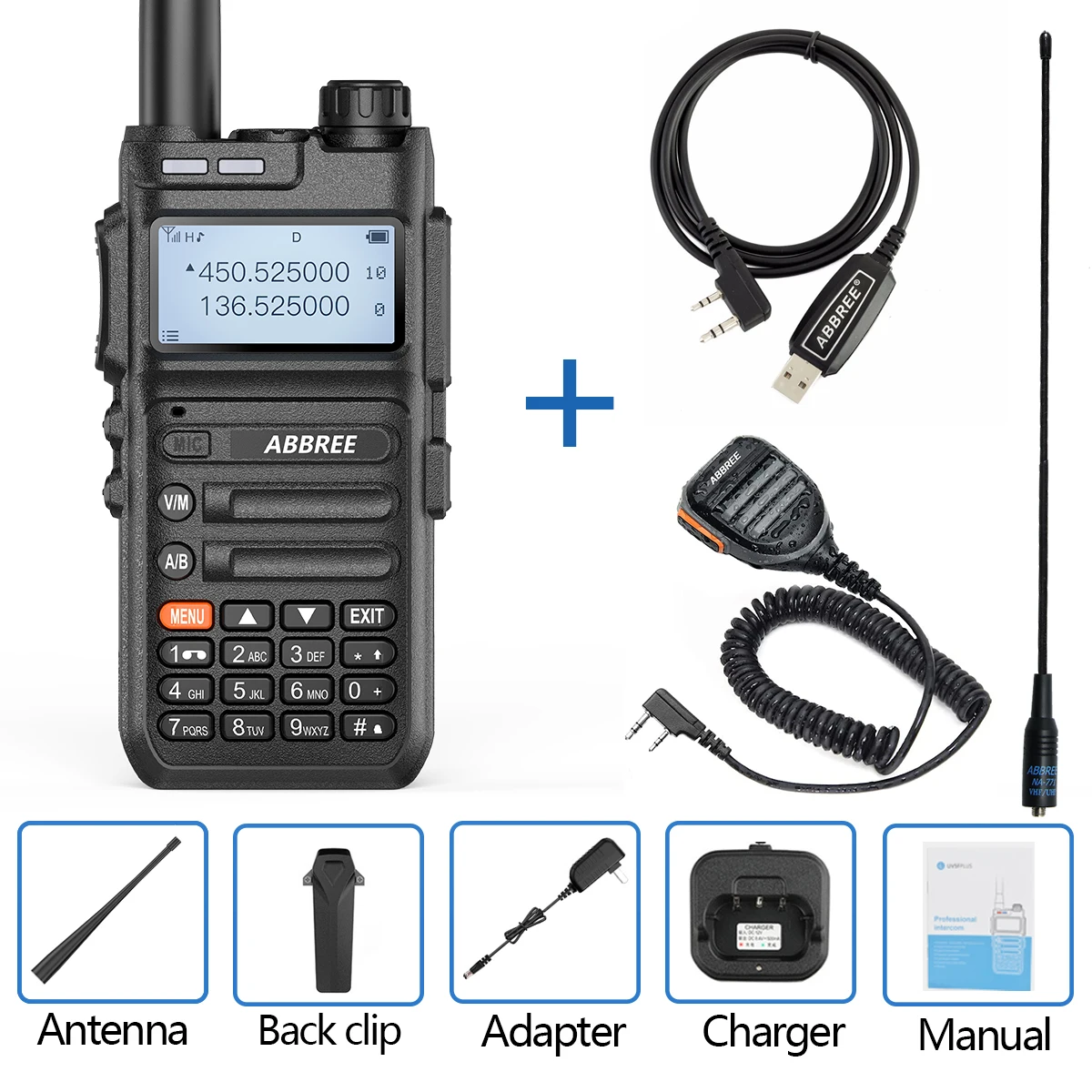

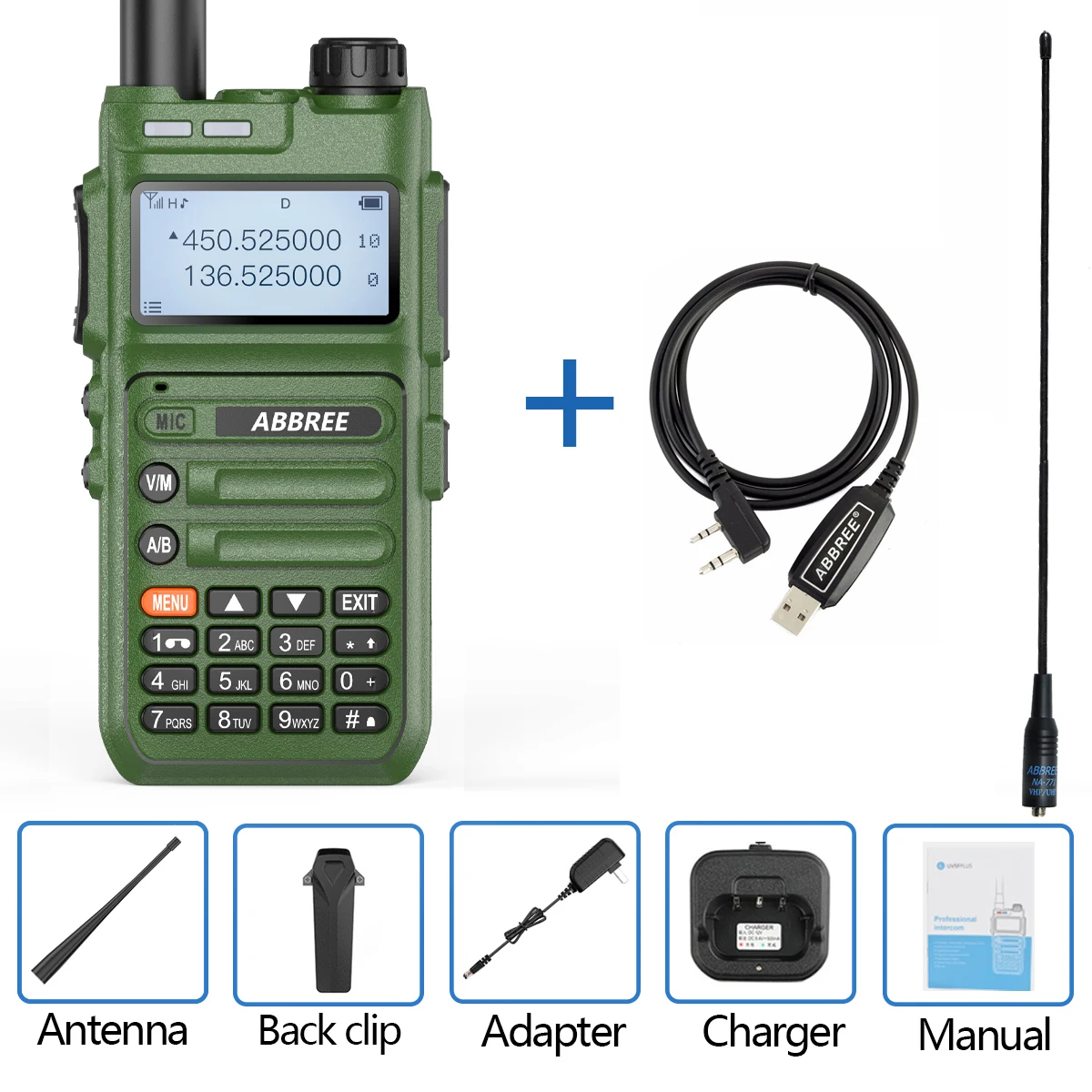

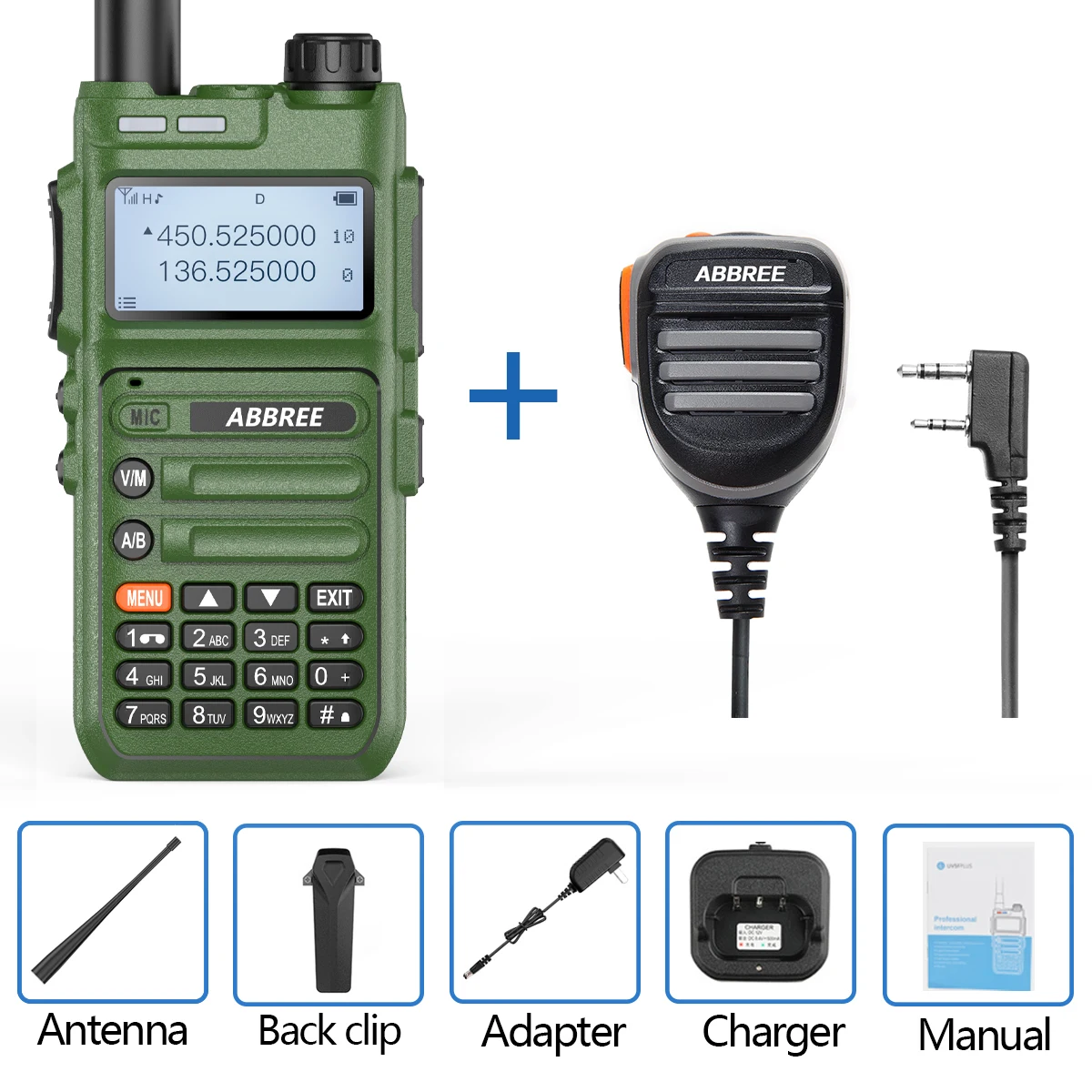

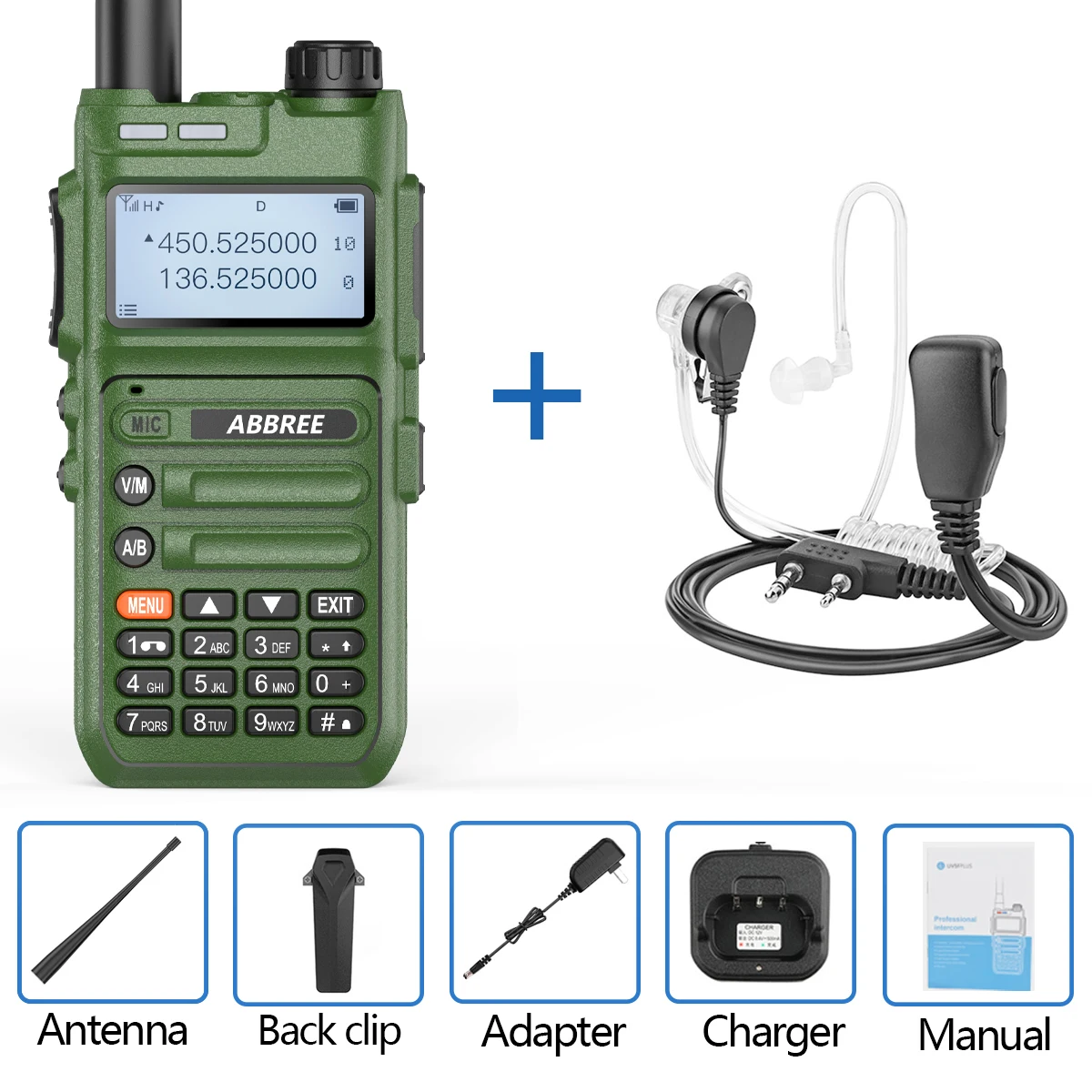

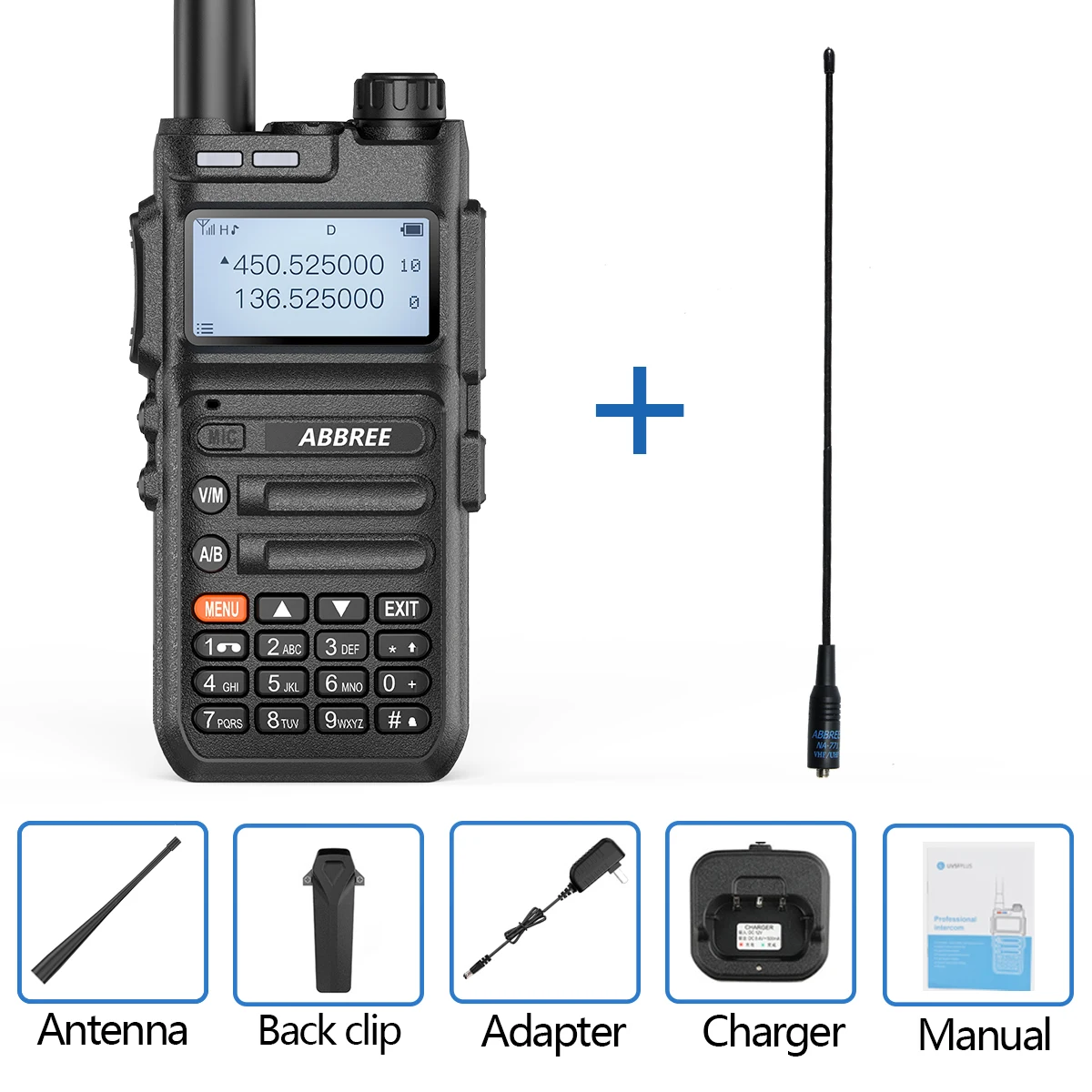

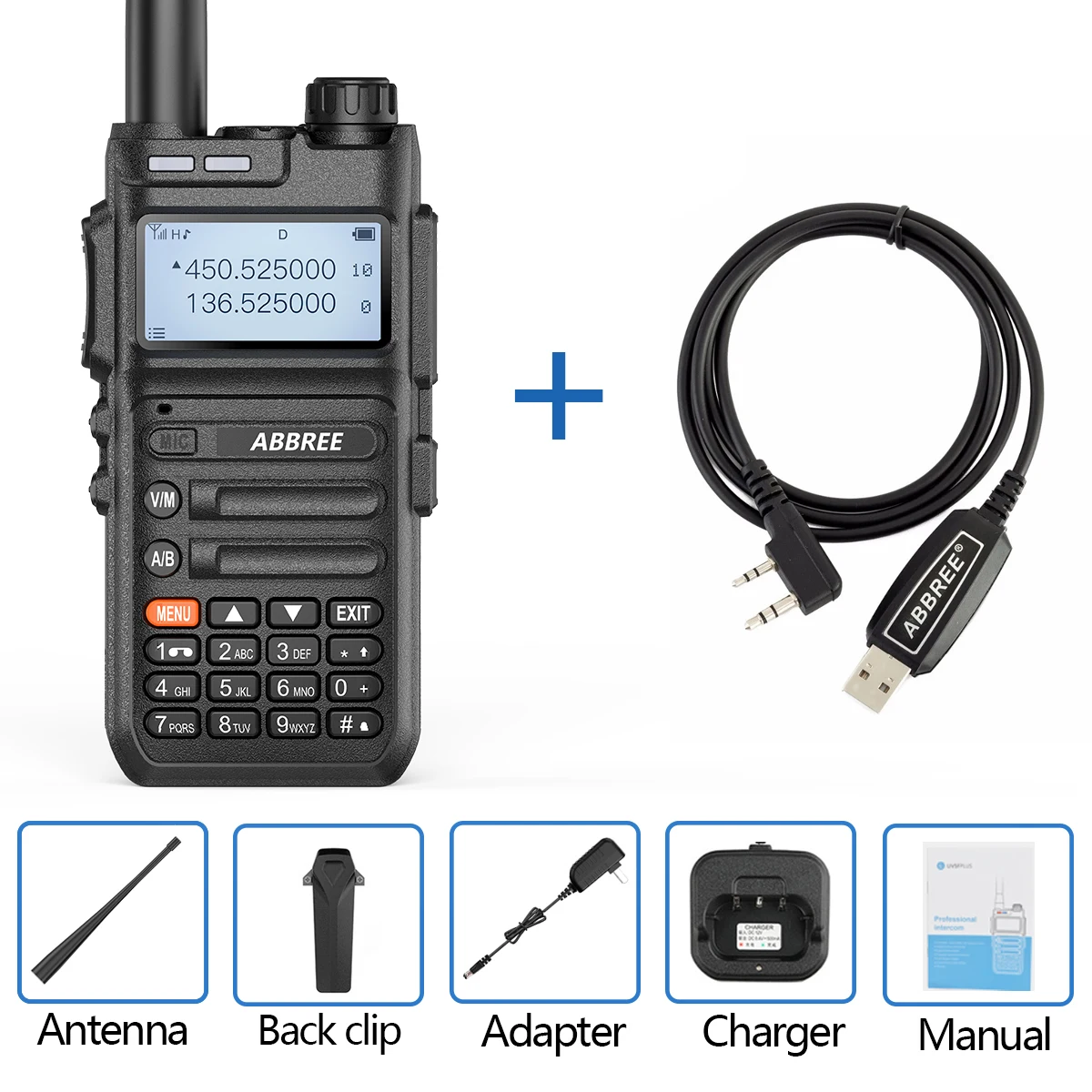

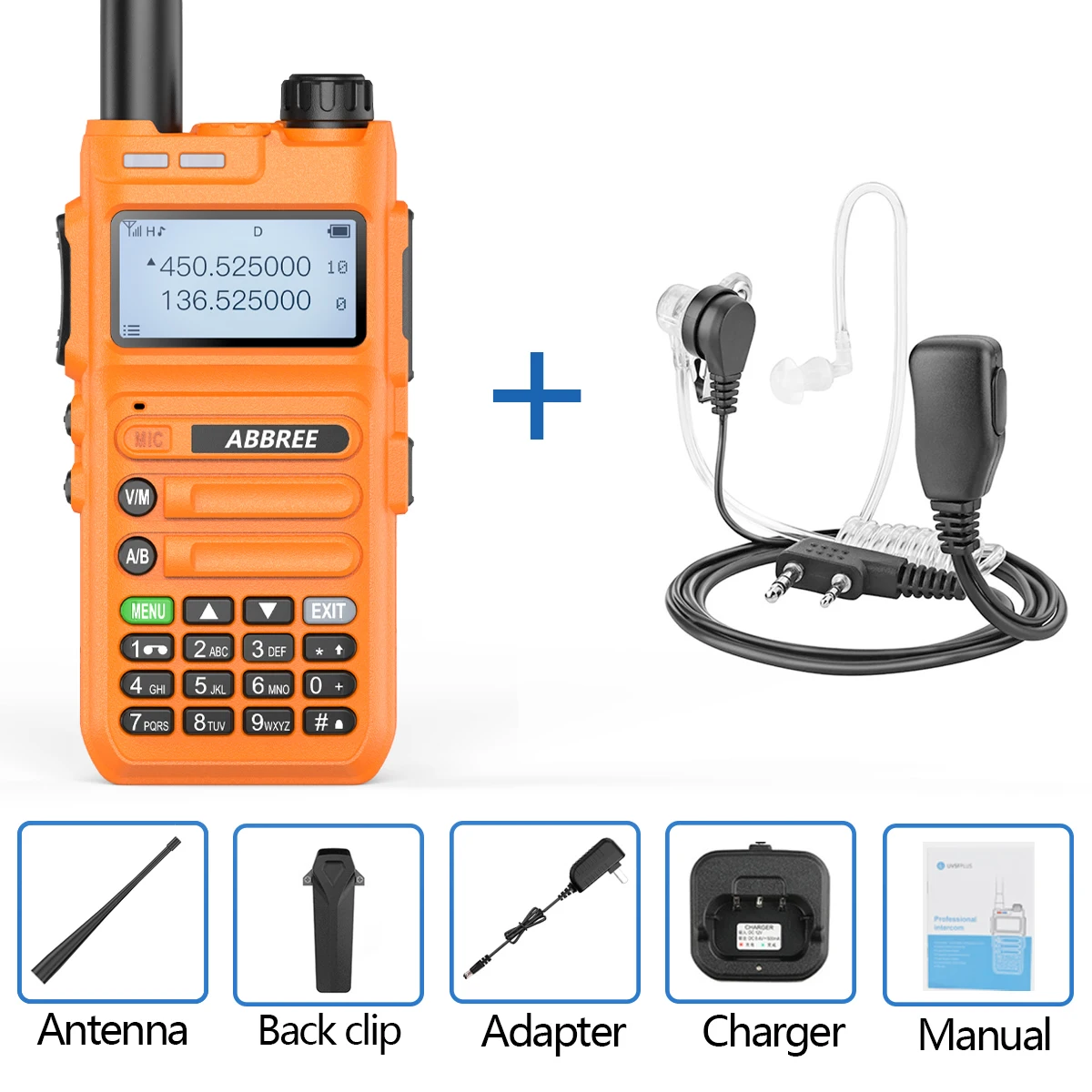

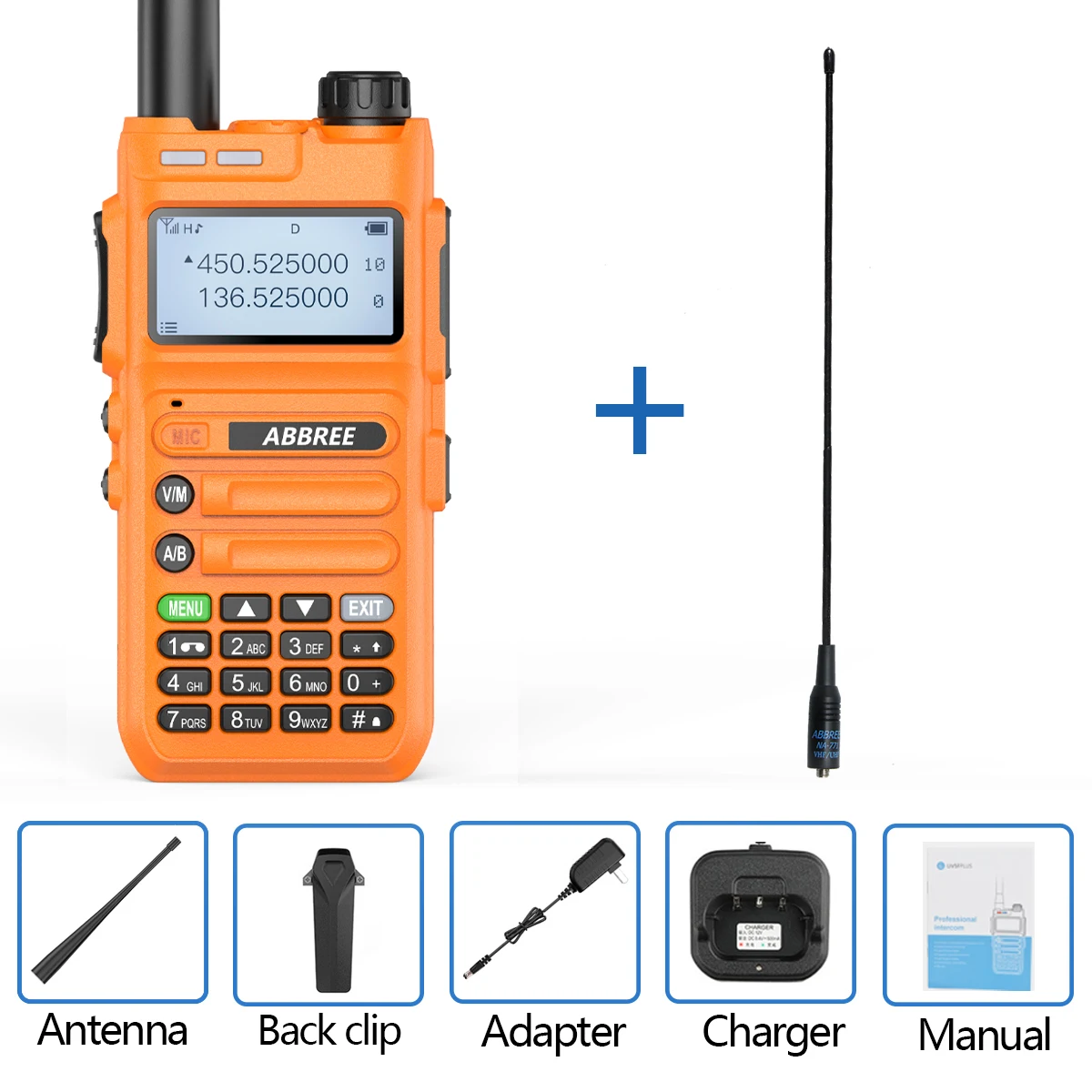

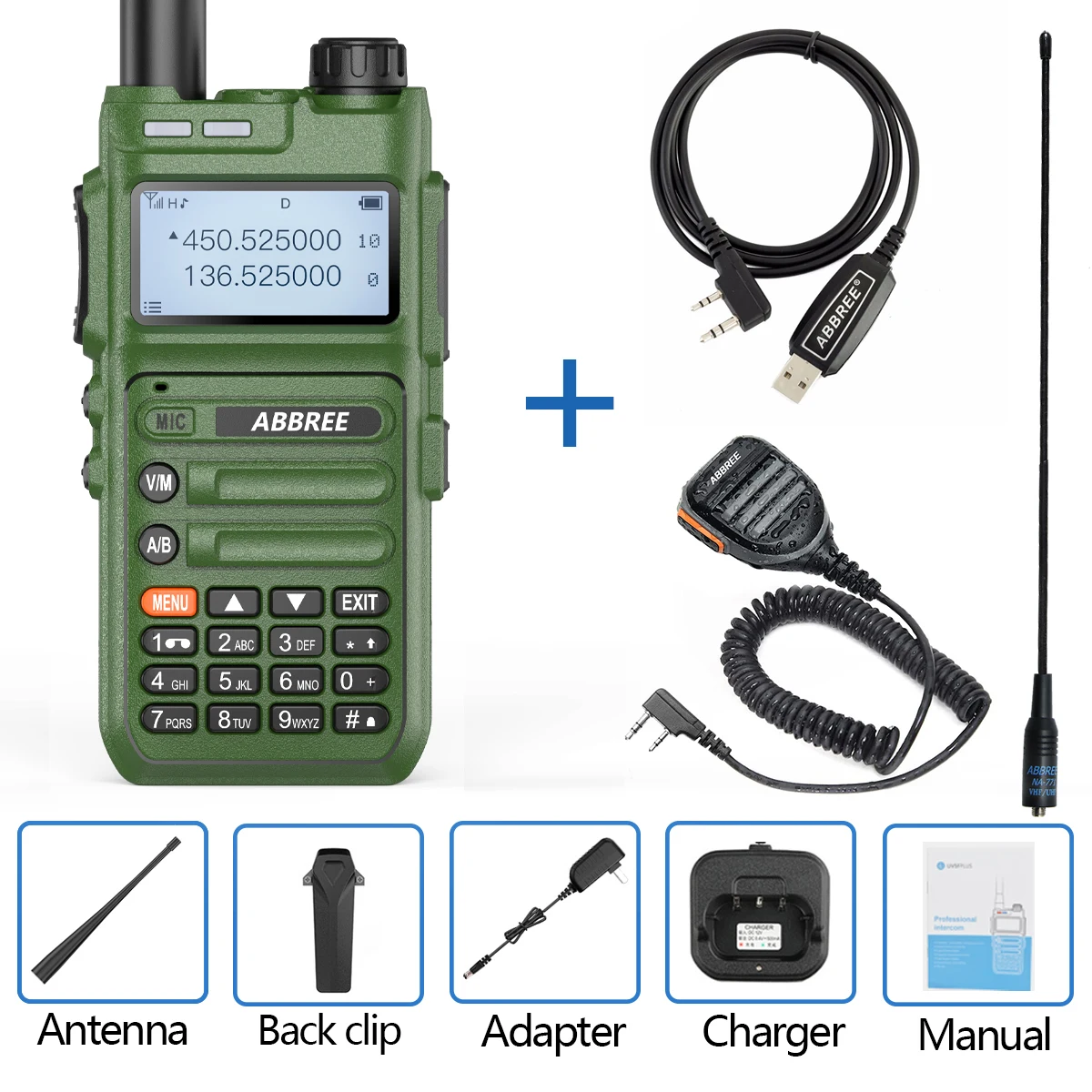

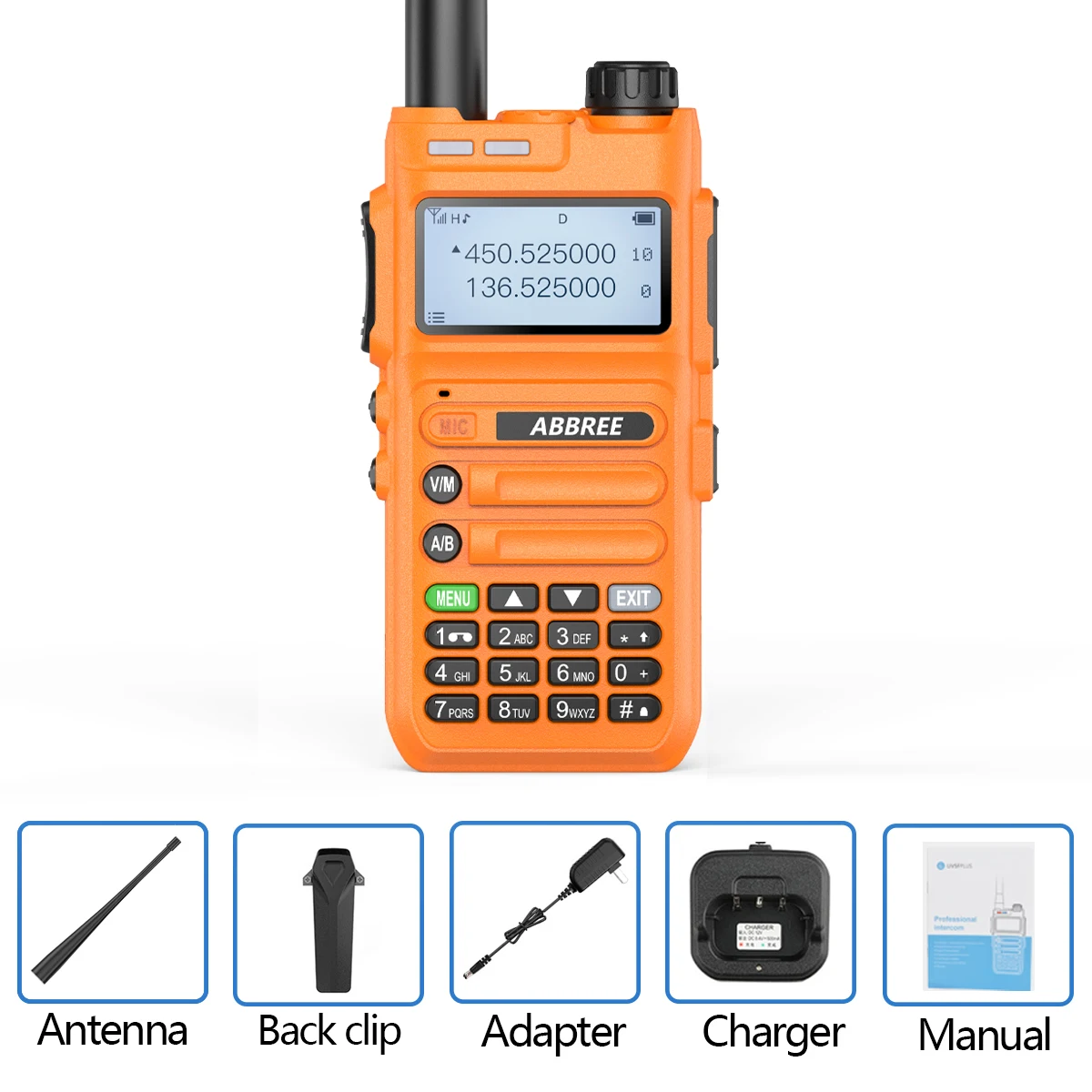

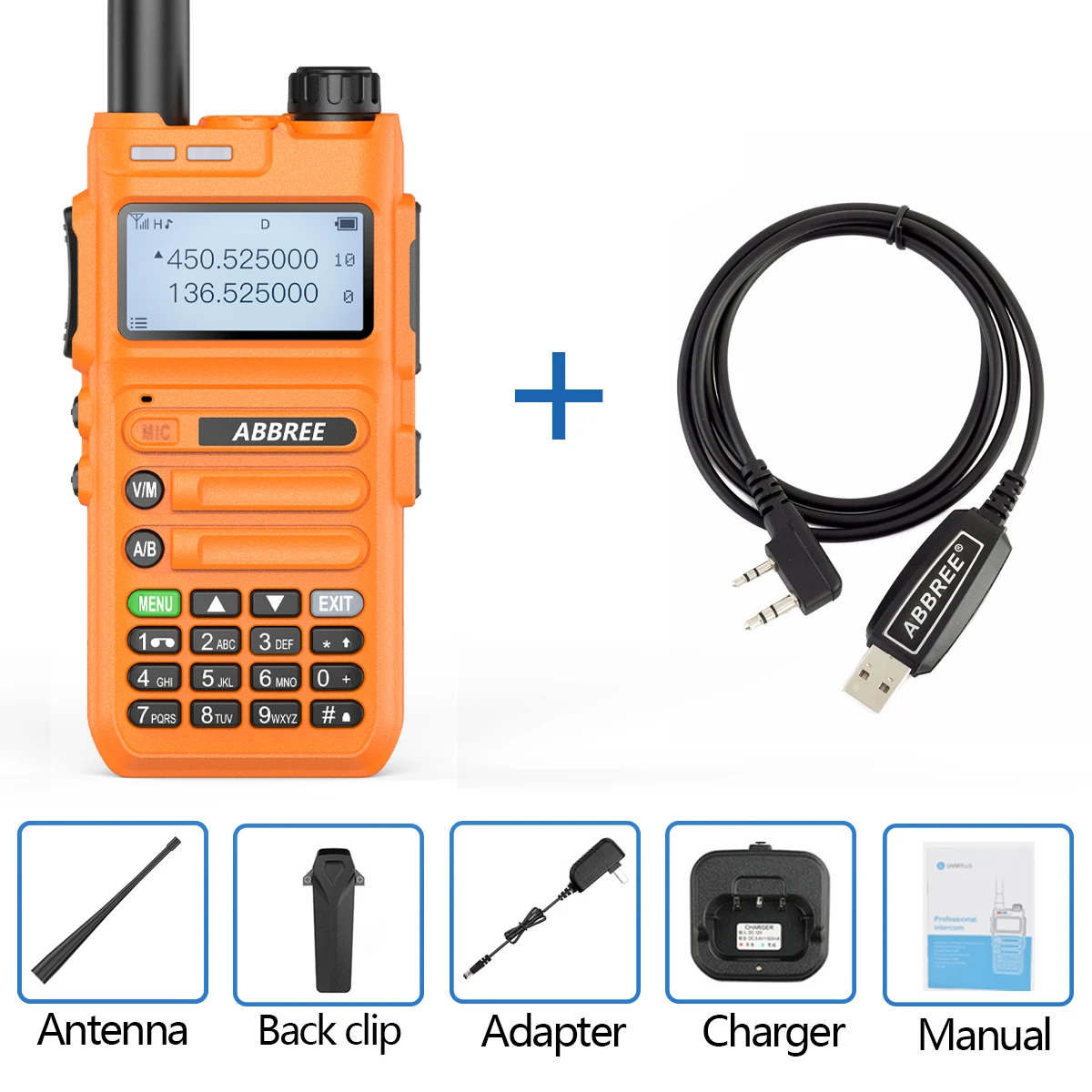

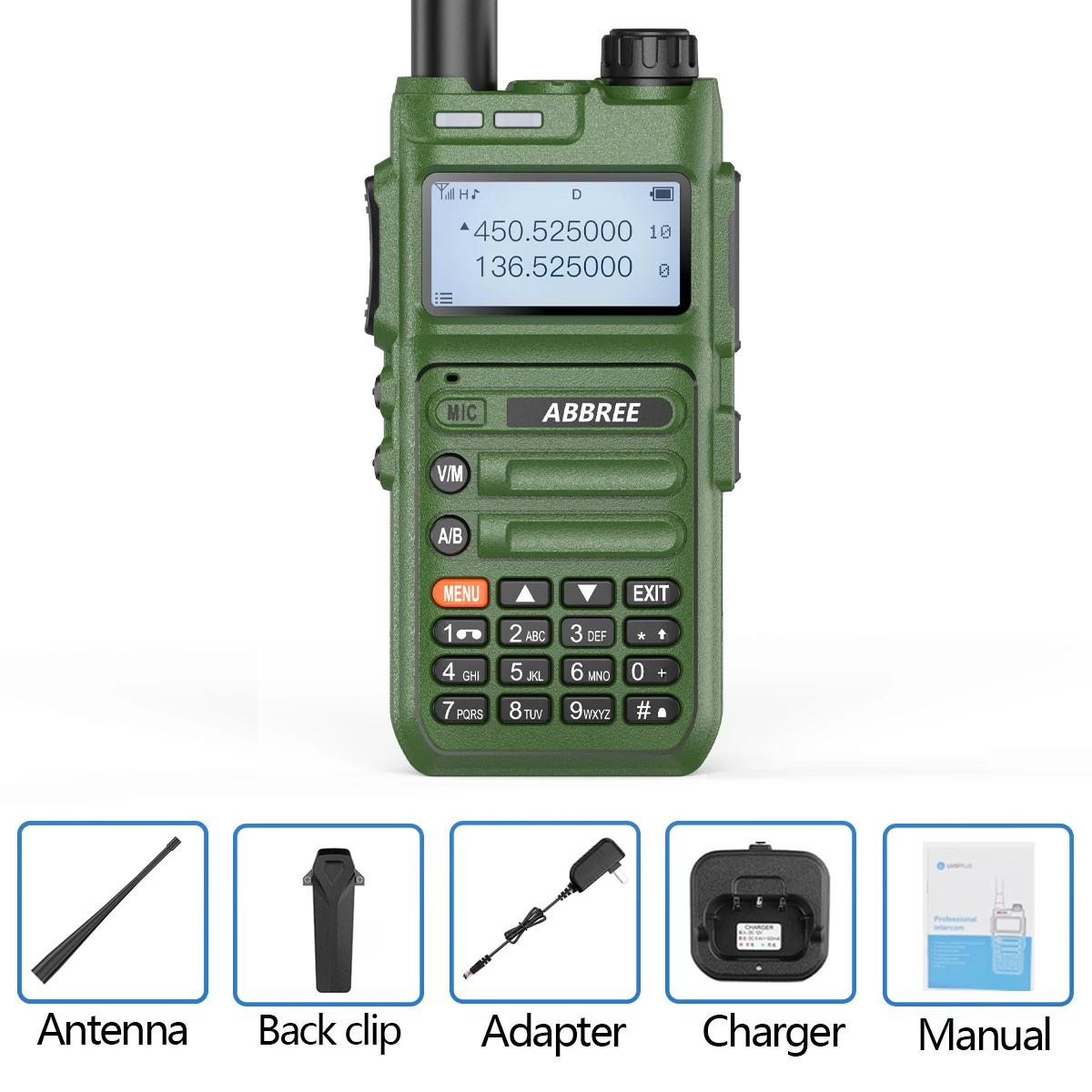

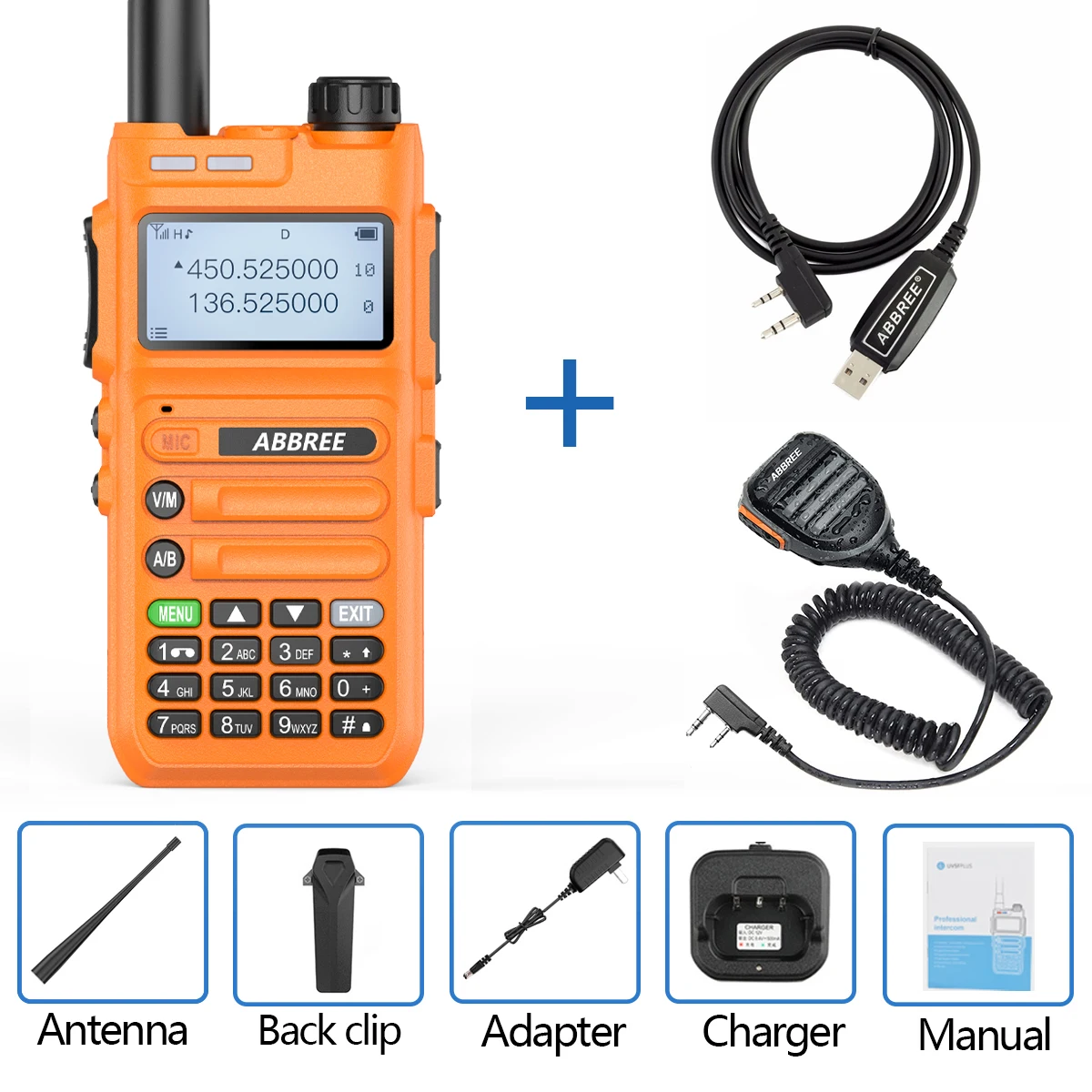

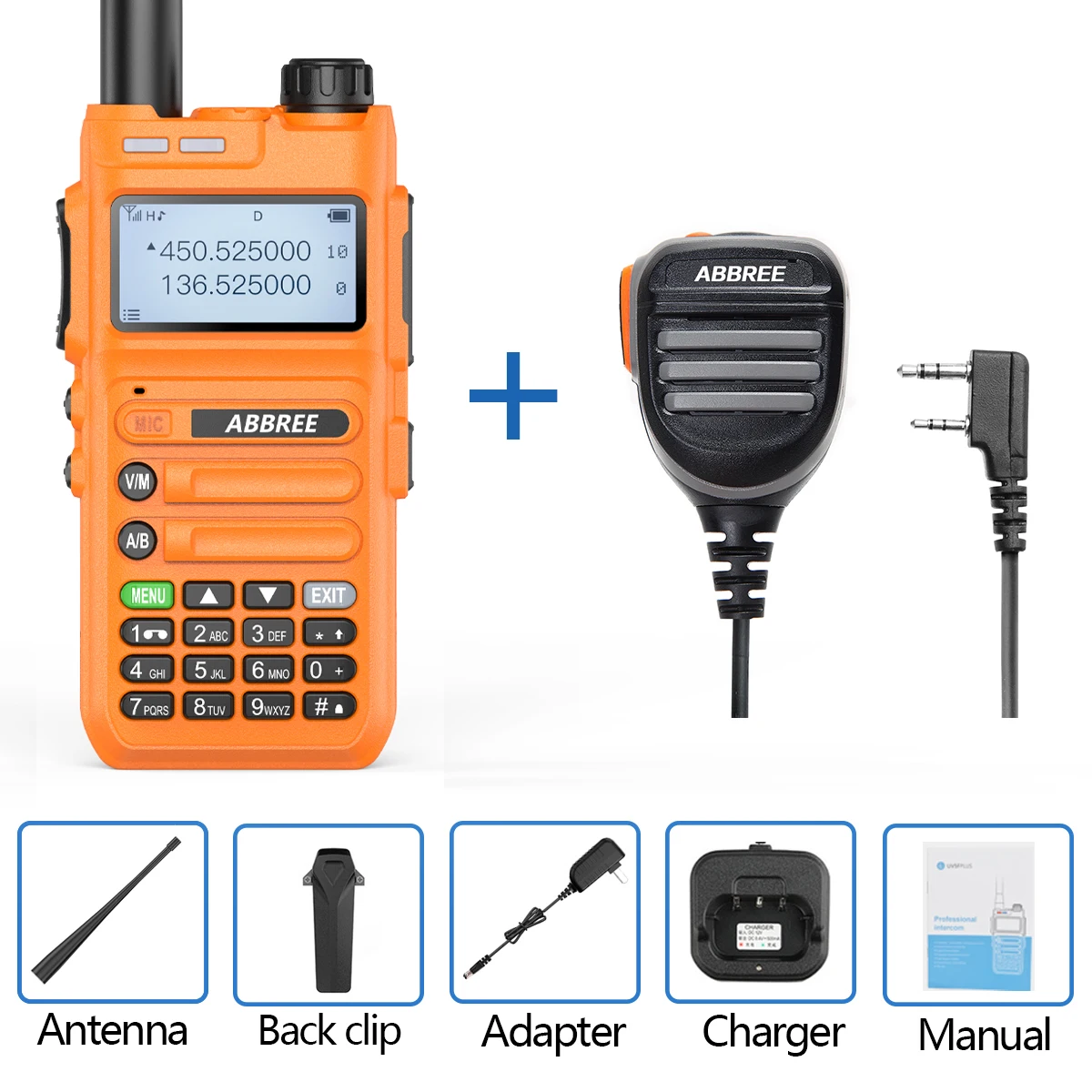

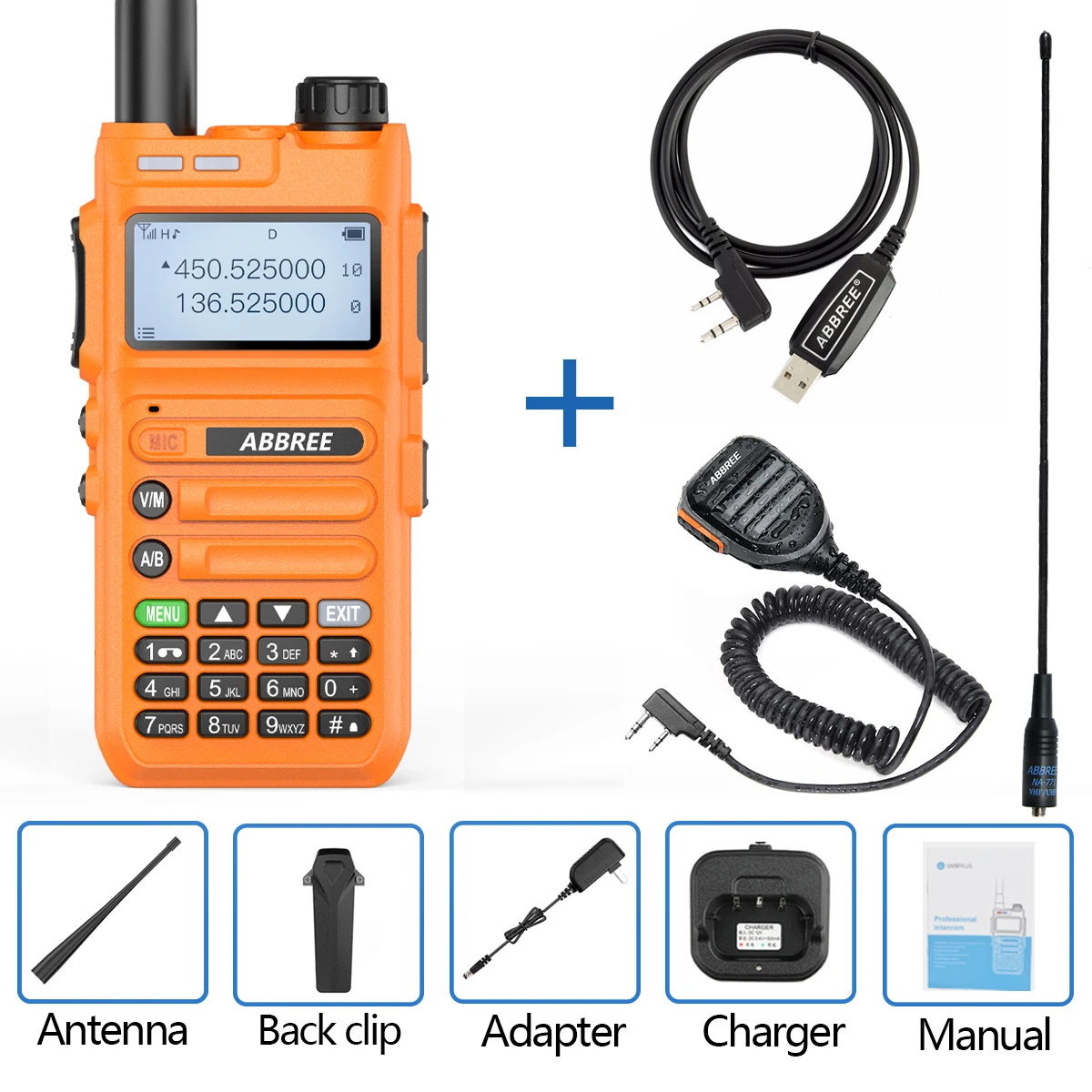

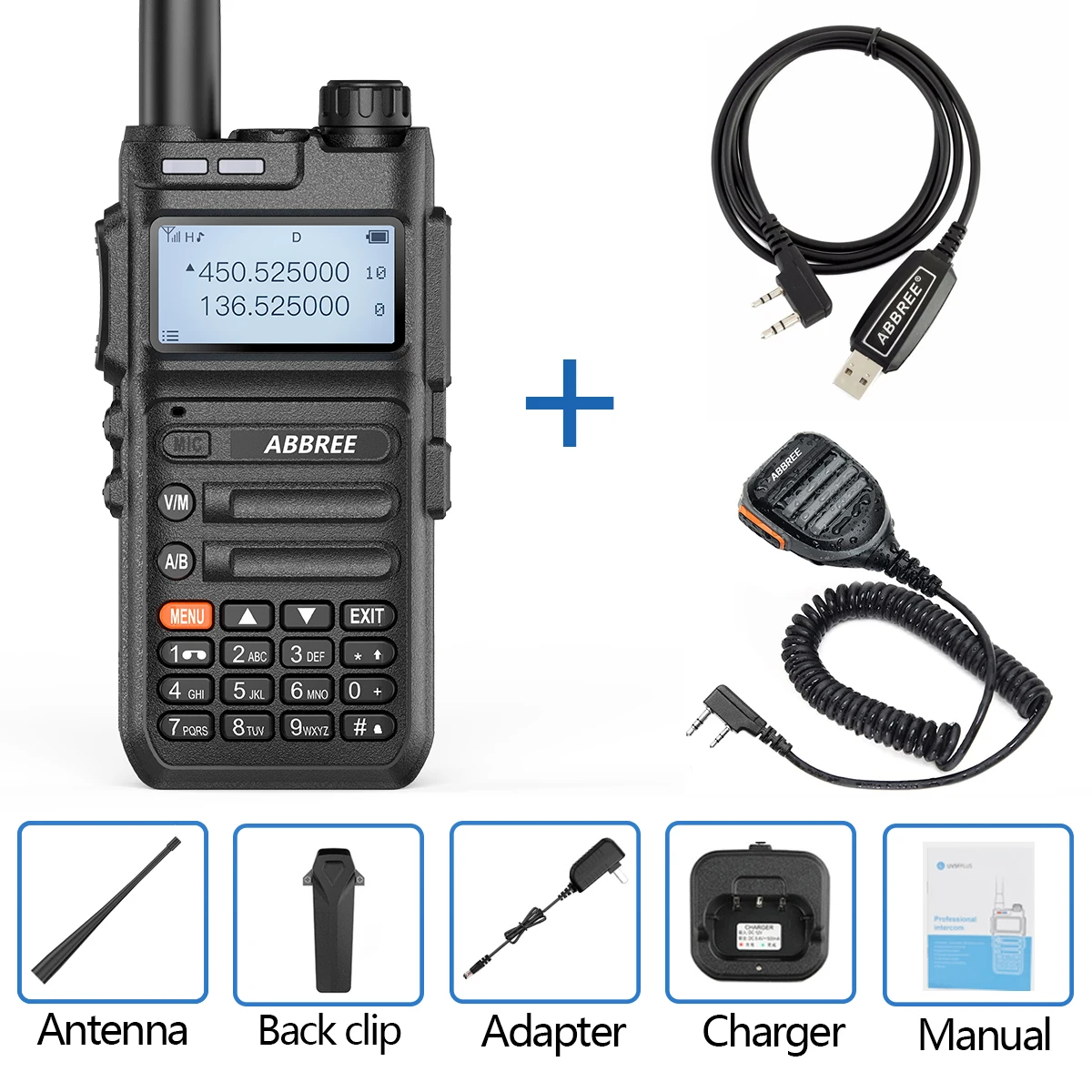

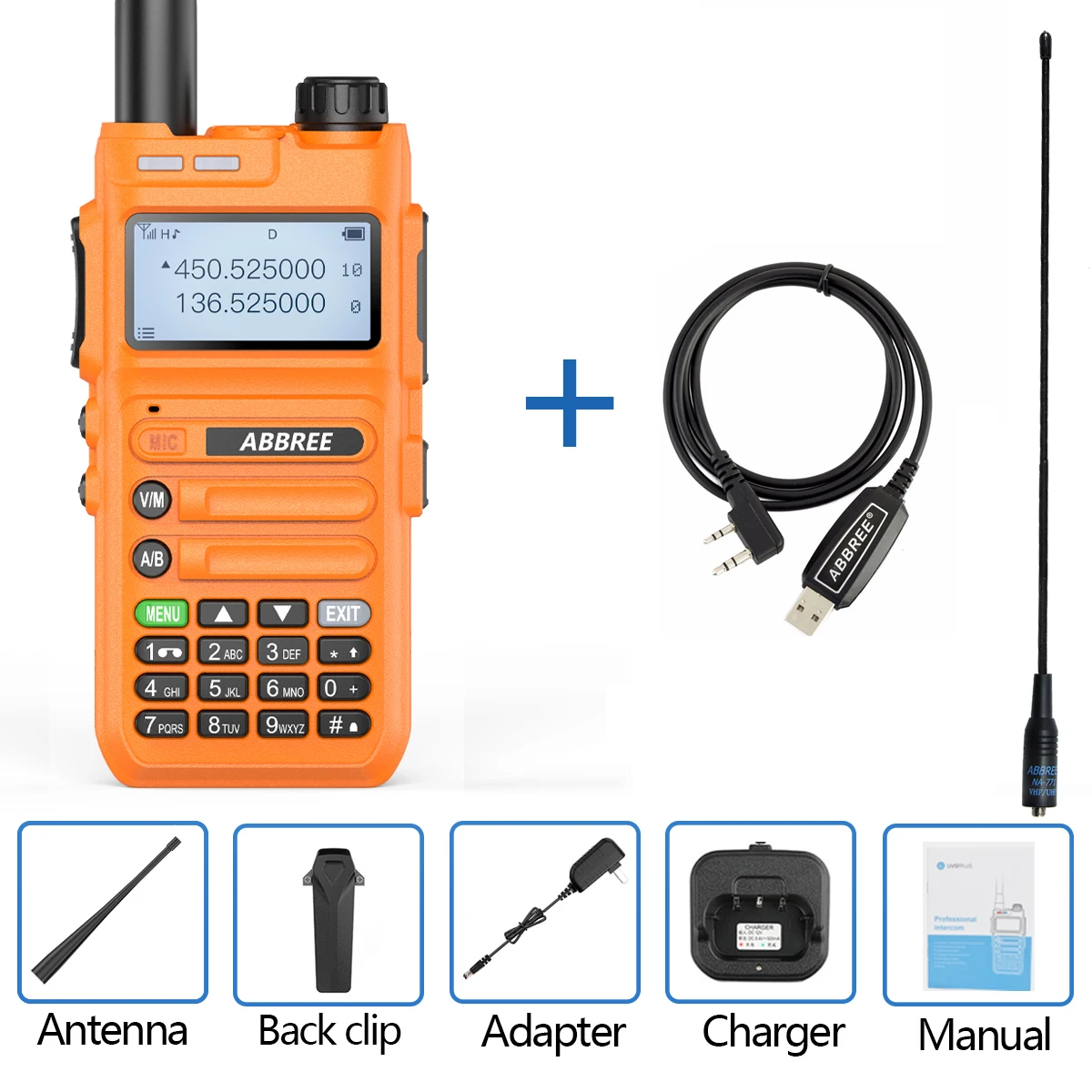

Package included:

1 x walkie talkie
1 x Battery
1 x Antenna
1 x Belt Clip
1 x Adapter
1 x Desktop Charger
1 x User Manual

other accessories depends on your choice in the link
