Brand Name: | ZBT |
---|---|
Origin: | CN(Origin) |
With Modem Function: | Yes |
Type: | wireless |
Certification: | CE |
Certification: | RoHS |
Wired Transfer Rate: | 10/100/1000Mbps |
WAN Ports: | 1 x10/100/1000Mbps |
Number of USB Interfaces: | 1 x USB 2.0 |
Wi-Fi Supported Frequency: | 2.4G & 5G |
5G Wi-Fi Transmission Rate: | 867Mbps |
Package: | Yes |
Supports WDS: | Yes |
Max. LAN Data Rate: | 1300Mbps |
Model Number: | WG1602 |
Standards And Protocols: | Wi-Fi 802.11g |
Standards And Protocols: | Wi-Fi 802.11b |
Standards And Protocols: | Wi-Fi 802.11n |
Standards And Protocols: | Wi-Fi 802.11ac |
Wi-Fi Transmission Standard: | 802.11ac |
2.4G Wi-Fi Transmission Rate: | 300 Mbps |
LAN Ports: | 4 |
Supports WPS: | Yes |
Function: | Firewall |
Application: | home |
Flash/RAM: | 16MB Flash/ 256MB RAM |
Flash/RAM (MAX): | 32MB Flash/ 512MB RAM |
Interface: | Mini-PCIe |
System: | openWRT firmware |
Interface: | 4*1000M LAN |
Dual SIM: | support |
Dual modem: | support |
5G: | no support |

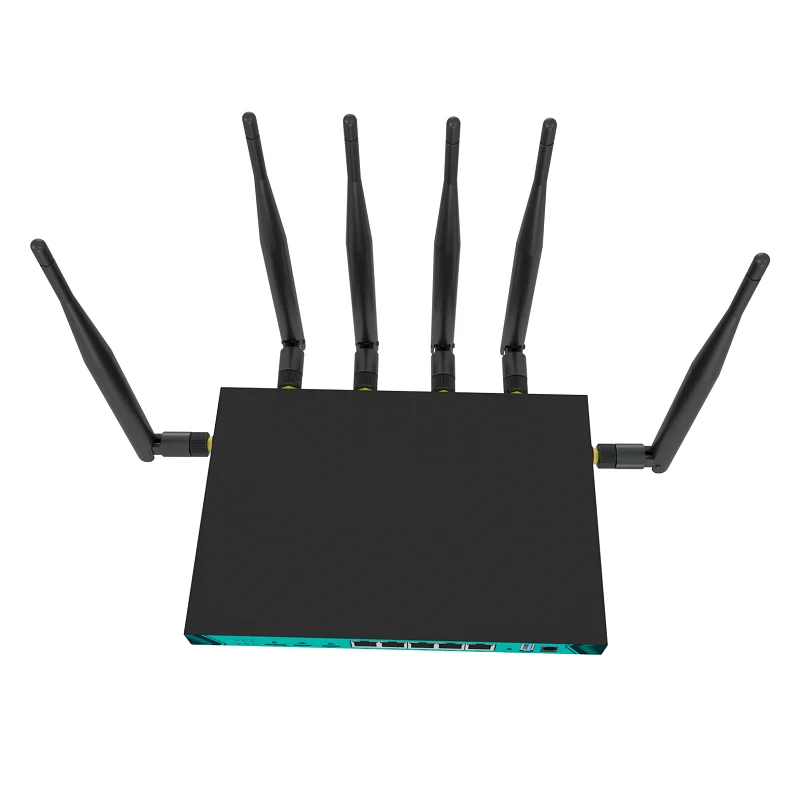

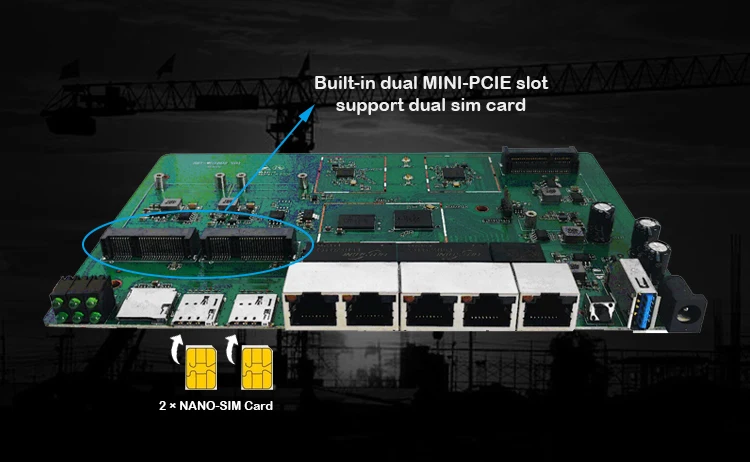

WG1602 support install two SIM Cards and modules. It can access the Internet through 4G sim cards or 1000Mbps WAN port. Support load-balance and network backup.
PS: WG1602 have dual SIM Card slots, If you need two SIM Card work, Please must be order with dual modem. Otherwise it's one SIM Card work only.
1. WG1602 used MT7621 chipset, MIPS dual-core CPU, the main frequency is up to 880MHZ.
2. Provide five 1000M adaptive Ethernet interfaces. Provide dual-band WIFI, 2.4G is 300Mbps, plus 5.8G is 867Mbps collectively referred to as 1200Mbps wireless network.
3. Simple and clear LED indicator, customizable USB2.0 interface, TF card interface, dual sim card slot.
NO 4G Module Version remind:
The parcel come without any modules, you need to buy a 4G module by yourself. That you can use your sim card to work.
NL668-EAU CAT4 Suit For Europe Australia So on.
LTE FDD:B1/B3/B5/B7/B8/B20/B28
LTE TDD:B38/B40/B41
WCDMA:B1/B5/B8
GSM/GPRS/EDGE:850/900/1800MHz
NL668-AM CAT4 Suit For North America So on.
LTE FDD:B2/B4/B5/B12/B13/B66/B71
WCDMA:B2/B4/B5
EC25-AFFA 4G CAT4 Suit For North America So on.
Quectel, Support Frequency Band As Below:
LTE FDD:B2/B4/B5/B12/B13/B66/B71
WCDMA:B2/B4/B5
EP06-A CAT6 Suit For North America So on.
Support Frequency Band As Below:
Quectel 9X07,CAT6,LTE B2/B3/B4/B5/B7/B8/B18/B19/B21/B26
FDD: B2/B3/B4/B5/B8
WCDMA:(DL/UL up to 300/50Mbps)
EP06-E CAT6 Suit For Asia Europe AU So on.
Support Frequency Band As Below:
Quectel 9X07,CAT6,LTE B1/B3/B5/B7/B8/B20/B28
FDDLTE; B38/B40/B41
TDD; B1/B3/B5/B8
WCDMA: (DL/UL up to 300/50Mbps)
EM160R-GL CAT12 Applicable to countries all over the world
Support Frequency Band As Below:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/
B17/B18/B19/B20/B25/B26/B28/B29/B30/ B32 /B66
LTE-TDD: B38/39/B40/B41/B42/B43/B46 (LAA)/B48(CBRS)
WCDMA: B1/B2/B3/B5/B8
Note:
If you don't know which version that you need to choose, please contact me. You can find the frequency bands of your country on this link:
https://www.frequencycheck.com/
Packing List:
1 X WG1602
1 X Power adapter
1 X Cat5e cable
1 X Product Manual
