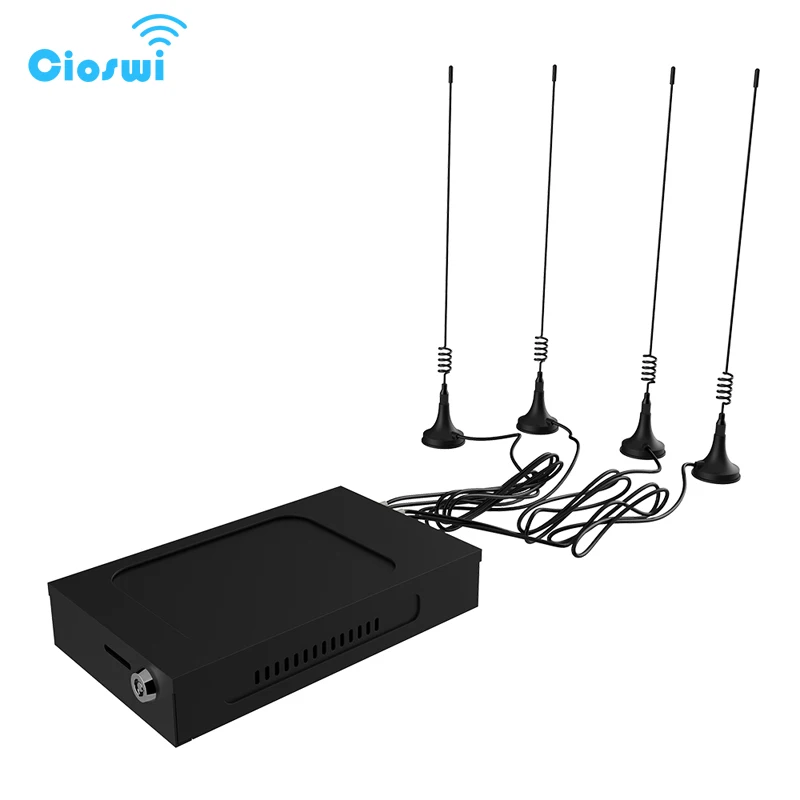

whole house wifi signal booster 3G 4G LTE WiFi Router for Car/Bus Airport OpenWRT Router 2.4G MT7620A 64MB High-speed 4G Router SIM Card Wireless WiFi Router amplifier for internet signal Wireless Routers
Code: TD-32842622527
2 orders
Free Shipping
$ 208.37
$ 273.47
Other people want this. 10 people have this in their carts right now.
| Brand Name: | ZBT |
|---|---|
| Origin: | CN(Origin) |
| With Modem Function: | No |
| Type: | wireless |
| Certification: | CE |
| Wired Transfer Rate: | 150 Mbps |
| WAN Ports: | 1 x10/100Mbps |
| Number of USB Interfaces: | 1 x USB 2.0 |
| Wi-Fi Supported Frequency: | 2.4G |
| 5G Wi-Fi Transmission Rate: | None |
| Package: | Yes |
| Supports WDS: | Yes |
| Max. LAN Data Rate: | 100Mbps |
| Model Number: | WE1026 |
| Standards And Protocols: | Wi-Fi 802.11b |
| Standards And Protocols: | Wi-Fi 802.11n |
| Standards And Protocols: | Wi-Fi 802.11g |
| Wi-Fi Transmission Standard: | 802.11b |
| 2.4G Wi-Fi Transmission Rate: | 300 Mbps |
| LAN Ports: | 1 |
| Supports WPS: | Yes |
| Function: | Firewall |
| Function: | VPN |
| Function: | QoS |
| Application: | 3g |
| Main Chipset: | MT7620A |
| Memory & FLASH: | DDR2 64MB & 16MB |
| SIM Card Slot: | 1 |
| Antenna: | 2 for 3G/4G 2 for WiFi |
| 3G 4G: | (need 3G/4G PCI-E module) |
| Protocol: | IEEE 802.11n/g/b, IEEE 802.3,IEEE 802.3u |
| Version: | English Version |
| Case: | Metal |
| Color: | Black |
Warm Reminder
The neutral product is 2.4GHz 300Mbps openwrt wireless router. If you need 3g or 4g or want to use SIM card to dial out Internet, here also need 3g or 4g module.
As for 3g/4g, 3G can support 3g/2g, 4G can support 4g/3g/2g.
Bundle Situation (Important!!!)
Neutral(no 3G 4G): Gigabit+dual band openwrt wireless router
3G Version:
3G
300mbps openwrt wireless router.
HSPA+/UMTS dual-band 900/2100 MHz
GSM/GPRS quad-band 850/900/1800/1900 MHz
4G AU Version 1——EC25-AU
4G： FDD LTE:B1/B3/B4/B5/B7/B28
4G： TDD LTE:B40
3G： WCDMA:B1/B2/B5/B8
2G： GSM:B2/B3/B5/B8
4G USA Version 1——EC25-AFFA
4G: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
3G: WCDMA: B2/B4/B5
4G USA Version 2——NL668-AM
FDD: B2/4/5/12/13/17/66/71
WCDMA: B2/4/5
4G EU Version 1——EC25-E
4G:FDD LTE:B1/B3/B5/B7/B8/B20
4G: TDD LTE:B38/B40/B41
3G: UMTS:B1/B5/B8
2G: GSM:B3/B8
4G EU Version 2——EP06-E——CAT6 Module
4G: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
4G: LTE-TDD: B38/B40/B41
2×CA: B1+B1/B5/B8/B20/B28;
B3+B3/B5/B7/B8/B20/B28;
B7+B5/B7/B8/B20/B28;
B20+B32 ; B38+B38; B40+B40; B41+B41
3G: WCDMA: B1/B3/B5/B8
4G EU Version 3——EU-NL668-EU
4G: FDD: B1/3/5/7/8/20
4G: TDD: B38/40/41
3G: WCDMA: B1/5/8
2G: GSM: 850/900/1800MHz
Note:
If you don't know which version that you need to choose, here are some countries' version for your reference.
If your country is not mentioned and you don't know which version need to choose, please ask me and i will help you.
Or you can check from these two links:
4G:
https://en.wikipedia.org/wiki/List_of_LTE_networks
3G:
https://en.wikipedia.org/wiki/List_of_UMTS_networks
Product Features
-- Complies 802.11n/802.11g/802.11b/802.3/802.3u
-- 2*10/100 Mbps RJ45 port,Auto MDI/MDIX
-- 1*USB2.0 Port
-- 1*MICRO SD (TF) slot
-- 1*PCI-E Interface,support 3G/4G dial-up,
-- 1*SIM card slot support 3G/4G dial-up ( need 3G/4G PCI-E module)
-- Support USB port dial-up( need 3G/4G PCI-E module)
-- Support GPS function( Depend on 3G/4G PCI-E module)
-- Powered by 12V Car/Bus power supply
3G 4G Module Setting Guide
1. Connect to all the antennas correctly.
2. The sim card must insert firstly, and the chip of the sim card should be upward, then connect to the power. If you need to remove the sim card, in order to avoid damaging the SIM card, please remember to cut off the power before you remove sim card.
Product Specification
Main Chipset
MT7620A
Memory
DDR2 64MB
SPI FLASH
16MB（32MB Max.）
Protocol
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,
IEEE 802.3,IEEE 802.3u
Wireless Transmit Power
802.11b 18dBm±2dBm
802.11g 15dBm±2dBm
802.11n 15dBm±2dBm
Receiver Sensitivity
802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER
802.11n: -68dBm@10% PER
Channel
2.4GHz: Channel 1-13
Wireless Speed
300Mbps
Frequency Range
2.4GHz
Antenna
5dBi External antenna x 5 (
For choice
)

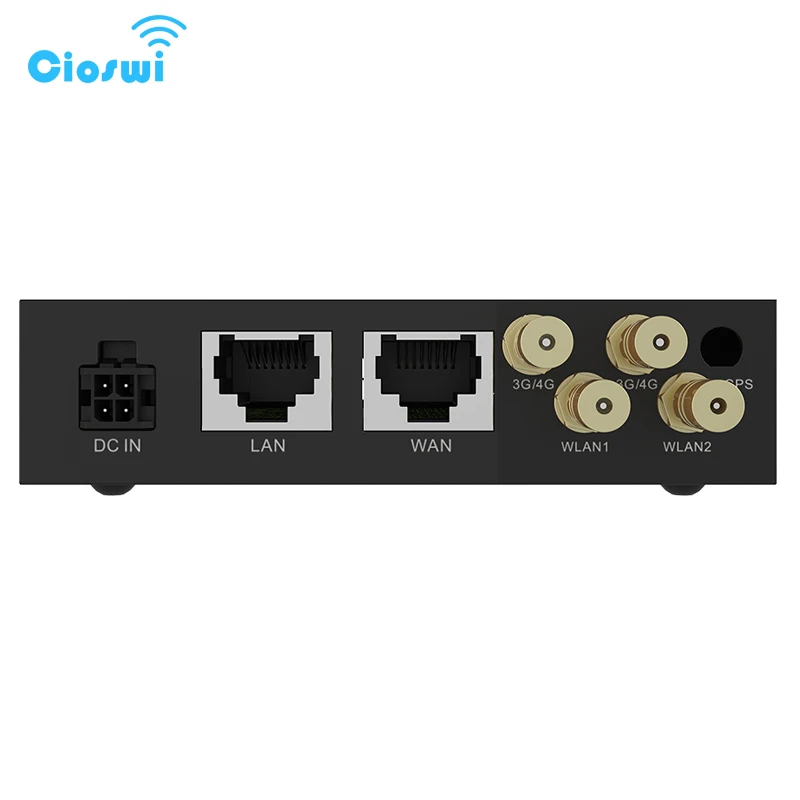

Interface
USB 2.0 * 1
Micro SD slot * 1
10/100M WAN port * 1
10/100M LAN port *1
SIM card slot * 1
LED
Power,WPS,2.4G,WAN,LAN
Button
WPS
Reset
Power Consumption
< 12W
WAN Access
PPPoE,Dynamic IP,static IP
Work Mode
AP
Router
DHCP Server
DHCP Server
Client List
Static Address Assignment
Virtual Server
Port Forwarding
DMZ Host
Security Settings
Client Filter
Mac address filtering
URL Filter
Remote WEB management
DDNS
Support
VPN Pass-through
Support
Bandwidth Control
Support
Static Routing
Support
System Log
Support
Environment
Operating temperature 0oC~40oC
Storage temperature -40oC~70oC
Relative humidity 10% ~ 90% Non-Condensing
Storage Humidity 5%~95% Non-Condensing
