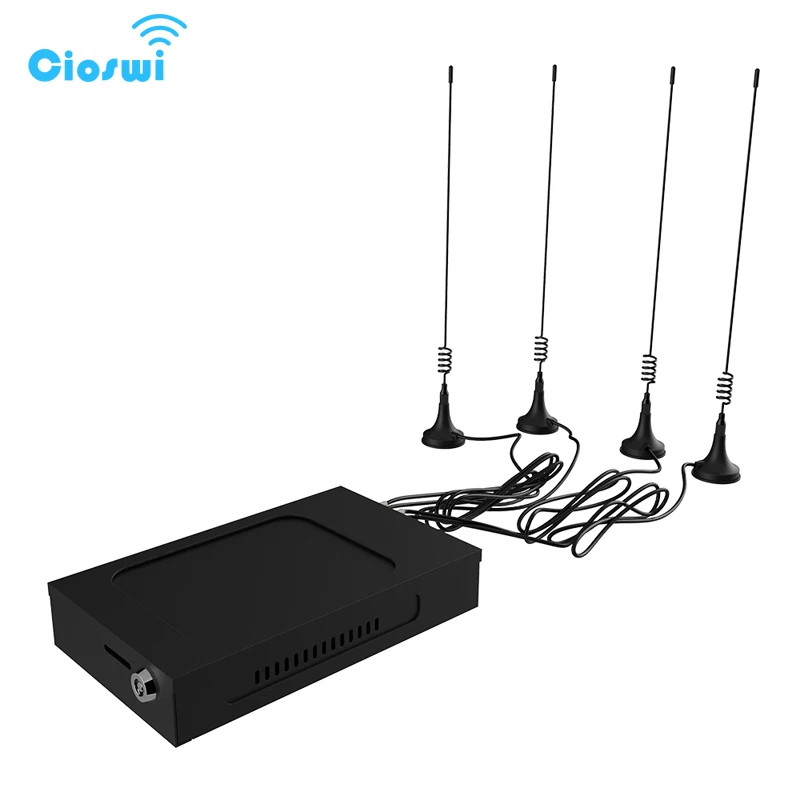

ZBT wi fi router with sim card 4g for car bus MTK7620A 300Mbps wireless modem cellular repeater wifi booster lte 3g car router

Code: TD-2251832767860659
Free Shipping
$ 360.97 $ 410.47
Bundle:
3G version
4G Asia version
4G AU version
4G USA version 1
4G USA version 2
4G EU version
Note

Quantity:
Other people want this. 12 people have this in their carts right now.
Brand Name:  ZBT
Origin:  CN(Origin)
With Modem Function:  Yes
Type:  wireless
Certification:  CE
Wired Transfer Rate:  150 Mbps
WAN Ports:  1 x10/100Mbps
Number of USB Interfaces:  1 x USB 2.0
Wi-Fi Supported Frequency:  2.4G
Package:  Yes
Supports WDS:  Yes
Max. LAN Data Rate:  100Mbps
Model Number:  WE1026
Standards And Protocols:  Wi-Fi 802.11b
Standards And Protocols:  Wi-Fi 802.11n
Standards And Protocols:  Wi-Fi 802.11g
Wi-Fi Transmission Standard:  802.11b
2.4G Wi-Fi Transmission Rate:  300 Mbps
LAN Ports:  1
Supports WPS:  Yes
Function:  Firewall
Function:  VPN
Function:  QoS
Application:  3g
Main Chipset:  MT7620A
Memory & FLASH:  DDR2 64MB & 16MB
SIM Card Slot:  1
Antenna:  2 for 3G/4G 2 for WiFi
3G 4G:  (need 3G/4G PCI-E module)
Protocol:  IEEE 802.11n/g/b, IEEE 802.3,IEEE 802.3u
Version:  English version

Bundle Situation

(Important!!!)

Neutral(no 3G 4G):

doesn NOT support SIM card.

3G Version(For most country):

3G: HSPA+/UMTS dual-band 900/2100 MHz

2G: GSM/GPRS quad-band 850/900/1800/1900 MHz

4G Asia version(For Asia country, some middle east):

4G: LTE: B1/B3/B8/

B38/B39/B40/B41

3G:

TDSCDMA: B34/B39/

B1/B8/

BC0

2G: GSM: 900/1800

4G AU

version(For Australia):

4G: FDD LTE: B1/B3/B4/B5/B7/B8/B28/

B40

3G: WCDMA: B1/B2/B5/B8

2G: GSM: B2/B3/B5/B8

4G EU

version: (

For Europe, Some of Asia Country, Africa)

4G: LTE: B1/B3/B5/B7/B8/B20/

B38/B40/B41

3G: WCDMA: B1/B5/B8

2G: GSM: B3/B8

4G USA

version 1(For America):

4G: LTE: B2/B4/B12

3G: WCDMA: B2/B4/B5

4G USA version 2(For America):

; TD-SCDMA; CDMA 1XRTT/EV-DO

Rev A

2G: GSM/gprs/edge

Note:

If you don't know which version that you need to choose, here are some countries' version for your reference.

If your country is not mentioned and you don't know which version need to choose, please ask me and i will help you.

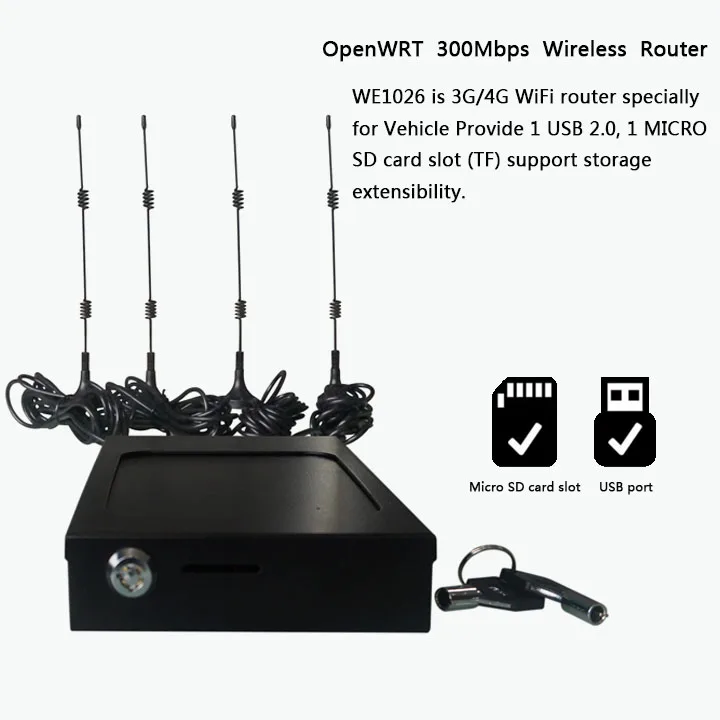

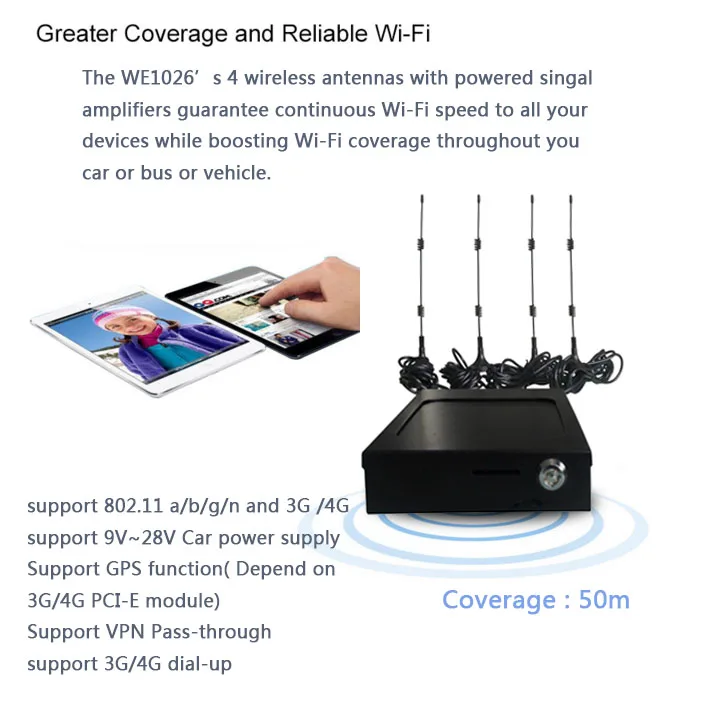

Product Features

-- Complies 802.11n/802.11g/802.11b/802.3/802.3u

-- 2*10/100 Mbps RJ45 port,Auto MDI/MDIX

-- 1*USB2.0 Port

-- 1*MICRO SD (TF) slot

-- 1*PCI-E Interface,support 3G/4G dial-up,

-- 1*SIM card slot support 3G/4G dial-up ( need 3G/4G PCI-E module)

-- Support USB port dial-up( need 3G/4G PCI-E module)

-- Support GPS function( Depend on 3G/4G PCI-E module)

-- Powered by 12V Car/Bus power supply

3G 4G Module Setting Guide

1. Connect to all the antennas correctly.

2. The sim card must insert firstly, and the chip of the sim card should be upward, then connect to the power. If you need to remove the sim card, in order to avoid damaging the SIM card, please remember to cut off the power before you remove sim card.

Product Specification

Main Chipset

MT7620A

Memory

DDR2 64MB

SPI FLASH

16MB(32MB Max.)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,
IEEE 802.3,IEEE 802.3u

Wireless Transmit Power

802.11b   18dBm±2dBm

802.11g   15dBm±2dBm

802.11n   15dBm±2dBm

Receiver Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Channel

2.4GHz: Channel 1-13

Wireless Speed

300Mbps

Frequency Range

2.4GHz

Antenna

5dBi External antenna x 5 (For choice)

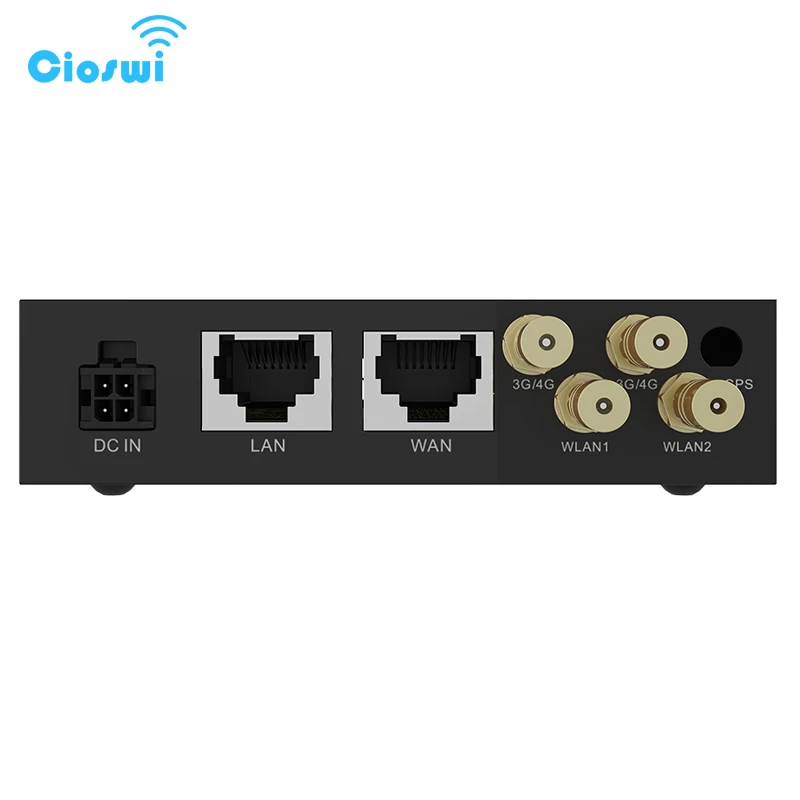

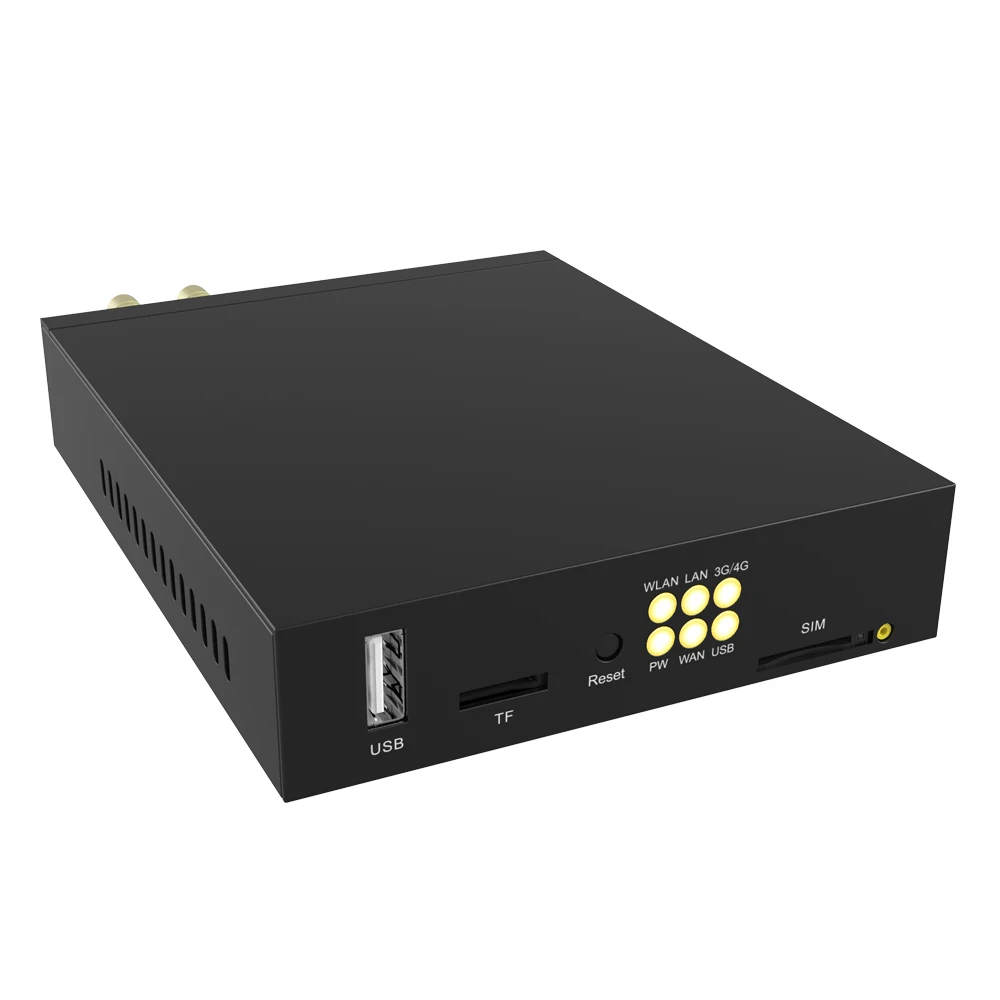

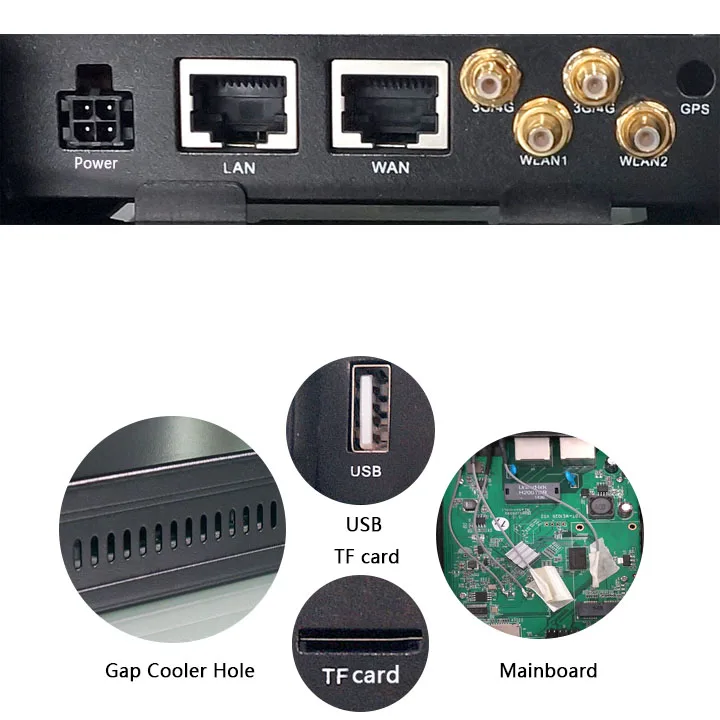

Interface

USB 2.0 * 1

Micro SD slot * 1

10/100M WAN port * 1

10/100M LAN port *1

SIM card slot * 1

LED

Power,WPS,2.4G,WAN,LAN

Button

WPS

Reset

Power Consumption

< 12W

WAN Access

PPPoE,Dynamic IP,static IP

Work Mode

AP

Router

DHCP Server

DHCP Server
Client List
Static Address Assignment

Virtual Server

Port Forwarding
DMZ Host

Security Settings

Client Filter
Mac address filtering
URL Filter
Remote WEB management

DDNS

Support

VPN Pass-through

Support

Bandwidth Control

Support

Static Routing

Support

System Log

Support

Environment

Operating temperature 0oC~40oC

Storage temperature -40oC~70oC

Relative humidity 10% ~ 90% Non-Condensing

Storage Humidity 5%~95% Non-Condensing
