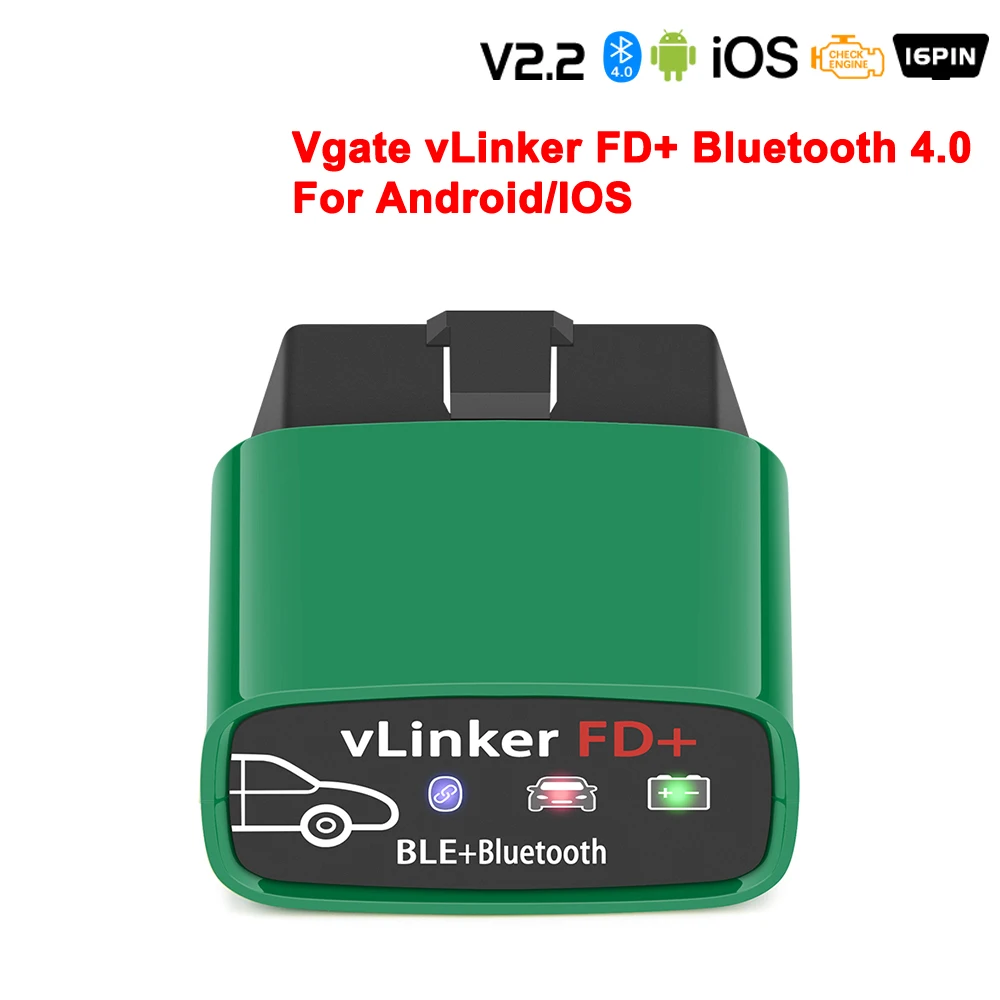

Vgate vLinker FD+ ELM327 V2.2 Forscan for ford Scanner Bluetooth ELM 327 wifi OBD 2 OBD2 Car Diagnostic ODB2 MS CAN Auto Tool best car battery tester Diagnostic Tools

Brand Name:	Vgate
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	vLinker FD+
Electronic:	No
Hardware Version:	newest
Item Height:	10inch
Item Length:	24inch
Power:	w
Material Type:	plactis
Certification:	CE
Item Type:	Engine Analyzer
Special Features:	Bluetooth
Special Features:	Wifi
Item Weight:	0.1kg
Software Version:	newest
Voltage:	12V
Item Width:	5inch

Vgate vLinker FD+ ELM327 V2.2 Forscan for ford Bluetooth for Mazda VCM2 IDS ELM 327 OBD 2 OBD2 Car Diagnostic MS CAN Auto Tool

Purchase Notes：

1.

Our store sells the original vlinker，We have software to test if is original vLinker, if you need you can contact us，Avoid getting fake vLinker from other stores

2.If you use Bluetooth 4.0 to Connected, please connect Bluetooth directly in the diagnostic APP

3.Vlinker FM+ also support other cars withOBD2 standard protocols

Vgate Vlinker MC+ is V2.2 Version , it has 3 versions :

Vgate Vlinker MC+

V3.0 Bluetooth for Android Phone

Vgate Vlinker MC+

V4.0 Bluetooth for Android phone + Iphone

Vgate Vlinker MC+

WIFI for Android Phone + Iphone

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With FORscan For Ford

13+ DETECTION FUNCTION：

1. Automatically lock

2. Speeding reminder

3. Emergency brake flashing lights

4. Lock the car and whistle

5. Xenon lamp mode

6. One-click skylight

7. Tire pressure monitoring

8. Snowflake logo

9. Cruise function

10. Compass

11. Average (instantaneous) fuel consumption

12.ECO energy saving mode

13. Steering power adjustment

Vgate vlinker FD+ Professionally Suitable for Forscan

Support Programming And Diagnostic For Ford , For Mazda , For Mercury , For Lincoln

Read / Clear

EngineDTC

Adiust Parameters

Refresh Parameters

Hidden Function Activated

Read Data Stream

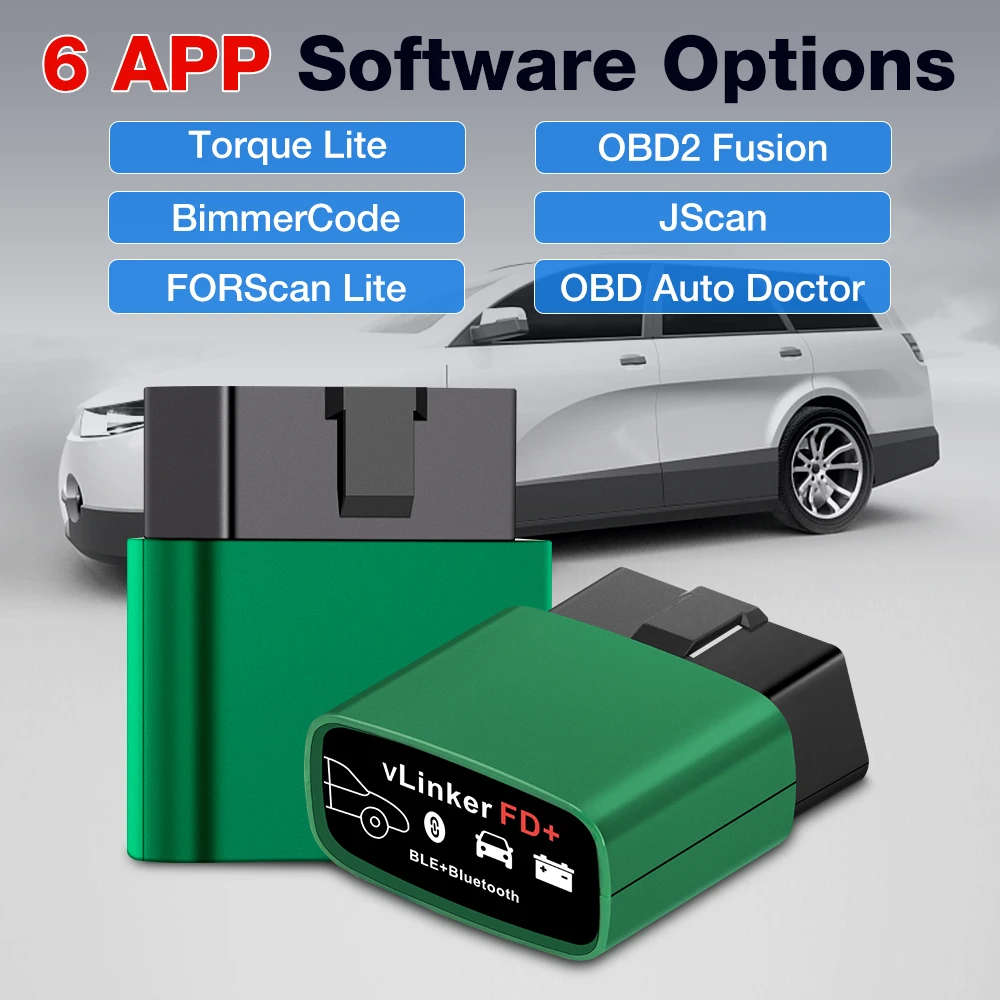

Vgate Vlinker FD supports App :

How To Connect Vlinker FD well with ForScan software ?

Android System :

IOS System :

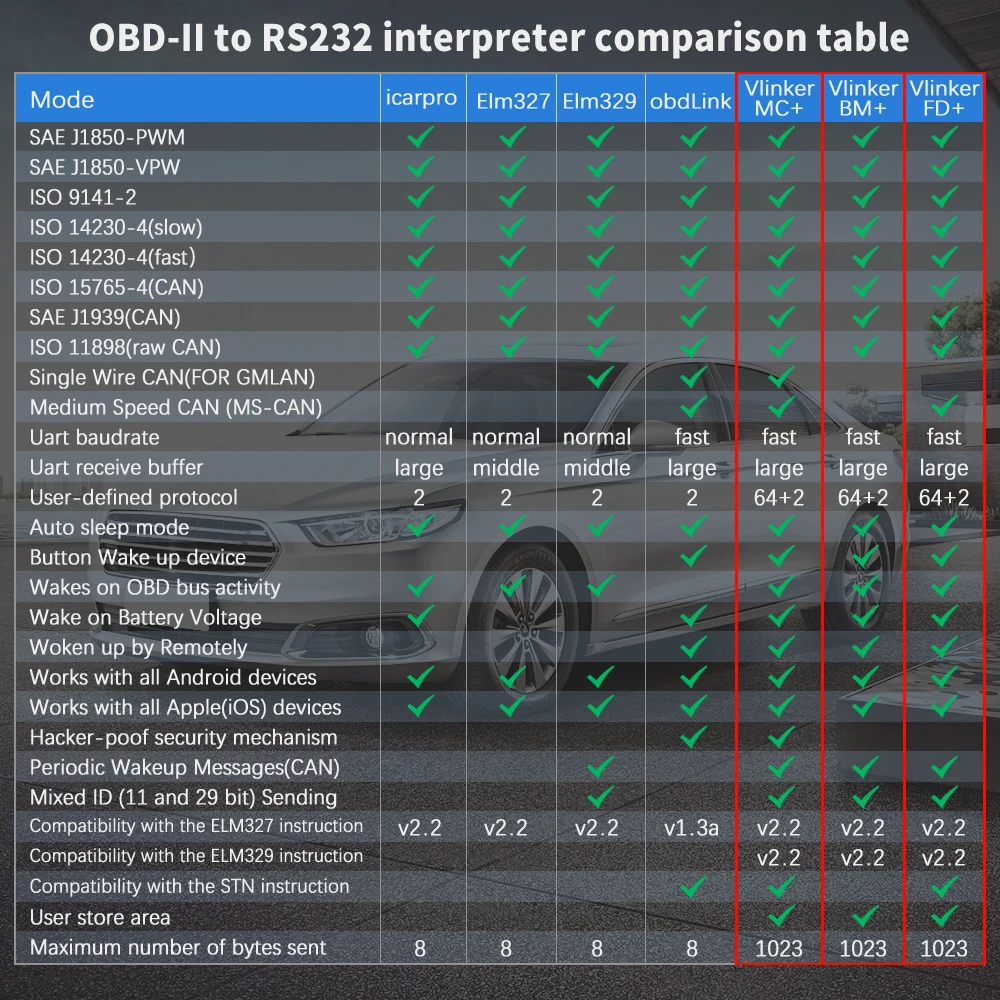

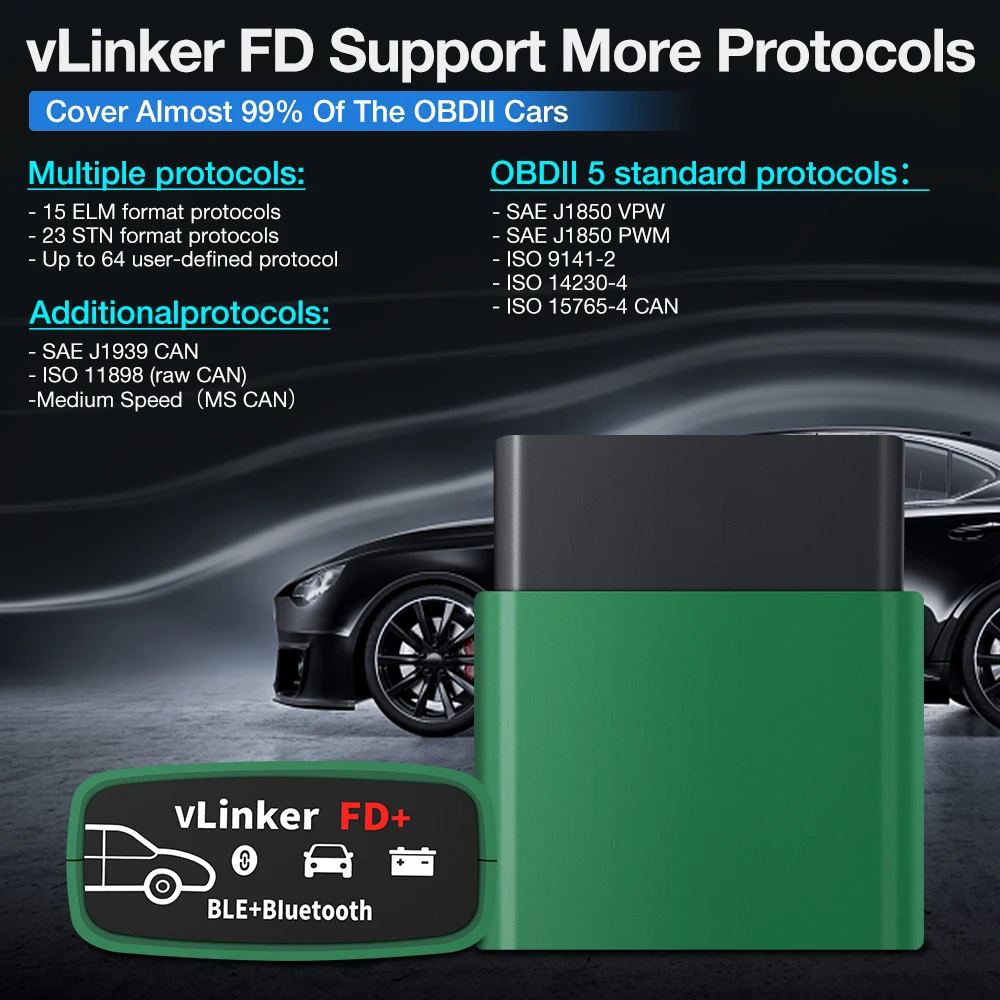

Vgate vLinker FD+ Support Protocols

Multiple protocols：

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols：

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additional protocols：

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

--Medium Speed（MS CAN）

These protocolscover almost 99% of the OBDII Cars on the market

Rich instruction set, compatible with more APP software：

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

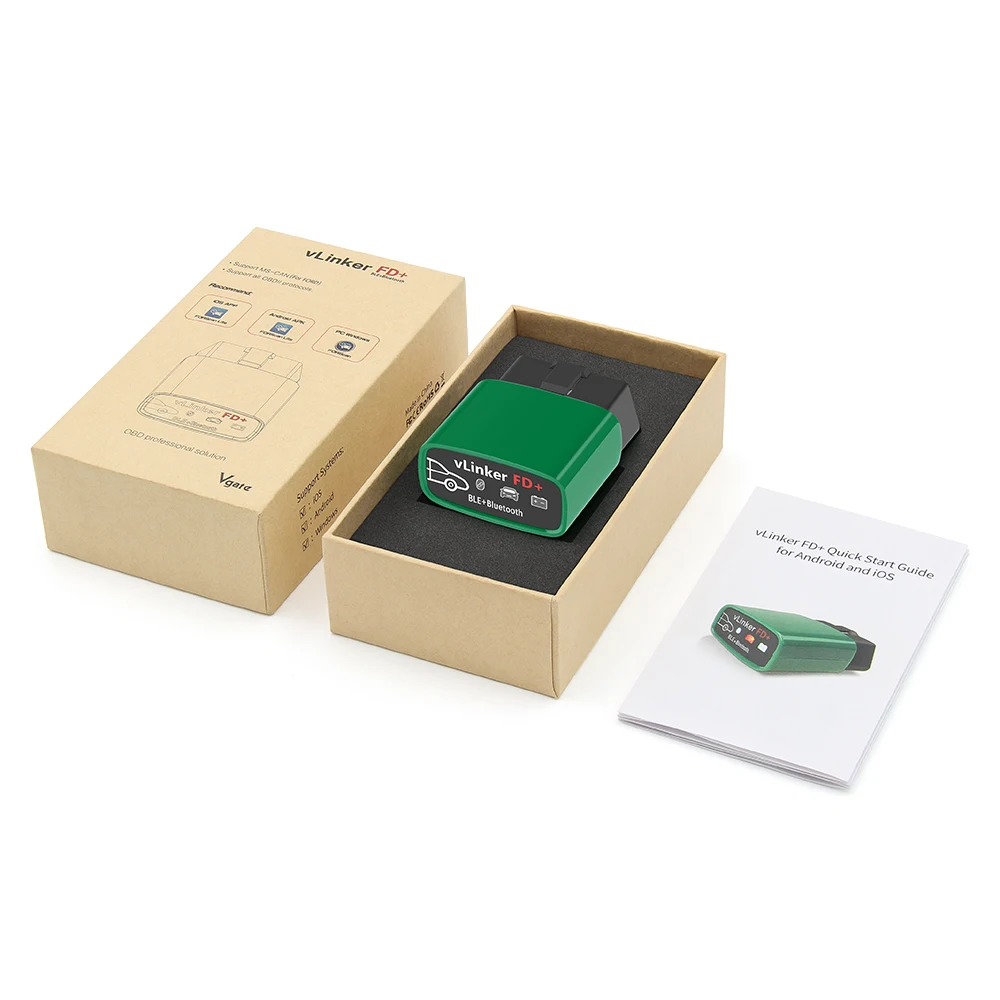

Vgate vLinker FD+ Packing List :

1 x Vgate vLinker BT3.0/BT4.0/WIFI

1 x User manual
