coolant temperature gauges Vgate vLinker MC+ ELM327 Bluetooth 4.0 OBD 2 OBD2 ELM 327 wifi Car Diagnostic For Android/IOS Scanner Auto Tool PK OBDLINK V 1.5 sensor for temperature gauge Diagnostic Tools

Brand Name:	Vgate
Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	V2.2
Item Length:	10inch
Certification:	CE
Special Features:	Bluetooth
Special Features:	Wifi
Software Version:	Newest
Item Width:	10inch
Model Name:	vLinker MC
Item Height:	11inch
Power:	W
Item Type:	Engine Analyzer
Item Weight:	0.1kg
Voltage:	12V
Electronic:	No
Material Type:	Plactis

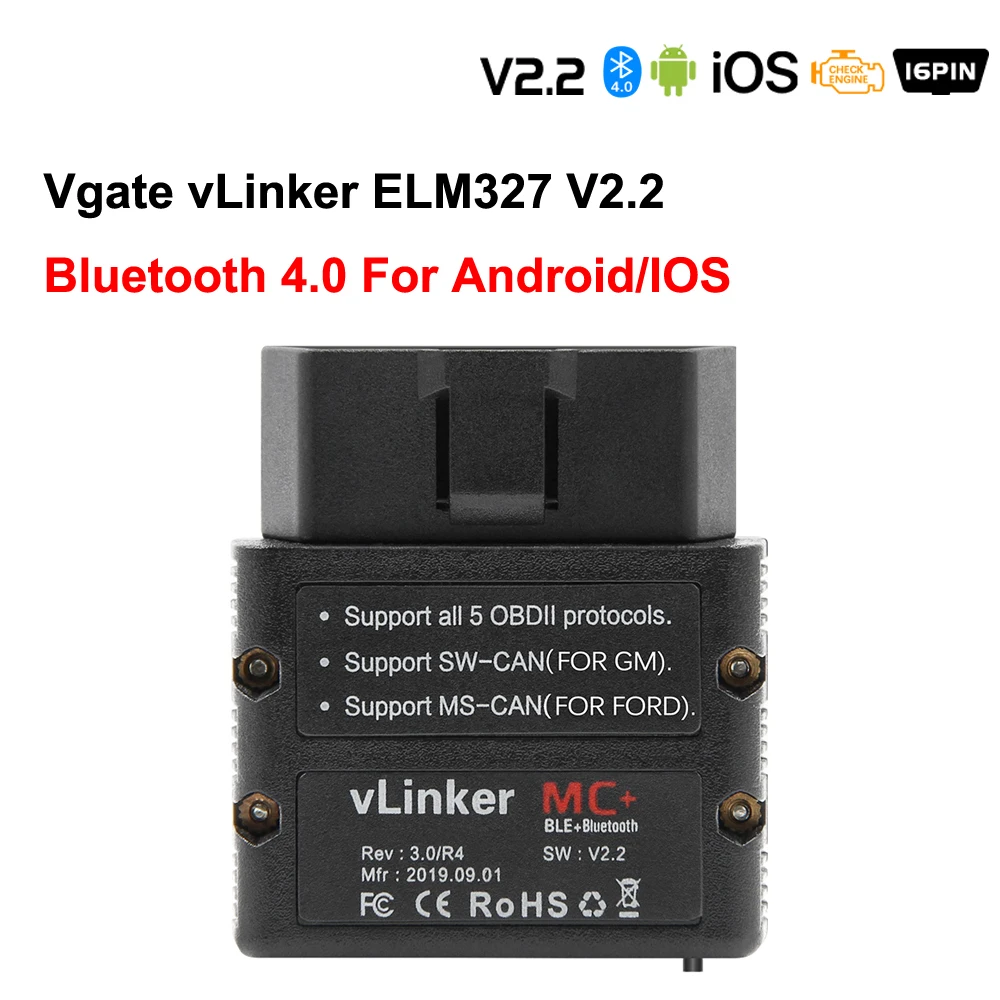

Vgate vLinker MC+ ELM 327 V2.2 Bluetooth 4.0 WIFI ELM327 For Android/IOS Scanner OBD 2 OBD2 Car Diagnostic Auto Tool

Purchase Notes：

1.vgate vLinker MC+ is professional Scanner，Perfectly compatible with professional apps on the market like：

For BimmerCode/FORScan/JScan etc

.

2.

Support 99% car instructions, compatible with more than 95% cars

3.

Some APP need to pay for the function，but we only sell the firmware，this payment don't get to us

，if you don't want to pay，you can only use the free APP

4.We are Vgate authorized distributor, original quality with best price

Vgate Vlinker MC+ is V2.2 Version , it has 3 versions :

Vgate Vlinker MC+

V3.0 Bluetooth for Android Phone

Vgate Vlinker MC+

V4.0 Bluetooth for Android phone + Iphone

Vgate Vlinker MC+

WIFI for Android Phone + Iphone

The Advantage of Vgate vLinker MC+ BT3.0/4.0/WIFI:

1. compatible with 95%+ world car models

2. Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc

3. Support Almost All ELM327/ELM329/OBDLINK Adapter Software

4. Automatic sleep and start to reduce power consumptione

5. OBD2 Standard Protocols+More protocols

6. Support user-defined commands

7. Request bytes up to 48 bytes

8. Support Firmware Update

9. Support user-defined APP

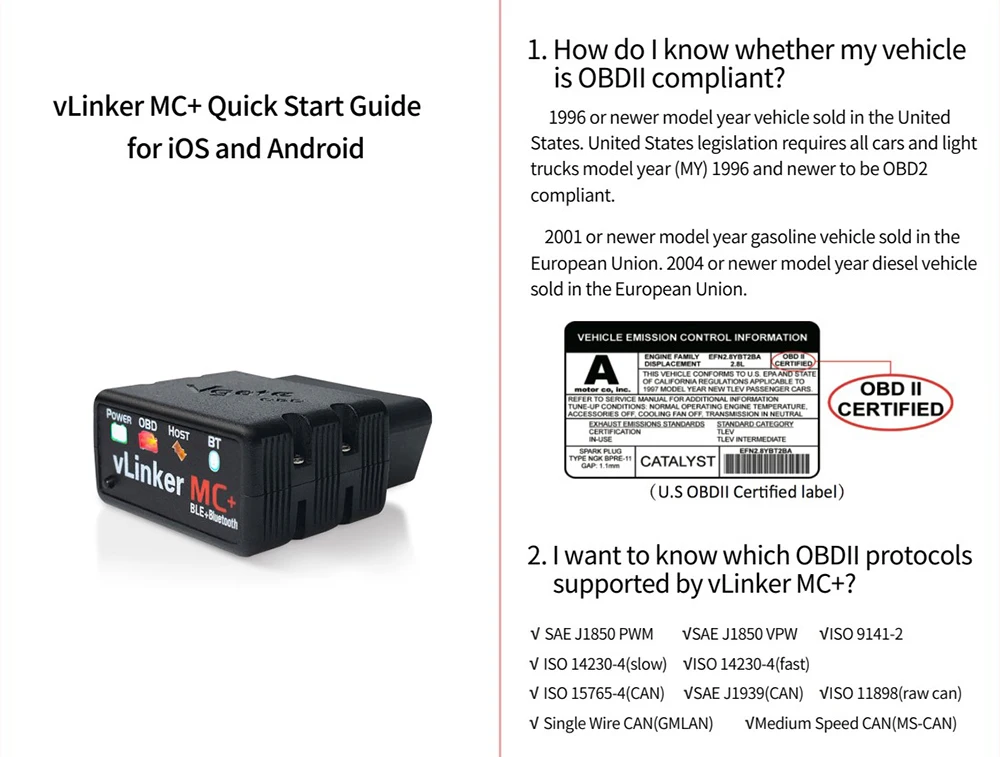

Vgate vLinker MC+ BT3.0/4.0/WIFI Support Protocols :

Multiple protocols：

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols：

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additional protocols：

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

-- for GMLAN Single Wire CAN

-- for Ford Medium Speed CAN (MS CAN)

These protocols cover almost 99% of the OBDII Cars on the market

Vgate vLinker MC+ BT3.0/4.0/WIFI Support Software ( APP ):

Perfect compatibility:

For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software

Please Note：

We only sell adapters. If you need to charge for some functions of the software you choose, this money is paid to the software developer，not to us

Rich instruction set, compatible with more APP software：

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

-- Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

Vgate Vlinker MC+ Vehicle Coverage:

1. America Car List: (include Brazil)

Need standard obd2 , and release from 2001 years to now

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2. Europe Car List:

Need standard obd2 , and release from 2004 years to now

Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,Fit for Renault

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

3. Asia Car List: (include Australia)

Japanese car Need standard obd2 , and release from 2006 years to now

Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda

Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota

Chinese car Need standard obd2 , and release from 2011 years to now

Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry

4. Russia Car List:

For Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.

For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.

For Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.

For Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,

For Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.

For LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.

For LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.

If you are not sure whether it compatible with your car, please do not hesitate to contact us first,

Tell us your car model , release year, Vehicle Capacity, diesel or gasoline, 12v or 24v engine work voltage.

for example : for Audi A4, 2011 year, 2.0 TDI, Diesel, 12v.

Typical Applications：

• Vehicle telematics

• Fleet management and tracking applications

• Usage-based insurance (UBI)

• OBD data loggers

• Automotive diagnostic scan tools and code readers

• Digital dashboards

Special Function of Vgate vLinker MC+ BT3.0/4.0/WIFI :

Fully automatic identification of vehicle protocols,quick reading of vehicle information

Fully automatic standby/start,no manual switch button required

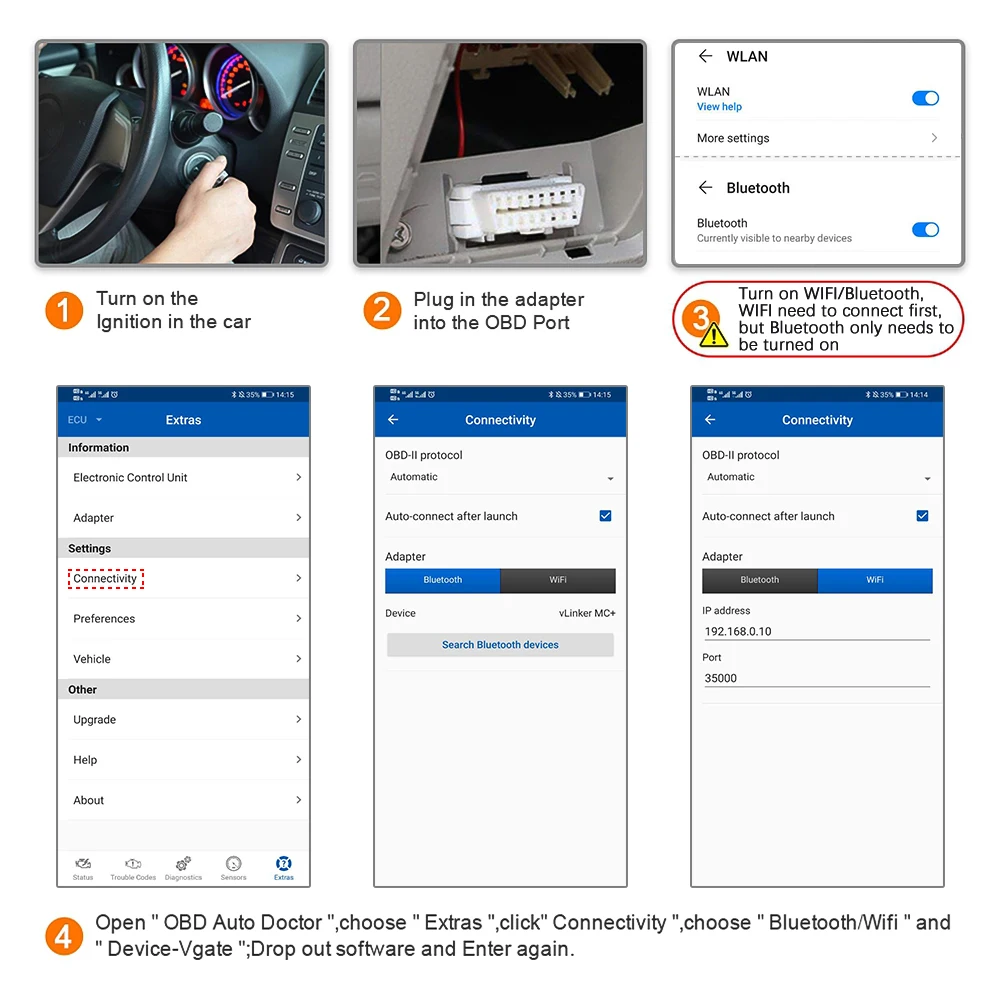

How to Connect Vgate vLinker MC+ ?

Vgate vLinker MC+ Bluetooth 4.0 / 3.0 :

1.Turn on theIgnition in the car

2.Plug in the adapterinto the OBD Port

3.Turn on Bluetooth,Bluetooth only needs to be turned on

4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “Bluetooth”and “vLinker MC+” Drop out software and Enter again

Vgate vLinker MC+ WIFI：

1.Turn on theIgnition in the car

2.Plug in the adapterinto the OBD Port

3.Turn on WIFI,connected “vLinker”

4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “WIFI”，Drop out software and Enter again

Vgate vLinker MC+ Manual :

Vgate vLinker MC+ BT3.0/4.0/WIFI Packing List :

1 x Vgate vLinker WIFI/BT3.0/BT4.0

1 x User manual
