ELM327 V2.1 USB OBD2 cable coder reader scanner super mini elm 327 V1.5 bluetooth wifi for PC/Android/ios auto diagnostic tool temperature gauge for car Diagnostic Tools

Brand Name:	KINGBOLEN
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	elm327 usb
Electronic:	No
Hardware Version:	V1.5
Item Height:	8inch
Item Length:	11inch
Power:	w
Material Type:	plactis
Item Type:	Car Diagnostic Cables and Connectors
Special Features:	Other
Item Weight:	0.1kg
Software Version:	V2.1
Voltage:	12v
Item Width:	10inch
elm327 supports car 2:	12V gasoline & Diesel car
elm 327 feature 2:	obd2 code reader scanner
elm327 feature 3:	car diagnostic cable
elm327 supports car 1:	OBDII & CAN compliant with 16 pin port
elm327 feature 1:	usb / bluetooth / wifi

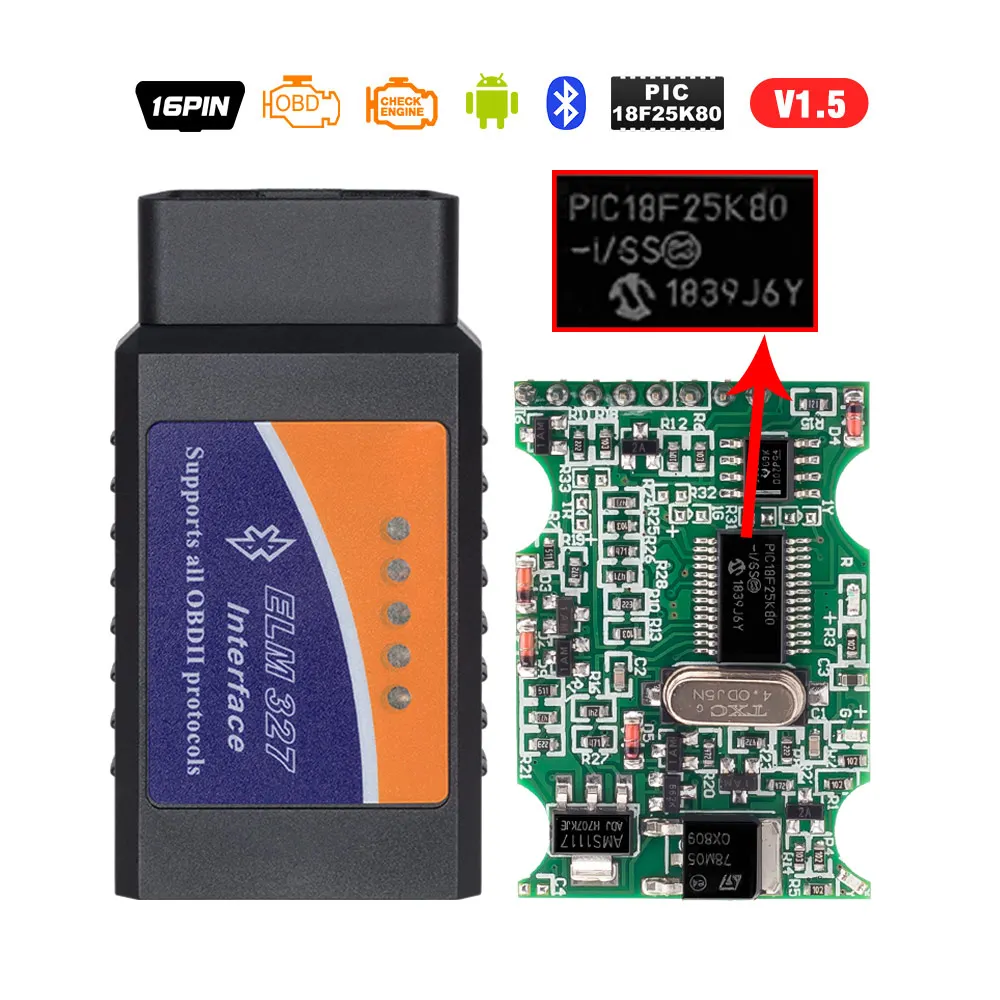

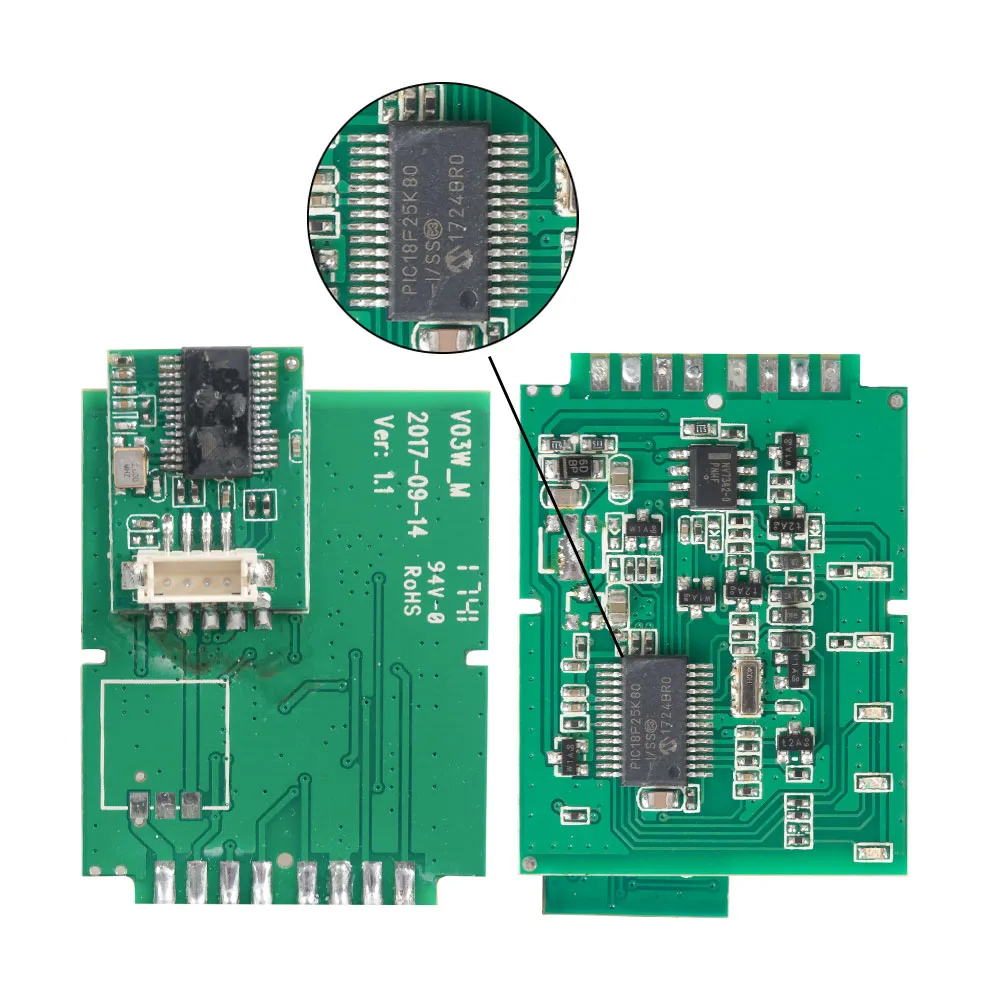

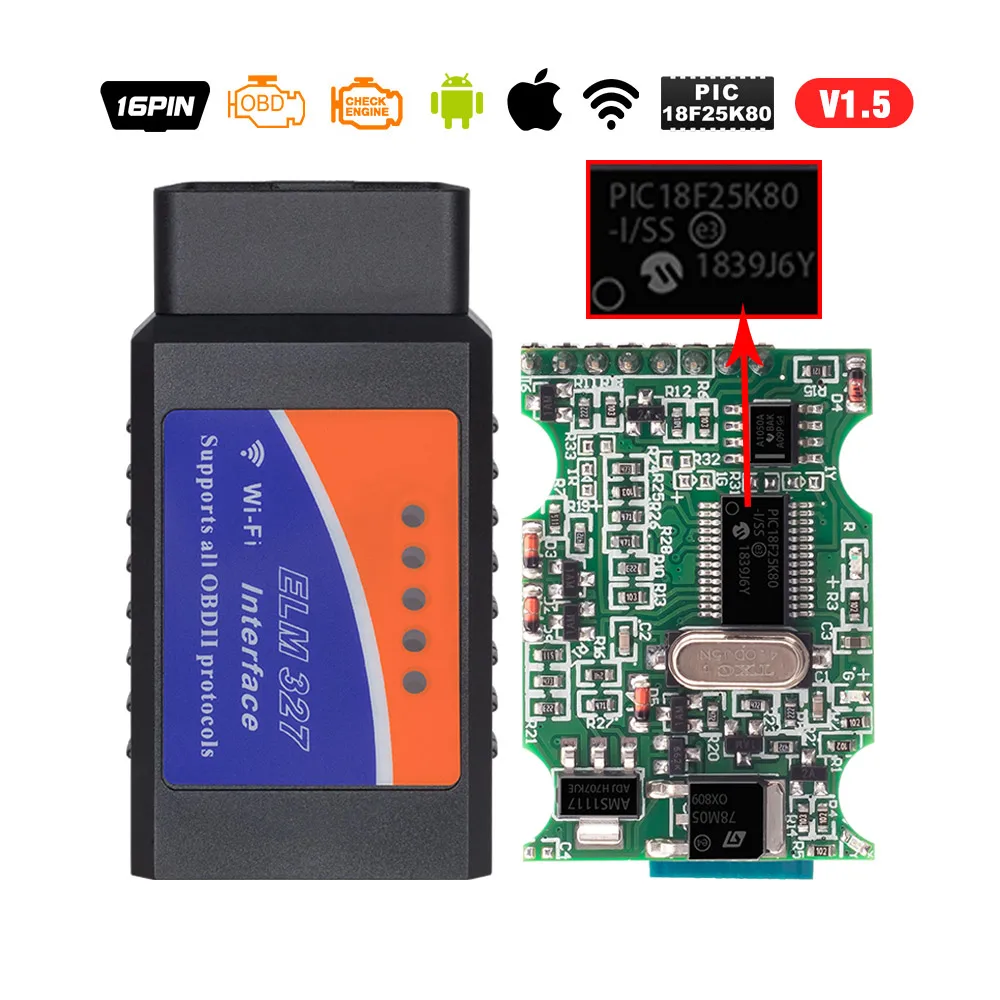

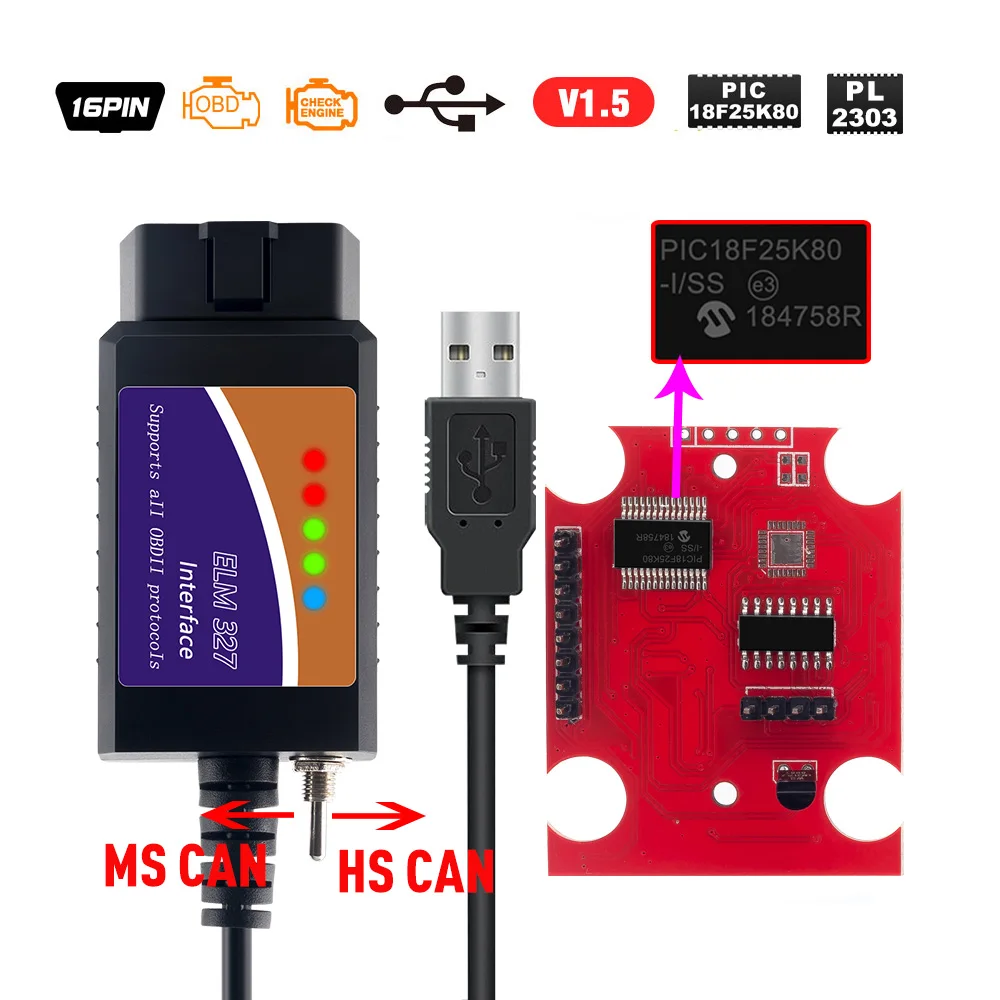

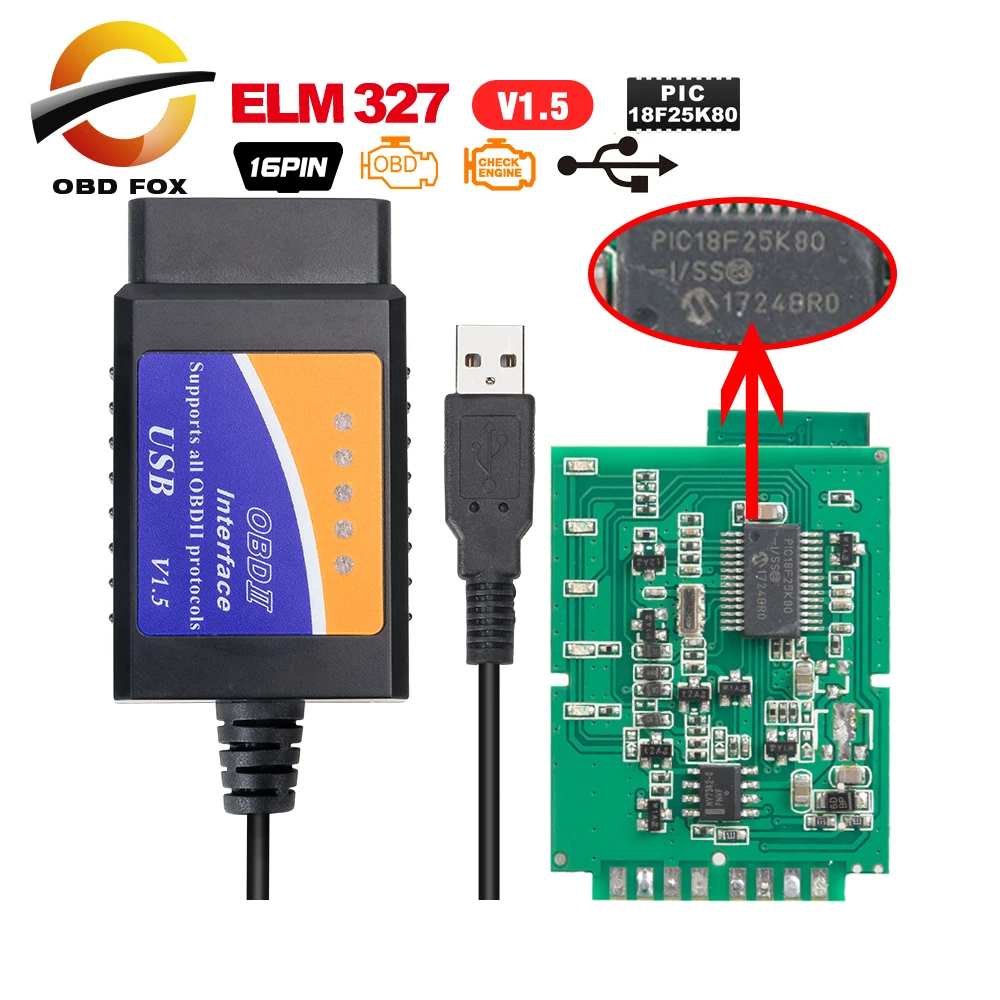

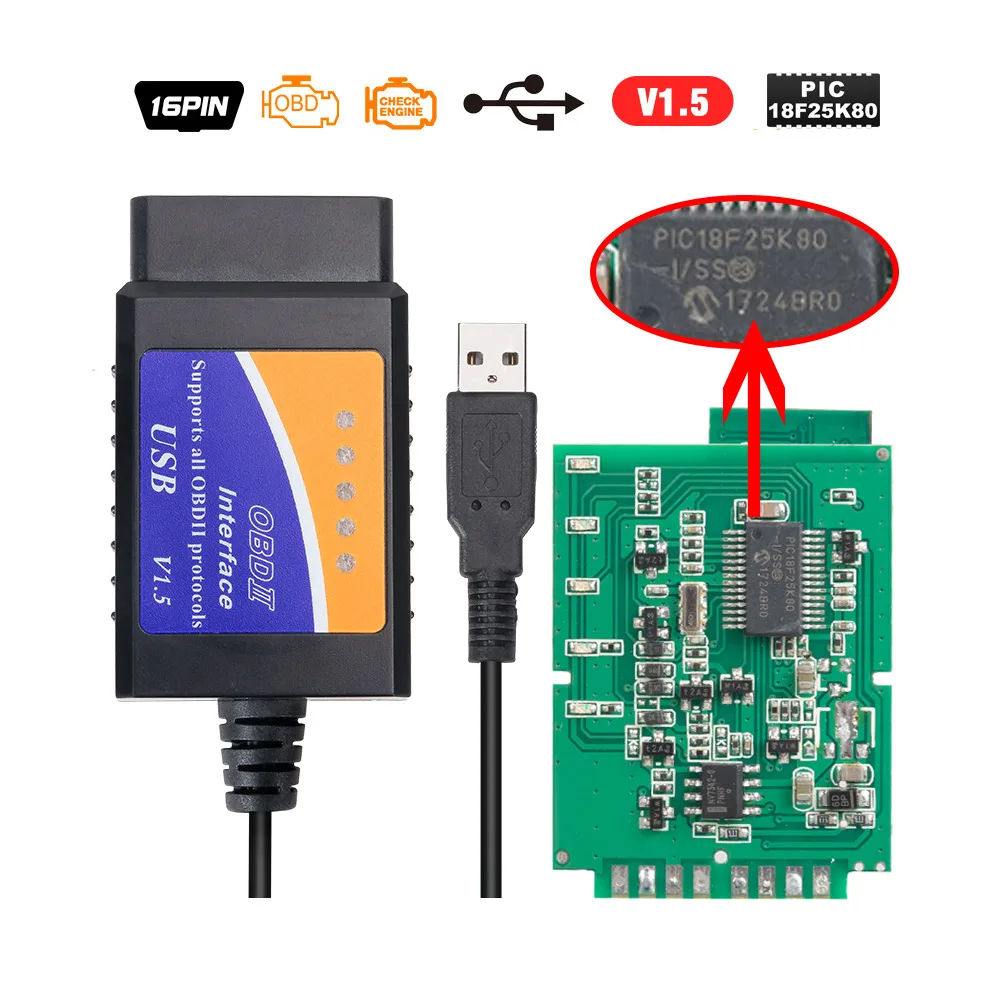

elm327 chip:	PIC18F25K80 CHIP ( except color 2 and 4 )
elm 327 operate system:	Android / ios / PC

1.The Driver is for 32 bite Windows.

2.Untrackable,Buyer protection 60days(Brazil 90days),please patient waiting .

3.About support car model,we can not promise this product can support all car,if it do not support your car.we can not refund to you,if you do not agree it,please do not place order,thank you.

4.About your order if you have any problem ,please feel free to contact us first,we will try best to solve for you .DO NOT Leave Negative feedback,it can not be revised after you sumbit!

5.It just supports the software in CD .

6.Please close anti-virus programmer when install software,take easy,software in CD are safe to your computer.

7.Item CD will maybe easily broken in shipping way,so if CD can not readable,please DO CONTACT us to send you download link,

DO NOT DISPUTE!

8.Using tip:Please Do not Disassemble Apart the Body Yourself,Or We Wont be Responsible for Repair.

1.Hardware Version:

V1.5

  Software Version:V2.1

2.It supports all OBD-II protocols

3.User-friendly,and easy to learn

4.Support two platforms - DOS and Windows.

5.Supported software:

  ELMconfig

  Forscan

  FOCCCUS

  FF2

6.Baud rate:9600 or 38400

1.Plz until you connect the ELM327 with the car,then put the USB interface of ELM327 into the laptop.

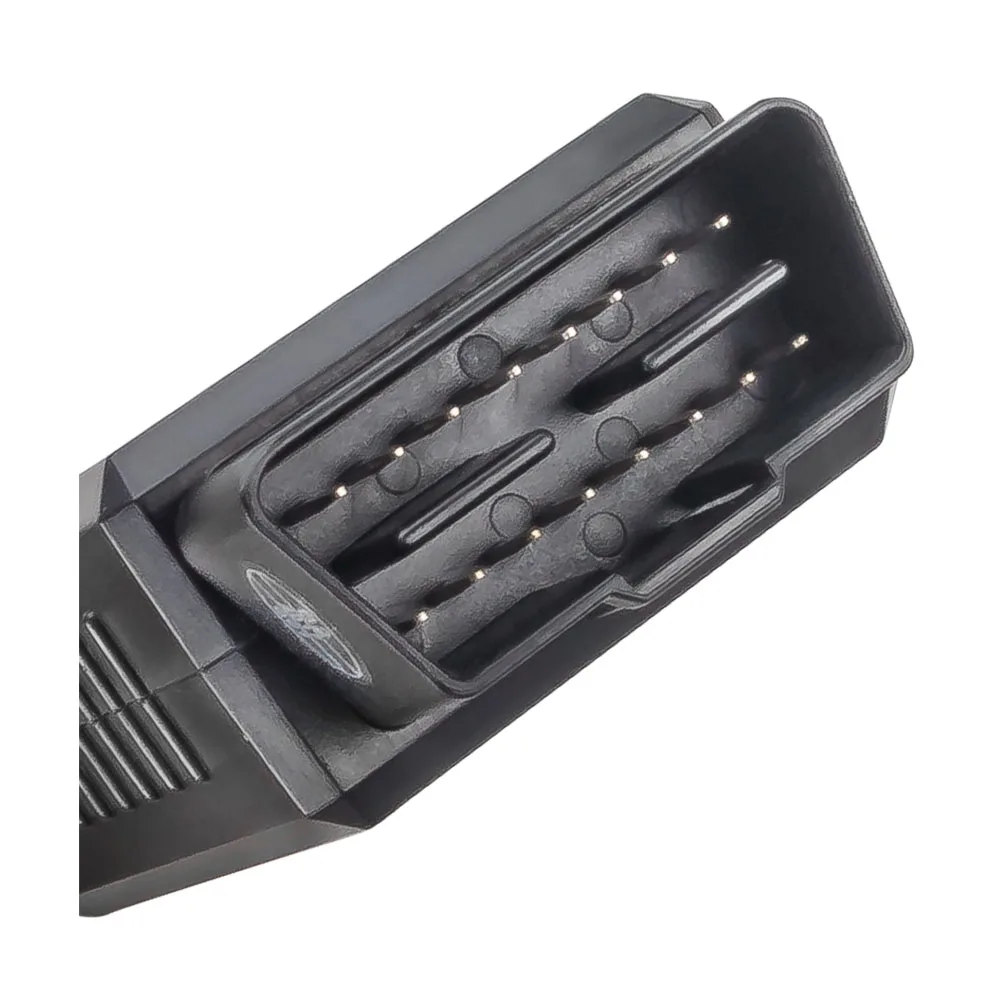

2.Connect the 16 pin connector of ELM327 with 16 pin connector of the car.

3.Start the laptop and connect the USB of ELM327 to the laptop.

4.Install the software,put the cd into the laptop and begin install it. After proper install,you will saw an icon of scan tool.

5.Turn the ignition of car on.

6.start the power of the car,you can see the light shining,it means the connect has succeed.

7.Click "my computer" begin the set of characteristic. Click the right button of your

mouse,choose"characteristic".

8.At the "hardware", pls choose "Device Manager", to set the comport. At the "USB

Serial por" click the right button of mouse,choose "characteristic",choose "comport set up" choose "baud rate"to 9600. In the comport set up,choose "advanced", you can choose from comport 1 to comport 8.anyone is ok,and then click enter. The set up of computer is complete.

9.Double click the icon of “Scan Tool” on the desktop, click "Sensor Data"

10. you will see a window not, pls choose "ignore"

11. in the option, pls choose the same comport as previous setting. Choose the baud rate to 38400 and save it. Then you can read the data.

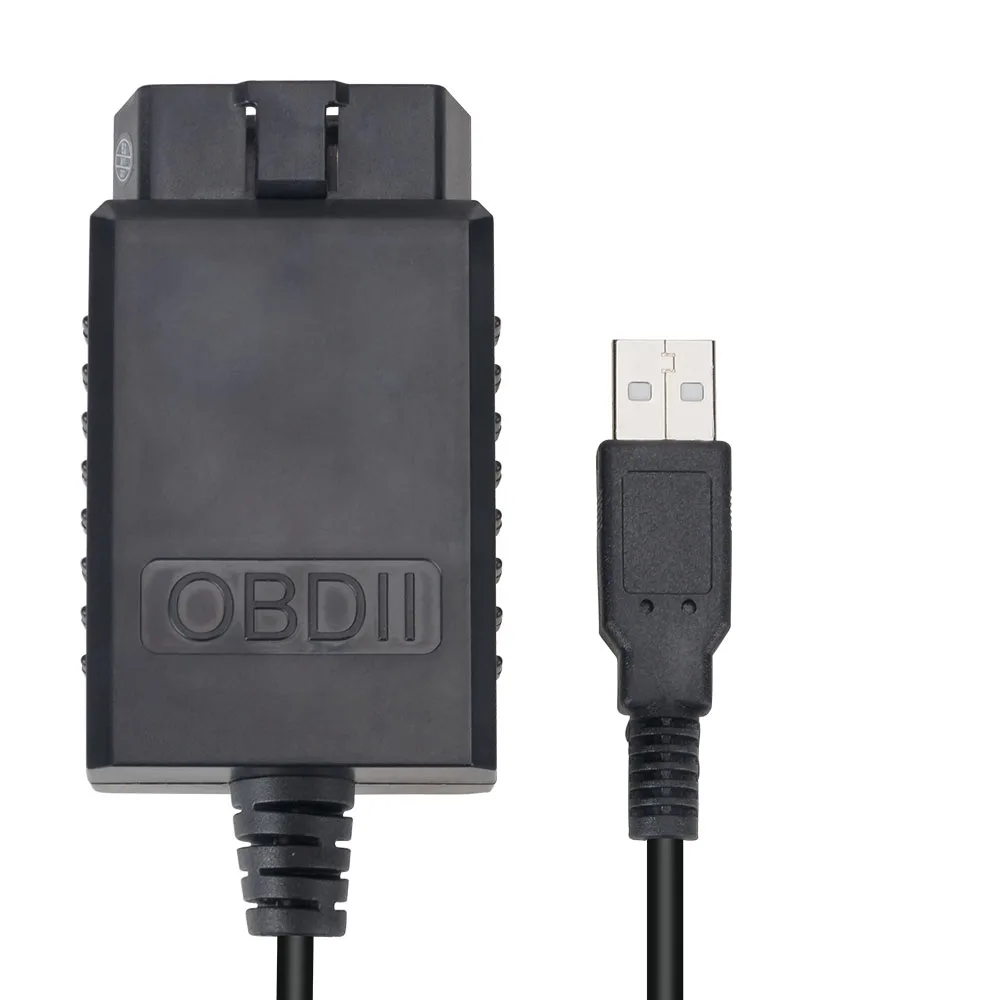

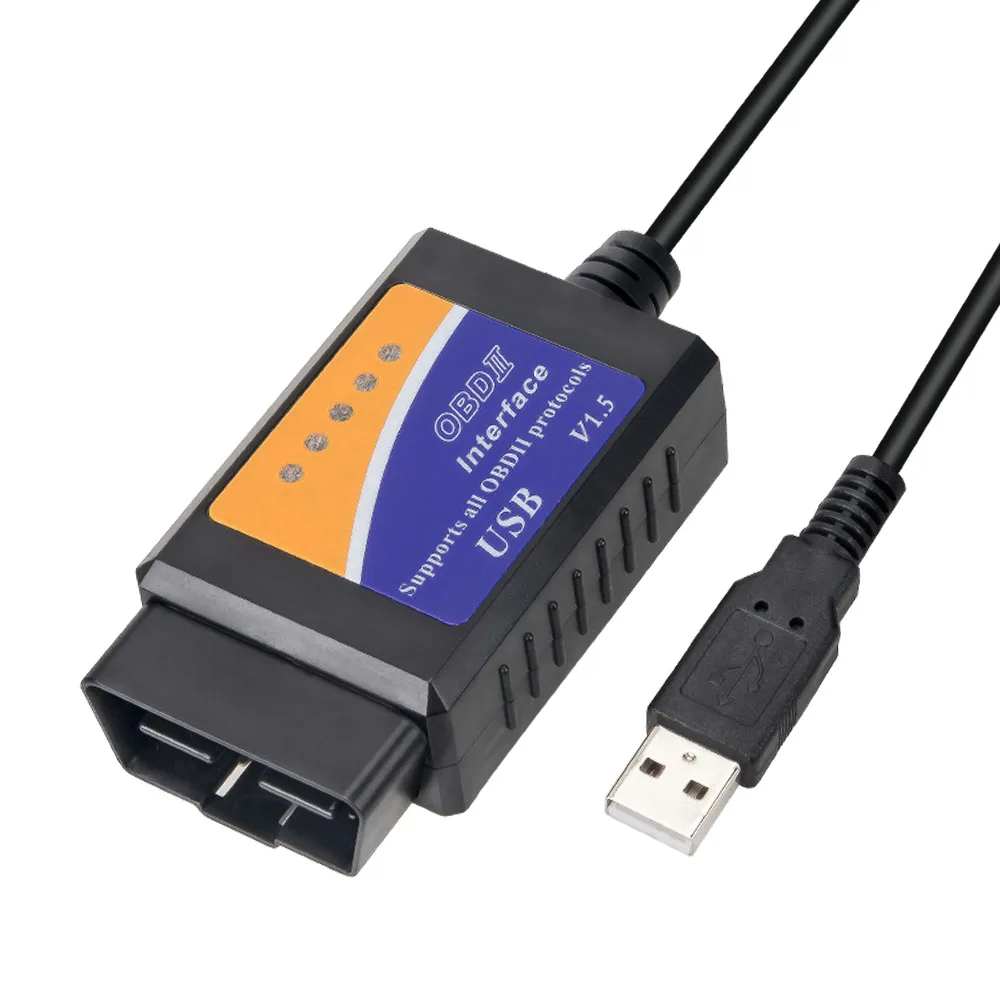

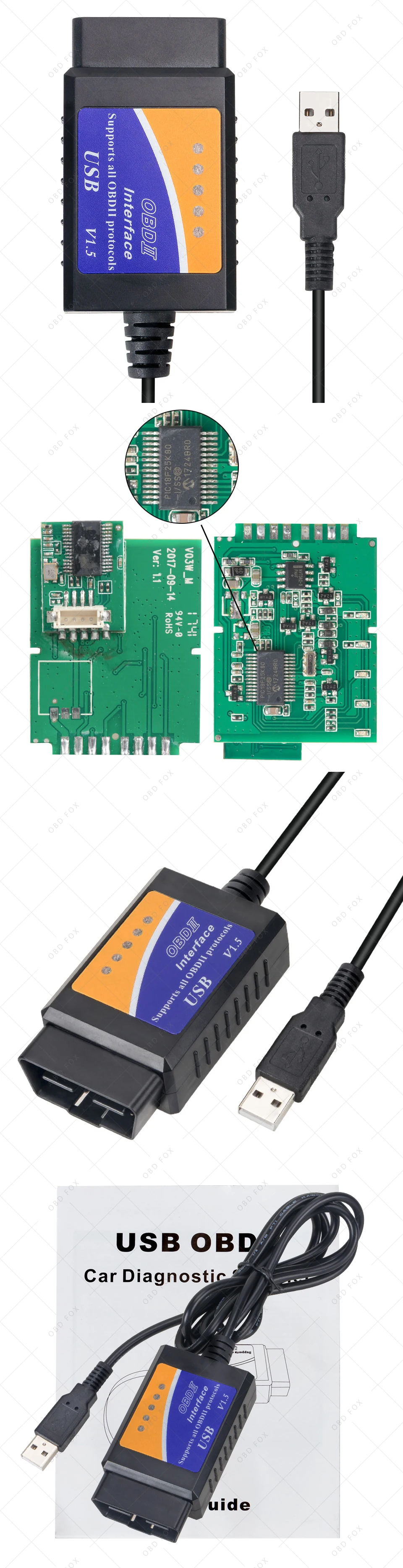

ELM327 USB Interface

ELM327 USB Description:

OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

The program lets you perform the following operations:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND Many others...

ELM 327 Upcoming Features:

Data graphing and logging

Freeze Frame data

Continuous and Non-Continuous Oxygen Sensor test results

ELM327 Free software:

1. for G-M Mode 22 Scan Tool by Terry

2. OBD Gauge for PalmOS and Pocket PC by Dana Peters

3. OBD Logger by Jonathan Senkerik

4. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

5. obd2crazy.com

6. OBD2 Scantool by Ivan Andrewjeski

7. OBDII for ELM322 by David Huffman

8. pyOBD by Donour Sizemore for MacOSX and Linux

9. RDDTC by Pete Calinski

10. Real Scan by Brent Harris

11. ScanTest for Pocket PC by Ivan Ganev aka a-ser

12. wOBD by WDT

ELM327 Vehicle Coverage:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

For your information:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

for Al fa Romeo/ for Audi / for Bentley/ for BWM/ for Cadillac/ for Chevrolet/ for Chryse/ for Citroen/ for Daewoo/ for Fiat/ for Ford/ for G-M/ for Honda/ for Hyundai/ for Isuzu/ for Jaguar/ for Jeep/ for Kia/ for Land Rover/ for Lexus/ for Mazda/ for Mercury/ for Mini/ for Nissan/ for Mitsubishi/ for Opel/ for Peugeot/ for Porse/ for Renault/ for Rover/ for Saab/ for Seat/ for Skoda/ for Toyota/ for Vauxhall/ for Volvo/ for VW

ELM 327 Software Included:

Scantool_net113win

EasyOBDII V2.2

OBD2Spy

ScanMaster-ELM

wOBDCRAZY

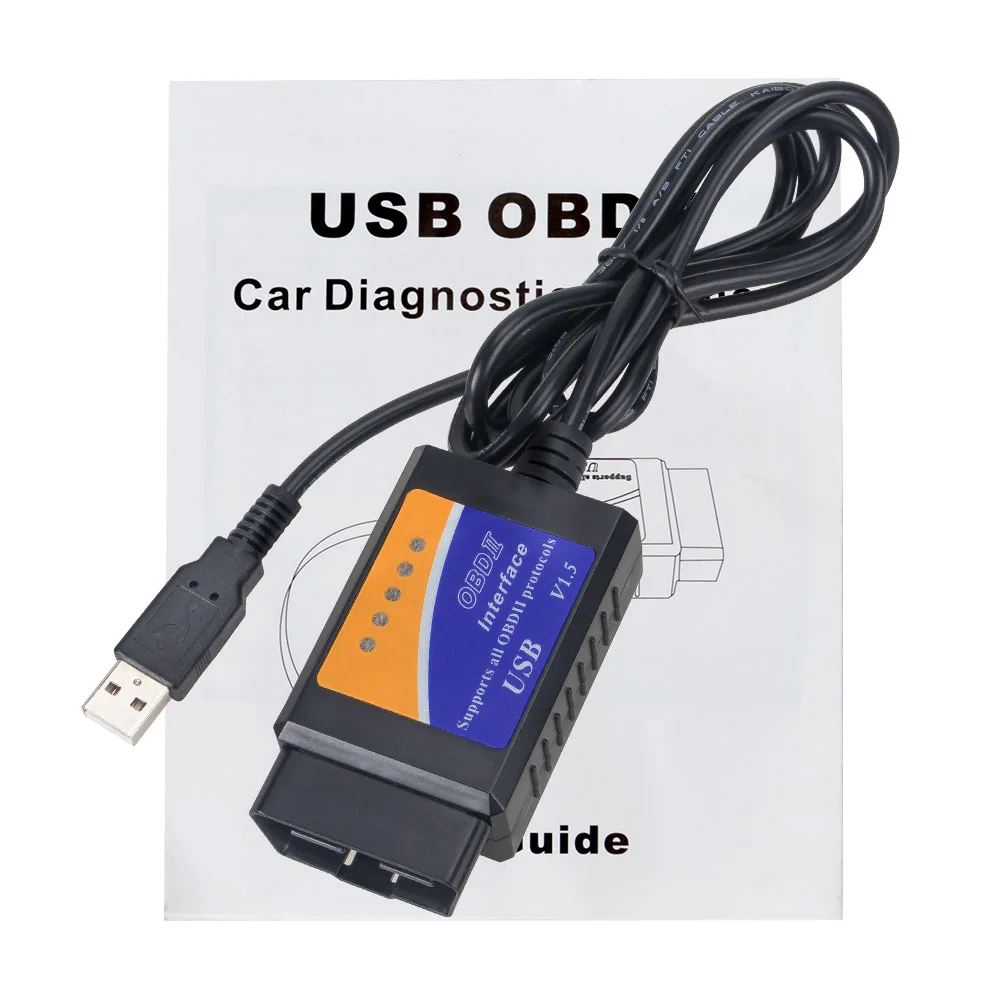

ELM327 Package including:

1 x ELM327 Main Unit

1 x Software CD

The program lets you perform the following operations:

Windows 2000/XP

Q:What is the version of this unit?

A:It is V2.1 version of this unit

Q:What is the difference for the Version V1.5 and V2.1?

A:The V1.5 version can do much more car models than V2.1 one.

Q:If it can do all most car models and diesel car models?

A:No,it can just support most standard OBD II car models,Diesel car models can not be supported

Q:When we send the order?

A:We will arrange shipment during 1~2 working days after get payment

Q:How to install the software if the cd broken?

A:Pls cntact us to get the link to download.
