Name: coolant temperature gauges XPROG-M v5.84 v5.75 5.74 X Prog M Box V5.55 Auto ECU Chip Tuning Programmer Xprogm Xprog 6.12 better than Xprog5.50 X-prog 5.0 battery load testing
Brand: MMO Dropship
SKU: 3256802561454183
Price: 257.7 VND
Availability: InStock
Rating: 4.9 (87 reviews)

Code: TD-3256802561454183 2 orders

Free Shipping

$ 257.7 $ 290

Color:

Note

Quantity:

Other people want this. 20 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	VSTM
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	XPROG 5.70/5.74/5.75/5.84
Electronic:	No
Hardware Version:	XPROG 5.70/5.74/5.75/5.84
Item Height:	10cm
Item Length:	10cm
Power:	0
Material Type:	PLASTIC
Item Type:	Emissions Analyzers
Special Features:	XPROG 5.70/5.74/5.75/5.84
Item Weight:	0.5kg
Software Version:	XPROG 5.70/5.74/5.75/5.84
Voltage:	12V
Item Width:	10cm

XPROG-M V5.84 Highlights:

1. Latest software version: V5.84，Firmware:V4.4

2. With USB Dongle, No need to activate

3. Add new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

4. Language: English

XPROG-M V5.84 using tips:

1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84

2. Close all of the computer anti-virus software. If not, X-prog software may be killed.

3. Disconnect the internet. If not, the internet maybe damage the hardware.

4. Uninstall all of the old version xprog-m or xprog box software before you install V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...

5. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.

XPROG-M V5.84 Authorizations:

AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 for BMW EWS3 authorization

AUTH-0009 for ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 for MB ZGS001 authorization

AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13

AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

AUTH-0028-1 for Renesas V850 Authorized 2017/10/9

AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

XPROG-M V5.84 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 for Motorola HC05B/X PLCC52 programming adapter

ADP-0005 for Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adaptor for 5M48H P-Flash

ADP-0019 Rev.A

EWS3 adaptor

EEPROM adaptor

QFP28 adaptor

QFP64 adaptor

QFP80 adaptor

QFP112 adaptor

QFP144 adaptor

Install Notice:

XPROG-M V5.84 windows system required as below:

1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...

2. The windows system should be with at lest 2 partitions (except the CD ROM.)

3. Can not be working with virtual harddisk.

XPROG-M V5.84 Install manuals in words:

1. Click the file "installation.reg", get the file information to the regedit.

2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.

3. Plug the Xprog main interface to the computer, install the USB driver.

4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

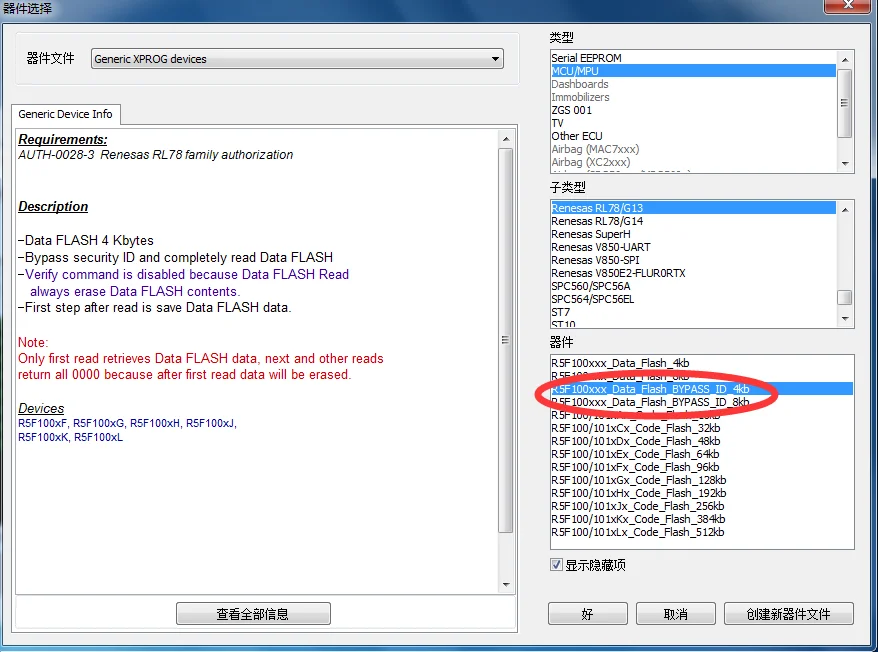

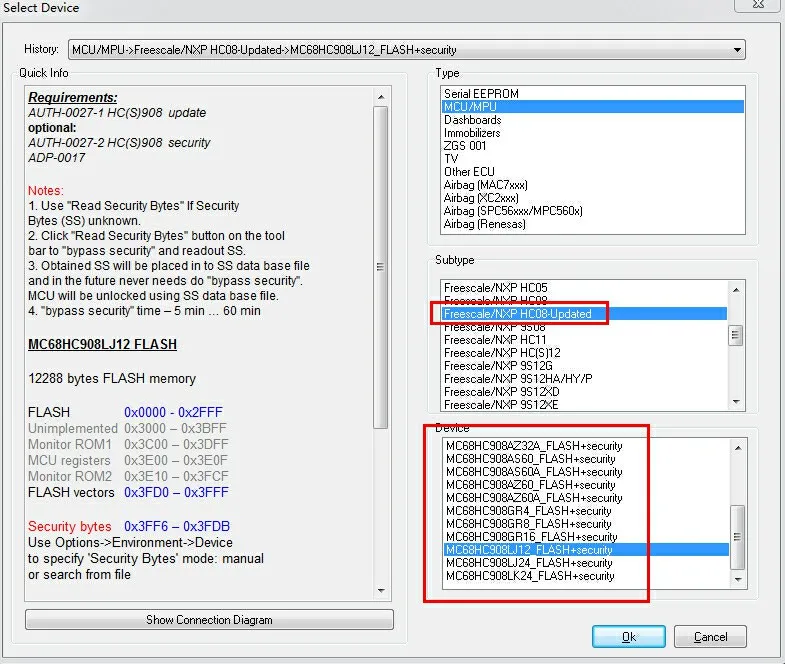

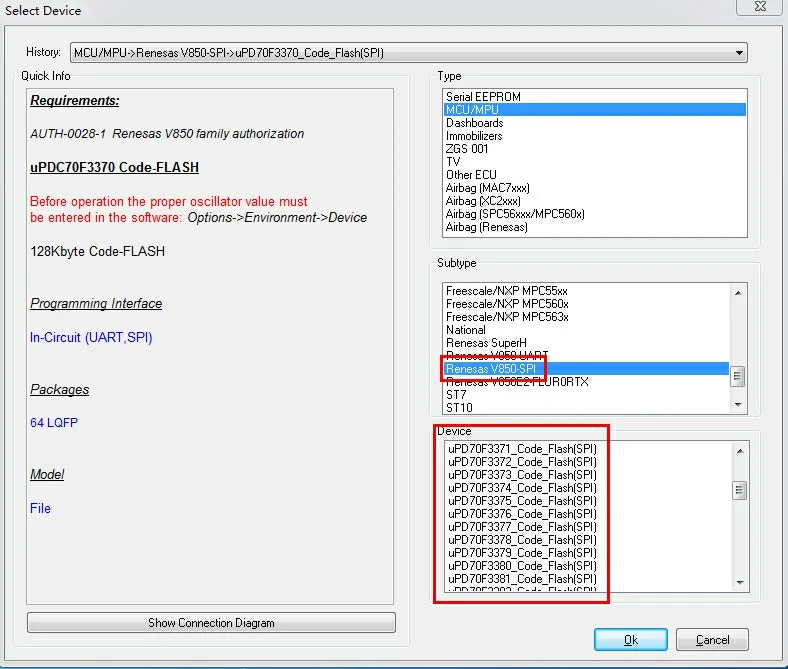

XPROG-M V5.84 Software Display:

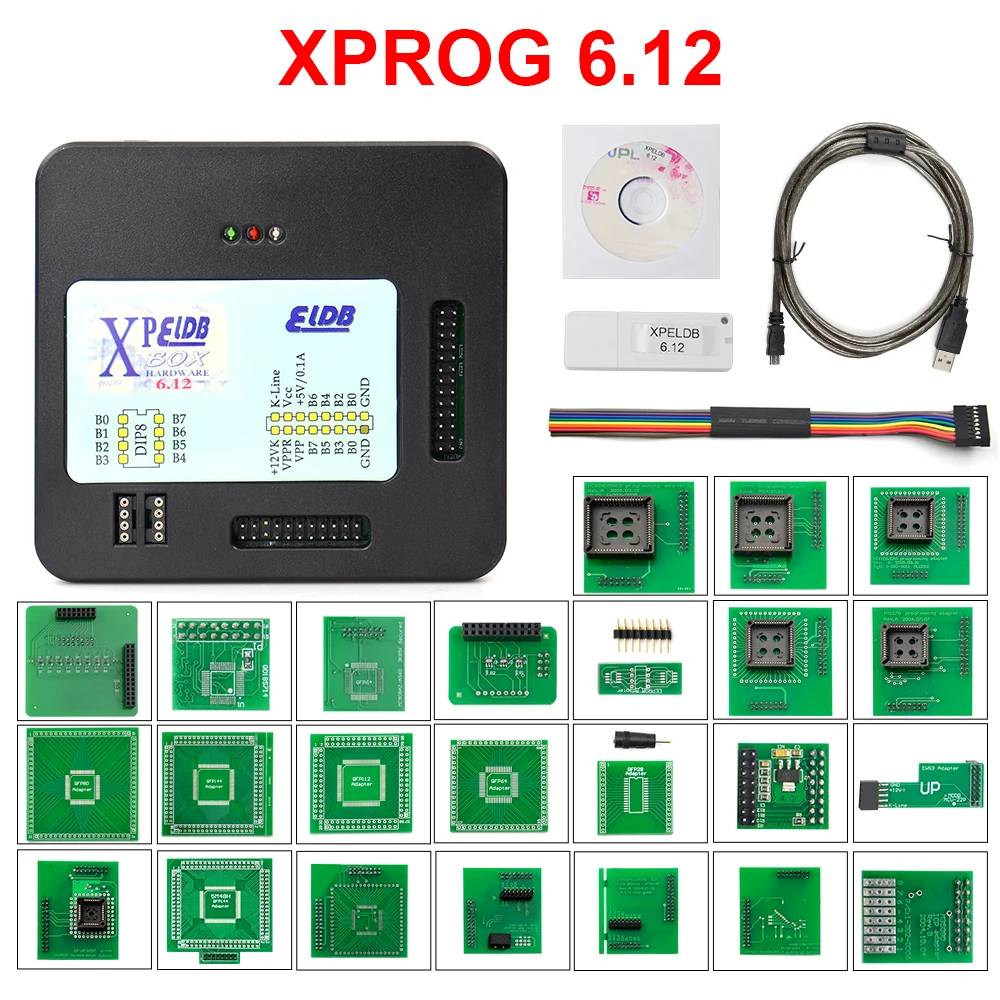

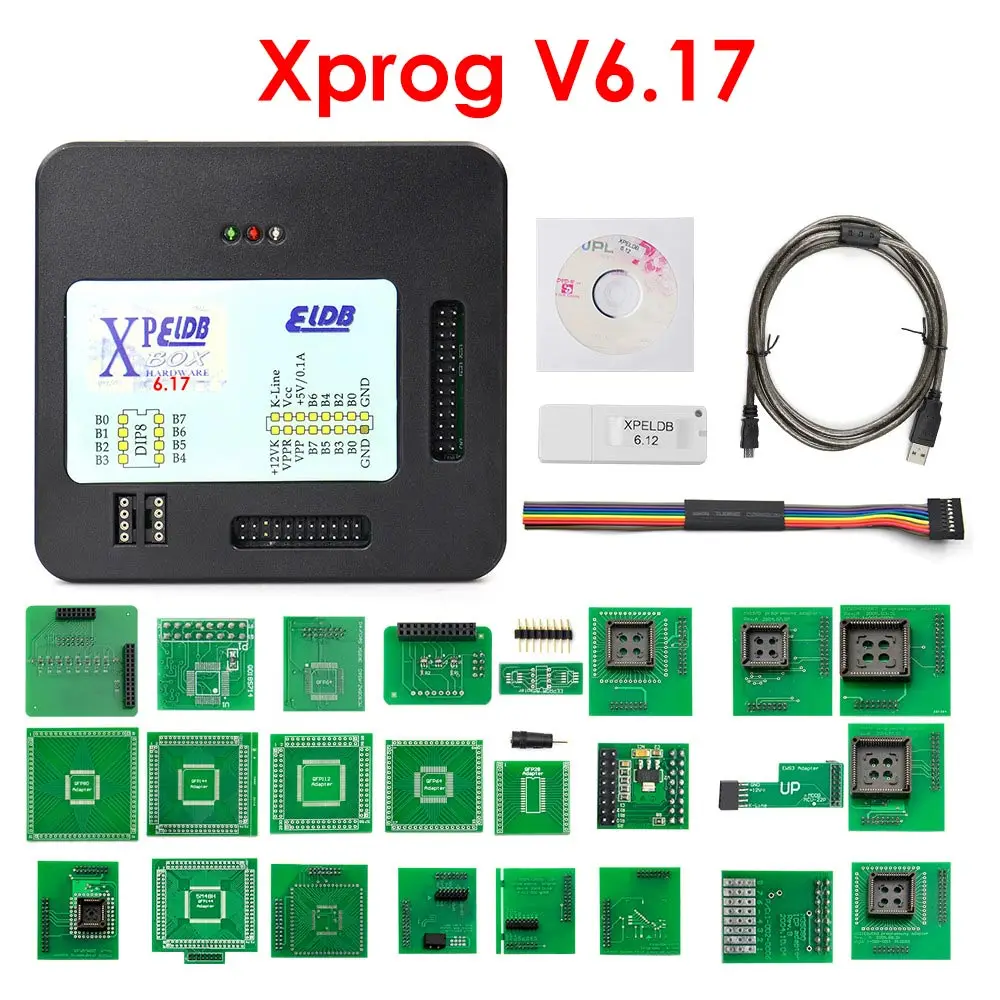

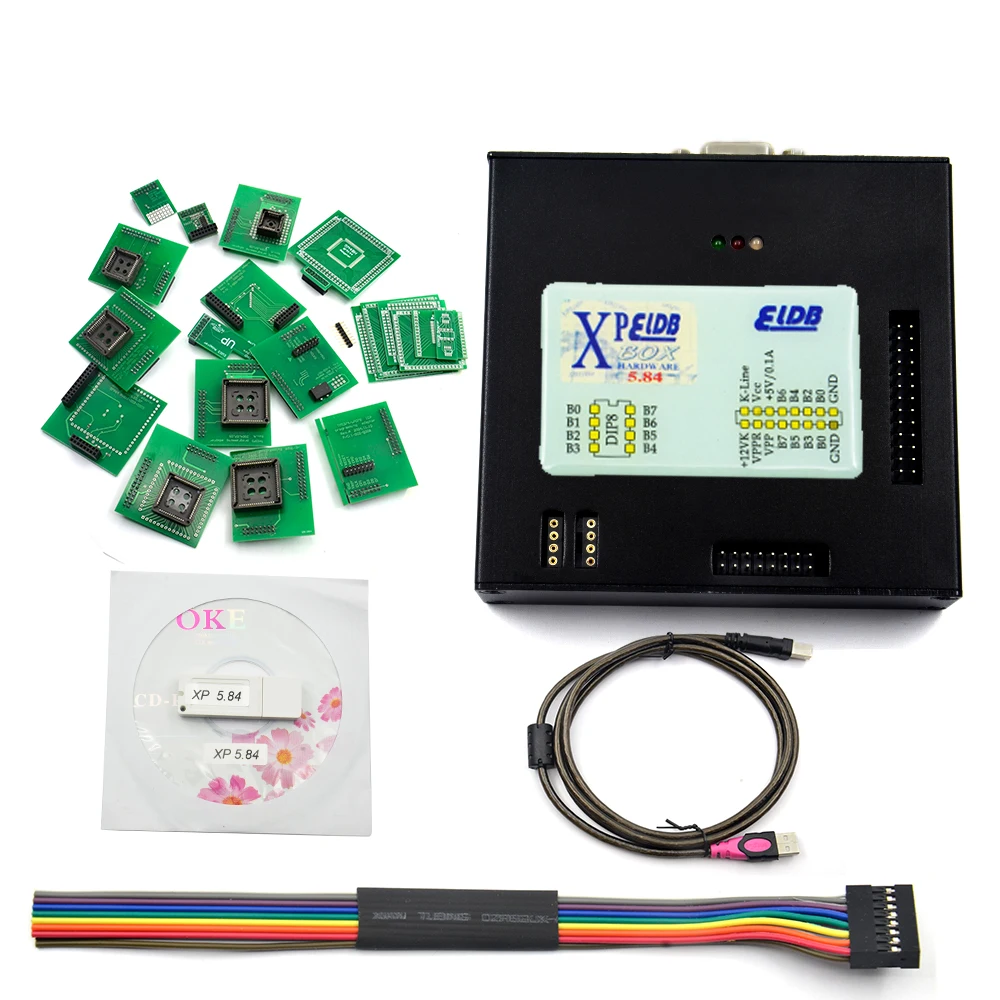

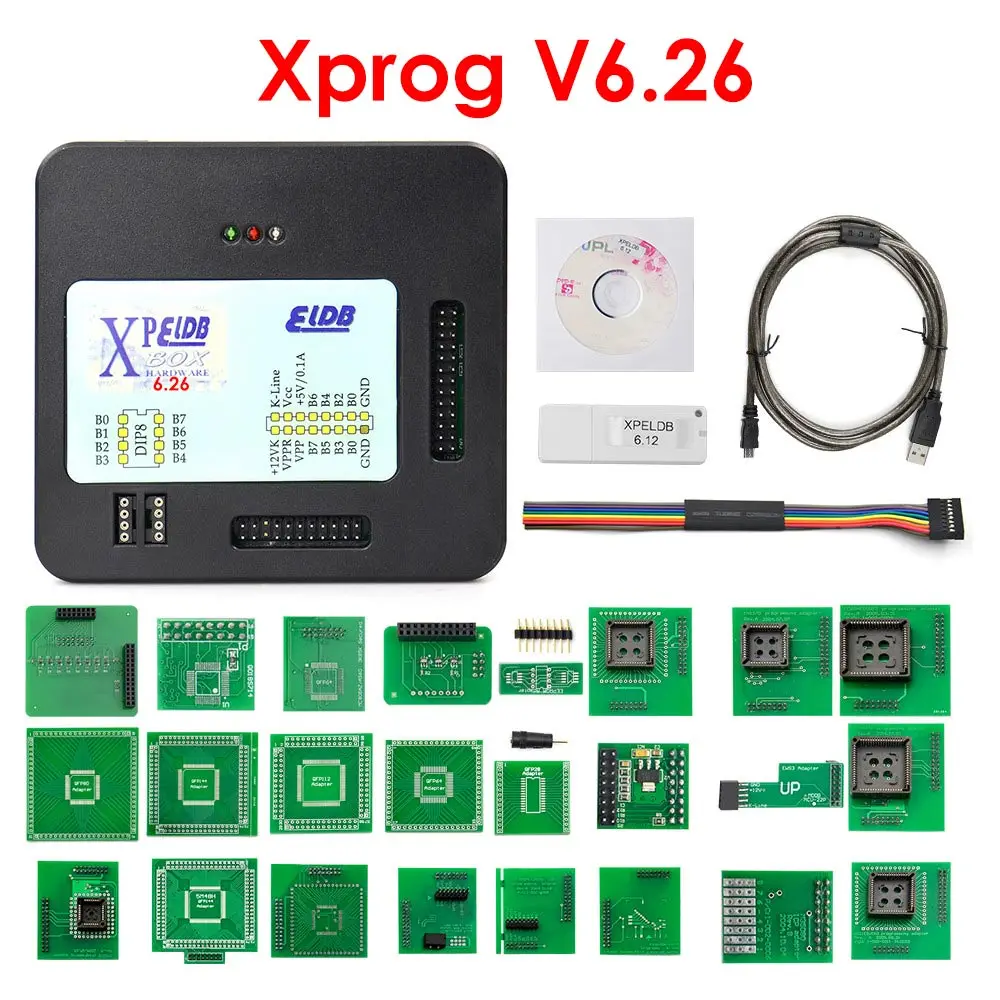

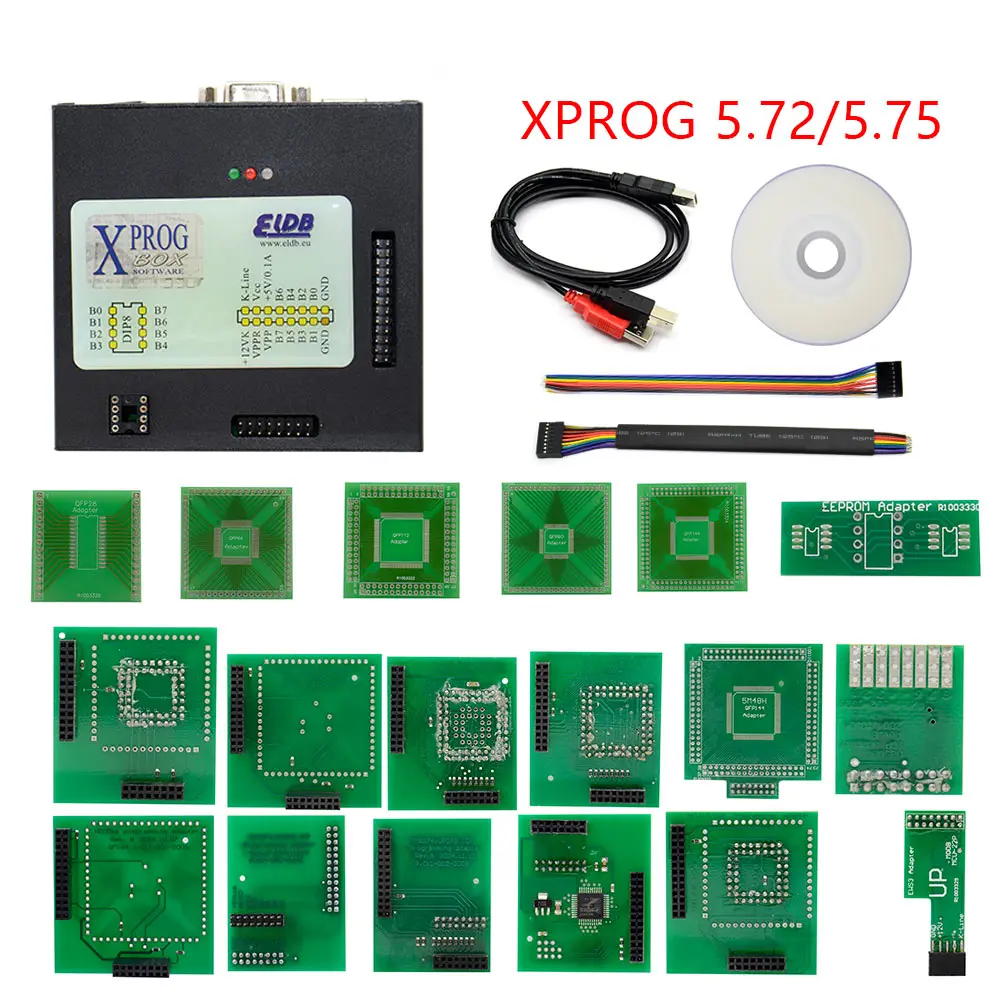

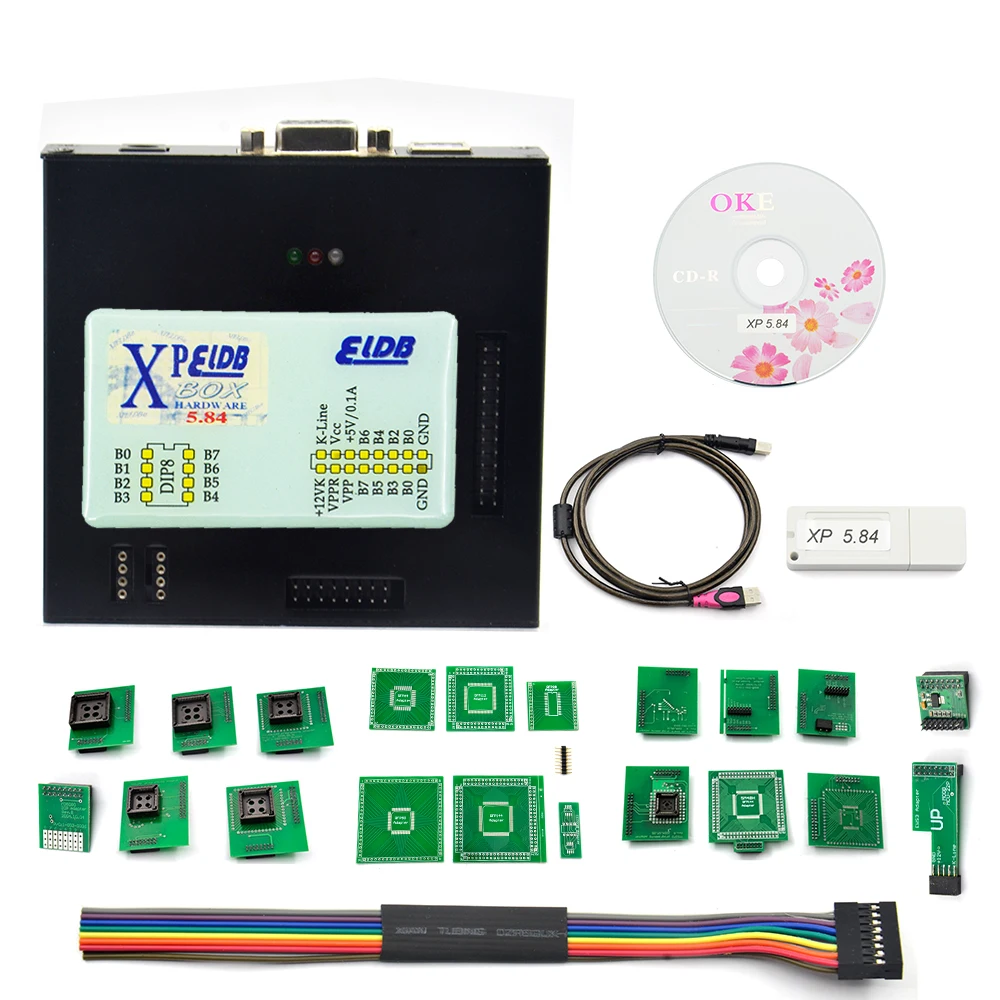

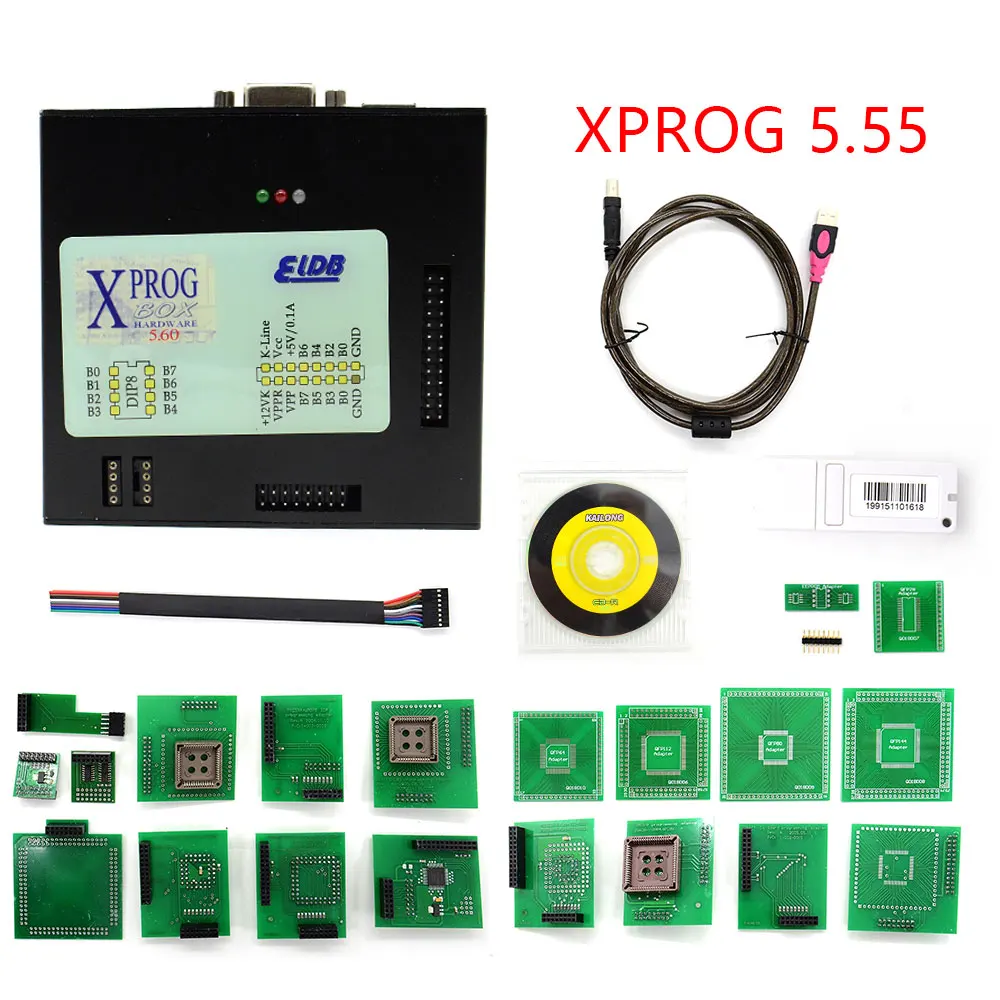

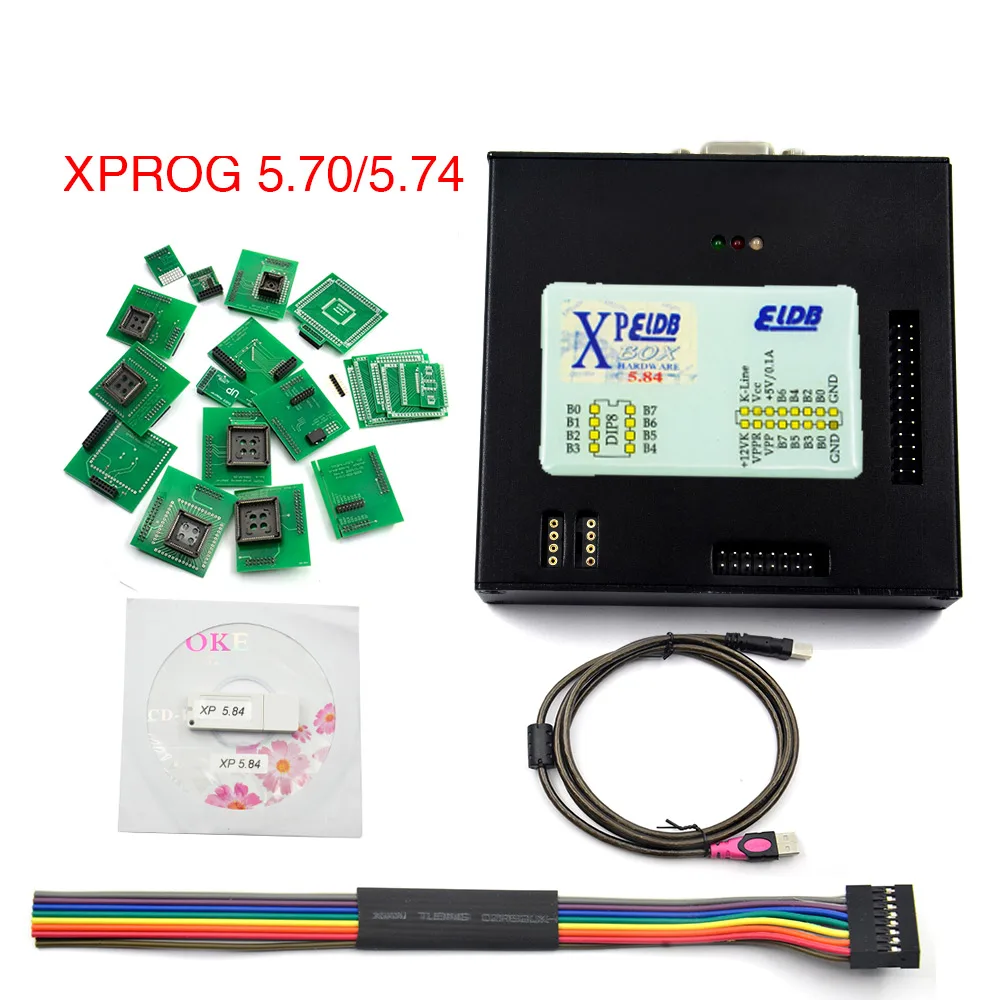

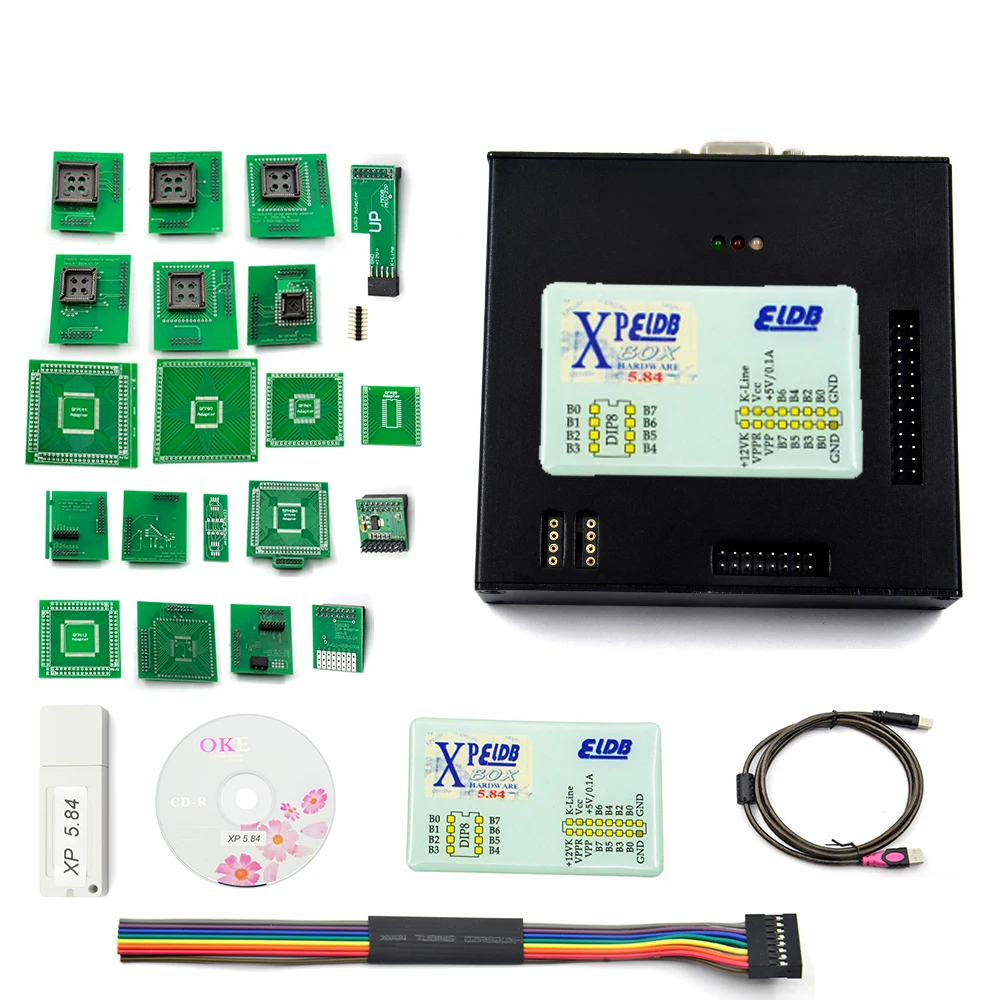

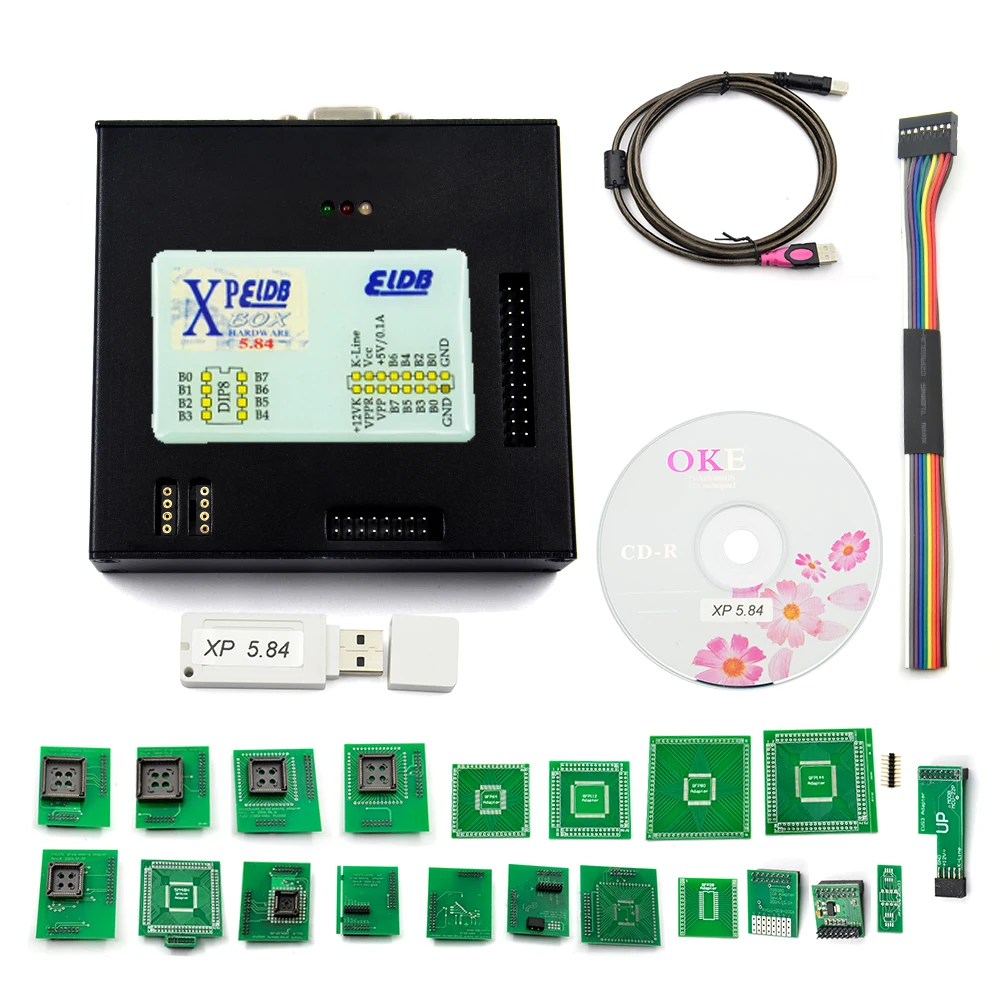

Package Includes:

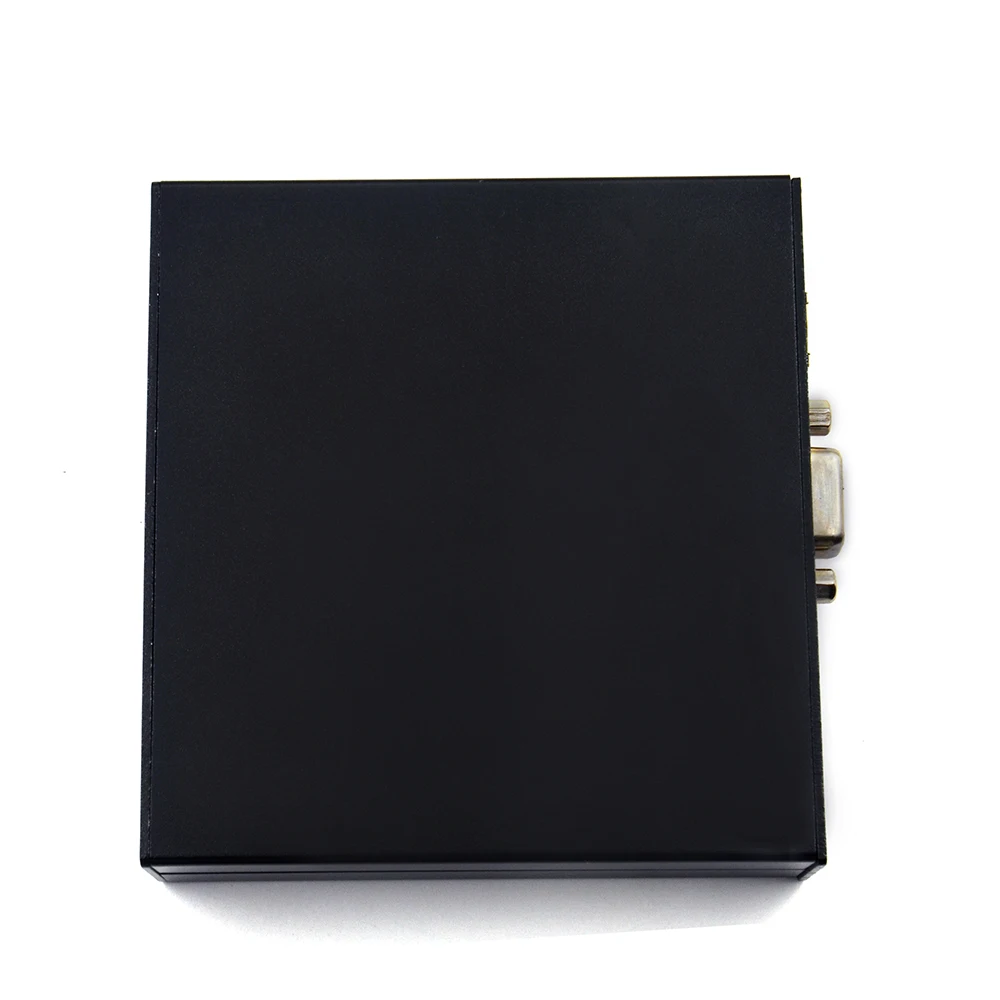

1pc x XPROG-Box Hardware (Aluminum Enclosure) .

20pcx Adapters Set

1pc x USB Cable.

1pc x USB Dongle

1pc x CD with XPROG-Box Software (V5.84)
