ELM327 USB FTDI HS CAN and MS ELM327 USB V1.5 OBD2 Diagnostic Cable PIC18F25K80 Chip ELM 327 Hardware 1.5 OBD2 ELM 327 Bluetooth normal car temperature gauge Diagnostic Tools

Brand Name:	BXOBD
Origin:	CN(Origin)
External Testing Certification:	ce
Item Length:	10cm
Software Version:	V1.5
Item Width:	8cm
Electronic:	No
Item Height:	5cm
Item Type:	Car Diagnostic Cables and Connectors
Product Name:	ELM327 USB V1.5 OBD2 Diagnostic Cable
Model ID:	EOS046
Weight:	0.1KG
Package:	190 * 155 * 75 mm
USB ELM327 V1.5 OBD2:	DIAGNOSTIC TOOL
Tool ELM 327 V1.5 Support OBDII:	ENGLISH
Tool ELM 327:	GOOD SERVICE AND GOOD PRICE
DIAGNOSTIC Tool ELM 327:	usb elm327

Store Comment&Buyer Tips:

1. Item CD may be easily broken on the way to destination, so if CD can't be readable, please

CONTACT US

to send you download link,

DO NOT DISPUTE and Negative Feedback for this.

2. If you have any problem, please feel free to contact us first, we will try our best to help you.

3.

"FOLLOW"

Extra 1-3% Fans Exclusive Discount and Extra Coupons

SVCI MDI2 Car Diagnostic Tools Work for Customized J2534 Protocol Software Support CAN FD DoIP Communication Protocol MDI2 OBD2

USD 585.59-595.60/piece

J2534 Diagnostic Tool for Ford & Mazda support Online Module Programming New VCM2 J2534 for Toyota & Nissan

USD 116.00-134.00/piece

Russia/EU Stocks For Flash 67in1 Auto ECU Programmer via Boot/OBD Best Price Bench V1.20 old Flash V1.95 Car Diagnostic Tools

USD 107.81-287.06/piece

SVCI 2020 2019 Auto Diagnostic Tool SVCI V2020 OBD2 OBDII Diagnosis mer No Limited SVCI Abrites Commander New V38.1 Full Version

USD 282.00-650.00/piece

Best Quality WIFI 2022.03 MB STAR C4 DOIP SD Connect Compact C4 Car Truck OBD2 Scanner Star C4 Diagnosis & Programming Tool

USD 77.61-562.68/piece

Support Programming Update Version of Consult-3 Plus SVCI ING For Infiniti//GTR Professional Diagnostic

USD 137.90-146.90/piece

Hotsale Best Quality DIGIPROG 3 DigiprogIII V4.94 OBD Version with FTDI FT232BL&93C46 OBD OBDII OBD2 Digiprog III DIGIPROG3

USD 99.20-107.20/piece

Vocom 88890300 With Square Interface For Volvo/UD/Mack/Renault Truck Diagnostic Tool Heavy Duty Truck Scanner Vocom Interface

USD 75.00-406.00/piece

If you need Wholesaling Price for 10PCS/LOT ELM327  V1.5, CLICK HERE to buy.

How to connect the Bluetooth of elm327 forscan

ELM327 USB FORSCAN For ford V1.5

Top Recommander :

V1.5

V2.1

V1.5 elm327 supports 9 kinds of protocols

PICI8F25K80 and FTDI FT232RQ chip

3. Support models open hidden function for Mondeo for Kuga

4. Majority for moderm modules are accessoible only through this protocol

5. Beside added functionality, this device works as normal OBD2/EOBD code reader on all supported vehicels.

6. When you use it with software of FoCCCus. It just supports 2 kinds of languages: English & Russian.

Windows XP/Win7 32bits

12V gasoline cars,no supports diesel&truck

Multi-Language Available

    English , Czech , Danish , German , Spanish , French , Croatian , Hungarian , Italian , Polish , Serbian , Turkish

Note :

As this device can support multi-brands and we do not test it on all cars, we can not make sure whether it can be used on your car, maybe you can buy one to have a try

pls contact us to get the link to download the software directly

pls check you install the usb driver well first , set the com port well first

ELM327 USB FORSCAN Description :

One ELM327 OBDII OBD2 USB with switch. Designed for communicating for Mazda, for Lincoln and for Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular obd2 scanners. This includes showing you trouble codes,PINDS,running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

 ELM327 USB Forscan Features:

1. Latest ELM327 version for greater compatibility

include a switch to connect to different CAN buses

3. Designed for FORScan software

Supported software

for FORScan

for Elmconfig

for FoCCCus

for FF2

for Plus more

Support MS CAN bus and HS CAN bus

HS CAN - Occupies pins 6 and 14

MS CAN - Occupies pins 3 and 11

Hidden function Support car list

2006-2016 classical for Focus

2012-2015 new for Focus

2013-2015 for Kuga

Please note that many for Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

ELM327 supports HS CAN from the stock, because CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

ELM327 USB Switch Functions:

Read/erase fault codes/parameter ids (PIDs) from ALL modules, including OBD2/EOBD

Access modules on both HS-CAN and MS-CAN mode

Read and Change car configuration data

Actuator tests

Live Data

Injector coding

Software updates

Service procedures

Force DPF regeneration

Programming

Coding

Adaptations

Run tests

Air Flow Rate

Display and read

Engine RPM

Vehicle Speed

Intake Air Temperature

Long Term Fuel Trim

Short Term Fuel Trim

Timing Advance

Oxygen Sensors

Fuel System status

ELM327 USB Forscan Support Car List:

For MAZDA

For BMW

For VW

For GM

For AUDI

For CHEVY

For TOYOTA

For LEXUS

For Lincoln

For MERCEDES

For Mercury

For HYUNDAI

For KIA

For MITSUBISHI

For NISSAN

For SUZUKI

For JAGUAR

For LAND ROVER

For  CHRYSLER

For HONDA

AND SO MUCH MORE!

ELM327 USB forscan Support OBD2 Protocols:

SAE J1850 PWM(41.6Kbaud)

SAE J1850 VPW(10.4Kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ELM327 USB Forscan Packing List:

1*ELM327 USB forscan

1*CD

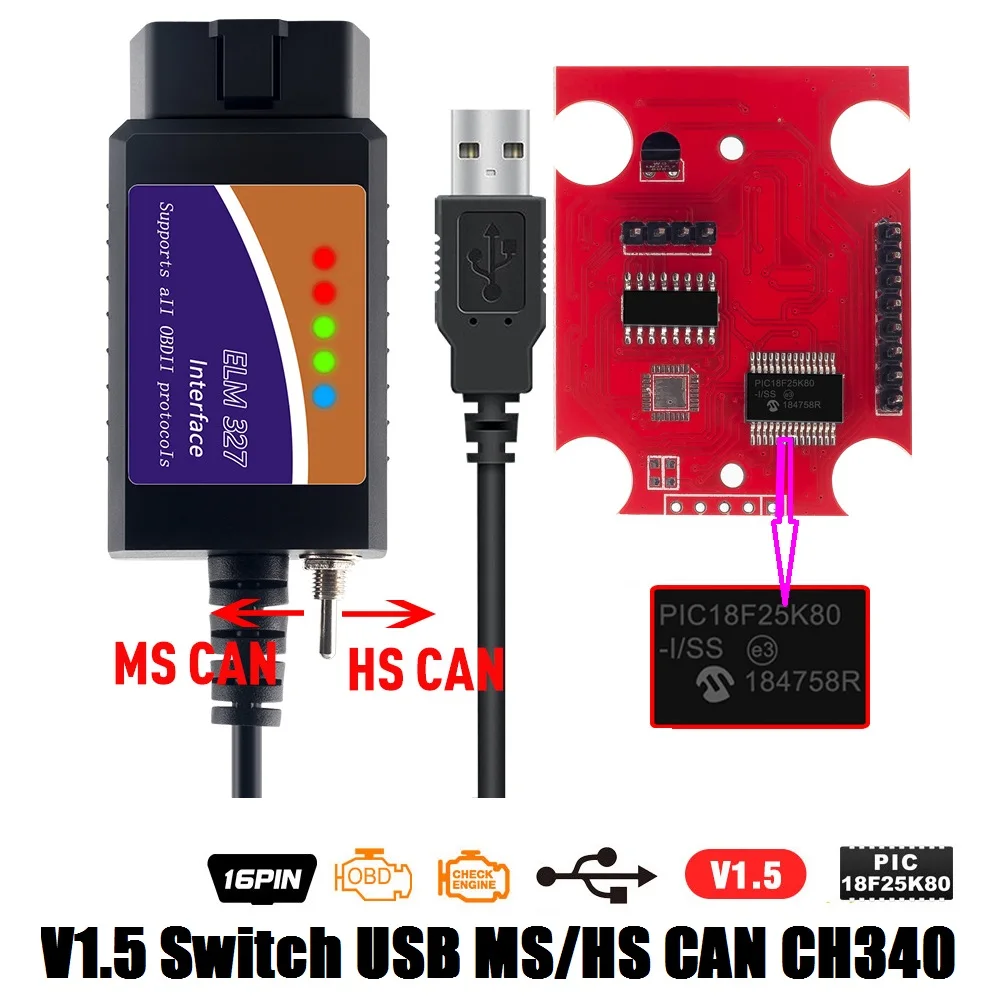

ELM327 USB Switch V1.5 Forscan for ford

Different with ELM327 USB forscan :

with PICI8F25K80 and PL2303 chip

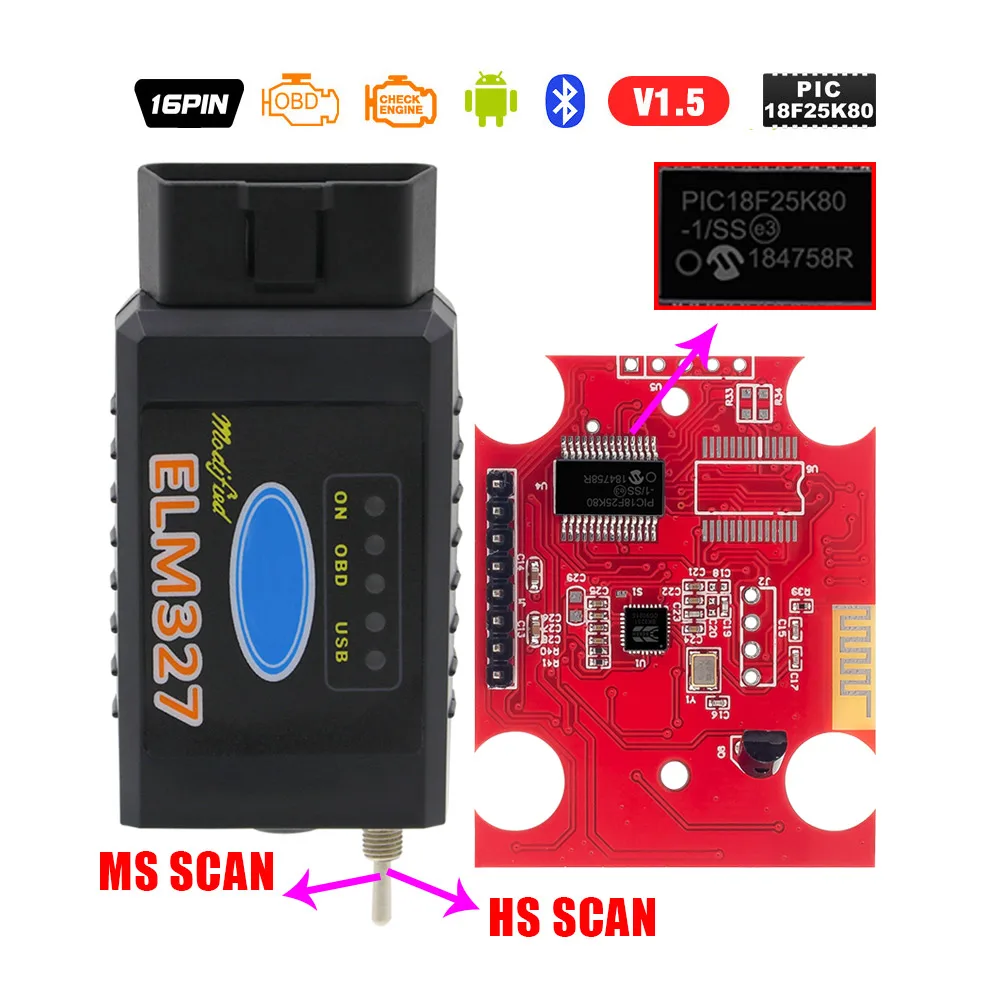

ELM327 Bluetooth Switch V1.5 Forscan for ford

Different with ELM327 USB forscan :

works with bluetooth

works with USB

with PICI8F25K80

ELM327 Bluetooth Switch V1.5 Packing List :

1*ELM327 USB Swith

1*CD

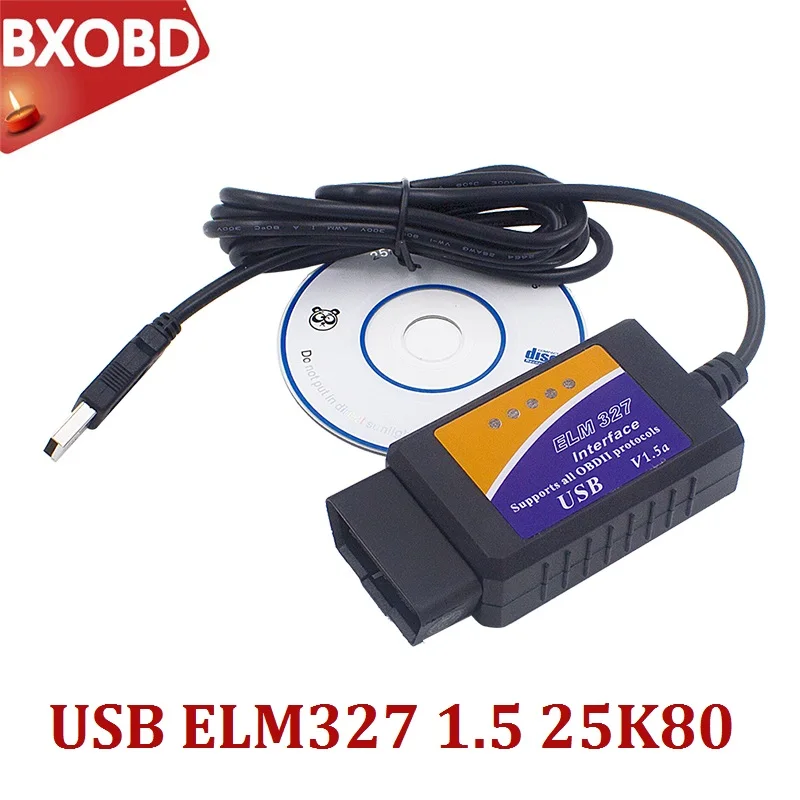

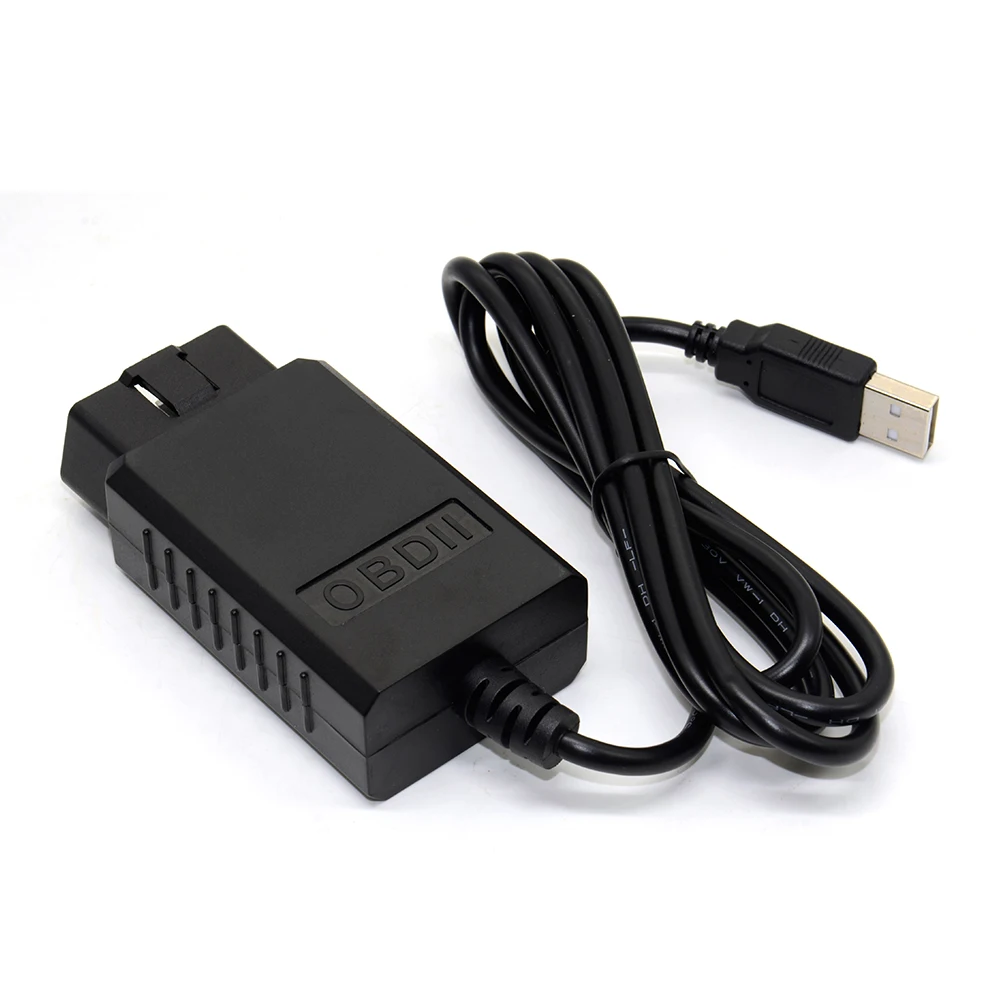

ELM327 USB Interface Description:

1.With USB Connection. 2.Plastic ELM327 USB V1.5 Scanner is the latest PC-based scan tool. 3.ELM327 USB Scanner is Version V1.5 simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

1. Plug OBDⅡ connector into car OBDⅡ port

2. Plug wired USB connector into computer USB port. If operation system is Windows7 or Win8, driver will be downloaded and installed automatically. If automatic download or installation failed, please follow below steps and install the driver manually:

a) Right click Computer icon on your desk and select"Management"to open the computer management dialog box b) Select "Device Manager". Belo other devices, you can see a device with yellow exclamation mark which is the device without driver

c) Login at www.elm327. com Click"Support"- "PL2303 USB OBDII Driver" to download and finish installation. After that, the yellow exclamation mark below device manager would disappear. d) Login at www.elm327.com Click"Support"- "ScanMaster-ELM for Windows" to download and finish installation. Then finish registration. e) Below"Device Manager",check the port number of USB OBDII(with driver installed) ."

3. Run ScanMaster-ELM below Options- Communication, choose Serial (RS232 or Virtual COM Port Driver) for icon , set serial port number manually with the number which is the same in last step.

4. Click "Connect " to start the connection with car ECU

5. Trouble Codes

USB ELM 327 V1.5 USB Scanner Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL ("Check Engine" light) 3. Display current sensor data, including: 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages/associated short term fuel trims 17. Fuel System status 18. Fuel Pressure AND Many others...

ELM327 USB ELM 327 V1.5 USB Scanner Support OBD2 Protocols:

SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) Output protocol: RS232 Baud rate: 9600 or 38400 Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power Operating voltage: 12V, internal protection from short circuits/overvoltages Nominal idle current: 45 mA

Package Content:

1 x ELM327 USB interface 1 x CD software 1 x Manual

OBD Ⅱ + Windowes Laptop + APP

Find out your car's errors by yourself

Product size :

Manual measurement, there is a 1-2mm error is purely normal.
