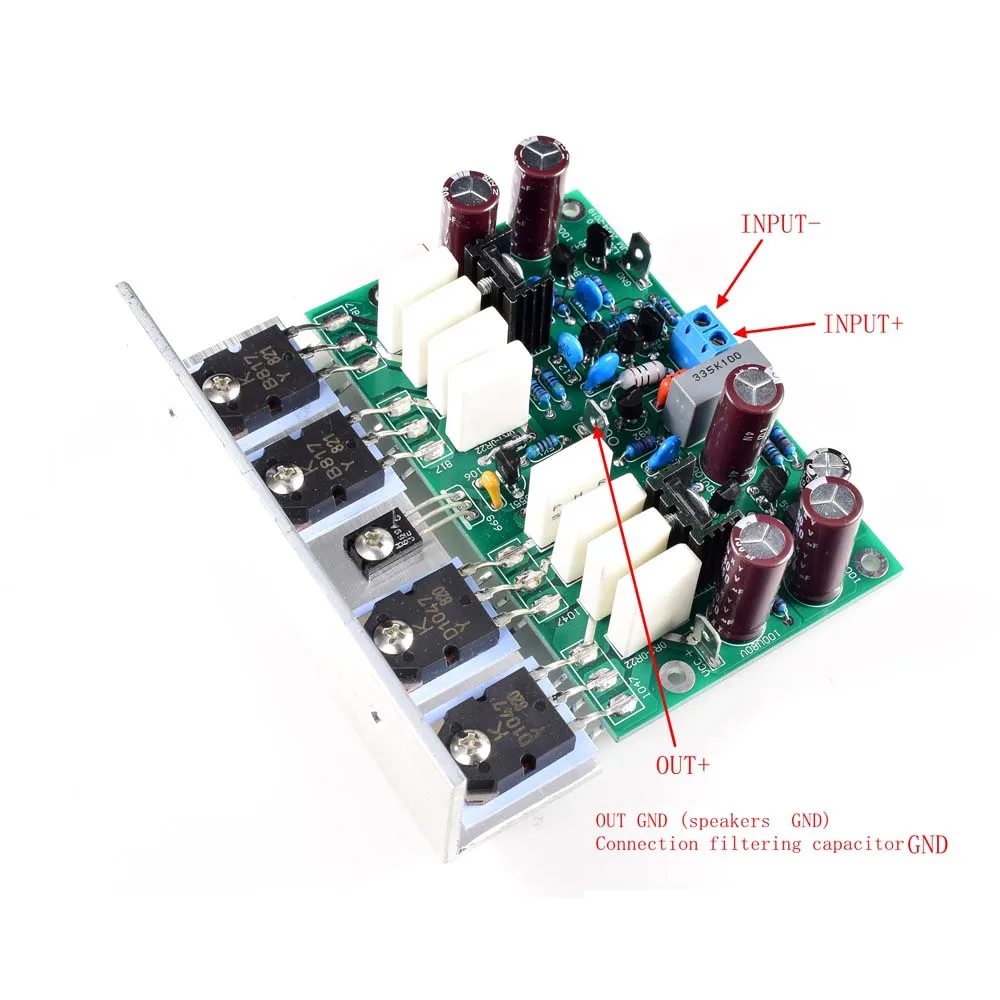

Professional Amplifier Lusya 2pcs HI-END L20 VER 10 Stereo Power Amplifier Finished Board 200W 8R With Angle Aluminum D2-011 integrated amplifier Audio Amplifier Boards

Code: TD-32976334602 6 orders
Free Shipping
$ 96.34 $ 142.86
Color: finished board
finished board
Note

Quantity:
Other people want this. 20 people have this in their carts right now.
Brand Name:  LUSYA
Certification:  NONE
Origin:  CN(Origin)
Maximum Power Per Channel:  Above 200W
Model Number:  L20
Package:  No
Channels:  2 (2.0)
Type:  Power Amplifier

Lusya Italian Amanero Combo384 Module DSD512/PCM384 32bit For AK4497 ES9038 AK4493 Decoders

USD 24.27-29.12/piece

Lusya 4-ways Dual-Channel Audio Source Switching Board Preamp Signal Switch With Fixing Screws G8-002

USD 13.58/piece

Lusya QCC5125 Wireless Lossless Bluetooth 5.1 Audio Stereo Receive Board Supports LDAC APTX-HD Aptx Adaptive

USD 42.83/piece

Preamp NE5532 Op Can Adjust/Customized Three-Frequency Divider Crossover Treble Midrange Bass Output

USD 18.43/piece

Lusya TDA7850 Subwoofer Digital Amplifier Audio Board 2*80W+120W Stereo Class AB Amplificator For2-8 Ohm Speaker DC9-18V C3-008

USD 31.26-38.35/piece

Lusya ALPS27 Audio Remote Control Volume Adjust Board With Semicircle Potentiometer For Audio Amplifier Preamp 50K 100K

USD 38.83/piece

Lusya Power Filter Purification Board For Raspberry Pi DAC Audio Decoder Board HIFI Expansion Moudle F11-003

USD 11.25-14.16/piece

Lusya TDA7498E Digital Bluetooth 5.0 Power Amplifier Board 160W*2+220W Stereo 2.1 Channel Amp DC32V

USD 57.11/piece

Parameters:

THD +N< 0.0015% 50W 8R

THD+N <0.003% 50W 8R 20HZ-20 KHZ

THD+N <0.002% A weighting

The signal to noise ratio is greater than 99DB.

Voltage gain: 34 times

Input sensitivity: 1.9V (output power 200W 8 R)

Supply voltage: DC + -12V to + - 65V.

Output power 200W8R + -65V

              300W4R+ - 55V

               350W4R + -60V

Output DC voltage < 15MV.

Output maximum current >15A.

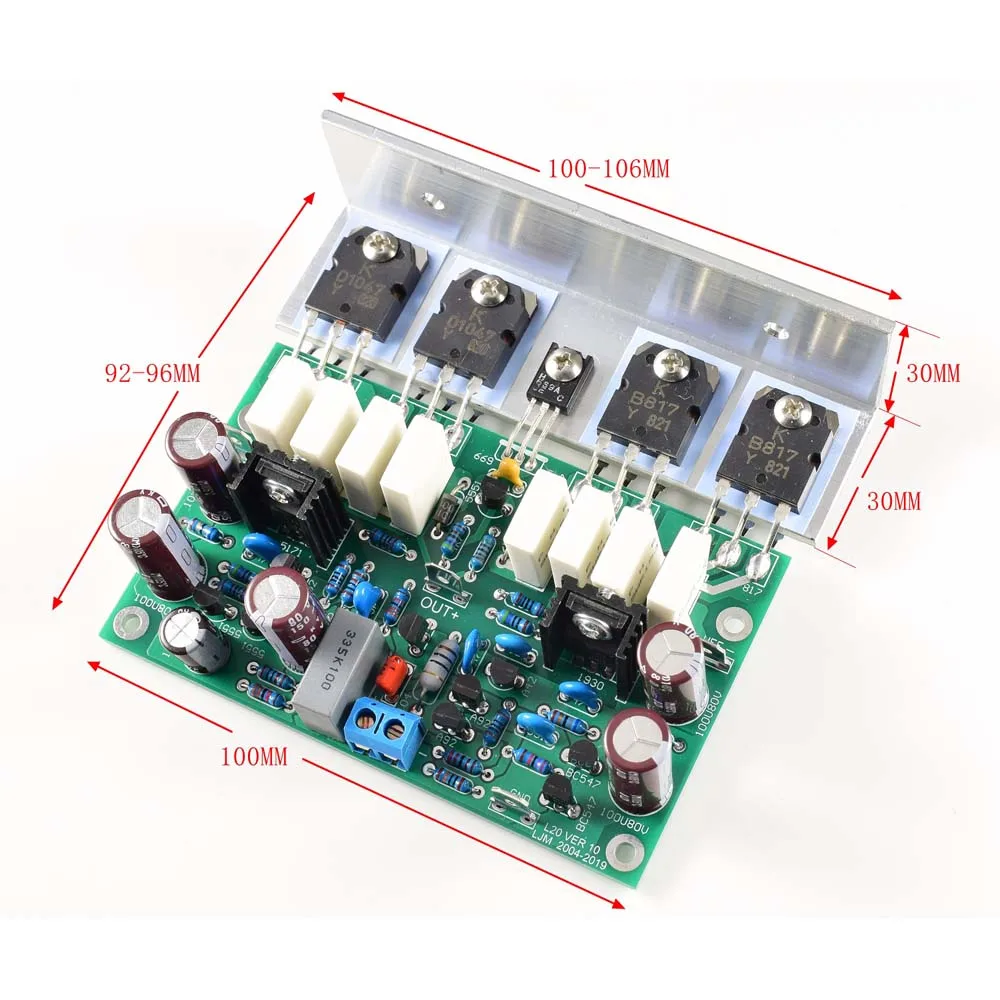

Size: 100*61MM, the finished product is angled aluminum, and the angle aluminum is 30 MM wide.

 100*96MM after installation

PCB thickness FR4 2.0MM

Damping coefficient > 2000

SR = 18V/US

Quiescent current: mono total 10MA approximate value

Frequency response = 10HZ - 100K HZ + - 3DB. (20HZ-20K HZ + - 0.2DB)

Package Included:

2pcs



board

11

THD+N test data:

THD +N< 0.0015% 50W 8R

THD+N <0.003% 50W 8R 20HZ-20 KHZ

THD+N <0.002% A weighting
