Name: karaoke amplifier Lusya DIY KITS FM 76M-108MHZ stereo PLL FM transmitter suite 5W max 7W power frequency adjustable for hifi amplifier C5-008 masthead amplifier
Brand: MMO Dropship
SKU: 32920182879
Price: 49.84 VND
Availability: InStock
Rating: 4.9 (97 reviews)

Code: TD-32920182879 31 orders

Free Shipping

$ 49.84 $ 76.53

Quantity:

Other people want this. 29 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	LUSYA
Maximum Power Per Channel:	NO POWER
Origin:	CN(Origin)
Package:	No
Channels:	Other
Certification:	NONE
Model Number:	76M-108MHz
Type:	hifi amplifier board
Size:	100*60mm

Tecsun PL-330 firmware 3306 Portable Stereo Radio High Performance Digital Tuning Short Wave-single Sideband Radio With Battery

USD 70.90/piece

1.10a 50K~200MHz 400~2GHz Malachite Receiver SDR Software Radio DSP All Mode Receiver AM SSB NFM WFM Analogs Modulation

USD 82.55-129.18/piece

Latest ATS100 SI4732 Receiver FM RDS AM LW MW SW SSB 150K-30MHZ 64M-108MHZ DSP Radio

USD 86.45/piece

Lusya 150W Stereo RF FM Transmitter Amplifier 76M-108MHz Frequency With Fan And Antenna Radio Station Module DC 48V I3-008

USD 104.92-242.08/piece

portable New version 1.10C Dual Antenna Malachite radio Malahit DSP SDR receiver 50KHz-2GHz shortwave radio

USD 357.97/piece

Lusya YAESU FT-450D FT-950D, DX1200, FT991 Special Radio Connector FIDI FT-232RL USB E5-009

USD 58.27/piece

Original ATS-20 PLUS SI4732 All Band Radio FM AM (MW And SW) And SSB (LSB And USB) With Antenna 850MA Battery

USD 38.83/piece

jumbospot Portable SHARI SA818 Ham Allstar Radio Interface Compatible Raspberry Pi 2/3/4 hosted Allstar node UHF 1W hotspot

USD 95.20/piece

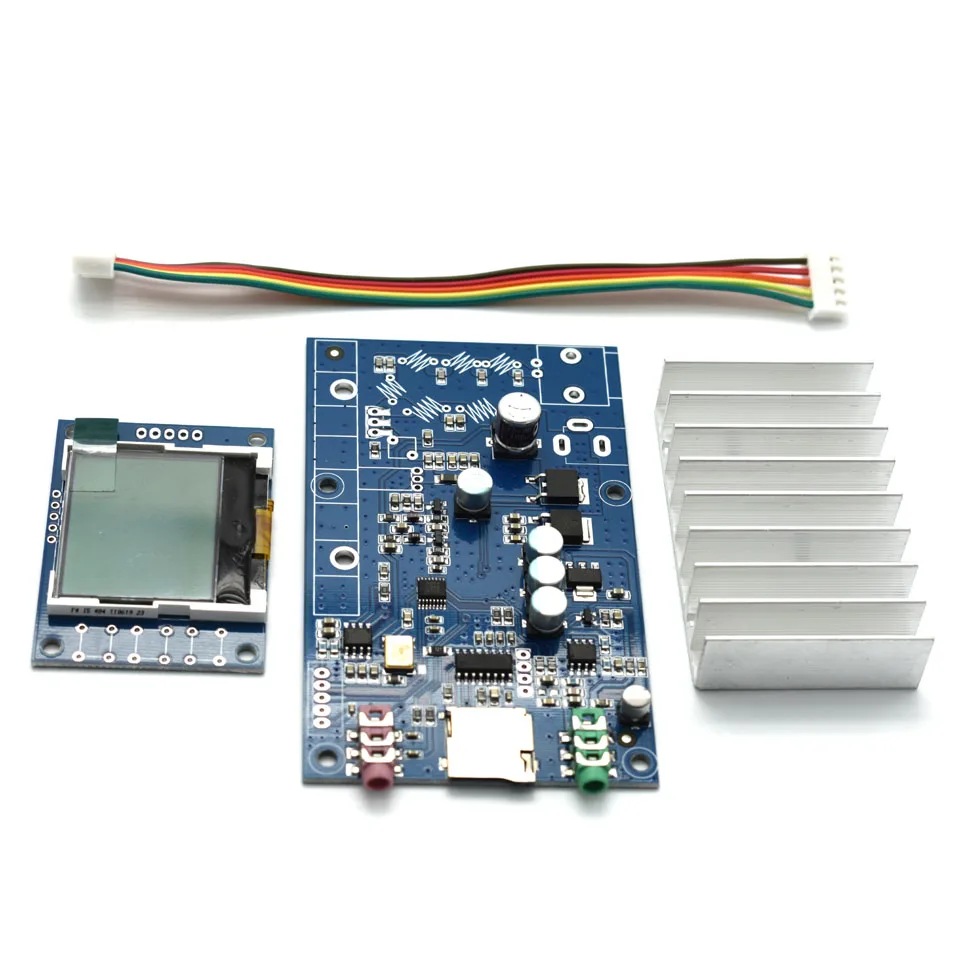

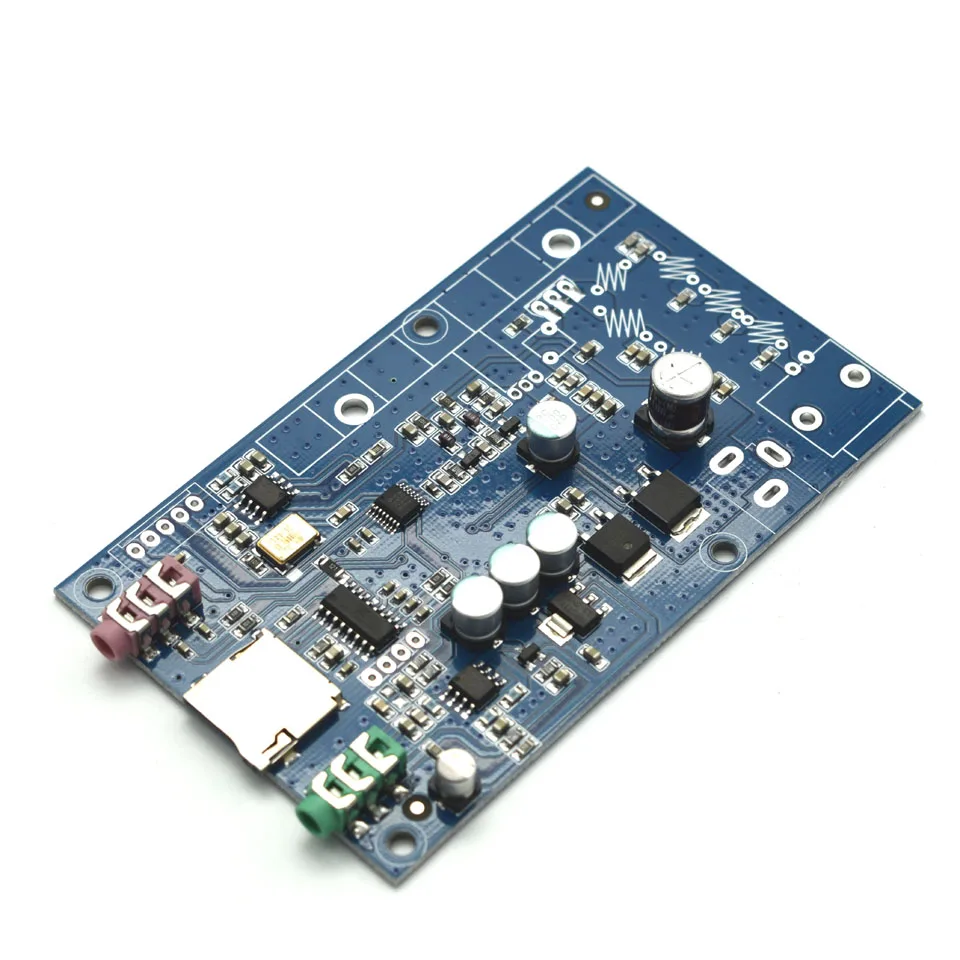

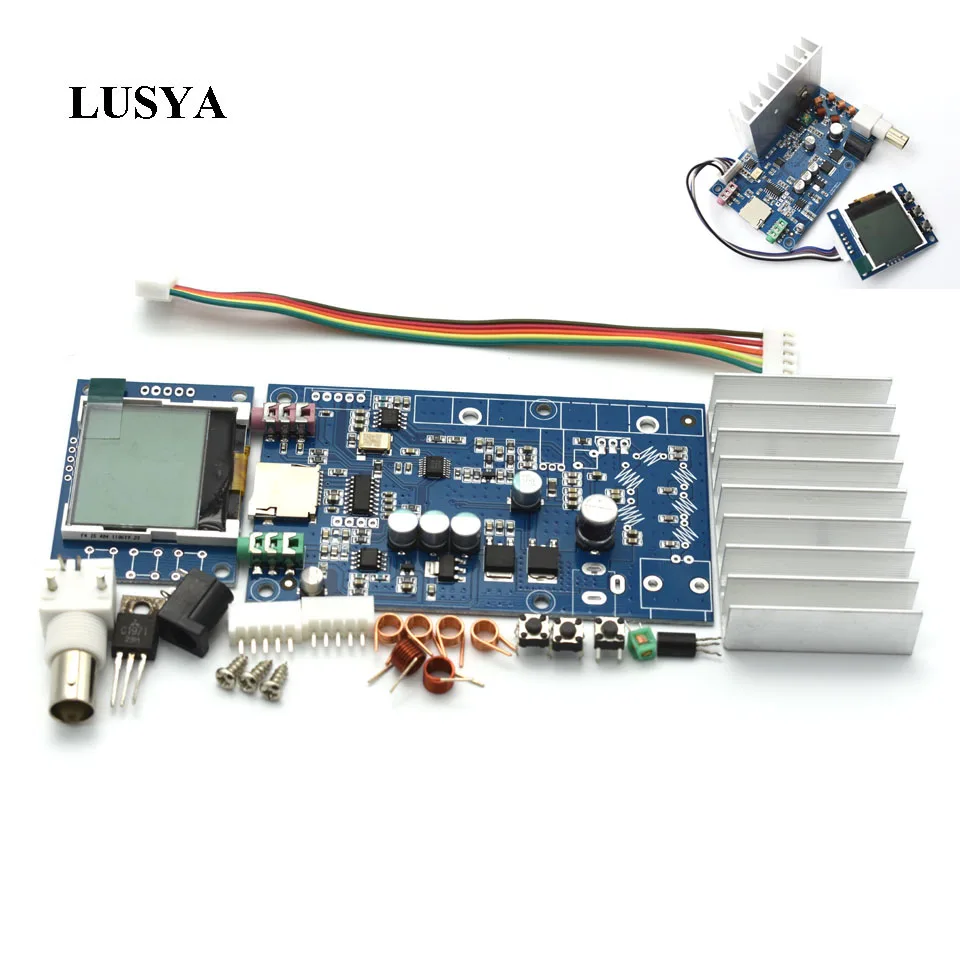

DIY kits needs welding by yourself

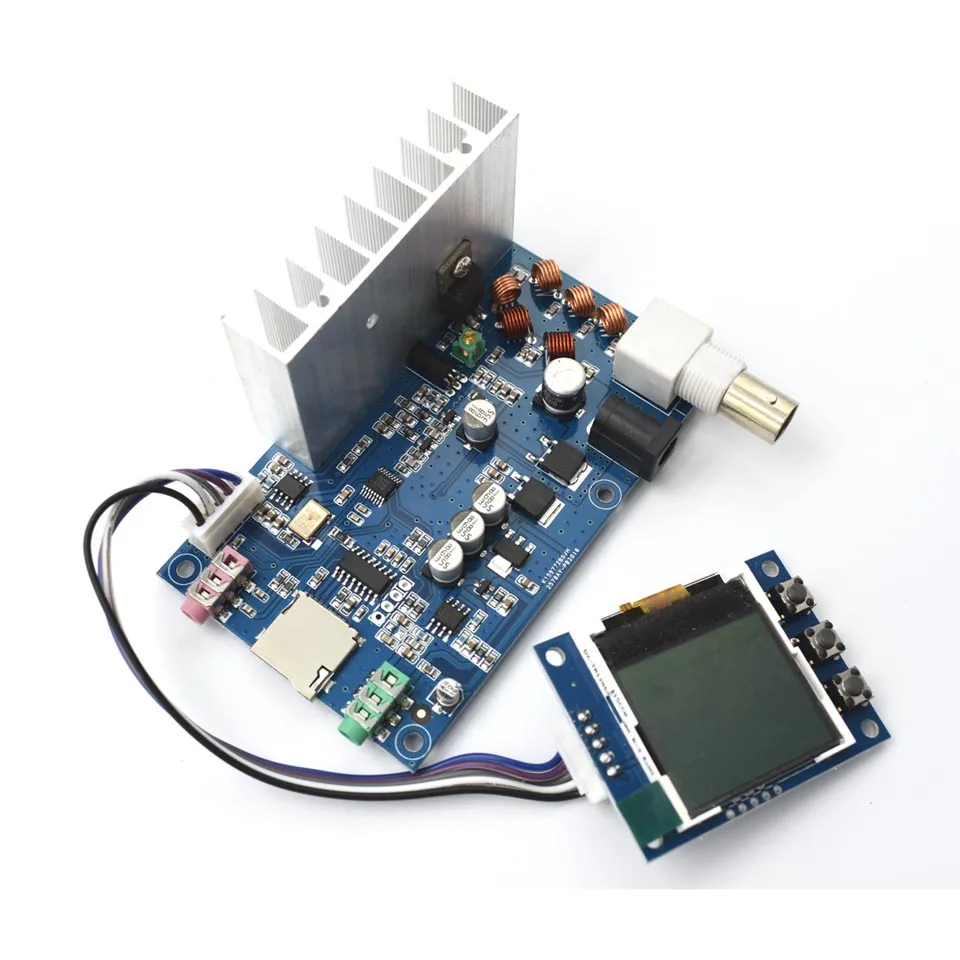

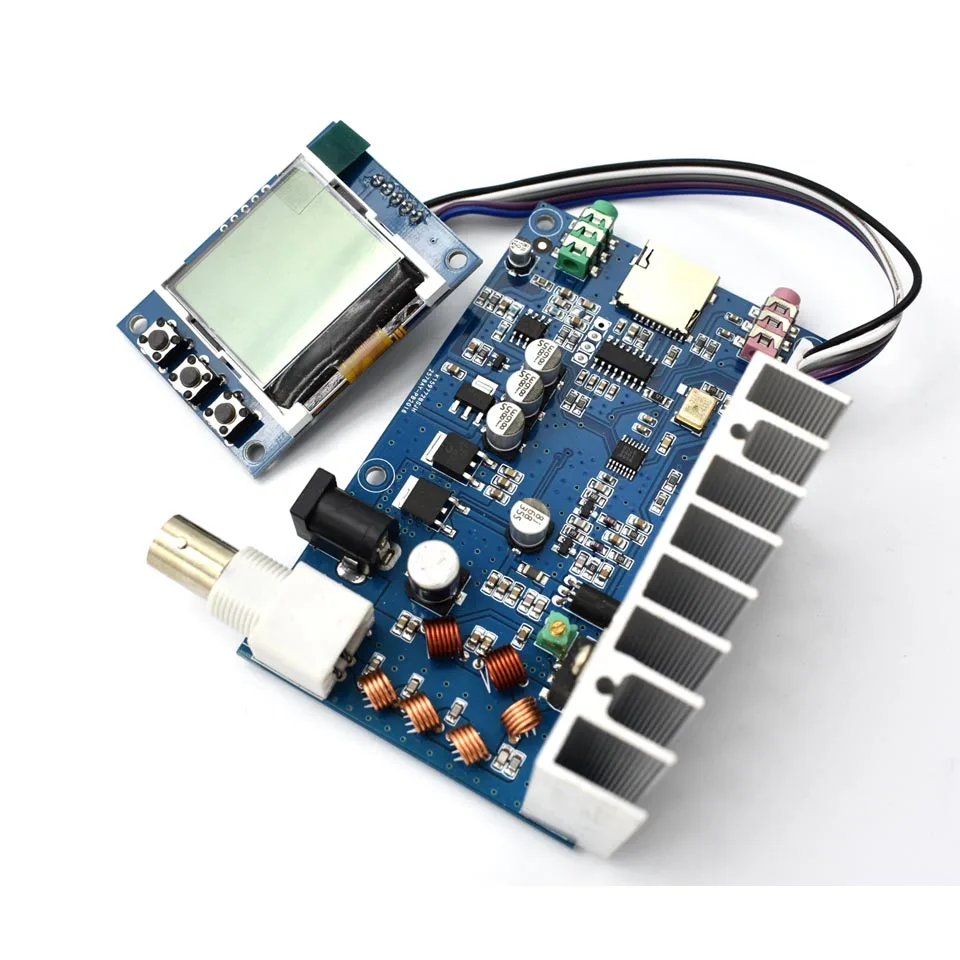

finished board:

https://www.aliexpress.com/store/product/Lusya-FM-5W-76M-108MHZ-stereo-PLL-FM-transmitter-suite-7W-max-power-frequency-adjustable-for/314284_32879949945.html?spm=2114.12010612.8148356.36.5ea05bdbBDohTZ

Description

1, DSP+ phase-locked loop technology, the frequency is more stable, the frequency does not change with the environment andthe frequency drift.

2, without any control, for beginners to bring the fun of DIY.

3, the frequency can be adjusted continuously in the specified range.

4, with the microphone input interface, and can control themicrophone volume by digital potentiometer.

5, the audio input can adjust the volume by digital potentiometer.

6, the power can be adjusted continuously in 0.5W between themaximum power 7W.

7, output power network is very good for harmonic suppression, to make the output spectrum of a clean, a reference picture.

8, set the volume and frequency of a power-off protection, next time do not need to set!

Parameters

1, the input voltage: 12V DC

2, the input current: 1.0A

3, the audio signal: the maximum input Vpp is less than 1V.

4, the microphone type: cylinder microphone or microphone!

5, output power: 0.5W7W continuously adjustable!

6, the output impedance: 50 ohm

7, the working frequency: 76M108MHz

8, step frequency: 0.1MHz

9, the distortion degree: 0.03% ~ 0.1%

10, the board: board size: 100 x 60mm emission

Control panel: 60 x 36mm

11, the distance is more than 5KM (the premise is: open fieldemission)

12, stereo separation: more than 63dB

NOTE:

The transmitter antenna must be used 50 ohms, frequency of about 100M antenna wire may not be used, instead of the rod antenna, 2.4G antenna, radio antenna and so on.

Dashboard components: mainly by the M8 series microcontroller and LCD display and keypad.

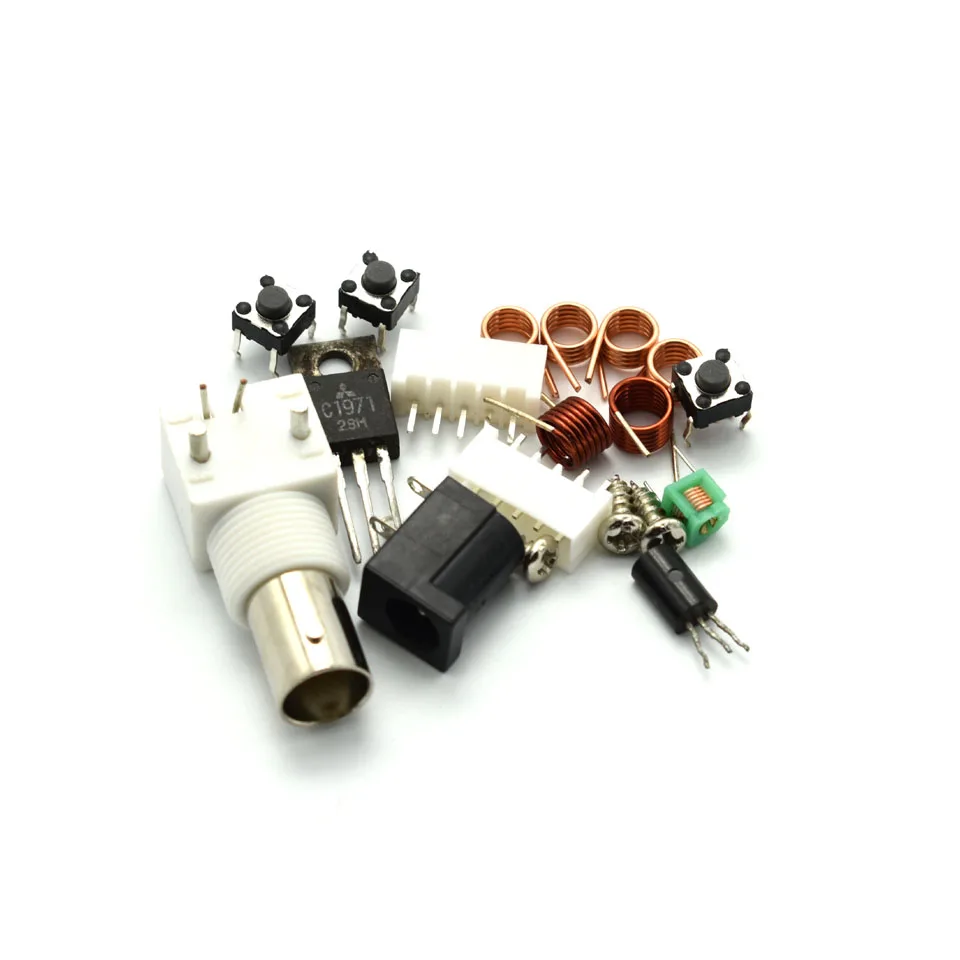

transmitter board components: Digital FM transmitter chip +9018 +2 SC3355 +2 SC2851 +2 SC1971 four high-frequency power amplifier and power conditioning components.

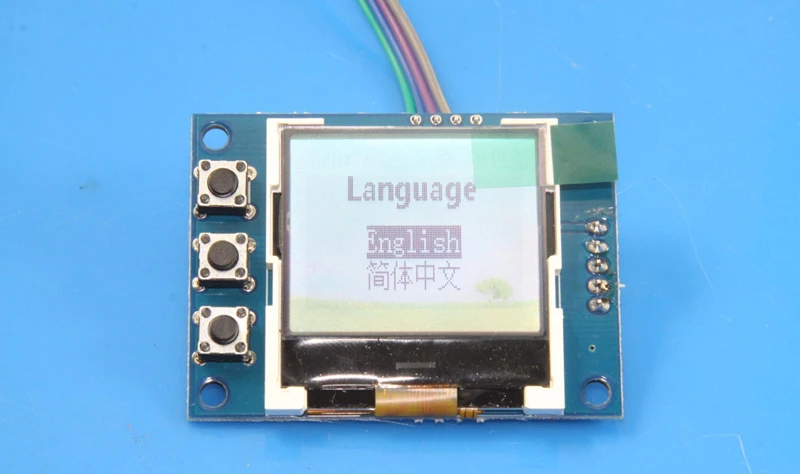

How to adjust Language

first ,power is off,you click the middle button until power on 2-5 sec,when you can see the language menu,that you can set it

Package includes:

FM 5W 76M-108MHZ stereo PLL FM transmitter*1

New version :
