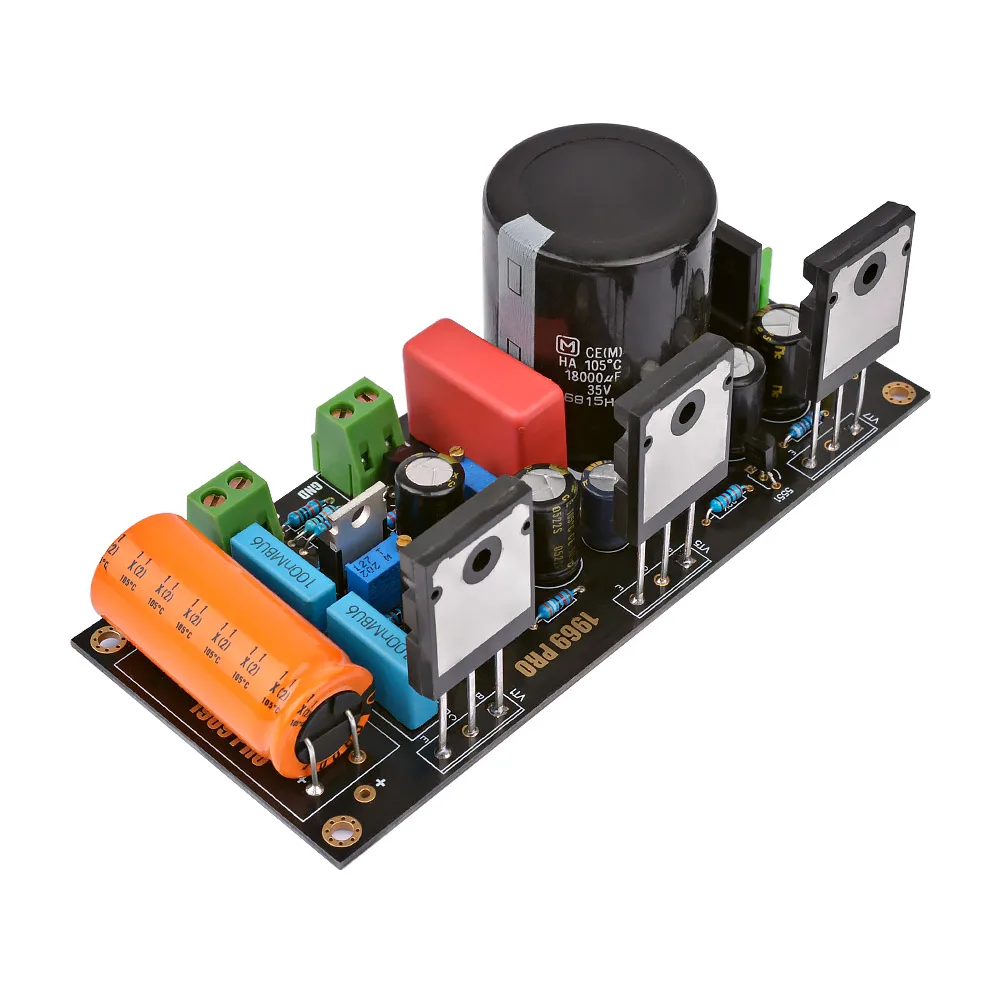

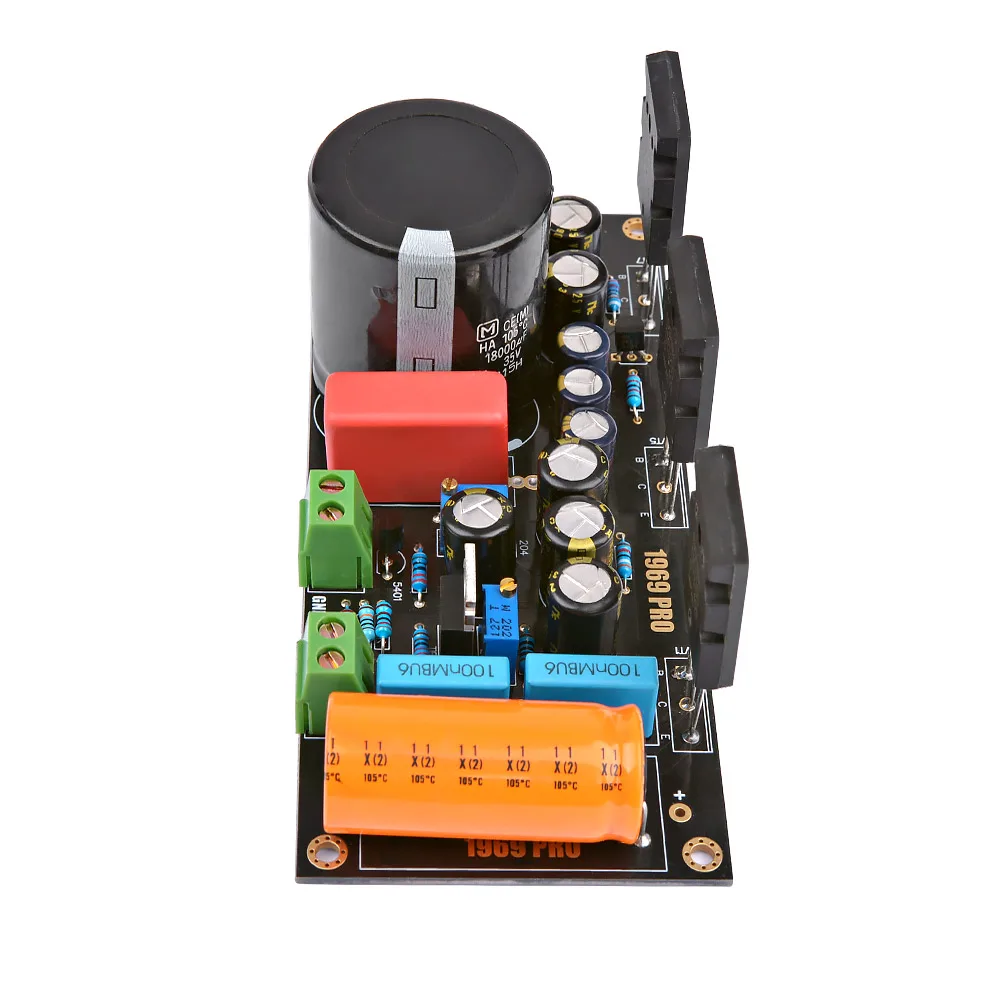

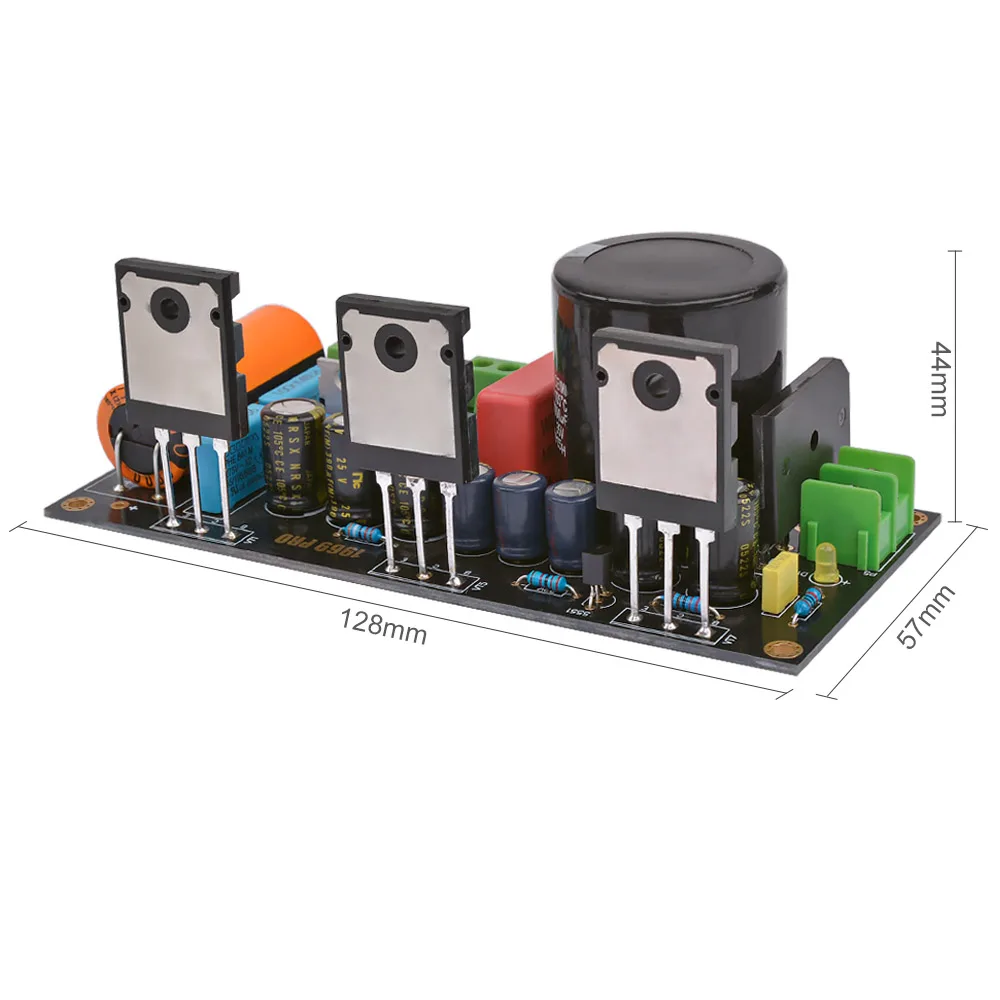

AIYIMA 1Pair 25W Hood 1969 Sound Amplifier Audio Board 2SC5200 HD1969 Class A Power Amplifiers AMP With 1083 Voltage Regulator small amplifier Audio Amplifier Boards

AIYIMA 1Pair 25W Hood 1969 Sound Amplifier Audio Board 2SC5200 HD1969 Class A Power Amplifiers AMP With 1083 Voltage Regulator small amplifier Audio Amplifier Boards

Name: AIYIMA 1Pair 25W Hood 1969 Sound Amplifier Audio Board 2SC5200 HD1969 Class A Power Amplifiers AMP With 1083 Voltage Regulator small amplifier
Brand: MMO Dropship
SKU: 4000983063477
Price: 71.51 VND
Availability: InStock
Rating: 4.9 (92 reviews)

Code: TD-4000983063477 3 orders

Free Shipping

$ 71.51 $ 80.92

Quantity:

Other people want this. 8 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Aiyima
Maximum Power Per Channel:	25W
Model Number:	Hood 1969
Package:	Yes
Channels:	2 (2.0)
Type:	Home Amplifier
Feature 1:	Class A AMplifier
Feature 2:	Sound Amplifier

AIYIMA RSN3502 Sound Amplifier Board 100Wx2 Stereo Audio Amp 2.0 Power Amplifiers Super LM3886 TDA7293 Speaker Amplificador

USD 28.40-38.76/piece

AIYIMA Power Amplifier Board Pure Class A Audio Board Dual Channel Sound Amplifier Speaker AMP For Home Theater DIY 20W×2

USD 69.58/piece

AIYIMA KSA100 Gold Sealed Tube Amplifier Audio Board High Power 100Wx2 HIFI Stereo Class A Amplifier Home Theater Amp 2Pcs

USD 178.50/piece

AIYIMA 2Pcs KSA50 HIFI Fever High Power Pure Class AB Amplifier Board 250W×2 Adjustable Class A Power Amplifier Board

USD 131.76/piece

AIYIMA 2Pcs 300W Speaker 2 WAY Crossover Audio Treble + Bass Crossover Speakers Filter Frequency Divider Adjustable Crossover

USD 27.41/lot

AIYIMA 150W 3WAY Crossover Audio Treble + Middle Pitch+ Bass Crossover Speakers Filter Frequency Divider For Home Theater 2Pcs

USD 14.27/lot

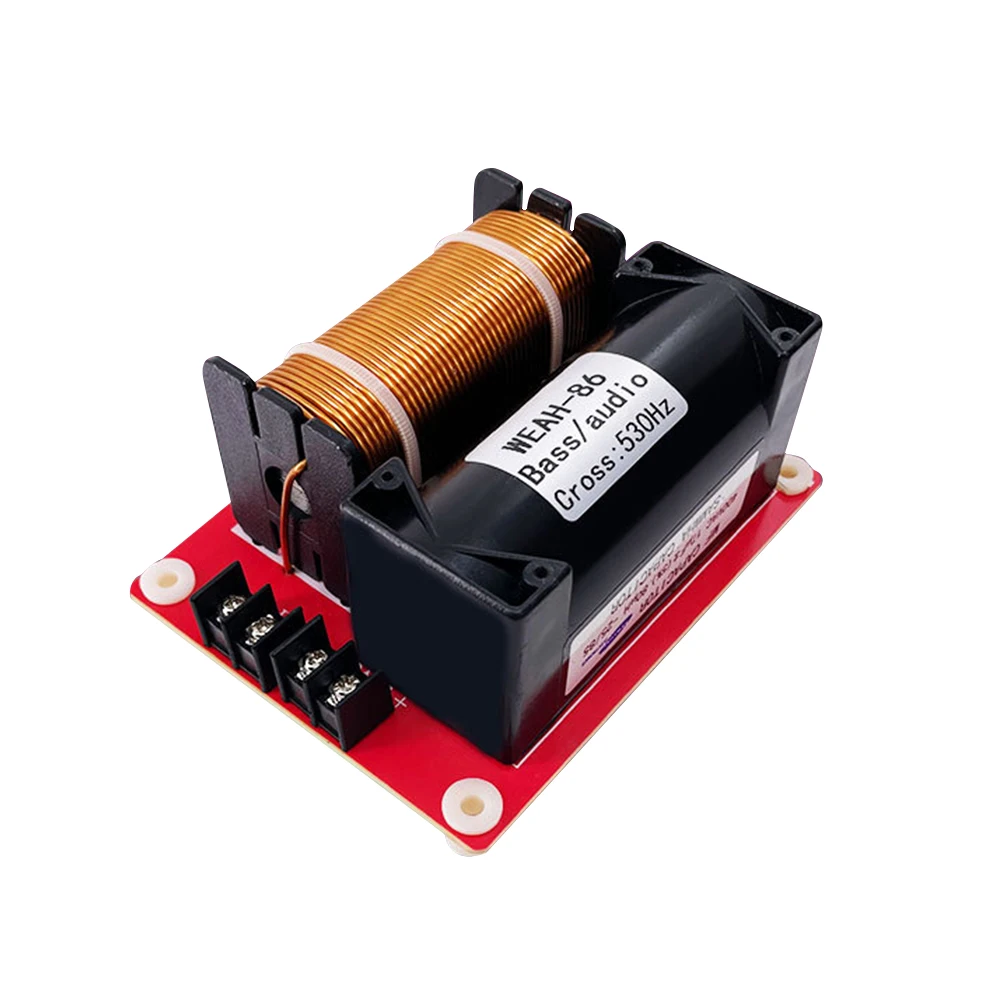

AIYIMA 1 Way WEAH-86 Frequency Divider 500W Heavy Bass Crossover Speakers High-Power Subwoofer Crossover For Under 18 Inch

USD 19.40/piece

AIYIMA 350W 2.0 Stereo Power Amplifier Audio Board Sound Speaker Amplifier For Home Theater DIY

USD 44.46/piece

Description:

Voltage range: AC12V-AC28V (2-wire), 50W or more (AC18V 120W transformer is recommended)

One channel is up to 25W, one board and one channel.

Features:

1: Using 5200 high-precision high-current voltage regulator output, the output voltage is more stable! Beyond the LM317! Noise is even more inaudible

2: Input using a thin film audio capacitor, the sound is better!

3: T-oshiba big tube 2SC5200 output! This tube has a maximum power of up to 150W, which allows the 1969 to output a maximum of 25W Class A! More than 2N3055! !

Debugging method:

The 1969 commissioning is divided into static current testing and neutral voltage testing.

1: quiescent current has been adjusted to the home, the default 1.2A, you can change the quiescent current by adjusting the 202 adjustable resistance on the board, recommended 1-2A! In addition, the quiescent current needs to be tested in series with the current input port.

2: Midpoint voltage test, the midpoint voltage needs to be one-half of the power supply voltage, that is, the power supply is 18V, then the midpoint voltage should be 9V, the test uses the DC voltage file, the red test pen is connected to the output capacitor positive pole, and the black test lead is grounded. Line test can be! Adjust the 204 resistor so that the voltage is equal to half of the supply voltage

Note: The capacitor is a disassembled product, and the test works well.

Package included:

2PCS Amplifier
