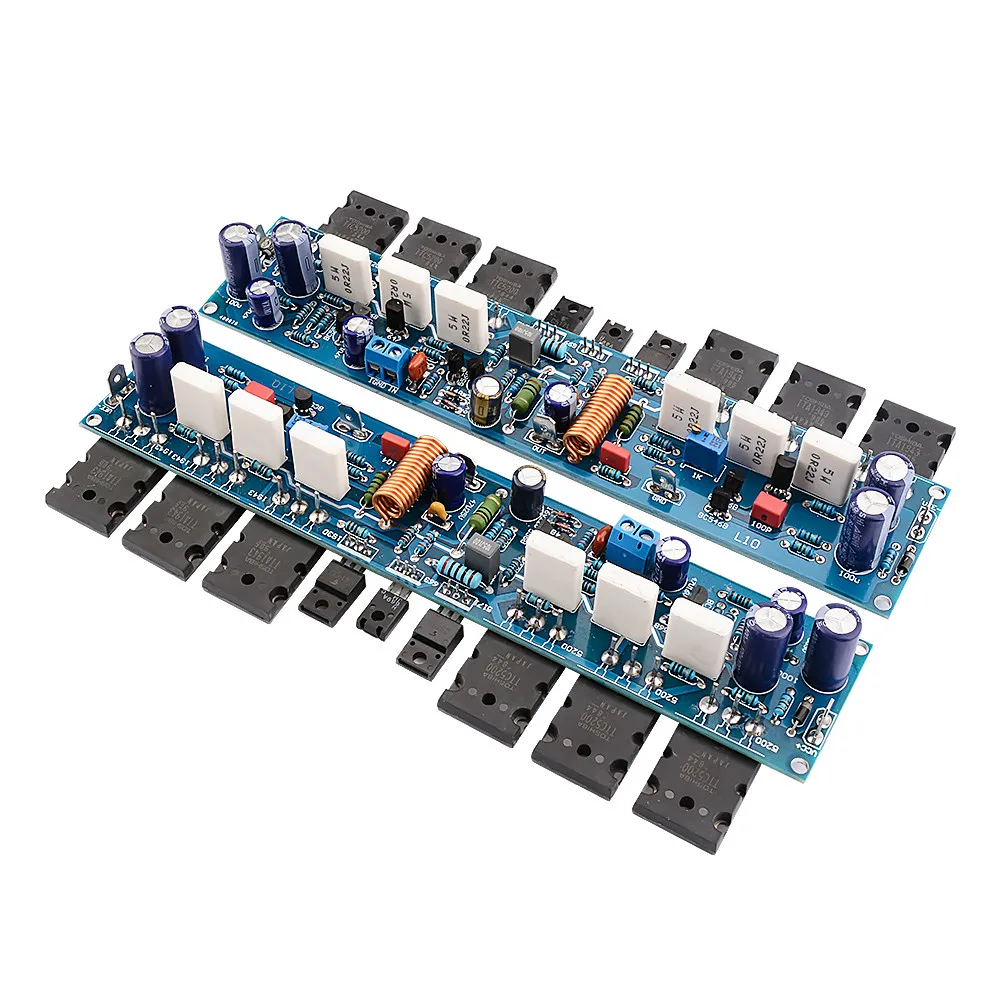

AIYIMA 2Pcs L10 Sound Amplifier Board 300W HiFi 2.0 Channel Class AB Power Amplifiers Amp Transistor A1930 C5171 TT1943 TT5200

Code: TD-2255800845619636 8 orders
Free Shipping
$ 87.18 $ 120.49
Quantity:
Other people want this. 18 people have this in their carts right now.
Brand Name:  Aiyima
Certification:  CE
Certification:  FCC
Certification:  RoHS
Origin:  CN(Origin)
Maximum Power Per Channel:  Above 200W
Model Number:  L10 Power Amplifier
Package:  Yes
Channels:  2 (2.0)
Max output power:  300Wx2

AIYIMA RSN3502 Sound Amplifier Board 100Wx2 Stereo Audio Amp 2.0 Power Amplifiers Super LM3886 TDA7293 Speaker Amplificador

USD 28.40-38.76/piece

AIYIMA Power Amplifier Board Pure Class A Audio Board Dual Channel Sound Amplifier Speaker AMP For Home Theater DIY 20W×2

USD 69.58/piece

AIYIMA KSA100 Gold Sealed Tube Amplifier Audio Board High Power 100Wx2 HIFI Stereo Class A Amplifier Home Theater Amp 2Pcs

USD 178.50/piece

AIYIMA 2Pcs KSA50 HIFI Fever High Power Pure Class AB Amplifier Board 250W×2 Adjustable Class A Power Amplifier Board

USD 131.76/piece

AIYIMA 2Pcs 300W Speaker 2 WAY Crossover Audio Treble + Bass Crossover Speakers Filter Frequency Divider Adjustable Crossover

USD 27.41/lot

AIYIMA 150W 3WAY Crossover Audio Treble + Middle Pitch+ Bass Crossover Speakers Filter Frequency Divider For Home Theater 2Pcs

USD 14.27/lot

AIYIMA 1 Way WEAH-86 Frequency Divider 500W Heavy Bass Crossover Speakers High-Power Subwoofer Crossover For Under 18 Inch

USD 19.40/piece

AIYIMA 350W 2.0 Stereo Power Amplifier Audio Board Sound Speaker Amplifier For Home Theater DIY

USD 44.46/piece

Description:

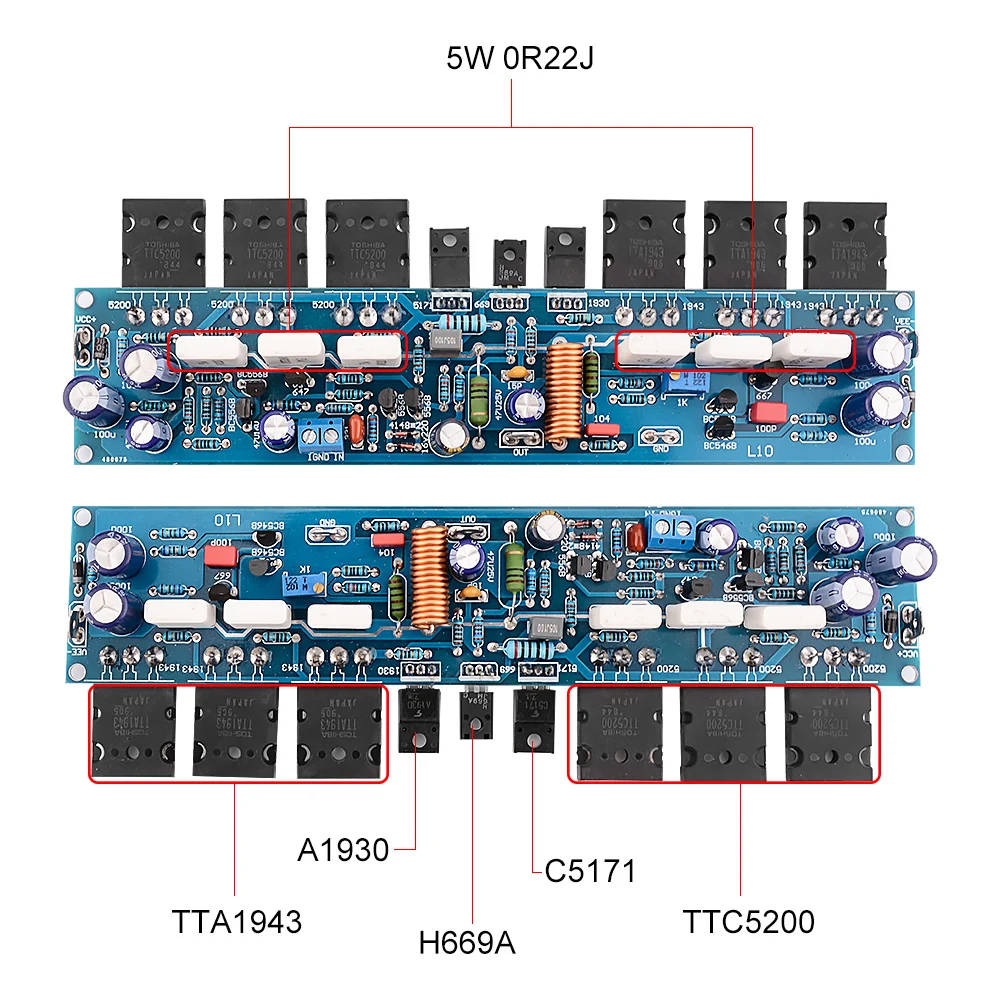

Reference L10 circuit design, using 1.6 mm double panel, 5-ring high-precision resistor, some small capacitors use Tianhe fever tonic capacitors, brand new original Toshiba tube (TT1943 and TT5200) 6 per channel (excellent control) Excitation tube For the (C5171 and A1930) audio pair tube, the circuit design is reasonable, the whole machine has no current sound, the sound quality is pure and thick, and the details are outstanding. Class A is warm and smooth, suitable for 4-12 inch boxes.

This power amplifier board has one channel and one board, and sends 12Pcs insulation sheets.

  Basic parameters:

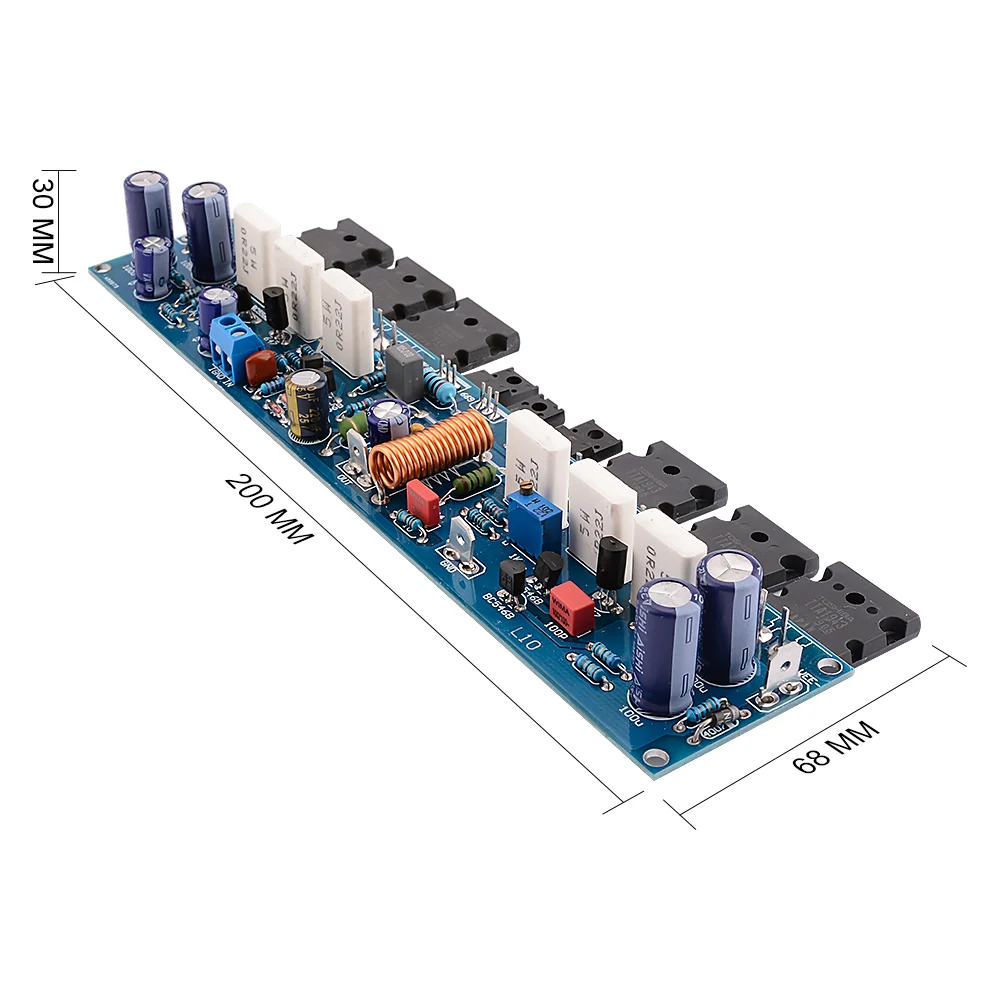

Power amplifier board size: 200MM X 68MM X 30MM

Class A and B output power: 4 ohms 300W 8 ohms 200W

The default quiescent current is adjusted to 300MA

Recommended input voltage: plus or minus 28V-45V DC input.

Recommended transformer parameters: AC dual 24-35V dual AC output, power above 300W

Recommended single-piece heat sink size: 250MM X 100MM X 55MM (product without heat sink)

Package include:

2Pcs Sound Amplifier Board
