AIYIMA TPA3255 High Power Amplifier Class D HIFI 2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier Audio Amplifier Boards

Code: TD-4000042250042 8 orders
Free Shipping
$ 81.49 $ 92.52
Quantity:
Other people want this. 11 people have this in their carts right now.
Brand Name:  Aiyima
Maximum Power Per Channel:  Above 200W
Model Number:  TPA3255
Package:  Yes
Channels:  3 (2.1)
Type:  Digital Power Amplifier
Feature 1:  Class D Amplifier
Feature 2:  HIgh power Amplifier

AIYIMA RSN3502 Sound Amplifier Board 100Wx2 Stereo Audio Amp 2.0 Power Amplifiers Super LM3886 TDA7293 Speaker Amplificador

USD 28.40-38.76/piece

AIYIMA Power Amplifier Board Pure Class A Audio Board Dual Channel Sound Amplifier Speaker AMP For Home Theater DIY 20W×2

USD 69.58/piece

AIYIMA KSA100 Gold Sealed Tube Amplifier Audio Board High Power 100Wx2 HIFI Stereo Class A Amplifier Home Theater Amp 2Pcs

USD 178.50/piece

AIYIMA 2Pcs KSA50 HIFI Fever High Power Pure Class AB Amplifier Board 250W×2 Adjustable Class A Power Amplifier Board

USD 131.76/piece

AIYIMA 2Pcs 300W Speaker 2 WAY Crossover Audio Treble + Bass Crossover Speakers Filter Frequency Divider Adjustable Crossover

USD 27.41/lot

AIYIMA 150W 3WAY Crossover Audio Treble + Middle Pitch+ Bass Crossover Speakers Filter Frequency Divider For Home Theater 2Pcs

USD 14.27/lot

AIYIMA 1 Way WEAH-86 Frequency Divider 500W Heavy Bass Crossover Speakers High-Power Subwoofer Crossover For Under 18 Inch

USD 19.40/piece

AIYIMA 350W 2.0 Stereo Power Amplifier Audio Board Sound Speaker Amplifier For Home Theater DIY

USD 44.46/piece

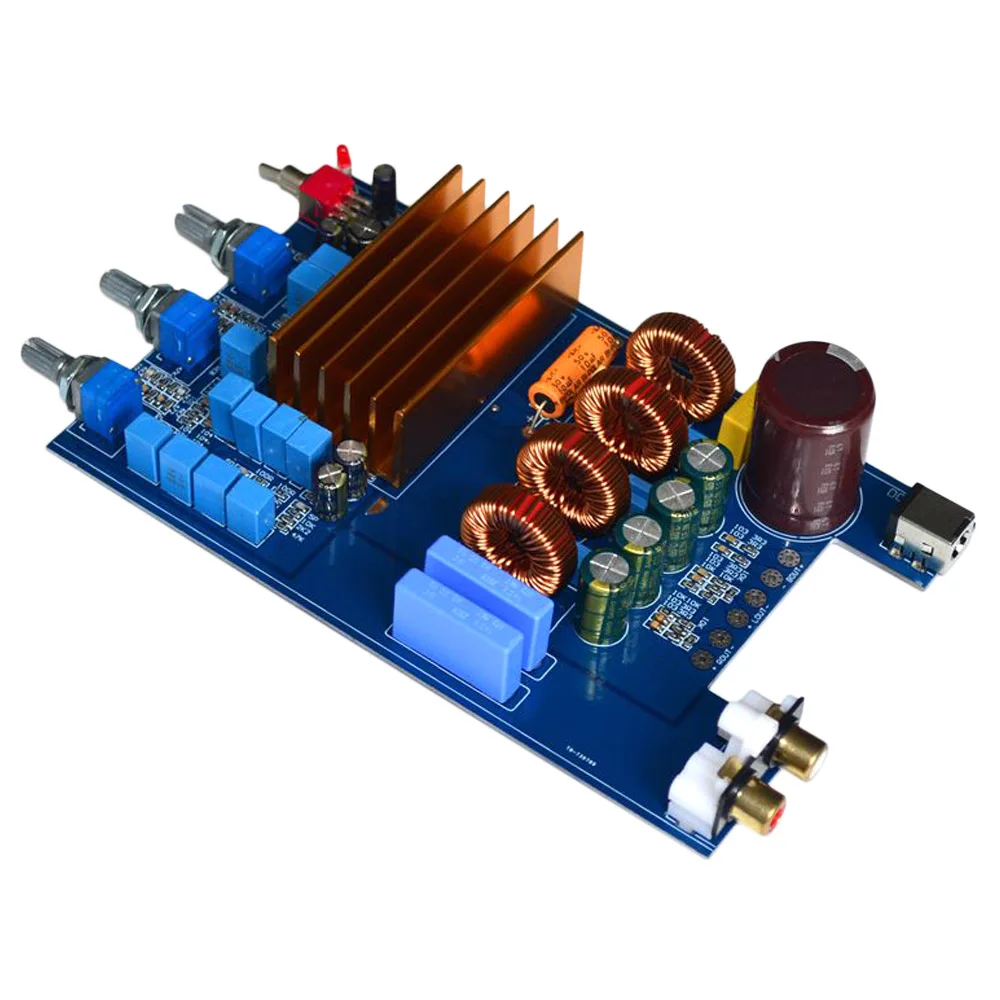

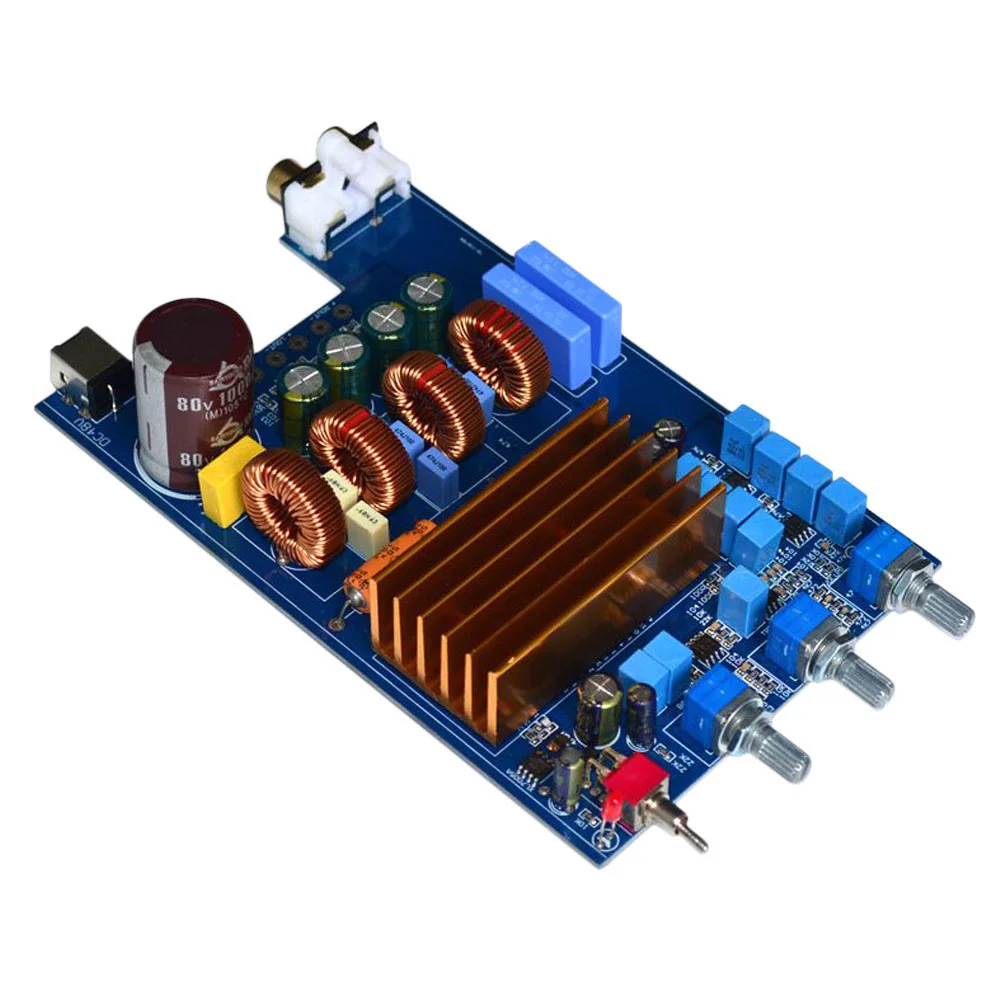

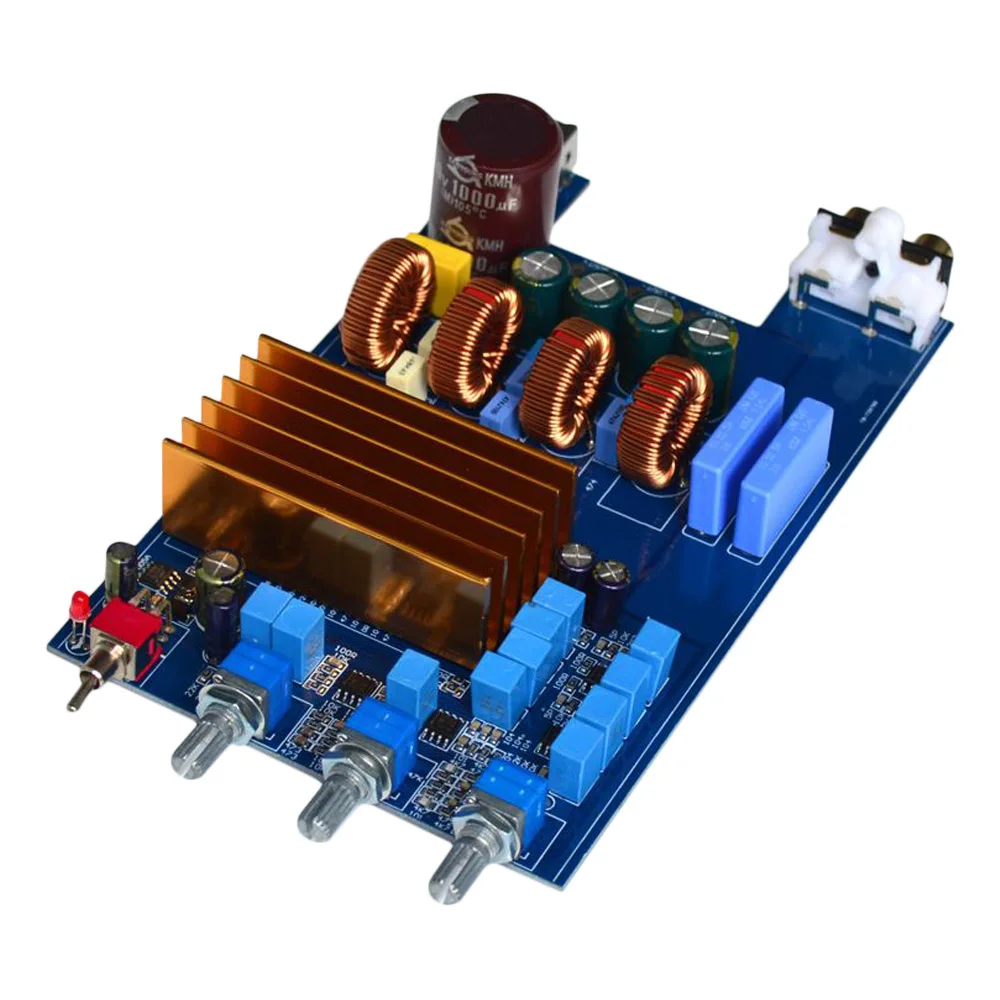

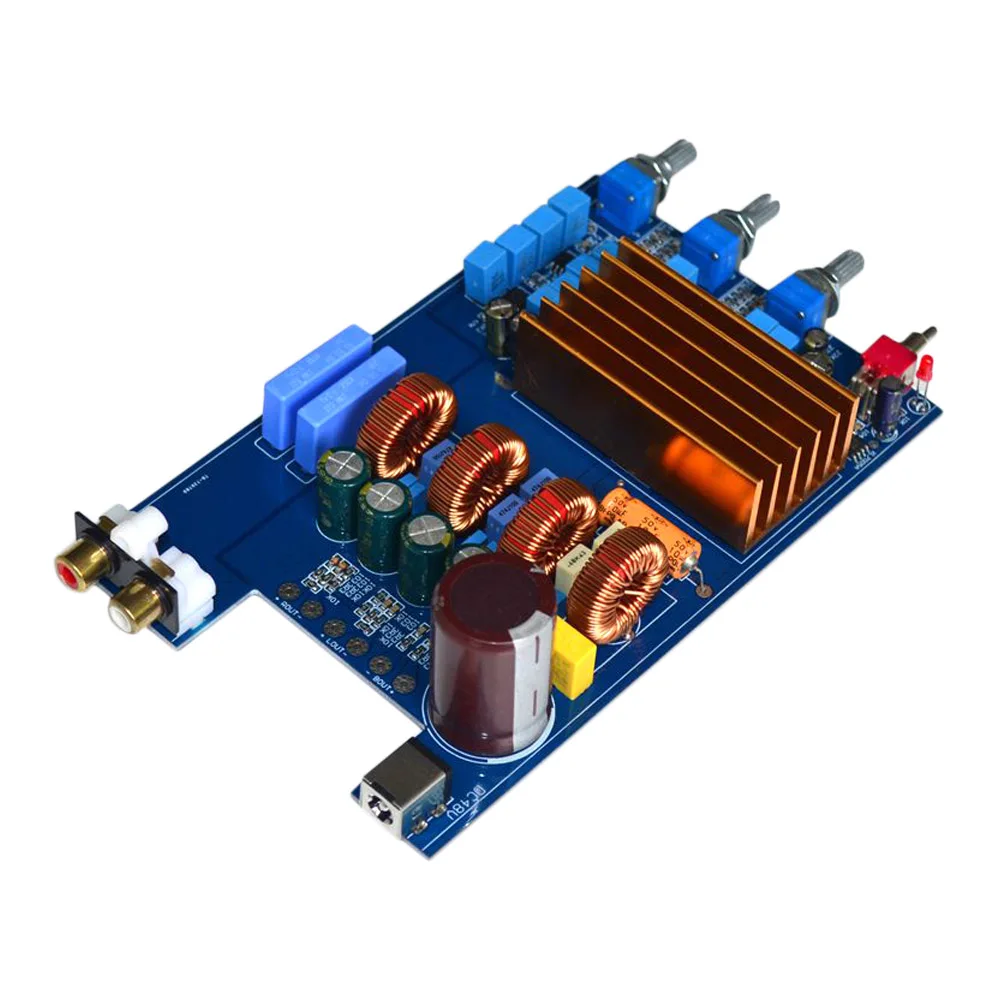

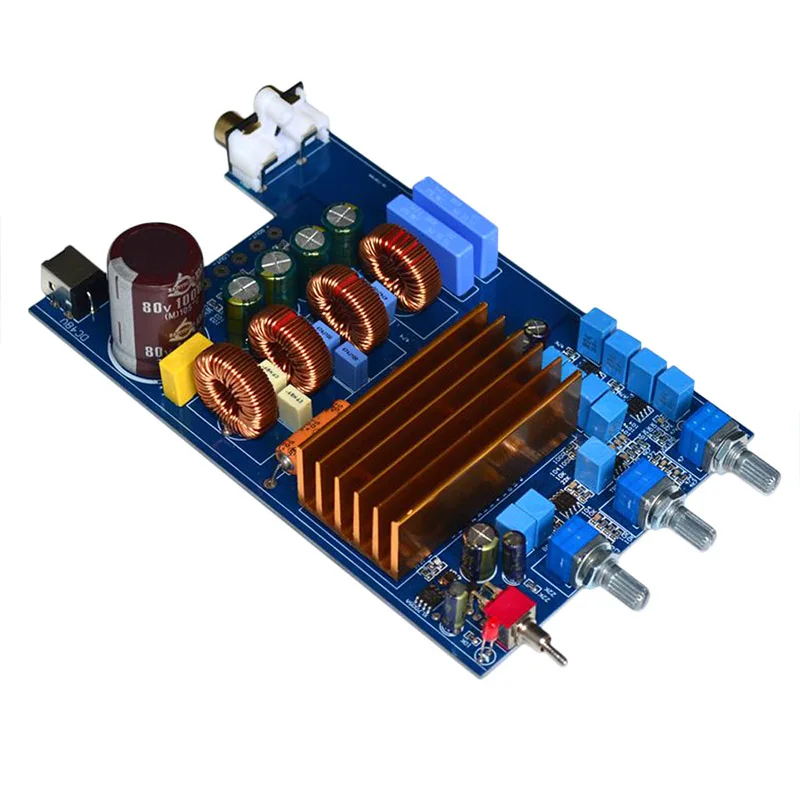

Product details:

The TPA3255 is a high performance Class D power amplifier with Class D efficiency and true to high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePathTM Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio band while delivering perfect sound quality.

1. Using original TPA3255

2. The main filter electrolytic capacitor uses 1000UF/80V to ensure strong and continuous power support.

3. Use red and gray ring high current inductance to ensure the sound is crisp and powerful.

4. PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and spray tin full process to ensure good passing performance of large and small currents. First-class PCB quality.

Parameters:

Working method: Class D

Working voltage: DC30V-48V

Size: 150*95*35mm

Net weight: 0.2KG

• Total output power at 1% total harmonic distortion + noise (THD+N)

  240W/4Ω, bass output

 120W/4Ω, left and right channel output

• Total output power at 10% total harmonic distortion + noise (THD+N)

  325W/4Ω, bass output

 150W/4Ω, left and right channel output

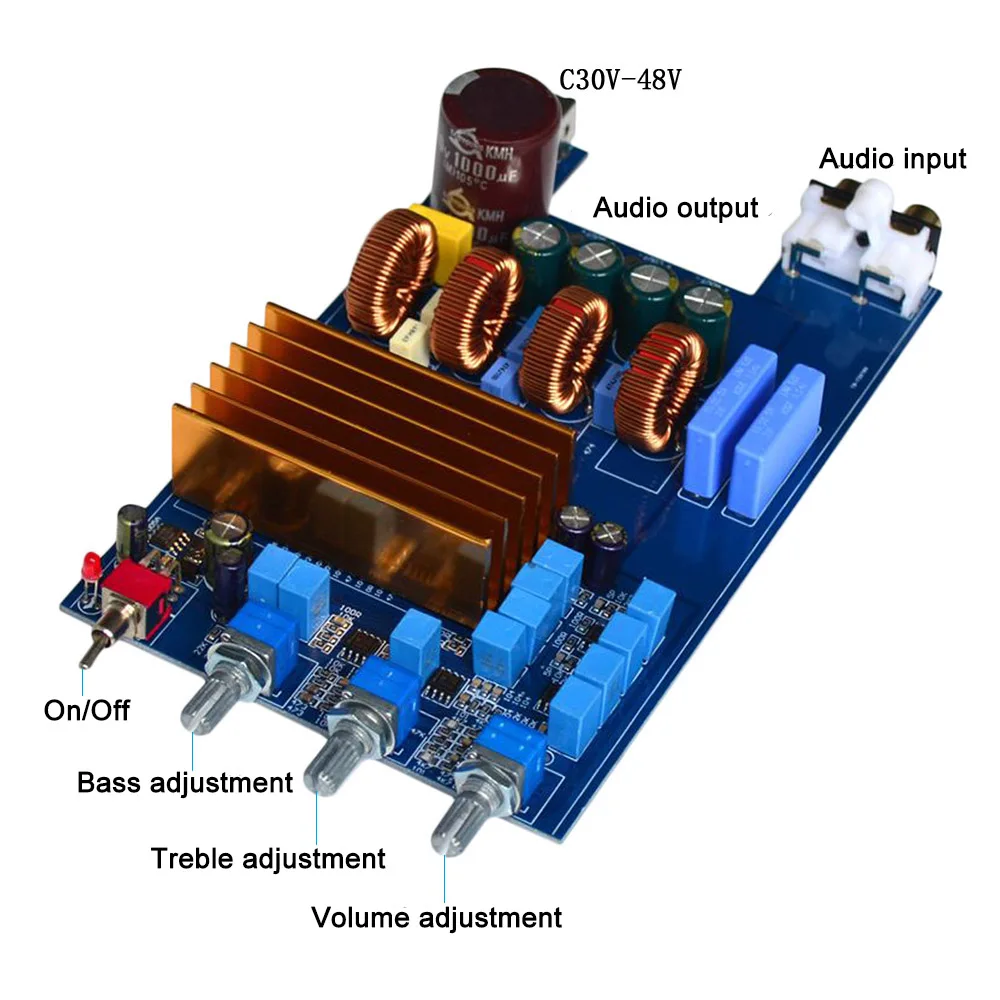

• Knob function: bass adjustment, treble adjustment, volume adjustment (from left to right)

1Pc x amplifier board

Packaging:

1 x TPA3255 2.1 Digital Power Amplifier

AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
AIYIMA TPA3255 High Power Amplifier Class D HIFI  2.1 Digital Audio AMP Board Amplificador 300W+150W+150W For Home Theater 2 channel amplifier
