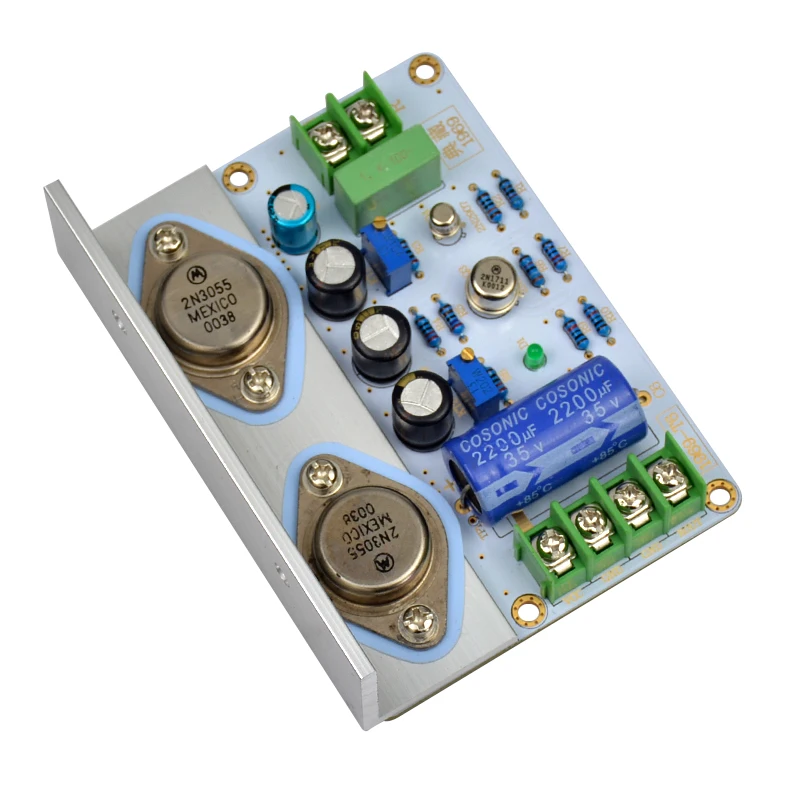

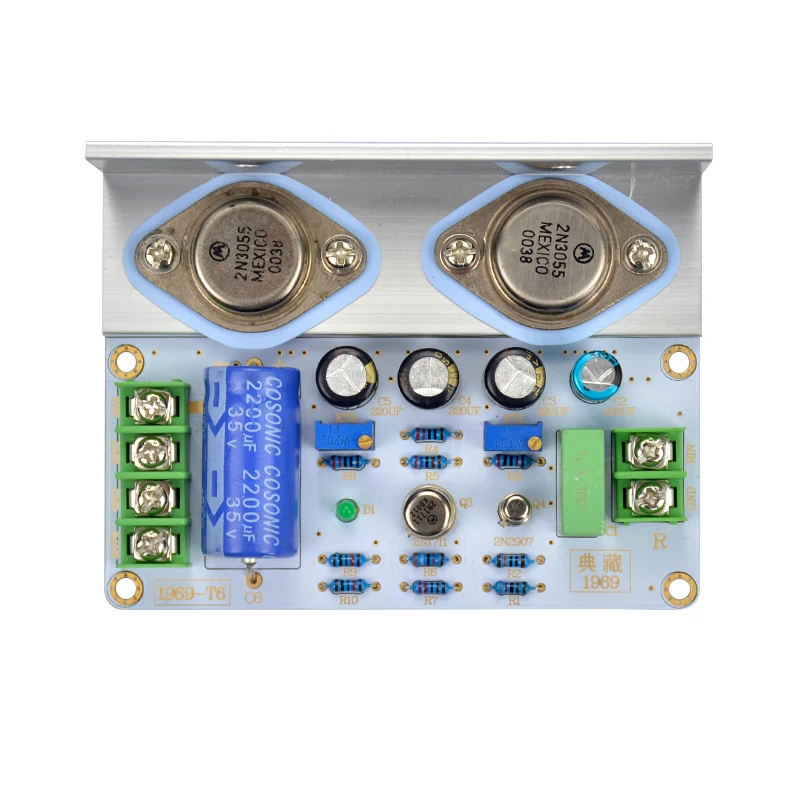

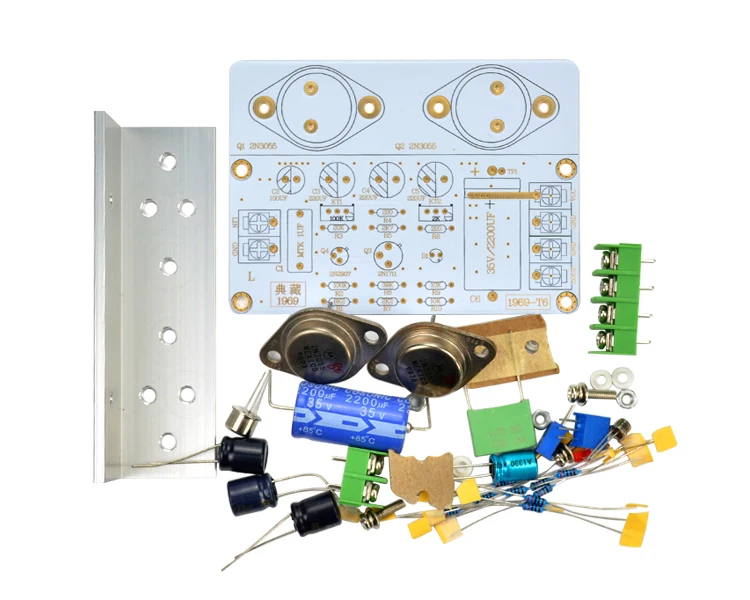

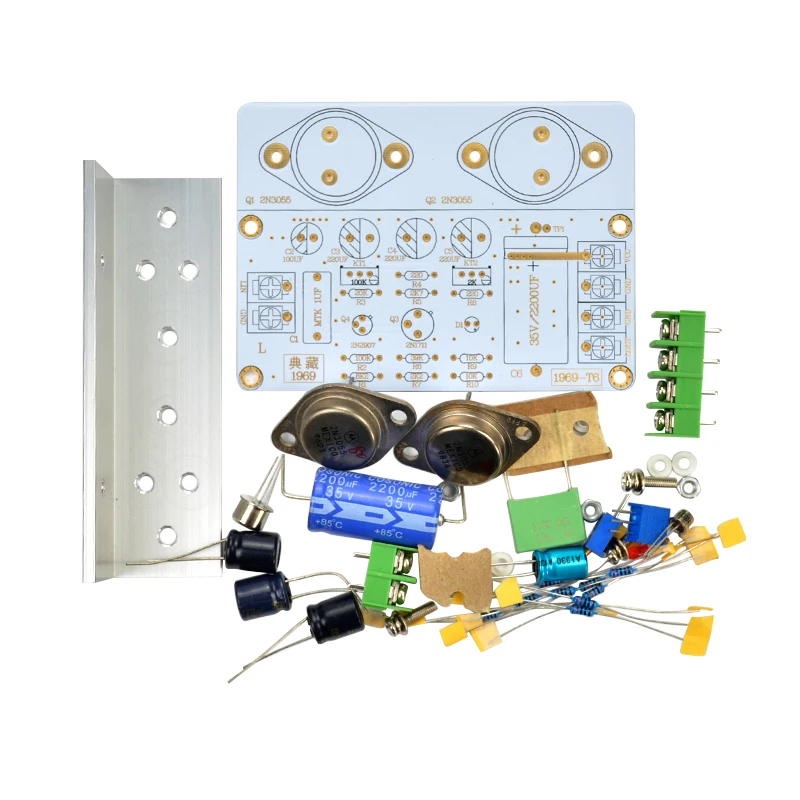

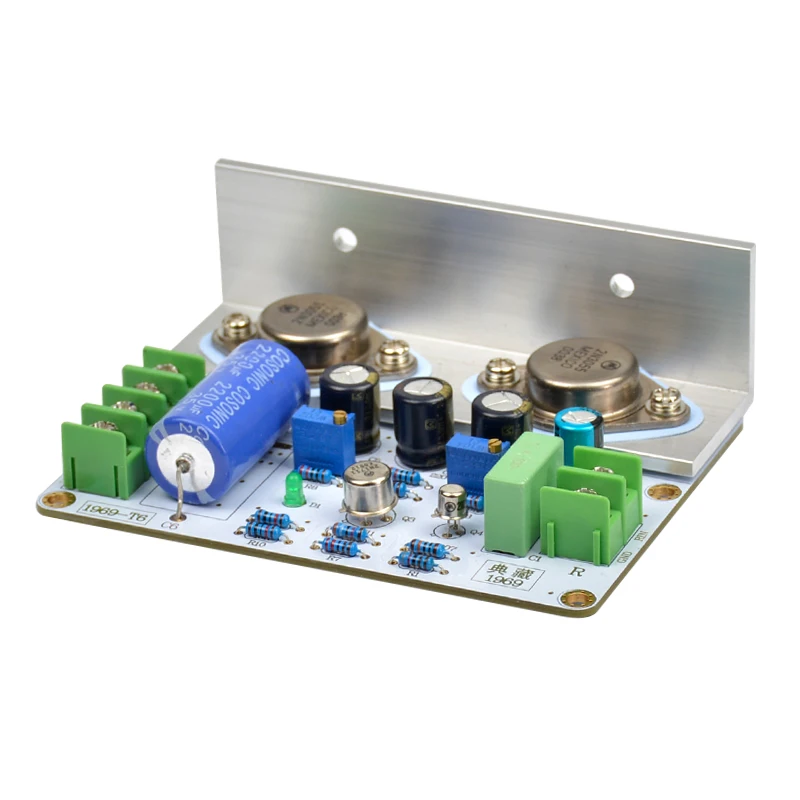

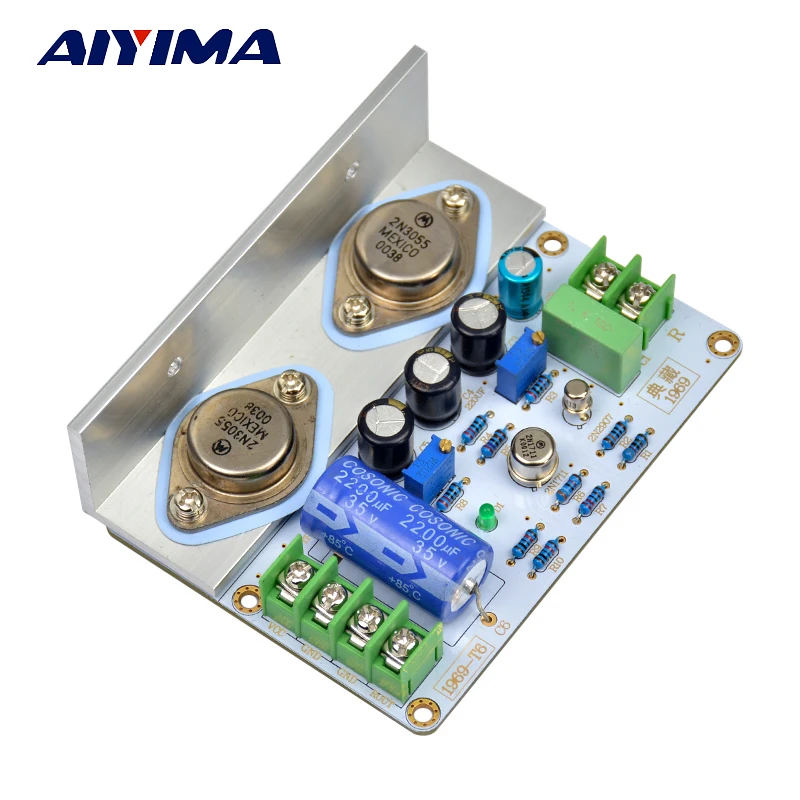

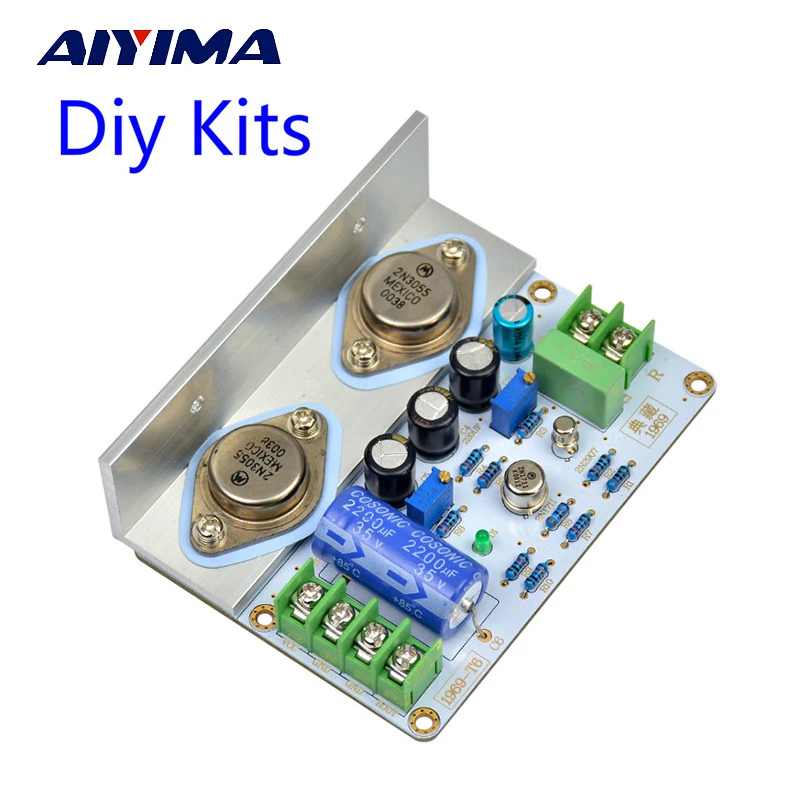

Name: pre amp AIYIMA 1Pcs 1969 Class A Power Amplifier Board 10-15W HiFi Audio Amplificador MOT/2N3055 PCB Assembled Board And Diy Kits voltage controlled amplifier
Brand: MMO Dropship
SKU: 32574679072
Price: 40.66 VND
Availability: InStock
Rating: 4.9 (94 reviews)

Code: TD-32574679072 18 orders

Free Shipping

$ 40.66 $ 44.58

Color:

Note

Quantity:

Other people want this. 29 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Aiyima
Maximum Power Per Channel:	15W
Package:	Yes
Channels:	1
Model Number:	1969 Class A Power Amplifier Board

1416033537631515

AIYIMA TPA3116 Subwoofer Amplifier Board TPA3116D2 Audio Amplifiers 100W Bass Output DC12-24V

USD 14.91/piece

AIYIMA A8 MA12070 Power Amplifier Stereo Audio Amplifier Sound Amplificador 80Wx2 T8 6N3 Tube Preamp Bluetooth 5.0 Preamplifier

USD 63.88-165.28/piece

AIYIMA Upgraded 6K4 Tube Preamplifier Amplifiers HiFi Tube Preamp Bile Buffer Auido Amp Speaker Sound Amplifier Home Theater DIY

USD 14.69/piece

AIYIMA 2Pcs 2 Inch Full Range Speaker 4 Ohm 10W Bluetooth Speaker 53MM Bass Speaker For Charge 3 Repair Multimedia Home Audio

USD 13.85/lot

AIYIMA TPA3116 Subwoofer Amplifier Board 2.1 Channel High Power Bluetooth 5.0 Audio Amplifiers DC12V-24V 2*50W+100W Amplificador

USD 23.63/piece

AIYIMA 2Pcs 52MM Audio Portable Speakers 6 Ohm 30W Dome Silk Film Tweeter ABS Treble Speaker Loudspeaker With Aluminum Radiator

USD 13.17/lot

AIYIMA 12V BT MP3 Decoder Audio Module Spectrum Display Lossless APE Decoding Support APP EQ FM AUX Car Accessories

USD 10.20/piece

AIYIMA Pre-amplifier Tone Board UPC4570C OP AMP Stereo Preamplifier Volume Tone Control Super OPA2604 AD827JN With LM317+LM337

USD 30.35/piece

Product description:

Please note before you buy: Products as shown in my main picture, one channel price. so if you need stereo channels, please you buy 2pcs. thank you!

PCB: double-sided gold, gold, gold, S wiring, 1.6MM thick

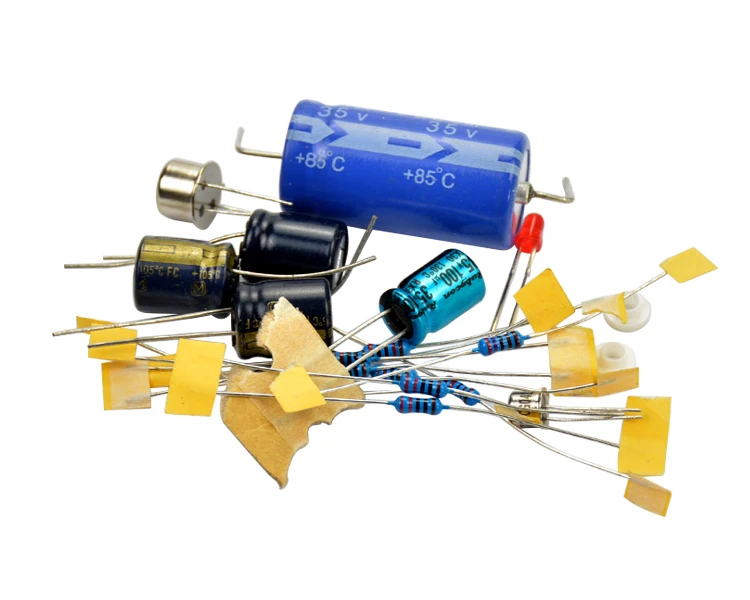

Secondary Filter Capacitor: Light Blue Ruby 100UF

Power supply decoupling: boost, feedback capacitor: P-anasonic FC series 220UF

Signal amplification tube: 2N2907

Current push tube: 2N1711

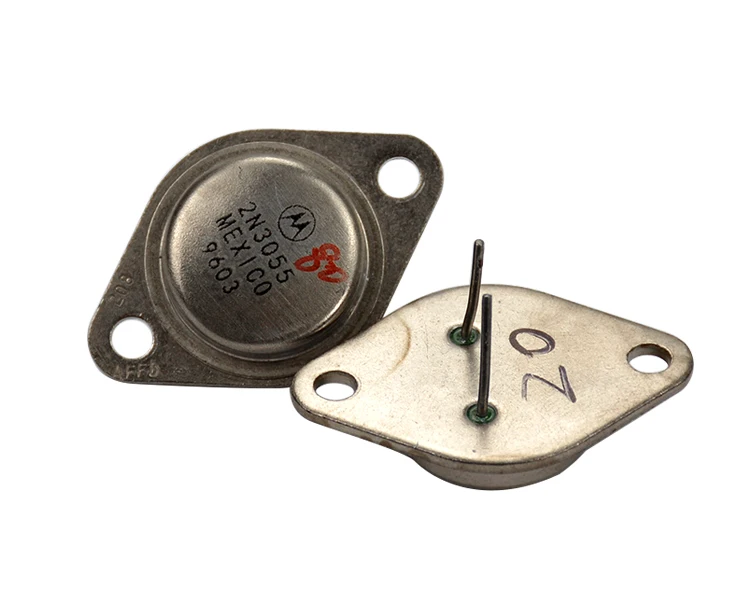

disassemble 2N3055(

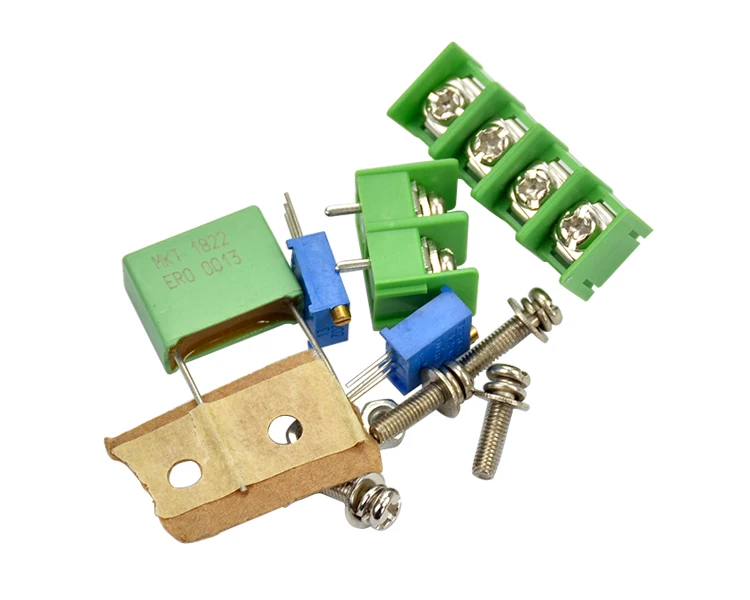

Input Capacitor: ERO

Output Capacitor: Taiwan Jiahe, this is a foundry enterprise, often giving gold bullets, silver bullets, and Sibi as capacitors. Its appearance is not good, the sound is balanced, and the effect is much better than the European and American capacitors of the disassemble.

Angle Aluminum: Silver High Purity Oxidation Angle Aluminum

Working voltage: DC 12V-35V (corresponding to 9-26V transformer, power needs to be greater than 100W)

Output sound power: 10-15W

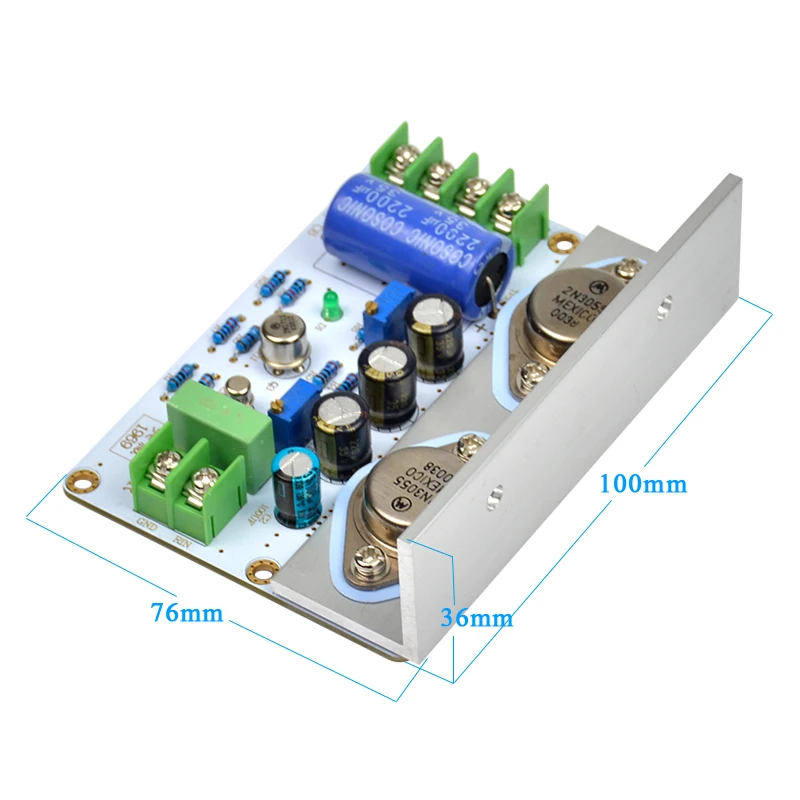

Size: 100*78*36MM. Angle aluminum 2 fixed hole distance 53MM

The default is 24V, 1.2A,

choose a 3-5 inch full-range speaker, and you can choose a full-range speaker with a 5-8 inch diameter. You can also choose a speaker with a power below 120 watts and below 8 inches.

Adjust the current:

The universal meter hits the current 10-20A, the VCC line is not connected, the red meter pen is connected to the VCC terminal of the rectifier board, and the VCC terminal of the black test lead connected to the power amplifier board is the measuring current. Adjust the KT2 on the board (W202 at the top of the part) to change the current. 1.2A is recommended.

Note: The hole for measuring the midpoint/current red pen is different. When measuring the current and then measuring the midpoint, you must change the red pen hole.

Package included:

1pc
