Name: bluetooth car amplifier AIYIMA 2Pcs 25W Hood 1969 Amplifier Audio Board 2SC5200 HD1969 Class A Power Amplifiers AMP With 1083 Voltage Regulator valve amplifier
Brand: MMO Dropship
SKU: 1005002875163741
Price: 71.18 VND
Availability: InStock
Rating: 4.9 (96 reviews)

Code: TD-1005002875163741 21 orders

Free Shipping

$ 71.18 $ 81.02

Quantity:

Other people want this. 13 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Aiyima
Certification:	NONE
Origin:	CN(Origin)
Maximum Power Per Channel:	25W
Model Number:	Hood 1969
Package:	Yes
Channels:	2 (2.0)
Type:	Home Amplifier
Feature 1:	Class A
Feature 2:	Hood 1969

AIYIMA TPA3116 Subwoofer Amplifier Board TPA3116D2 Audio Amplifiers 100W Bass Output DC12-24V

USD 14.34/piece

AIYIMA A8 MA12070 Power Amplifier Stereo Audio Amplifier Sound Amplificador 80Wx2 T8 6N3 Tube Preamp Bluetooth 5.0 Preamplifier

USD 63.88-165.28/piece

AIYIMA Upgraded 6K4 Tube Preamplifier Amplifiers HiFi Tube Preamp Bile Buffer Auido Amp Speaker Sound Amplifier Home Theater DIY

USD 14.69/piece

AIYIMA 2Pcs 2 Inch Full Range Speaker 4 Ohm 10W Bluetooth Speaker 53MM Bass Speaker For Charge 3 Repair Multimedia Home Audio

USD 13.85/lot

AIYIMA TPA3116 Subwoofer Amplifier Board 2.1 Channel High Power Bluetooth 5.0 Audio Amplifiers DC12V-24V 2*50W+100W Amplificador

USD 23.32/piece

AIYIMA 2Pcs 52MM Audio Portable Speakers 6 Ohm 30W Dome Silk Film Tweeter ABS Treble Speaker Loudspeaker With Aluminum Radiator

USD 13.50/lot

AIYIMA 12V BT MP3 Decoder Audio Module Spectrum Display Lossless APE Decoding Support APP EQ FM AUX Car Accessories

USD 10.20/piece

AIYIMA Pre-amplifier Tone Board UPC4570C OP AMP Stereo Preamplifier Volume Tone Control Super OPA2604 AD827JN With LM317+LM337

USD 31.54/piece

Item-Description

Product description:

Voltage range: AC12V-AC28V (2-wire), 50W or more (AC18V 120W transformer is recommended)

One channel is up to 25W, one board and one channel.

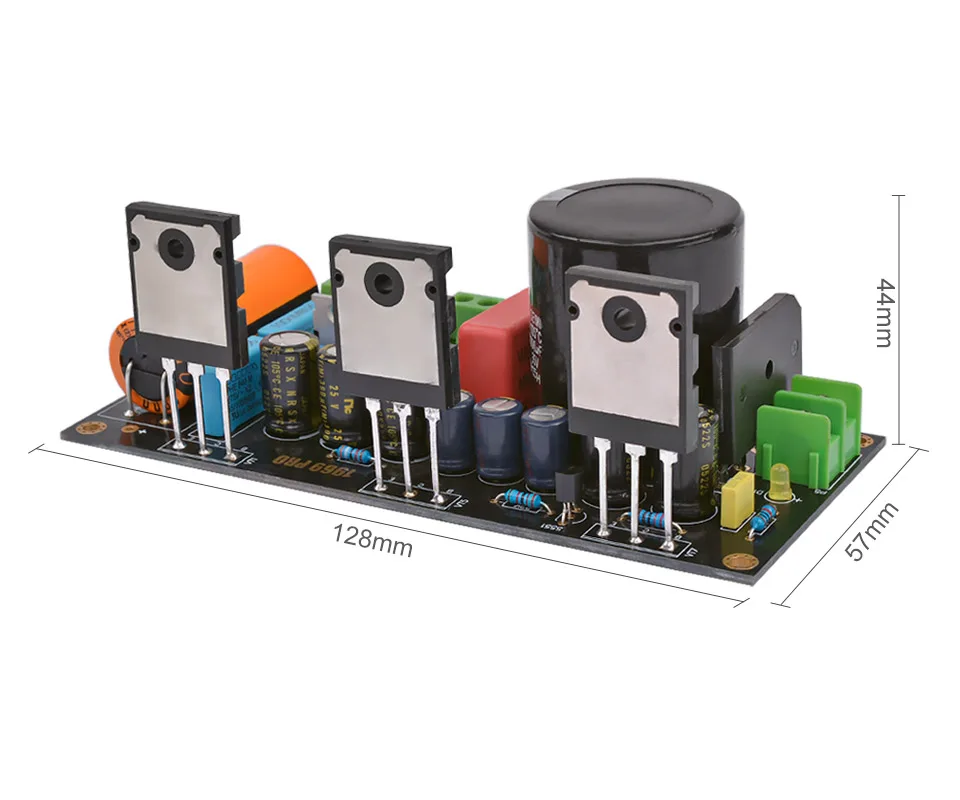

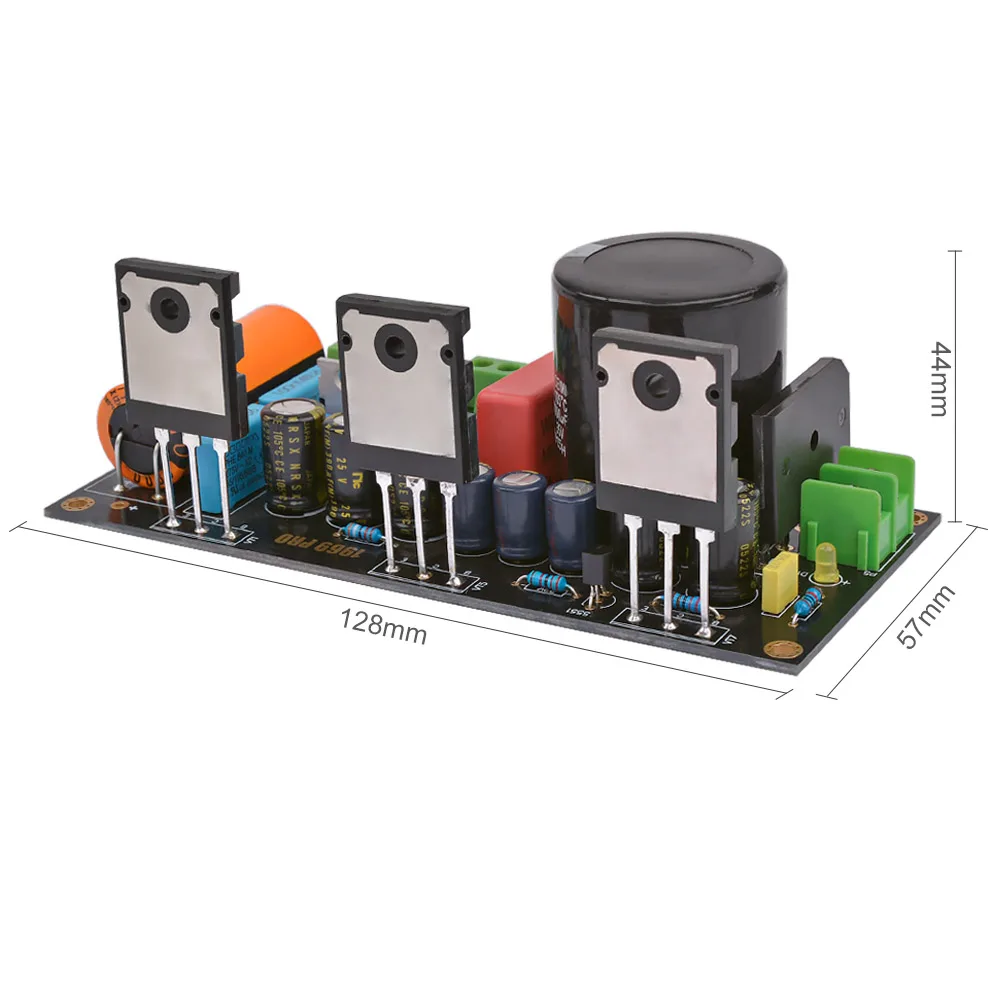

PCB size: 62mm × 129mm

Features:

1: Using 5200 high-precision high-current voltage regulator output, the output voltage is more stable! Beyond the LM317! Noise is even more inaudible

2: Input using a thin film audio capacitor, the sound is better!

3: T-oshiba big tube 2SC5200 output! This tube has a maximum power of up to 150W, which allows the 1969 to output a maximum of 25W Class A! More than 2N3055! !

Debugging method:

The 1969 commissioning is divided into static current testing and neutral voltage testing.

1: quiescent current has been adjusted to the home, the default 1.2A, you can change the quiescent current by adjusting the 202 adjustable resistance on the board, recommended 1-2A! In addition, the quiescent current needs to be tested in series with the current input port.

2: Midpoint voltage test, the midpoint voltage needs to be one-half of the power supply voltage, that is, the power supply is 18V, then the midpoint voltage should be 9V, the test uses the DC voltage file, the red test pen is connected to the output capacitor positive pole, and the black test lead is grounded. Line test can be! Adjust the 204 resistor so that the voltage is equal to half of the supply voltage

Note: The capacitor is a disassembled product, and the test works well.

Package included:

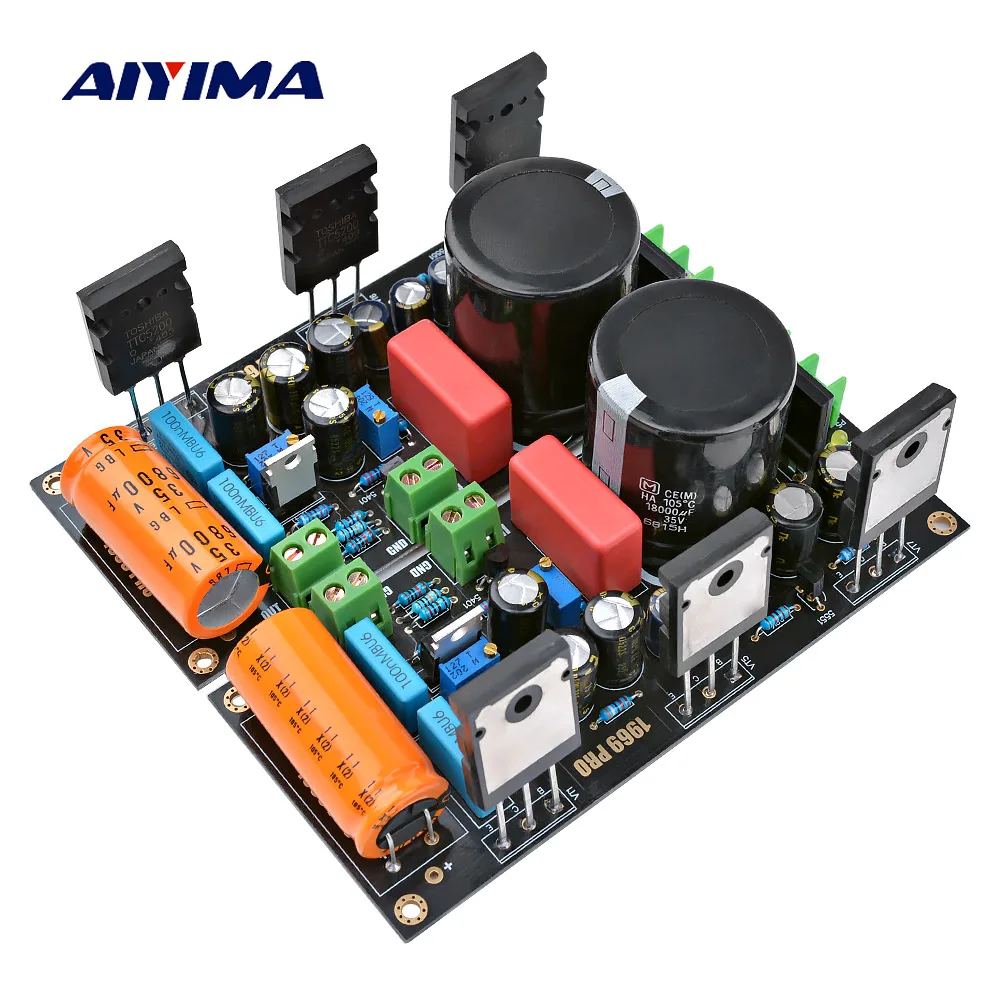

2PCS Amplifier
