AIYIMA TPA3255 Digital Power Amplifier Board 315Wx8 Class D Sound Amplifiers 8 Channels Audio Amp DIY 7.1 Home Theater

AIYIMA TPA3255 Digital Power Amplifier Board 315Wx8 Class D Sound Amplifiers 8 Channels Audio Amp DIY 7.1 Home Theater

Name: AIYIMA TPA3255 Digital Power Amplifier Board 315Wx8 Class D Sound Amplifiers 8 Channels Audio Amp DIY 7.1 Home Theater
Brand: MMO Dropship
SKU: 3256801676605394
Price: 202.35 VND
Availability: InStock
Rating: 4.9 (86 reviews)

Code: TD-3256801676605394 6 orders

Free Shipping

$ 202.35 $ 229.21

Other people want this. 21 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Aiyima
Certification:	NONE
Origin:	CN(Origin)
Maximum Power Per Channel:	Above 200W
Model Number:	TPA3255 Digital Power Amplifier
Package:	No
Channels:	8 (7.1)
output power:	315Wx8

Product description:

TPA3255 is a high-performance class D power amplifier, it has class D efficiency and can bring true high-end sound quality. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath™ Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality. The device works in AD mode. When the THD is 10%, it can drive up to 2 315W/4R loads and 2 150W (unclipped power)/8R loads, and has a 2 VRMS analog input interface that supports high-performance DAC (For example, TI's PCM5242) seamless connection. In addition to excellent audio performance, TPA3255 also has two major advantages: high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved with an 85mR MOSFET and an optimized gate driver scheme. Compared with the traditional discrete implementation, this solution can significantly reduce idle loss.

Features:

1. Use original TPA3255

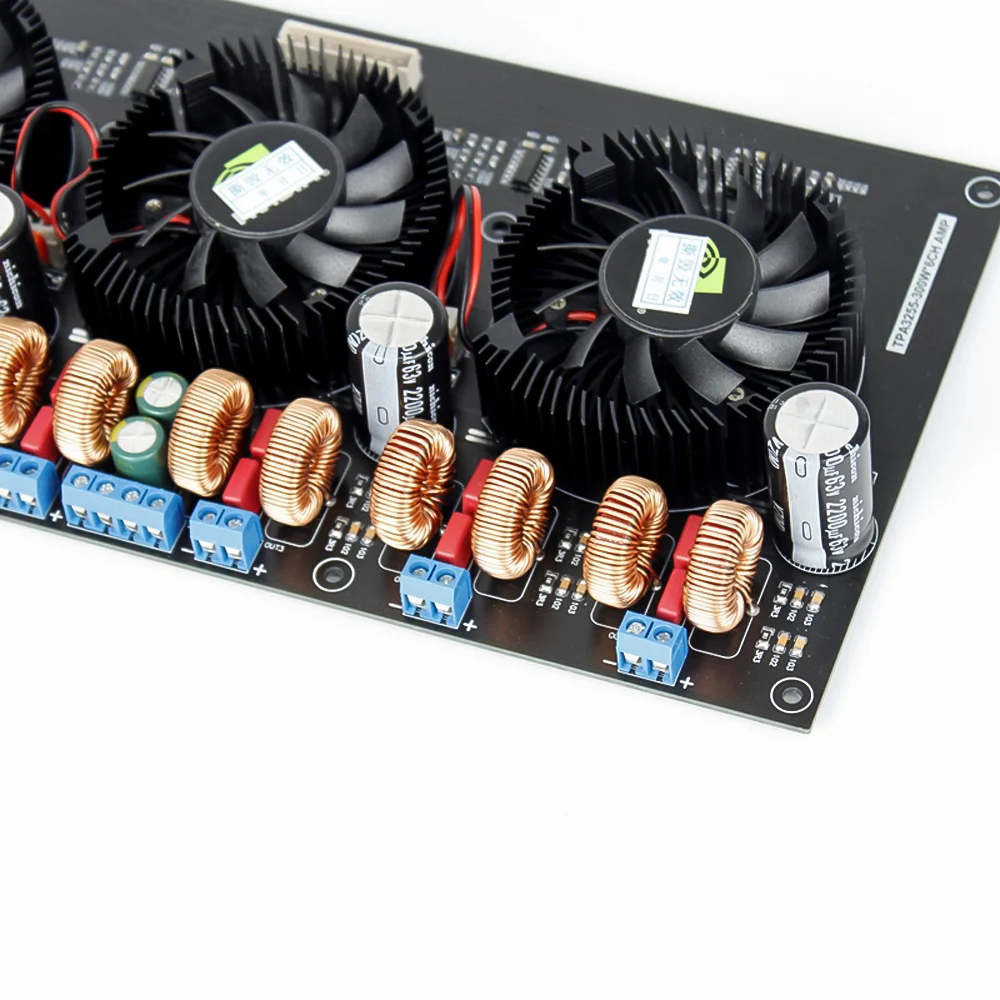

2. The main filter electrolytic capacitor adopts the imported famous brand Erkang with a capacity of 2200UF/63V*5, which guarantees strong and continuous power support.

3. High-precision chip resistors are selected for the resistors to ensure a good signal-to-noise ratio of the whole machine.

4. Adopt special magnetic ring inductor for audio to ensure the sound is clear and powerful.

5. The PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents. First-class PCB quality.

Basic performance parameters:

Working method: Class D

Quiescent current: 500mA

Work efficiency:.>90%

Output Power:

315W/4Ω*8, distortion 10%

185W/8Ω*8, distortion 10%

260W/4Ω*8, distortion 1%

150W/8Ω*8, distortion 1%

Frequency response: 20Hz to 20KHz

Dynamic range: >100 dB

Signal to noise ratio: (SNR)> 111dB

Working voltage: DC24-48V switching power supply,

PCB size: 350*132MM

Package included:

1Pcs
