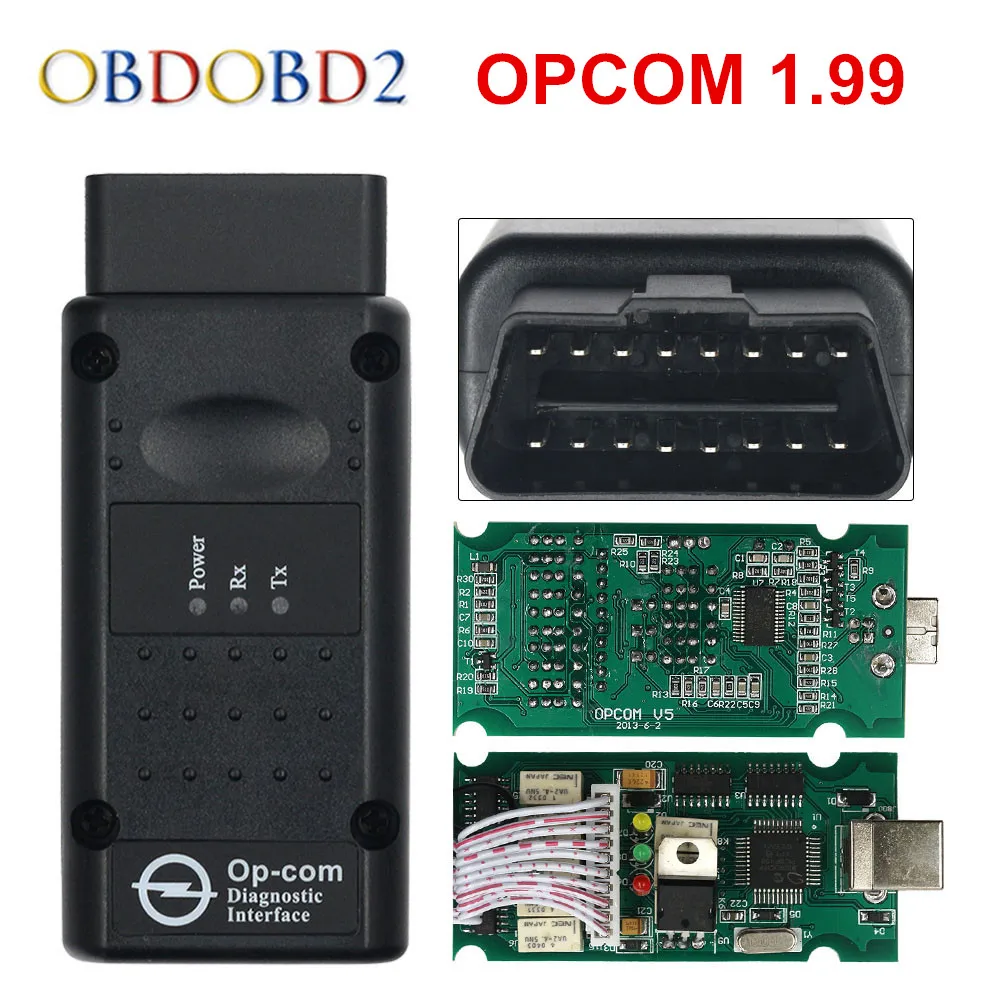

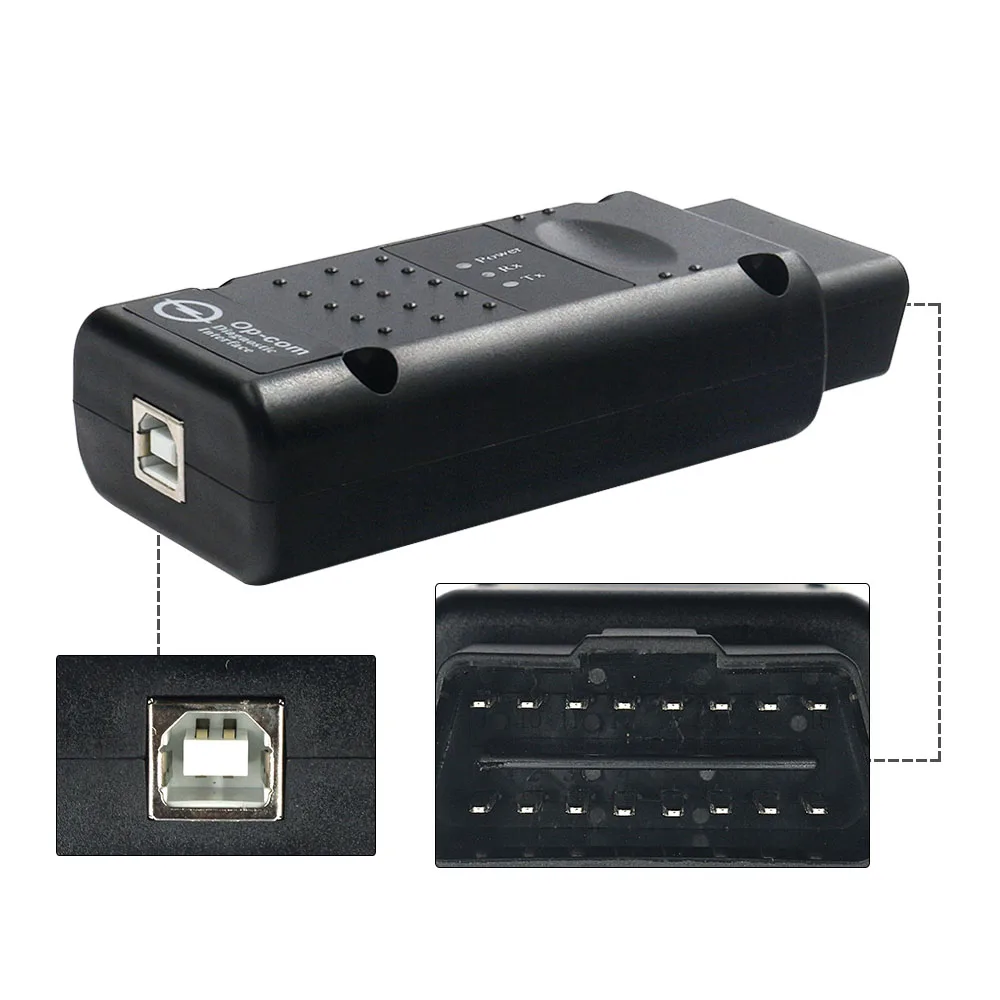

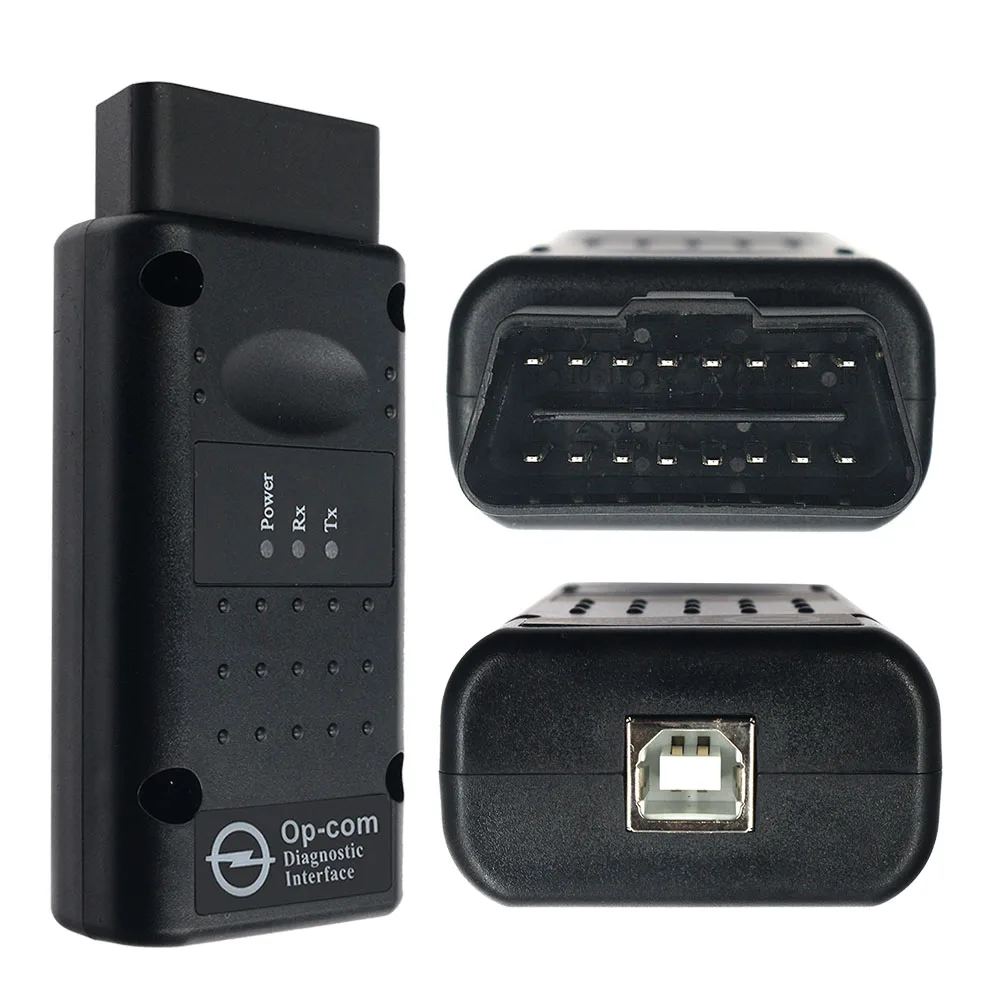

normal car temperature gauge 2019 OPCOM V1.99 For Opel OBD2 Diagnostic Scanner OP COM 1.99 PIC18F458 FTDI Chip CANBUS OP-COM Free Shipping best automotive engine analyzer Diagnostic Tools

Code: TD-2251832723625104 19 orders
Free Shipping
$ 40.29 $ 42.99
Quantity:
Other people want this. 21 people have this in their carts right now.
Brand Name:  Codescan
Item Type:  Car Diagnostic Cables and Connectors
Item Length:  10cm
Power:  W
Model Name:  OPCOM V1.99
Item Weight:  0.2kg
Material Type:  Plastic
Software Version:  2014V
Voltage:  V
Hardware Version:  V1.99
Electronic:  No
Item Height:  5cm
Item Width:  5cm
Product Name:  Op com V1.99 is with PIC18F458 Chip
Chip:  With PIC18F458 Chip and FTDI Chip
Application Model:  For Opel For Saab For GM
Item Type:  Diagnostic Cable&Code Reader Scanner
Update:  By Link
Feature 1:  Support Flash FW update
Systerm Requires:  Windows XP/Windows 7
Warranty:  3 Years

Original FVDI 2018 Full(Including 18 Software) FVDI ABRITES Commander No Limited Covers FVDI 2014 2015 & Most Functions Of VVDI2

USD 227.05-339.00/piece

2018 OPCOM V1.99 For Opel OBD2 Diagnostic Scanner OP COM 1.99 PIC18F458 FTDI Chip CANBUS OP-COM Free Shipping

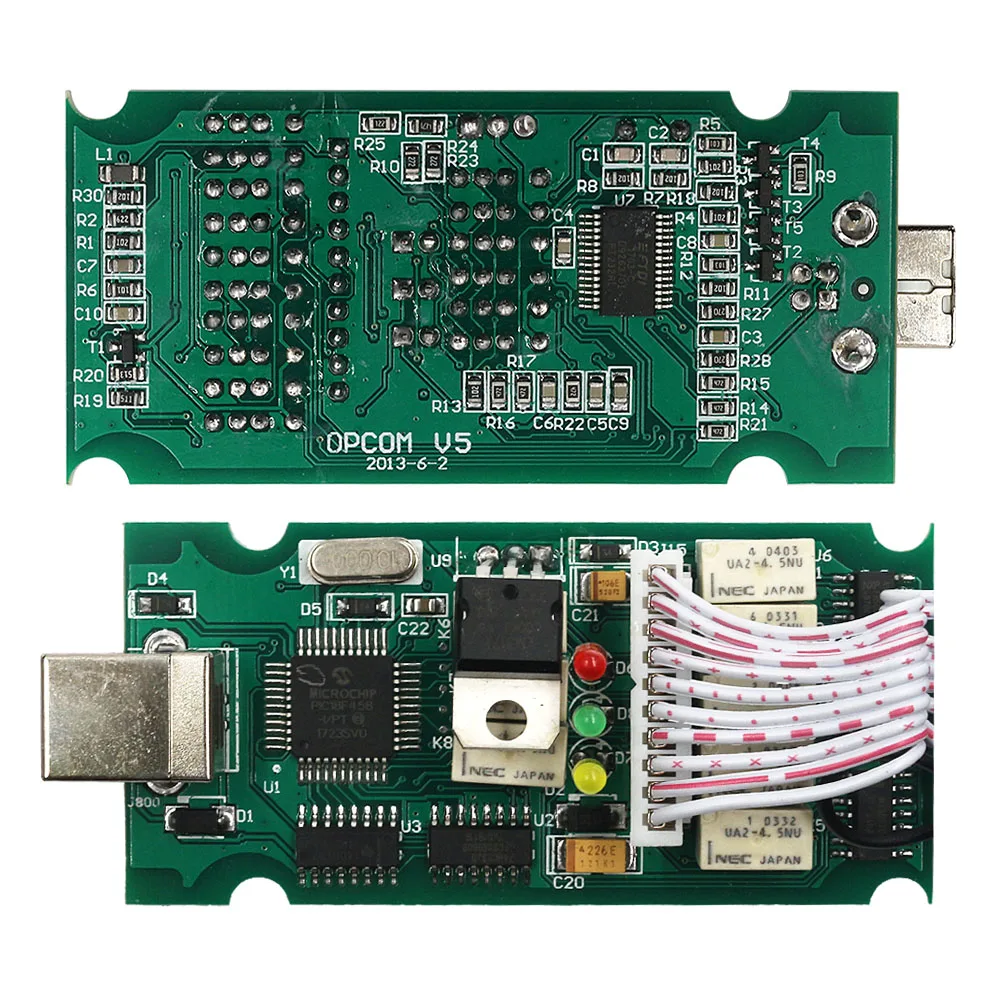

This is our opcom V1.99 With PIC18F458 Chip and FTDI Chip

Feature:

1. OPCOM is a special PC Based diagnostic interface especially for OPEL.

2. Firmware:V1.99

3. Never Update It Online, It Will Damage The OP-COM !

4. Please

DO NOT update the Firmware, otherwise it will be damaged.

Software Function:

1. It covers almost all for Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module,

Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information.

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

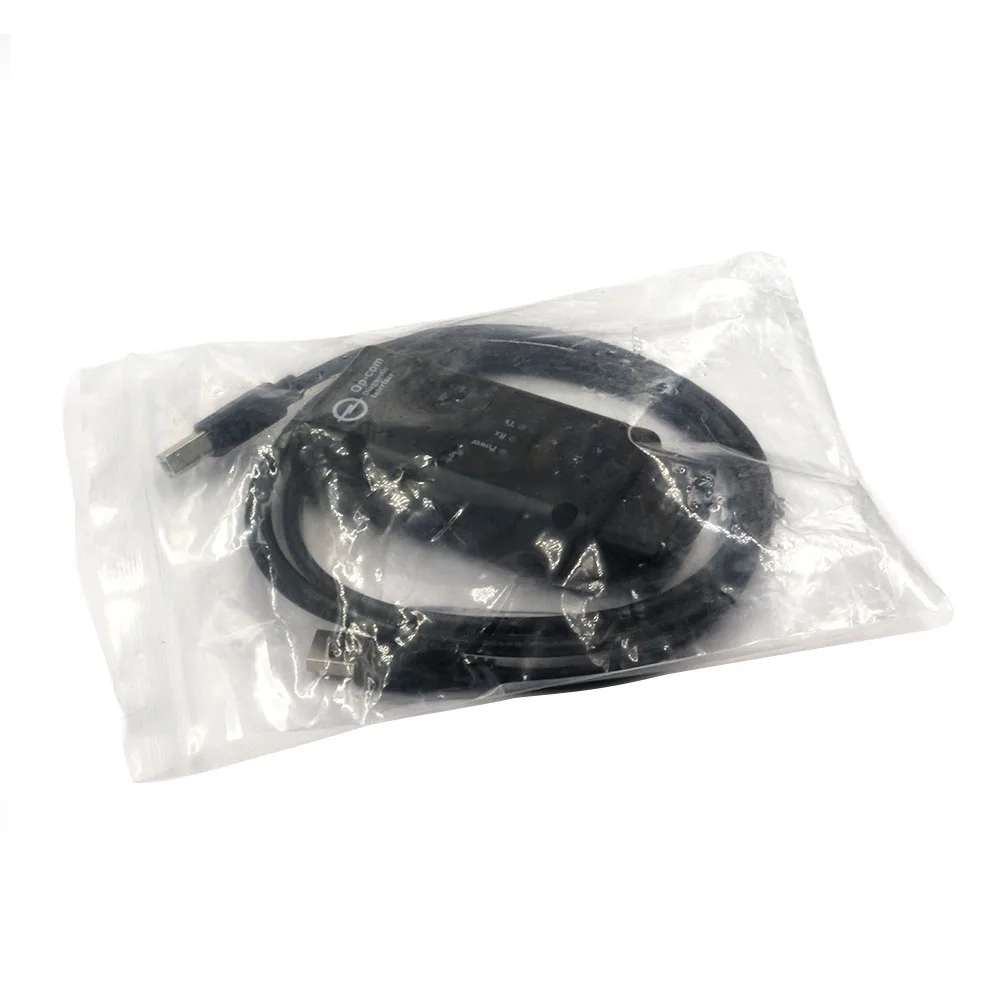

Package list:

1pc x OP COM Interface

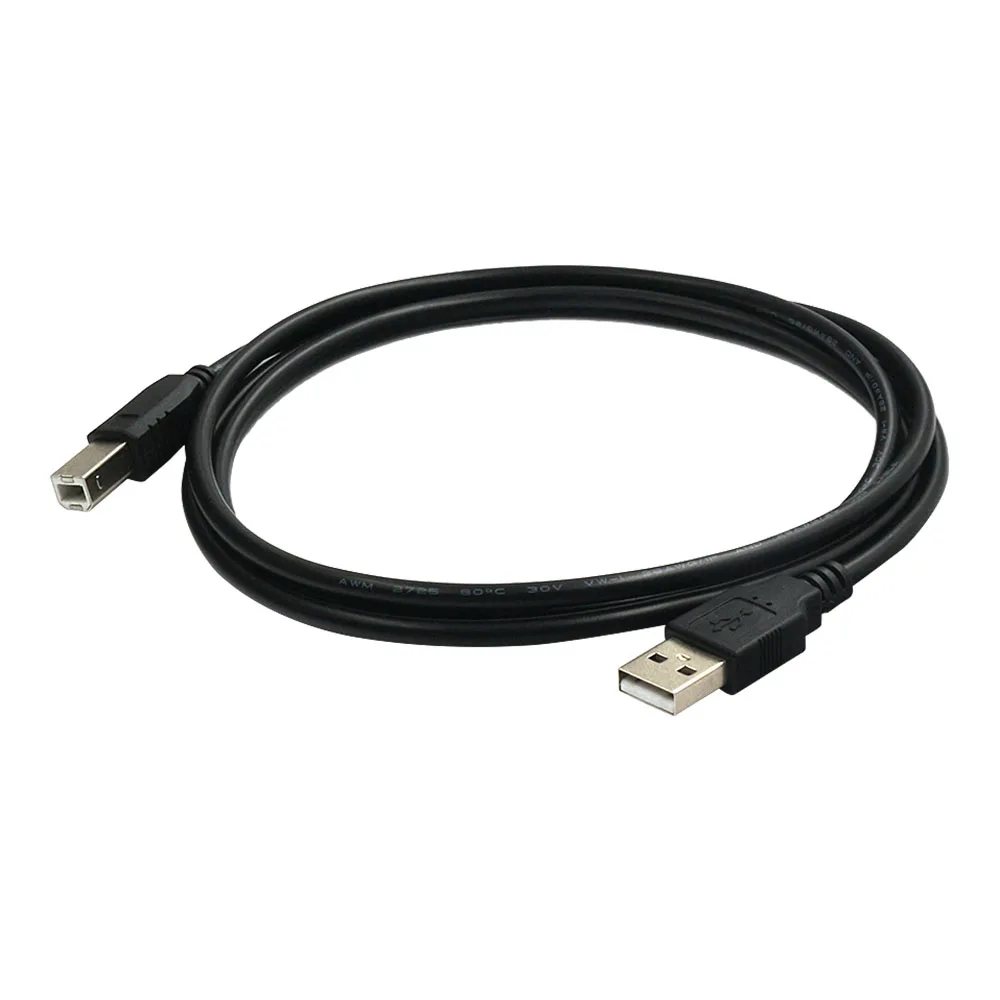

1pc x USB Cable

1pc x  Software and Drivers CD
