auto battery tester Vagtacho USB Version V 5.0 VAG Tacho For VDO NEC MCU 24C32 or 24C64 with Quality Stable VAG Tacho 5.0 car battery reader Diagnostic Tools

Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	Vag Tacho USB Version V 5.0
Item Length:	12inch
OEM NO.:	VAG Tacho 5.0 USB Version
Certification:	NONE
Special Features:	usb
Software Version:	VAG Tacho V5.0
Item Width:	7inch
Model Name:	VAGTACHO USB
Electronic:	No
Item Height:	4inch
Power:	W
Material Type:	High Plastic & Metal
Item Type:	Engine Analyzer
Item Weight:	0.15kg
Voltage:	V
Item Name:	Vag tacho USB Version V 5.0
Version:	USB Version 5.0
Function:	OBDII ECU Chip Tuning Tool
Applicable:	For NEC MCU 24C32 Or 24C64

Vagtacho USB Version V 5.0 VAG Tacho For VDO NEC MCU 24C32 or 24C64 with Quality Stable VAG Tacho 5.0

Only Support Windows XP System

.

1. VAG Tacho Description:

   1. Lastest Version V5.0 supports VDO with 24C32 or 24C64, includes the functions of VAG Tacho USB 4.52 / 4.0 / 3.5

   2. It is VAG Kombiinstrument / Immo box eeprom programmer.

   3. SW compatible System: Windows 7, Vista, Windows XP / 98

   4. It supports some VDO dashes for VW 2009-2011 with NEC mcu and 24C32 or 24C64 eeprom memory. Please note, these dashes requires ignition to be switched on with valid key of the car!

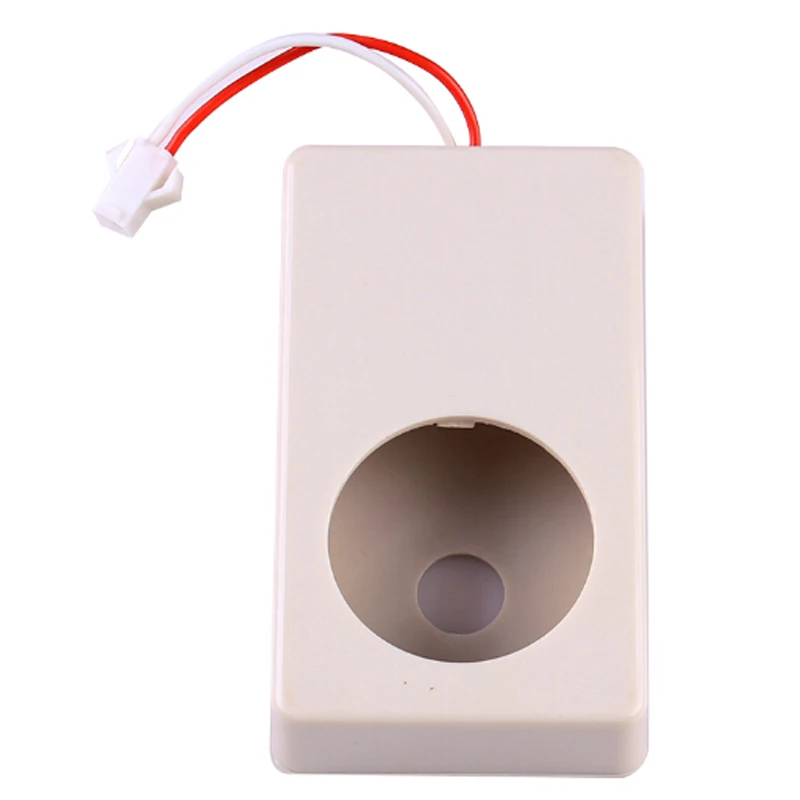

   5. SW version V5.0 only works with interfaces which has got built in programmer for Megamos ID48 transponders. Pre-programming of TP2x transponders as dealer's keys with component security data which is read from immobiliser!

   6. New key programming feature for VAG cars with VDO dashes on CAN bus!(TP2 and UDS protocols)

Note: TP22,23,24,25 transponders are required !

2. Updated To V5.0:

   1. Your Vag tacho interface will work with version 5.0 for the new VDO dashes with UDS protocols from year 2009+

   2. Programming of new keys to VAG cars which are into FAZIT database.

   3. Works with cars whch has got locked key programming channe, or pin code is not acceoted.

   4. No need to wait up to 30 minutes for the key programming procedure.

   5. With this upgrade, Vag tacho can program the new key in one minute.

   6. Works on any computer which has got USB port!

   7. Most of VAG dashes from 1997 to 2006 are supported!

   8. Direct programming of Megamos ID48(JMA-TP08) chips to VAG cars on CAN bus from November 2003 to June 2006

   9. Transponder Maker Pro is required for pre-programming of these chips

Note: TP22,23,24,25 transponders are NOT required!

3. Main Functions:

  Read ecu info

  Read pin code

  Change mileage

  Read eeprom

  Programmer new key

  Write eeprom

  Clear ecu errors

  Viem memory buffer

4. Package List:

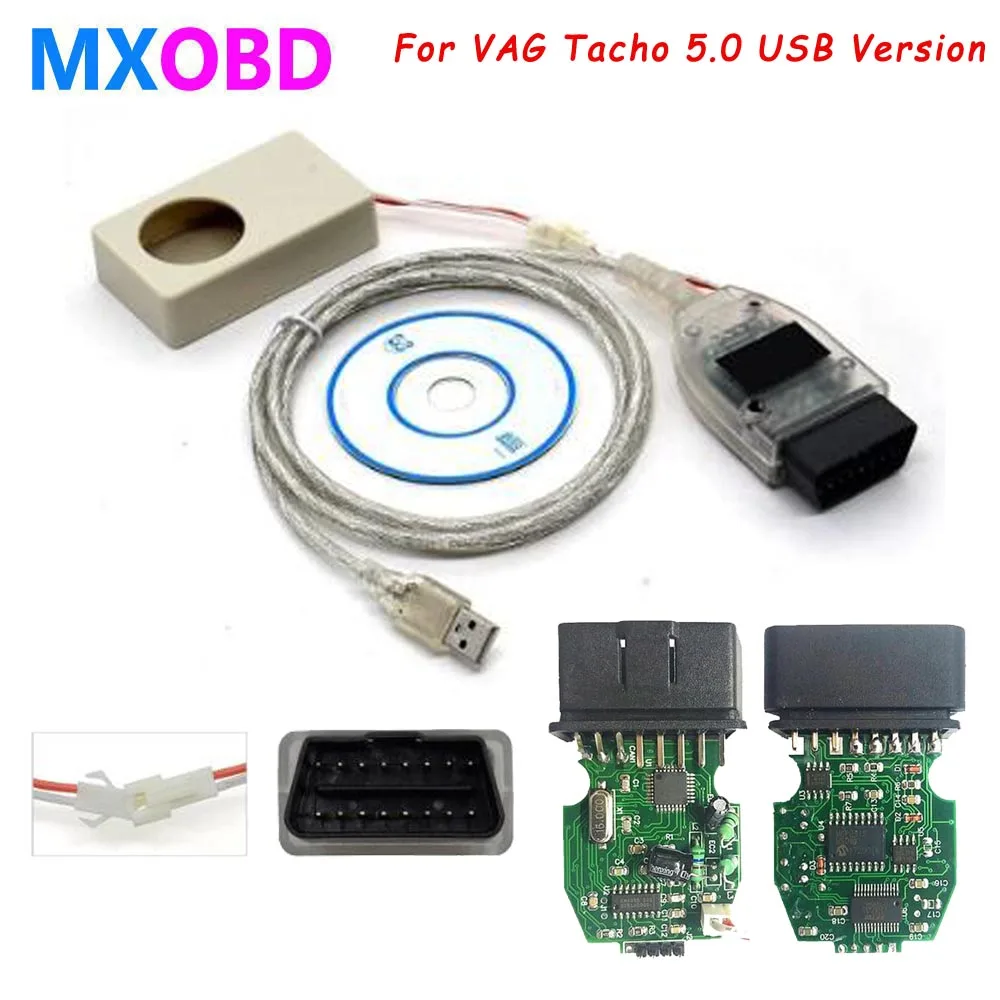

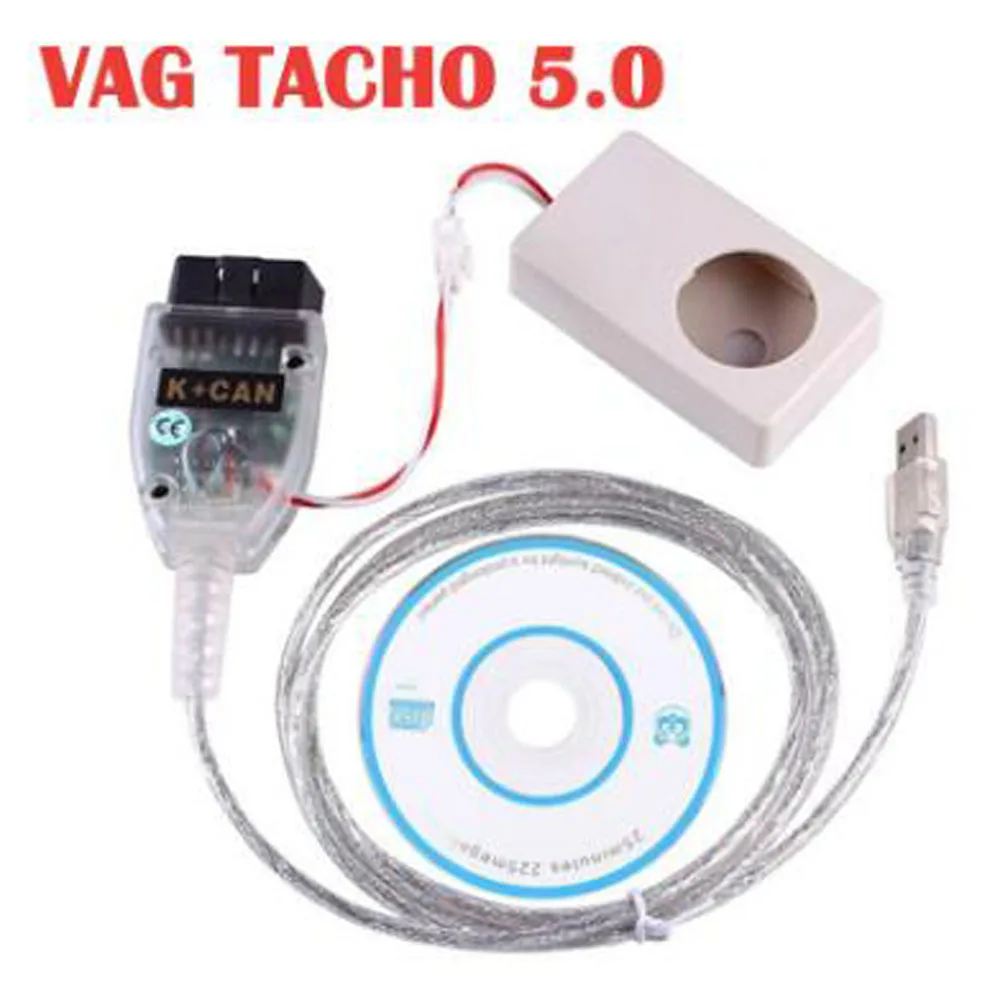

   1 x VAG tacho usb

   1 x CD

3. How to programmer keys with vagtacho usb 4.0

Switch ON ignition with any key new or old, no mater which one.

Start software, select "VDO NEW - CAN bus" from menu.

Press "Connect Selected ECU" button, after 5 seconds the data of the dash will be shown on screen.

Press "Program New Key", software will read data from the dash and after few seconds a new window will be open.

See the picture. ID numbers of the transponders which are stored into memory will be shown.

vag kkl switch with FTDI FT232RL Chip item Description:

Note:

1.Drivers for Windows XP, 98, ME, 2000, Vista + Windows 7

2.Only Support  for Fiat,for VAG

3.Compatible with may diagnostic software packages including:

for Fiat ECU Scan

KKL V409

Steps:

1. Connect the plug cable to the computer / laptop
2. Install the cable driver (available on the CD)
3. Make any additional set of diagnostic software
For the diagnosis for VAG set the switch on the ECU
5. The OBD connector cable plug and connected with the car
6. Diagnostic software products used for connection

Cable used to include a 4 way to switch to different ECUs access:

Position 1 = engine ECU (read / clear engine failure)
Position 2 = airbag ECU (read/remove airbag failure)
Position 3 ECU = ABS (read / erase fault code)
Position 4 = ESP ECU (read / clear fixed fault)

Package List:

1 * obd2 diagnostic Cable

1 * DVD SW
