car battery tester Newest XPROG-M V6.12 Add New Authorization V5.55 V5.84 X-PROG M Metal Box XPROG ECU Programmer Tool X Prog M V6.12 Full Adapters car battery analyzer Diagnostic Tools

Brand Name:	obdkcan
Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	New
Item Length:	10inch
Special Features:	ECU Chip Tuning Programmer
Software Version:	V6.12/5.84/5.55
Item Width:	10inch
Model Name:	XPROG-M V6.12/5.84/5.55
Item Height:	10inch
Power:	W
Item Type:	Car Diagnostic Cables and Connectors
Item Weight:	0.7kg
Voltage:	V
Electronic:	No
Material Type:	Plastic and Metal

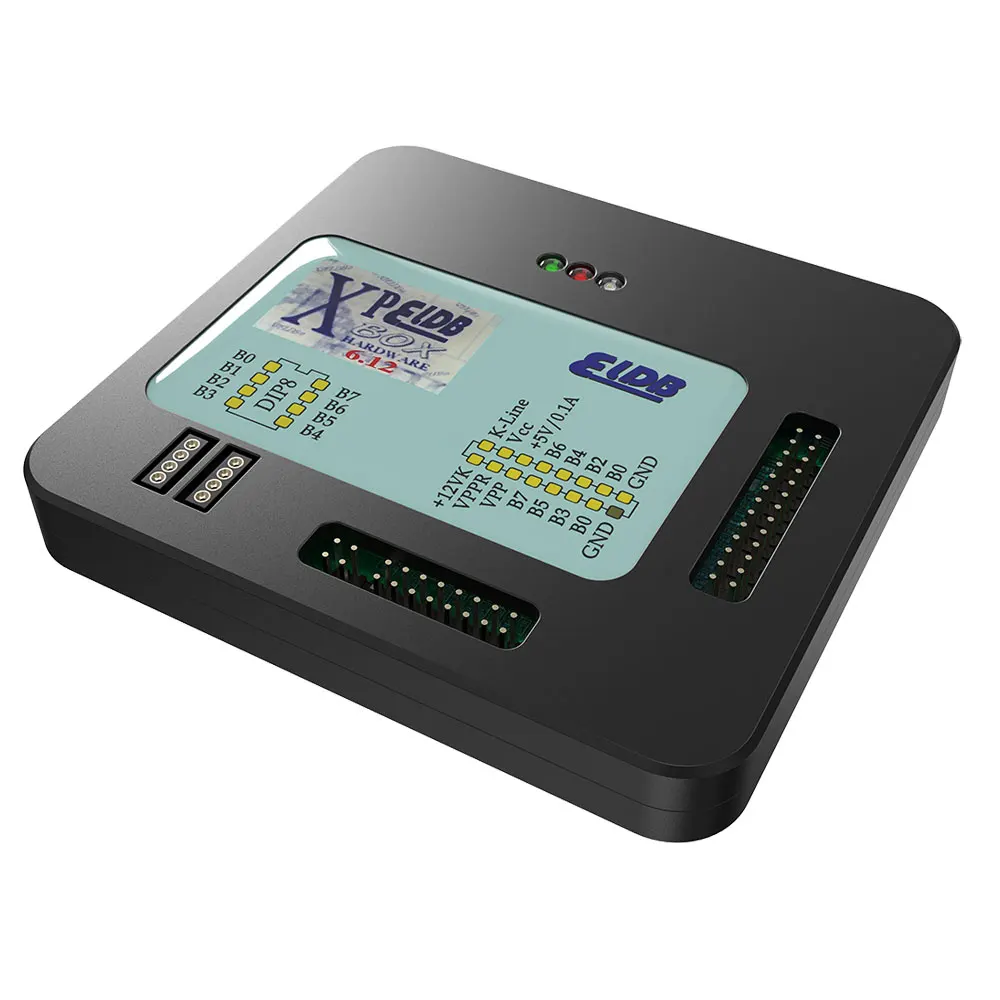

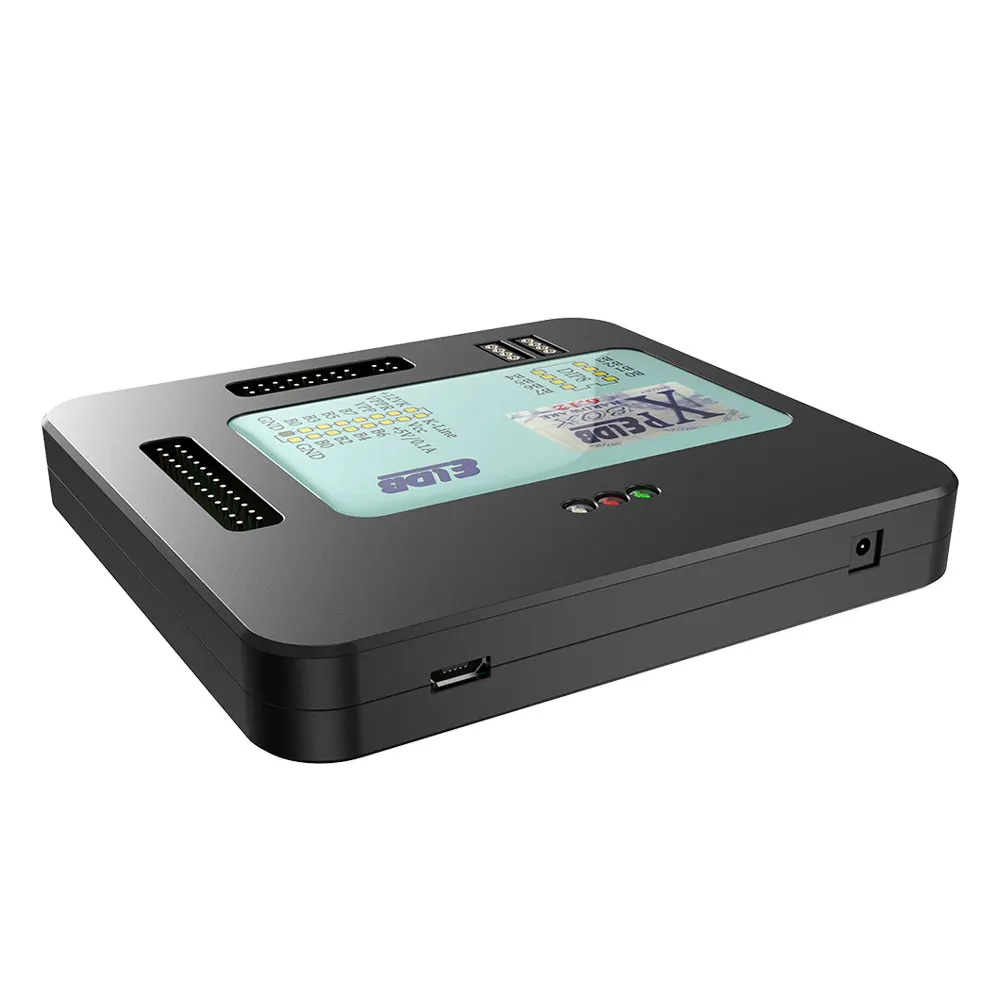

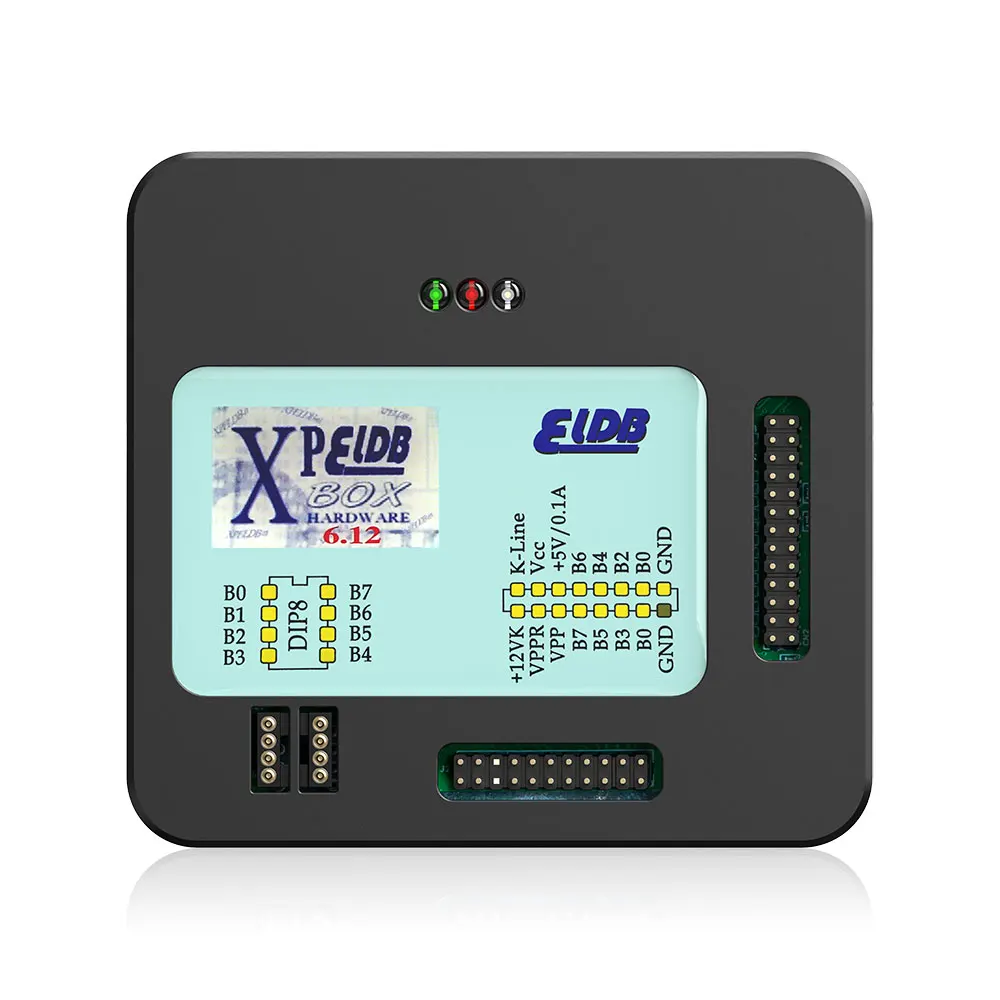

XPROG-M V6.12

XPROG-M V6.12 Highlights:

1. Latest

Software Version: V6.12, Firmware: V4.4

2. With USB Dongle, No need activation

3. Adds new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

4. Operating System: WinXP/Win7

5.

Language: English only

Using Tips:

1. XPROG V6.12 dongle isn't compatible with older version Xprog.

2. Please Close all anti-virus software in your computer, becase the anti-virus software will kill Xprog V6.12 driver.

3. Disconnect internet. If not, the internet may damage XPROG hardware.

4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software.

5.

Never try to UPDATE it

, the hardware will be damaged if you try to update it online.

Install Notice:

XPROG-M V6.12 windows system required as below:

1. Windows XP 32bit OR windows 7 64 bit required, all the patch software for the windows system should be installed already and the windows properly works well...

2. The windows system should be with at lest 2 partitions (except the CD ROM.)

3. Can not be working with virtual harddisk.

XPROG Box 6.12 Installing Steps:

1. Click the file "installation.reg", get the file information to the regedit.

2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.

3. Plug the Xprog main interface to the computer, install the USB driver.

4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

XPROG V6.12 Authorizations included:

AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 for BMW EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 for MB ZGS001 authorization

AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 for ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 for ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

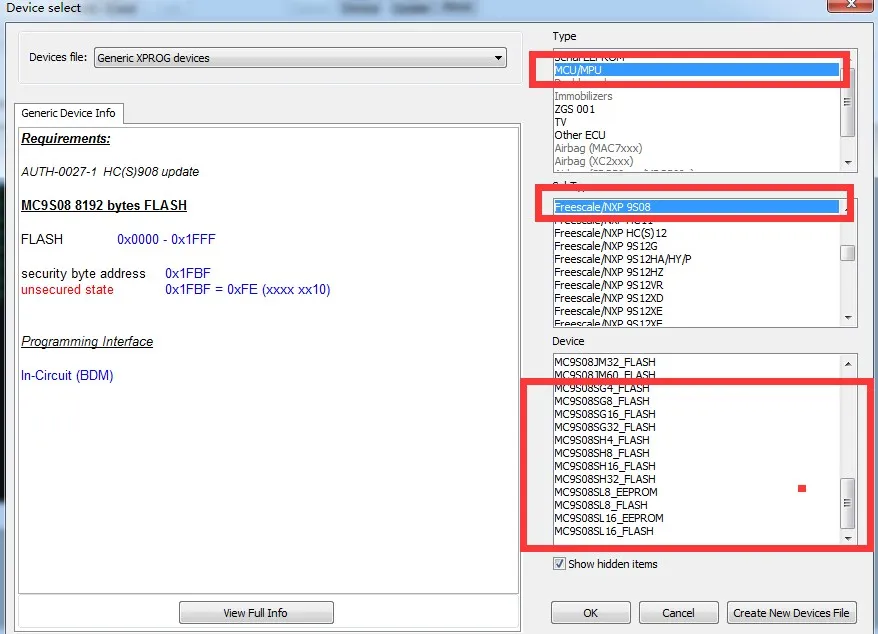

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13

AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

AUTH-0028-1 for Renesas V850 Authorized 2017/10/9

AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

AUTH-0028-3 for Renesas RL78 Authorized  ---New!

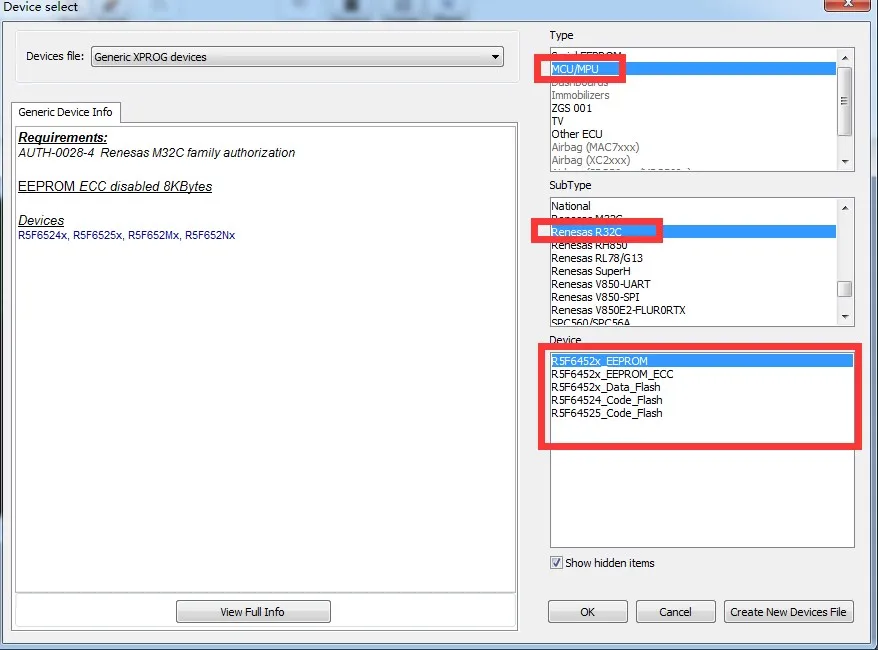

AUTH-0028-4 for Renesas M32C Authorized ---New!

X-PROG V6.12 Newly Added 4 Adapters:

ADP-0019 Rev.B ----New!

ADP-0006 M35080 ICP adapter ---New!

QFP64 MC908AZ/AS60 3K85K adapter ---New!

QO18S714 ---New!

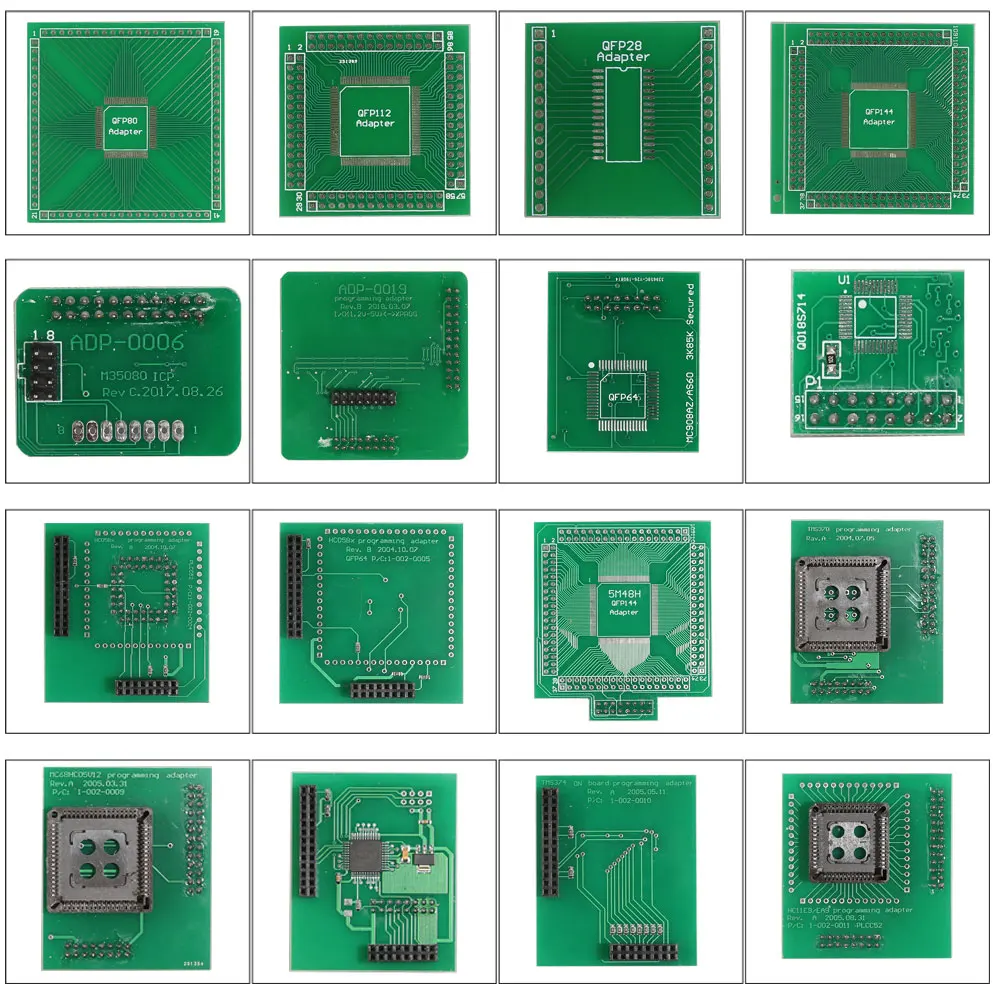

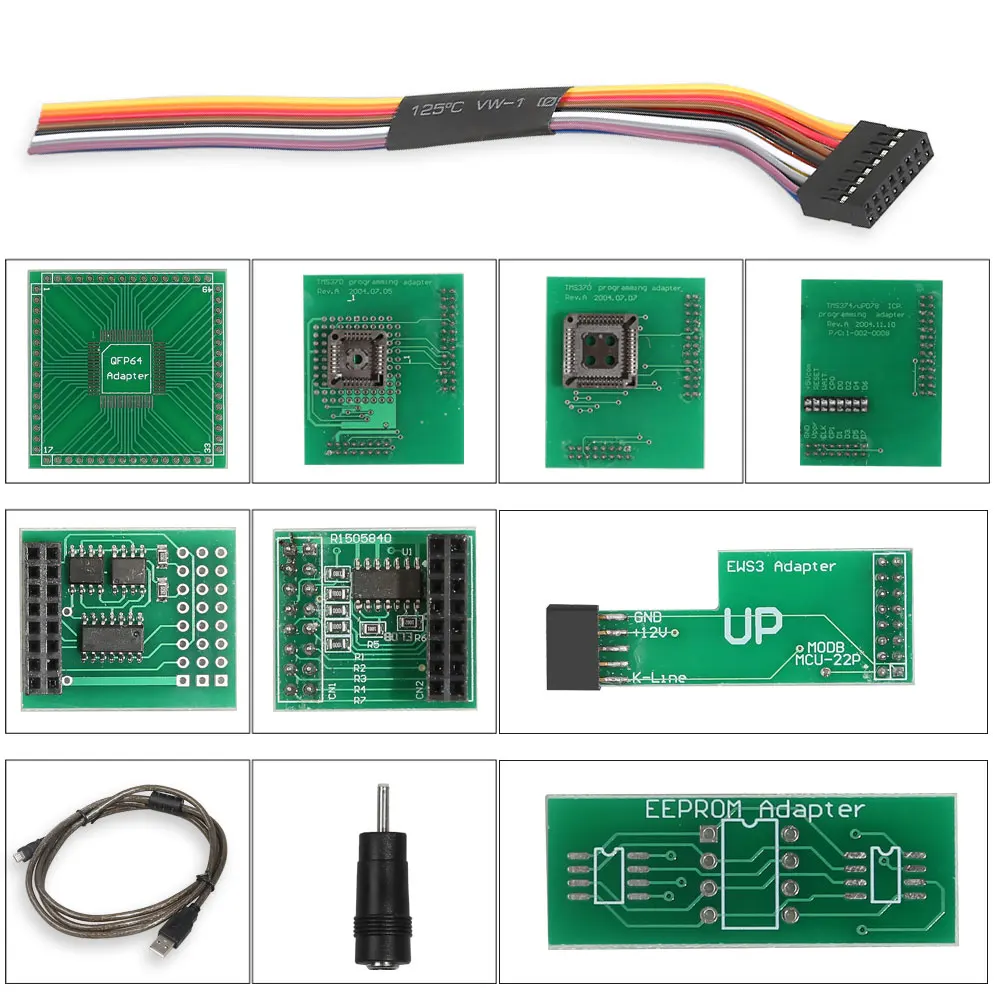

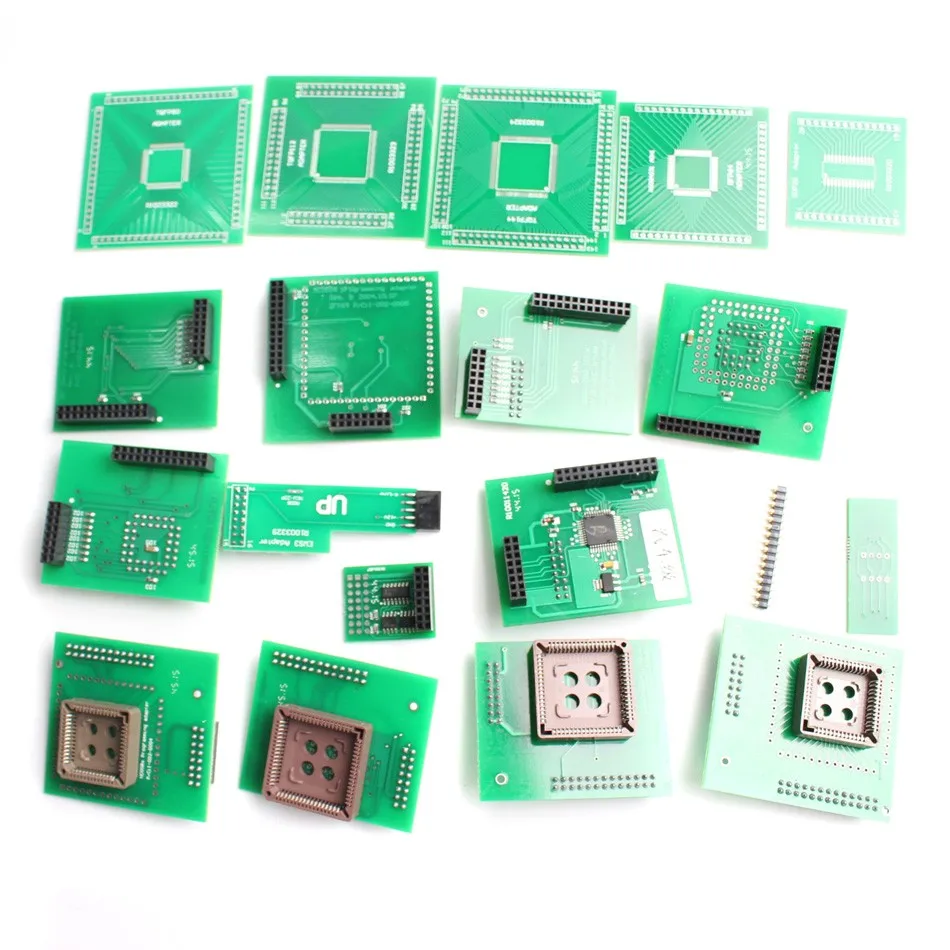

XPROG-M V6.12 Adapters included:

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 for Motorola HC05B/X PLCC52 programming adapter

ADP-0005 for Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adapter for 5M48H P-Flash

ADP-0019 Rev.A

EWS3 adapter

EEPROM adapter

QFP28 adapter

QFP64 adapter

QFP80 adapter

QFP112 adapter

QFP144 adapter

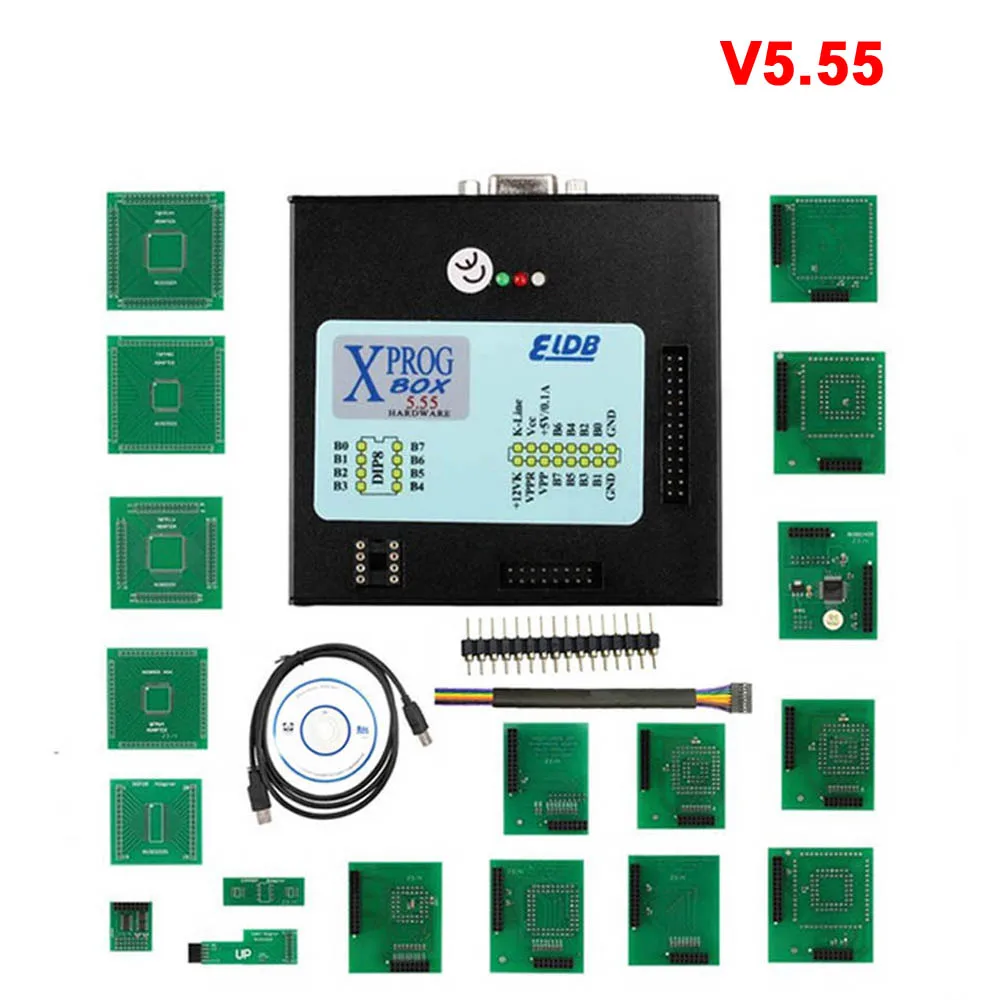

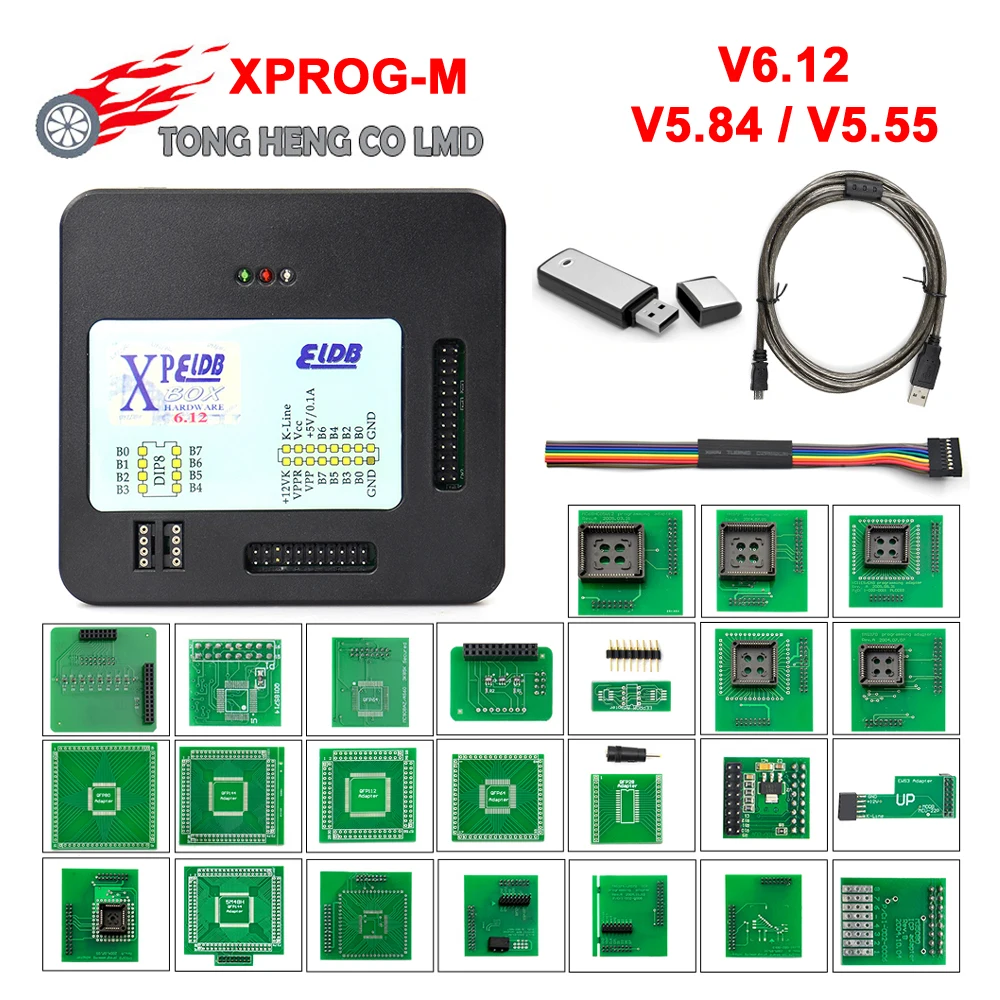

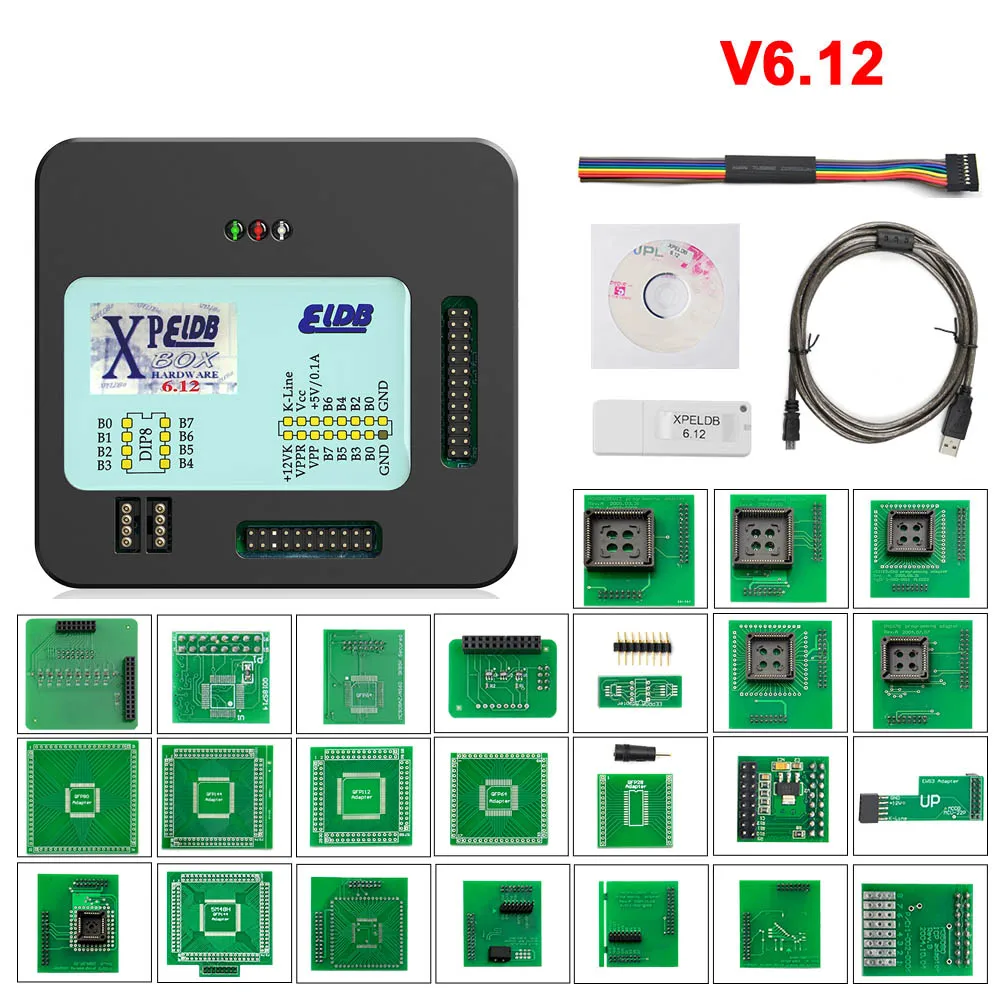

Package Includes:

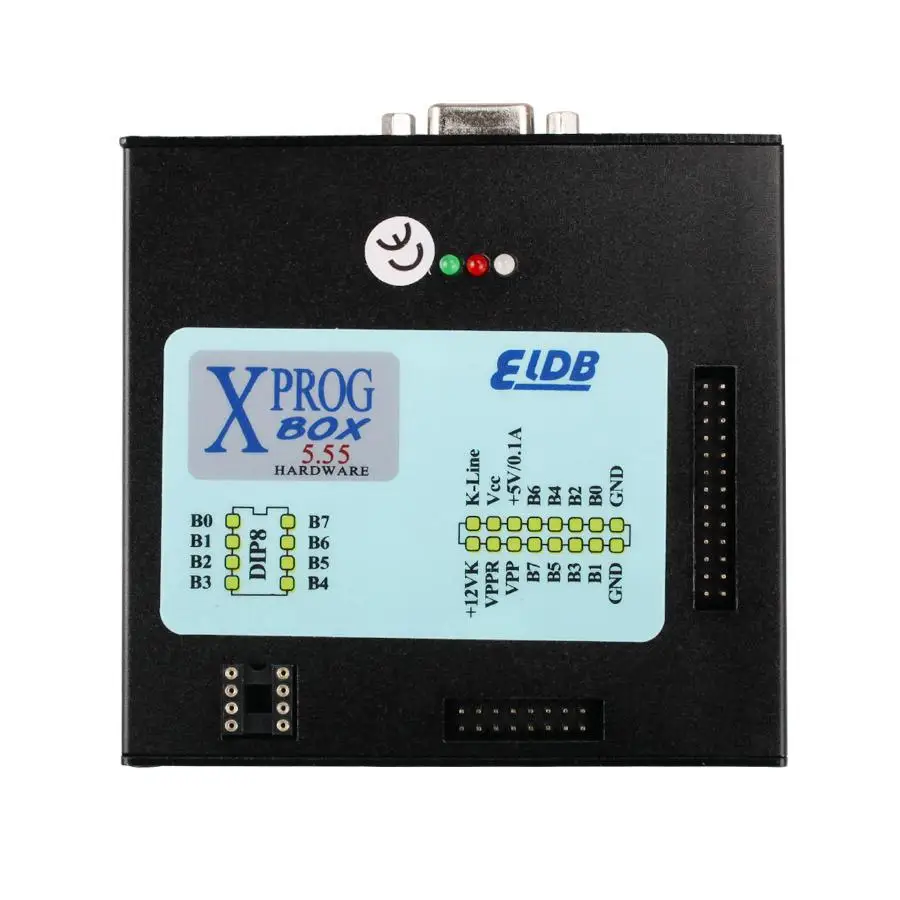

1pc  x  XPROG-Box Hardware (Aluminum Enclosure)

19pc x  Adapters Set

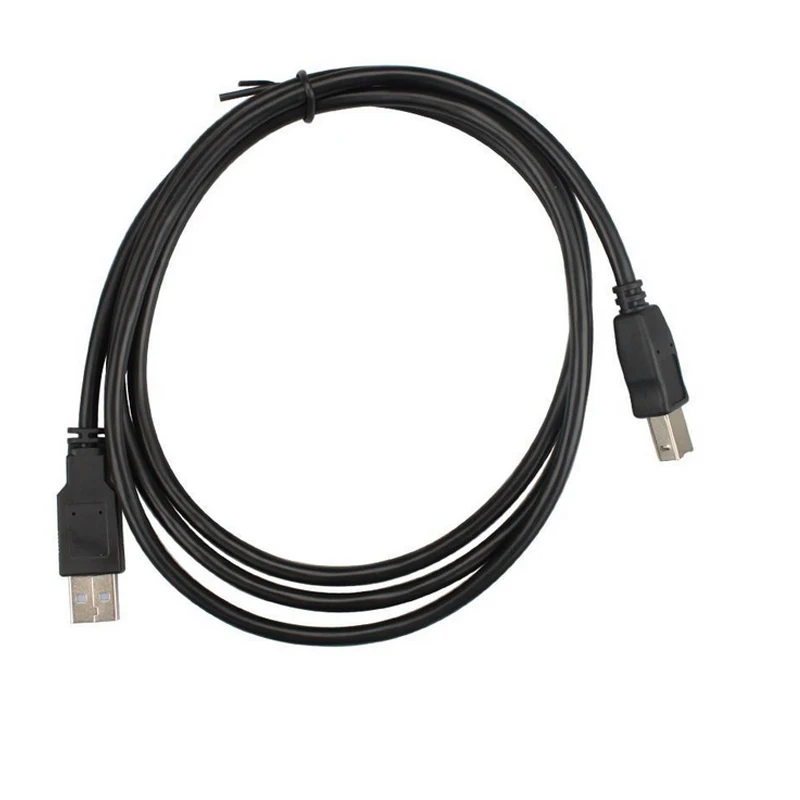

1pc  x  USB Cable

1pc  x 16Pin cable

1pc  x  CD with XPROG-Box Software (V6.12)

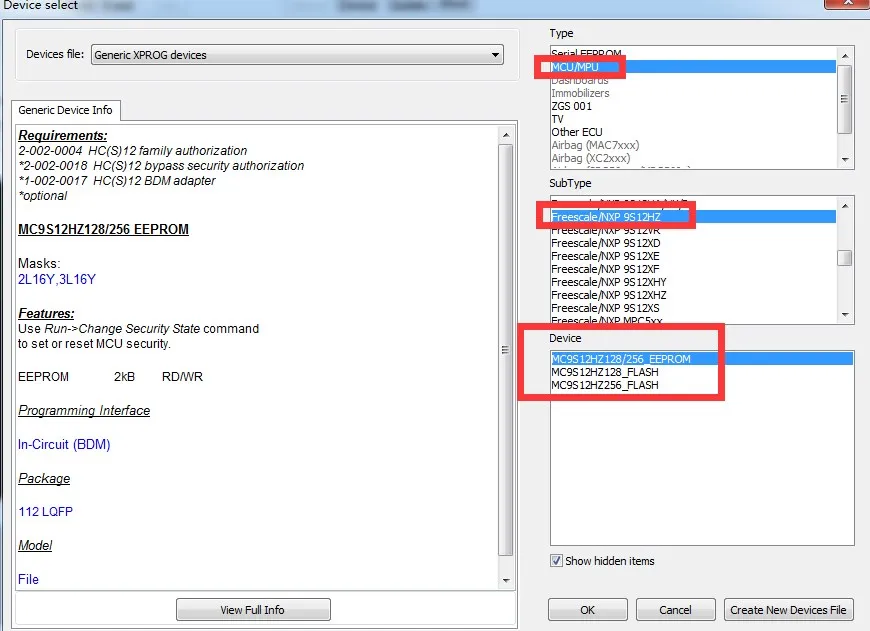

Software Add some functions A PART Display:

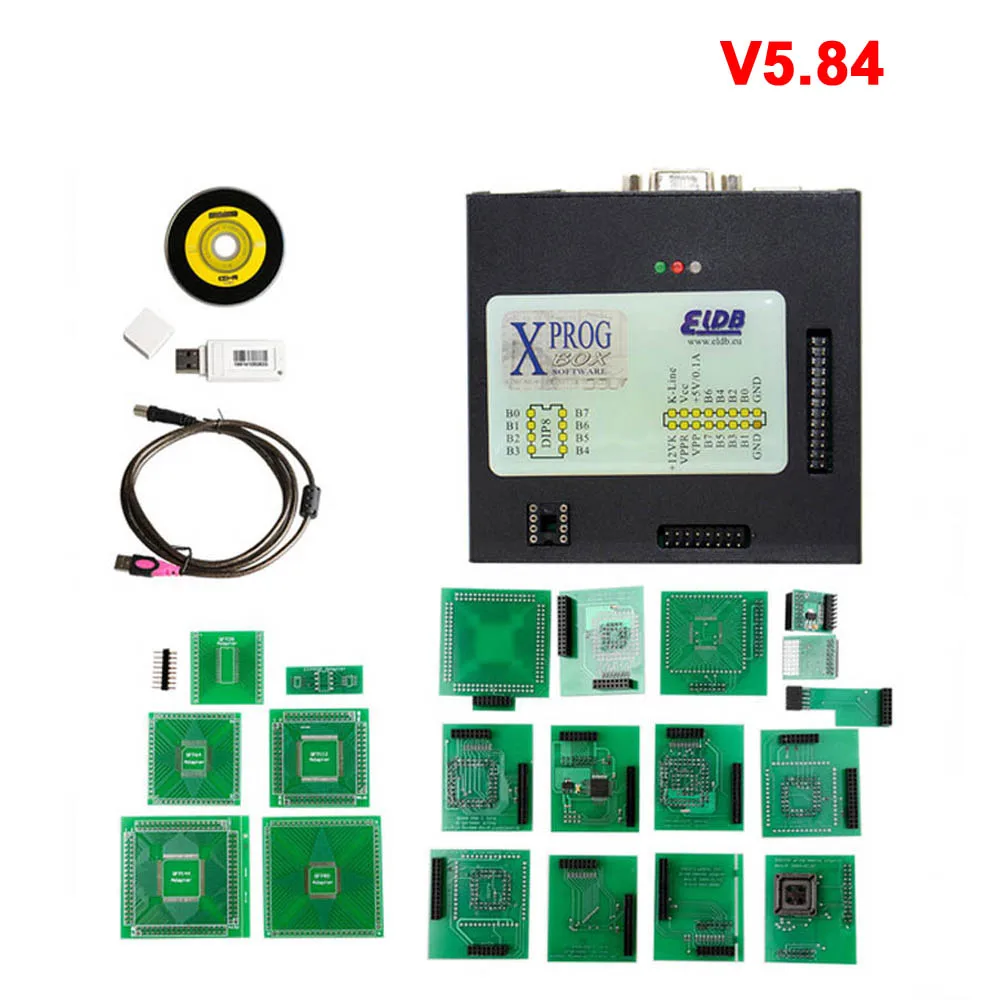

ITEM 2: XPROG V5.84 + ATMEGA64A CHIP

Top 6  Reasons to Get Newest XPROG-M V5.84:

1.Latest software version:V5.84, Firmware:V4.4
2.With USB Dongle,No need to activate，more secure&protect software.
3.Add new authorization:AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9
4.Language: English
5.Operating system: WinXP/Win7/Win8
6.  Newest version can decrypt new version For BMW CAS4

Install Notice:

XPROG-M V5.84 windows system required as below:
1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...
2. The windows system MUST be with at lest 2 partitions (except the CD ROM.),can not work if only one space in computer.
3. Can not be working with virtual harddisk.

XPROG-M V5.84 Install Manuals:

1. Click the file "installation.reg", get the file information to the regedit.
2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
3. Plug the Xprog main interface to the computer, install the USB driver.
4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.
5. Please Close Anti-virus programmer before run software.
6. If CD broken in shipping way ,please feel free to CONTACT US to send you download weblink.

XPROG-M V5.84 using tips:

1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84
2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
3. Disconnect the internet. If not, the internet maybe damage the hardware.
4. Uninstall all of the old version xprog-m or xprog box software before you install V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...
5. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.

XPROG-M V5.84 Install manuals in words:

1. Click the file "installation.reg", get the file information to the regedit.
2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
3. Plug the Xprog main interface to the computer, install the USB driver.
4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

XPROG-M V5.84 Authorizations:

AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 for ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 for BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 for MB ZGS001 authorization
AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (for Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (for Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 for Renesas V850 Authorized 2017/10/9
AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

XPROG-M V5.84 Highlights:

1. Latest

software version: V5.84

，

Firmware:V4.4

2.

With USB Dongle, No need to activate

3. Add new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

4. Language:

English

XPROG-M V5.84 using tips:

1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84

2. Close all of the computer anti-virus software. If not, X-prog software may be killed.

3. Disconnect the internet. If not, the internet maybe damage the hardware.

4. Uninstall all of the old version xprog-m or xprog box software before you install V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...

5.

Never try to UPDATE

, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.

XPROG-M V5.84 Authorizations:

AUTH-0001 for M-otorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 for M-otorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 for M-otorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 for M-otorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 for M-otorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 for BMW EWS3 authorization

AUTH-0009 for ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 for MB ZGS001 authorization

AUTH-0011 for M-otorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 for M-otorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13

AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

AUTH-0028-1 for Renesas V850 Authorized 2017/10/9

AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

XPROG-M V5.84 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 for M-otorola HC05B/X PLCC52 programming adapter

ADP-0005 for M-otorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adaptor for 5M48H P-Flash

ADP-0019 Rev.A

EWS3 adaptor

EEPROM adaptor

QFP28 adaptor

QFP64 adaptor

QFP80 adaptor

QFP112 adaptor

QFP144 adaptor

Install Notice:

XPROG-M V5.84

windows system required as below:

1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...

2. The windows system should be with at lest 2 partitions (except the CD ROM.)

3. Can not be working with virtual harddisk.

XPROG-M V5.84 Install manuals in words:

1. Click the file "installation.reg", get the file information to the regedit.

2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.

3. Plug the Xprog main interface to the computer, install the USB driver.

4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

XPROG-M V5.84 Software Display:

Package Includes:

1pc x  XPROG-Box Hardware (Aluminum Enclosure) .

1set x  Adapters Set

1pc x  USB Cable.

1pc x USB Dongle

1pc x  CD with XPROG-Box Software (V5.84)

XPROG-M V5.55

Top 3 Reasons to Get X-PROG

1. Language:

English

2. Newest Version V5.55

3. Operating system:  32-bit or 64-bit Microsoft Windows XP

Notice:

1.The New Xprog 5.55 doesn't need dongle to use software.

2. Close all of the computer anti-software. If not, X-prog software may be killed.

3. Disconnect the internet. If not, the internet may damage the hardware.

4. Uninstall all the old xprog-m, or xprog box software, make sure that your PC only install our software for our xprog-box 5.55 , our xprog-box hardware cannot work with other lower or higher software. If not, the hardware will be damaged, and will lose its warranty...

5. Never try to UPDATE, the hardware will be damaged if you want to try to upgrade it online, without any warranty.

XPROG-M V5.55 Authorizations:

AUTH-0001 M-otorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 M-otorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 M-otorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 M-otorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 T-exas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 M-otorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 for B-MW EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 M-otorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 M-otorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx(New added)

AUTH-0023-2 XC23xx(New added)

AUTH-0024-1 MC9S12Cxx(New added)

AUTH-0024-2 MC9S12XE(New added)

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx (newly added)

Packing List :

1pc x XPROG-Box Hardware (Aluminum Enclosure).

1set x Programming Adapters

1pc x USB Cable

1pc x CD with XPROG-Box Software (V5.5.5)

Product Photos:
