Newest Orange5 V1.36 Programmer Orange5 Plus V1.35 With Full Packet Hardware Orange5 Full Adapter Enhanced Function Software battery load testing Diagnostic Tools

Brand Name:	toobdpro
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	Orange 5
Electronic:	No
Hardware Version:	New
Item Height:	10cm
Item Length:	30cm
Power:	W
Material Type:	Plastic & metal
Item Type:	Car Diagnostic Cables and Connectors
Item Weight:	0.7kg
Software Version:	V1.34/V1.35/V1.36
Voltage:	V
Item Width:	20cm

Newest Orange5 V1.36 Programmer Orange5 Plus V1.35 With Full Packet Hardware Orange5  Full Adapter Enhanced Function Software

Orange5

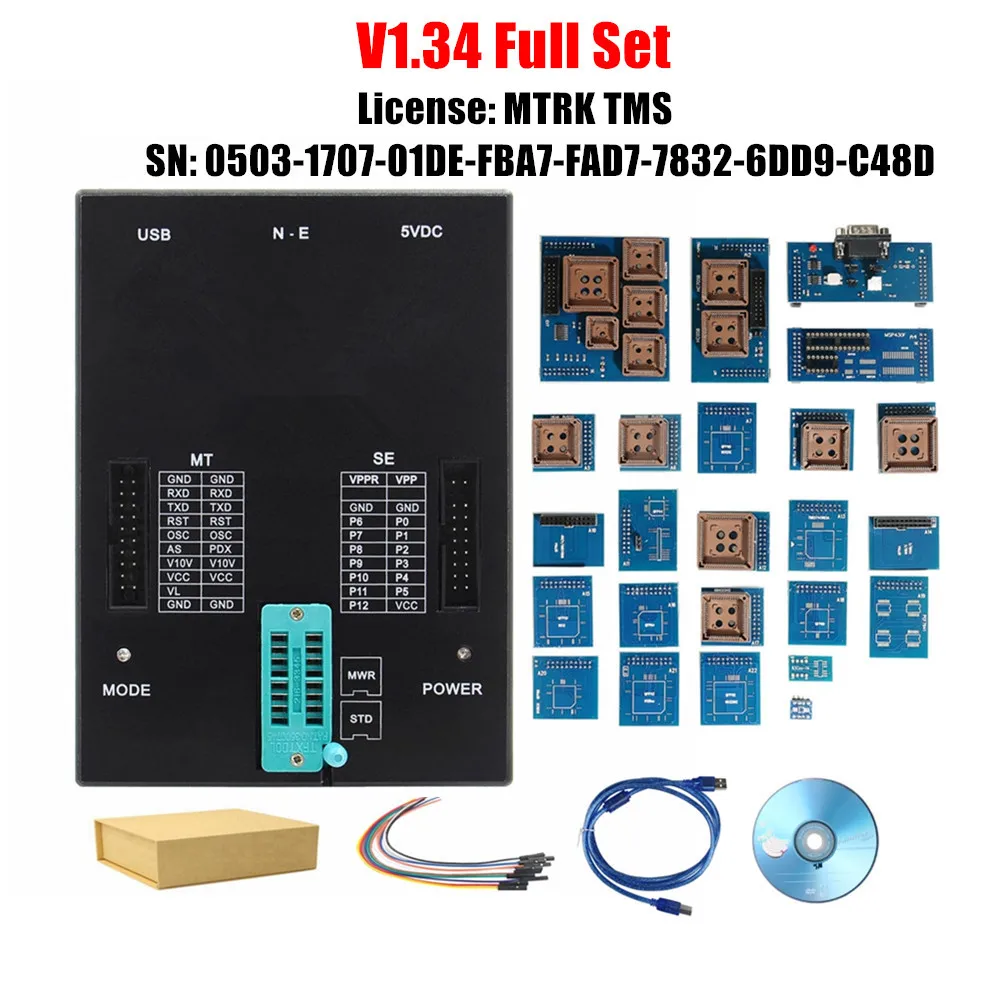

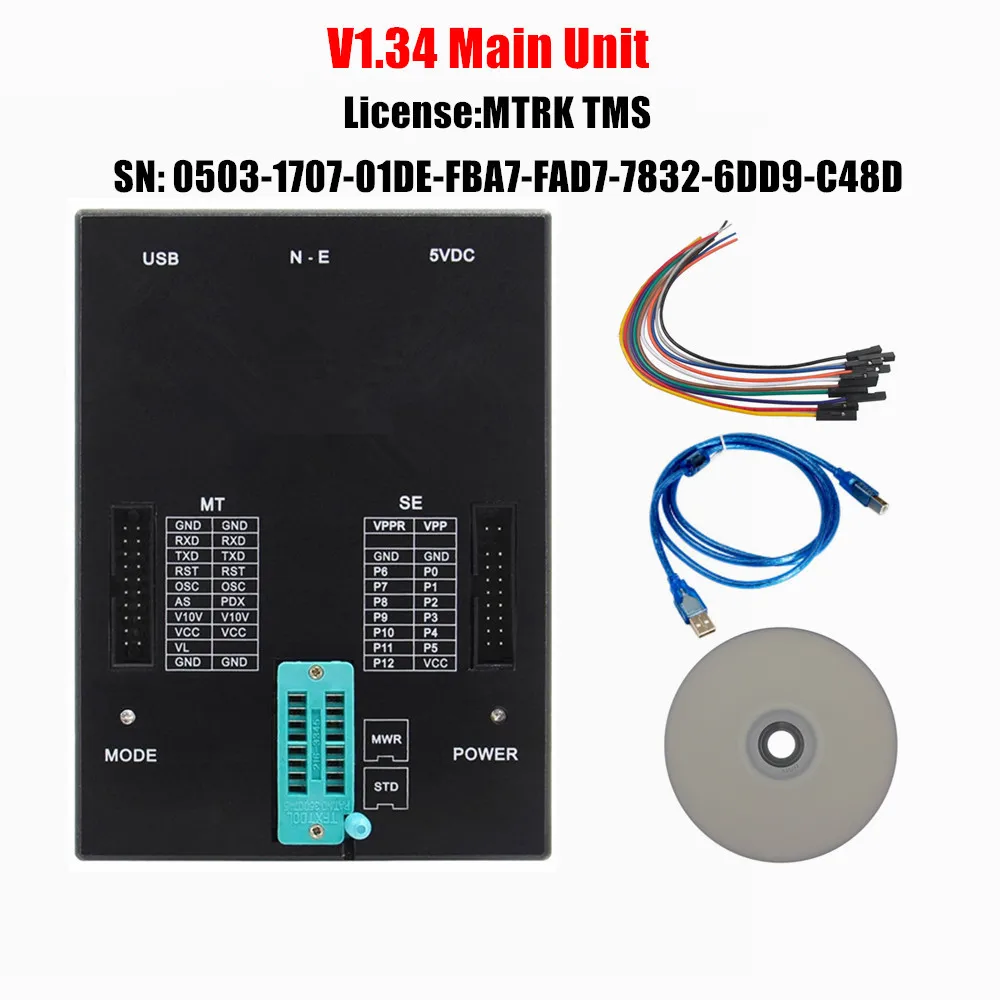

V1.34:

License:MTRK TMS

SN:0503-1707-01DE-FBA7-FAD7-7832-6DD9-C48D

License:MTRK TMS M08V

SN:0503-1508-019C-34A5-E8DE-6327-65D9-A021

Orange5 Plus V1.35 :

Q：What is New Function on this Plus V1.35:

A: Plus V1.35 has added some new authorization. If buyer interest ,please contact us we will send you Full details photos.

Added New Authorization For AIRBAG,CARRADIO,IMMO PIN,CAR MILEAGE,For MOTORBIKE MILEAGE and Mileage For MTRK etc...

Please Pay Attention:

1.The default software version of OEM Orange5 is V1.34, please never try to use higher version or update online, or device will get locked.

2.Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V ,otherwise it will burn, always shows corrupt and kill the board. And Please do not update .

Feature:

1.Supports any COM ports, incuding virtual ones from 1 to 20

2.Works with text (ASCII) and HEX mode

3.Creating a list of commands that allows editing and fast sending

4.Fine-tuning the exchange rate

5.Saving files including command and port settings.

6.Saving incoming data in binary files

7.File transfer via serial port.

8.Delay settings for bytes and blocks

9."Echo" mode

10.Delay settings between incoming data

11.Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

12.Supports Orange5 programmer in emulation mode.

Software Version: V1.34, Software Does not Support Update.

Language: English,Russian

Systems: XP WIN7 WIN8

Description:

Orange 5 programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of m

icro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Software Licenses:

MTRK (Included in Orange-5 base)

TMS (Included in Orange-5 base)

M08V NEW

Immo HPX 9V0

NEC V850ES/SJ3 V850ES/SG3  UART

NEC V850E2 NEW

Orange5 Technical Info:

1. USB power supply (USB2.0/3.0)

2. Universal easy to plug panel ZIF16 for EEPROM

3. Control of contacts in the sockets

4.Two expansions compatible with Orange4 and Omega MTRK

5. Protection against overcurrent

6. Overload voltage protection

7. Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

8. Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

9. High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

10.Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

11. Capability of functional emulation of class CDC USB devices

12. Built-in 32-bit virtual machine

13.Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

14.Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

Orange5 Programmer Chip List:

Immo HPX 9V0

EEPROM:

MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,Mitsubishi,Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,Seiko,Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,Renesas,Samsung,SiLabs,ST,TI,Motorola, Freescale,MC68HC11,MC68HC12

Program with Adapter.

Licenses for M08V, TMS370, Renesas V850 are optional.

For detail chip type model list,pls contact us ,we will send you list link.

Packing List :

1   x Orange 5 Programmer

1   x SOIC8/DIP8 Expert adapter

1   x SSOP8/DIP8

1   x SOIC8/DIP8 adapter

1   x SOIC8_14_93Cxx adapter

1   x Lead 11E9(20) with power

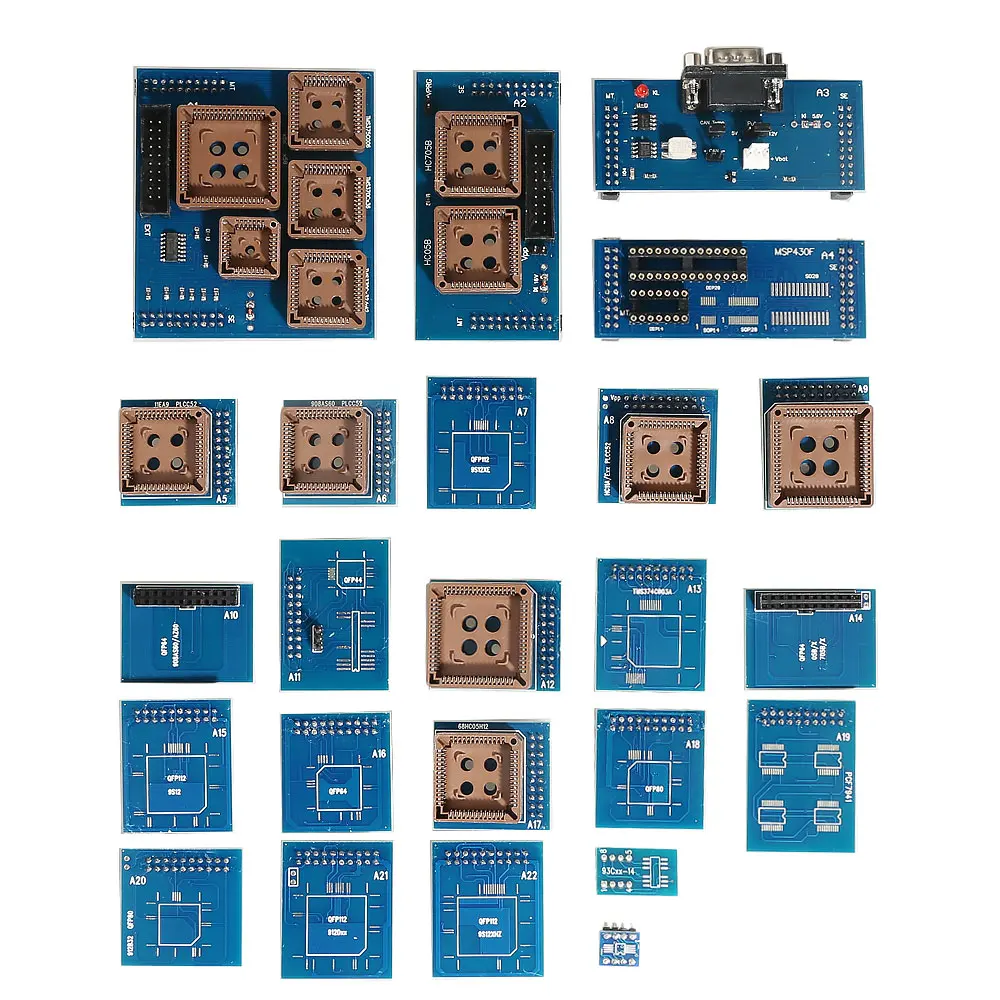

1   x Adapter 05L28/05B

1   x Adapter 908AS60/AZ60 QFP64

1   x Adapter 68HC(7)05P3/E6

1   x Adapter 05B/X_705B/X QFP64 V2

1   x Adapter 11PA8/11E9 QFP64

1   x Adapter 68HC05H12

1   x Adapter 68HC11EA9

1   x Adapter 908AS60

1   x Adapter 9S12Dxx

1   x Adapter 912Dxx

1   x Adapter 9S12X

1   x Adapter 912B32 QFP80

1   x Adapter 68HC11F1

1   x Adapter 68HC11L6

1   x Adapter 68HC11KA4

1   x Adapter 9S12XE

1   x Adapter PCF7941

1   x Adapter TMS374C003A

1   x Adapter MSP430F

1   x Adapter 68HC11KA4 PLCC68

1   x Adapter 908JL

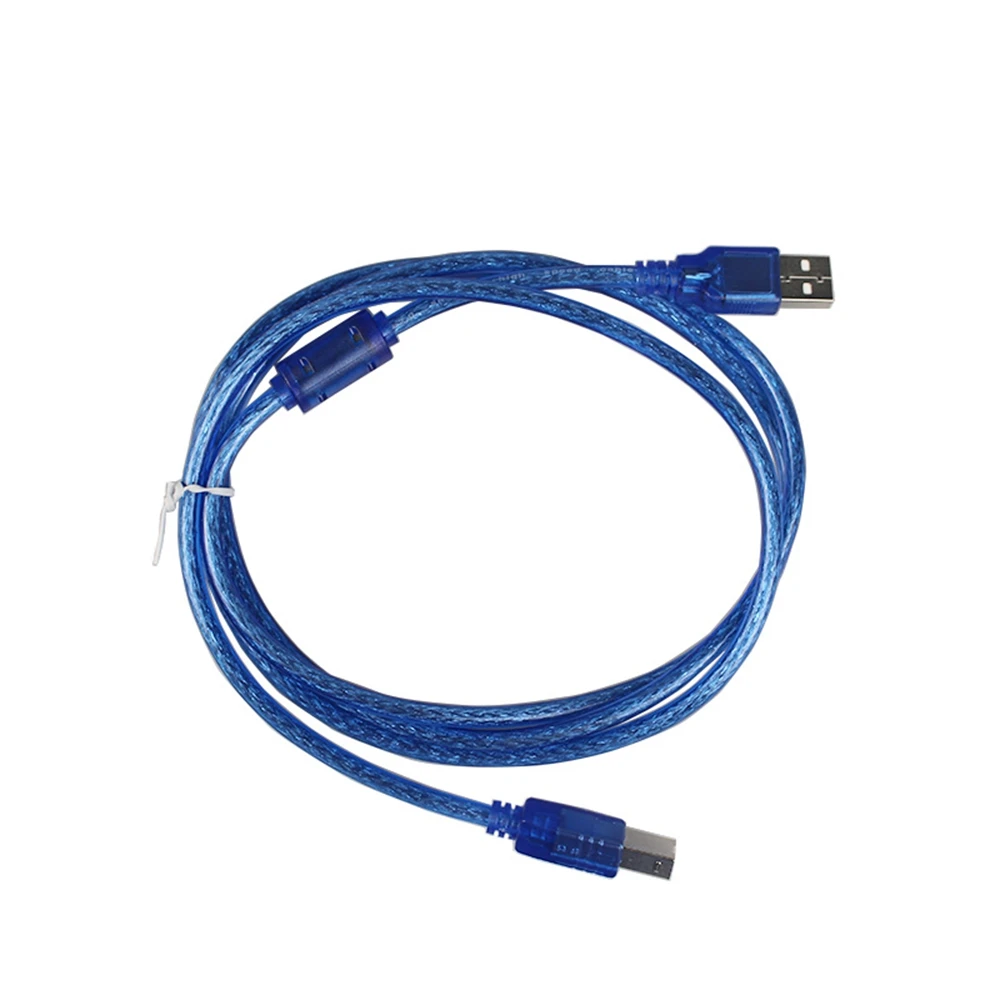

1    x USB cable

10  x Incircuit wire

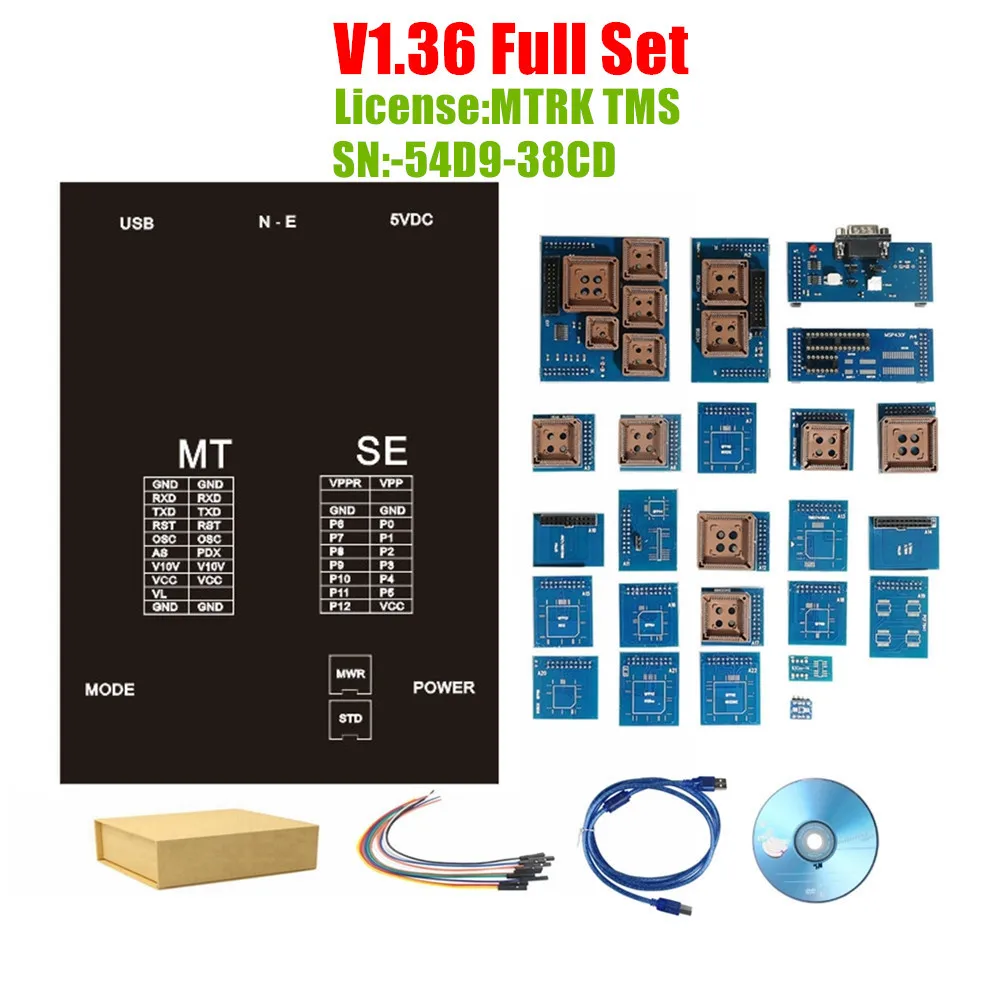

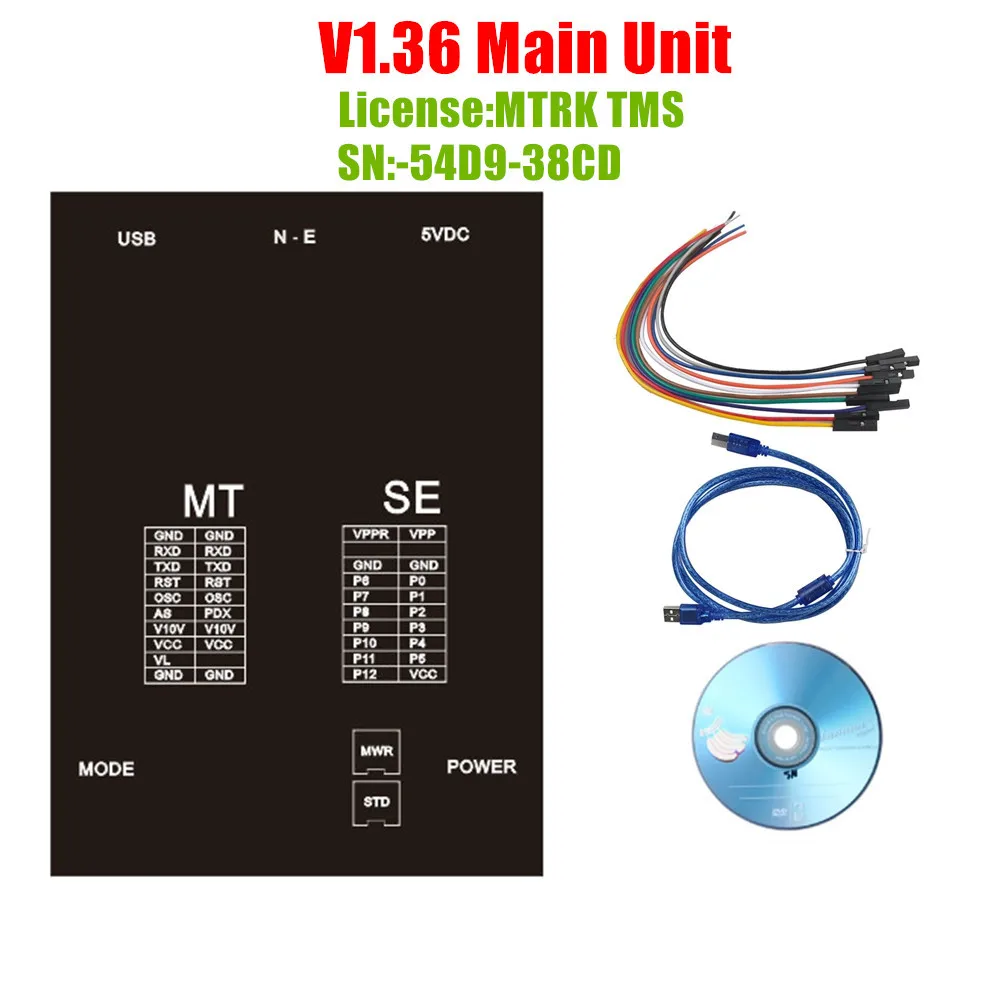

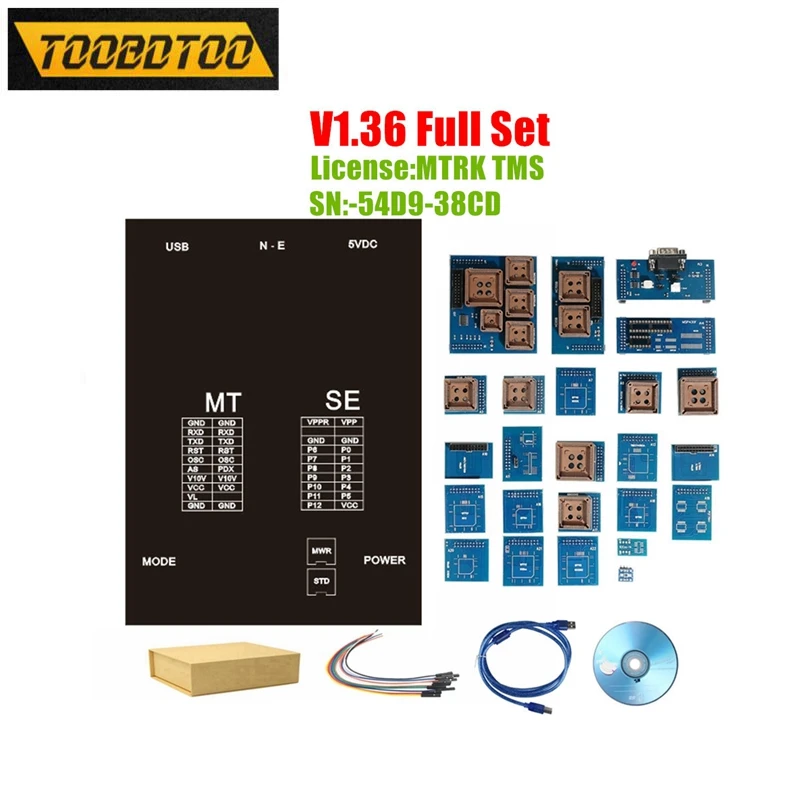

Compared with V1.36 and V1.34, the red is the newly added support function list of V1.36.

License:MTRK T

MS M08V

SN:0503-1508-019C-34A5-E8DE-6327-65D9-A021
