Free Ship MT7628N HiLink Wifi Router Module Support Openwrt With Test Board HLK-7628N

Code: TD-2255801060889247 9 orders
Free Shipping
$ 46.98
Quantity:
Other people want this. 10 people have this in their carts right now.
Brand Name:  bibikoo
Certification:  CE
Certification:  FCC
Certification:  RoHS
Origin:  CN(Origin)
Model Number:  HLK-7628N
Manufacturer:  Hi Link
Chipset:  MT7628N
System:  Openwrt
RAM:  128MB
Flash:  32MB
Work Voltage:  3.3V

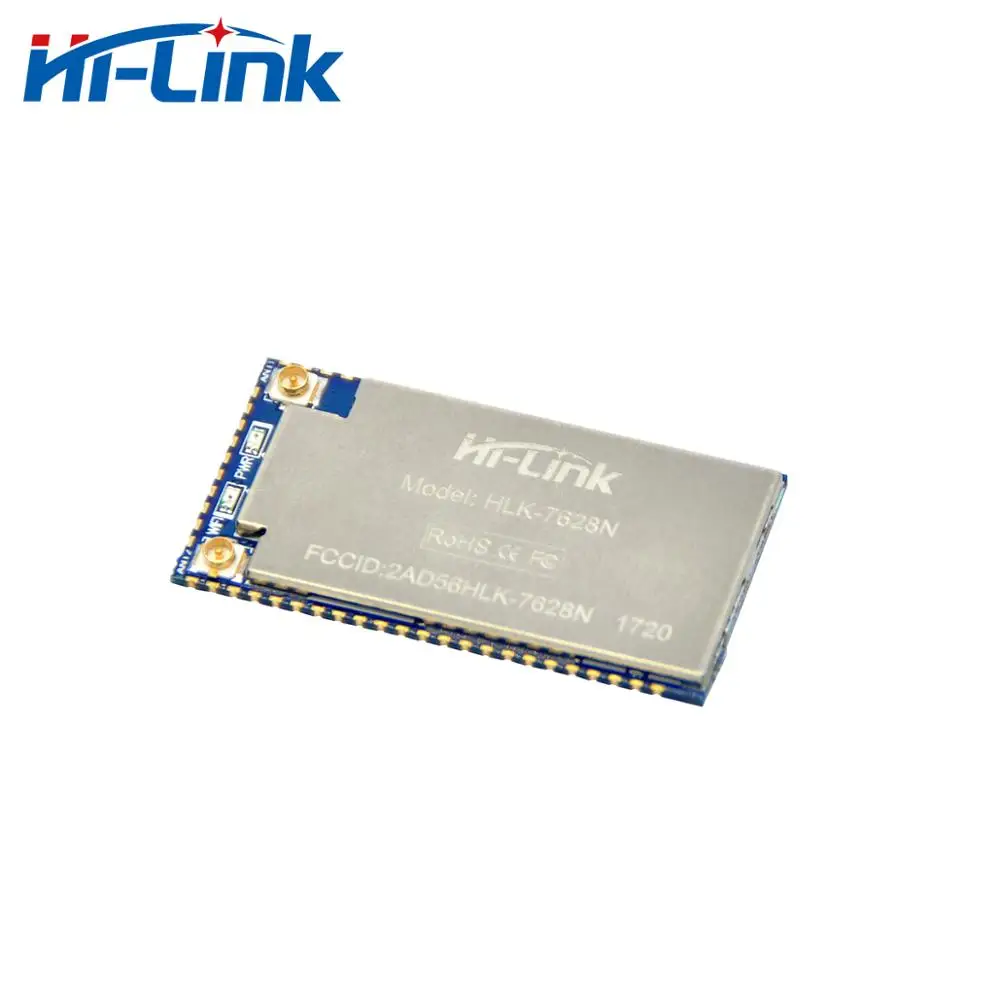

HLK-7628N based onMT7628ANis a low cost and low power consumption IOT module developed by Hi-Link.

This module leads to all the interfaces of MT7628NN,The module supportsOpenWRT operating systemand custom development.

It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors, at the same time ,it also support secondary development.

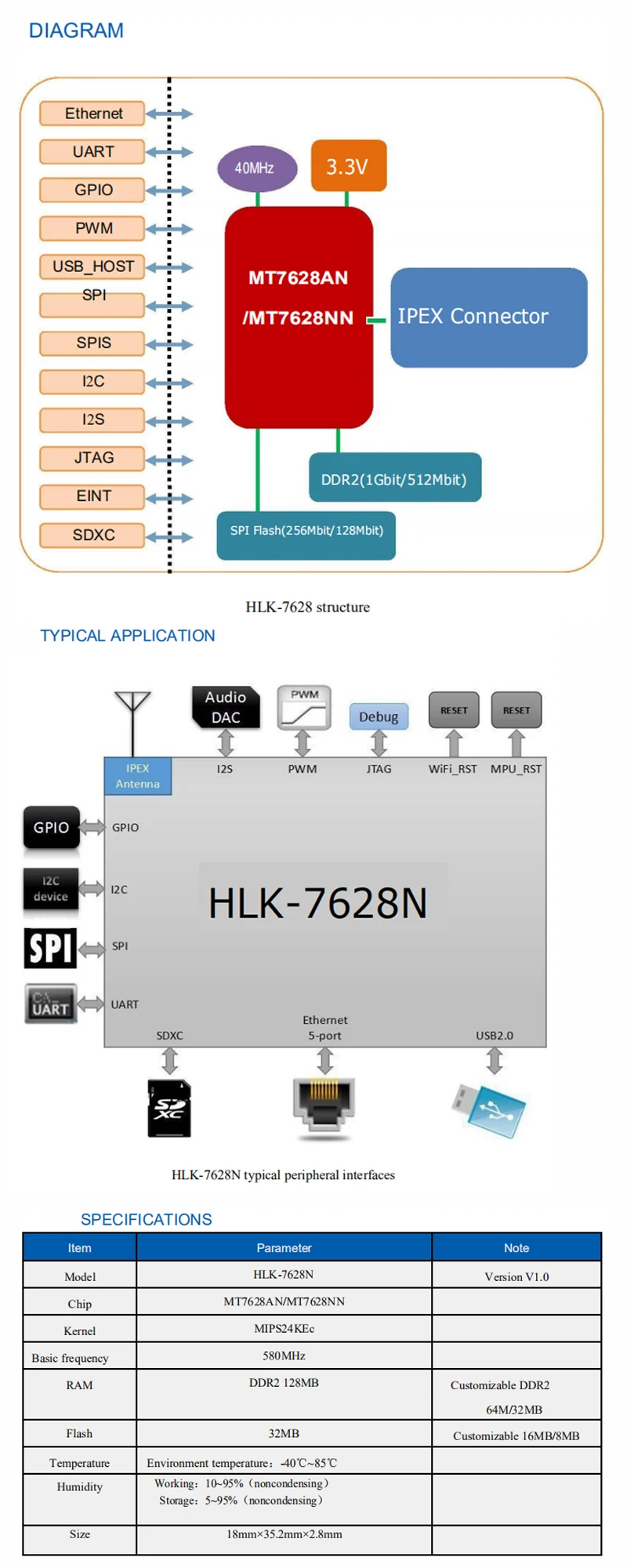

BASIC PARAMETERS

 High data processing ability,MCU frequency 580MHz

300M Mbps

 Support 802.11b/g/n

 20/40 Channel bandwidth

 Support 802.11v

 SupportAP,STA and AP,STAmixed

 Five 10/100M ETH PORT

1 USB2.0 Host interface port

 Interface SPI/SD-XC/eMMC

 Rich peripheral interfaces,SPI,I2C,I2S,PCM,UART,JTAG,GPIO

 Widely used in IOT

 Inbuilt powerful PMU

 Support 16 Multiple BSSID

 Support multiple security methods WEP64/128, TKIP,AES, WPA, WPA2, WAPI

 Support QoS,WMM,WMM-PS

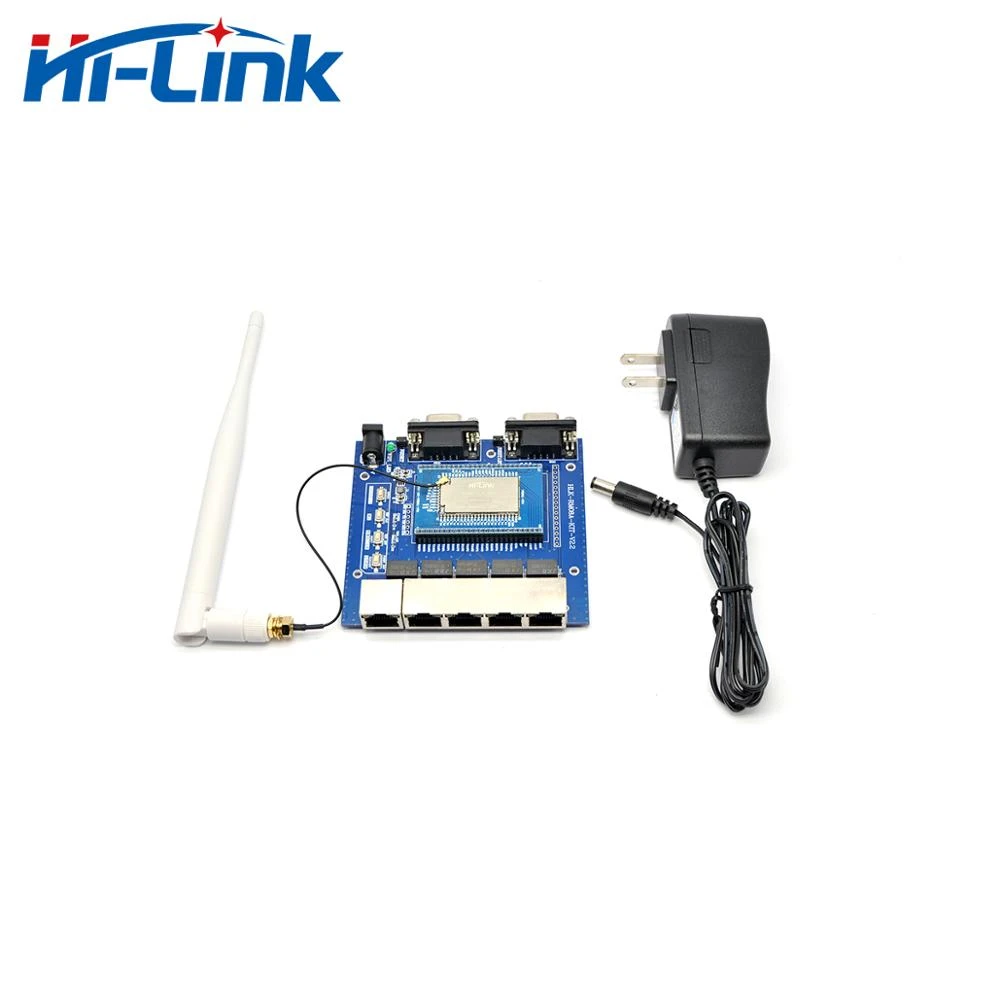

Packing List :

7628N Wifi module * 1

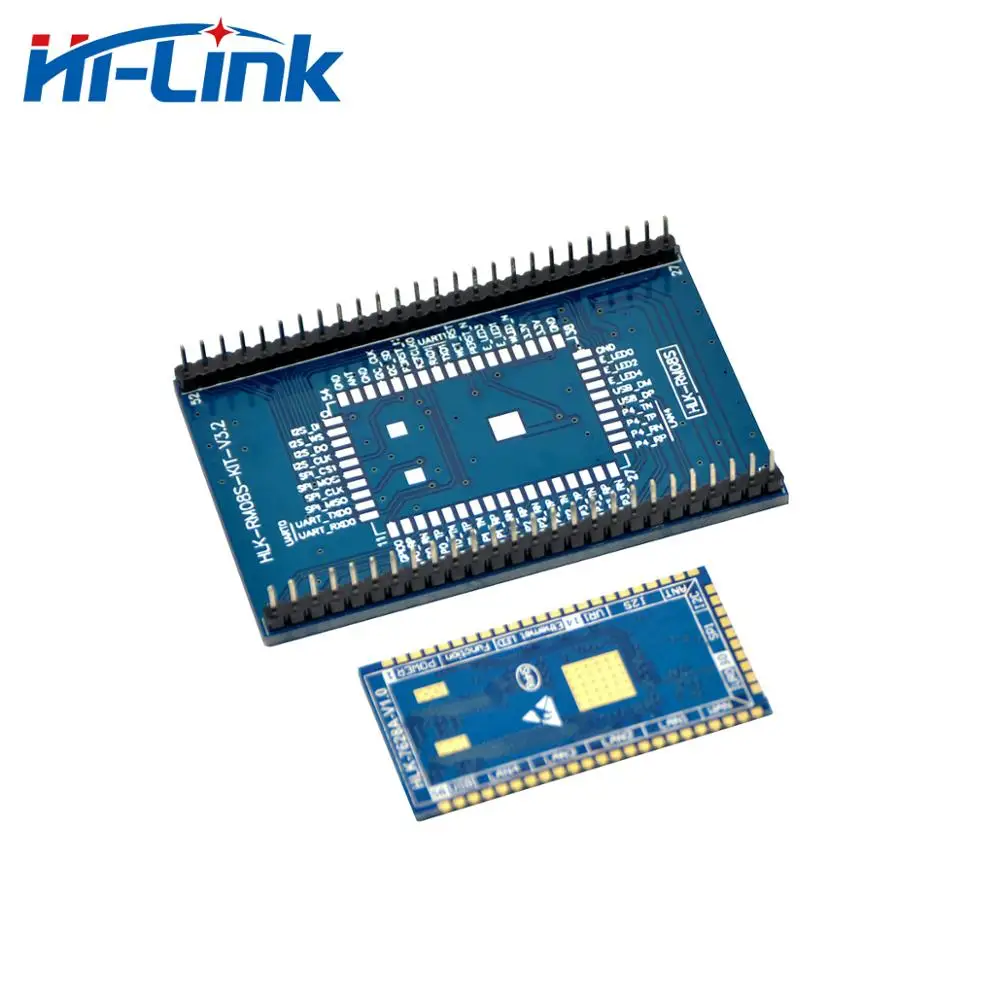

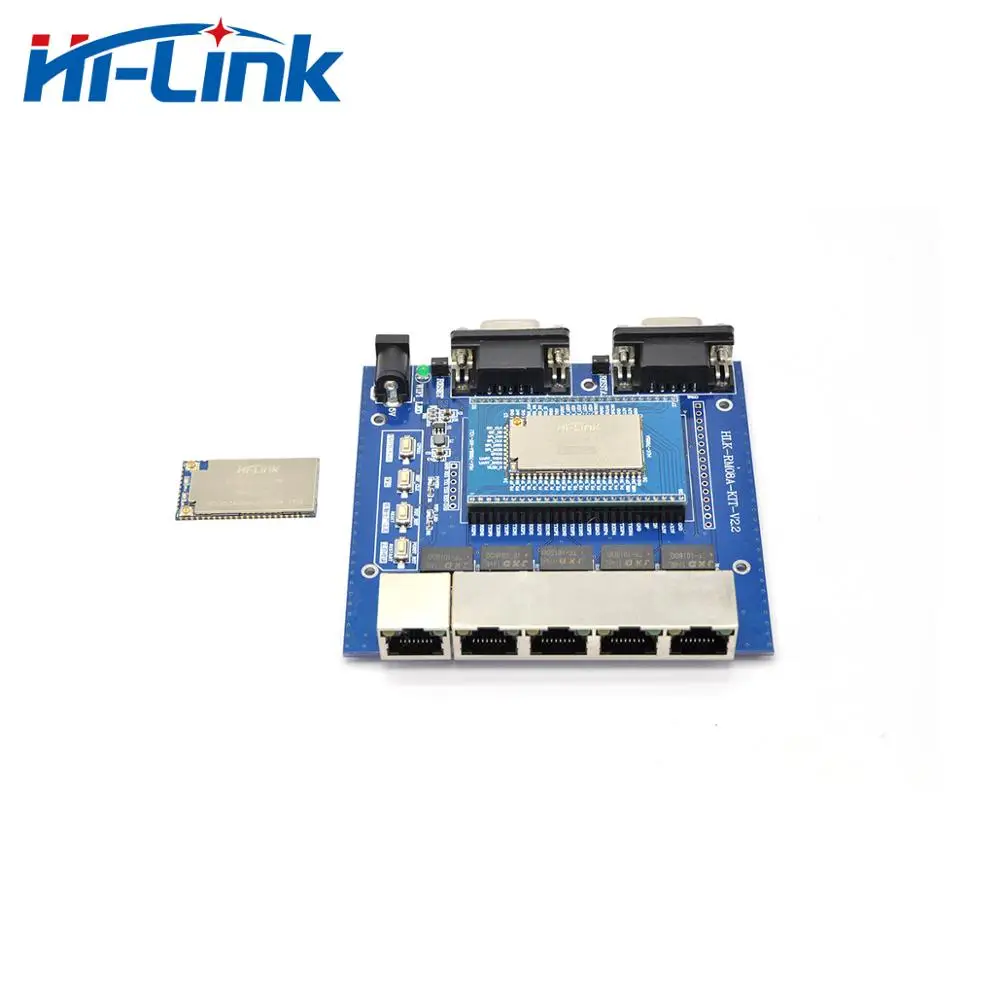

RM08A Base board * 1

5V 1A Power suply * 1

2.4G 6DB-B Antenna * 1

2.4G PCB-B Antenna * 1

TX-15 Connect Cable *1
