1 GigE Gigabit Ethernet HLK-7621 GbE Router module Openwrt Version with MT7621A chipset USB2.0/3.0

Code: TD-2255801086025909 6 orders
Free Shipping
$ 49.67
Quantity:
Other people want this. 19 people have this in their carts right now.
Brand Name:  bibikoo
Origin:  CN(Origin)
Certification:  NONE
Model Number:  HLK-7621
Manufacturer:  Hi-Link
Size:  50*50*3mm
Chipset:  MT7621A
Operating system:  OpenWrt
Flash:  32MB
RAM:  DDR2/3 256MB
Operating mode:  Router
Network protocol:  TCP/UDP
USB interface:  USB2.0/3.0

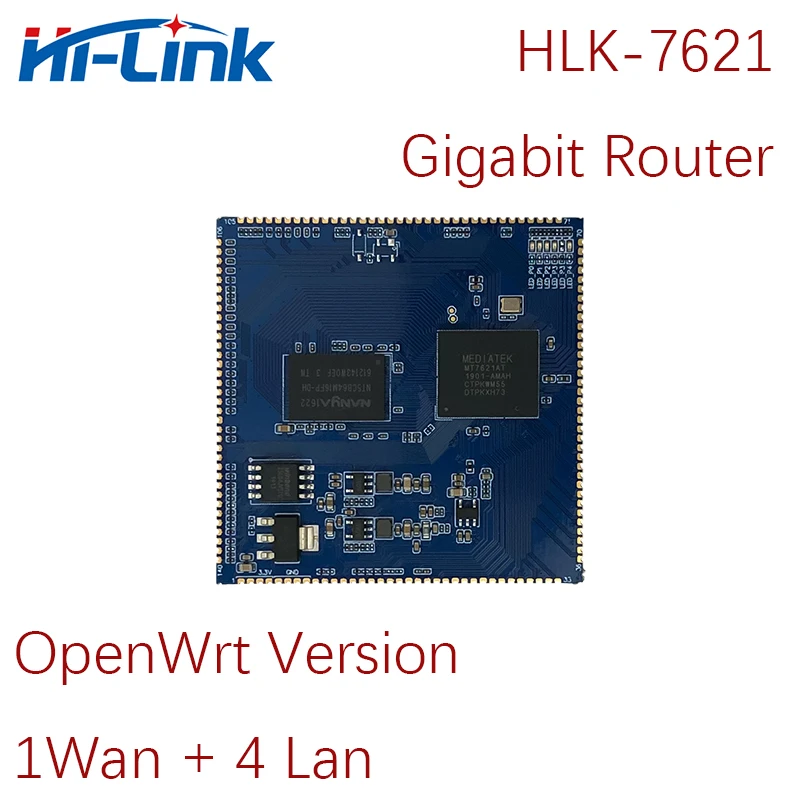

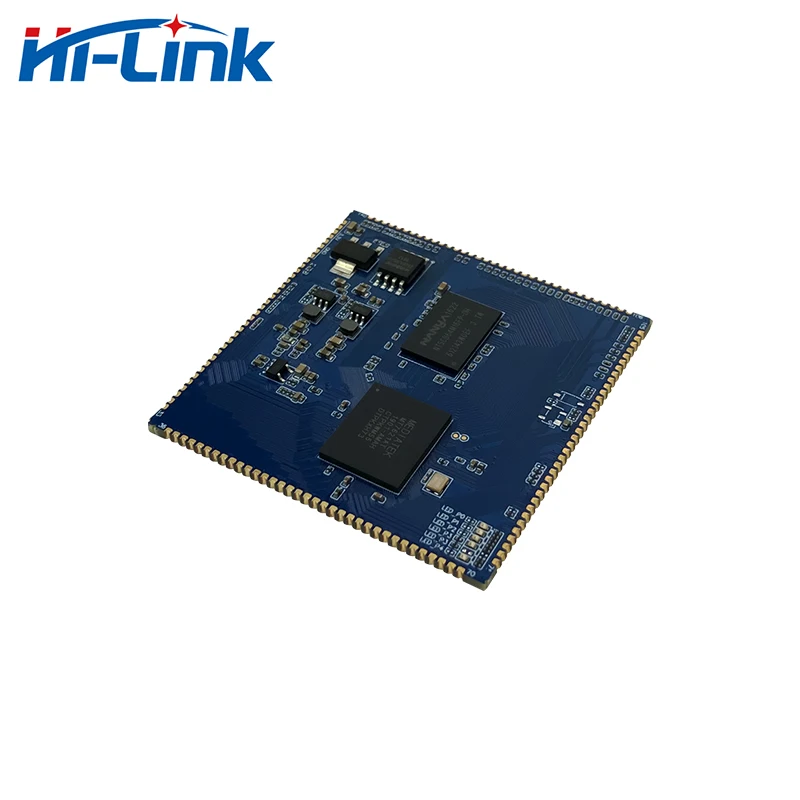

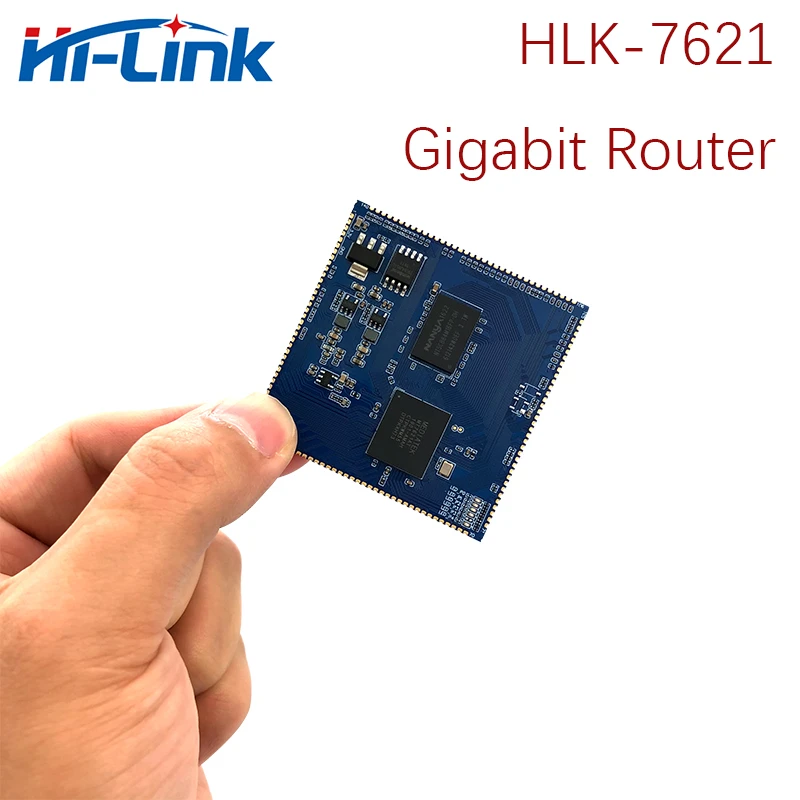

1 GigE Gigabit Ethernet HLK-7621 GbE Router module Openwrt Version with MT7621A chipset USB2.0/3.0

The HLK-7621A module use the

MT7621A chipset

.

The MT7621A integrates aual-core MIPS-1004Kc(880MHz), HNAT/HQoS/Samba/VPN accelerators,

5-port

GbE switch, RGMII,

USB3.0, USB2.0

, 3xPCIe, SD-XC.

The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (

Access Control

).

It can also connect to touch-panel,

ZigBee/Z-Wave

for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.

Features

1.Embedded MIPS1004Kc (

880 MHz, Dual-Core

)

   32 KB I-Cache and 32 KB D-Cache per core

   256 KB L2 Cache (shared by Dual-Core)

   SMP capable

   Single processor operation configurable

2.Gigabit Switch

5 ports

with full-line rate

5-port 10/100/1000Mbps

MDI transceivers

3.One RGMII/MII interface

4.

16-bit DDR2/3 up to 256/512 Mbytes

5.SPI(2 chip select), NAND Flash(SLC), SDXC,eMMC(4 bits)

6.USB3 x 1+ USB2 x 1 or USB2 x 2 (all host)

7.PCIe host x 3

8.I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO

9.VoIP support (

I2S, PCM

)

10.Audio interface (SPDIF-Tx, I2S, PCM)

11.Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC

12.HW storage accelerator

13.HW NAT

    2Gbps wired speed

    L2 bridge

    IPv4 routing, NAT, NAPT

    IPv6 routing, DS-Lite, 6RD, 6to4

14.HW QoS

   16 hardware queues to guarantee the min/max bandwidth of each flow.

   Seamlessly co-work with HW NAT engine.

   2Gbps wired speed.

15.HW Crypto

16.Deliver

400~500 Mbps

IPSec throughput

17.Green

    Intelligent Clock Scaling (exclusive)

    DDR2/3: ODT off, Self-refresh mode

18.Firmware: Linux 2.6 SDK,

OpenWRT

19.RGMII iNIC Driver: Linux 2.4/2.6

About US :

Shenzhen HiLink Electronics Co., Ltd

Established: September 2009

Scope of business: Specialized in R&D, production, and sales of Smart WIFI modules.

Product : UART WIFI modules,USB WIFI modules, router modules,mini power supply modules.

Application: Suitable for all smart control applications.

Our Services & Strength

1.We are the manufacturer . Can offer bottom price .

2.We only sell what we developed , can offer technical support for each items .

3.11 years of export experience
