Brand Name: | bibikoo |
---|---|
Certification: | NONE |
Origin: | CN(Origin) |
Model Number: | HLK-5D2412 |
Manufacturer: | Hi-Link |
Size: | 25.4*25.4*11mm |
Input: | 18-36V |
Output Data: | 5W 12V 420mA |
Warranty: | 1 year |
Weight: | 13g/pcs |
Hi-Link 12V 2.5A output dc dc power supplies 9-36V Input HLK-30D2412C 91% efficiency isolated dc dc power module
USD 7.88/piece
Free Ship 5pcs/lot MT7628N HLK-7628N Wireless Router module with 2 Antennas OpenWrt Version
USD 85.50/lot
Free Ship BLE 5.1 Bluetooth module HLK-B40 Master-Slave serial port transmission
USD 14.50/set
Free ship 10pcs*HLK-PM01 Hi-Link 3W 5V 600mA output AC DC switch/ac to dc transformer
USD 23.50/lot
Free Ship GbE Gigabit Ethernet Router module HLK-7621 Start Kit/Development board MT7621A chipset
USD 32.50/piece
Free Ship 2set/lot MT7688AN HLK-7688A Openwrt Router wifi module Start kit/Development board
USD 43.60/lot
AC to DC 5v 2A 10W Hi Link converter switching power supply pcb mounted Free Ship 10pcs/lot
USD 26.99/lot
Free Ship Wireless 4G Router module Portable Gateway with MT7688AN/MT7628 Chipset EC25 4G Chipset
USD 72.50/piece

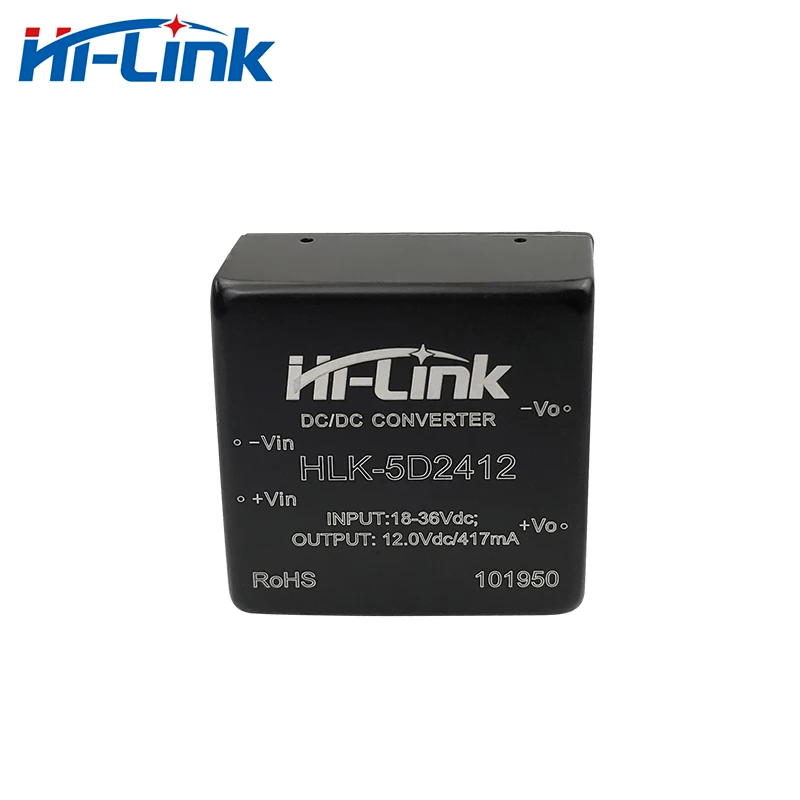

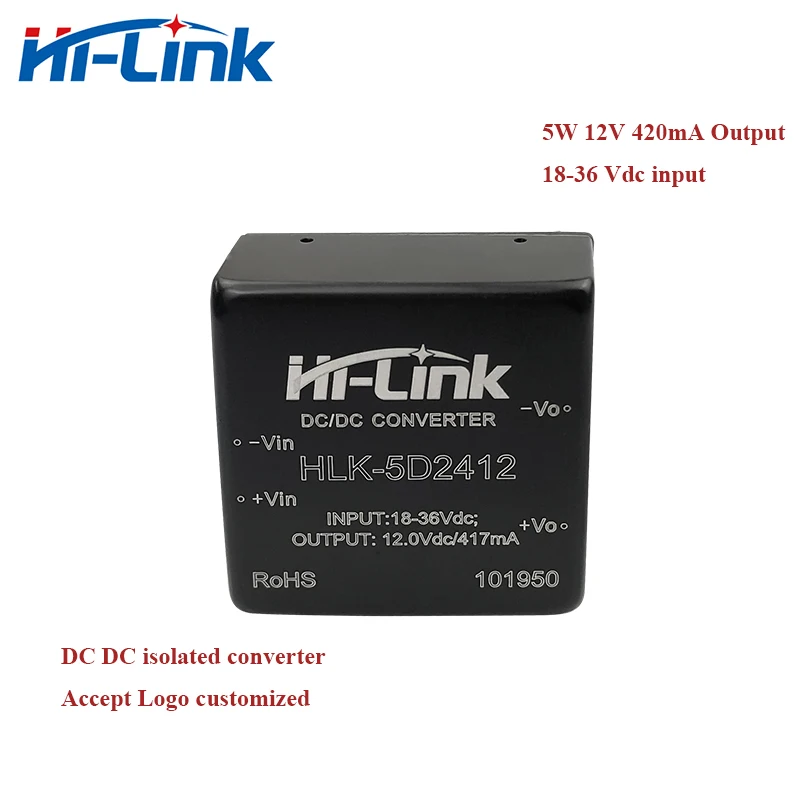

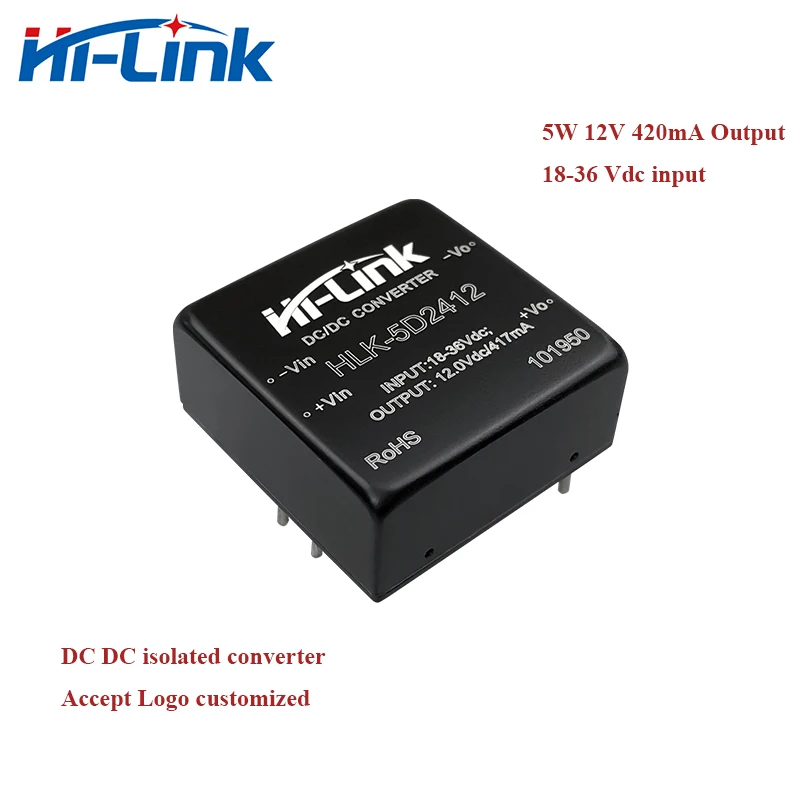

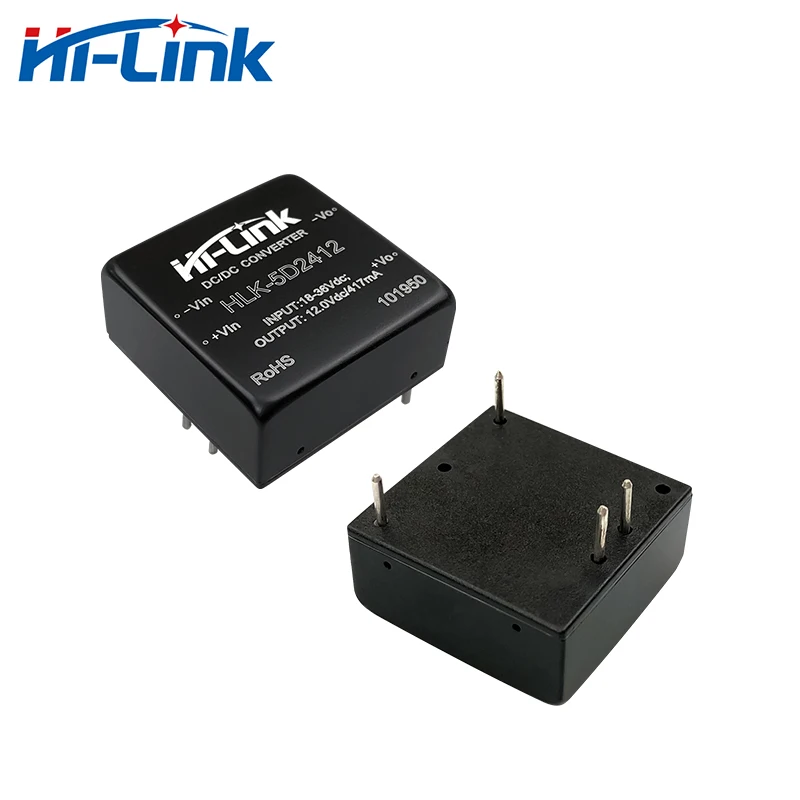

DC DC isolated power supply module 18-36V to 12V 420mA output HLK-5D2412 2pcs/lot FREE SHIP
5W DC-DC series power module is a small size converter,
2:1 wide voltag
e input range,
efficiency up to 84%
.
1500VDC conventional isolation voltage
, allowable operating temperature -40°C to +85°C, with output over-voltage,
over-current, short circuit Protection
functions.
Widely used in medical, industrial control, electric power, instrumentation, communications, railway and other fields.

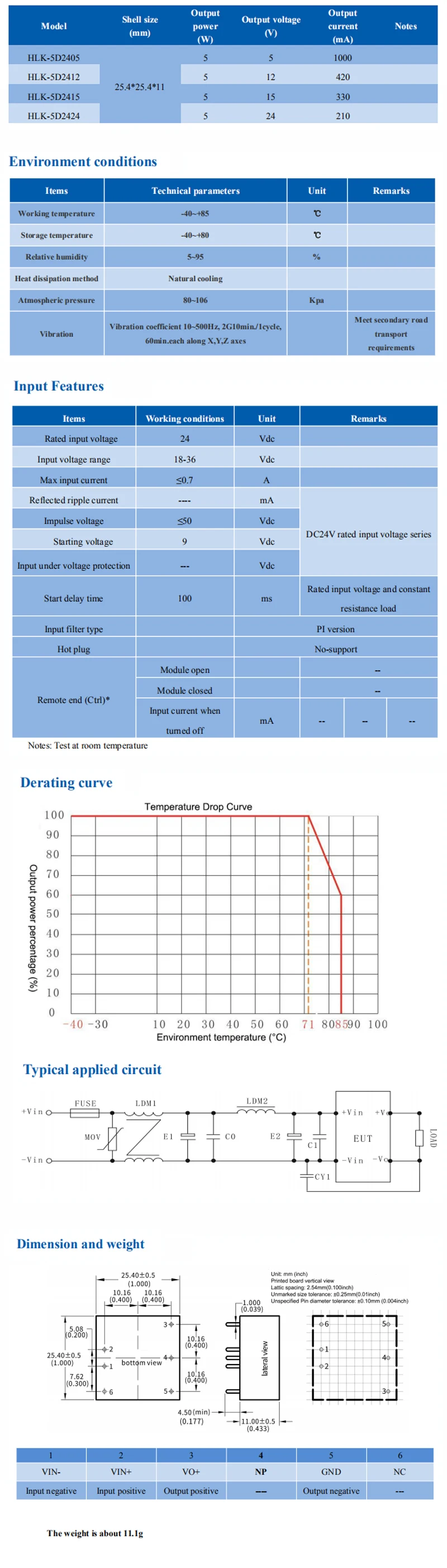

Product features
1. Ultra wide range input (
2:1
), output 5W
2. Conversion efficiency:
84% (Typ)
3.
Isolation voltage: 1500Vdc
4. Ultra low standby power consumption: 0.3W (typical)
5. Ultra fast start: 100mS (typical)
6. Operating temperature range: -40 ° C ~ +85 ° C
7. Output protection:
short circuit protection, over current protection, over voltage protection
8. Metal case, low output ripple
9. International standard pin, PCB board in-line installation
10. It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dust proof IP65.
11. High reliability, long life design, long continuous working time
Shenzhen HiLink Electronics Co., Ltd
Established: September 2009
Scope of business: Specialized in R&D, production, and sales of Smart WIFI modules.
Product : UART WIFI modules,USB WIFI modules, router modules,mini power supply modules.
Application: Suitable for all smart control applications.
