Brand Name: | bibikoo |
---|---|
Certification: | CE |
Certification: | FCC |
Origin: | CN(Origin) |
Model Number: | HLK-B40 |
Manufacturer: | Hi Link |
Baud rate: | up to 921600 |
Module Size: | 14*9.5*2mm |
Wide working voltage: | 1.8-4.2V |
Standard: | BLE5.1 |
Chipset: | FR8016HA |
Frimware Upgrade: | Serial ports/OTA Uograde |
Hi-Link 12V 2.5A output dc dc power supplies 9-36V Input HLK-30D2412C 91% efficiency isolated dc dc power module
USD 7.88/piece
Free Ship 5pcs/lot MT7628N HLK-7628N Wireless Router module with 2 Antennas OpenWrt Version
USD 85.50/lot
Free Ship BLE 5.1 Bluetooth module HLK-B40 Master-Slave serial port transmission
USD 14.50/set
Free ship 10pcs*HLK-PM01 Hi-Link 3W 5V 600mA output AC DC switch/ac to dc transformer
USD 23.50/lot
Free Ship GbE Gigabit Ethernet Router module HLK-7621 Start Kit/Development board MT7621A chipset
USD 32.50/piece
Free Ship 2set/lot MT7688AN HLK-7688A Openwrt Router wifi module Start kit/Development board
USD 43.60/lot
AC to DC 5v 2A 10W Hi Link converter switching power supply pcb mounted Free Ship 10pcs/lot
USD 26.99/lot
Free Ship Wireless 4G Router module Portable Gateway with MT7688AN/MT7628 Chipset EC25 4G Chipset
USD 72.50/piece
Free Ship 3pcs/lot BLE 5.1 HLK-B40 Master and slave Bluetooth module can revise UUID

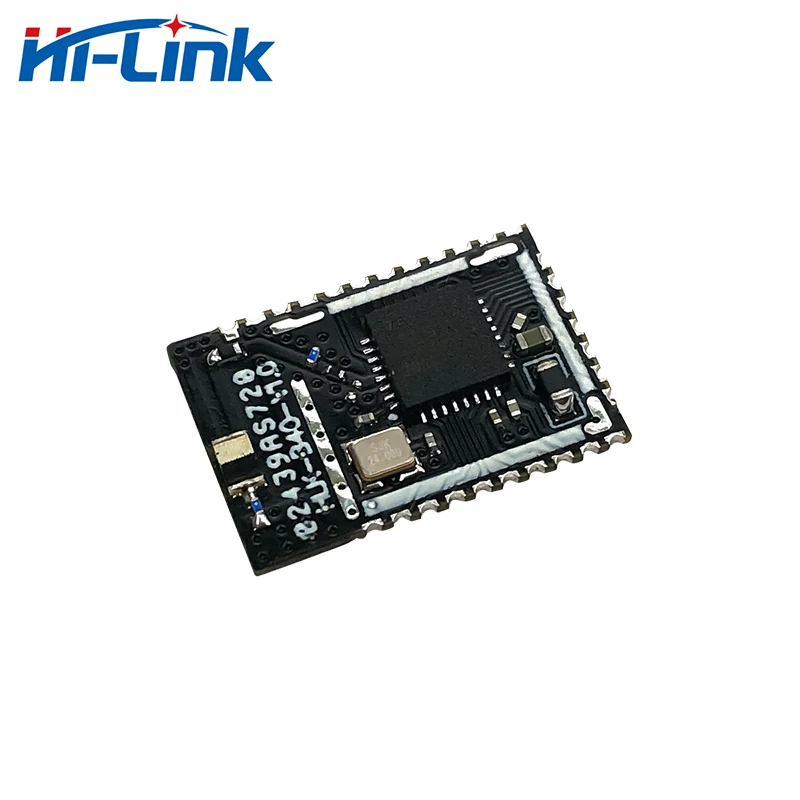

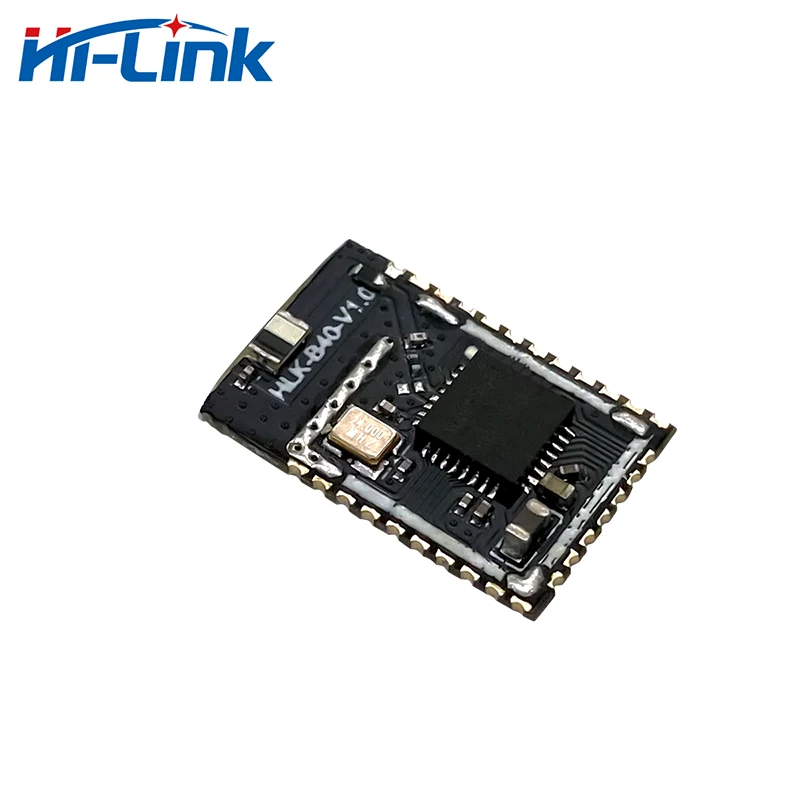

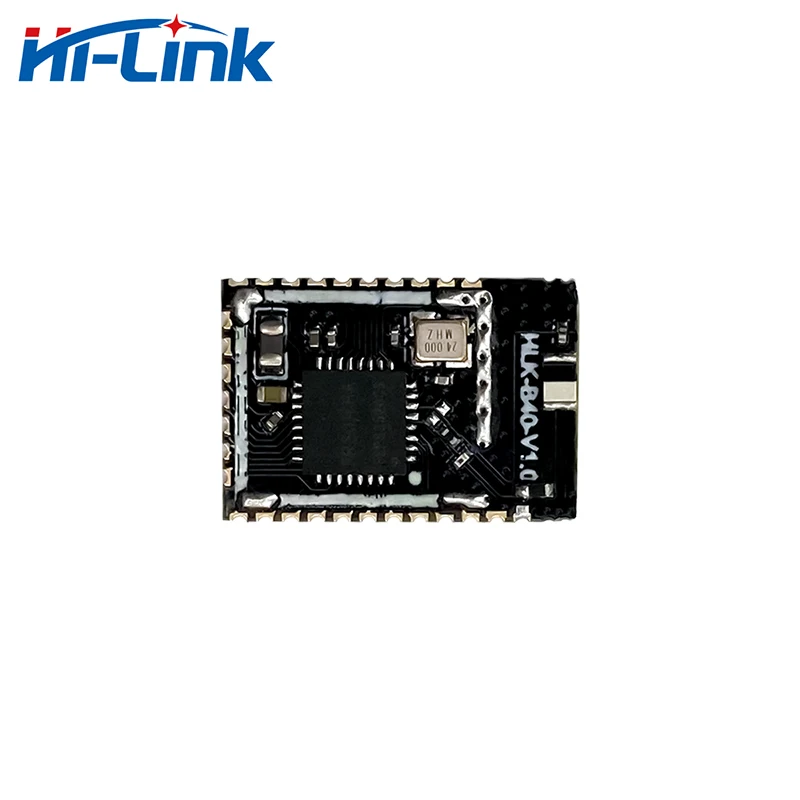

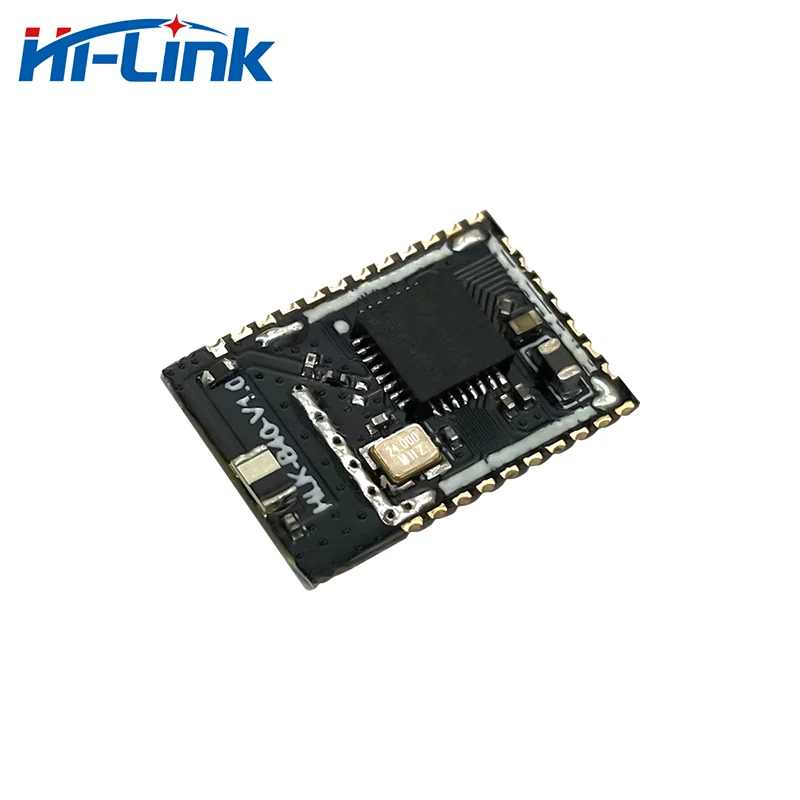

HLK-B40 is a kind of Master-Slave serial port transmission Bluetooth module based on
BLE5.1
All kinds of devices with serial port can use Bluetooth wireless to send and receive data simply and quickly through this module.
The basic functions and features are as follows:
Main frequency 48MHz, 32-bit ARM Cortex M3 core
Fast and stable Bluetooth-serial port transmission,serial port rate up to
921600
Master-to-one Bluetooth
, which can be set to host orslave mode,supports binding encryption
Bluetooth from the machine mode can be connected by
up to 20 host devices
at the same time, supporting custom broadcast data
Based on BLE5.1, it is faster and has a longer transmission distance and can
reach 40 to 100 m in an open environment
Supportslow-power modes,
sleep currents of up to6 μA
and custom connection and broadcast intervals
Bluetooth transmit power can be adjusted up to 10dBm and receives up to -95dBm
Support for OTA Bluetooth wireless upgrade module firmware, wireless configuration module parameters
The default on-board high-quality ceramic antenna increases the transmission distance and includes an external antenna
Built-in Watchdog, Long and reliable operation time
Ultrasmall size
14mm×9.5mm×2mm
Wide operating voltage 1.8 to 4.2V,
typical 3.3V
Rich output pins (UART, I2C, SPI, up to 15 GPIOs, up to 4 ADCs, up to 6 PWMs) provide flexible and in-depth hardware and software custom development services
Packing List :
B40 Module * 5
The principle of transmission
HLK-B40 is a cost-effective Master-slave integrated Bluetooth transparent transmission module introduced by Hi-Link, designed to enable only serial user devices to quickly and easily use Bluetooth for wireless transmission, with the help of serial transmission, users do not need to care about complex Bluetooth protocol stack and RFcircuit, just a simple serial port transmission, data can be transmitted directly on the Bluetooth wireless connection.
Transmission is short for transparent transmission, means the role of the module is equivalent to the serial port and Bluetooth connection between the establishment of a transparent transmission pipeline, the user in the serial port issued data will be forwarded to the device connected through Bluetooth, data sent through Bluetooth will also be forwarded to the serial port, the entire process users do not need to care about complex Bluetooth connection how to achieve, HLK-B40 module from beginning to end is only the original data transfer and transmission of data without the user's convenience and transmission.

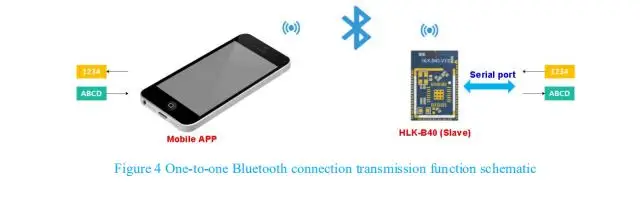

The principle schematic of the Bluetooth-serial port transmission function is as follows :

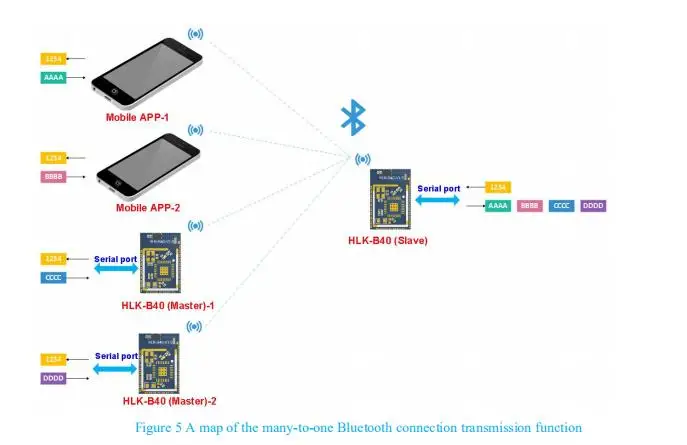

This module can be connected by multiple Bluetooth host devices when acting as a Bluetooth accessor, including other B40 modules as hosts.
Under a multi-to-one connection, the data received from the serial port of the machine module is forwarded via Bluetooth to each connected host device, each Data from connected host devices is also forwarded to the serial port from the machine module.

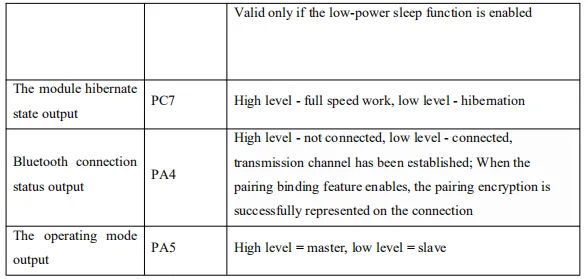

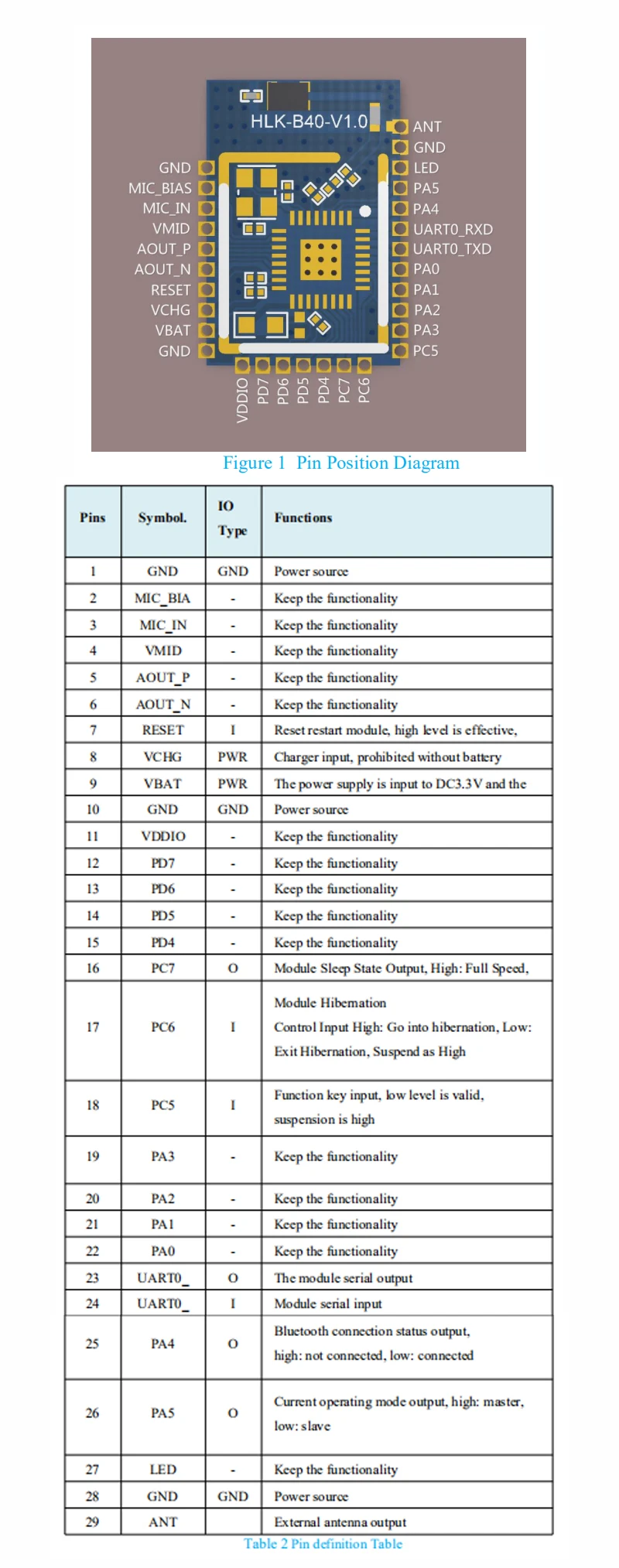

Description of the input and output pin functions
Contact me please if you need the full document of it .
