AMP HIFI power amplifier 2.0 channel 160W + 160W FM711 line pure rear power-amplifier small amplifier Audio Amplifier Boards

Code: TD-4000185646760
Free Shipping
$ 1183.54 $ 1533.58
Color:
Type A
Type B
Voltage (V):
115V
230V
Note

Quantity:
Other people want this. 18 people have this in their carts right now.
Brand Name:  Fire Crew
Certification:  CE
Origin:  CN(Origin)
Maximum Power Per Channel:  131-200W
Model Number:  F7
Package:  Yes
Channels:  2 (2.0)

FM711 original parameter core line

Independent 2-channel pure post-stage design in the machine, Preamp matching is more flexible, and interference is less

Beyond the layout of the original machine, the whole machine is super stable without any noise

16 new test paired gold-sealed tubes 2N3440/5416 new original long feet. 2000 per test. The test is paired with a set of 20 output tubes, the original brand new Toshiba 5200, you need to choose among thousands. Each large tube is connected in parallel with a wima capacitor and a decoupling capacitor.

800w high quality Nippon Steel iron core transformer, independent winding for left and right channels

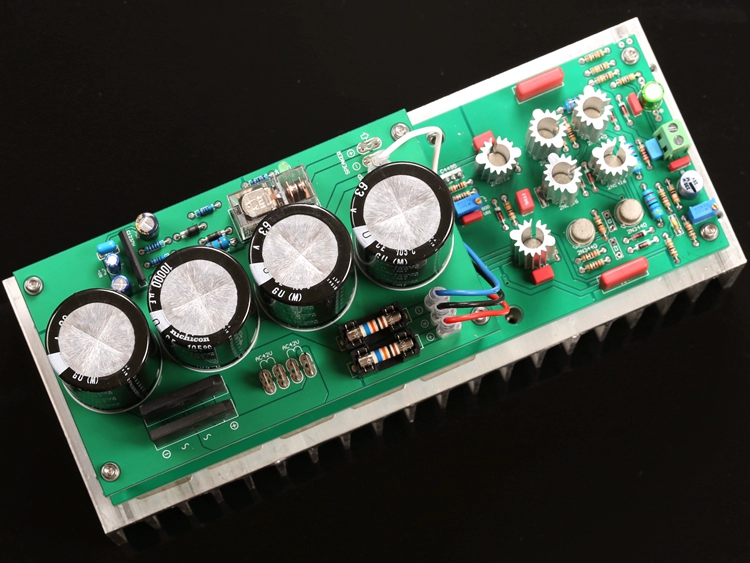

80000uF ELNA AUDIO high reliability capacitor

Start soft start and perfect speaker protection circuit

CNC precision CNC machine tool processing all aluminum chassis 430*130*315mm

Whole machine weight: 16KG

AP test data indicators are very high, see the following test chart:

Output power: 150w/8 ohms, 300W/4 ohms RMS power, long-term stable output at full power

Output midpoint: 1mV

Output noise: 0.05mV super low, the lowest among our power amplifiers

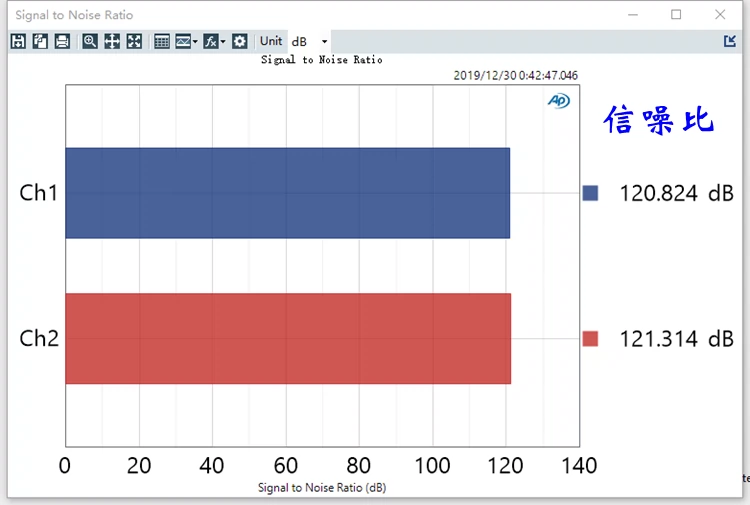

Signal to noise ratio: 120dB

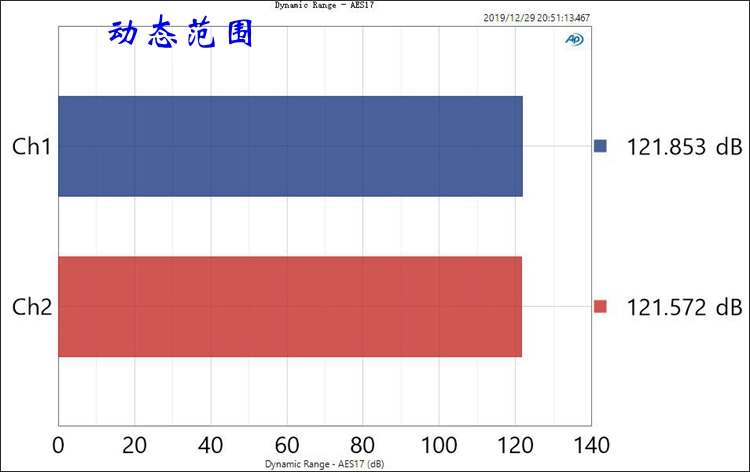

Dynamic range: 121dB

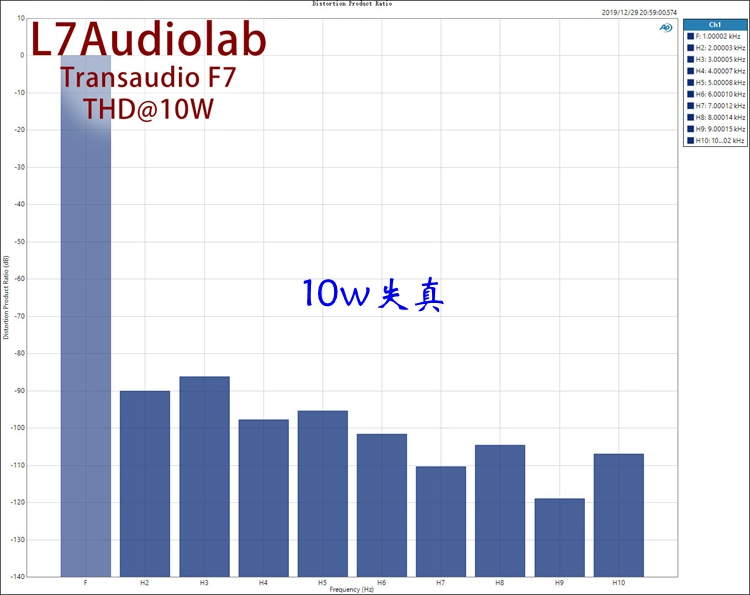

Distortion: 0.005%

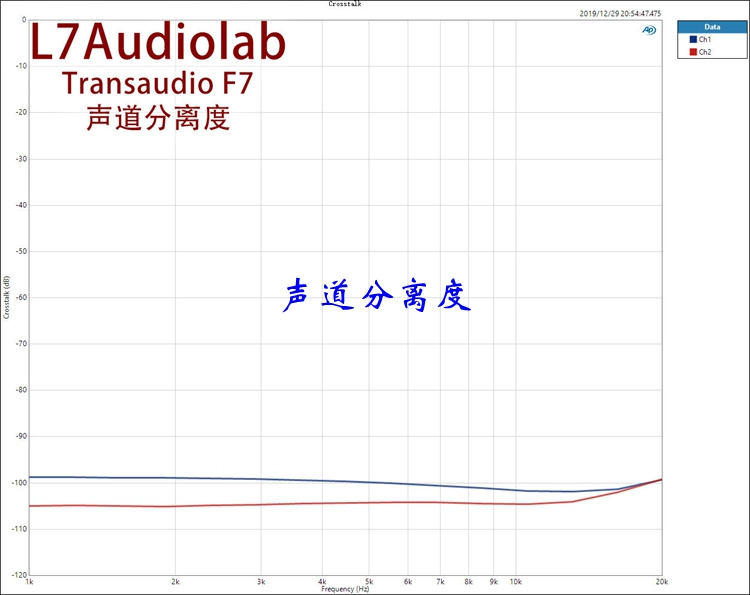

Channel separation: 100dB

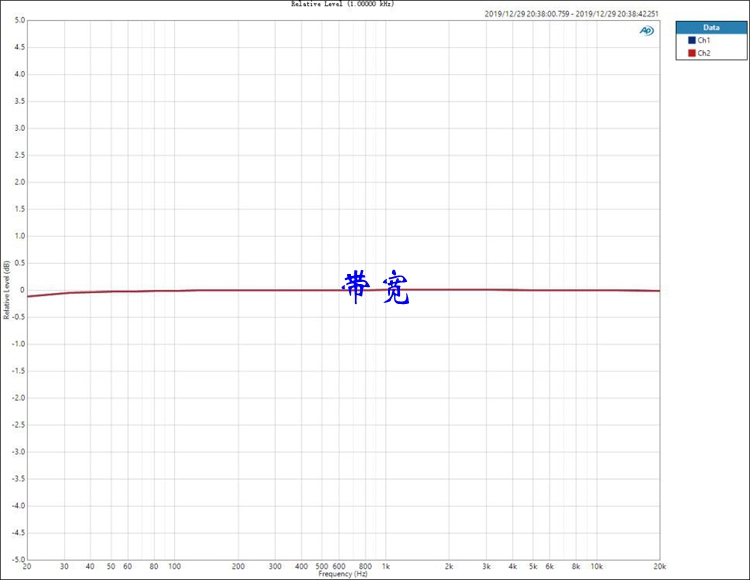

Bandwidth: 5-50kHz

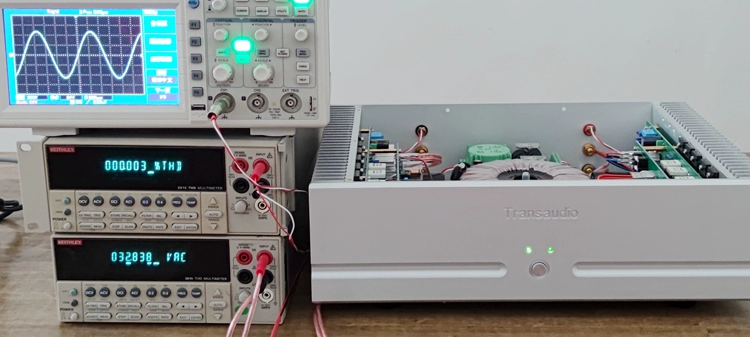

The ultra-low distortion of this machine is tested on every machine. When the output is 32.8v (with 8 ohm load, output 135w), the distortion is 0.003%

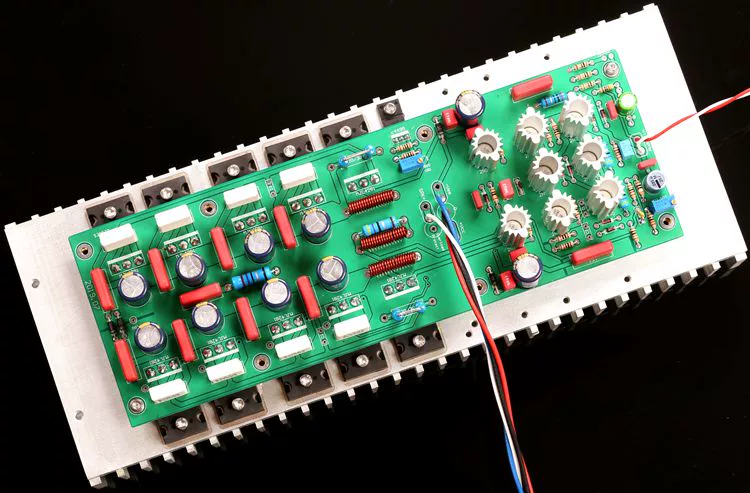

Each large tube is connected in parallel with a decoupling electrodeless capacitor and a decoupling electrolytic capacitor:

Output power: (with 8 ohm load), at this time, it can output RMS 36.7v undistorted voltage, 8 ohm 150w, see the following figur

:

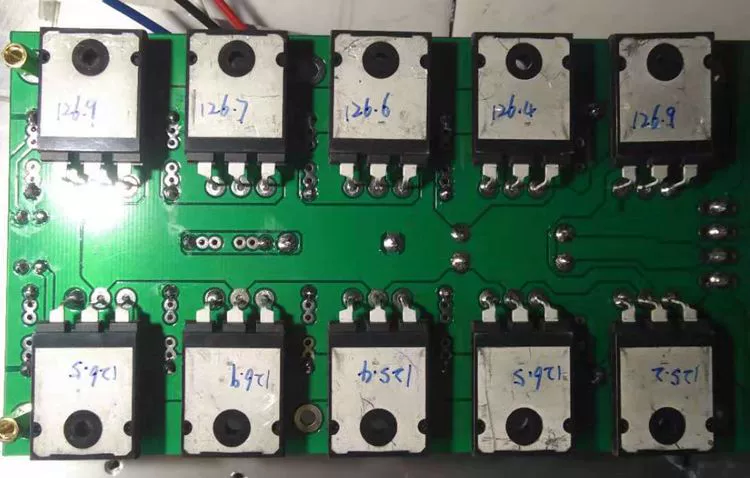

10 precision paired tubes per channel:

Japan-origin power tube

Brand new original, recently produced gold seal tube

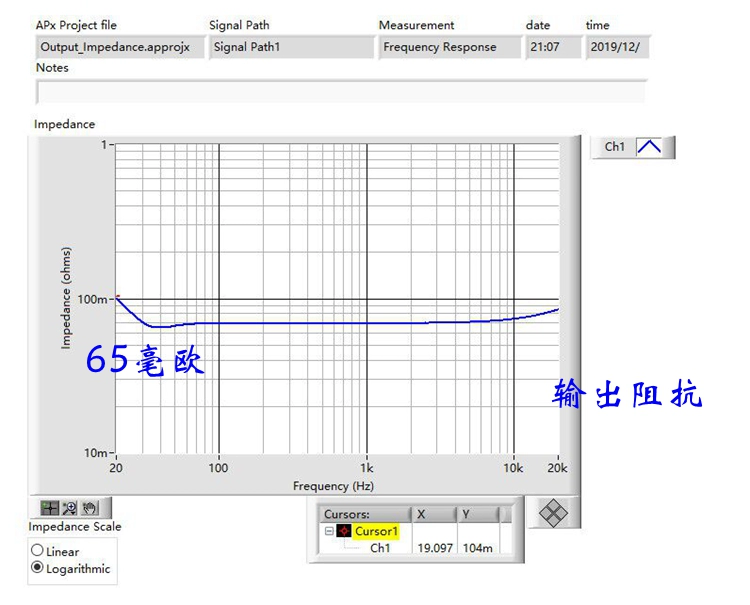

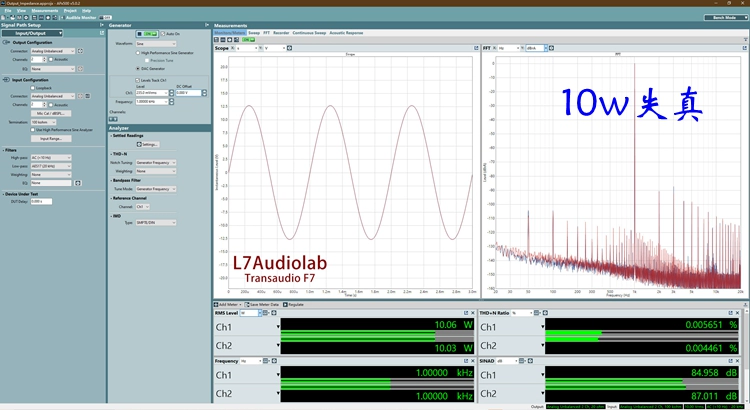

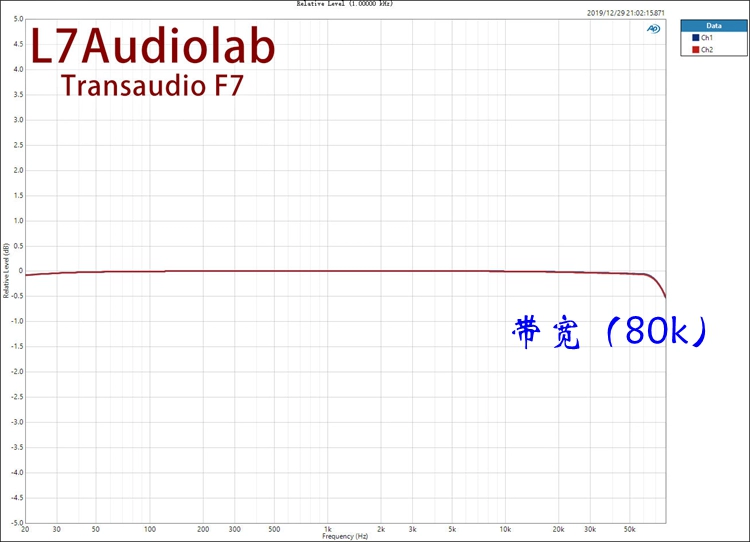

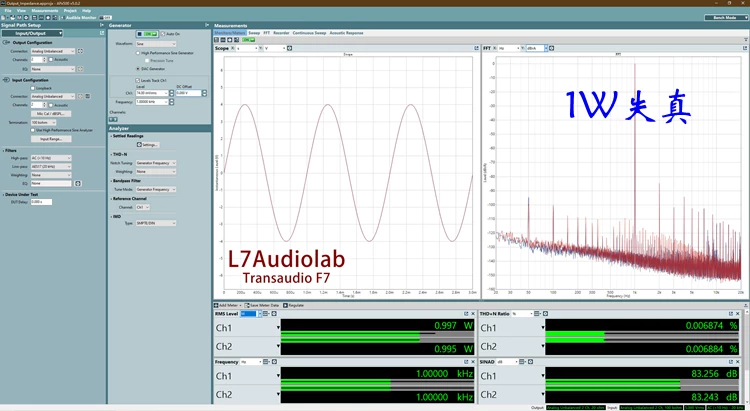

F7 (FM711) AP is tested by "L7Audiolab" L7 Audio Lab, and the results are as follows:
