Name: Nobsound Mini JAN5654 Vacuum Tube Phono Preamp for Turntables Phone/PC/MP3/TV Home Stereo Audio Preamp Headphone Amplifier digital amplifier
Brand: MMO Dropship
SKU: 1005003509086956
Price: 95.24 VND
Availability: InStock
Rating: 4.9 (91 reviews)

Code: TD-1005003509086956 14 orders

Free Shipping

$ 95.24 $ 144.99

Other people want this. 16 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Nobsound
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Package:	Yes
Certification:	CE
Model Number:	T4 PRO
Channels:	2 (2.0)
Type:	Tube Preamp

Nobsound Latest Mini 100W Subwoofer / Full Frequency Power Amplifier Mono Channel Audio TPA3116D2 Amp

USD 25.99-34.44/piece

Nobsound T3 Plus Mini Vacuum Tube Preamp MM / MC Phono Stage for Turntables Pre-Amplifier Desktop Headphone Amp

USD 58.49/piece

2021 Nobsound Mini TPA3116 Bluetooth 5.0 HiFi Power Amplifiers Stereo Home Audio Digital Sound Amplifier With Treble Bass

USD 37.04-48.09/piece

Nobsound Bluetooth 5.0 Power Amplifier 320W Stereo 2.0 Channel Subwoofer Amp Treble Bass Adjust USB Lossless Music Player

USD 66.94/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Audio Amplifier HiFi Class D Stereo Power Amp 100W*2 for Home Speakers

USD 47.44-58.49/piece

Nobsound Hi-Fi G2 /G2 pro Subwoofer / Full-Frequency Mono Channel Digital Power Amplifier 100W or 300W

USD 45.49-66.94/piece

Nobsound HiFi Bluetooth 5.0 JAN 5654 Valve Tube Preamp Bass Preamplifier Stereo Audio Headphone Amplifier USB DAC APTX

USD 90.99/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Amplifier Hifi Stereo Audio Receiver Power Amp 50W+50W Car Sound Amplifiers

USD 19.49-29.89/piece

Introduction

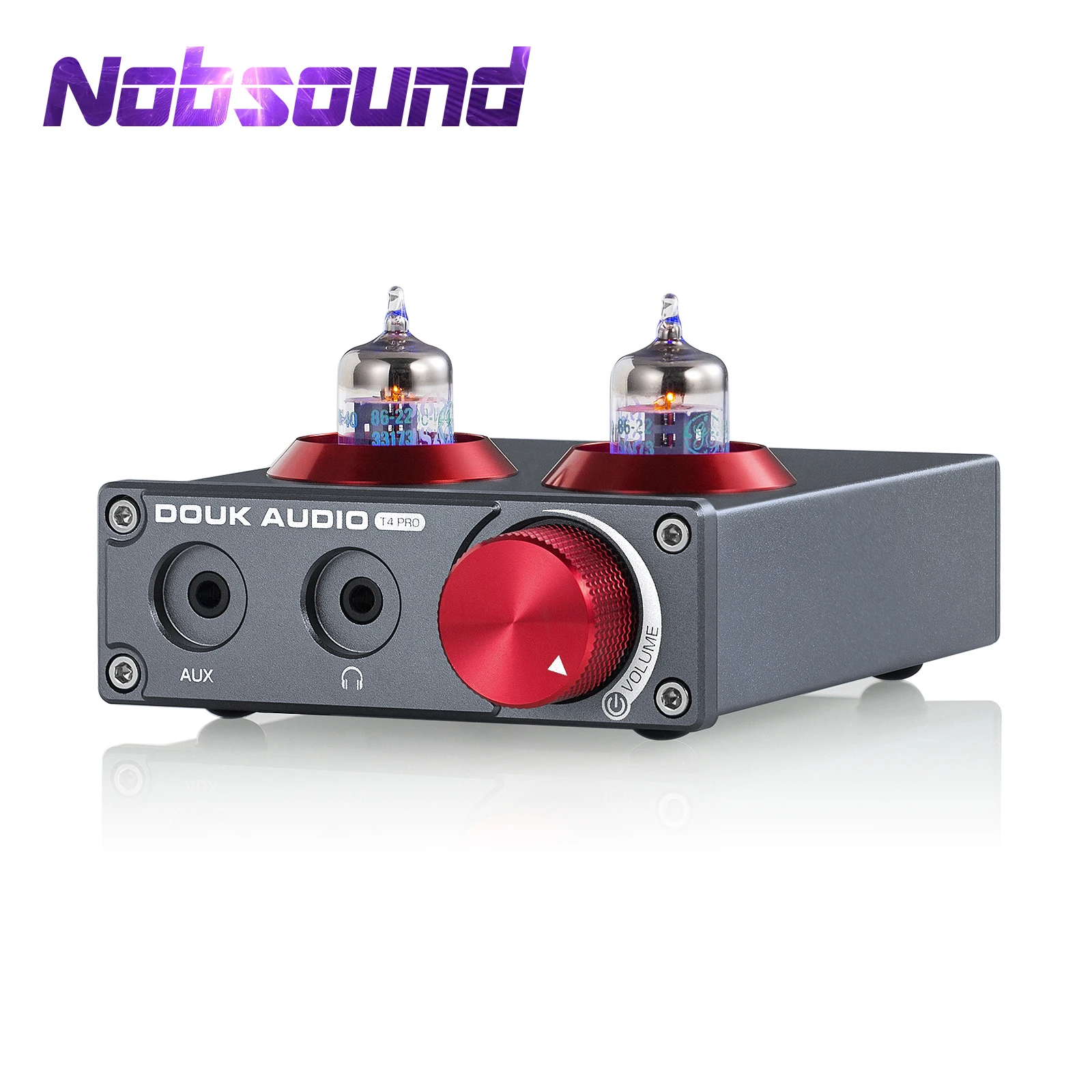

Douk Audio T4 PRO can be used as a MM phono preamp, a tube audio preamp and a headphone amplifier, powerful function in mini size, specially designed for various requirements of home/desktop audio system.

Features

T4 PRO tube preamp meets more HiFi needs:

MM phono input, converts phono signal to line level signal, with low-noise integrated circuits and high-quality components to ensure clear and clean sound.

3.5mm AUX input, amplify the low level audio signal from your phone, tablet, PC, MP3 etc., easier to drive amplifier or active speaker and greatly improve the sound quality.

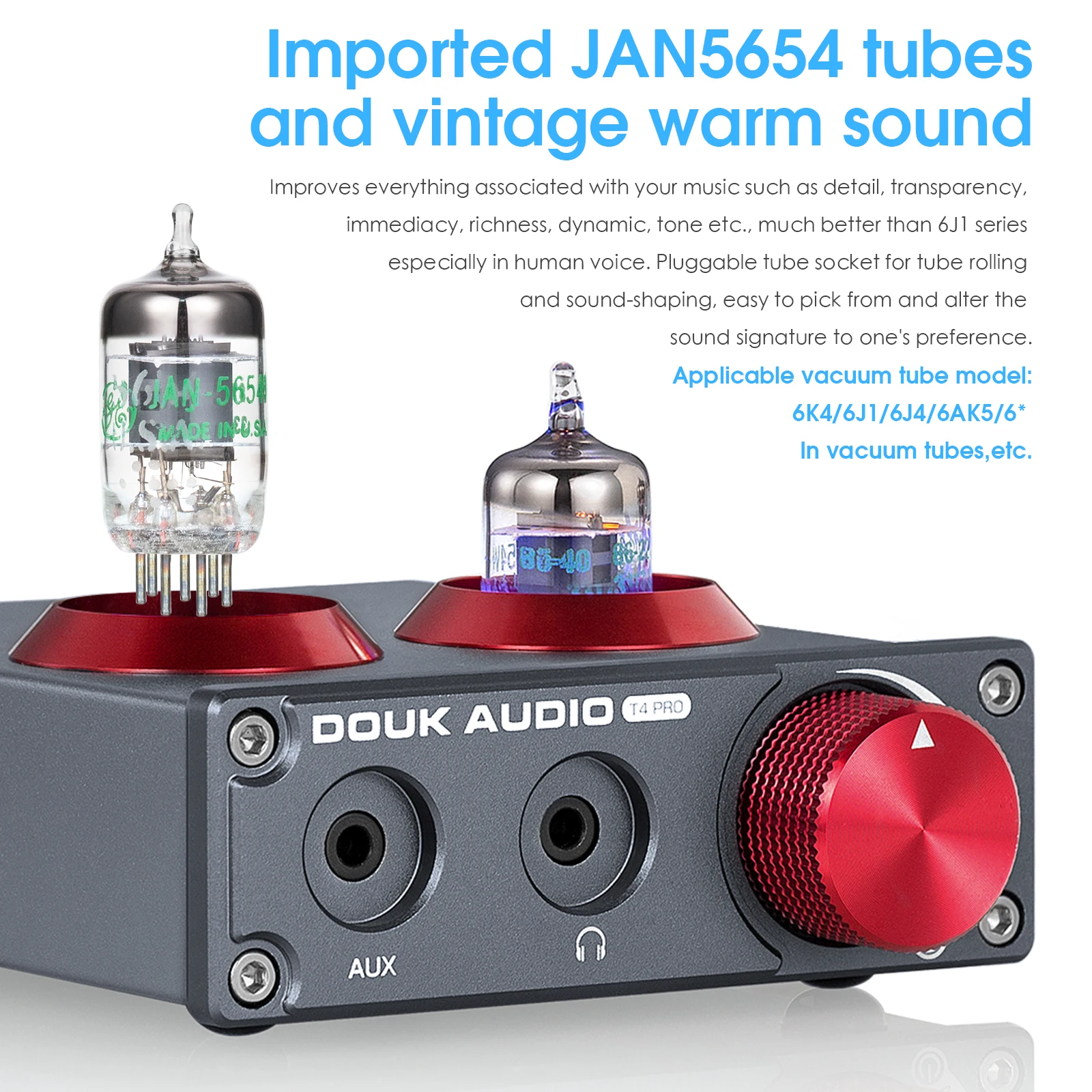

Imported JAN5654 tubes and vintage warm sound: default comes with JAN5654 tubes, improves everything associated with your music such as detail, transparency, immediacy, richness, dynamic, tone etc., much better than 6J1 series especially in human voice. Pluggable tube socket for tube rolling and sound-shaping, easy to pick from and alter the sound signature to one's preference.

3.5mm headphone output and perfect circuit design: T4PRO also with built-in classic headphone amp circuit(2*NE5532), easily to drive 32-300 ohm headphones. Reasonable and advanced architecture, TI TPA5430 for power management, TL071+JRC2068 phono preamp circuit etc., enjoy HiFi analog sound and first-class design with an unbeatable low cost.

Mini size and excellent performance: all designs full of details, solid aluminum knob, potentiometer for smooth multi-level gain adjustment, grey integrated moulding aluminum alloy shell decorates with special red tube cover and knob, looks vintage and elegant. Compact T4 PRO will give you a different acoustic enjoyment with large dynamic and sweet tube sound even in limited space.

Comparision between Douk Audio T4 PRO and Other Similar Preamp

Brand

Douk Audio

Others

3.5mm headphone out

√ (32-300Ω)

Vacuum Tubes

2*GE JAN5654

2*6J2

Control knob

Solid aluminium (ten times expensive)

Plastic

Gain adjustment

Smooth potentiometer (multi-level)

Only 4 levels (0, 39, 42, 45)

S/N ratio

≥105dB

≥

Warm tips:

1. 3.5mm AUX input with priority, please make sure the AUX cable has been pulled out if want to use MM phono input.

2. Stereo RCA and 3.5mm headphone jack can output at the same time, and the knob also controls the volume of two outputs simultaneously.

Parameters

Brand: Douk Audio

Model: T4 PRO

Audio input: MM phono/turntable / 3.5mm AUX

Audio output: stereo L/R RCA / 3.5mm headphone jack

Output level: 1.5V (input 0.775V)

Max output power of headphone jack: 150mW@32Ω

Matched headphone impedance: 32-300Ω

Input sensitivity: 0.775V

Frequency response: 20Hz-20KHz(±3dB) (AUX IN) / Standard RIAA (phono IN)

S/N ratio: ≥105dB

THD: 0.2%

Dimensions(W*D*H): 95*117*30mm / 3.74*4.61*1.18in (exclude tubes)

Package dimensions(W*D*H): 255*215*65mm / 10.04*8.46*2.56in

Net weight: 330g / 0.73lb

Package weight: 600g / 1.32lb

Packing List

1*T4 PRO Preamp

2*JAN5654 Vacuum Tube

1*DC 12V Power Adapter

1*3.5mm to RCA Cable
