Nobsound HiFi Dual ES9038Q2M USB DAC Coaxial / Optical Digital to Analog Converter D/A Audio Adapter Headphone Amplifier 4 channel amp Audio Amplifier Boards

Nobsound HiFi Dual ES9038Q2M USB DAC Coaxial / Optical Digital to Analog Converter D/A Audio Adapter Headphone Amplifier 4 channel amp Audio Amplifier Boards

Name: Nobsound HiFi Dual ES9038Q2M USB DAC Coaxial / Optical Digital to Analog Converter D/A Audio Adapter Headphone Amplifier 4 channel amp
Brand: MMO Dropship
SKU: 1005002730236292
Price: 137.99 VND
Availability: InStock
Rating: 4.9 (91 reviews)

Code: TD-1005002730236292 10 orders

Free Shipping

$ 137.99 $ 199.99

Quantity:

Other people want this. 5 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Nobsound
Certification:	CE
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Package:	Yes
Channels:	2 (2.0)
Type:	Digital to Analog Converter

Nobsound Latest Mini 100W Subwoofer / Full Frequency Power Amplifier Mono Channel Audio TPA3116D2 Amp

USD 25.99-34.44/piece

Nobsound T3 Plus Mini Vacuum Tube Preamp MM / MC Phono Stage for Turntables Pre-Amplifier Desktop Headphone Amp

USD 58.49/piece

2021 Nobsound Mini TPA3116 Bluetooth 5.0 HiFi Power Amplifiers Stereo Home Audio Digital Sound Amplifier With Treble Bass

USD 37.04-48.09/piece

Nobsound Bluetooth 5.0 Power Amplifier 320W Stereo 2.0 Channel Subwoofer Amp Treble Bass Adjust USB Lossless Music Player

USD 66.94/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Audio Amplifier HiFi Class D Stereo Power Amp 100W*2 for Home Speakers

USD 47.44-58.49/piece

Nobsound Hi-Fi G2 /G2 pro Subwoofer / Full-Frequency Mono Channel Digital Power Amplifier 100W or 300W

USD 45.49-66.94/piece

Nobsound HiFi Bluetooth 5.0 JAN 5654 Valve Tube Preamp Bass Preamplifier Stereo Audio Headphone Amplifier USB DAC APTX

USD 90.99/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Amplifier Hifi Stereo Audio Receiver Power Amp 50W+50W Car Sound Amplifiers

USD 19.49-29.89/piece

Features

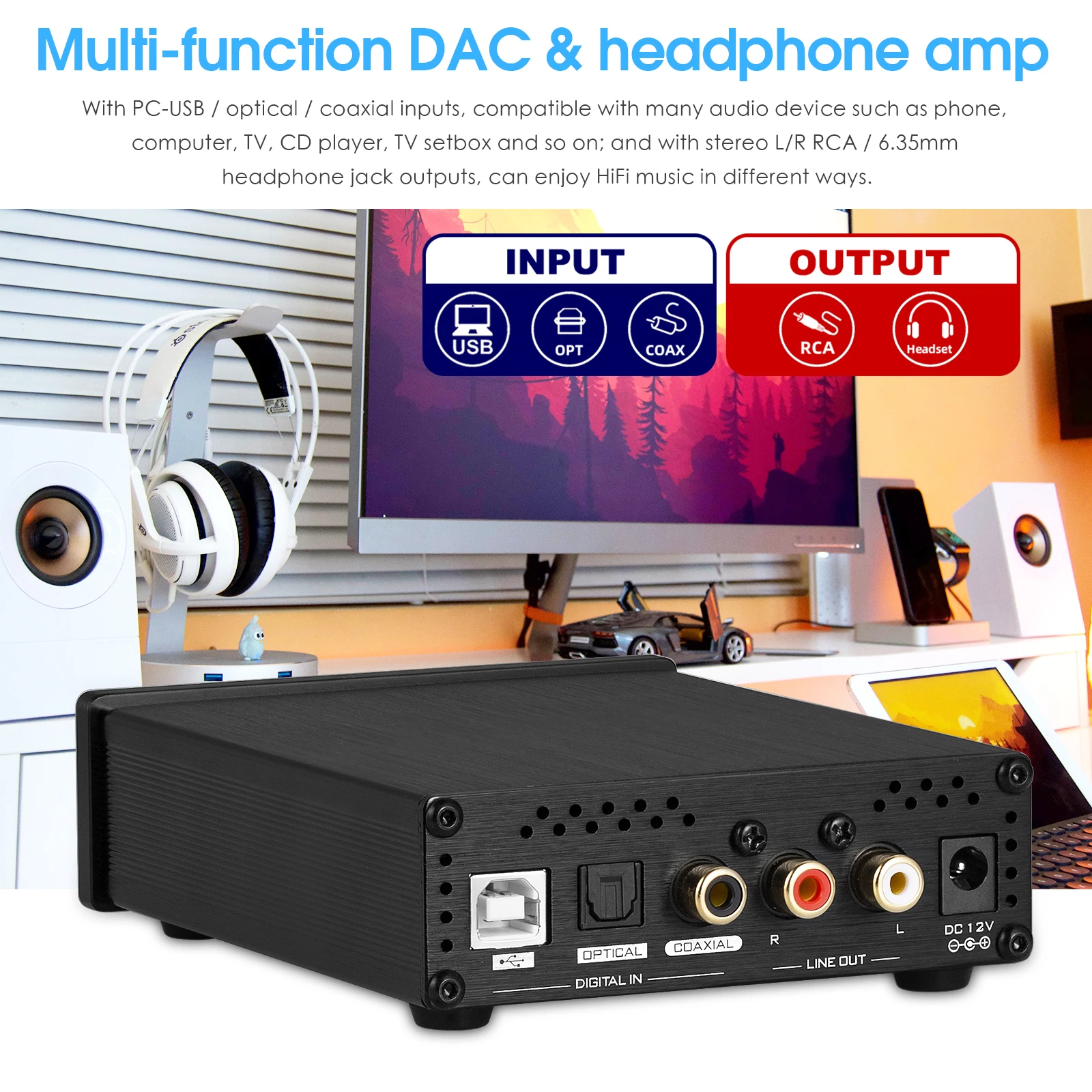

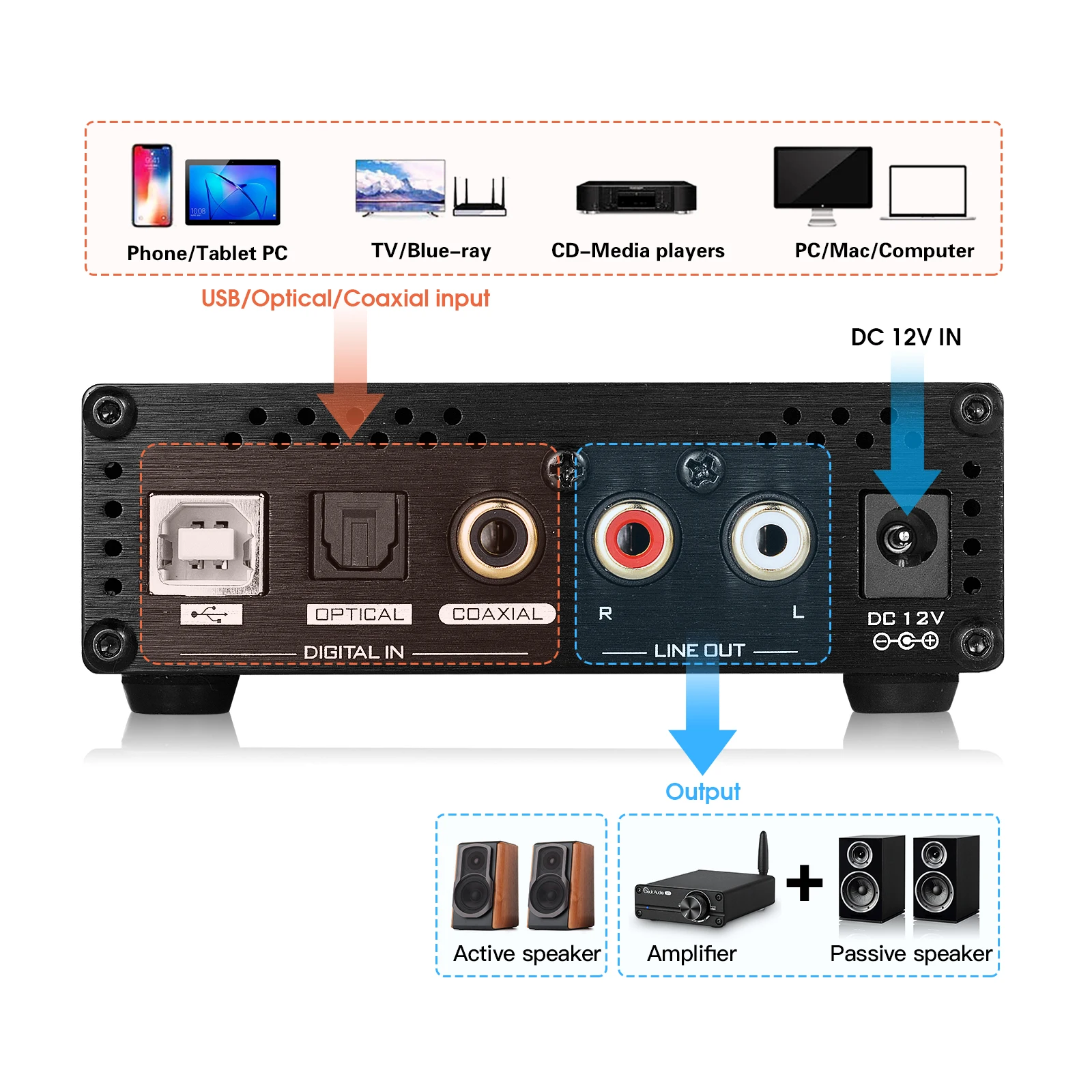

D6 is a multi-function DAC & headphone amp, with PC-USB / optical / coaxial inputs, compatible with many audio device such as phone, computer, TV, CD player, TV setbox and so on; and with stereo L/R RCA / 3.5mm headphone jack outputs, can enjoy HiFi music in different ways.

Reasonable circuit layout and concise wiring, the sound is clear and natural, and adopting high-quality chip architecture to achieve much better sound quality:

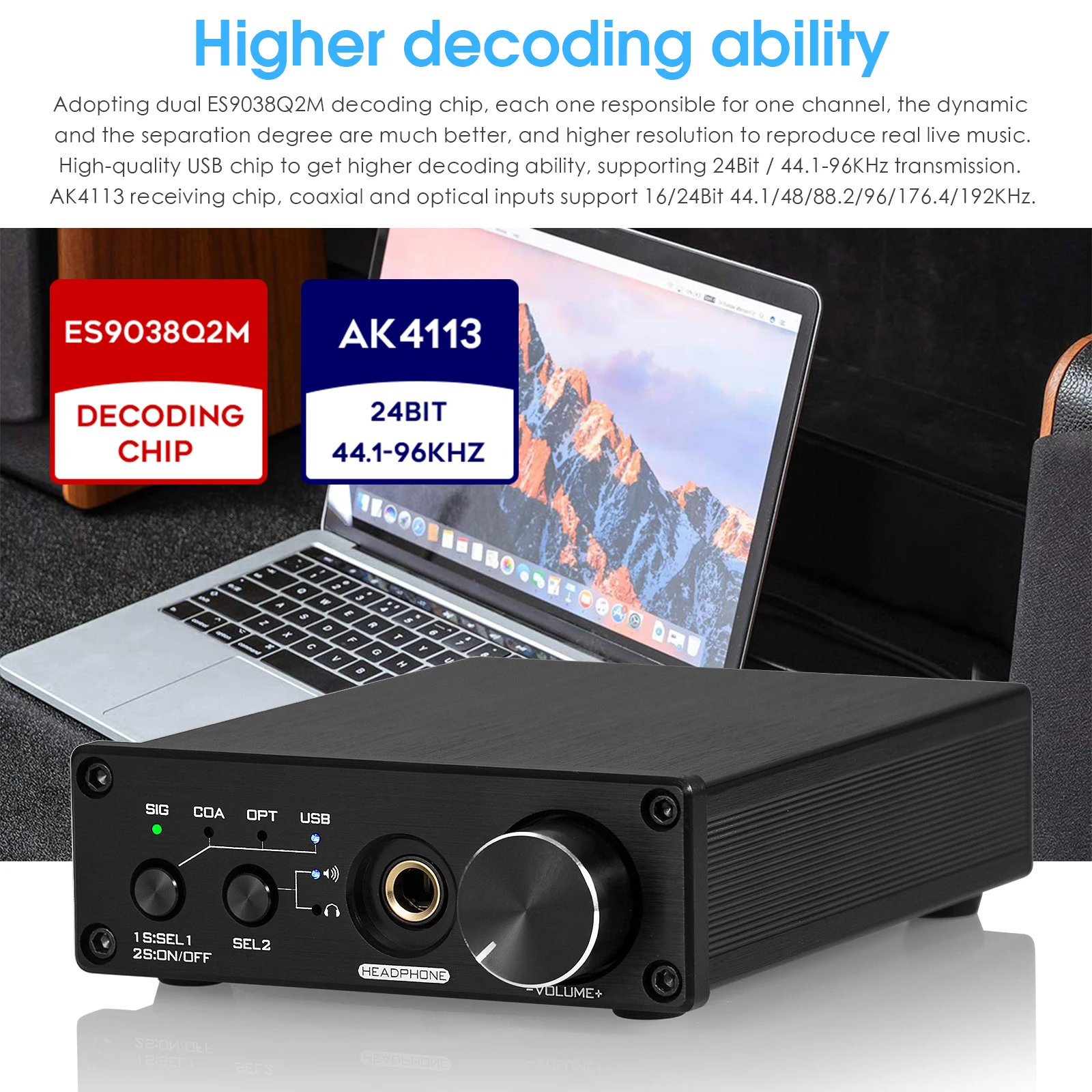

Adopting dual ES9038Q2M decoding chip, each one responsible for one channel, the dynamic and the separation degree are much better, and higher resolution to reproduce real live music.

High-quality USB chip to get higher decoding ability, supporting 24Bit / 44.1-96KHz transmission. AK4113 receiving chip, coaxial and optical inputs support 16/24Bit 44.1/48/88.2/96/176.4/192KHz.

TPA6120A2 headphone amp chip and with gain adjustment, can match better with headphones with different sensitivity, also with low distortion and strong drive power enough to drive 16-600 ohm headphones.

TL072x2+LM4562+NE5532 op amp, with low distortion, low noise, high precision and large dynamic range, and pluggable op amp socket design, convenient to upgrade other op amps of different sound styles.

Over ten groups of voltage regulator circuit, each of them are powered separately, without any interference and the sound detail is much richer.

USB input, compatible with windows XP / VISTA / 7 / 8 / 10 / MAC OS system, and also supports OTG function that can be used with mobile phones, plug and play, no special software is needed, very easy to use. With input and output selection button, easily to choose the channel you want without plugging in and out the cables repeatedly.

Proper size with exquisite appearance, each kind of inputs and outputs is designed with its own indicator to show working status very clearly. Aluminum case looks cool and fashionable, very suitable for home/office desktop audio system use.

Warm tips:

1. PC-USB input supports OTG function but Android system needs OTG cable and IOS system needs large current camera kit, please prepare by yourself.

2. The volume control knob only can adjust the output volume of headphone jack, not valid in RCA output.

3. Without preamp function, and the line output ( stereo L/R RCA) cannot connect passive speakers directly, needs to work with amplifiers or active speakers.

Parameters

Chipset: ES9038Q2MX2+AK4113VF+TPA6120A2+TL072x2+VT1728A+LM4562+NE5532+C1237+MCU

Audio input: USB / Optical / Coaxial

Audio output: Stereo RCA / 3.5mm headphone jack

PC-USB System supported: XP/W7/W8/W10/MAC OS/Phone OTG etc.

Supported highest sampling rate:

24bit / 96KHz (USB)

24bit / 192KHz (Coaxial/optical)

Headphone impedance: 16Ω-600Ω

Frequency response: 20Hz-20KHz (±0.2db)

S/N ratio: 107dB

0.001%

Working voltage: DC 12V

Dimensions(W*D*H): 95*124*30mm / 3.74*4.88*1.18in

Net weight: 290g / 0.63lb

Package weight: 700g / 1.54lb

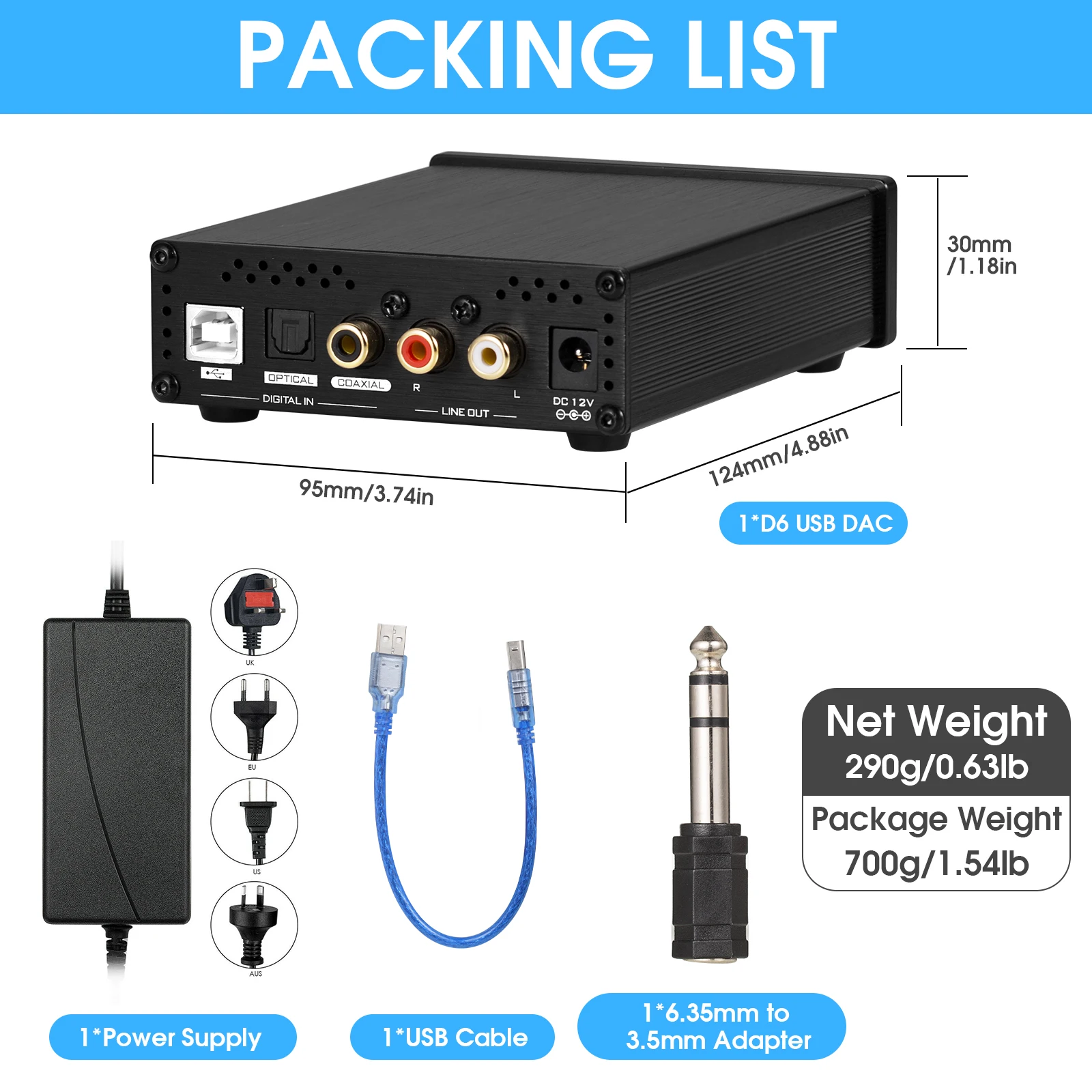

Packing List

1*D6 USB DAC

1*DC 12V Power Adapter

1*USB Cable

1*6.35mm to 3.5mm Headphone Adapter

Nobsound HiFi Dual ES9038Q2M USB DAC Coaxial / Optical Digital to Analog Converter D/A Audio Adapter Headphone Amplifier 4 channel amp
