Douk Audio Q3 HiFi USB DAC Mini Digital to Analog Converter Coax/Opt Headphone Amp Treble Bass Professional Amplifier Audio Amplifier Boards

Code: TD-1005001793424666 15 orders
Free Shipping
$ 73.79 $ 91.99
Quantity:
Other people want this. 18 people have this in their carts right now.
Brand Name:  Douk Audio
Type:  Desktop
PCM Sampling Frequencies:  192 kHz
PCM Word Length:  24-bit
DSD Sampling Frequencies:  NONE
Inputs:  USB Type-C
Material:  Metal
Origin:  CN(Origin)
Outputs:  3.5 mm
D/A Converter:  SA9023
Model Number:  Q3
Certification:  CE
Bluetooth:  No
WIFI:  No

Features

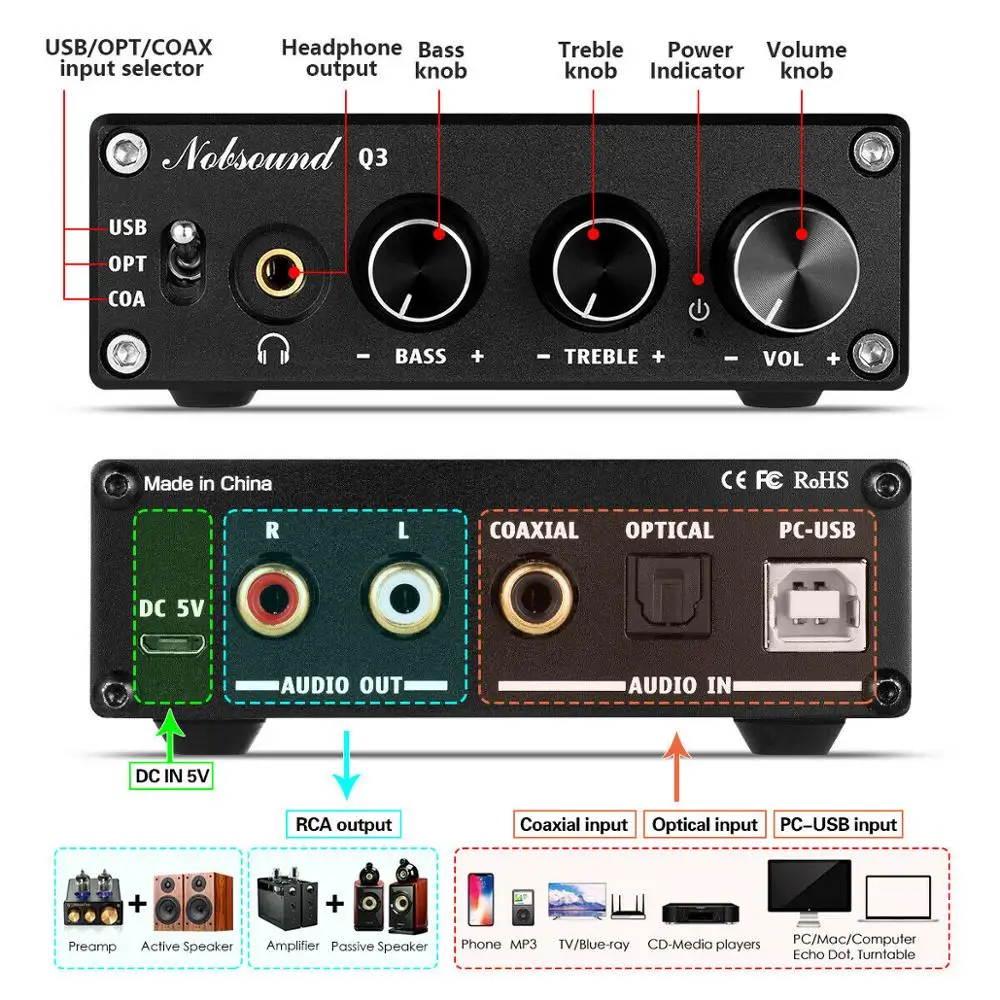

Q3 is a digital to analog converter with PC-USB/Optical/Coaxial input and RCA/6.35mm headphone output, which can used with laptop, desktop computer, mobile phone(with OTG function), TV, Apple TV, DVD/Blu-Ray player or CD player and so on, meeting different requirements of home stereo audio system.

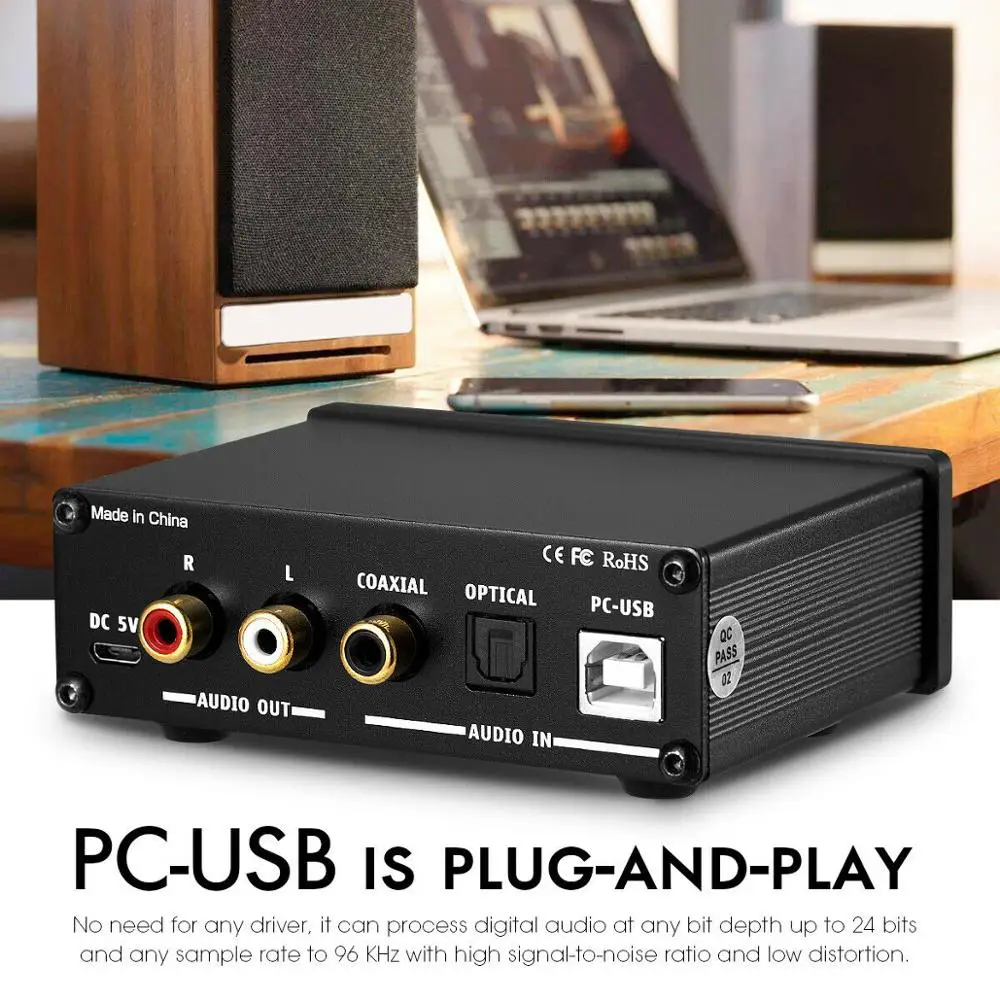

PC-USB is plug-and-play, no need for any driver, it can process digital audio at any bit depth up to 24 bits and any sample rate to 96 KHz with high signal-to-noise ratio and low distortion. High-performance headphone output is designed for a wide range of headphones.

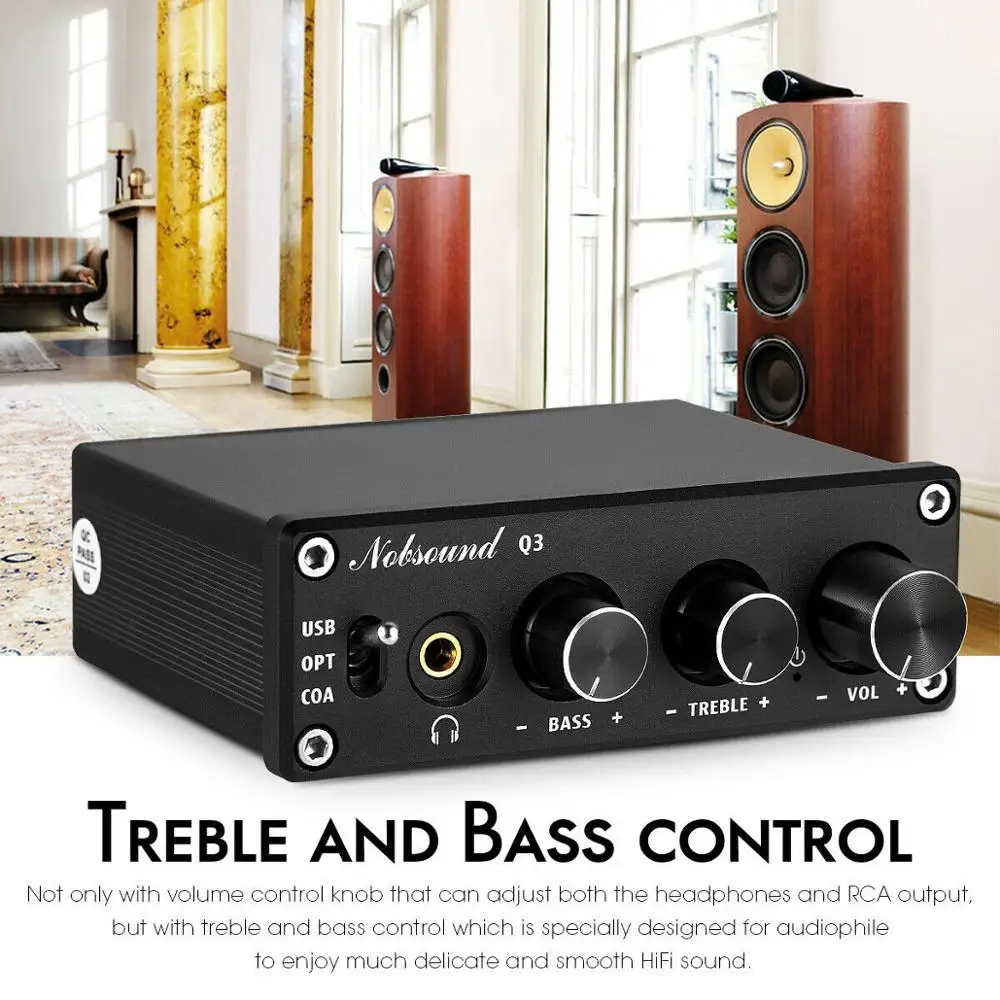

Not only with volume control knob that can adjust both the headphones and RCA output, but with treble and bass control which is specially designed for audiophile to enjoy much delicate and smooth HiFi sound.

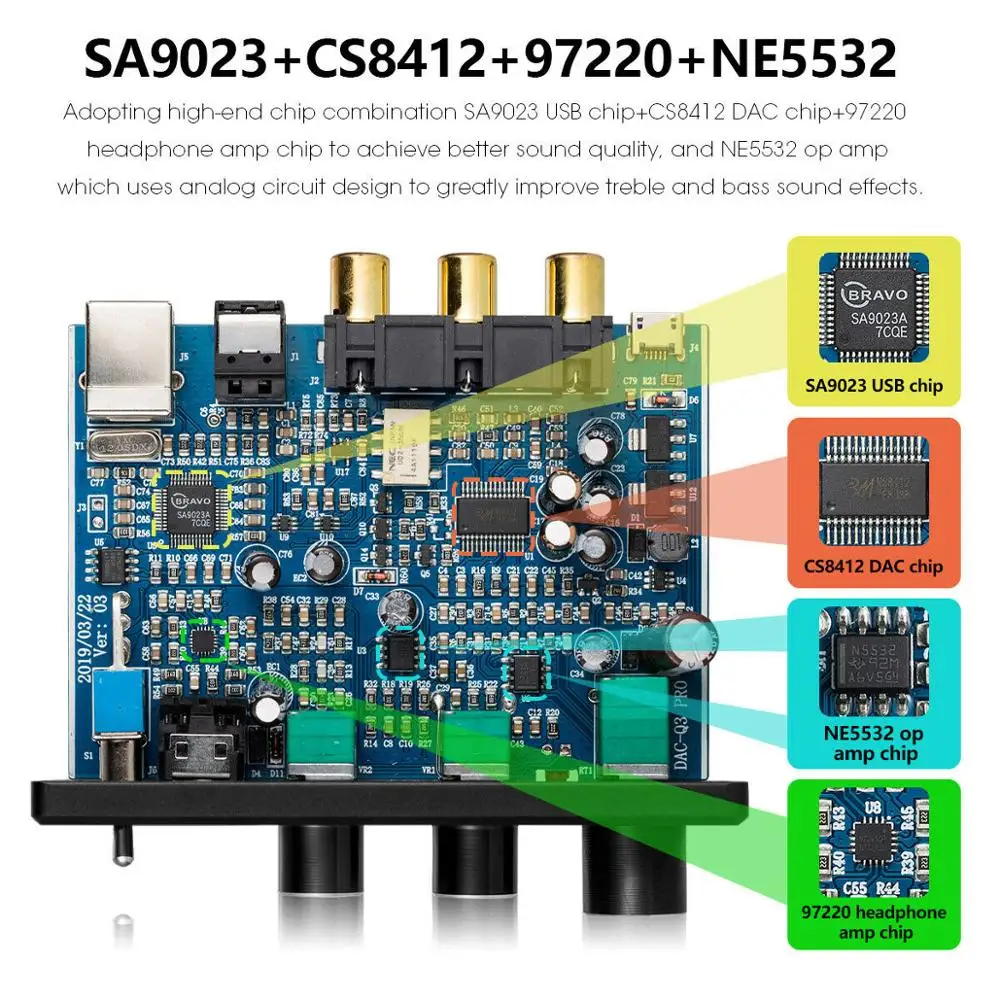

Adopting high-end chip combination SA9023 USB chip+CS8412 DAC chip+97220 headphone amp chip to achieve better sound quality, and NE5532 op amp which uses analog circuit design to greatly improve treble and bass sound effects.

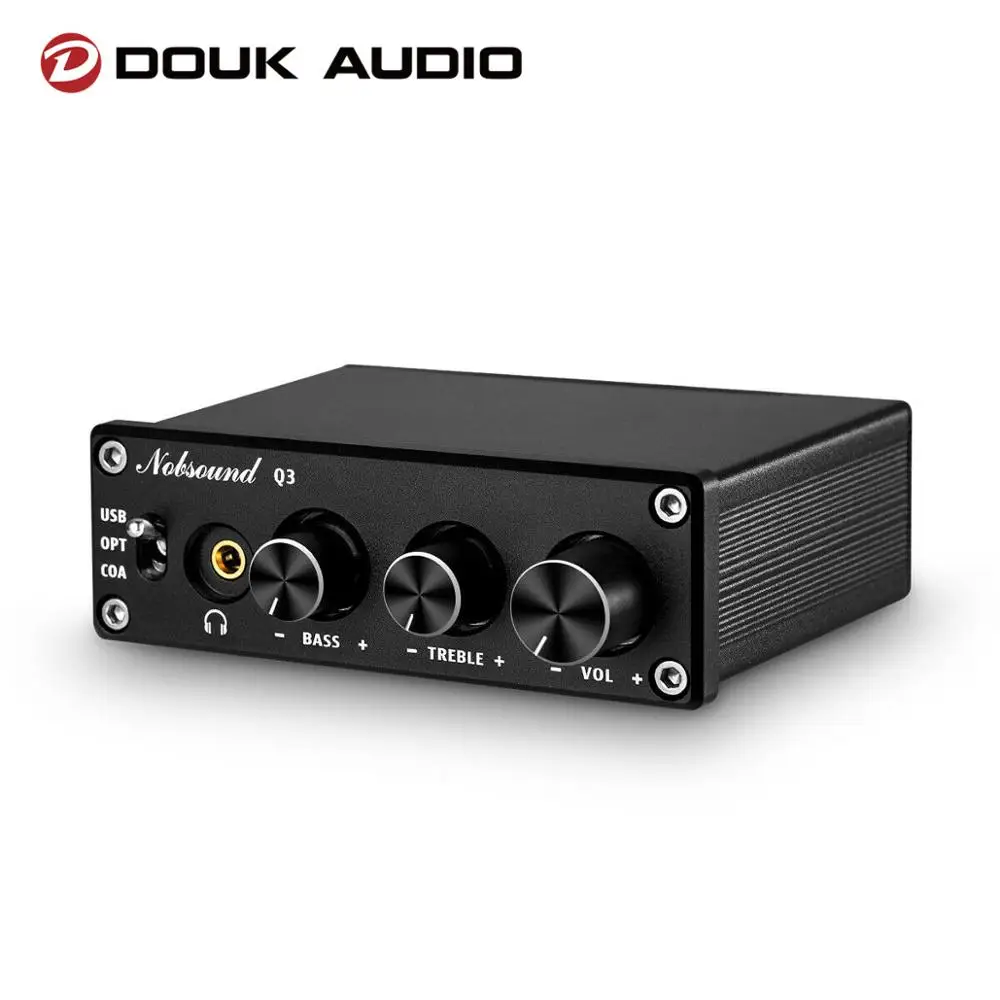

Mini size with exquisite appearance, black aluminum case looks more popular and attractive, very suitable for home and desktop audio system use.

Parameters

PC-USB input sampling frequency: 96K/24Bit

Optical/Coaxial input sampling frequency: 192K/24Bit

Frequency range: 20Hz-20KHz(±3dB)

PC-USB system supported: XP/W7/W8/W10/MAC/Linux

Bass & Treble range: ±6dB

SNR:  ≥105dB

THD: 0.01%

RCA output level: 2.3V

Headphone matching impedance: 16-200Ω

Headphone max power output: 100mw (32Ω load)

Working voltage: DC 5V

Dimensions: (L*W*H)73*98*33 mm / 2.87*3.86*1.3 in

Net weight: 200 g / 0.44 lb

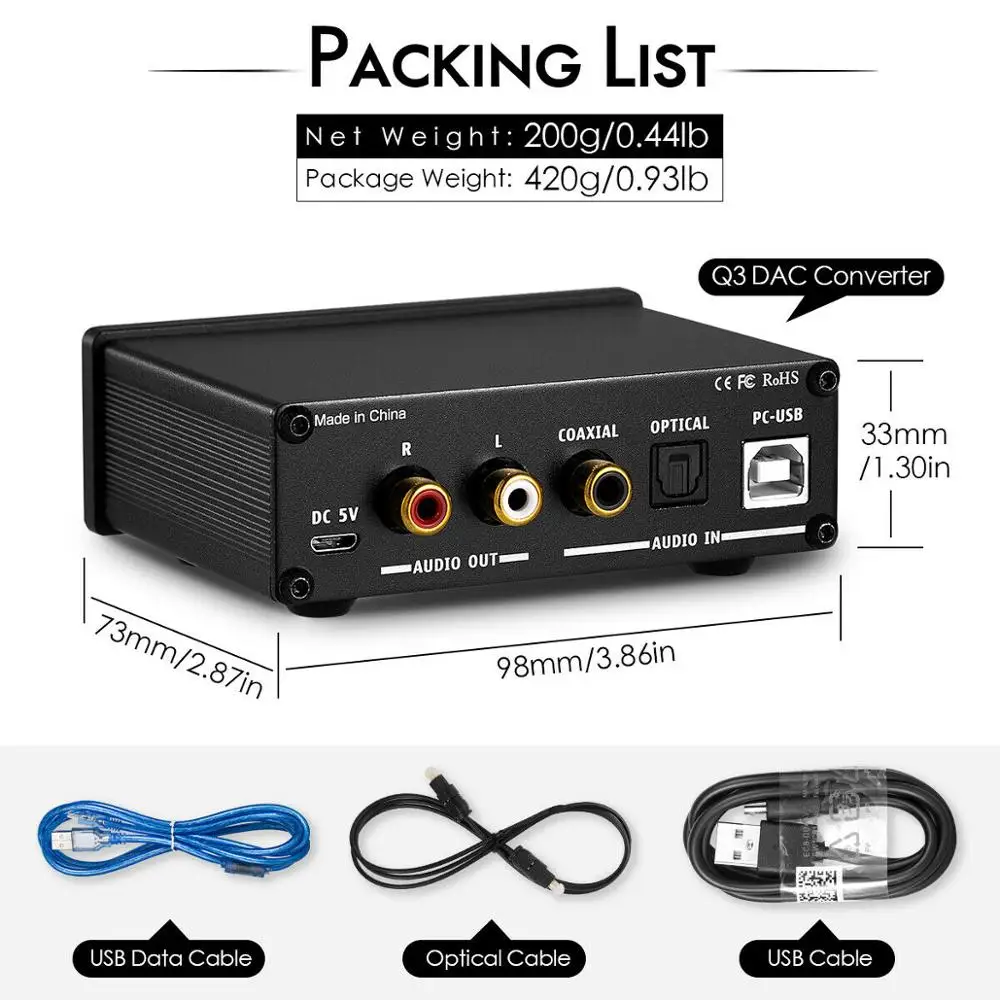

Packing List

1* Q3 DAC

1* USB Cable

1* USB Data Cable

1* Optical Cable
