Name: differential amplifier Douk Audio U2 Mini USB to SPDIF Audio Converter XMOS XU208 Digital Interface COAX/OPT DSD DOP 192KHz marine amplifier
Brand: MMO Dropship
SKU: 1005001803707662
Price: 83.99 VND
Availability: InStock
Rating: 4.9 (71 reviews)

Code: TD-1005001803707662 55 orders

Free Shipping

$ 83.99 $ 127.68

Color:

Note

Quantity:

Other people want this. 11 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Douk Audio
Certification:	CE
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Model Number:	U2
Package:	Yes
Channels:	2 (2.0)
Type:	Audio Adapter/Converter
Connector A:	Toslink
Connector B:	Micro USB

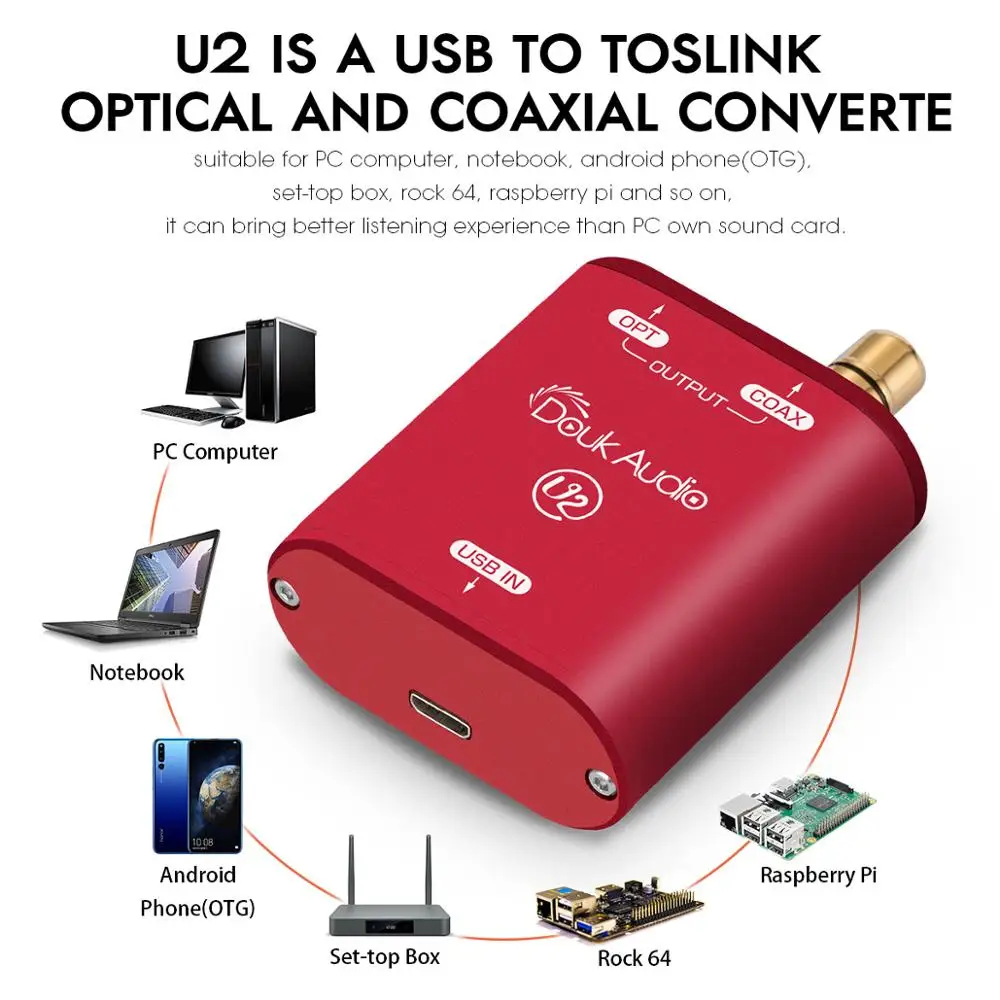

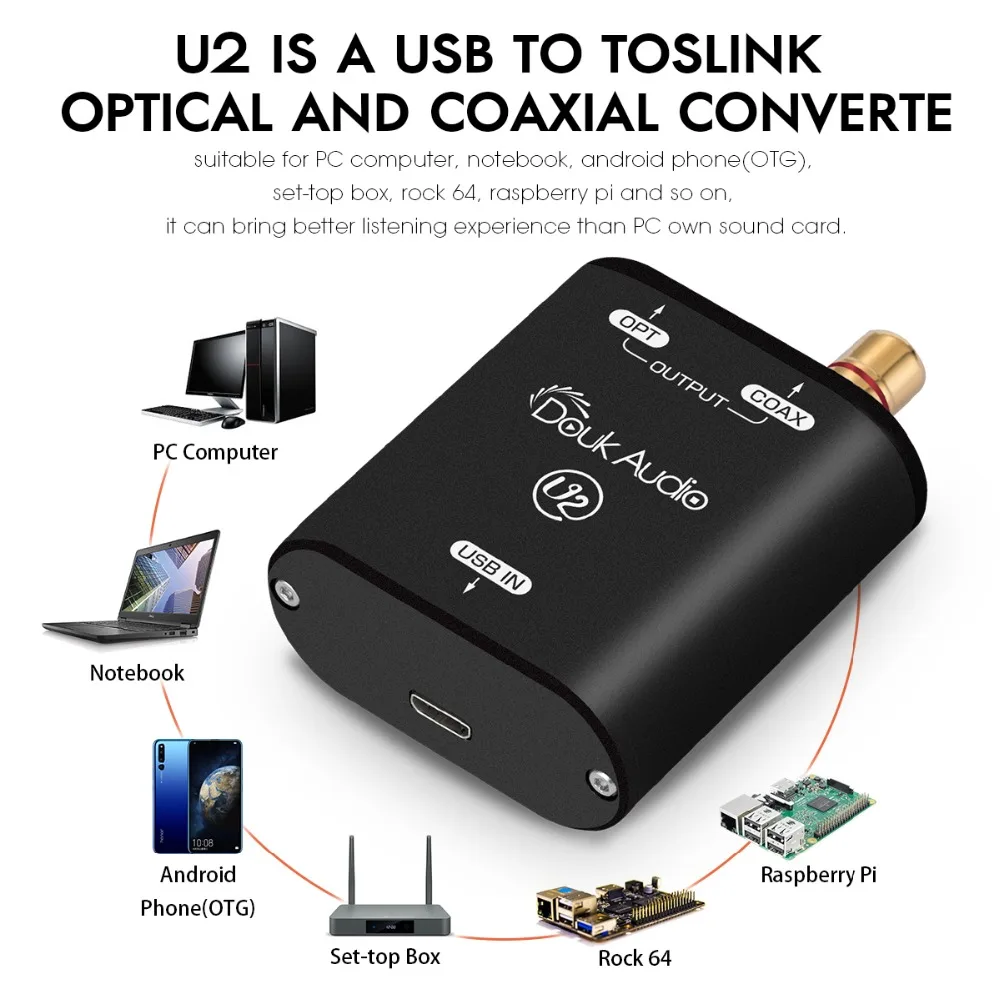

U2 is a USB to Toslink optical and coaxial converter, suitable for PC computer, notebook, android phone(OTG), set-top box, rock 64, raspberry pi and so on, it can bring better listening experience than PC own sound card.

Features:

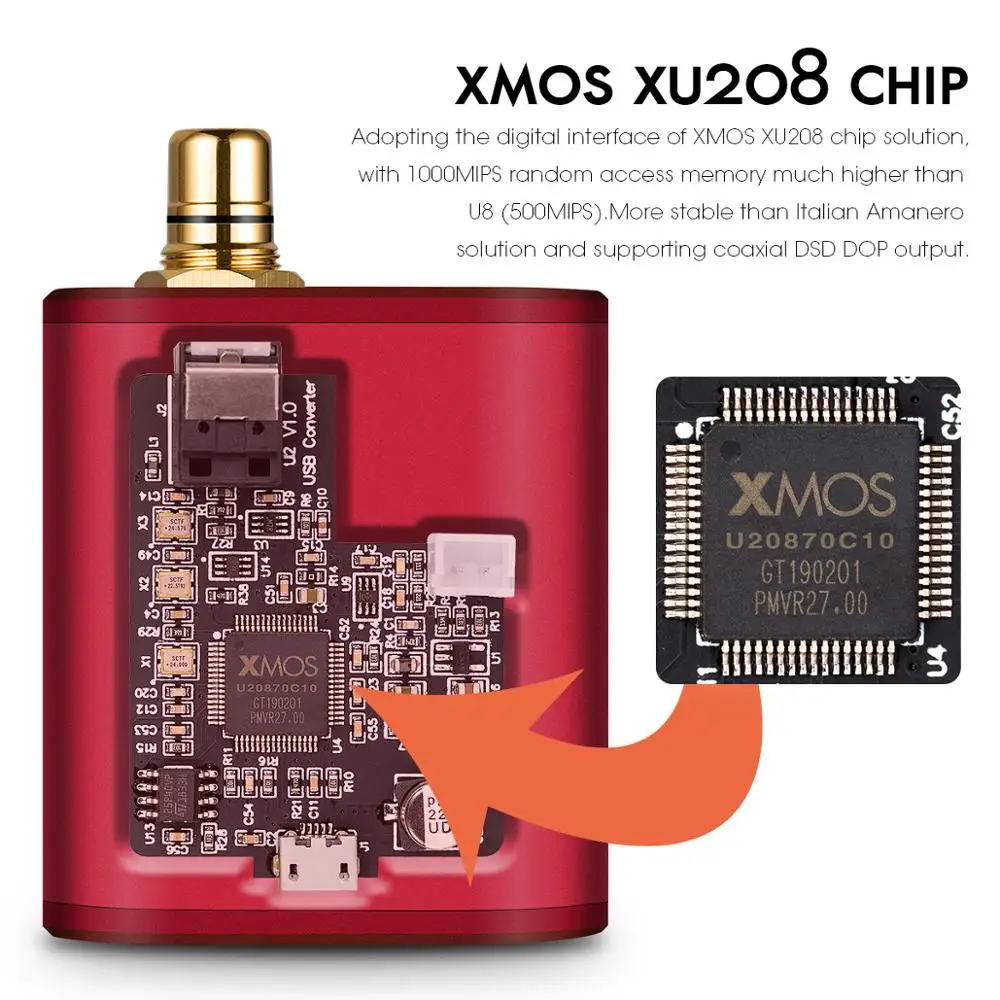

Adopting the digital interface of XMOS XU208 chip solution, with 1000MIPS random access memory much higher than U8 (500MIPS). More stable than Italian Amanero solution and supporting coaxial DSD DOP output.

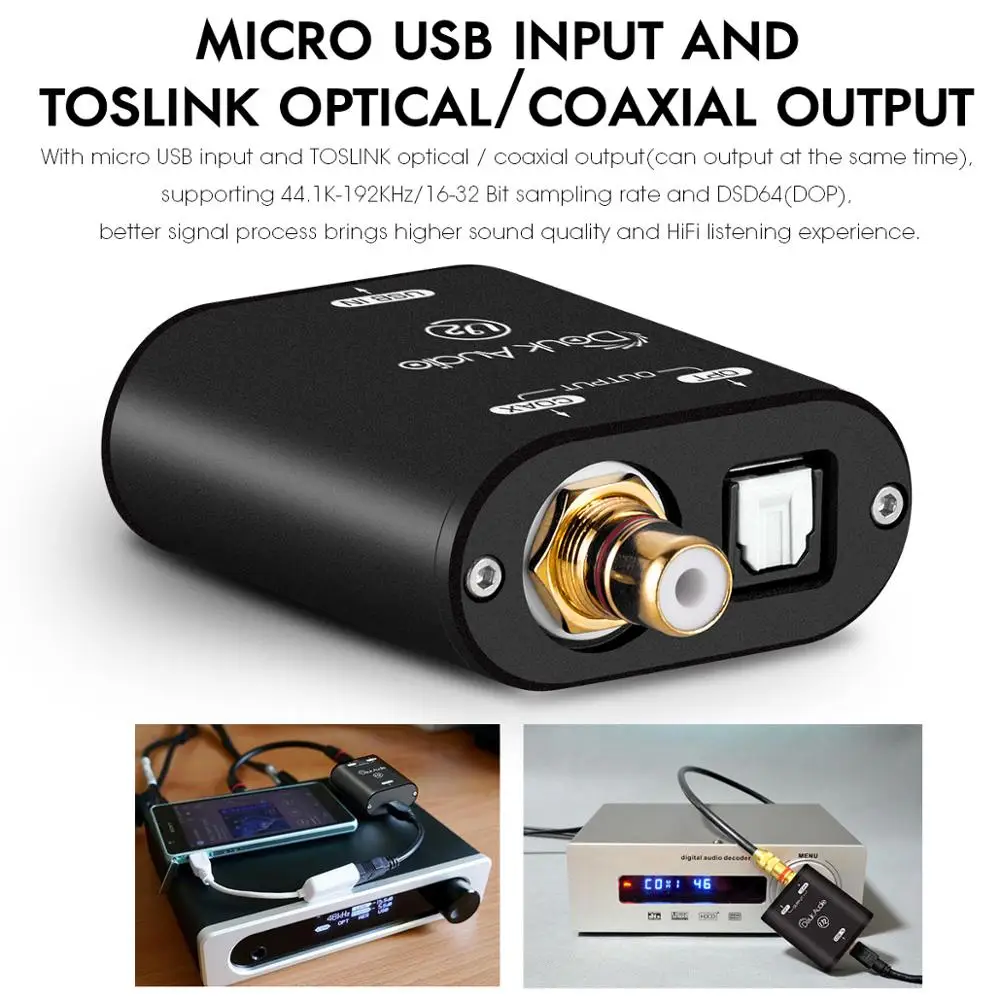

With micro USB input and TOSLINK optical / coaxial output(can output at the same time), supporting 44.1K-192KHz/16-24 Bit sampling rate and DSD64(DOP), better signal process brings higher sound quality and HiFi listening experience.

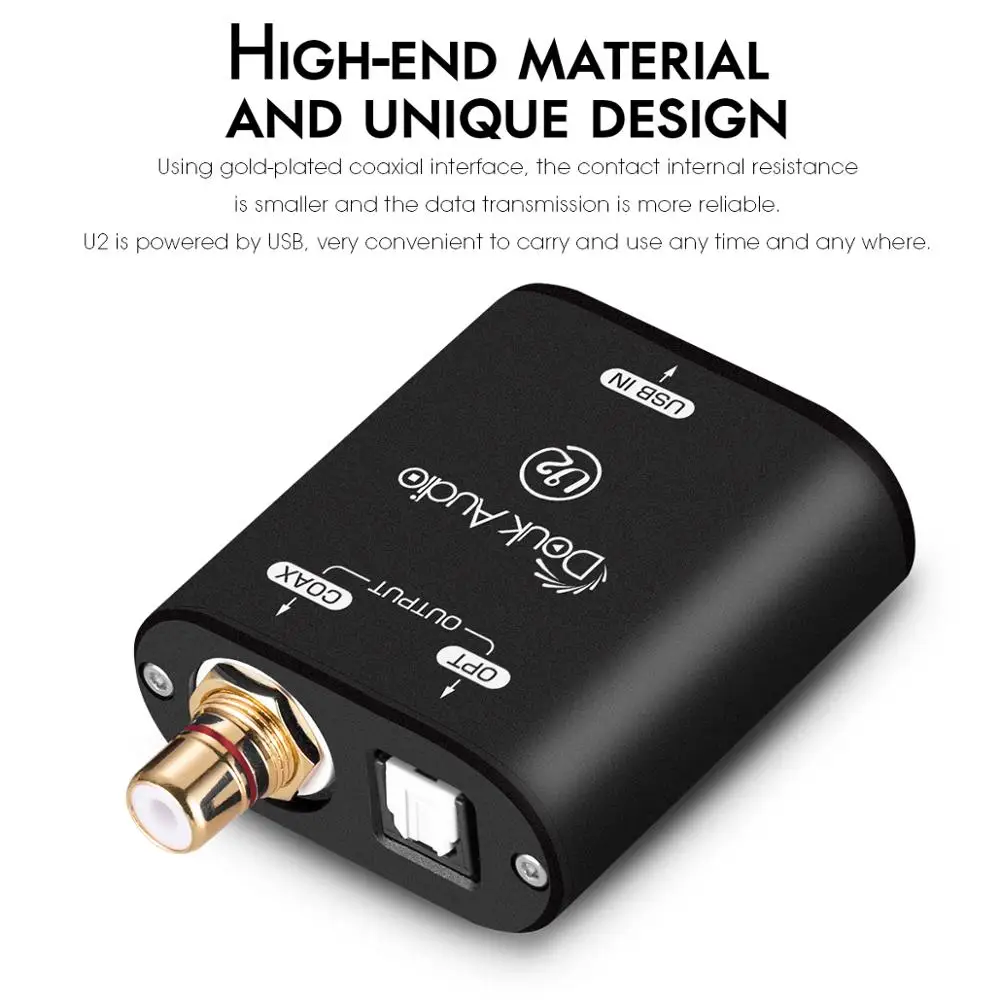

Using gold-plated coaxial interface, the contact internal resistance is smaller and the data transmission is more reliable. U2 is powered by USB, very convenient to carry and use any time and any where.

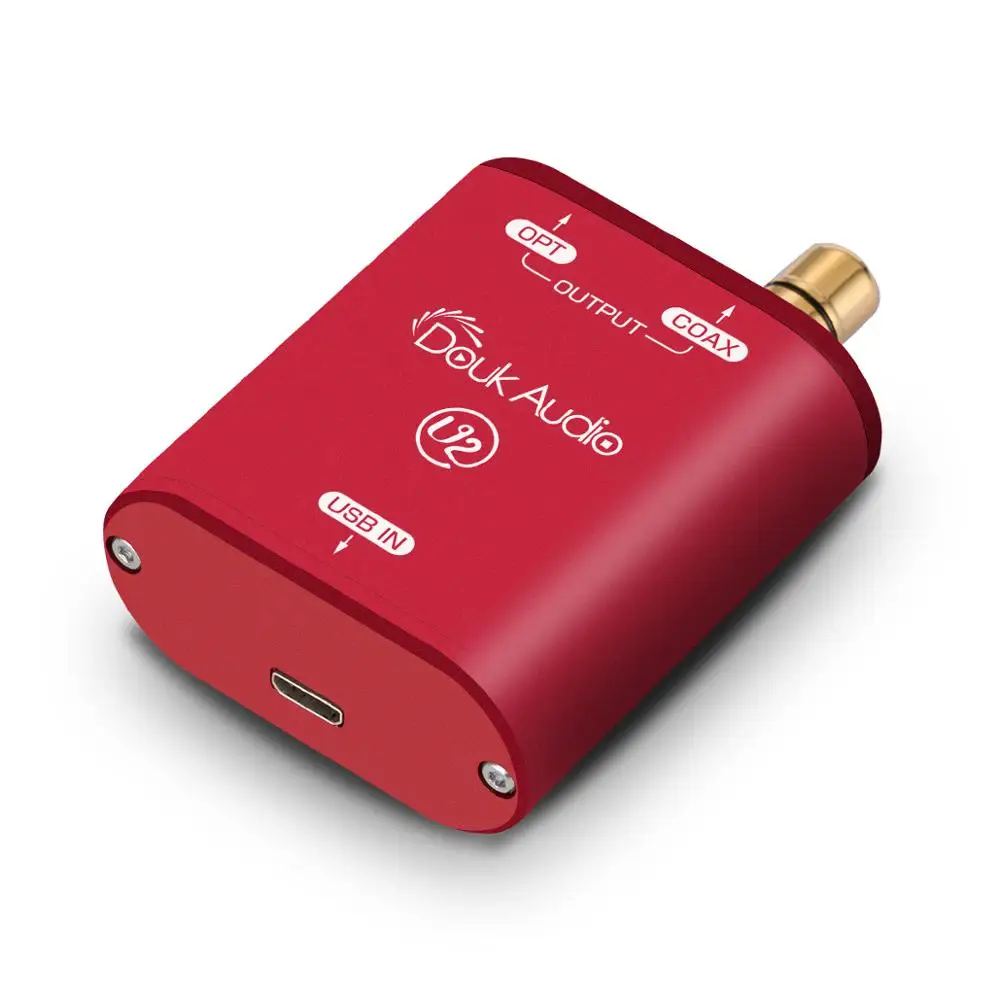

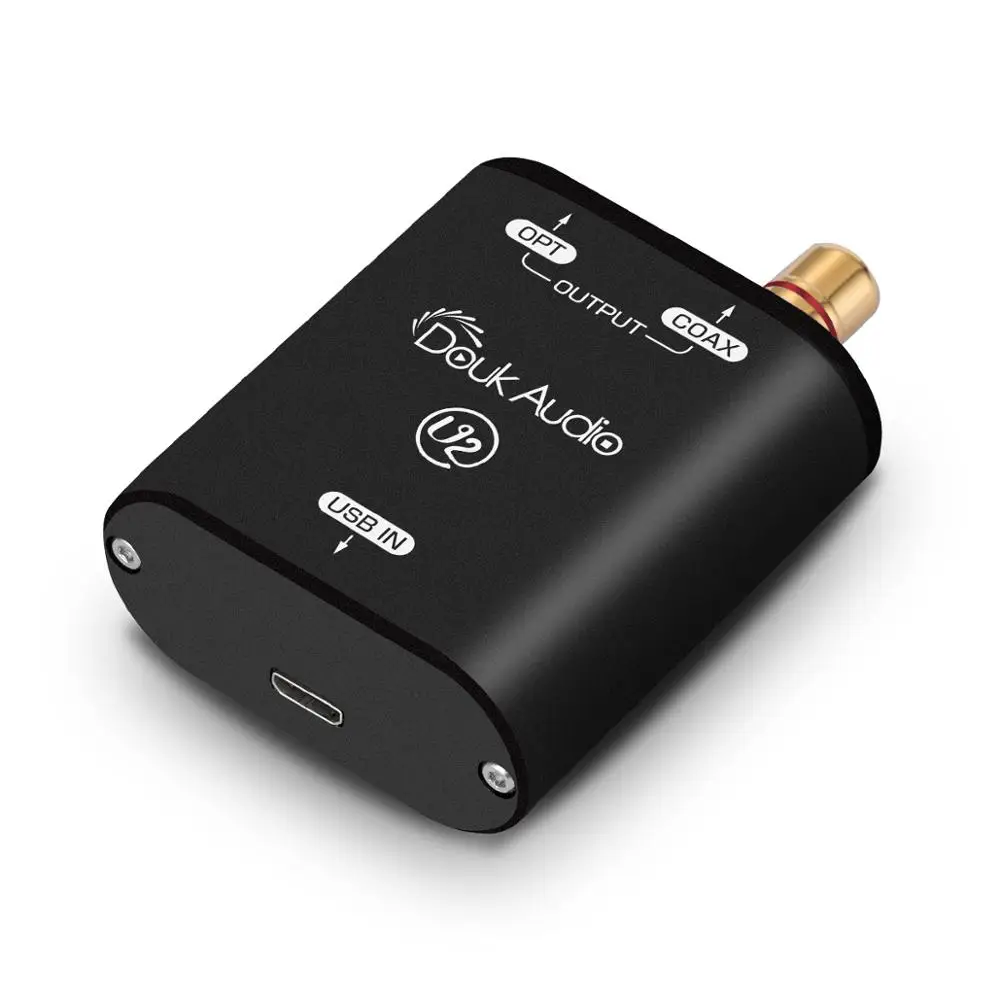

Mini size with exquisite design, black and red aluminum cases look more cute and fashionable, very suitable for desktop digital players use.

Parameters

Audio input: micro USB

Audio Output: Toslink Optical / Coaxial

USB Chip: XMOS XU208

Supported Sampling Rate:

PCM: 44.1KHz,48KHz,88.2KHz,96KHz,176.4KHz,192KHz,16-24bit

DSD: 2.8MHz(DSD64)-DOP

Working Current: 130mA

Dimensions: (L*W*H) 52*45*20 mm /2.05*1.77*1.38 in

Net Weight: 50 g / 0.11 lb

System compatibility:

1. 32/64 bit Win 7, Win 8 and Win 10 systems need to install driver, you can download it from the CD driver or by scanning the QR code in the manual.

2. Mac OS 10.6 and above, no need for driver.

3. Linux with UAC2 compliant kernel uses the system's own driver.(Has tested on Ubuntu and Daphile systems, based on INTEL X86)

4. In general, default supporting Android 5.0. And Android(4.2 and above) need OTG function. Recommend operation system below 5.0 to work with dedicated players such as Hiby players.

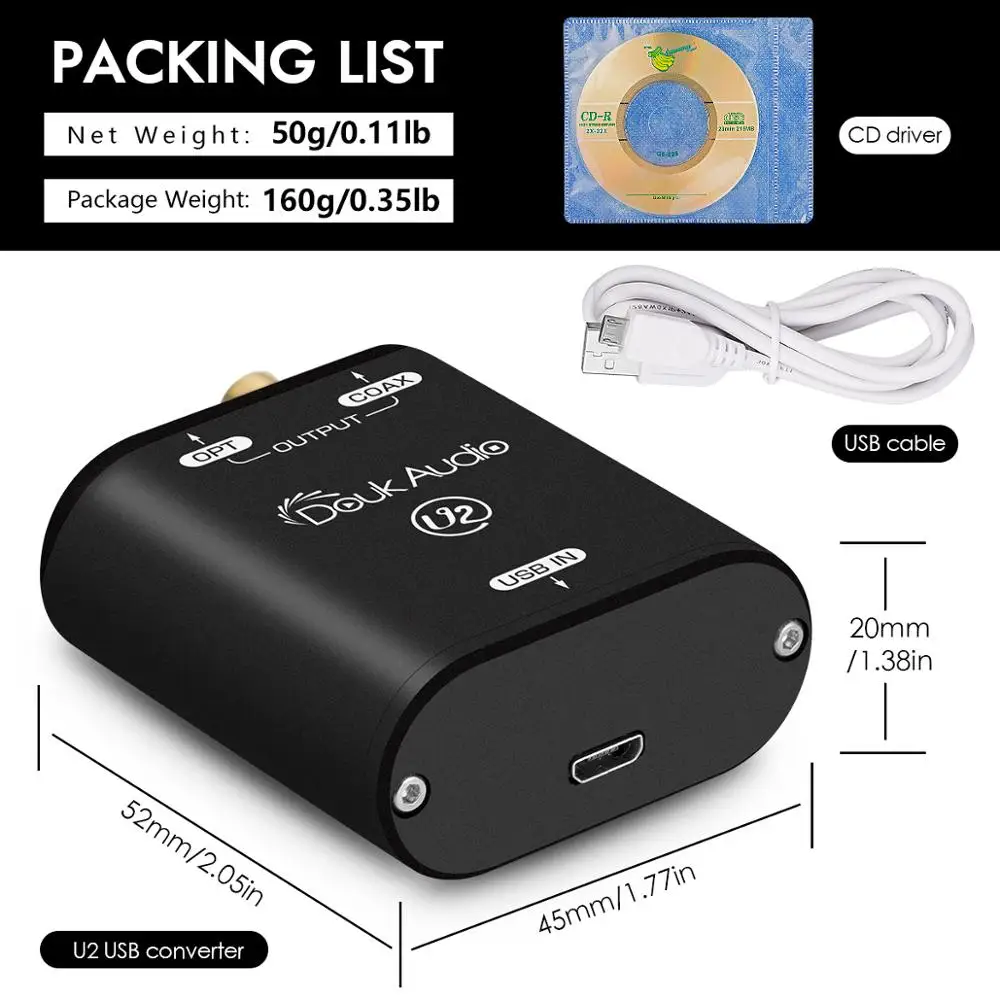

Packing List

1*U2 USB Converter

1*USB Cable

1*CD Driver

1*Manual
