3000 watt amp 2 PCS Hifi JLH 1969 Amplifier Audio Class A Power Amplifier Board Stereo High Quality For 3-8 inch Full Range Speakers power amplifier Audio Amplifier Boards

3000 watt amp 2 PCS Hifi JLH 1969 Amplifier Audio Class A Power Amplifier Board Stereo High Quality For 3-8 inch Full Range Speakers power amplifier Audio Amplifier Boards

Name: 3000 watt amp 2 PCS Hifi JLH 1969 Amplifier Audio Class A Power Amplifier Board Stereo High Quality For 3-8 inch Full Range Speakers power amplifier
Brand: MMO Dropship
SKU: 1005001769232503
Price: 54.12 VND
Availability: InStock
Rating: 4.9 (81 reviews)

Code: TD-1005001769232503 14 orders

Free Shipping

$ 54.12 $ 72

Color:

DIY KIT

Finished board

Note

Quantity:

Other people want this. 6 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	GZLOZONE
Certification:	CE
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Model Number:	ZN-JLH1969
Package:	Yes

Note:

Because the 2N3055 transistor is an disassembled tube, it looks a bit old.

ut it does not affect the quality of the product and it can be used normally.

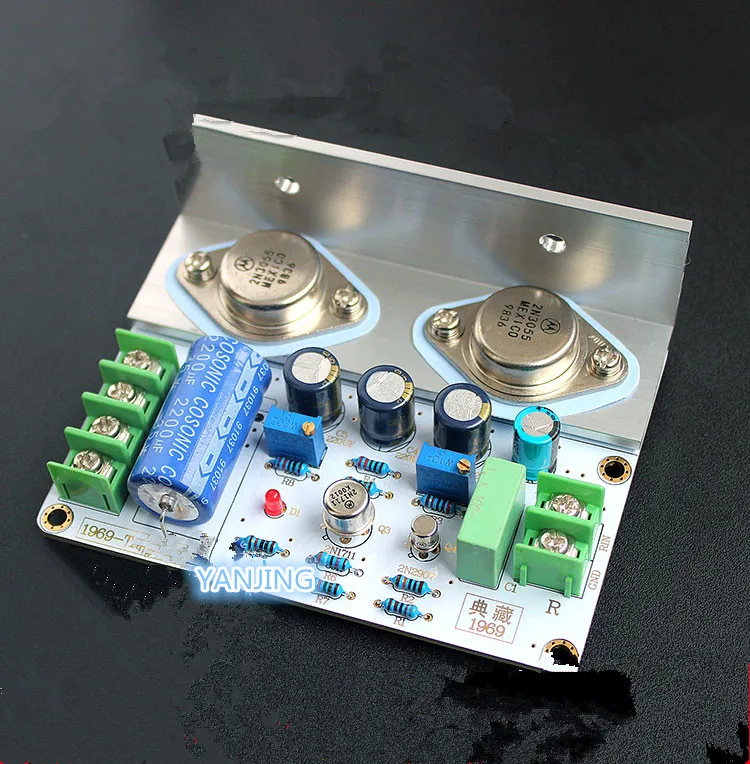

The finished board is an assembled, adjusted and tested amplifier boards of the classic JLH (John-LinseY Hood) 1969 class A amplifier. While JLH 1969 is a simple design, it is still one of the best transistor amplifier.

1. The circuit board adopts JLH1969 classic circuit design, and the PCB board adopts double-sided gold plating process, which is sturdy and durable.

2. Precision pairing of transistors

3. Aviation grade magnesium alloy angle aluminum

4. Capacitors use high quality German ERO, Japanese FC, ruby and other imported materials

5. Resistance: copper foot metal film, 5-ring precision

6. Gold seal pipe: small pipe 2N2907, middle pipe 2N1711, large pipe 2N3055 or imported ON3055.ON15024

7.Application:

Suitable for listening to vocals, you can choose 3-5 inch full-range speakers

; you can

choose 5-8 inch full-range

speakers for

listening to bass

, or you can choose 2 way speaker with power below 120 watts, 8 inches or less, and true sensitivity above 86.

The midpoint of their own adjustments / quiescent current method:

Tune midpoint: universal table hit voltage profile, black pen then the red pen then GND TP1 test holes (TP1 at the output capacitor positive) board, the adjustable resistance KT1 it is 1/2 of the supply voltage.

Modulated current: 10A universal table hit stalls, a pen then positive power supply, the other one pen then VCC terminal, adjust the adjustable resistance KT2 change the current board size.

Finished board size: 100mm*73mm*30mm

Input voltage: Recommended 100-150W transformer, voltage output 12-26V.18-19V transformer works well

Output power: Class A 10 watts, quite ordinary 35 watts.

Listen to the vocals can choose 3-5 inch full-range speakers, listen to the bass recommended to choose a full-range speaker with a caliber of 5-8 inches, or you can choose a 2-unit box with a power below 120 watts, 8 inches or less, and a true sensitivity of 86 or more. Don't look at the power thrust of only 10 watts.

Tips:The 2200uF capacitor on the board is sent randomly (35V or 25V). Here is half of the power supply voltage, more than 16 volts can be used.

Net weight: 280 G
