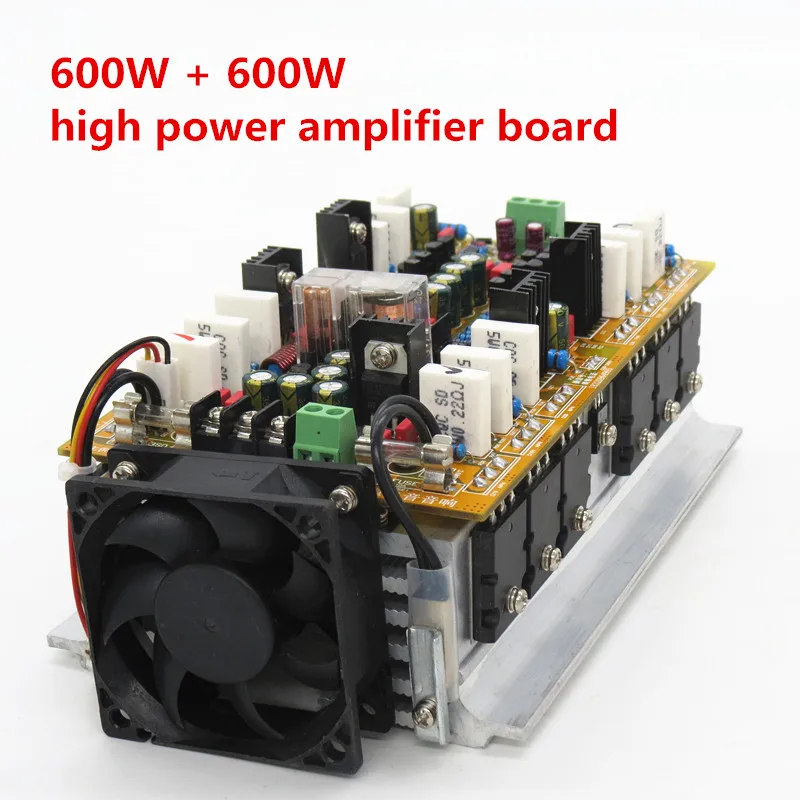

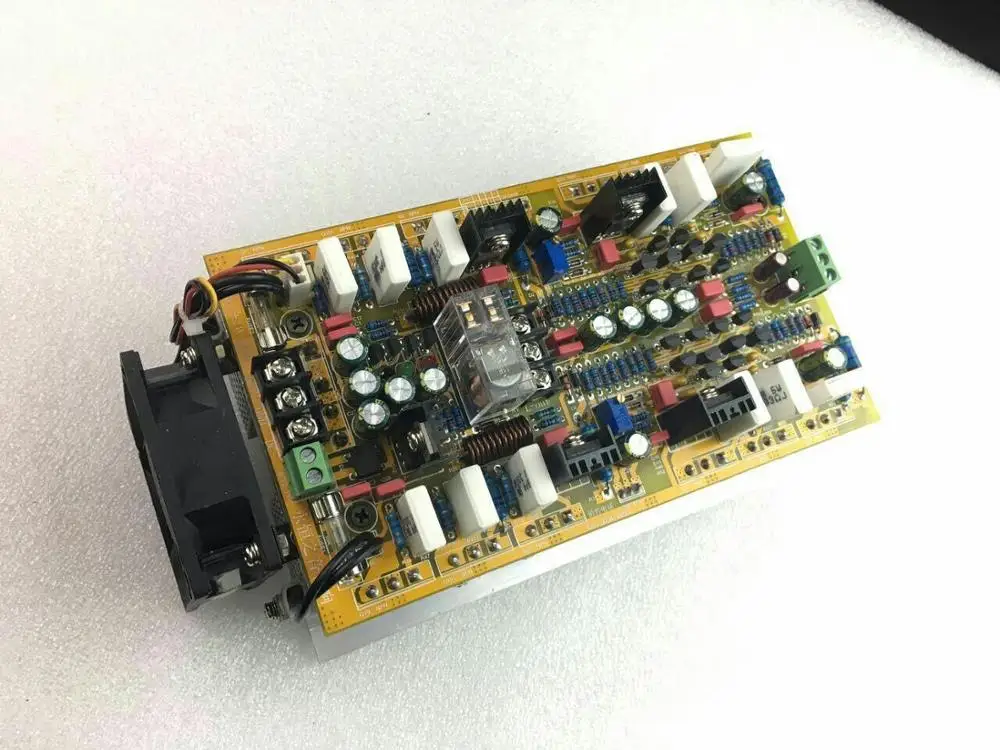

2. 0 channel stereo audio amplifier board 5200/1943 Power tube Symmetrical double differential Constant current 600W+600W

Code: TD-2255799844190678 4 orders
Free Shipping
$ 180.09 $ 198.92
Quantity:
Other people want this. 24 people have this in their carts right now.
Brand Name:  Fire Crew
Certification:  CE
Origin:  CN(Origin)
Maximum Power Per Channel:  Above 200W
Model Number:  600W+600W
Package:  Yes
Channels:  2 (2.0)
Circuit board power amplifier:  sanken

parameter

Output power: 600W + 600W
Channel Type: 2.0 Stereo

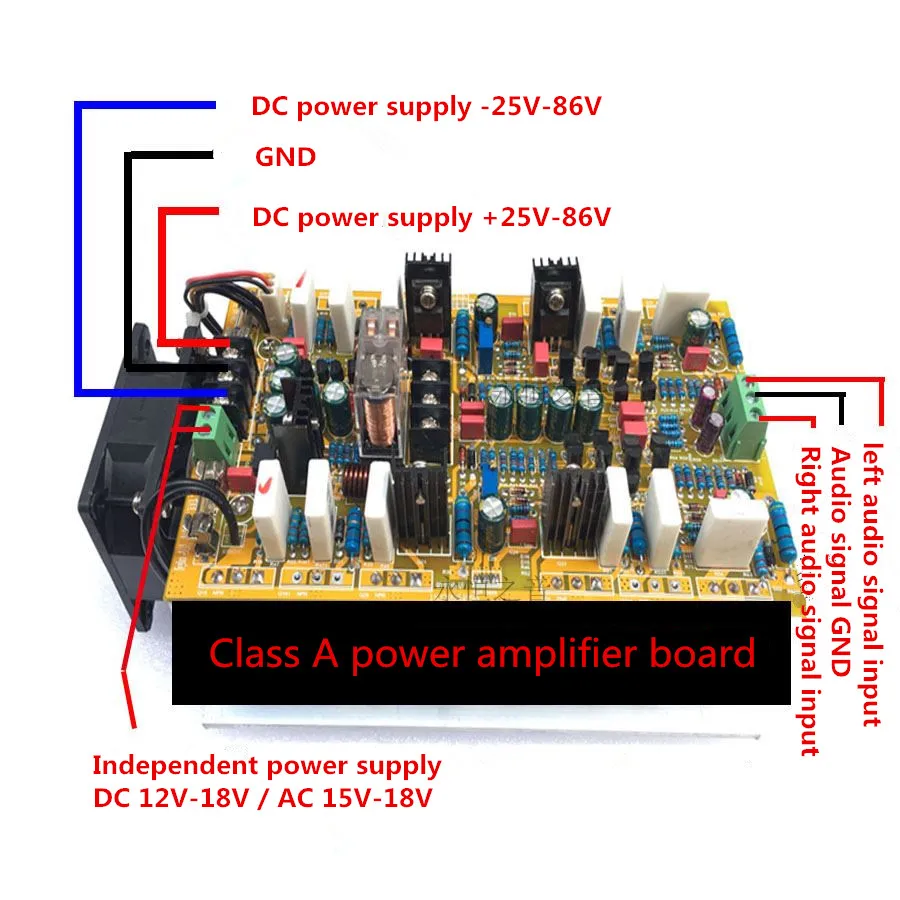

Power input: dual DC ± 25-90V
Frequency response: 20Hz-163KHz
Speaker protection Independent power supply: AC 12V-18v or (DC 16v to 20v)

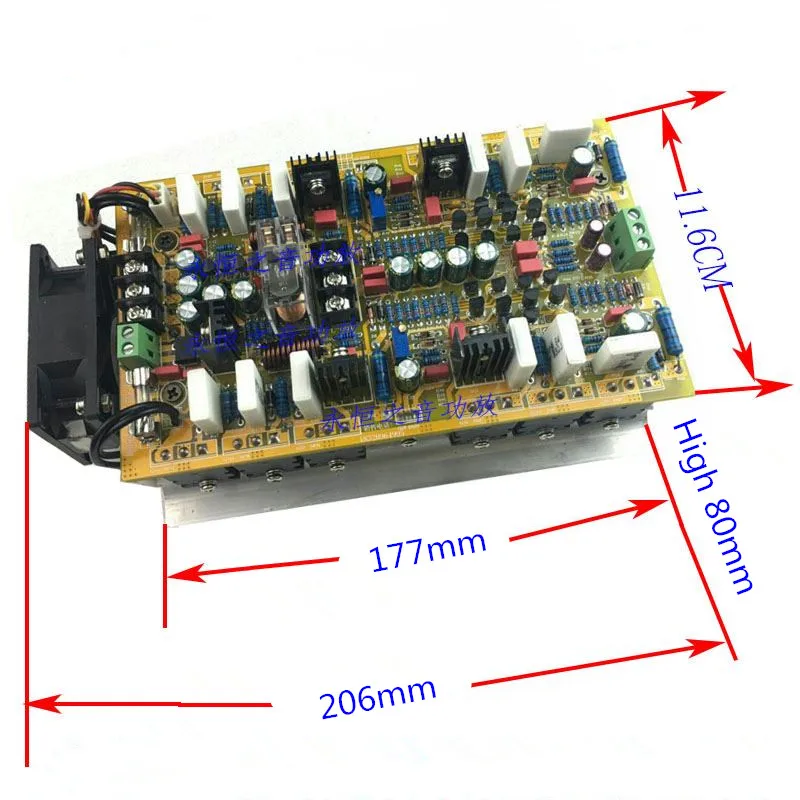

Dimensions: Length 19.7CM x Width 11.7CM x High 8.2CM
weight: 1.6kg

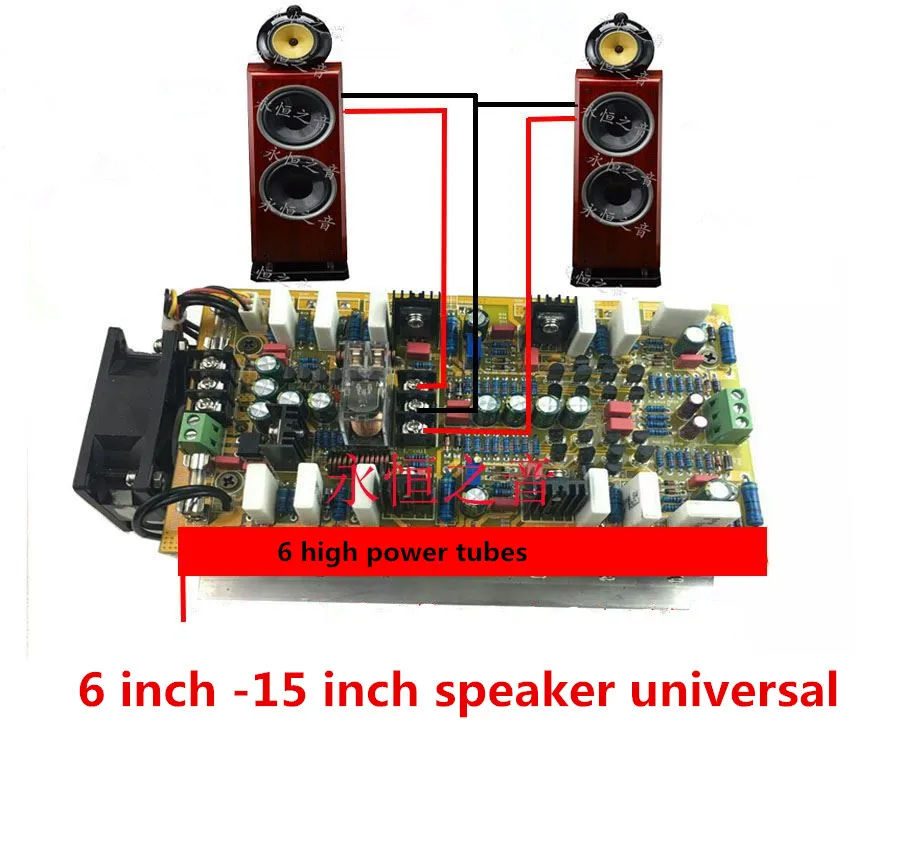

Matching Speaker: 4-8Ω 50W-700W 5-15 inch KTV Speaker / Floor Speaker / Stage Speaker

Harmonic Distortion: <0.001

Product Features

1. Original imported real Toshiba
2. The power is enough
3. Over temperature protection
4. Zero noise
5. Design layout beautiful
6. Exquisite workmanship
7. Storage function
8. Balance the current
9. Speaker protection and delay protection
10. over-temperature automatic cooling
11. Constant current differential amplification

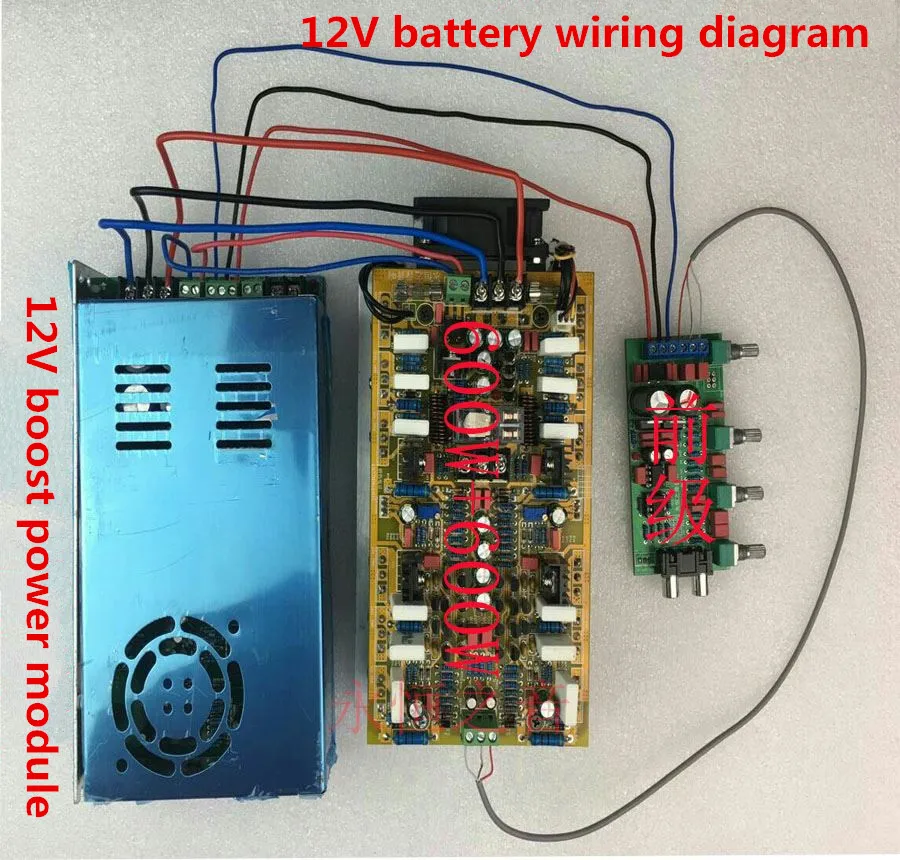

Can be used with transformers, can be equipped with power amplifier switching power supply can be used with 12v battery.
Speaker protection power supply Independent group AC12V-18V (or DC 15v-19v, power: 600W) In order to pursue greater
Dynamic advice with high voltage! It is recommended to use DC 40v to 85V between the better results.
The output power is basically determined by the supply voltage and the horn impedance, the lower the voltage, the smaller the power.

Introduction:

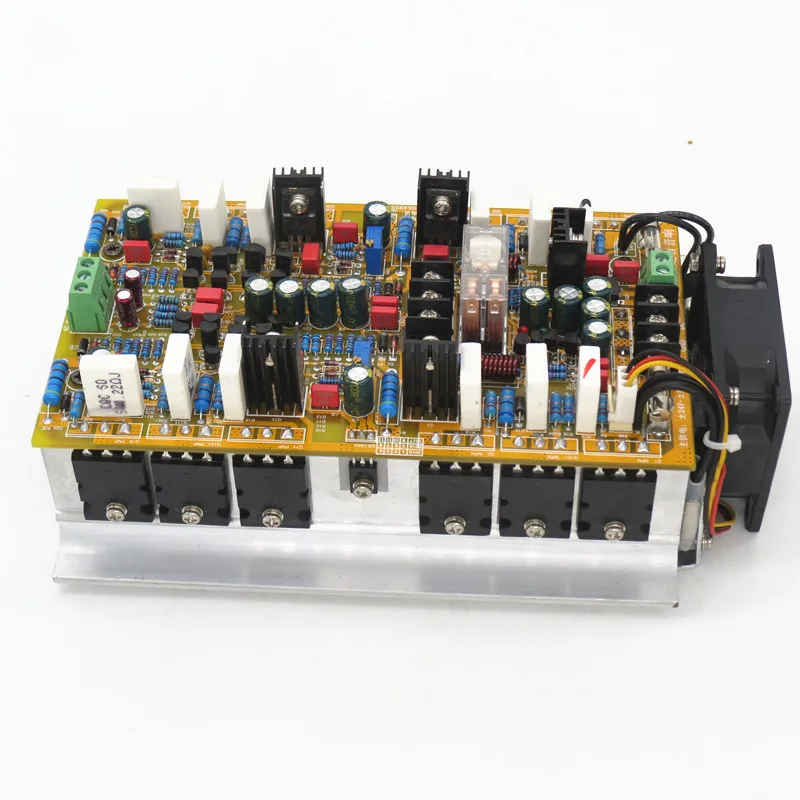

1: input double differential high-frequency transistor circuit for pre-amplification, first with the original power A1837 and C4793 to promote the Toshiba power to push the 12 5200 and 1943 parallel output! The real original pairing tube, sure enough to withstand high pressure and current,

  2: the use of thick 1.6mmFR-4 high-grade double-sided, the resistance is a metal film 1% error resistance,

3: push-level all use transistors as double differential amplification:, extreme reduced distortion, DC coupling, very wide frequency response, frequency

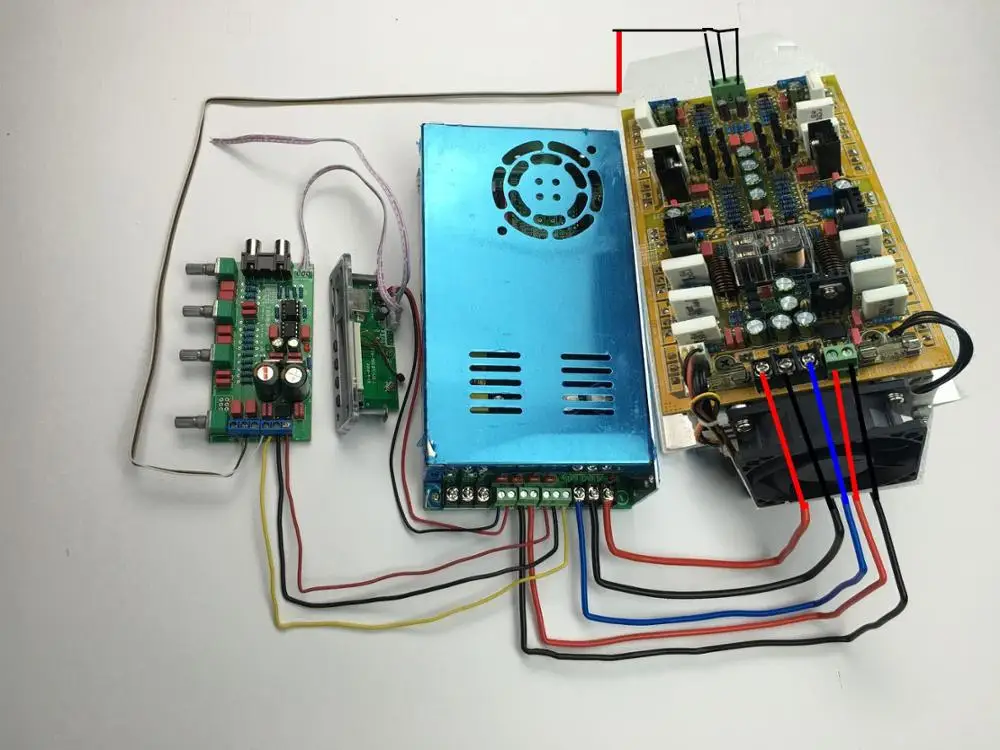

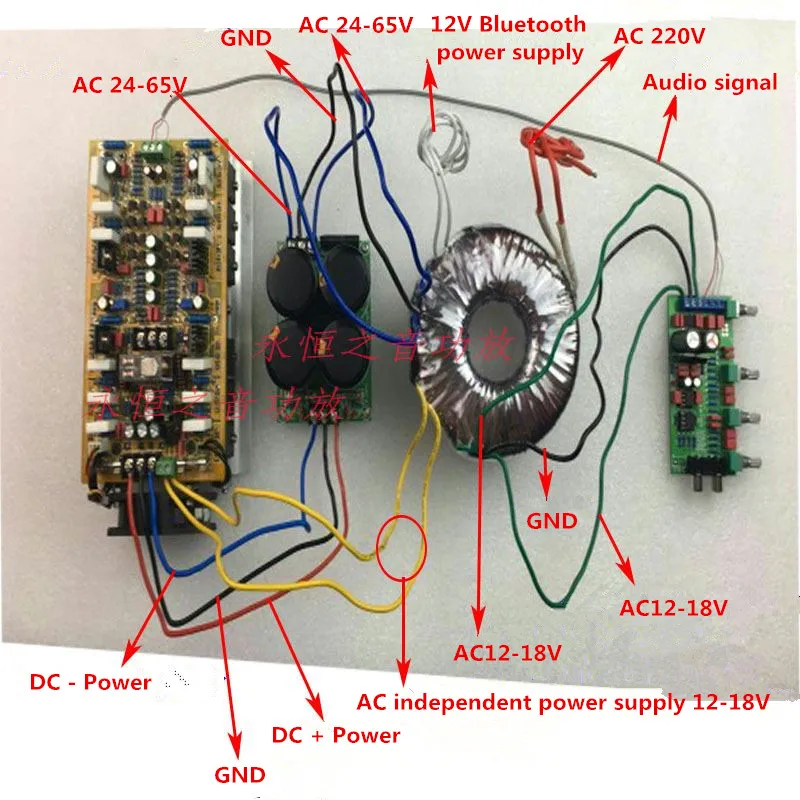

Power amplifier board 3 kinds of wiring diagram for reference
