signal amplifier Japan Double Channel Muses 8920 Operational Amplifier Hifi Audio Muses8920 IC Chip OP AMP Upgrade ES9028 ES9038PRO DAC non inverting amplifier Audio Amplifier Boards

signal amplifier Japan Double Channel Muses 8920 Operational Amplifier Hifi Audio Muses8920 IC Chip OP AMP Upgrade ES9028 ES9038PRO DAC non inverting amplifier Audio Amplifier Boards

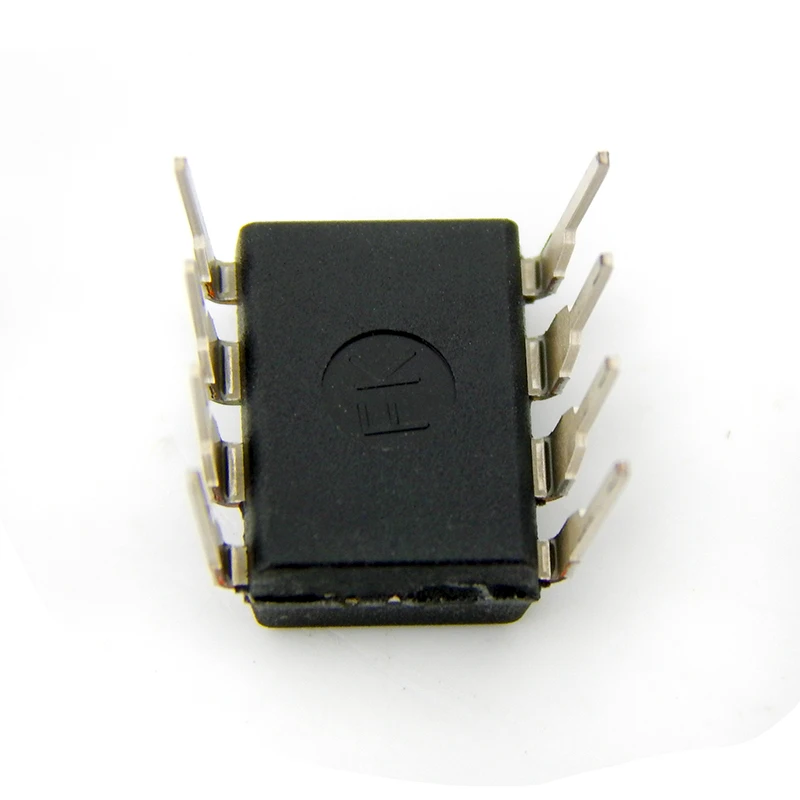

Name: signal amplifier Japan Double Channel Muses 8920 Operational Amplifier Hifi Audio Muses8920 IC Chip OP AMP Upgrade ES9028 ES9038PRO DAC non inverting amplifier
Brand: MMO Dropship
SKU: 32806945257
Price: 42.86 VND
Availability: InStock
Rating: 4.9 (70 reviews)

Code: TD-32806945257 20 orders

Free Shipping

$ 42.86 $ 43.86

Quantity:

Other people want this. 19 people have this in their carts right now.

Description
Shipping & Returns

Type:	Home Amplifier
Brand Name:	NoEnName_Null
Certification:	NONE
Package:	Yes
Maximum Power Per Channel:	10W
Channels:	2 (2.0)
Origin:	JP(Origin)
Model Number:	8920

Original OPA1611 OPA1611AID Single OP AMP For HiFi Audio Amplifier preamplifier With Expansion curre 200mA of DIP8 DIP-8 IC chip

USD 8.93/piece

LME49710HA LME49710 single op amp For HiFi Audio amplifier System DIY chip IC kits

USD 15.50/piece

OPA627 OPA627AP Single OP AMP For Hi-end Audio Amplifier preamplifier system of DIP8 DIP-8 IC chip

USD 13.04/piece

OPA627 LME49710 muses 03 TSSOP8 SSOP8 SOP8 to DIP8 PCB SOP-8 SOP Transfer Board Gold-plated weld Circuit board

USD 4.76-10.00/lot

LME49710 LME49710NA Single OP AMP For HiFi Audio Amplifier Preamplifier DIP8 DIP-8 IC chip

USD 8.90/lot

Japan JRC5534DD single channel op amp of DAC preamplifier MBL6010 operational amplifier JRC5534 IC chip

USD 6.40/lot

LME49720HA operational amplifier double channel LME49720 op amp Amplifier Accessories for IC chip

USD 14.57/piece

100%

new original product

GENERAL DESCRIPTION

PACKAGE OUTLINE The 8920 is a high quality Audio J-FET input dual operational amplifier. This is a mass production model . By inheriting Technology we pursued in the 8920 is compatible in high-quality sound and productivity. The 8920 has improved the chip layout and the material, and is developing by thoroughly repeating the listening sound. The characteristics Low noise (8nV/√Hz), high-SR (25V/µs) and low distortion (0.00004%, Av=1) suitable for audio preamplifiers, active filters, and line amplifiers. In addition, taking advantage of the low input bias current that J-FET has, it is suitable for transimpedance amplifier (I/V converter).

Parameter :

Operating Voltage ±3.5V to ±16V

Low Noise 8nV/√Hz typ.

THD 0.00004% typ. (Av=1)

Slew Rate 25V/µs typ.

Channel Separation 145dB typ.

High Output Current 100mA typ.

(short-circuit current) Phase Margin 70 deg typ.

Input Offset Voltage 0.8mV typ. 5mV max.

Input Bias Current 5pA typ. 250pA max

Voltage Gain 135dB typ.

J-FET Input

Package Outline DIP8, EMP8
