Name: 2022 Latest arrival Tube tube amplifier power amplifier 6F2+6P1 2*10W stereo push-pull combined tube amplifier 8Ω4Ω 115V/230V antenna amplifier
Brand: MMO Dropship
SKU: 1005003675476118
Price: 477.78 VND
Availability: InStock
Rating: 4.9 (93 reviews)

Code: TD-1005003675476118 1 order

Free Shipping

$ 477.78 $ 503.93

Other people want this. 16 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	GZLOZONE
Certification:	CE
Origin:	CN(Origin)
Maximum Power Per Channel:	10W
Model Number:	6F2+6P1
Package:	Yes
Channels:	2 (2.0)

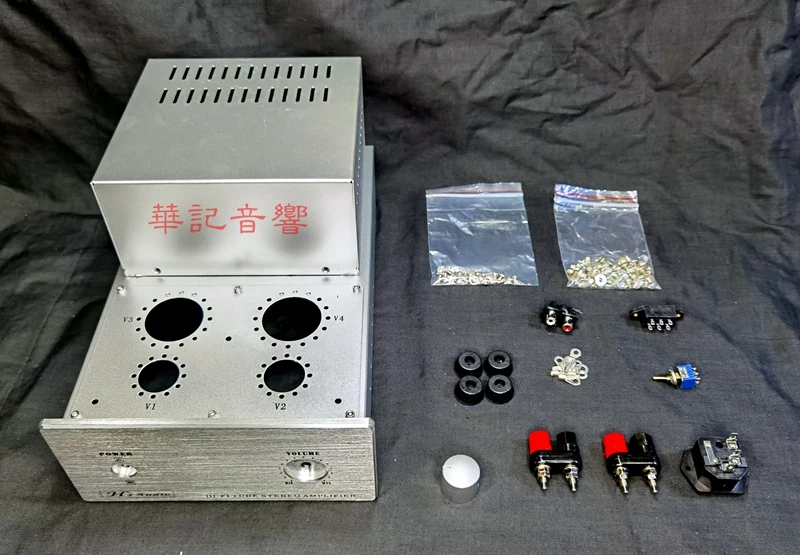

6F2+6P1 push-pull tube amplifier kit

Stereo Push-Pull Combined Amplifier Kit

Model: 6F2+6P1

Output power: 10W×2

Output impedance: 8, 4 ohms

Frequency response: 28HZ-20KHZ

Input mode: RCA

Input voltage: 115V/230V two voltage connection methods

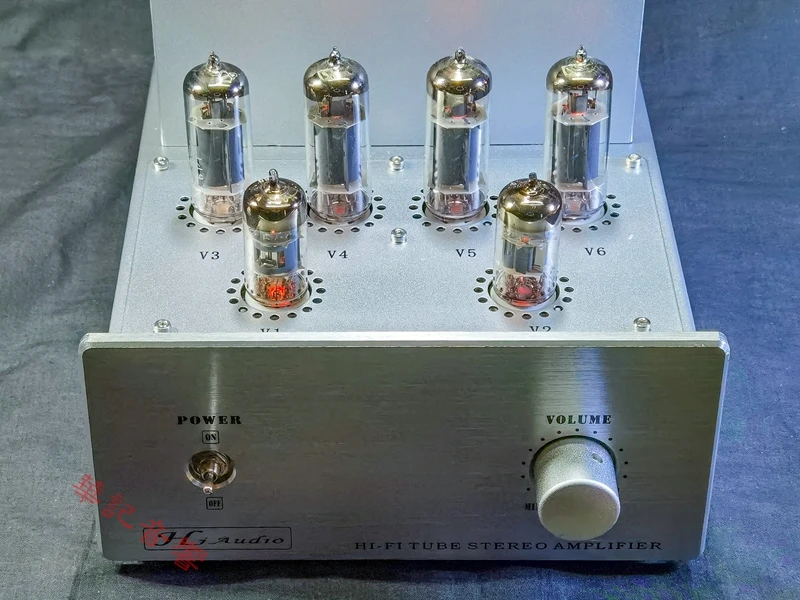

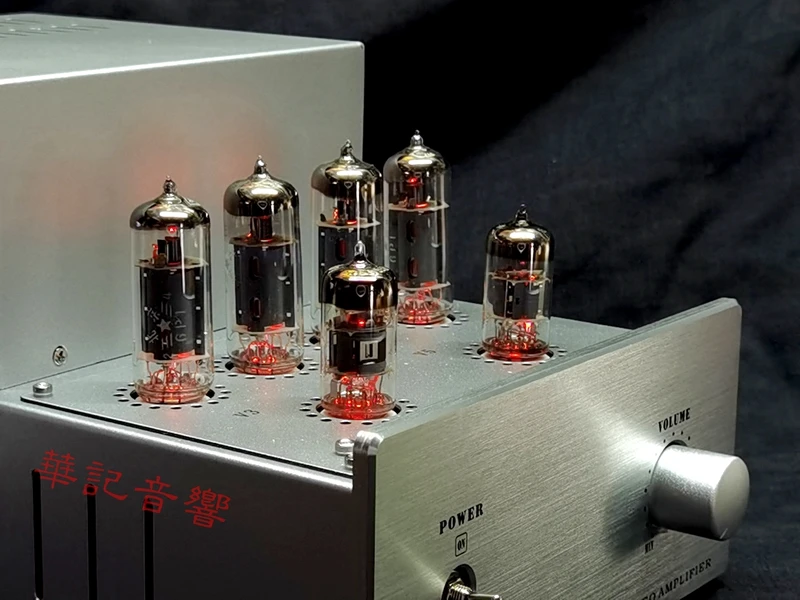

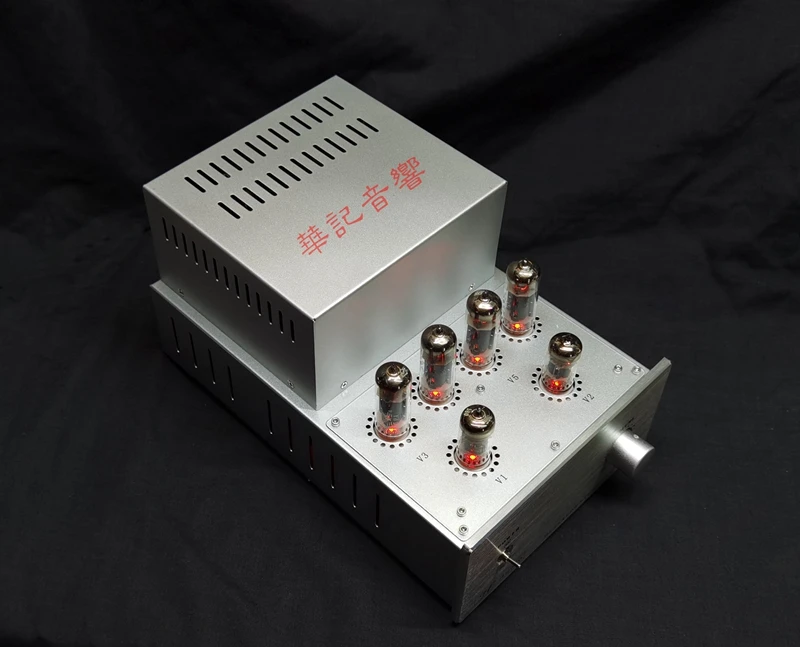

Using electronic tube: 6F2 (6U8, ECF82) × 2 6P1 × 4

(Please note: The price is for Shanghai brand 6F2 and Beijing 6P1 tubes)

Volume: 185 × 160 × 290 (length × height × depth)

Weight: 8KG (net weight)

Model: 6F2+6P1 push-pull tube amplifier kit

Upgrade in one step and listen to the beautiful sound.

At present, there are many cheap and good quality Telefunken PCF80 and PCF82 electronic tubes on the market, which can be used flexibly on this circuit board, and it is easy to obtain beautiful sound quality.

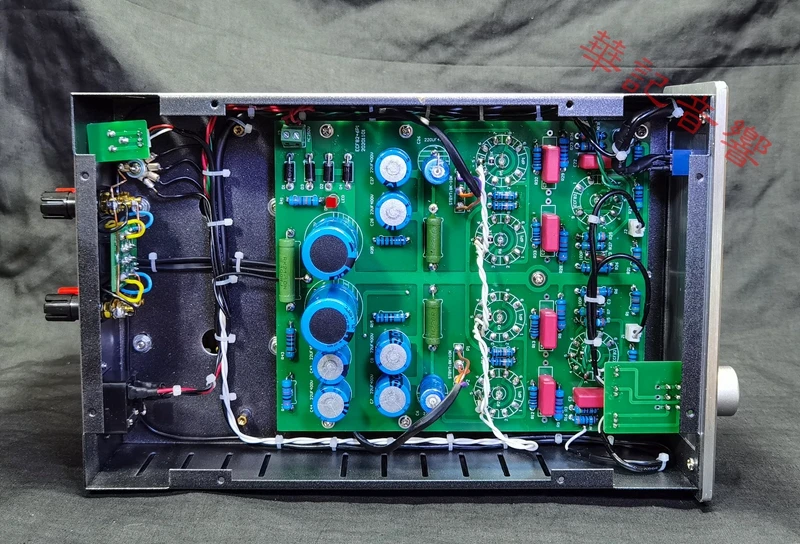

Circuit design features:

1. The circuit of the whole machine adopts the push-pull design of ECF82 (6F2) first-level voltage amplification + screen negative phase inverter circuit standard connection to ensure that there is enough driving voltage to promote the input level of the 6P1 tube, so that the frequency response of the whole machine is consistent. Dynamic is guaranteed.

2. The upgrade is simple and easy. You can directly replace the domestic 6F2 tube with ECF82. You can also use ECF80 and E80CF tubes by modifying the resistance of R5 and R25 of the circuit board to 300K, or by changing the filament supply voltage of the power transformer. , You can use PCF80 and PCF82 tubes, which is convenient for enthusiasts to appreciate different tones.

3. The whole machine uses audiophile electronic components, Taiwan brand resistors, Dutch Philips BC electrolytic capacitors, German Weimar coupling capacitors, Japanese original imported ALPS volume potentiometers, power cattle, and output cattle are all imported from Japan Z11 silicon steel Films, selected fever components and meticulous sound tuning methods, so that the sound quality of this machine can be beautifully sounded.
