valve amplifier Douk Audio JAN5654 Vacuum Tube Phono Preamp for MM/MC Turntables Home Stereo Audio Preamp Headphone Amplifier with VU Meter home audio amplifier Audio Amplifier Boards

valve amplifier Douk Audio JAN5654 Vacuum Tube Phono Preamp for MM/MC Turntables Home Stereo Audio Preamp Headphone Amplifier with VU Meter home audio amplifier Audio Amplifier Boards

Name: valve amplifier Douk Audio JAN5654 Vacuum Tube Phono Preamp for MM/MC Turntables Home Stereo Audio Preamp Headphone Amplifier with VU Meter home audio amplifier
Brand: MMO Dropship
SKU: 1005003594017486
Price: 150.99 VND
Availability: InStock
Rating: 4.9 (98 reviews)

Code: TD-1005003594017486 17 orders

Free Shipping

$ 150.99 $ 219.99

Quantity:

Other people want this. 6 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Nobsound
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Package:	Yes
Certification:	CE
Model Number:	T4 PLUS
Channels:	2 (2.0)
Model Number:	T4 PLUS
Type:	Tube Preamp

Douk audio HiFi TPA3116 Bluetooth 5.0 APTX ES9018K2M DAC Stereo Power Amplifier Headphone Amp 200 Watt

USD 109.99/piece

Douk Audio TONE HiFi Bluetooth 5.0 TPA3116 Digital Power Amplifier USB Mini Stereo Headphone Amp For Home Audio

USD 34.99/piece

Douk audio HiFi NS-20G Mini Bluetooth 5.0 TPA3116 Digital Power Amplifier Hifi DSP Stereo Headphone Amp 100W+100W With Adapter

USD 45.49/piece

Douk audio Bluetooth 5.0 Power Amplifier Stereo 2.0 Ch Subwoofer Amp Treble Bass Adjust USB Lossless Music Player 320W

USD 66.94/piece

Douk audio HiFi Bluetooth 5.0 JAN 5654 Tube Vacuum Preamplifier USB DAC APTX Home Stereo Audio Preamp Headphone Amp

USD 90.99/piece

Douk audio Mini Bluetooth 5.0 Class D 2.1 Power Amplifier HiFi Stereo Audio Subwoofer Amp USB/ AUX/ U-disk Player

USD 89.99/piece

Douk Audio Mini Bluetooth 5.0 100W Power Amplifier HiFi Class D Stereo Digital Amp for Speaker Treble Bass Control

USD 37.04-48.09/piece

Douk Audio Mini TPA3116 Digital Audio Amplifier HiFi Bluetooth 5.0 Class D Stereo Power Amp 100W*2 For Speaker

USD 47.44-58.49/piece

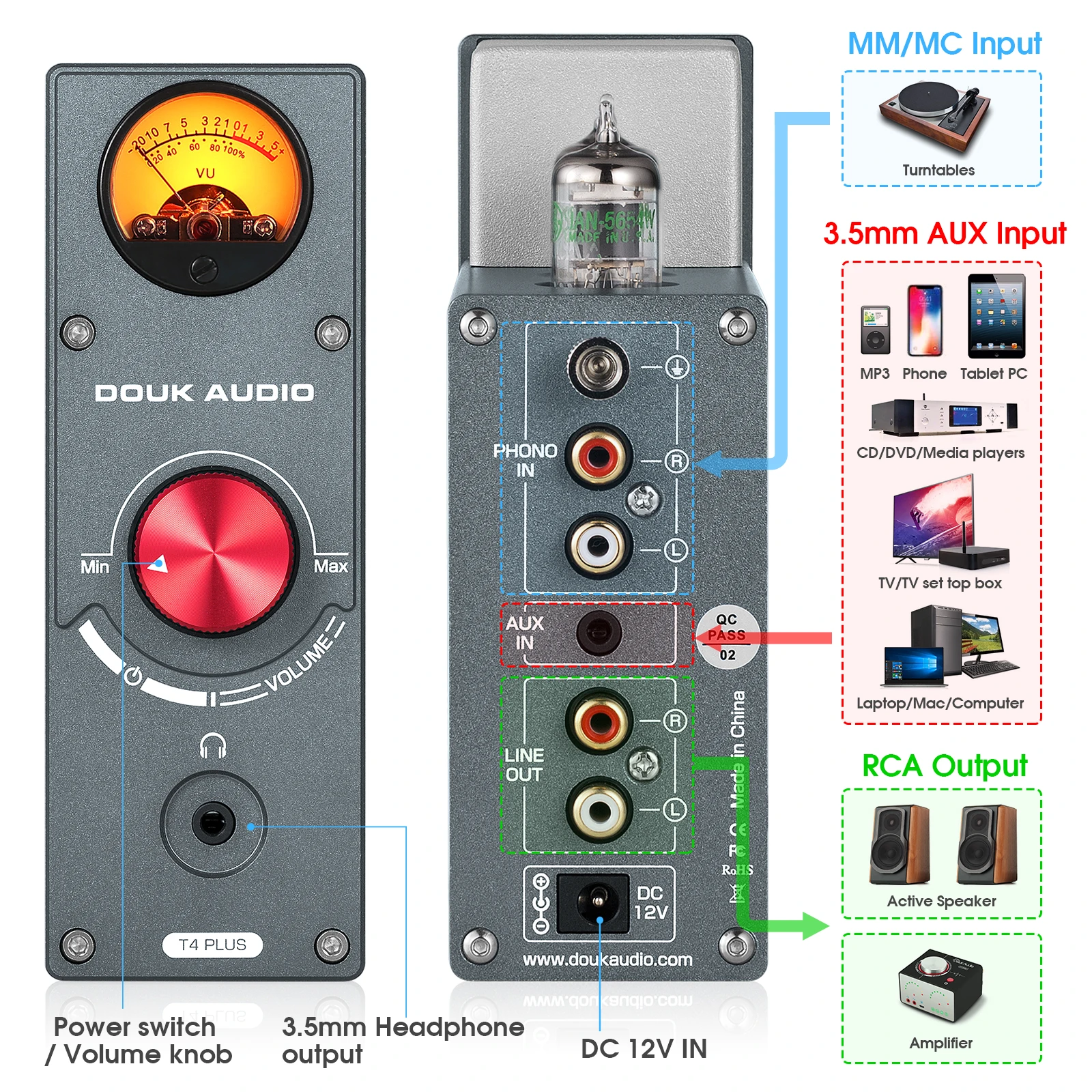

T4 PLUS tube preamp meets more HiFi audio needs:

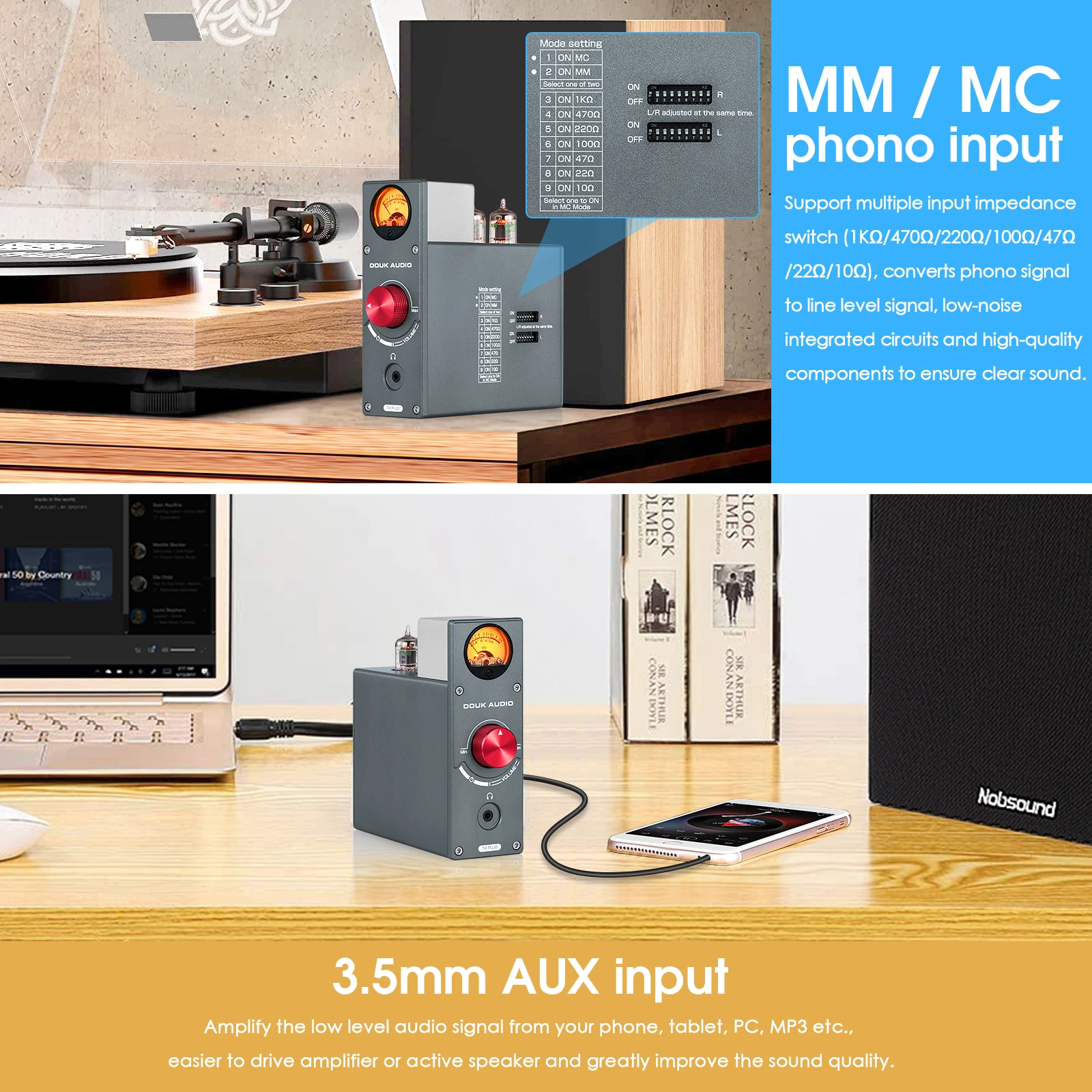

MM /MC phono input, support multiple input impedance switch (1KΩ/470Ω/220Ω/100Ω/47Ω/22Ω/10Ω), converts phono signal to line level signal, low-noise integrated circuits and high-quality components to ensure clear sound.

3.5mm AUX input, amplify the low level audio signal from your phone, tablet, PC, MP3 etc., easier to drive amplifier or active speaker and greatly improve the sound quality.

Unique and amazing combination in the appearance: integrated T4 PLUS preamp with retro tubes and VU meter into a whole, the pointer dancing in the warm light with strong vintage feelings when enjoy HiFi music, dynamically decorates the audio system and give you a different acoustic enjoyment with large dynamic and sweet tube sound even in limited space.

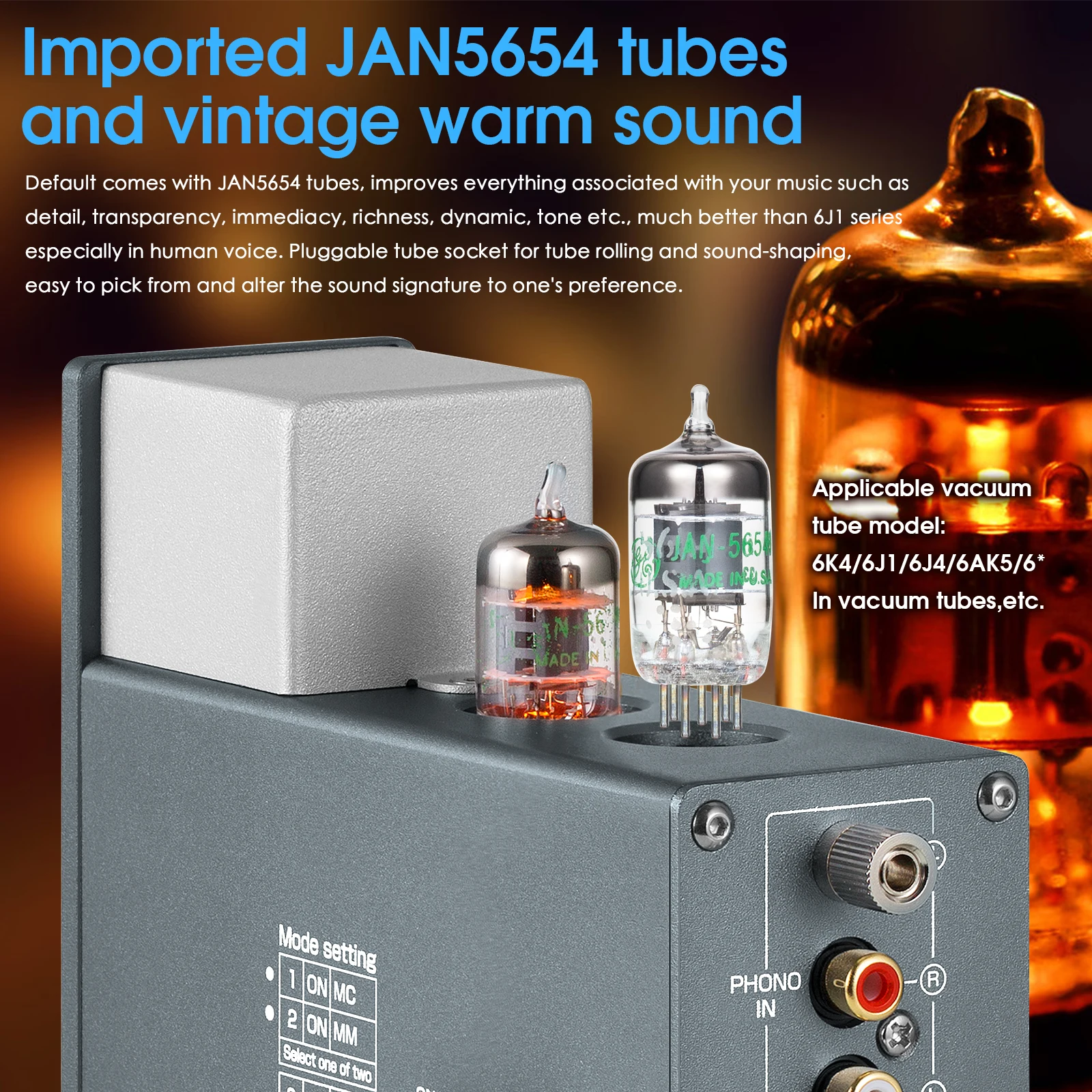

Imported JAN5654 tubes and vintage warm sound: default comes with JAN5654 tubes, improves everything associated with your music such as detail, transparency, immediacy, richness, dynamic, tone etc., much better than 6J1 series especially in human voice. Pluggable tube socket for tube rolling and sound-shaping, easy to pick from and alter the sound signature to one's preference.

3.5mm headphone output and perfect circuit design: T4 PLUS also with built-in classic headphone amp circuit (2*NE5532), easily to drive 32-300 ohm headphones. Reasonable and advanced architecture, TI TPS5430+7205MOS for power management, TL071+JRC2068 phono preamp circuit etc., enjoy HiFi analog sound and first-class design with an unbeatable low cost.

Mini size and excellent performance: all designs full of details, such as solid aluminum alloy knob, gold-plated terminals, grey integrated moulding aluminum alloy shell decorates with built-in VU meter, looks vintage and elegant. Not only a MM/MC phono preamp, but also a stereo audio preamp and headphone amplifier, especially designed for the audiophiles who pursue HiFi sound.

Warm tips:

1. 3.5mm AUX input with priority, please make sure the AUX cable has been pulled out if want to use MM/MC phono input.

2. Stereo RCA and 3.5mm headphone jack can output at the same time, and the knob also controls the volume of two outputs simultaneously.

Parameters

Brand: Douk Audio

Model: T4 PLUS

Audio input: MM phono/turntable / 3.5mm AUX

Audio output: stereo L/R RCA / 3.5mm headphone jack

Max output power of headphone jack: 150mW@32Ω

Matched headphone impedance: 32-300Ω

AUX IN

AUX input level: 0.775V

RCA max output level: 1.5V

Frequency response: 20Hz-20KHz (±0.3dB)

S/N ratio: ≥110dB

THD: 0.2%

Phono IN

Phono input level: 0.005V

RCA max output level: 300mV (MM) / 3V (MC)

Frequency response: conforms to RIAA characteristics (±3dB)

S/N ratio: 71dB

THD: 0.8%

Working voltage: DC 12V

Dimensions(W*D*H): 50*137*146mm / 1.97*5.39*5.75in

Package dimensions(W*D*H): 300*230*65mm / 11.81*9.06*2.56in

Net weight: 640g / 1.41lb

Package weight: 1000g / 2.20lb

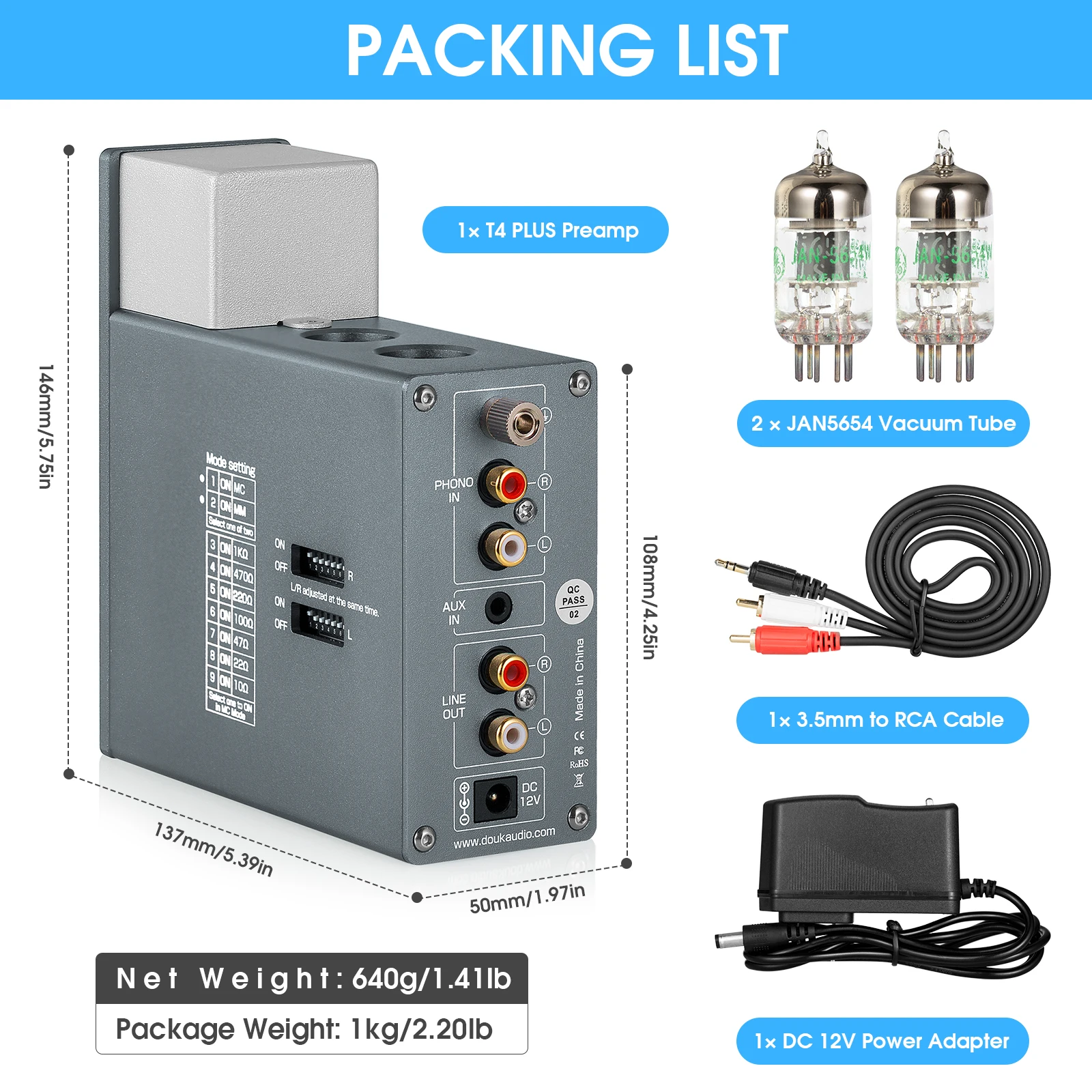

Packing List

1*T4 PLUS Preamp

2*JAN5654 Vacuum Tube

1*DC 12V Power Adapter

1*3.5mm to RCA Cable
