Lyele Audio 300b Vacuum Tube Amplifier Diy Kit Hifi Class A Audio Amplifier High Power 8W*2 Vu Meter High End Home Amp 110V/220V tube amp Audio Amplifier Boards
Code: TD-1005002970106391
5 orders
Free Shipping
$ 1557.71
$ 1862.26
Other people want this. 6 people have this in their carts right now.
| Brand Name: | lyele |
|---|---|
| Certification: | NONE |
| Origin: | CN(Origin) |
| Maximum Power Per Channel: | 8W |
| Model Number: | 6SN7 300B |
| Package: | Yes |
| Channels: | 2 (2.0) |
| color: | black |
| tube: | 300b |
| tube: | 6sn7 |
| tube: | 274b |
| tube: | 6n8p |
| tube: | 5u4g |
| brand: | Lyele Audio |
| Nane: | 300b tube amplifier |
| Power Transformers: | 114*70 350W |
| Output transformer: | 96*45 20W |
| Output Power: | 8W+8W |
| Frequency response: | 18hz-25khz |
| Output impedance: | 4Ω 8Ω |
| SNR: | 89db |
| Input sensitive: | 500mv-1000mv |
| input resistance: | 100kΩ |
| size: | 370*290*220mm |
| Equipped: | vu meter |

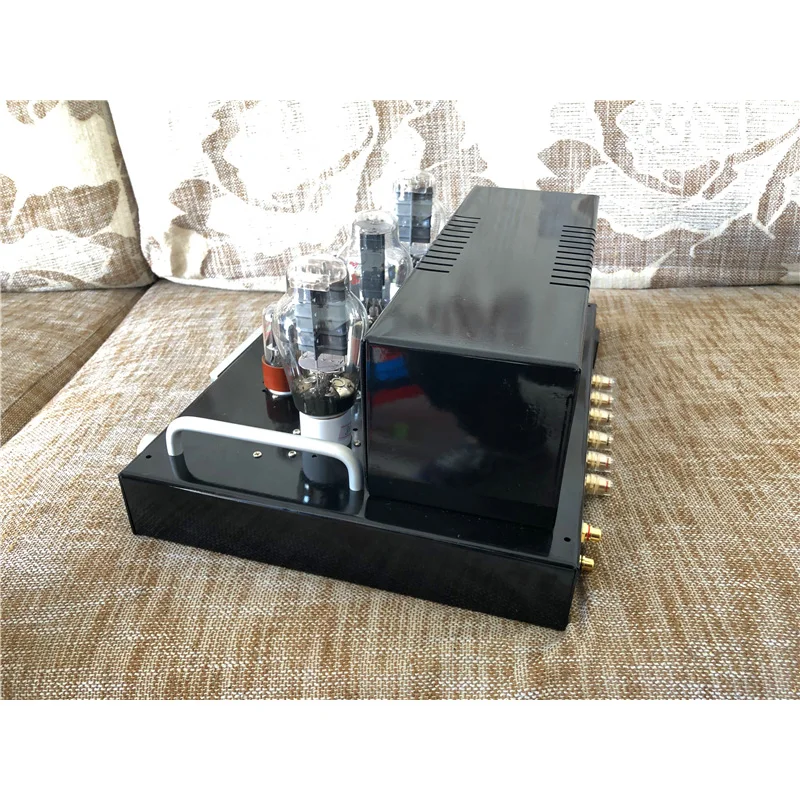

Lyele Audio 300b Vacuum Tube Amplifier Diy Kit Hifi Class A Audio Amplifier High Power 8W*2 Vu Meter High End Home Amp 110V/220V
Product description:

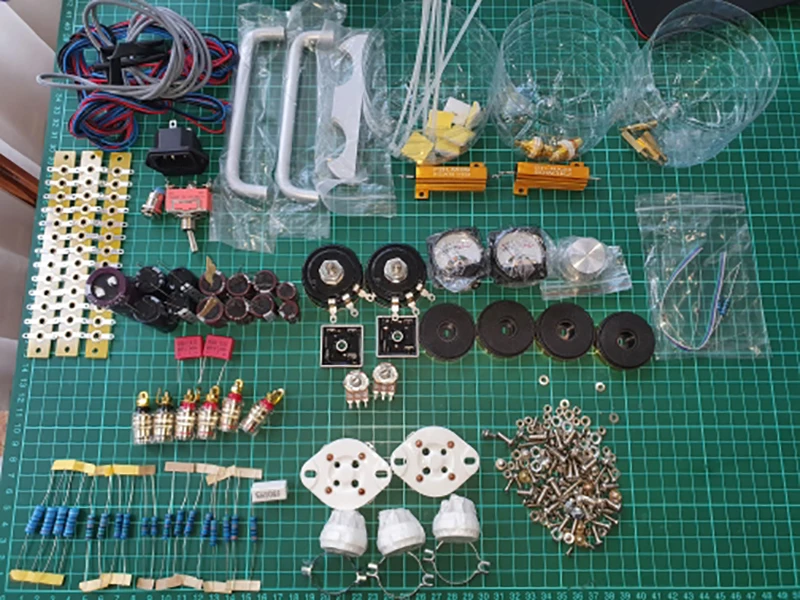

The kit includes all parts and vacuum tubes.
6SN7 pushes 300B circuit, the gain is large, the driving voltage is sufficient, the distortion is low, and the performance is superior.
114x70 super power transformer (350W, similar max), 96x45 super output transformer (new stock Z11 0.35 iron core, 4+3 fever winding, similar max)
The characteristics of 300B are quite outstanding, the playback of vocals, violin, light music, etc. is quite sweet, the high frequency in the details is very good, the middle frequency is prominent, and the low frequency is good. In short, the first choice for human voice, worthy of becoming the king of tube 300B!
Parameter:
Power transformer: 114*70 350W full-watt super large electric cow, brand new special grade *1 (max in the 300B kit)
Output transformer: 96*45 20W fever 4+3 winding method, new stock imported Nippon Steel 0.35 Z11 pieces*2 (max in the 300B kit)
Choke coil: 57*25 4H brand new premium film*2
Tube: 6SN7*2(6N8P) / 300B*2 / 274B(5U4G)*1
Output power: 8W+8W
Frequency response: 18hz-25khz
Output impedance: 4 ohms and 8 ohms
Signal to noise ratio: 89db
Input sensitivity: 500mv-1000mv
Input impedance: 100kΩ
Harmonic distortion: 1% (1khz)
Volume size: 370mm (length) * 290mm (depth) * 220 (high)
