Product description:

This power amplifier can

output 39.2dBm (8.31W)@ 433MHz maximum at 8V

, current 1.56A, efficiency 66.5%, which is very suitable for two lithium-ion batteries and can burst such a large power.

High power, high efficiency, small size,

power at 8V,output 8.3W.

Working frequency: 400-460MHz

Maximum output power (P1dB):

8.32W (39.2dBm) @ 8V 1.56A Efficiency 66.6%

6.76W (38.3dBm) @ 7V 1.43A Efficiency 67.5%

5.12W (37.1dBm) @ 6V 1.26A Efficiency 67.7%

Input power: 20 ~ 23dBm (0.1 ~ 0.2W), less than 0.1W can work, the output power will increase as the input power increases, and finally reach the maximum power point.

Working voltage: 5-8.4V (lithium battery supply)

Working current: 1.6A (Max)

Input impedance: 50 ohm

Output impedance: 50 ohm

Input and output terminals: SMA-k female (male threaded bore)

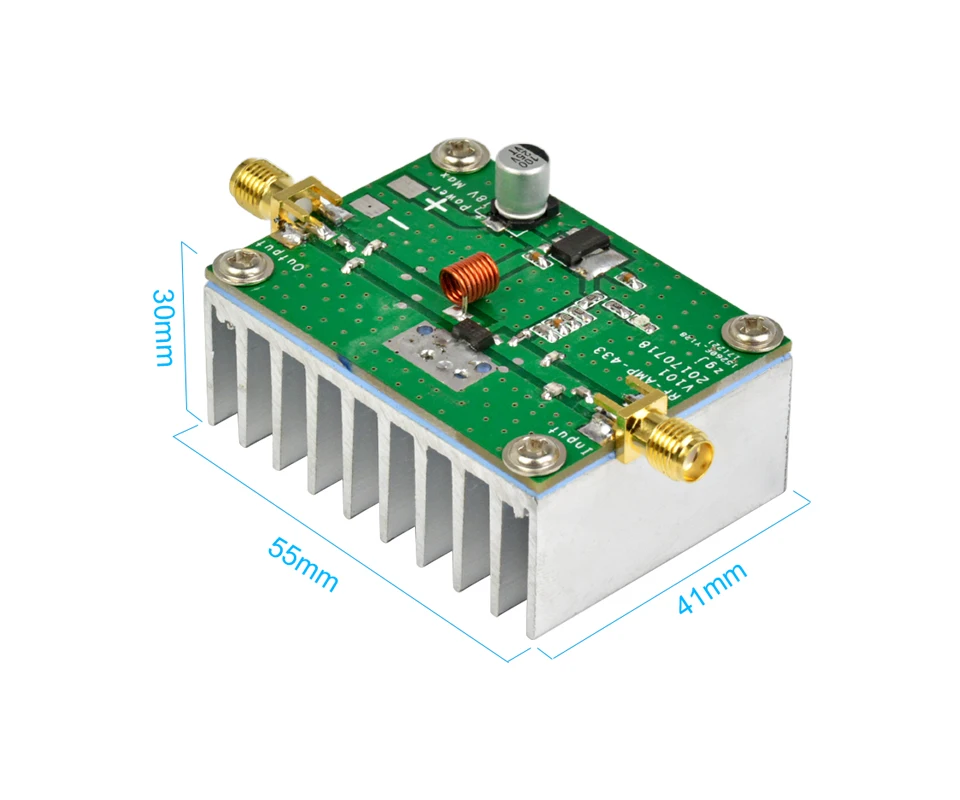

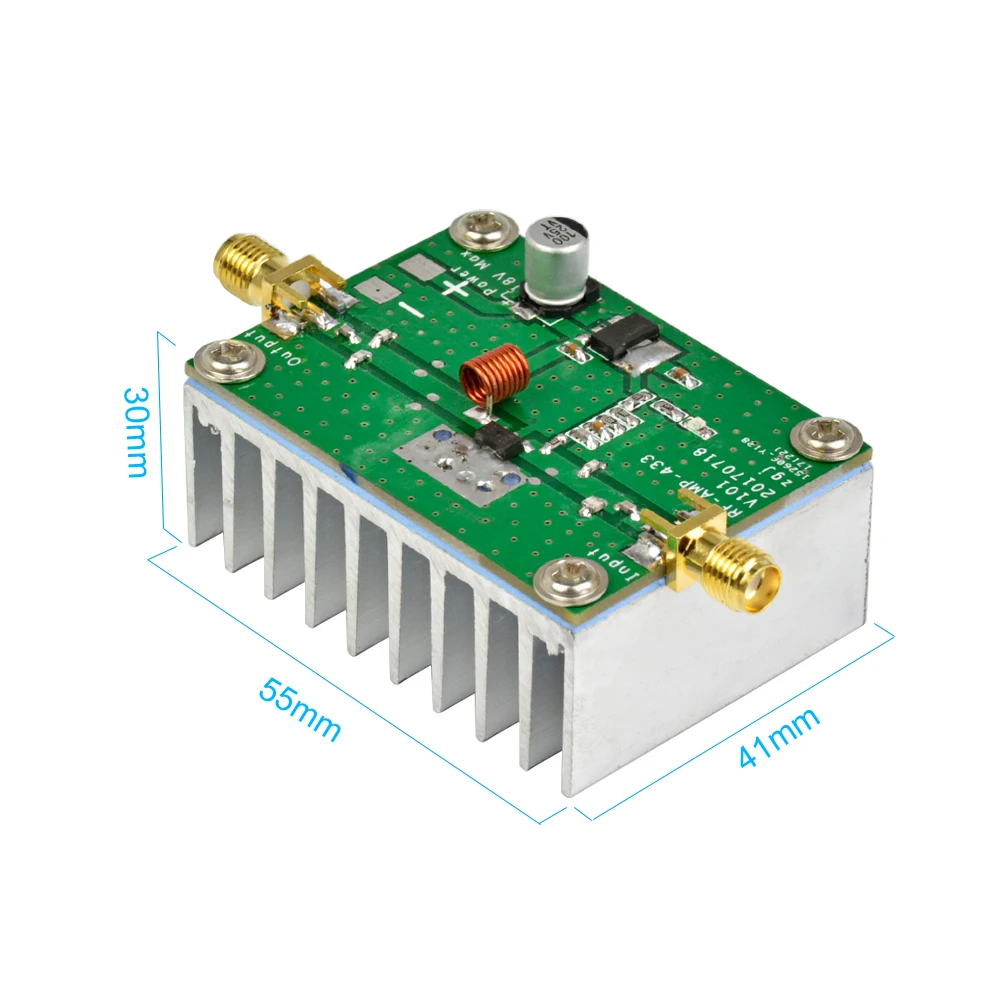

Module Size: 4x5.5cm (without protrusions)

Module weight: 60g

Application: Digital transmission extended range, remote control, interphone even power amplification.

Package included:

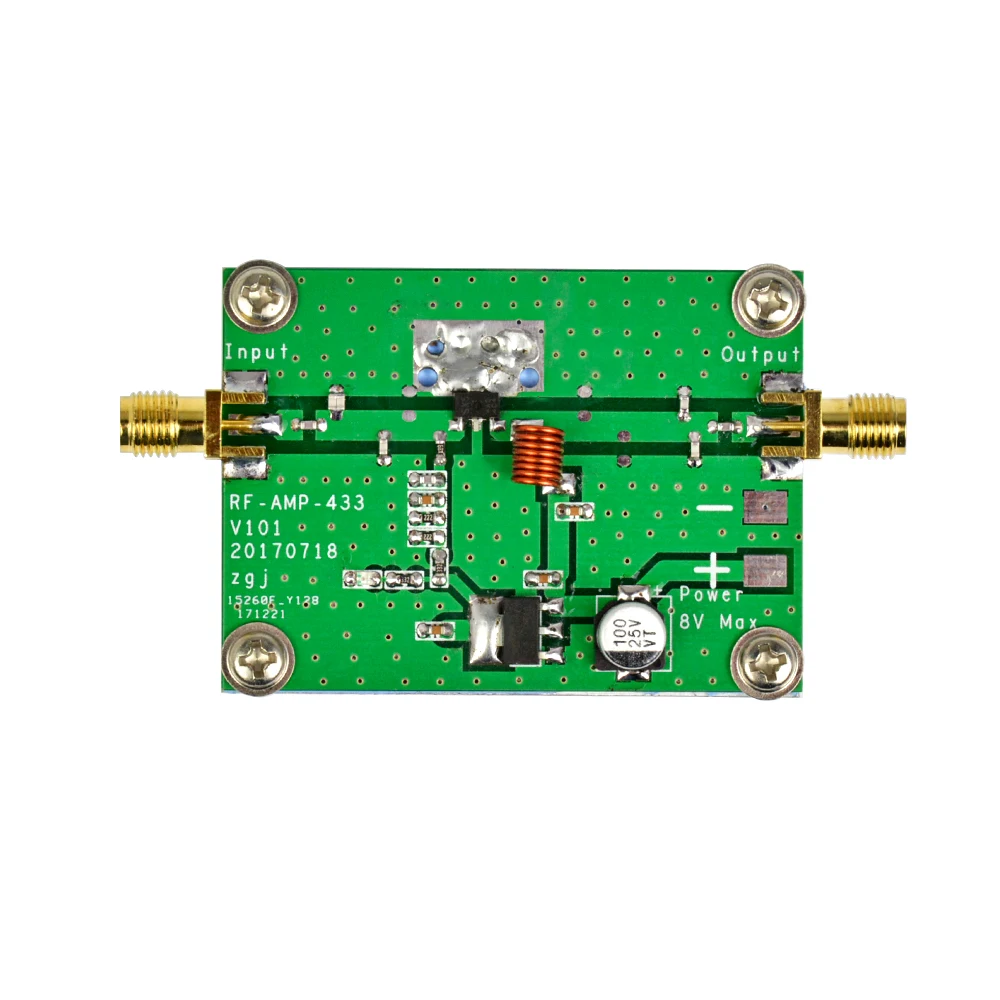

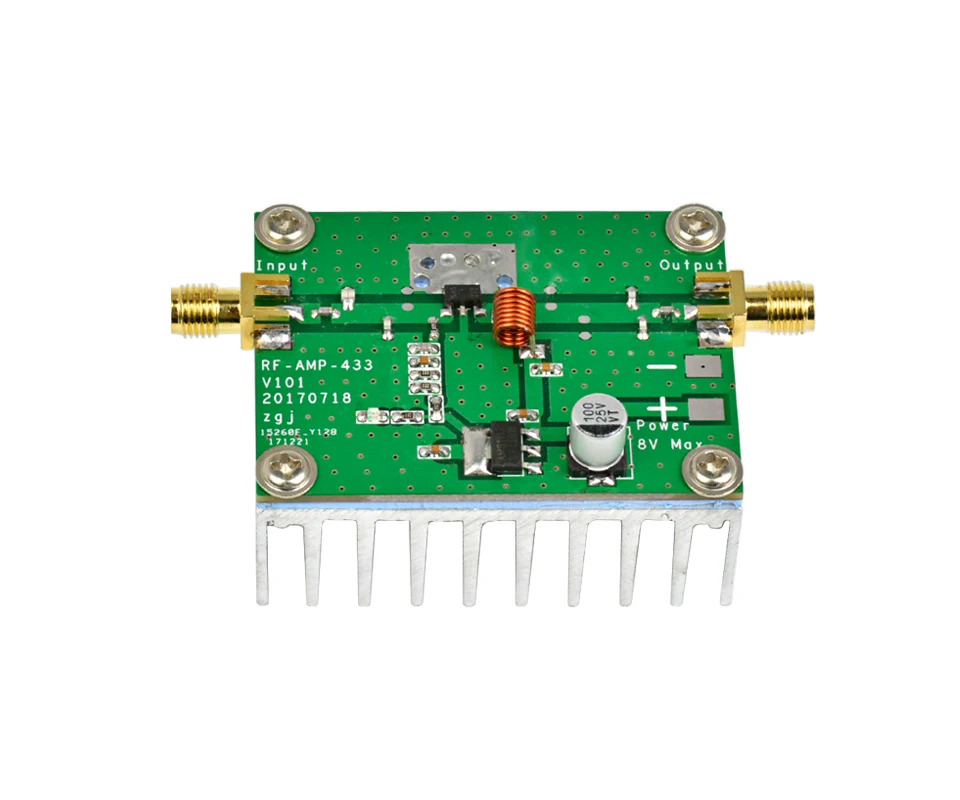

1PC 433MHz 8W Power Amplifier Board

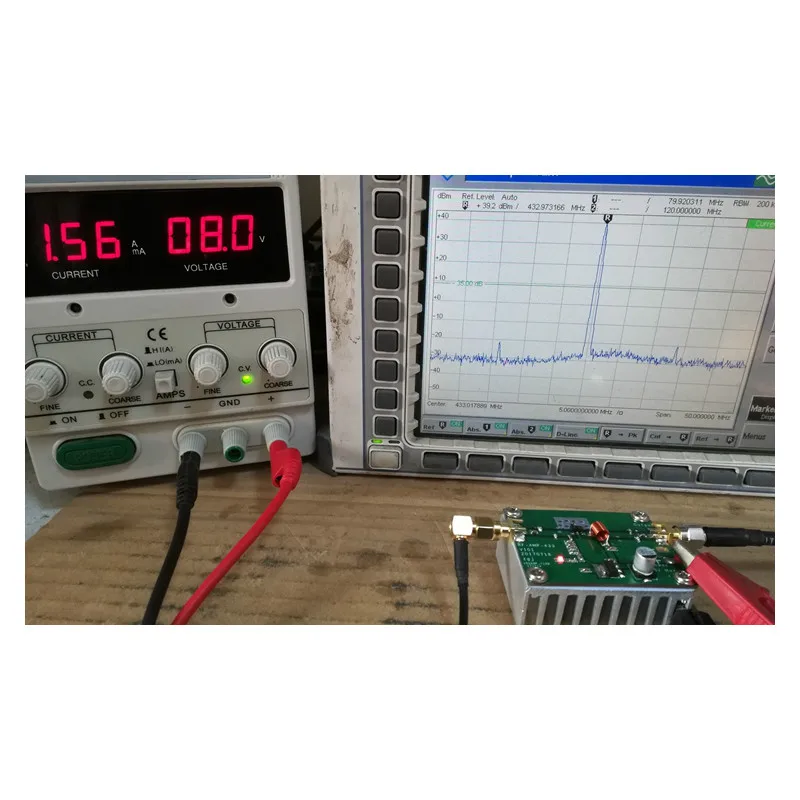

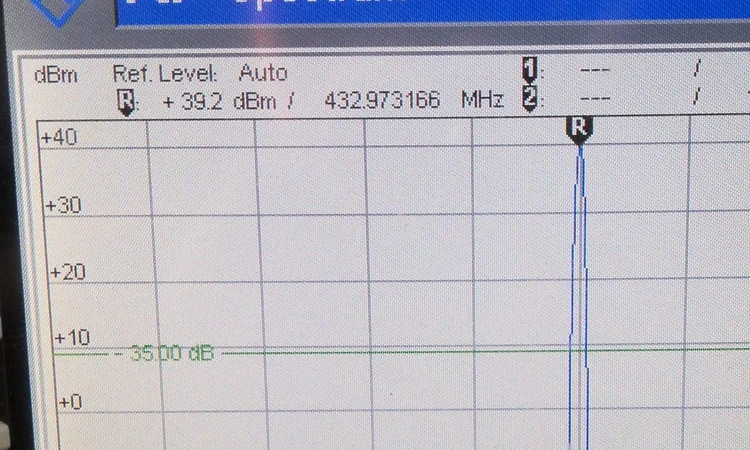

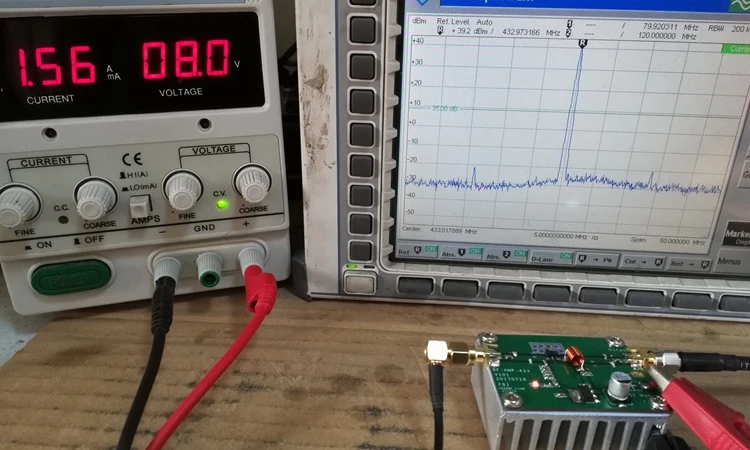

8V power supply, output 39.2dBm (8.3W), efficiency 66.6%

Output Power:

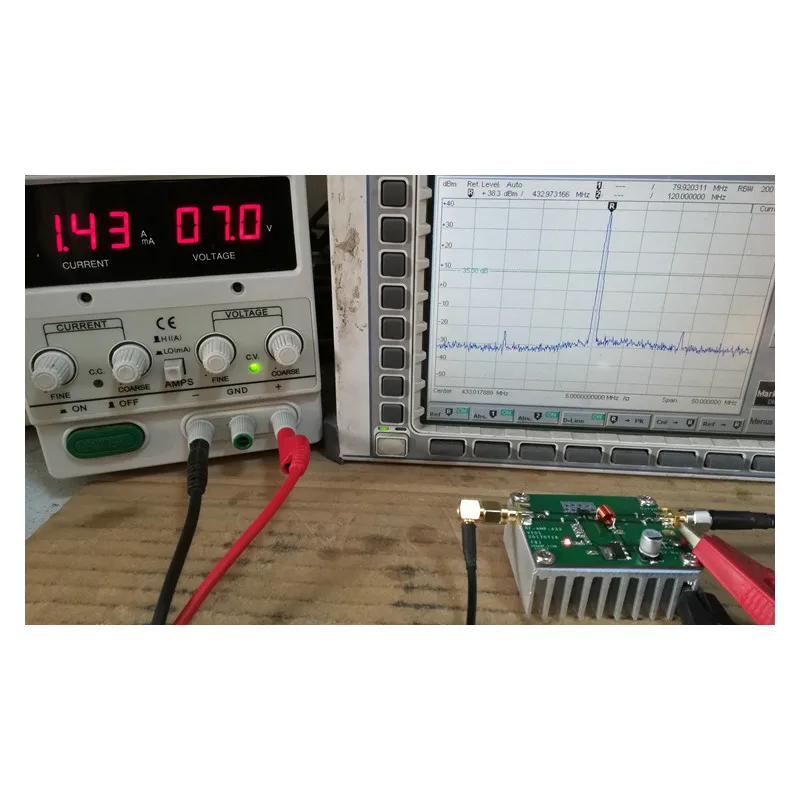

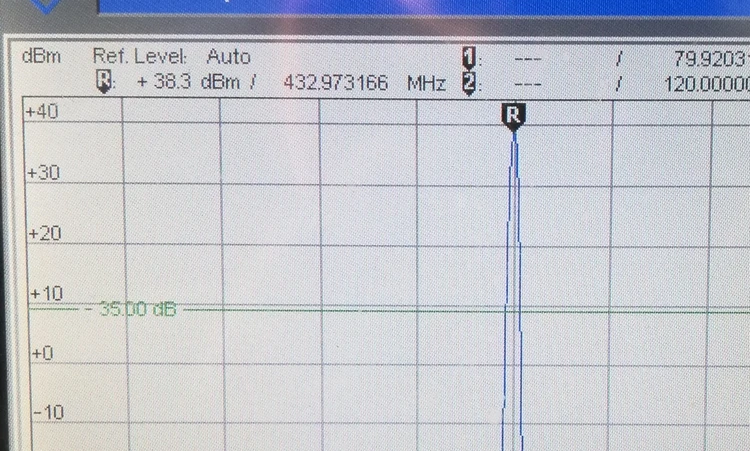

7V power supply, output 38.3dBm (6.76W), current 1.43A, efficiency 67.5%

Output Power:

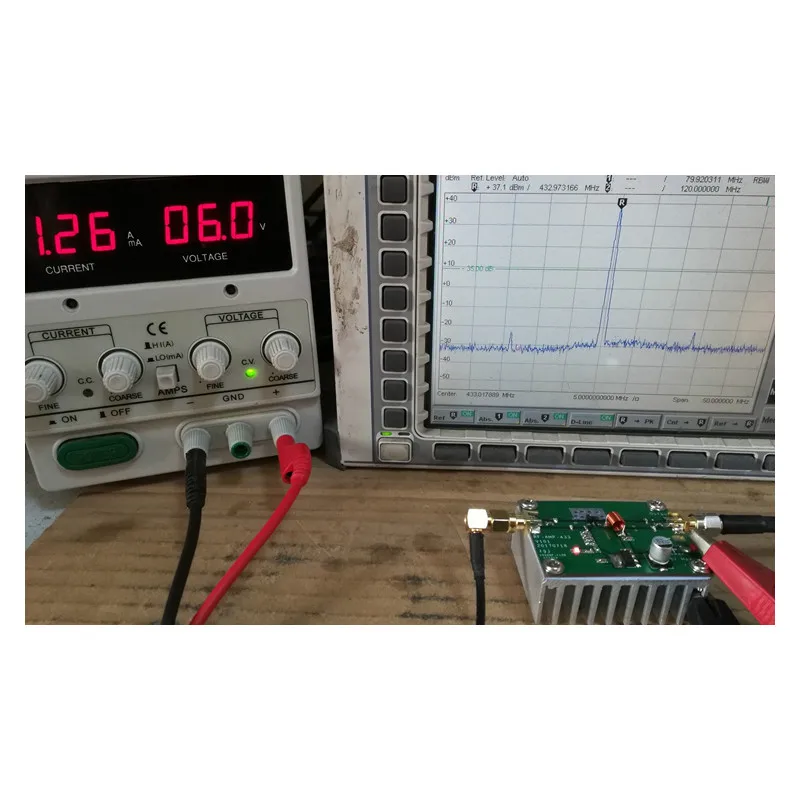

6V Output Power 37.1dBm (5.13W), Current 1.26A, Efficiency 67.8%
