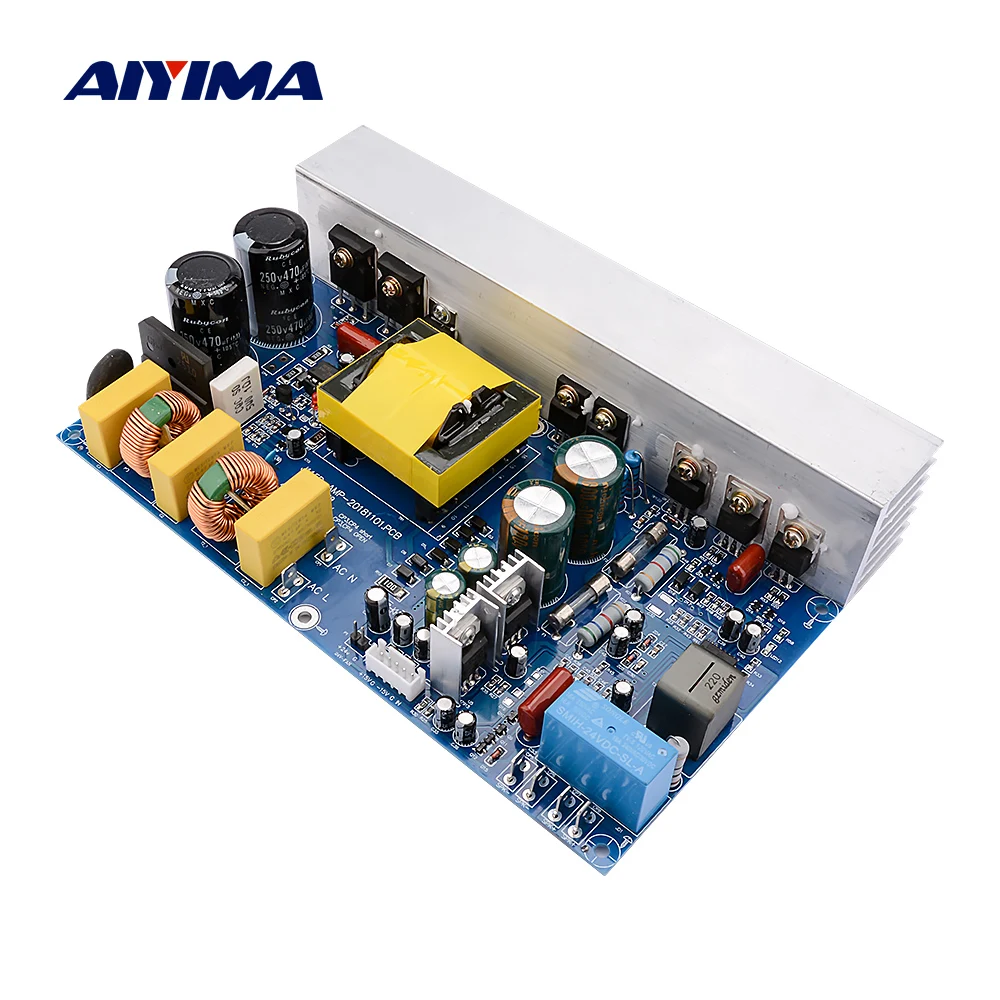

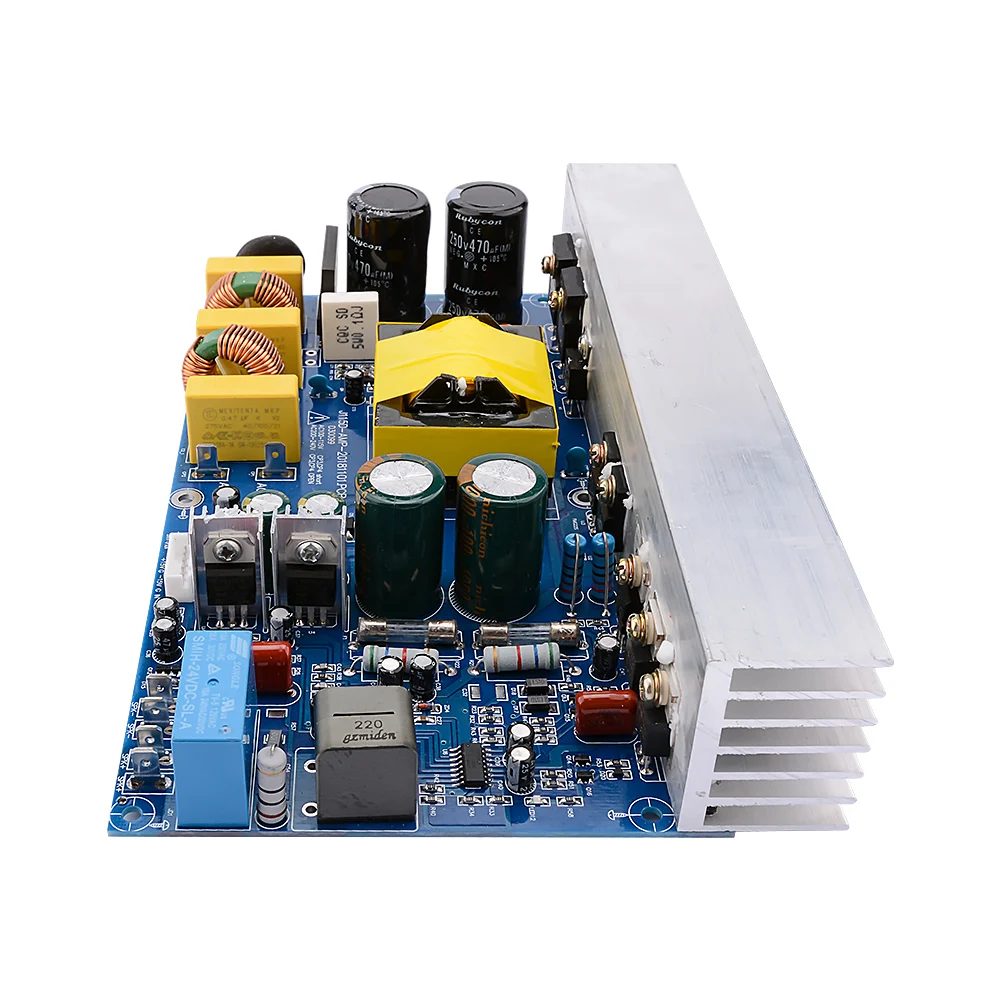

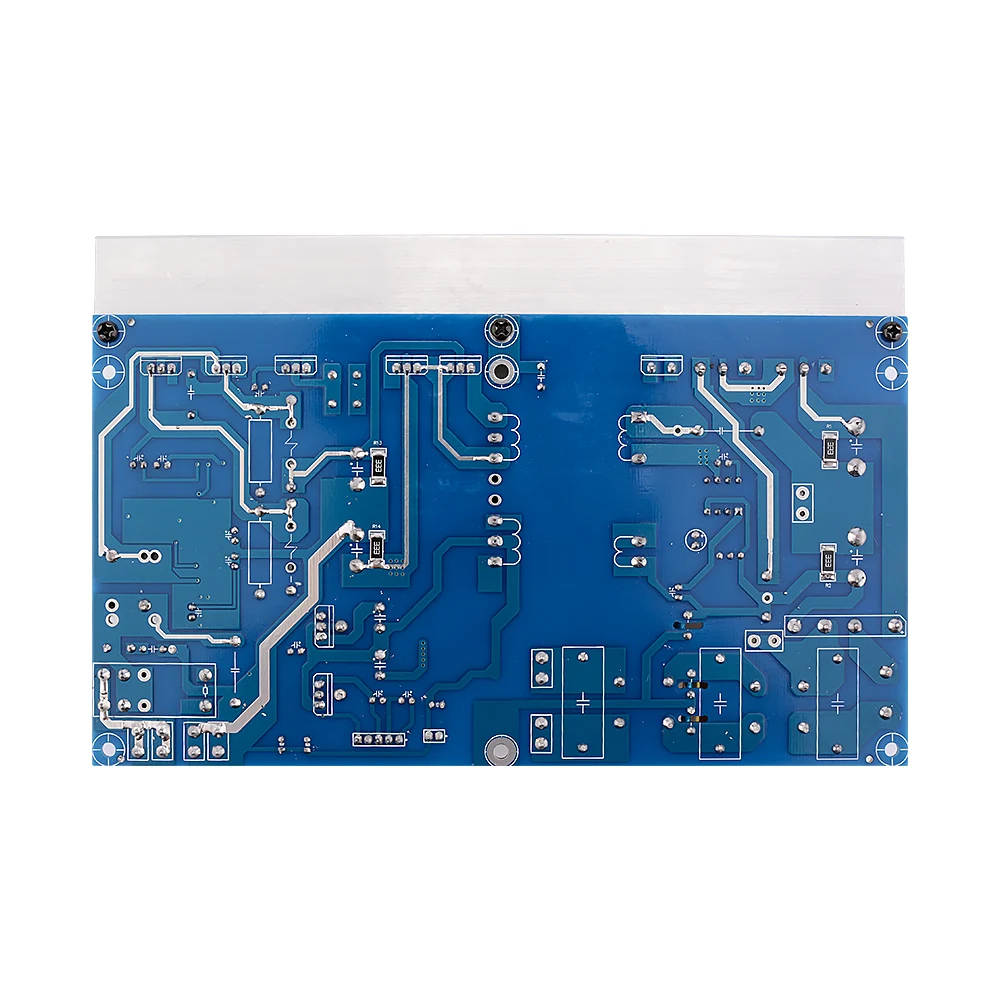

AIYIMA 1000W Power Amplifier Audio Board Class D Mono Digital Sound Amplifier Speaker Amp With Switch Power Supply Home Theater motor vehicle amplifiers Audio Amplifier Boards

AIYIMA 1000W Power Amplifier Audio Board Class D Mono Digital Sound Amplifier Speaker Amp With Switch Power Supply Home Theater motor vehicle amplifiers Audio Amplifier Boards

Name: AIYIMA 1000W Power Amplifier Audio Board Class D Mono Digital Sound Amplifier Speaker Amp With Switch Power Supply Home Theater motor vehicle amplifiers
Brand: MMO Dropship
SKU: 1005001367907643
Price: 128.42 VND
Availability: InStock
Rating: 4.9 (91 reviews)

Code: TD-1005001367907643 19 orders

Free Shipping

$ 128.42 $ 140.5

Other people want this. 13 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Aiyima
Certification:	NONE
Origin:	CN(Origin)
Maximum Power Per Channel:	Above 200W
Model Number:	1000W Power Amplifier Audio Board
Package:	Yes
Channels:	1
Output power:	1000W

Product description:

1. The power supply voltage

AC220V input

(default）

/AC110V input

(AC100-115V,AC110V,CP3 CP4 short

AC200-240V,AC220V, CP3 CP4 open)

2. Speaker load: 4-8Ω

3.RMS power: 500W

4. Peak power: 1000W

5. Channel: Mono

6. Frequency response: 20HZ--20KHZ

7. Size: 200X130X42mm

Note:

Due to the high power of the power amplifier board, a fan (DC24V fan) must be installed for long-term high-power operation. The power is large and the heat is also large.

Features:

1. The power is very large, and the fan needs to be added with heat. From the right digital amplifier section to the left side of the switching power supply section.

2. Temperature protection: The temperature of the radiator rises to 85 °C, the protection starts automatically, and the amplifier stops working. After the temperature of the heat sink drops, the power amplifier automatically starts to work.

3. Overload protection: The load is overweight and will protect!

4. Speaker protection: The output has DC, the relay is disconnected, and the speaker is protected! .

5. Anti-shock: There is NTC thermistor at boot to prevent inrush current!

6. The start relay is delayed.

Note:

1. AC N and AC L power supply input AC 210-230V. Do not exceed the supply voltage range.

2. P1 two-core row seat +24v G DC output, for connecting 24v fan. Pay attention to the fan polarity and do not connect it backwards.

3. The high power of the power amplifier requires heat dissipation, and the heat dissipation is also required for no-load. In addition to the heat sink, there are many other heating elements. These components also need fan blowing, such as transformers, output inductors, large resistors, large capacitors, and ballasts Bridge piles, these are relatively hot, and need a fan to reach them. It is recommended that the fan blow from the power amplifier section to the power section.

4. SPK-SPK+ load output, connect 4 ohm to 8 ohm speaker, not to connect the speaker with load less than 4 ohm.

5. The auxiliary power supply of the P2 row seat output +/-15v current to the front stage is only 500MA, can not be used for overload, and can not be connected to the input voltage, it is only output to the front board.

6. The G in of the P2 row seat is the signal input. G stands for GND, which means the ground wire. It is also the negative signal input. In stands for the positive signal input. Do not connect the polarity reversely. Remember. When the maximum input signal is 1.5V, the output power reaches the maximum value. It should not exceed the input 1.5V to avoid damage to the amplifier due to overload.

7. It is better to use shielded wire for input signal wire to avoid interference. The input signal cannot only be connected to the signal input positive and not to the signal ground. Remember to avoid damage caused by self-excitation.

8. The AC power supply is high-voltage, and it cannot be tied with the bass wire. The AC input is high-voltage, and it cannot be tied with the signal input, auxiliary power +/-15 output, and speaker output cable.

9. Do not tie the signal input together with the speaker wire. So as not to cause high-frequency self-excitation to damage the power amplifier.

10. The switching power supply is with high voltage. Remember not to touch the high voltage part with hands.

11. If D12 lights up in red, it means there is a short circuit in the power amplifier. Maybe the fan is short-circuited, or the front-end power supply is short-circuited. Or the power amplifier is damaged.

12. If the radiator temperature exceeds 85 degrees, the power amplifier will automatically protect and stop working. After the temperature drops, it will automatically start.

Package included:

1Pcs AC220V 1000W Amplifier
