turn signal Wolf-Guard DIY Smart Life GSM Wifi Wireless Home Alarm Security Burglar System with HD Camera, support Spanish, Italian, French house alarm keypad Alarms & Sensors

Brand Name:	WOLF-GUARD
Smart home platform:	Alexa
Smart home platform:	Tuya
Smart home platform:	Google Assistant
Origin:	CN(Origin)
Certification:	CE
Certification:	FCC
Kit Configuration:	Door/Window Sensor
Power:	12V 500mA
Output Number:	6
Video Interface:	Yes
Display:	Yes
Alarm Type:	SMS
Alarm Type:	Apps Control
Alarm Type:	The Alarm
Size:	181*135*35mm
Model Number:	WT2R
Password Keyboard:	Yes
Arming Type:	APP
Connection Type:	wireless
Zone Number:	80
Model:	Wolf-Guard WT2R Kit
Feature A:	GSM&SMS&WIfi
Feature B:	Home Alarm Security System
Feature C:	1080P IP Camera
Feature D:	Tuya Smart Life App Control,easy to operate

Wolf-Guard Wireless Home Alarm Security Burglar System GSM 2.4G WIFI Host 1080P IP Camera Door/Window PIR Motion Detector

Note: This WIFI+GSM high-quality alarm kit supports multiple languages, such as

English, Spanish, Italian, French, German, etc.

Customers who choose

Spanish can ship directly from our Spanish warehouse,

and t

he delivery time is only 3-7 days, which is very convenient and fast.

Picture:

TIPS:

1.IOS and Android user search "SmartLife" on IOS store and Google play to download.
2.Pls scan the two-dimensional Code of the user manual to download the APP!
3.We will Ship it to you in 2 package!because it is over 2kg!
4.Our Host and IP Camera is only work with 2.4GHZ Wifi, not work with 5GHZ Wifi! Our IP camera can working with amazon Alexa!

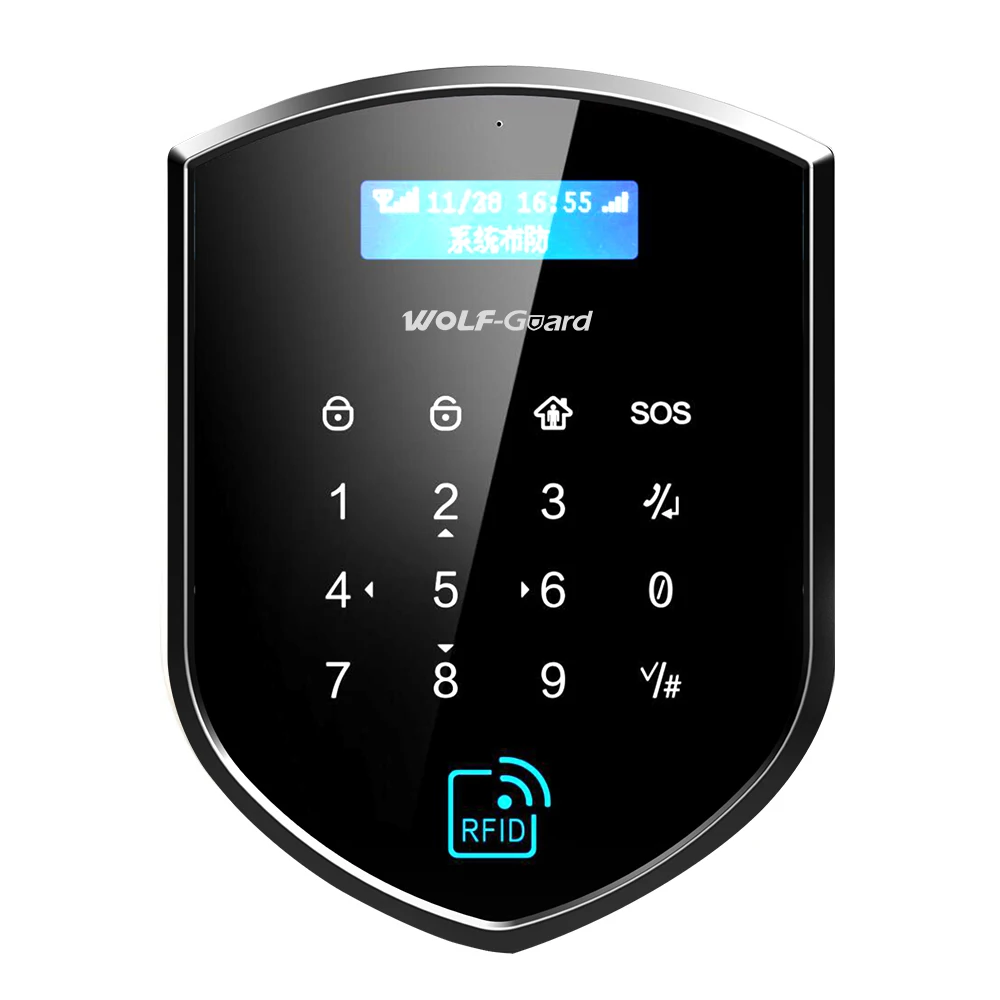

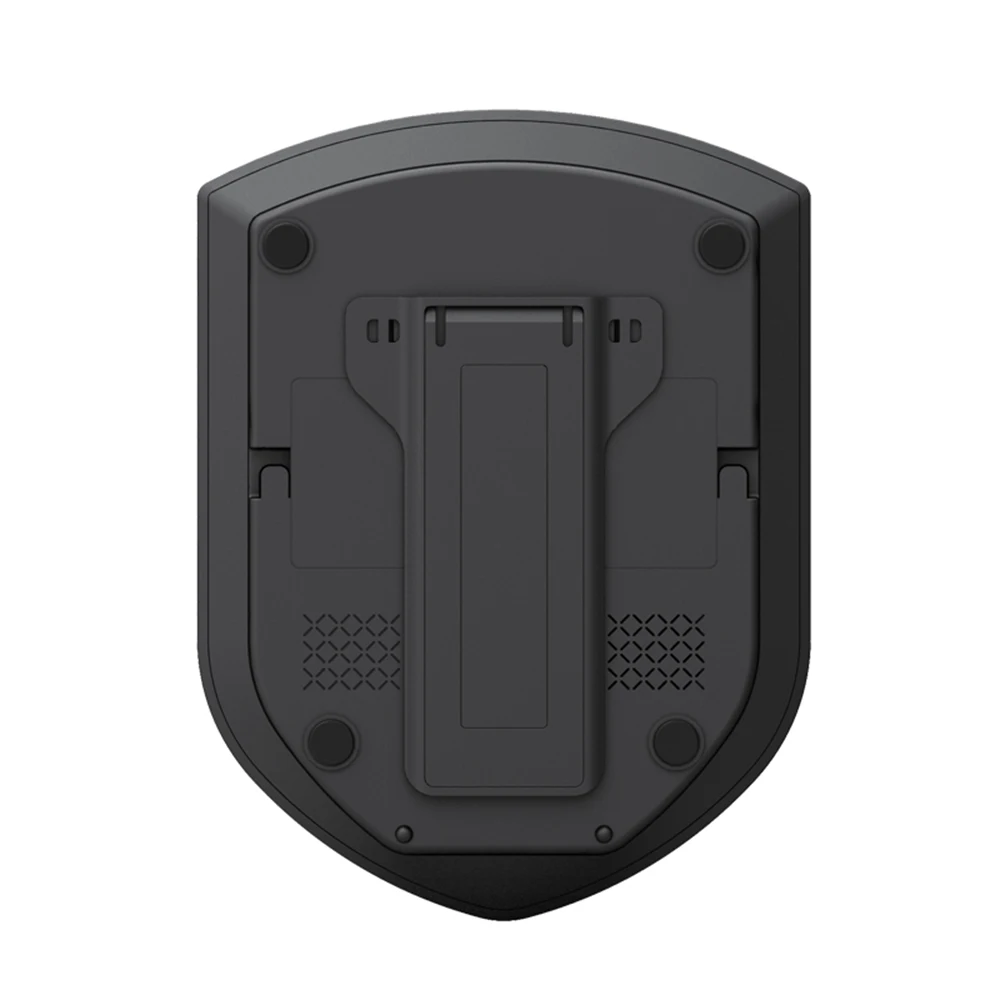

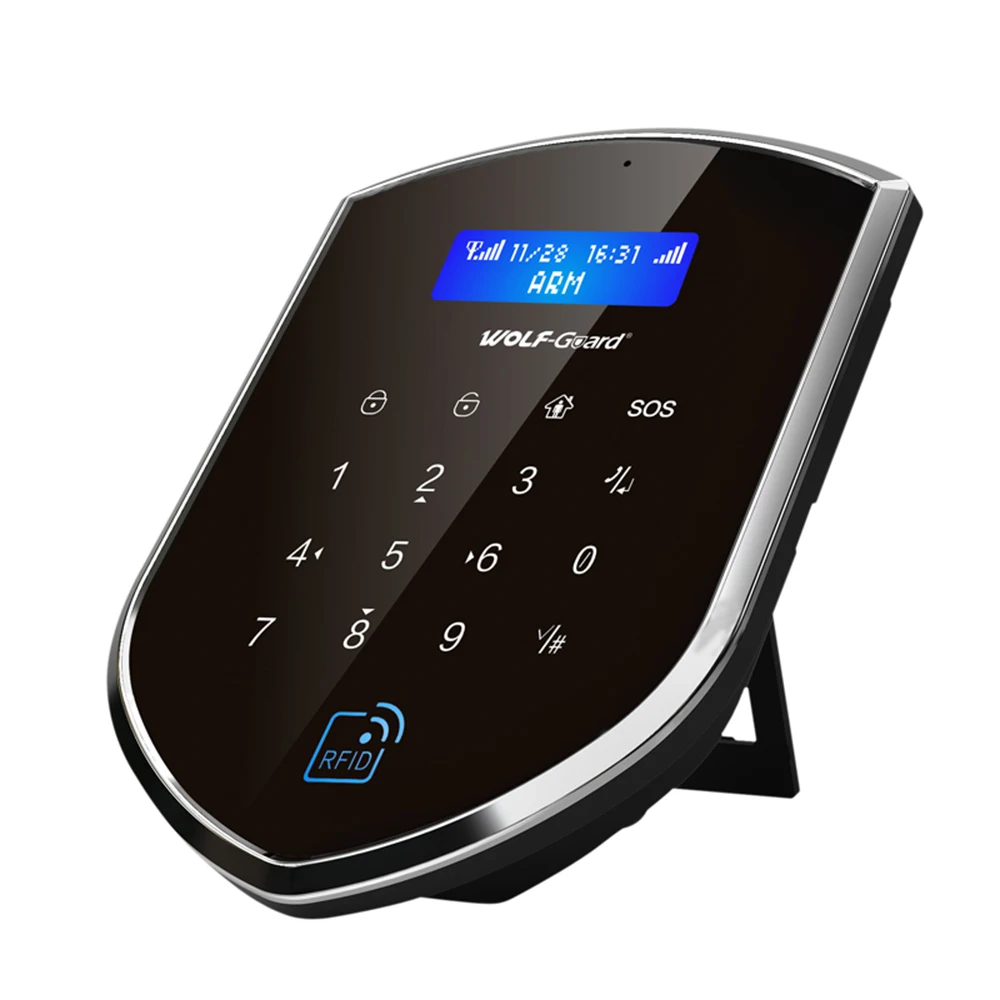

WT2R

:(Alarm Host,only work with 2.4G Wifi,not work with 5GHZ wifi)

WiFi+GSM/2G dual-network alarm system.

Capacitive touch buttons, fashionable, automatic calibration every day after network connected.

128X32 dot matrix display, built-in clock, intuitive and convenient.

Original host operating system, operation simple and directly.

2 wired and 100 wireless zones, zone name can be modified, each zone has 1 detector, single zone’s name can modify.

8 wireless remote controls, remote control’s name can modify.

Support 10 RFID cards.

Timing armed and disarmed, delay armed alarm, alarm time can reset.

Preset 6 groups alarm calls, each phone group can set 18 numbers at most.

Preset 6 groups SMS calls, host sends SMS alarms automatically, can set 18 digits.

Android and Apple mobile software smart control.

One-button control, out armed, home armed, remote armed, remote phone armed.

Programming attribute: select doorbell attributes, zone name and accessory name can modify by yourself.

Effective armed, effective disarmed, effective home armed, delay zone, multiple zone APP programming functions.

Wireless code learning, adding new accessories convenient, safe and efficient.

Remote control, host armed, disarmed, monitoring, intercom and other functions.

Event record query: host records 30 alarm events automatically.

Multiple armed modes: remote real-time armed, out host delay armed, home staying. armed, Scheduled armed at designated time, remote armed by phone remote.

Built-in high-capacity lithium battery, power failure alarm function.

Smart doorbell, APP notifications.

APP alarm notifications, accurately locate the alarm defense zone.

Record log of door magnetic switch, history recording, APP management.

TUYA WiFi solution, APP management, allows to be linked to other smart products of TUYA ecosystem.

Bulit-in high-capacity lithium battery,can also work properly when power off.

Download Mobile App

Download “ Smart Life” or "Tuya Smart" in App Store or Google Play or scan the below QR code to download the App.

Technical Parameters:

1.Power Supply: AC=100V-240V±10%, DC 12V
2.Standby Current: <180mA
3.Alarm Current: <450mA
4.WiFi Frequency Range: 2.412MHz-2.484MHz
5.WiFi Standard: IEEE 802.11 b/g/n
6.Wireless Reception Frequency: 433MHz±0.5MHz
7.GSM Band: 850/900/1800/1900 4 band
8.Wireless Receiving Sensitivity: 5mV/n
9.Anti-interference Strength: 1V/m (frequency range 20-100MHz)
10.External Alarm Siren Sound Intensity: 110dB
11.Working Temperature: -10℃~40℃
12.Relative Humidity: ≤90% without condensation
13.Configurable Wireless Device Capacity: 8 remote controls, 80 detectors, 10 RFID cards
14.Wireless Transmission Frequency: 433MHz
15.Wireless Reception Frequency: 433MHz

K2

:(IP Camera,only work with 2.4GHz Wifi,not work with 5GHZ Wifi)

1.Camera:

Image sensor: 1/2.7-inch CMOS 2M pixels

Lens: 3.6mm fixed

IR LED quantity: 10

Night vision range: 8-10 meters

IR cut filter: IR cut filter with auto switch

PIR Motion sensor: Yes

Range: Horizontal: 355 degree, Vertical: 155 degree

Remote management: App

Mobile app: IOS and Android

Cloud: TUYA Cloud base

Power: 5V,1A

Dimensions: 88*86*135mm

Weight: 420g

2.Video/image:

Resolution: 1080P / 2M

Compression: H.264 High profile

Effective number of pixels: 1920x1080P

Viewing angle: 85 degree

Frame rate: 15FPS

Mirrow/Flip: Yes

Range: Horizontal: 355 degree, Vertical: 155 degree

3.Audio:

Communication: two way audio

Input: built in MIC& Speaker

Output: built in MIC& Speaker

4.Network :

Interface: NO RJ45

Supported protocols: IP, TCP, , DHCP WPS.

Dynamic DNS: Yes

Port forwarding: P2P

Steam: Dual Stream

DHCP: Automatic

Frequency: 2.4GHz

HW-03D

:(PIR Detector)

1.Model:HW-03D
2.Sensor: Passive IR sensor with low noise
3.Work Voltage:DC 6V,(4pcs AAA 1.5V dry battery,not include AAA battery)
4.Staic current:<60ua
5.Alarm current:20mA
6.Working Temperature:+5℃ - 45℃
7.Humidity:≤95%( no fog)
8.Transmitting frequency:315/433±0.5MHz
9.Transmitting distance:no obstacle 80M
10.Detecting distance: max 12 M
11.Detecting angle: Horizontal 110° ,Vertical 60°
12.Coding method:PT2262 or EV1527 optional
13.Dimension:112 x 60 x 38mm

MC-07C

:(Door Sensor)

1.Operating Voltage: DC 3V (3V CR2450 lithium battery)
2.Standby Current: ≤2uA
3.Alarm Current: ≤15mA
4.Working Temperature: -10℃~55℃
5.Relative Humidity: ≤80% No condensation
6.Transmission Frequency: 433.92+0.07MHz
7.Encoding Format: EV1527/PT2262 optional
8.Launch Distance: 80 meters (open area)
9.Transmitter Size: 50mm*35mm*17mm
10.Magnetic Stripe Size: 48mm*13mm*17mm

JD-05

:(Wired Siren)

1.Power Voltage: DC 12V
2.Sound frequency: 3.8KH2+10%
3.Transmit speed: 3H2 increase or discrease 10%

YK-11

:(Remote Controller)

1.Shell Material: Waterproof Silica Gel+ABS
2.Power Supply: 3V-12V
3.Working Frequency: 315MHz/433MHz/868MHz
4.Operating Range: 80m-100m
5.Transmission Currency: ≤7mA
6.Battery: 2pcs 3V CR2016 Lithium battery
7.Working Temperature: -10℃~40℃
8.Working Humidity: ≤90% RH
9.Dimension: 68.8*35.8*11mm

SR-02

:(Water Intrusion Detector)

Product Description:

When the two sensor needle contact with liquid or conductive metal objects at the same time, the machine send a wireless alarm signal (433MHz), and you can select link actions of buzzer and relay (when the power supply is below 7V, the relay stops working).

Key Features:

1.When the water is overflowing from the container, the alarm“ring”to remind the user leaking or spilling water. Please close the valve and repair it, so as to avoid the waste of water resources. Close the valve, the alarm will automatically stop alarming after overflow stops;
2.Circuit optimization and special probe design solved alarm reliability problems caused by different water elements (probe should be installed outside of the water container, water spills);
3.The product provide prompt and accurate location of overflow, reduce economic losses due to overflow;
4.The product can reduce installation costs, improve products level and save project cost;
5.Exquisite appearance, small size, low price and easy installation.

Technical Parameters:

1.Power Supply: 12V/23 a dry cell or external to the 12V/300mA power adapter
2.Standby Current: <18uA
3.Alarm Current: <35mA
4.Transmission Frequency: 433MHz
5.Transmission Distance: 90 meters (open area)

6.Current Loss: When enable a fully functional alarm, the current ≤55mA

RFID

Card:

1.Chipset: EM4100
2.Frequency: 125kHz
3.Used for Wolf-Guard Alarm Panel with RFID function.
4.Size:40*40MM
5.Operating Distance: 0-10cm
6.Operating Temperature : -20° - +50°
7.Only Read!!!

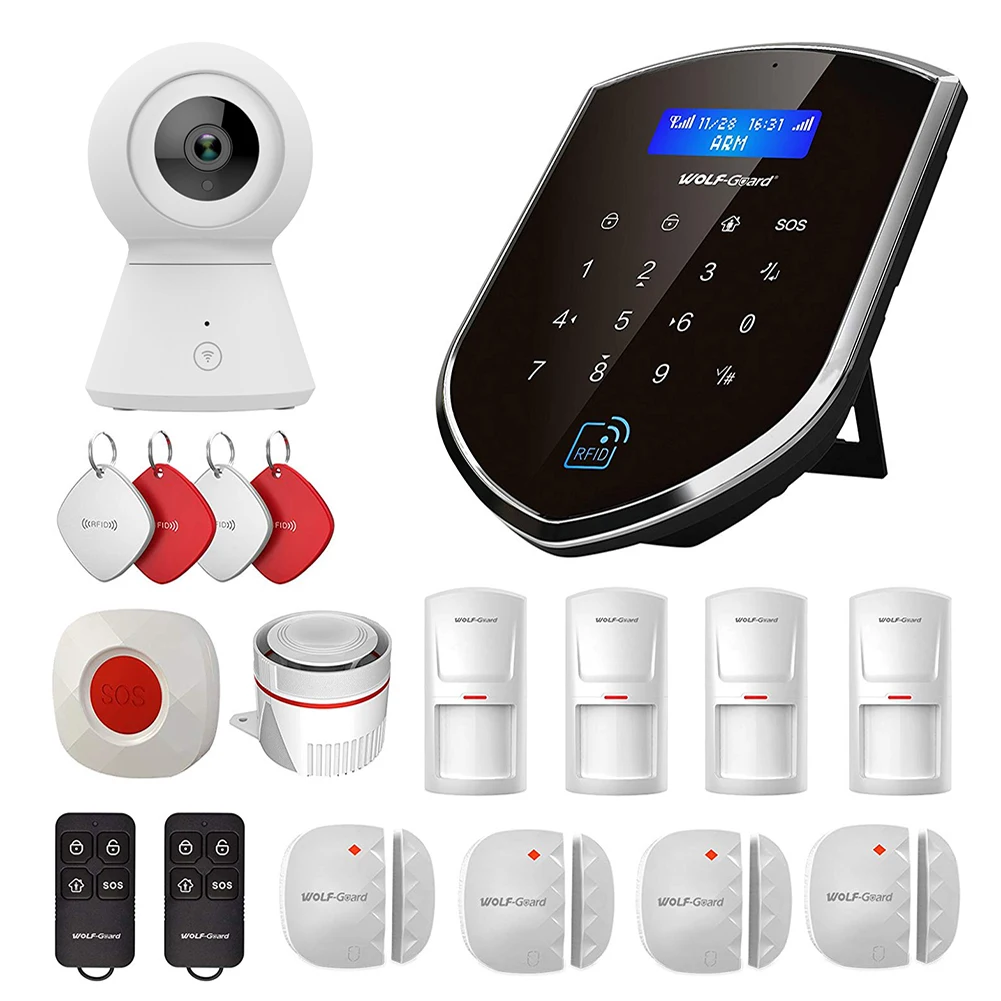

Package Including:

1x WT2R Sheild Host(SIM card is not included,only work with 2.4GHZ wifi)

1x 1080P K2 IP Camera(only work with 2.4GHZ Wifi)
4x HW-03D PIR Detector (built in battery)
4x MC-07C Door Sensor (built in battery)

1x SOS emergency button (built in battery)
2x YK-11 Remote Controller (built in battery)
1x JD-05 Wired Siren

4x RFID Card
1x Power adapter
1x Bracket
1x Screws Pack
1x User Manual

Question & Answer:

Q: Can this alarm system work with WIFI and GSM Sim Card together? So if the WIFI failure,the machine can switch GSM/GPRS mode to work.

A:Yes. User can connect alarm system with WIFI and GSM Sim Card to work. And when WT2R Alarm System be triggered, it will push alarm message to the APP via WIFI.

Q: It just with WIFI in my house and without GSM Sim Card,can I use this alarm system?

A: Yes. WT2R Alarm System can work in WIFI mode only.

Q: Can I add additional remote controllers, door sensors, pir sensors, smoke detectors, gas detectors or other sensors to work with this alarm system?

A: Yes. WT2R alarm system can work up to 10 wireless zones (80 detectors in total) and 3 wired zones

Q: Does the alarm panel with backup battery?

A: Yes. WT2R alarm system with internal rechargeable backup battery. It can support WT2R work when AC Adapt is cut.
