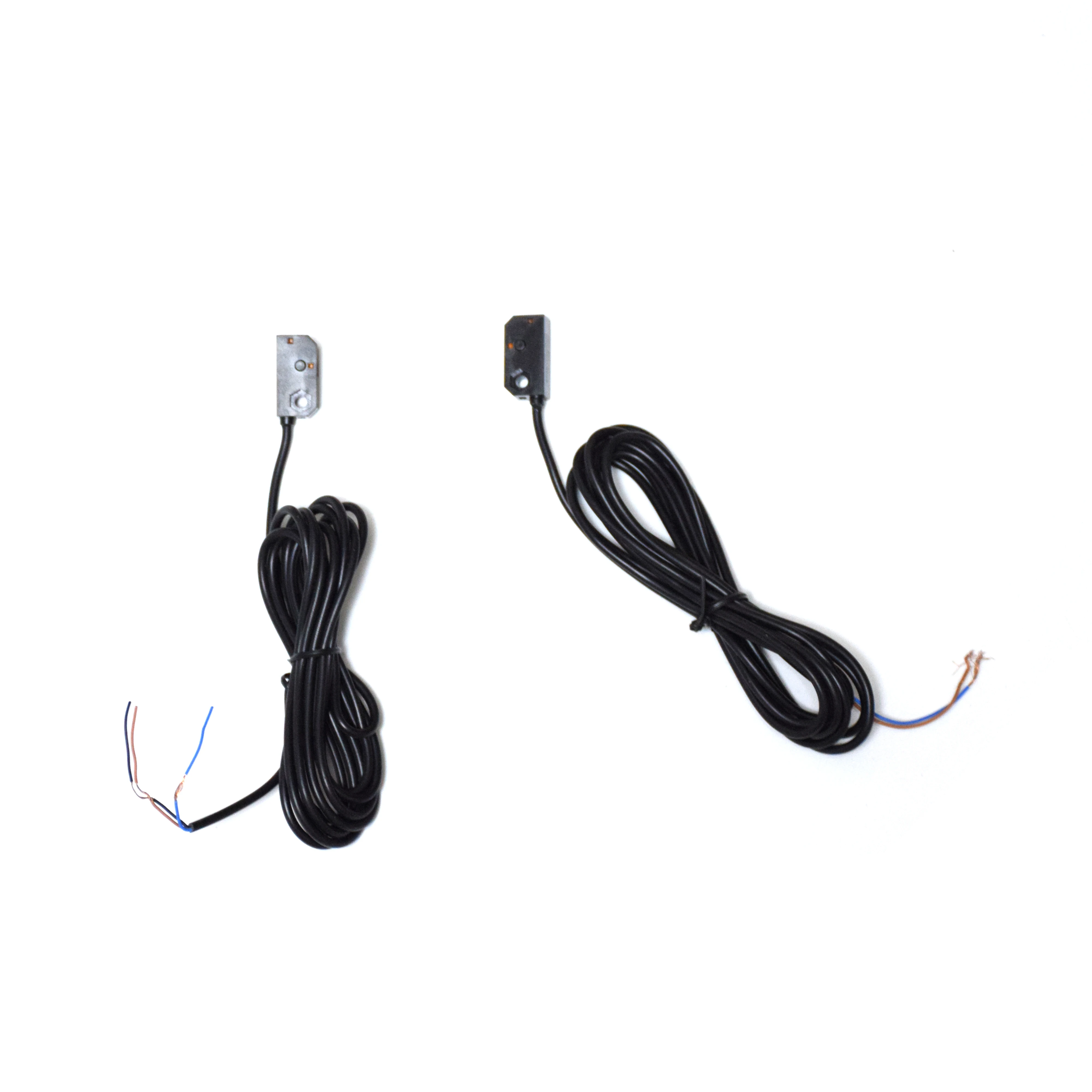

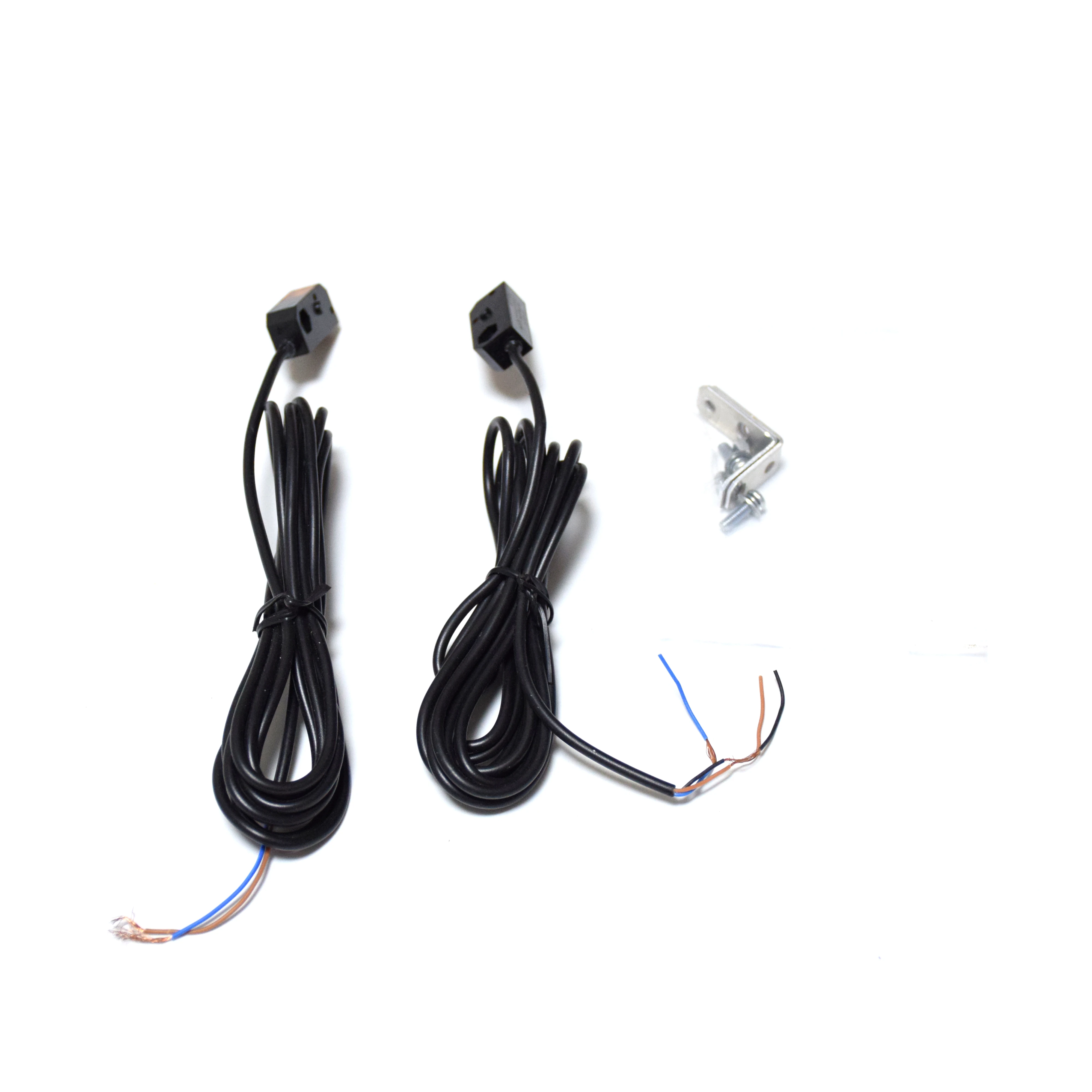

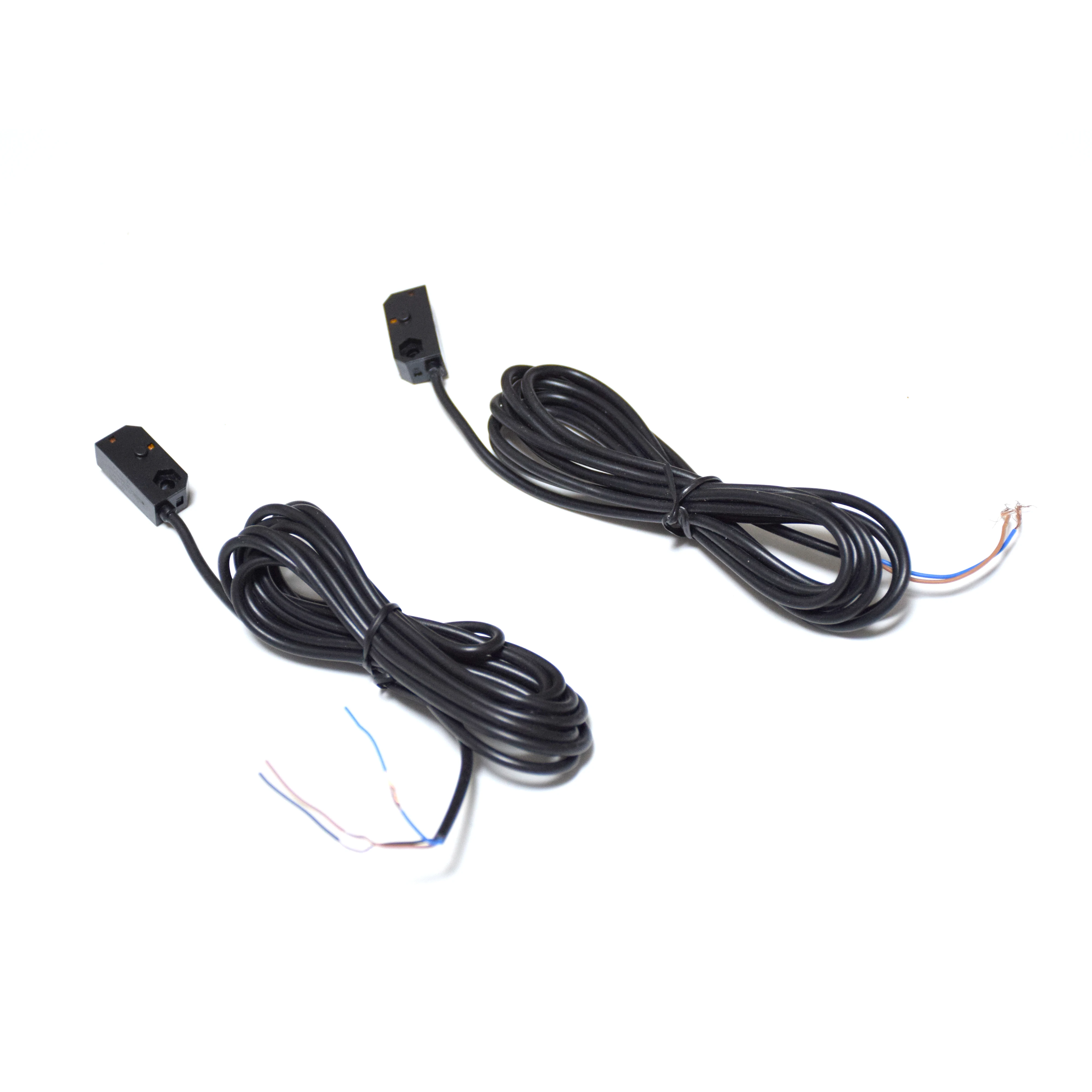

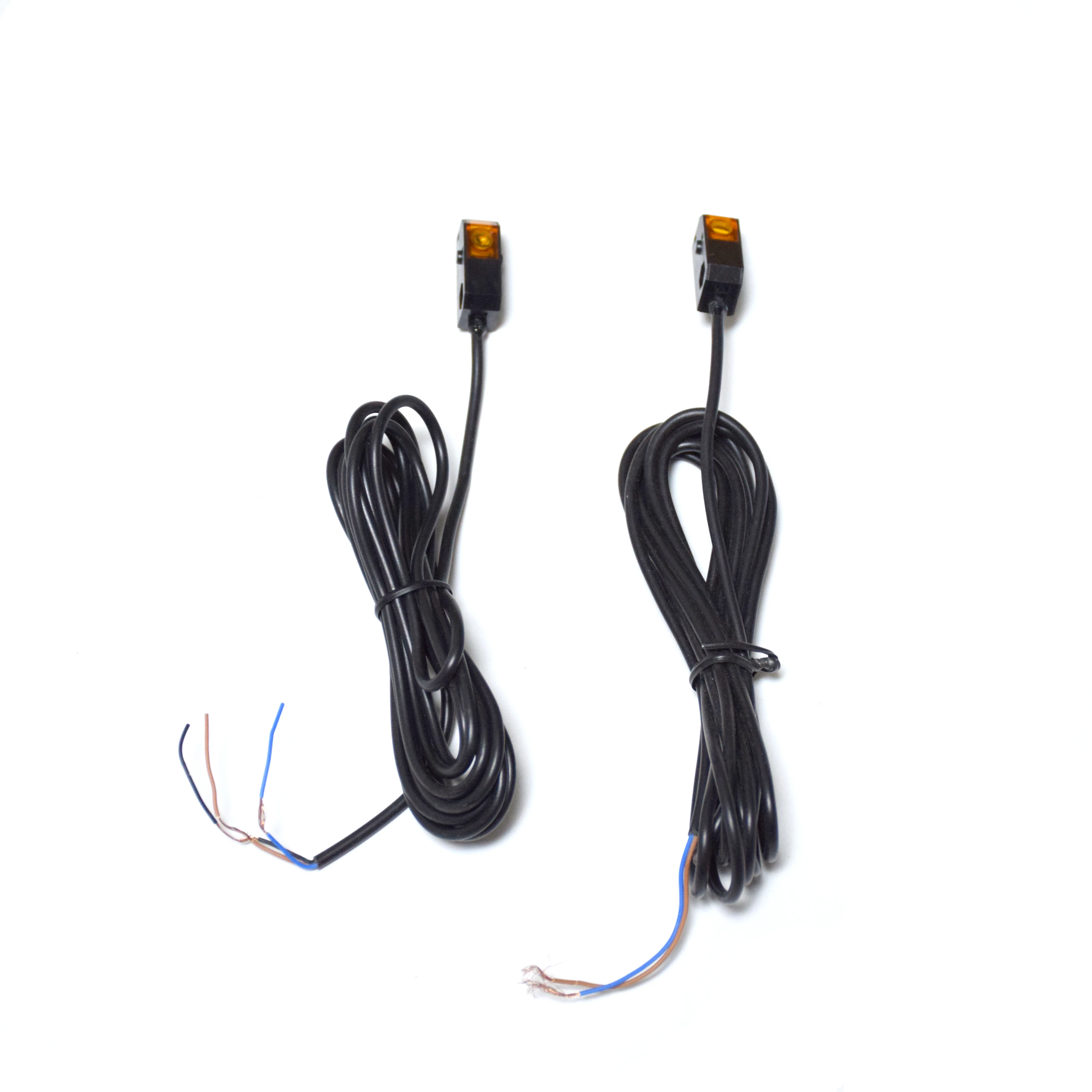

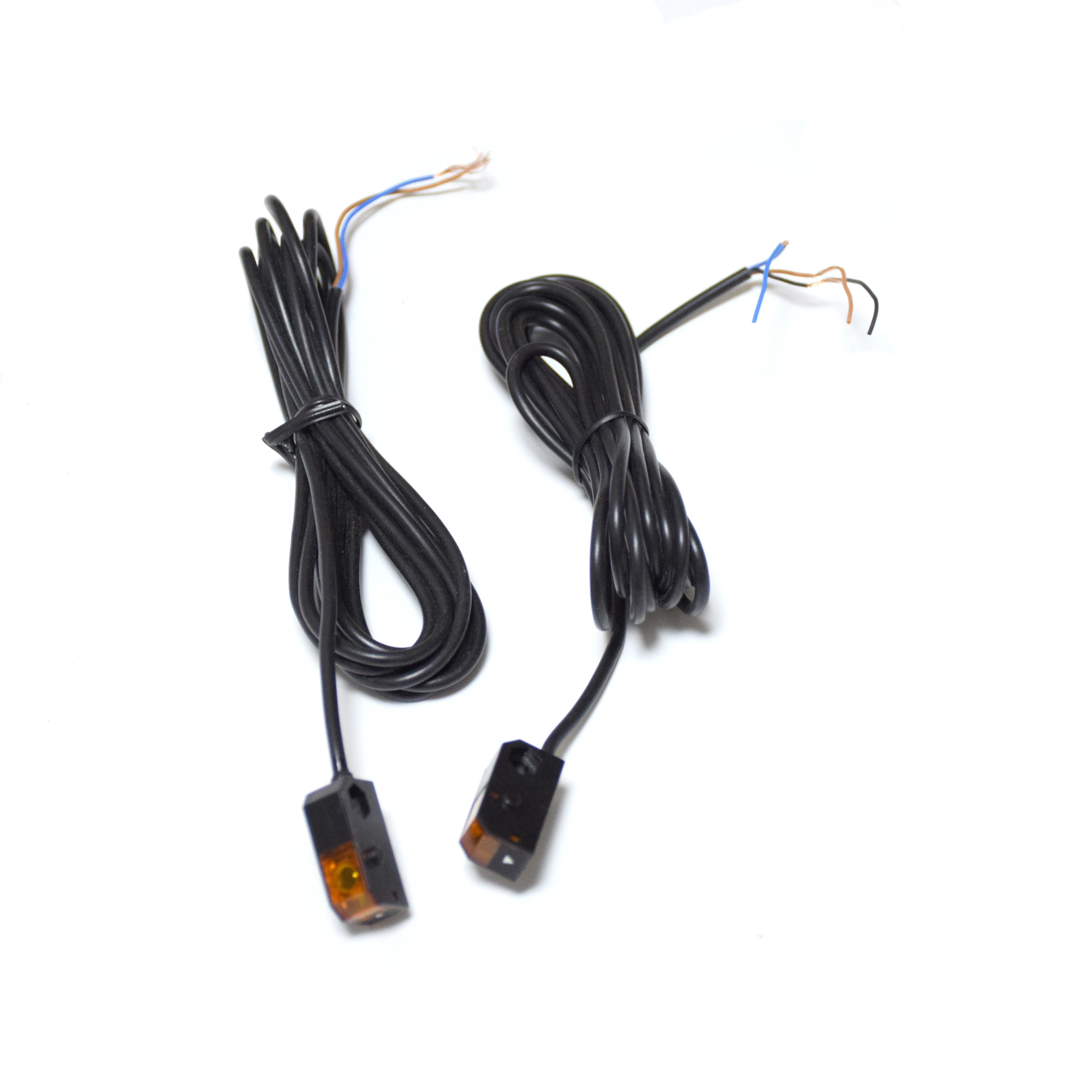

DC5V or DC24V Infrared beam sensor detector photocell Photoelectric switch detect distance 2 meter NPN normal open NO output ring keypad alarm Alarms & Sensors

Code: TD-4000386012235 2 orders
Free Shipping
$ 34.15
Color:
DC5V
DC24V
Note

Quantity:
Other people want this. 5 people have this in their carts right now.
Brand Name:  BADODOSECURITY
Model Number:  2m

DC/AC 12~24V waterproof IP55 photocell automatic gate door safety sensor alarm infrared beam sensor photocell 15m detect range

USD 3.58/piece

DC6~36V M12 Waterproof Laser Photoelectric Switch Laser Beam Sensor Detector 20 meters Distance NPN PNP NO NC

USD 6.92-7.91/piece

Reflective Photoelectric Switch Photocell NPN Output E3F-R2NK Reflex Light Barrier Sensor DC12-24V Max 2m Detect Distance

USD 8.98/piece

IP66 Waterproof Solar Powered 433MHz Wireless Infrared Beam Sensor Detector Alarm 100m Distance for GSM WiFi Home Alarm Burglar

USD 79.99/pair

DC6-36V Reflective Infrared Photoelectric Switch Detector NPN PNP Output Light Barrier Max 2m Detect

USD 8.50/piece

DC5V Laser Beam Detector Sensor Alarm Detect Distance Max 10m

USD 1.99/piece

Specification:

Detect Distance :

2m for DC5V,  1.5m for DC10~24V

Work Voltage : DC5V or DC10~24V

Work Current : 200mA

Output Current : 16mA ( Can directly connect to relay )

Output : NPN (NO, normal open )

Transmitter ​Angle : Line ( Infrared )

Receiver Angle : < 10°

Response Time : 2ms

Work Temperature : -25 ~ 60 °C

Work Environment : Indoor ( Not waterproof )

DC5V :  The voltage between is 5V, and when there have an obstacle, the voltage is 0V

​Wire:  Brown ( VCC ), Blue ( GND ), Black ( OUT )
