router extender Original Xiaomi Mi WiFi AX6000 Wireless Router WiFi6 VPN 512MB Qualcomm CPU Mesh Repeater External Signal Network Amplifier router amplifier Modem-Router Combos

Brand Name:	XIAOMI
Origin:	CN(Origin)
With Modem Function:	Yes
Type:	wireless
Certification:	CE
Wired Transfer Rate:	1000Mbps
WAN Ports:	Other
Number of USB Interfaces:	1 x USB 2.0
Wi-Fi Supported Frequency:	2.4G & 5G
5G Wi-Fi Transmission Rate:	1300Mbps
Package:	Yes
Supports WDS:	Yes
Max. LAN Data Rate:	1900Mbps
Model Number:	AX6000
Standards And Protocols:	Wi-Fi 802.11ac
Standards And Protocols:	Wi-Fi 802.11n
Standards And Protocols:	Wi-Fi 802.11b
Standards And Protocols:	Wi-Fi 802.11g
Wi-Fi Transmission Standard:	802.11ac
2.4G Wi-Fi Transmission Rate:	600Mbps
LAN Ports:	4
Supports WPS:	Yes
Function:	Firewall
Application:	home

Double the bandwidth and double the speed

The bandwidth is like a highway. Congestion is inevitable when conventional 4-lane lane encounters high traffic. The AX6000 doubles the width of all lanes and directly doubles the speed. Even if multiple devices are connected, you can enjoy the ultimate experience of smooth traffic.

More advanced transmission technology, speed up by 20%

4K QAM technology can further compress data density and increase the amount of data transmitted at the same time by 20%. With a device that supports 4K QAM, the WiFi speed can be accelerated by another level.

New cross-generation network port to meet the network speed demand in the next 5 years

When the home bandwidth exceeds Gigabit, the Gigabit Ethernet port of the traditional router will become a bottleneck, and the 2500M Ethernet port can easily meet the needs of future broadband upgrades. At the same time, it supports WAN/LAN switching. When used as a LAN port, it can be used with NAS (network-attached storage) to form a high-speed family private cloud disk.

Simultaneous transmission of multiple devices, no interference between games and dramas

The combination of MU-MIMO and OFDMA enables up to 16 devices to be sent in one transmission. When multiple devices are used simultaneously, the speed is faster and the delay is lower.

Even in a three-bedroom apartment, every room has a good signal

The independent signal amplifier can effectively enhance signal transmission power and improve the signal receiving sensitivity. The signal of the router can pass through the wall better, and the coverage is wider. A single router can easily cover the large three-bedroom apartment.

The multi-storey apartment is not afraid, and the whole house has no dead ends

Mesh technology allows multiple AX6000s to form a Mesh network, which can cover the entire house with super-strong signals, whether it is a large apartment or multiple floors. The device can automatically roam between multiple routers seamlessly, and play without lag while walking.

Hardware-level network acceleration engine, super stable operation all-weather

Using a new generation of Qualcomm router chips, the NPU core (network acceleration engine), which is particularly important for routers, is added. The CPU core is used to process complex calculations, and the NPU concentrates on data forwarding. Such a combination can solve data congestion and packet loss when multiple devices are connected, and reduce the network delay of the game.

248 devices are online at the same time, stable connection at all times

There are more and more connected devices at home, such as mobile phones, tablets, laptops, TVs, game consoles... and smart devices throughout the house. 512MB large memory is specially prepared for multi-device networking, stable connection and response at any time.

Respond calmly 7×24 hours, bid farewell to frequency reduction and disconnection

The top, sides, and bottom of the fuselage are equipped with heat dissipation holes to form a fast circulating heat dissipation channel. Keep the router working 7×24 hours in an ideal state at all times, and avoid routing frequency reduction and device disconnection due to overheating.

Independent AIoT antenna, smart discovery device, one-click network distribution

Open the Mijia App and click on the "+" in the upper right corner to automatically discover the Xiaomi smart devices around you that are not equipped with a network. There is no need to enter a password, no cumbersome settings, and one-click configuration to connect to the network, so easy that the elderly and children at home can easily operate.

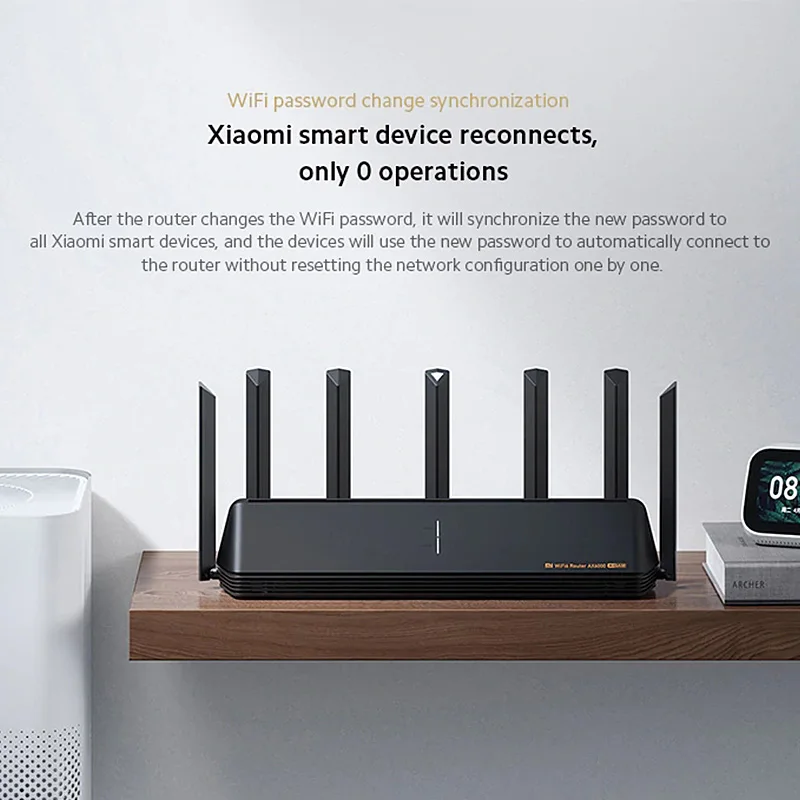

Xiaomi smart device reconnects, only 0 operations

After the router changes the WiFi password, it will synchronize the new password to all Xiaomi smart devices, and the devices will use the new password to automatically connect to the router without resetting the network configuration one by one.

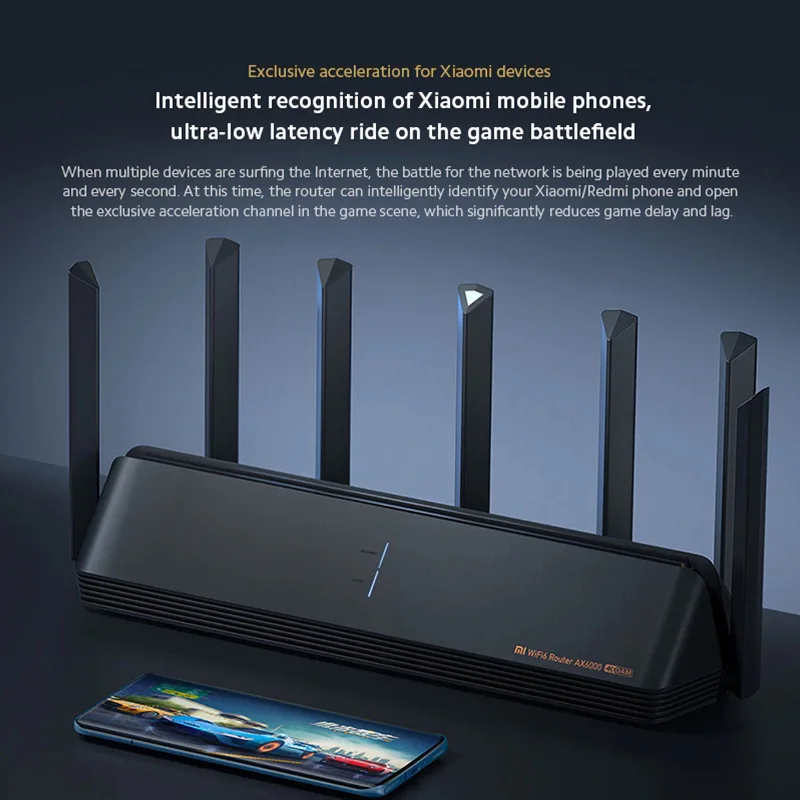

Intelligent recognition of Xiaomi mobile phones, ultra-low latency ride on the game battlefield

When multiple devices are surfing the Internet, the battle for the network is being played every minute and every second. At this time, the router can intelligently identify your Xiaomi/Redmi phone and open the exclusive acceleration channel in the game scene, which significantly reduces game delay and lag.

Specifications:

CPU: Qualcomm IPQ5018
Engine acceleration network: 1.0GHz NPU
RAM: 512MB
2.4G Wi-Fi: 2x2 (IEEE802.11a x 574Mbps)
5G Wi-Fi: 4x4 (IEEE802.11a x 4804Mbps)
Antenna: 6 external high gain antennas + 1 AloT antenna
Heat dissipation: Natural heat dissipation
From the physical interface:
1 * 10/100/1000 WAN/LAN (Auto MDI / MDIX)
1 * 10/100/1000 WAN/LAN (Auto MDI / MDIX)
2 * 10/100/1000LAN(Auto MDI / MDIX)

LED Indicator Light:

1 x System indicator
1 x INTERNET indicator
4 x Network port
1 x AIoT Light

Reset button: 1 x reset button
Interface power input: 1 x power input interface
Wireless standard: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Certification standards: GB/T9254-2008, GB4943.1-2011
De banda Dual: 2.4 GHz, 5GHz

Wireless Channel:

2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,52,56,60,64,149,153,157,161,165

Modulation Mode:

11b: DSSS: DBPSK(1Mbps) DQPSK (2Mbps) CCK (5,5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps) QPSK (12/18Mbps) 16QAM(24/36Mbps) 64QAM(48/54Mbps).
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.

Rate set: MCS0 ~ MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Rate set:MCS9~ MCS0 (4 streams compatibles)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS11~ MCS0 (4 streams compatibles)
Operating system: MiWiFi ROM, a deeply customized smart router operating system based on OpenWRT
Wireless security: WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), hidden SSID, anti-scratch smart network
MANAGEMENT APP: Android and iOS support website.

Work Environment:

Operating temperature: 0 ~ 40 °C
Storage temperature: 10% ~ 90% RH non-condensing
Operating humidity: -40 ~ 70 ℃
Storage humidity: 5% ~ 90% RH non-condensing
