New Xiaomi Redmi Router AX5400 WiFi 6 VPN Mesh Repeater OFDMA MU-MIMO 512MB Qualcomm Chip 2.5G Network Port Signal Booster PPPOE wifi mini router Modem-Router Combos

Brand Name:	XIAOMI
Origin:	CN(Origin)
With Modem Function:	Yes
Type:	Wired
Certification:	CE
WAN Ports:	1 x10/100/1000Mbps
Number of USB Interfaces:	None
Wi-Fi Supported Frequency:	2.4G & 5G
Package:	Yes
Model Number:	AX5400
Standards And Protocols:	Wi-Fi 802.11g
Function:	Firewall
Router Dimensions:	24.1 x 18.2 x 22.8cm
Processor:	Qualcomm IPQ5018
Network acceleration engine:	1.0GHz NPU
RAM:	512MB
2.4G Wi-Fi:	2x2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)
5G Wi-Fi:	4x4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 4804Mbps)
Product antenna:	4 external antennas
Product heat dissipation:	natural heat dissipation
LED indicator:	7 (top status indicator x 1, network port light x 5, atmosphere light x 1)
Protocol standard:	IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab/3bz
Certification standard:	GB/T9254-2008; GB4943.1-2011
Dual Band:	2.4GHz and 5GHz
Operating system:	MiWiFi ROM, an intelligent routing operating system based on OpenWrt deep customization
Wireless security:	WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network
Management application:	support Web, Android, iOS
System reset button:	1
Power input interface:	1
Mesh button:	1

Specification

Router Dimensions

 241 x 182 x 228mm

 Router Color

 Black

 Processor

 Qualcomm IPQ5018

 Network acceleration engine

 1.0GHz NPU

 RAM

 512MB

 2.4G Wi-Fi

 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)

 5G Wi-Fi

 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 4804Mbps)

 Product antenna

 4 external antennas

 Product heat dissipation

 natural heat dissipation

 Machine interface

 1 10/100/1000/2500M self-adaptive WAN/LAN port (Auto MDI/MDIX)

 1 10/100/1000M auto-adaptive WAN/LAN port (Auto MDI/MDIX)

 3 10/100/1000M auto-adaptive LAN ports (Auto MDI/MDIX)

 LED indicator

 7 (top status indicator × 1, network port light × 5, atmosphere light × 1)

 System reset button

 1

 Power input interface

 1

 Mesh button

 1

 Protocol standard

 IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab/3bz

Certification standard: GB/T9254-2008; GB4943.1-2011

 Dual Band

 2.4GHz and 5GHz

 Wireless channel

 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Tookfun

 5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

 Operating system

 MiWiFi ROM, an intelligent routing operating system based on OpenWrt deep customization

 Wireless security

 WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network

 Management application

 support Web, Android, iOS, Tookfun

 Working environment temperature

 0-40℃

 Working humidity

 10%-90%RH (non-condensing)

 Storage temperature

 -40-70℃

 Storage humidity

 5%-90%RH (non-condensing)

Redmi Gaming Router AX5400

Main Features

● 5400 megabit wireless speed

● OFDMA+MU-MIMO

● Dual WAN access + dual LAN aggregation

● Built-in 4 major game accelerators, Suitable for any game worldwide

● 6 independent high performance signal amplifiers

● One-click Mesh networking, Building a Whole House Game Network

● Using a new generation of WiFi6 enhanced version, the 5GHz bandwidth is directly doubled

● It supports up to 2.5Gbps bandwidth rate transmission, undertakes home broadband beyond gigabit

● Using Qualcomm high-performance router chips to greatly improve data processing capabilities and reduce network congestion

● 512MB large memory, it supports 248 devices online at the same time

Detailed parameters

Redmi Gaming Router AX5400

All-platform game acceleration, allowing you to play games more smoothly

5400 megabit wireless speed

With the ultra-high speed of the router, Download large-scale games and 4K high-definition movies very fast; game operations can also bring a smoother operating experience, helping you feel overwhelming

Router Configuration WiFi6 Enhanced

Speed soars, 120% faster*

Using a new generation of WiFi6 enhanced version, the 5GHz bandwidth is directly doubled*, With devices that support 4K QAM, the 5GHz speed is accelerated by an additional 20%* by further compressing the data density.

OFDMA+MU-MIMO

The two major "multi-device transmission technologies" have joined forces to transmit a maximum of 16 devices at a time*, Games, live broadcasts, and video calls do not affect each other, and share high-speed Internet with family and friends, making parties even more enjoyable.

2.5G ultra-high-speed network port

It supports up to 2.5Gbps bandwidth rate transmission, undertakes home broadband beyond gigabit, and obtains a higher-speed gaming experience; with a higher upper limit, it can also fully meet the broadband upgrade in the next few years.

Qualcomm Professional Chip

High energy throughout the process, stable output

Using Qualcomm high-performance router chips, in addition to the CPU responsible for computing, an independent NPU core is added to greatly improve data processing capabilities and reduce network congestion

Independent gaming network port

Game first, independent transmission

Open up a high-speed channel for end-game e-sports, independently accelerate the game, reduce the delay, and obtain a smoother and faster gaming experience.

512MB large memory

Designed for multi-device families, it supports 248 devices online at the same time*. Whether it is mobile phones, computers, game consoles and other game devices, or whole-house smart devices such as TVs and sweeping robots, they can be connected to the Internet stably and respond quickly.

Dual WAN access + dual LAN aggregation

Break the upper limit and provide more possibilities

It not only supports access to superimposed operator broadband through dual WAN, but also supports dual LAN aggregation to connect multi-network port devices such as NAS, build a family high-speed private cloud disk, break the gigabit limit, and explore more high-speed transmission methods.

Built-in 4 major game accelerators, Suitable for any game worldwide

Game accelerator benefits are prepared for console and PC gamers, support PS, Xbox, Switch and other devices, optimize game nodes, reduce update and download time, and greatly improve global game stability and fluency.

6 independent high performance signal amplifiers

The independent signal amplifier can effectively enhance the signal transmission power, bring a stronger wall penetration effect, wider coverage, easily cover large houses

Xiaomi mobile phone exclusive acceleration

Intelligently identify Xiaomi/Redmi phones*, enable exclusive acceleration in mobile game scenarios, cover mainstream mobile games, and reduce delays

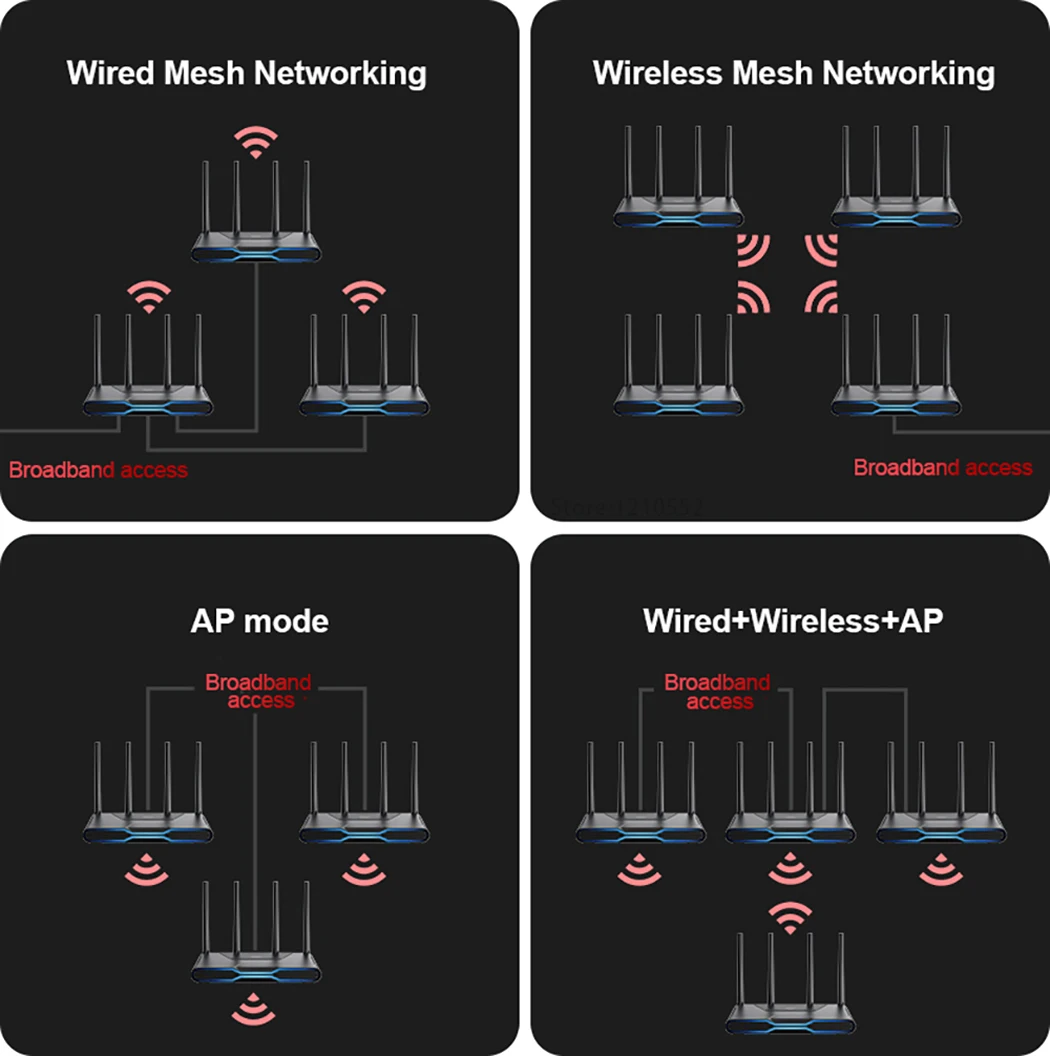

One-click Mesh networking, Building a Whole House Game Network

Equipped with self-developed Mesh technology, it can form a Mesh network* with multiple Xiaomi/Redmi routers. Whether it is a super-large apartment or a complex apartment such as a duplex villa, it can easily achieve seamless roaming throughout the house and create a full-scene game network.

Racing car streamline shape

RGB lighting effects, immersive gaming atmosphere

The 16 million color adjustable ambient light supports custom light color*, and there are a variety of breathing light effects to choose from, which can fill the exclusive gaming atmosphere

*Setting method: Enter the Mi Home App-Router management page to set the lighting color and lighting effect.

Automatically discover smart devices

Packing list

Router × 1

Manual × 1

Power cord × 1

Network cable × 1

Notes:

* The 5400 megabit level is the wireless rate specification level of the router, including the theoretical rate of 574Mbps in the 2.4G band and 4804Mbps in the 5G band.

* Calculated compared to the theoretical rate of the WiFi6 5G frequency band of 4×4 80MHz.

* When used with terminals that support 4K QAM technology, the theoretical rate of 5G frequency band is 20% higher than that of 1024 QAM technology, and the actual rate will vary depending on the terminal and the environment.

* MU-MIMO and OFDMA technologies require terminal equipment support, and 16 terminal equipment are served as theoretical data, and the data source is Qualcomm.

* Data forwarding speed improvement data comparison Redmi gaming router AX5400 before and after the NPU is turned on and off, the data comes from Xiaomi Lab "Redmi Gaming Router AX5400 Test Report".

* 248 units are the comprehensive access value of 2.4G/5G/LAN under laboratory conditions.

* The supported game devices are for reference only, please refer to the corresponding Accelerator Network instructions for details.

* It can be networked with the latest software versions of Xiaomi routers AX9000/AX6000/AX3600/AX3000/AX1800 and Redmi routers AX3000/AX1800/AX5/AX6/AX6S. The maximum number of connected devices in the entire mesh network is 10. The carrier-customized version does not currently support mixing with retail products.

* The product pictures on the above pages are for illustration only, the actual product may have slightly different effects, please refer to the actual product.

* One-key network distribution requires the device to support Xiaomi FunConnect, which is subject to the device manual. A Xiaomi smart device that is not connected to the network means that the device is in the initialization state. If the device has been connected to the network, it can be reset by itself. The specific reset method is subject to the device manual.

* Power stability test, hardware structure reliability test, memory stress test, multi-device simultaneous online test, harsh environment test, flash storage device reliability test, the data are all from the "Routing Reliability Test Report" of Xiaomi Lab.

* The content and functions displayed on the above pages cannot be guaranteed to provide permanent services, and may be adjusted due to changes in copyright, business or technical conditions. If the changes are no longer notified separately, please refer to the actual content and functions of the product.
