podcast microphone Original Superlux ECM888B measurement and Test microphone High stability Measurement mic best microphone for streaming Microphones

Code: TD-1005003377976495 1 order
Brand Name:  ALCTRON
Style:  Handheld Microphone
Transducer:  Condenser Microphone
Use:  Home Studio
Certification:  CE
Set Type:  Single Microphone
Origin:  CN(Origin)
Polar Patterns:  Omnidirectional
Communication:  Wired
Package:  Yes
Model Number:  ECM888B

ECM888B

1/4" standard measurement microphone

The ECM888B is a 1/4" standard measurement microphone with internal battery. No external power needed for easier connection to various devices. Such as real time analyzer, PC based measurements, or palm size devices. Wide and flat frequency response makes this ECM888B an ideal measurement and recording microphone.

Features

• Wide frequency response from 20Hz to 20KHz.

• 1/4" industrial standard dimension.

• Omni directional.

• Suitable for spectrum analyzer, audio testing and measurement applications

• Internal battery, 4LV44, 6V battery.

• All metal structure, durable and long lasting live time.

Application

Measurement microphone

Specifications

Type : Back electret condenser

Element: Pressure, FET preamplifier.

Polar pattern: Omnidirectional

Frequency response: 20 to 20,000 Hz

Sensitivity : (at 1,000 Hz Open Circuit Voltage) -43dBV/Pa (7.1mV/Pa) ±3dB 1Pa=94dB SPL

Rated impedance: 800Ω

Minimum load impedance: 3,000Ω

Equivalent noise level: (A-weighted)22dB

Max. SPL (1 kΩ load): 128dB SPL (THD≦1% 1kHz)

Dynamic range (1 kΩ Load): 106dB

Signal-to-noise ratio: 72 dB

Power supply : 4LR44 6V battery

Current consumption : 0.5mA, >300 hour

Polarity : Pin 2 output positive voltage (related to pin 3) when diaphragm receives positive pressure. (Diaphragm moving inward)

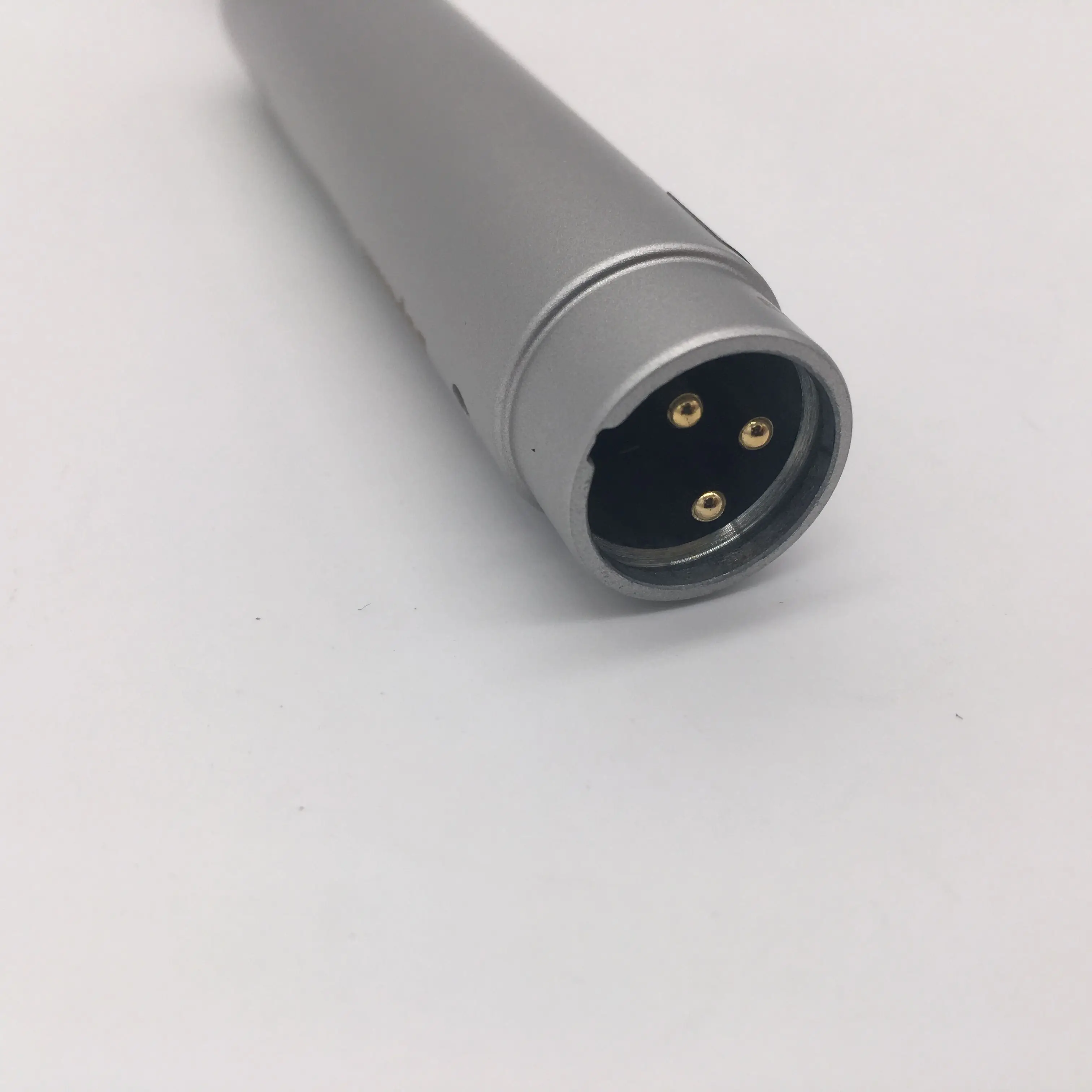

Connector : 3 pin male XLR type

Finish: Metal construction with champagne painted finish

Environmental conditions : The ECM888B operates between -10℃ to +50℃(14℉ to 122℉) with relative humidity between 0 to 95%.

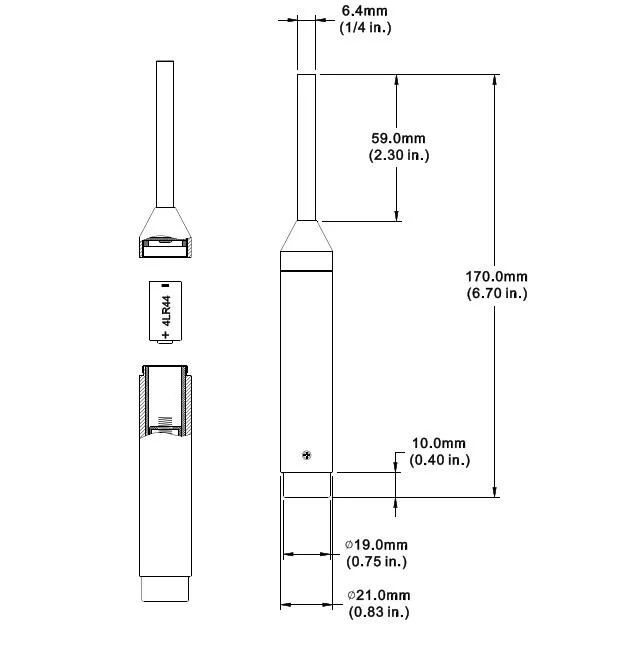

Dimensions: Φ21.0x170.0mm (0.83x6.70 in.)

Weight: 150g (5.30 oz.),

NOTE: Battery not included .

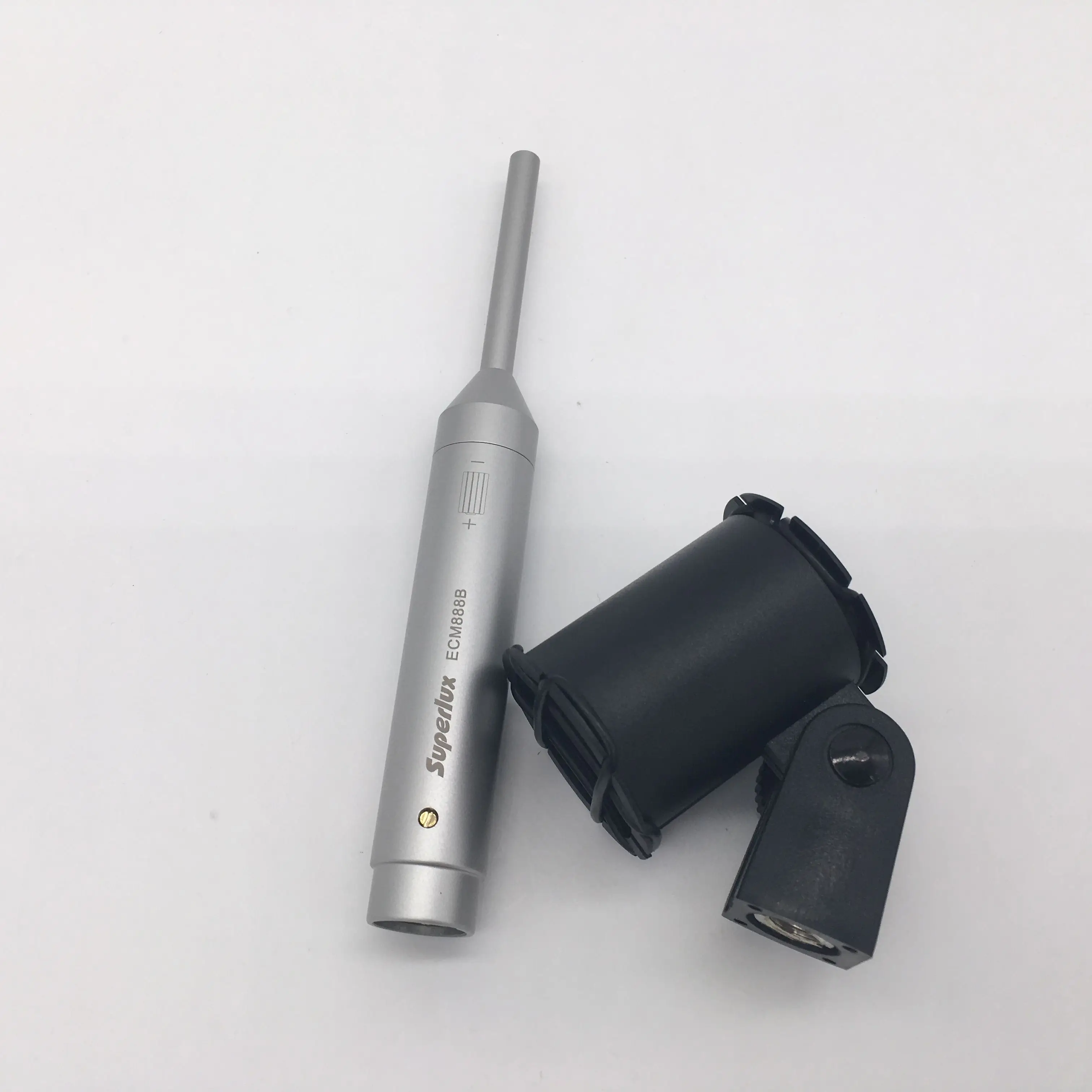

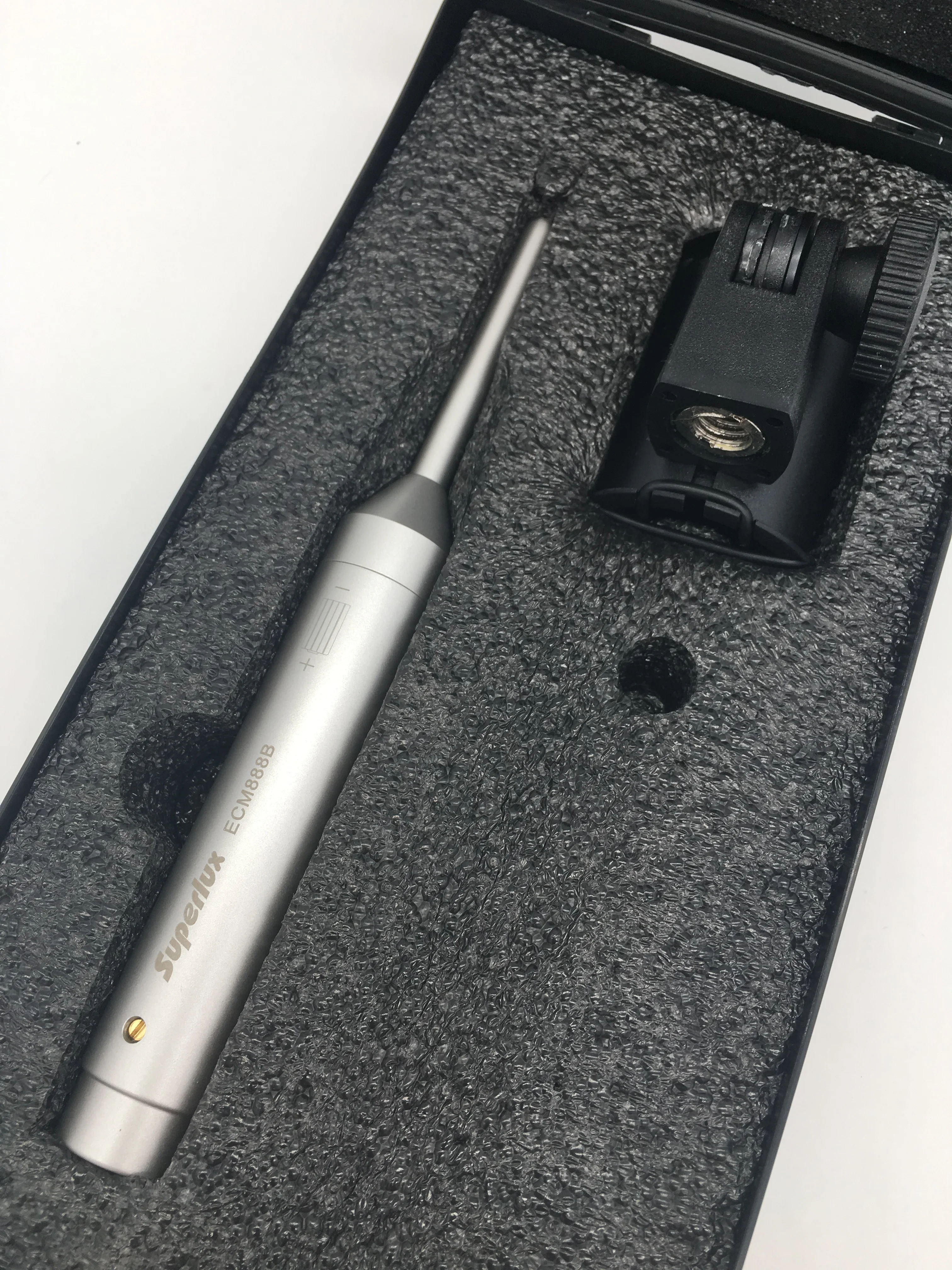

The ECM888B, including the product, shock mount and packages .
