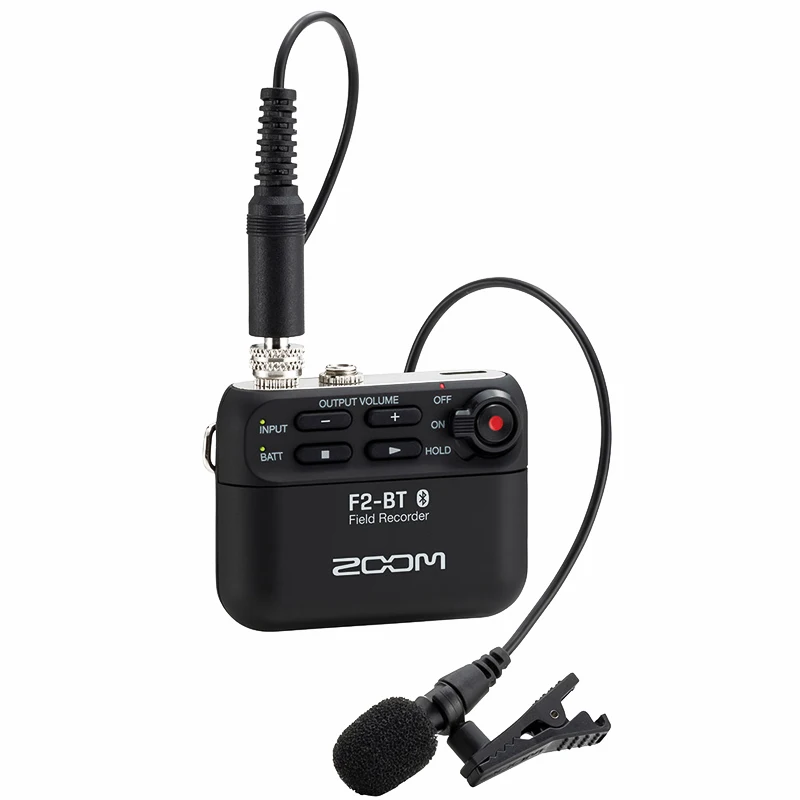

ZOOM F2 / F2-BT field recorder lavalier micropohone with a windscreen and lapel mic clip for Mobile live broadcast and vlog

Brand Name:	samson
Style:	Lavalier Microphone
Transducer:	audio recorder
Use:	audio recorder
Certification:	CE
Set Type:	Single Microphone
Origin:	CN(Origin)
Package:	Yes
Model Number:	ZOOM F2/ZOOM F2-BT

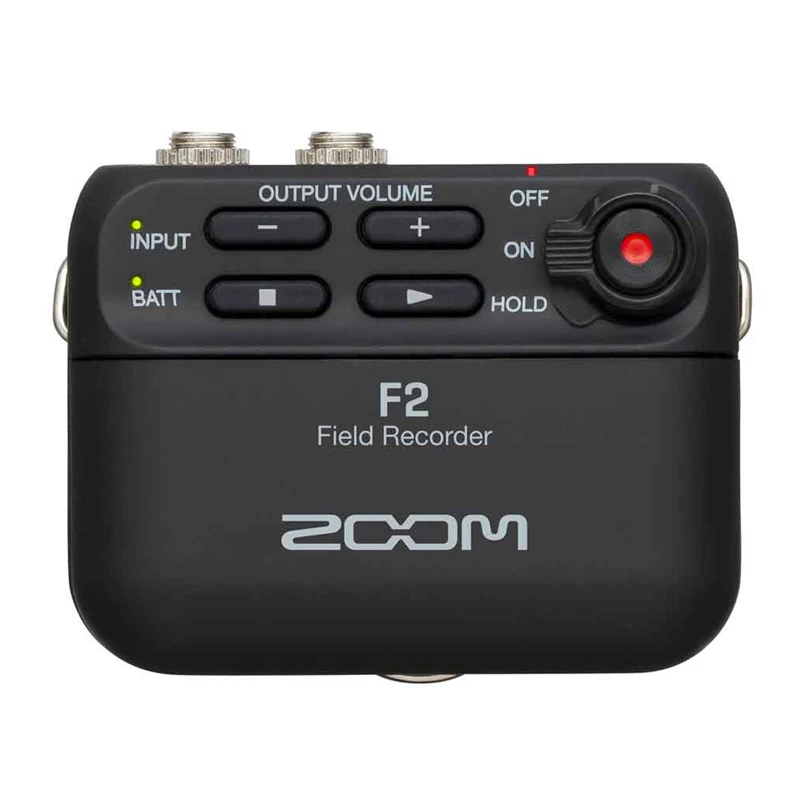

F2 FIELD RECORDER & LAVALIER MIC

32-BIT FLOAT TECHNOLOGY IN OUR SMALLEST, LIGHTEST RECORDER EVER

BUILT FOR BIG THINGS

For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

*F2 is available with or without Bluetooth

DON’T BE FOOLED BY ITS SIZE

The F2 is incredibly small, but its audio quality will amaze you.

AUDIO ON AUTOPILOT

The F2, also available in white, features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don’t have to worry about setting the gain. Just plug in the lav and hit record.

PLEASE HOLD

Once you start your recording, use the F2’s HOLD switch to ensure you don’t accidentally stop recording.

LOCK ‘N LAV

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

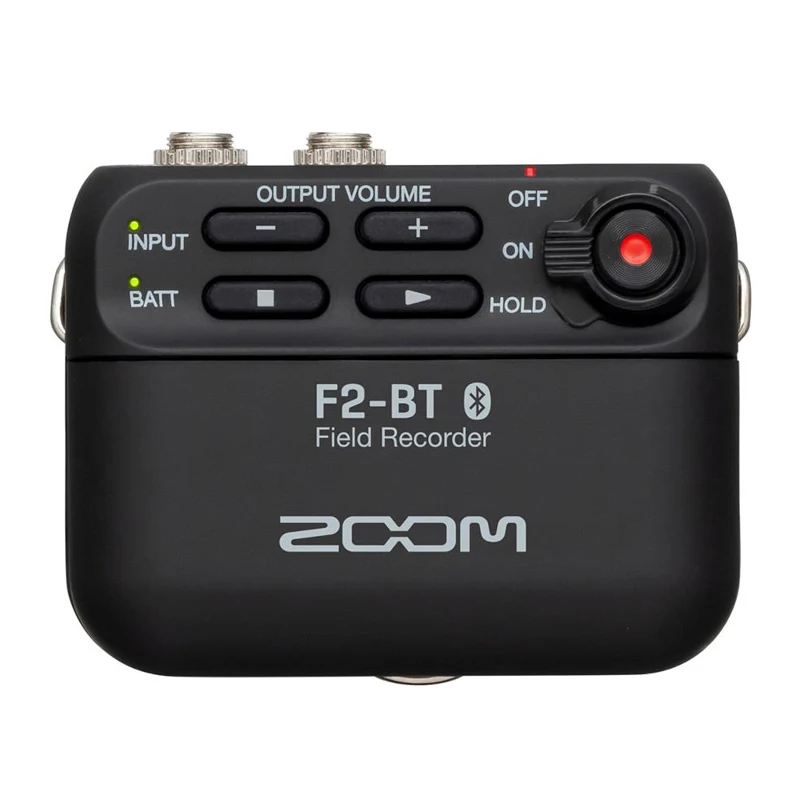

ALSO AVAILABLE WITH BLUETOOTH CONTROL

The F2-BT comes with built-in Bluetooth. And with the free Zoom F2 Control app ( for iOS / Android ) the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.

You can also pair the F2-BT with a Bluetooth timecode synchronization device to receive and write timecode to recorded files.



THE F2 EDITOR

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features here.

FREE EDITING SOFTWARE

The Zoom F2 comes with a free download license for Steinberg’s WaveLab Cast software. WaveLab Cast helps you finalize your project with a wide range of comprehensive editing, mixing, and refinement tools.

Podcasting

WaveLab Cast connects you directly with podcast directories, such as Spreaker or Podbean. You can upload episodes quickly, plus directly create and publish RSS feeds.

Audio for Video

Import your video file and WaveLab Cast will automatically extract the audio. You can use the editing tools to lower unwanted noise, change levels and remove loud sibilants. Metering options allow you to build new tracks, fade-in your music, use EQ and compression. Re-attach the audio to the video file using WaveLab Cast’s export functions.

Field Recording

WaveLab Cast supports up to 96KHz audio quality and includes a high-end re-sampler. RestoreRig removes noise and unwanted sounds. You can assemble new files using the snap functions and crossfade options. Once you’re done, export your sound files in any popular audio format.

WHAT’S IN THE BOX

F2 or F2-BT Field Recorder

LMF-2 Lavalier Microphone

3 - WSL-1 Windscreen

MCL-1 Mic Clip

2 - AAA Batteries

WaveLab Cast Software

F2/F2-BT Operation Manual

Light and compact audio recorder

32-Bit Float recording for full dynamic range and clip free recording

No gain adjustment necessary

Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files

Rec Hold function to avoid accidental operation of buttons

1/8" Mic In mini phone jack with Plug-in power (2.5V)

Stereo ⅛" Phone/Line Output jack with dedicated volume control

80 Hz low cut filter

High precision internal clock to avoid audio and video syncing issues

Wireless timecode synchronization (F2-BT model only)*

Records directly to micro SD and SDHC cards up to 512 GB

USB-C for connection to F2 Editor for settings

Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)

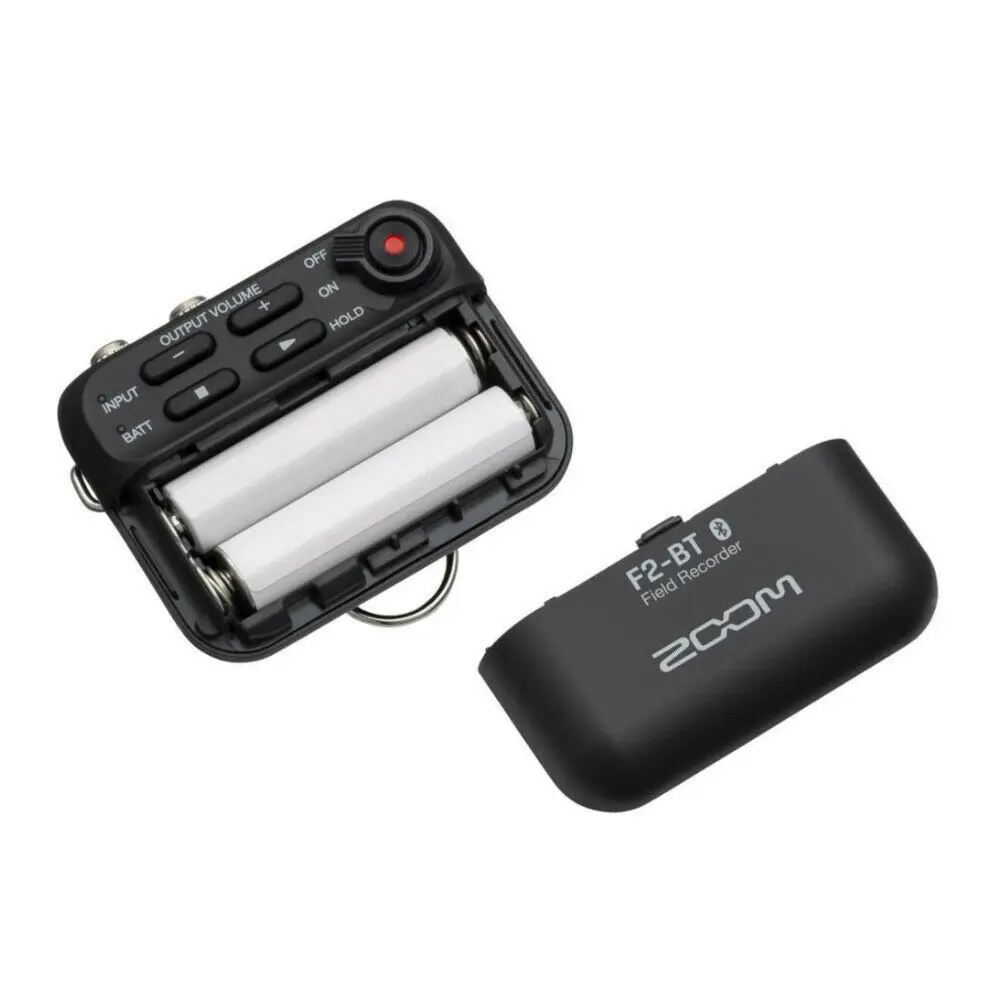

Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)

Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries

*F2-BT connection to UltraSync BLUE device by Timecode Systems is required.

SPECS

F2/F2-BT

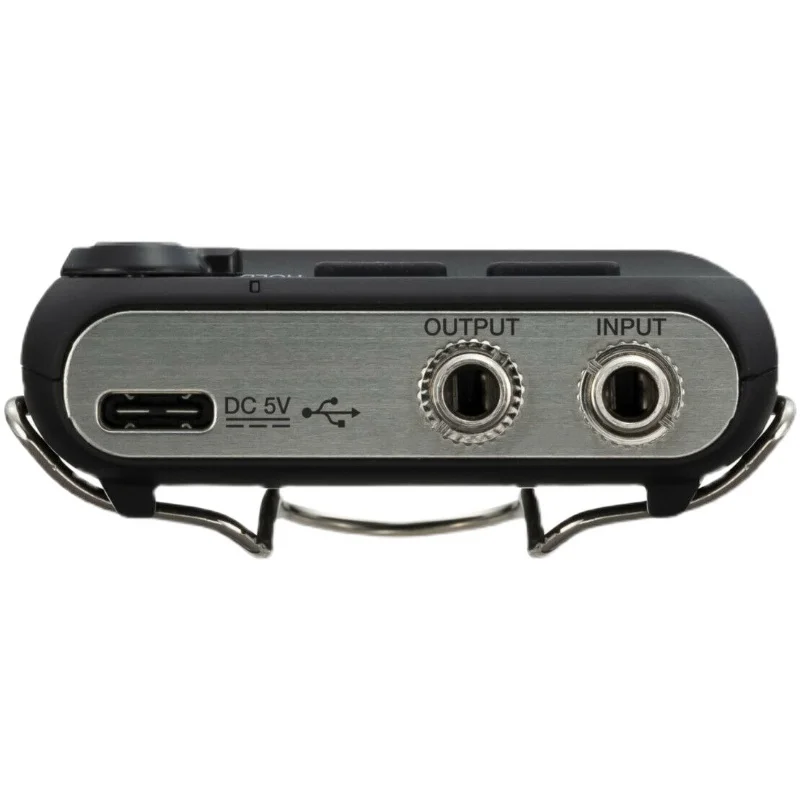

INPUT

CONNECTOR:

3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)

INPUT GAIN:

None (dual AD conversion system)

INPUT IMPEDANCE:

2 kΩ or more

MAXIMUM INPUT LEVEL:

−5.5 dBu

OUTPUT

CONNECTOR:

3.5 mm stereo mini (with screw lock)

MAXIMUM OUTPUT LEVEL:

20 mW + 20 mW (into 32Ω load)

RECORDING MEDIA

CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS

(CLASS 4 OR HIGHER, 512 GB MAXIMUM)

RECORDING FORMAT

WAV:

44.1kHz/32-bit float, 48kHz/32-bit float Mono,

BWF format supported

USB

USB TYPE-C

MASS STORAGE OPERATION

USB 2.0 High Speed

PC APP OPERATION

USB 2.0 High Speed

POWER

2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A

MISCELLANEOUS

BLUETOOTH:

Bluetooth Ver4.2 (F2-BT only)

CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT):

Alkaline batteries: about 14 hours

NiMH batteries (750 mAh): about 10 hours Lithium batteries:

about 18 hours

• The above values are approximate.

EXTERNAL DIMENSIONS:

57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D)

WEIGHT (MAIN UNIT ONLY):

32 g

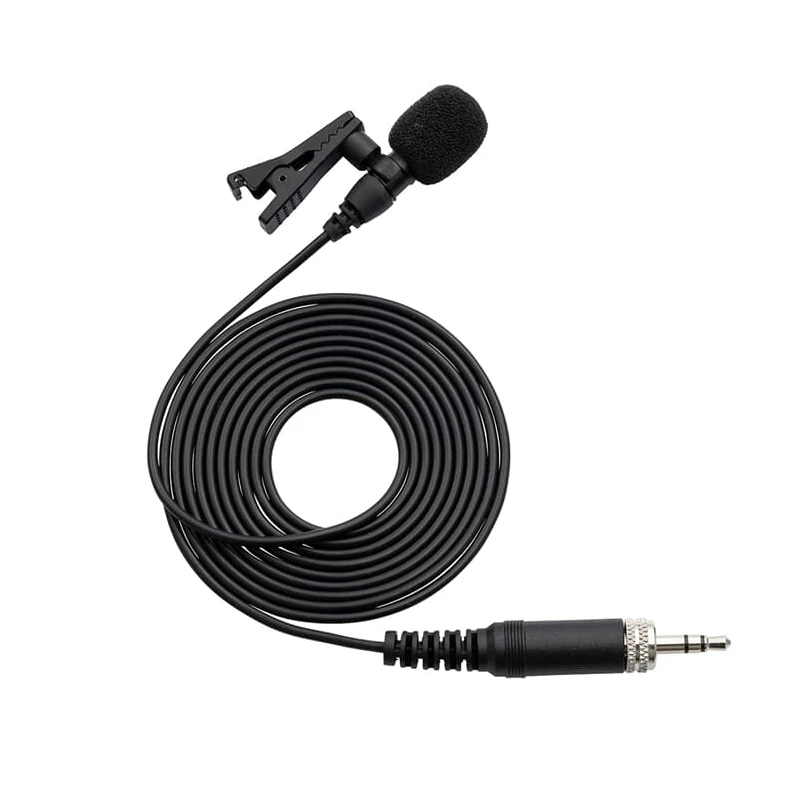

LMF-2

LAVALIER MIC

CONNECTOR:

3.5 mm stereo mini (with screw lock)

DIRECTIONALITY:

Omnidirectional

SENSITIVITY:

–32 dB/Pa at 1 kHz

MAXIMUM SOUND PRESSURE INPUT:

115 dB SPL

CABLE LENGTH:

160 cm
