gaming mic Freeboss FB-U35H Dual Way UHF Fixed Frequency Wireless Microphone System with Handheld + Lapel + Headset for Karaoke Microphone karaoke microphone Microphones

Brand Name:	FREEBOSS
Style:	Handheld Microphone
Transducer:	Dynamic Microphone
Use:	Karaoke Microphone
Certification:	NONE
Set Type:	Transmitter Sets
Origin:	CN(Origin)
Polar Patterns:	Cardioid
Communication:	wireless
Package:	Yes
Model Number:	FB-U35H
Cartridge:	Dynamic
Tube Material:	Plastic
Frequency Range:	Fixed UHF Band
Receiver Material:	metal box
Working range:	over 30M(Without obstacle)
Working temperature range:	-10~40℃
Warranty:	1 year
Application:	KTV, Talk show ,Performance ,Entertainment
Output Type:	Separated or Mixed Output
Color:	Black

FB-U35H

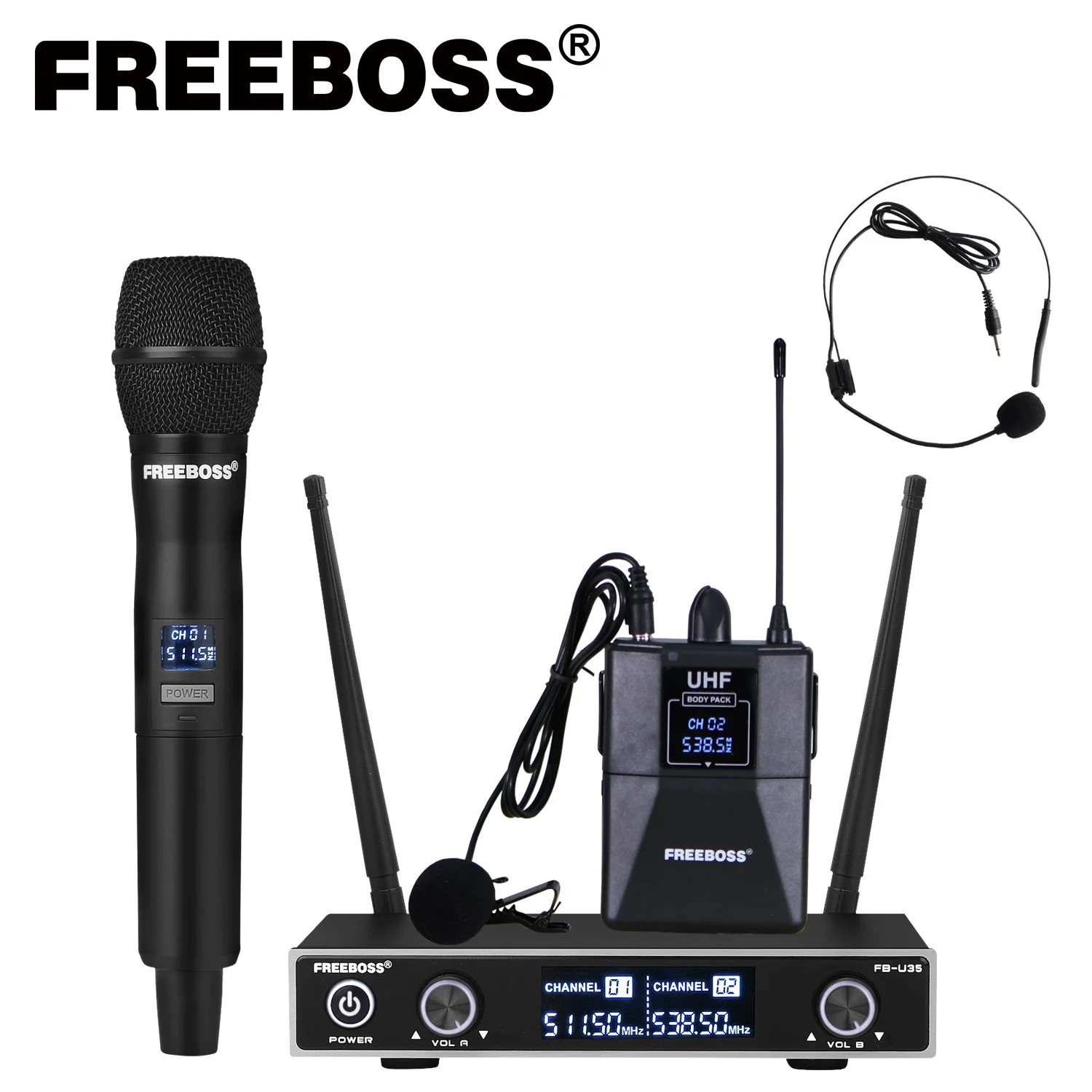

Freeboss FB-U35H Dual Way UHF Fixed Frequency Wireless Microphone System with Handheld + Lapel + Headset for Karaoke Microphone

1.Selling Point

:

1) UHF Band Fixed Frequency

2) Transmitter:

1pc Handheld + 1pc Bodypack + 1pc Lapel + 1pc Headset

3) Receiver:

a) Metal Box, ON/OFF Button, RF Indicator

b) Individual volume controls on each channel

4) Two XLR individual outputs and one 1/4" Mixed output.

5) Range: up to 98 Feet ( over 30 meters ), Suit for karaoke, speaking, party, church, etc.

6) battery: 2 * 2 *1.5AA (not included in the package.)

2.

Working Range:

Over 30 meters ( 98 feet ) without obstacle

3.Receiver:

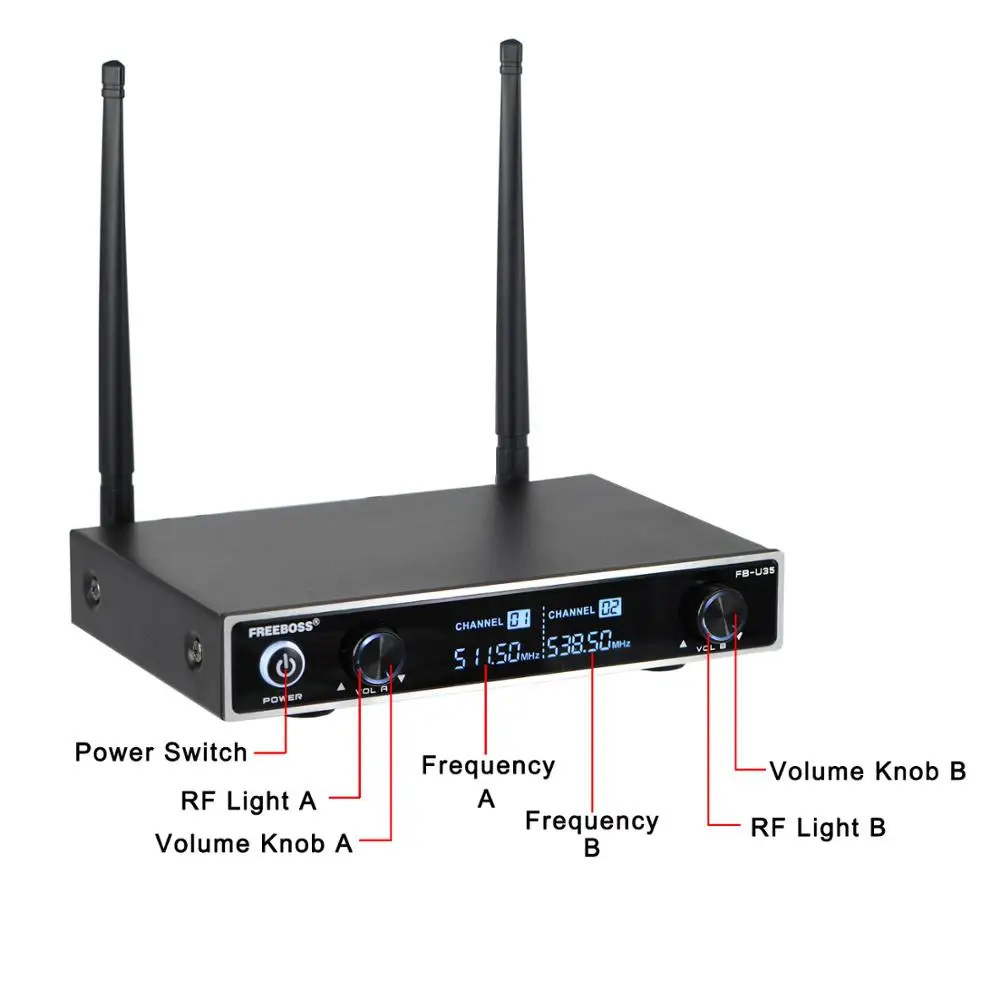

Receiver front panel function:

1.) Power Switch:

A)  Link the power adapter to receiver power socket,then link the power adapter to 220V power.

B)  Press the receiver power button,power indicator is on,the receiver is on "working" status.

2.) RF Led Indictaor

when the receiver is on "working" status,

A) Microphone A/B no power, left/right RF light is off

B) Microphone A/B is on, left/right RF light is on

3) Volume Knob:

clockwise: volume from low to high

anticlockwise: volume from high to low.

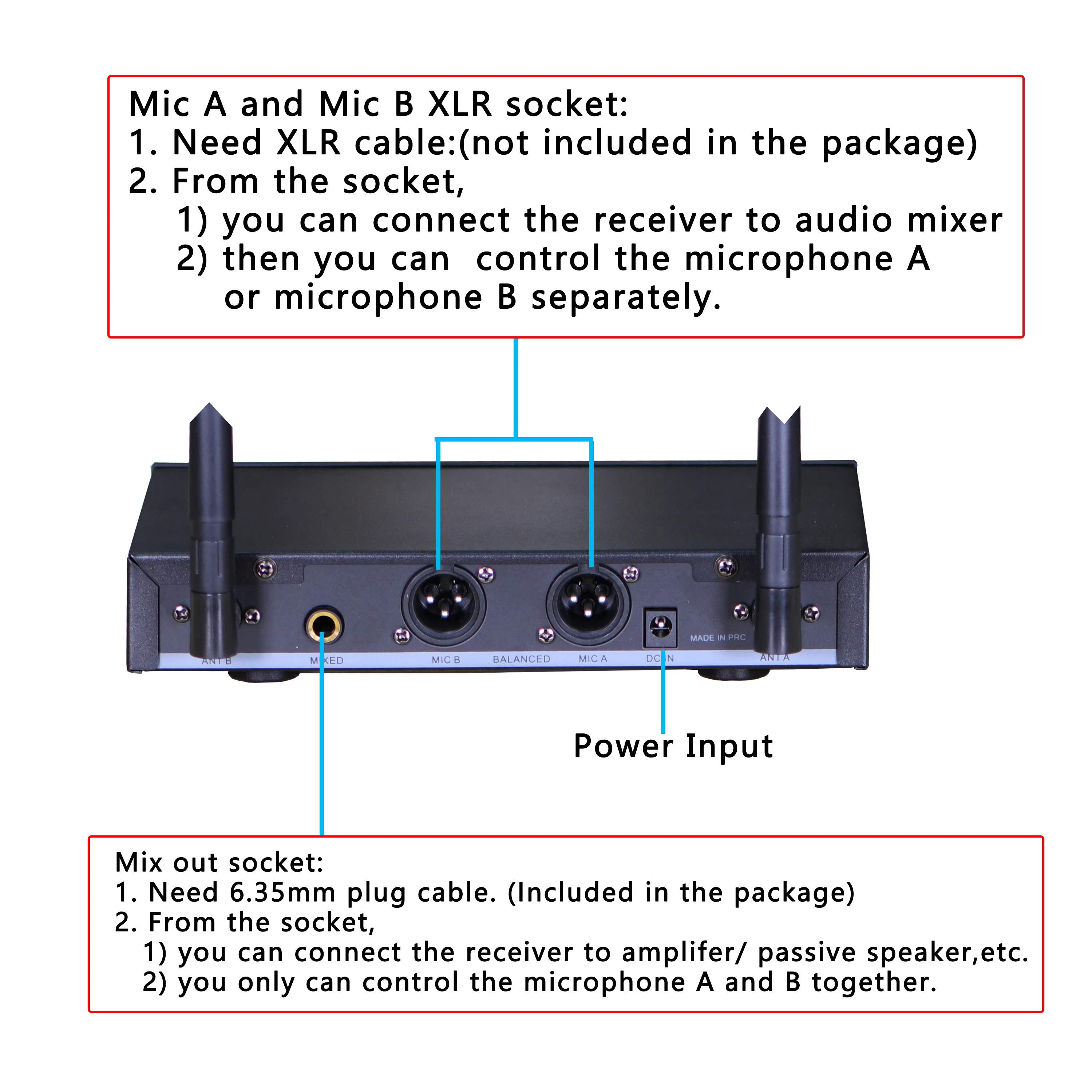

Receiver back panel function:

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can controld the microphone A  or microphone B separately.

2)Mix out socket:

A.) Need 6.35mm plug cable.

(included in the package)

B.) From the socket,

a) you can connect the receiver to amplifer/speaker,etc.

b) you only can control the microphone A and B together.

4.

Power Adapt:

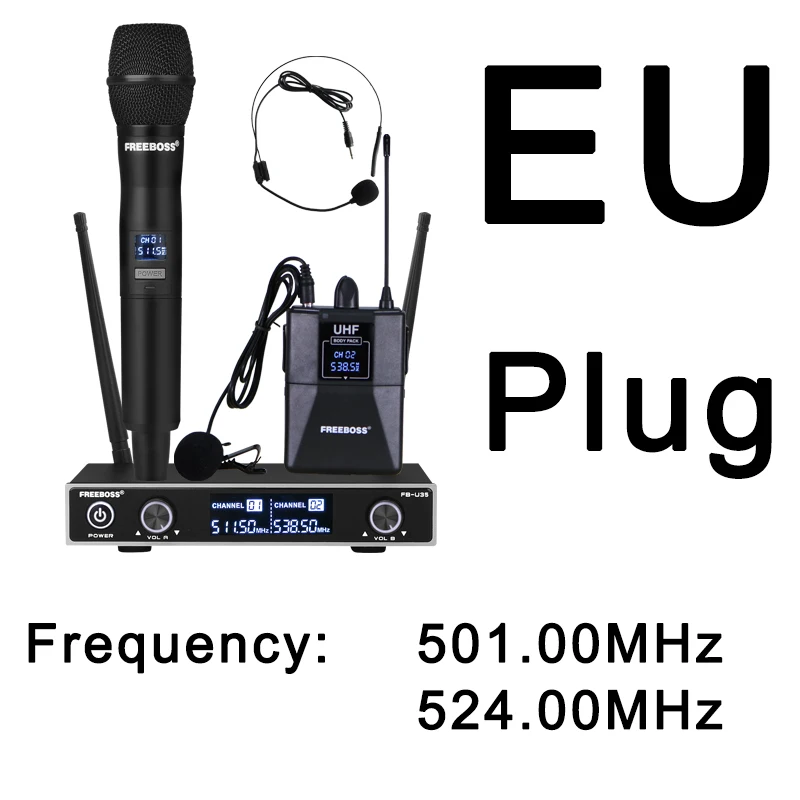

1) EU PLUG

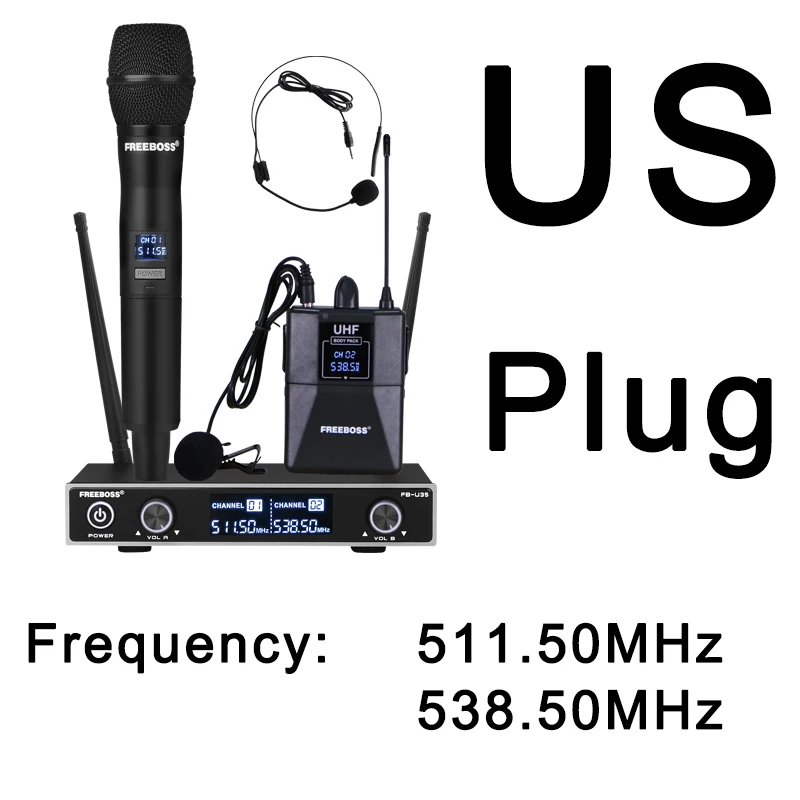

2) US PLUG
3) PLUG adapter

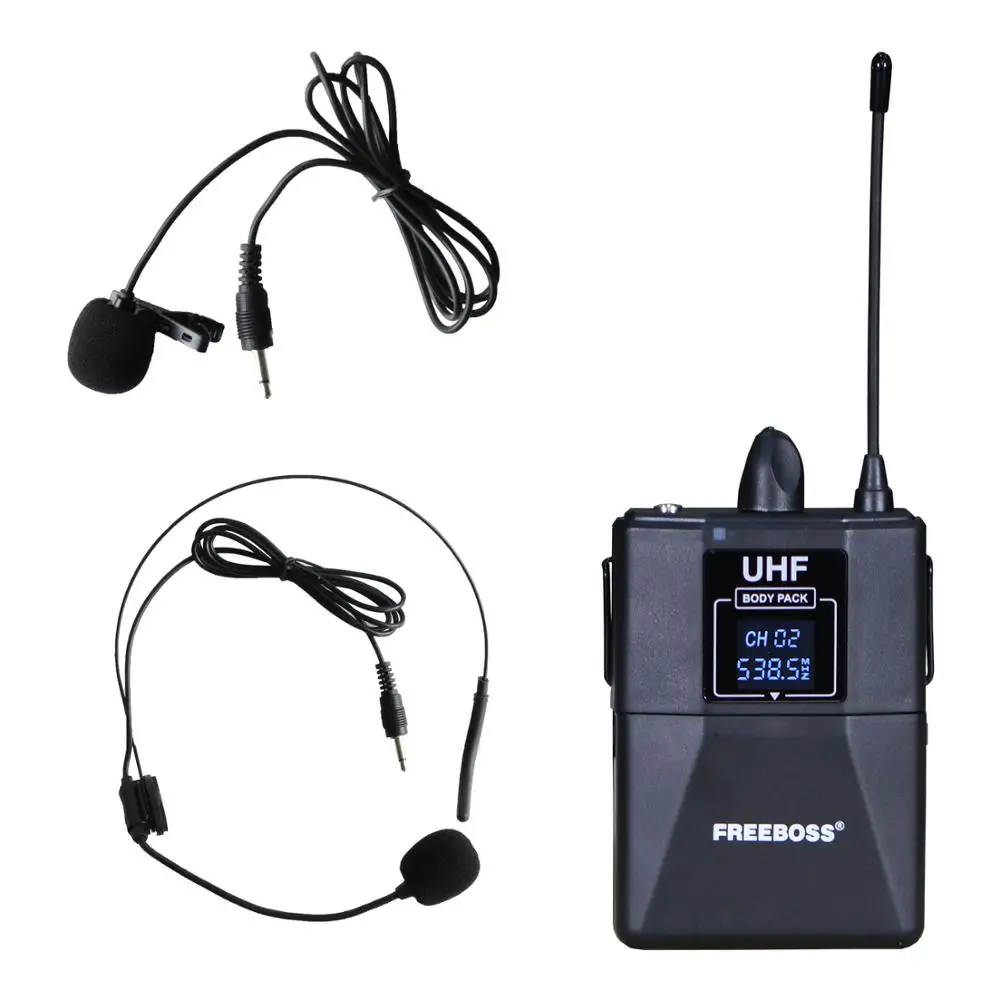

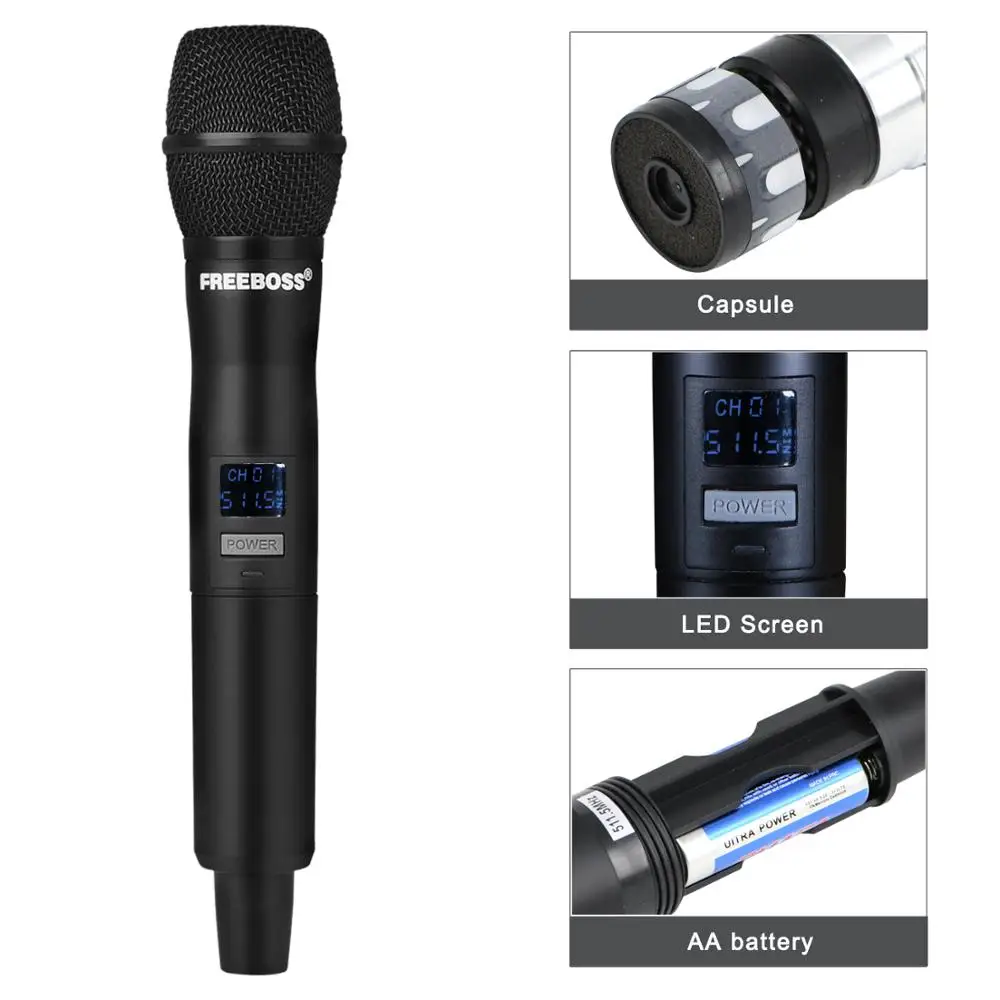

5.Transmitter:

Capsule: Professional Audio Dynamic Capsul

Transmitting power:<=10dbm

Frequency stabilization:+-0.005%

Battery Two-pieces battery of 1.5

Material:

Plastic handheld, Comfort and smooth handling experience with elegant appearance.

Cartridge:

1) Type: Moving coil

2) Polar pattern: Cardioid

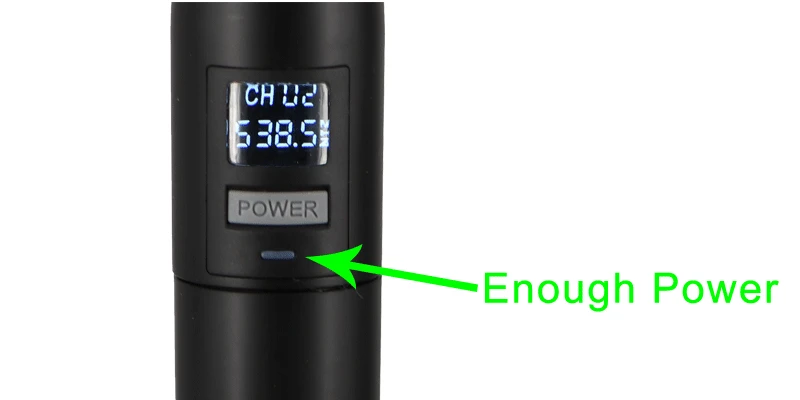

Low-LED:

Battery low power LED indicator:

1)White led light on: enough power

2)Red led light flash: low power

6.

Application:

7.

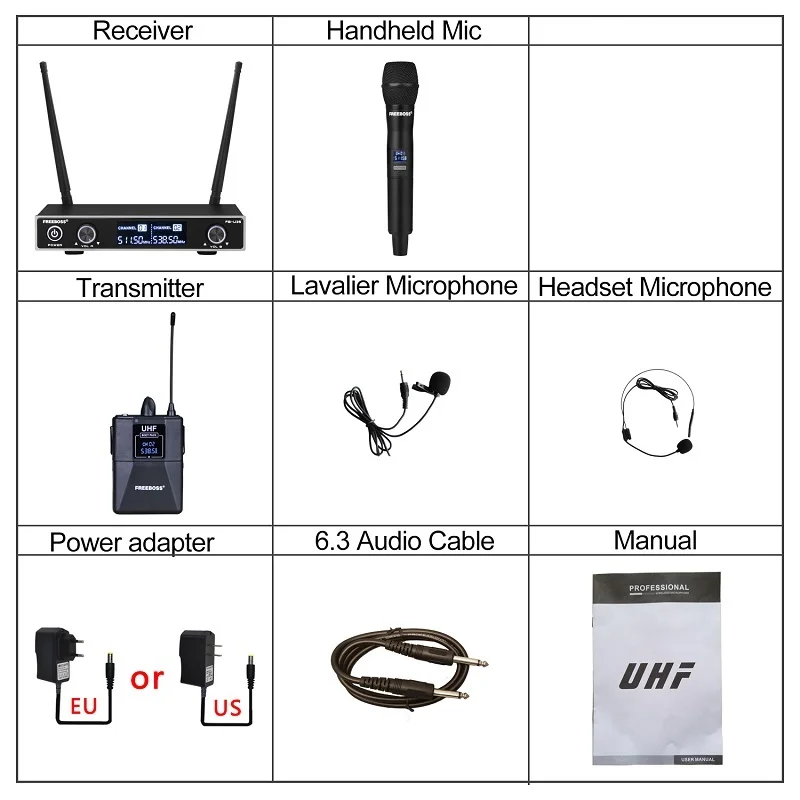

Packing Pictures:

1) Handheld Microphone      1 pc

2) Lapel Microphone             1 pc

3) Bodypack transmiter        1 pc

4) Headset Microphone        1 pc

5) Receiver                             1 pc

6) Audio cabel                       1 pc

7) Power adapter                  1 pc

8) Owner's manual                1 pc

8.Troubleshooting:

Problem:  No Sound; RF light(s) not glowing.

Solution:  Make sure the transmitter POWER switch is ON and the receiver is plugged

into a power source.

Check battery

Check receiver squelch setting

Check receiver antenna connection(s)

Make sure antennas are in line of sight of transmitter

Problem:  No sound; RF lights glowing.

Solution:  Turn up receiver audio VOLUME control.

Check for proper connection between receiver and audio mixer unit.

Problem:  Received signal is noisy or contains extraneous sounds with transmitter on.

Solution:  Check battery.

Remove local sources of RF interference.

If using a guitar or other instrument, check connection. Two transmitters may be operating

on the same frequency. Locate and turn one off.

Signal may be too weak, Reposition antennas. If possible, move them closer to transmitter.

Problem:  Noise from receiver with transmitter off

Solution:  Adjust receiver squelch control.

Remove local sources or RF interference.

Reposition receiver or antennas.

Problem: Momentary loss of sound as transmitter is moved around performing area.

Solution: Reposition receiver and perform another “walkthrough” test and observe the RF indications.

If audio dropouts persist, mark these “dead sopts” in performing area and avoid them during

performance.

9.Specifications:

Squelch_Contro: Noise Lock

Operating Range:50min open Ares.

Frequency Deviation:

±

18KHz

Frequency Stability:

±

0.005%

S/N Ratio: ≥70db

Total Harmonic_Distortion: <0.5%(at 1 kHz)

Number of Channel: 2 Channels

Resonance Interfere Rate: ≥ 50db

False Image Interfere Rate: ≥ 50db

Receiver Power Supply: AC 110-220V

Transmitter Power Supply: 2*  1.5V Batteries.

Transmit Power: ≤10mW;

Frequency Range: Fixed UHF Band

Output Type: Separated or Mixed Output

Please Note:

Please confirm the frequency is ok for you.

If you need other frequency, please tell us before you order.

HOW TO USE Wireless Microphone:

1) 6.35 plug cable to audio mixer (there is one piece cable in the package)

2) 6.35 plug cable to audio mixer (there is one piece cable in the package)

3) 6.35 plug cable to amplifier (there is one piece cable in the package)

4) 6.35 plug cable to amplifier (there is one piece cable in the package)

5) 6.35 plug cable to amplifier speaker (there is one piece cable in the package)
